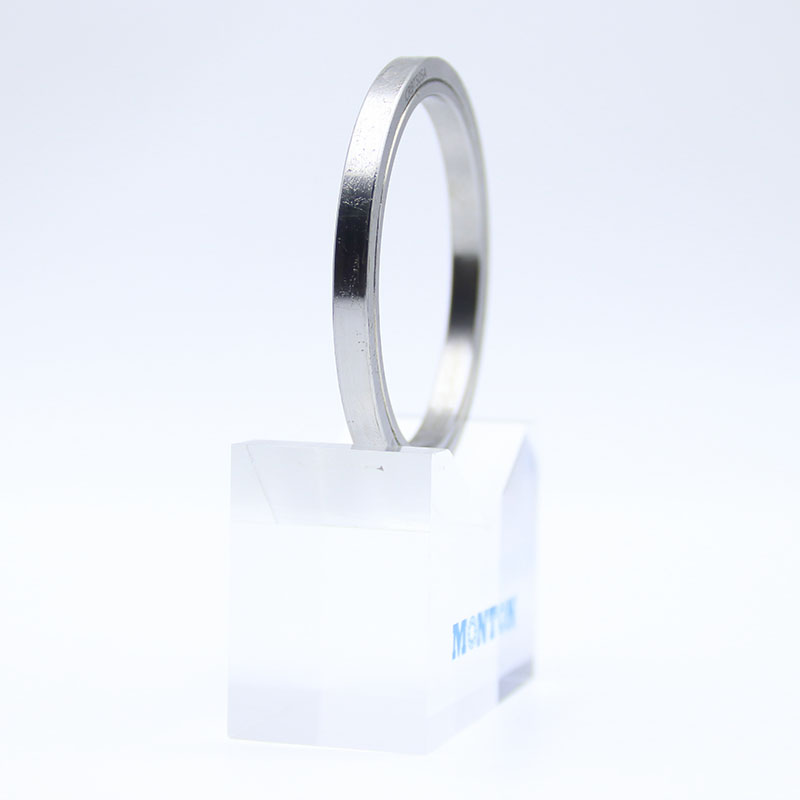

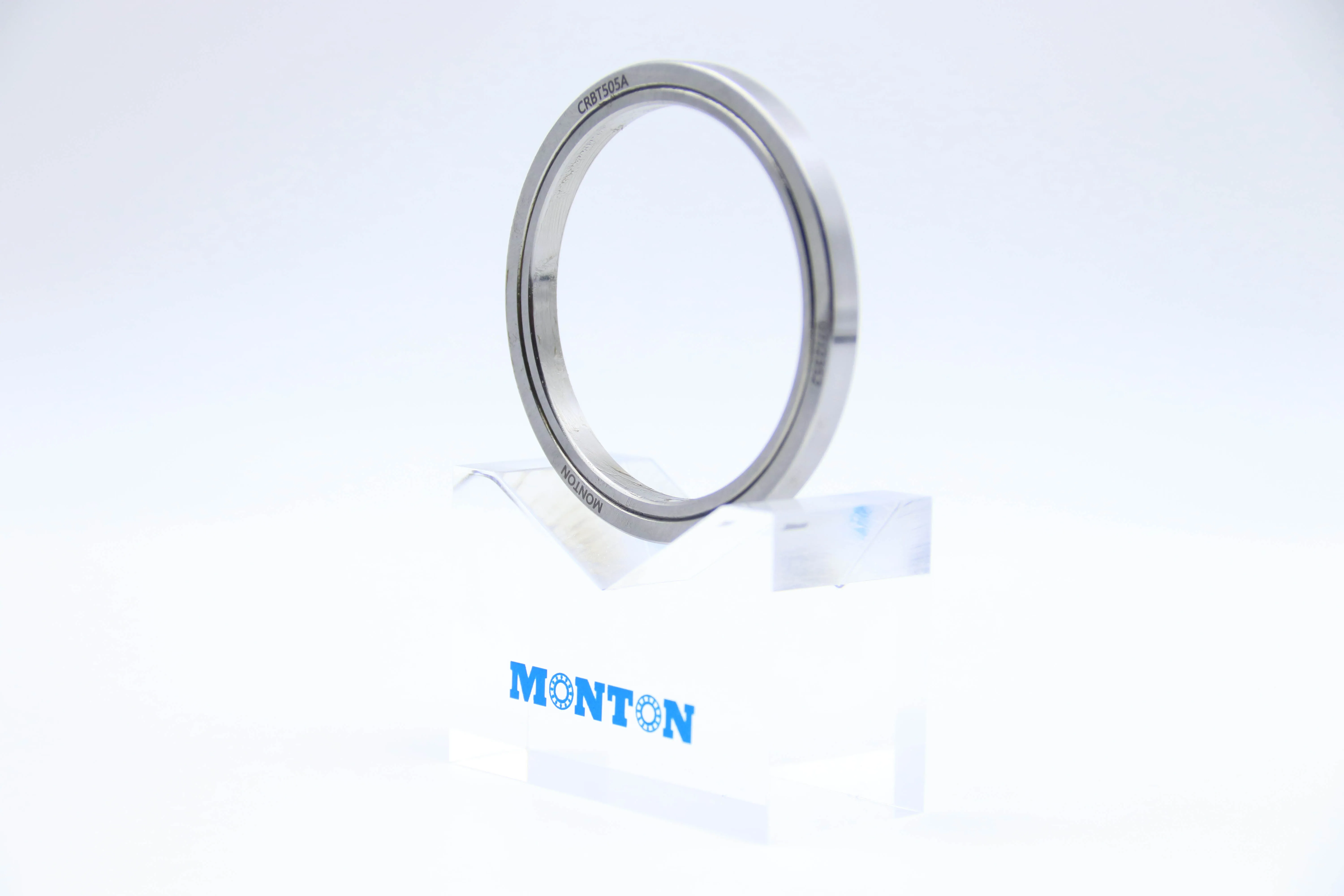

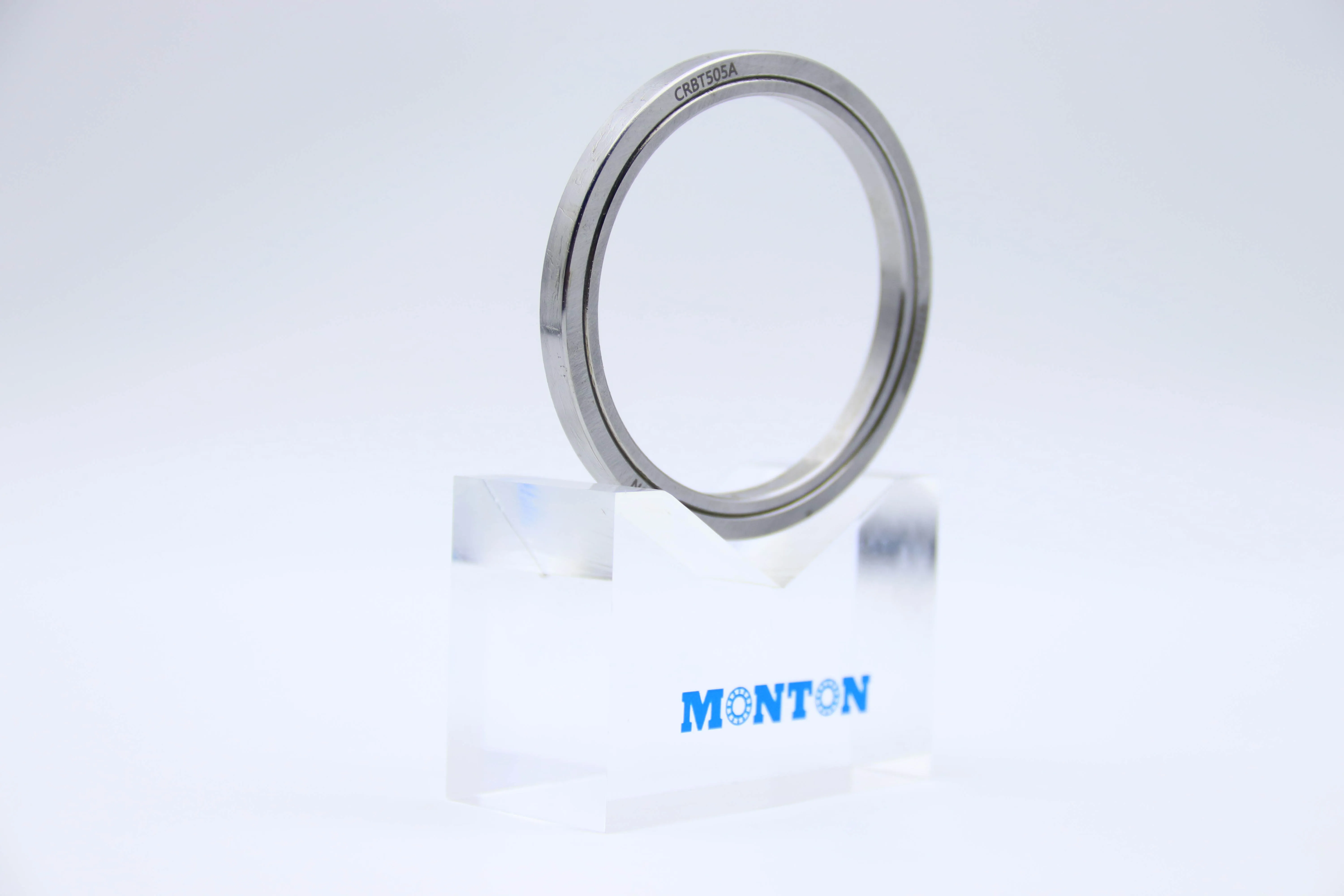

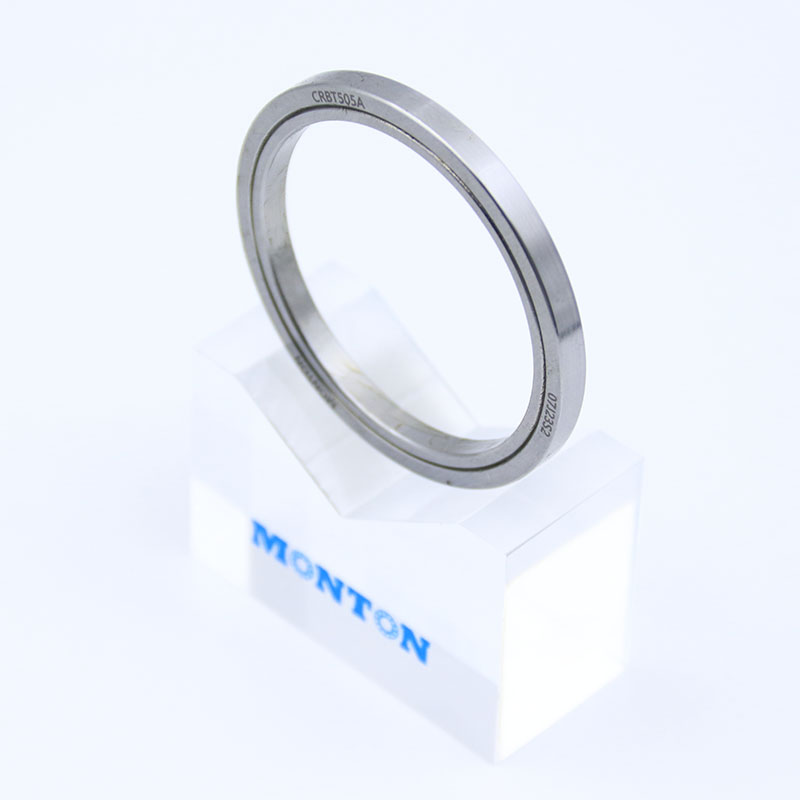

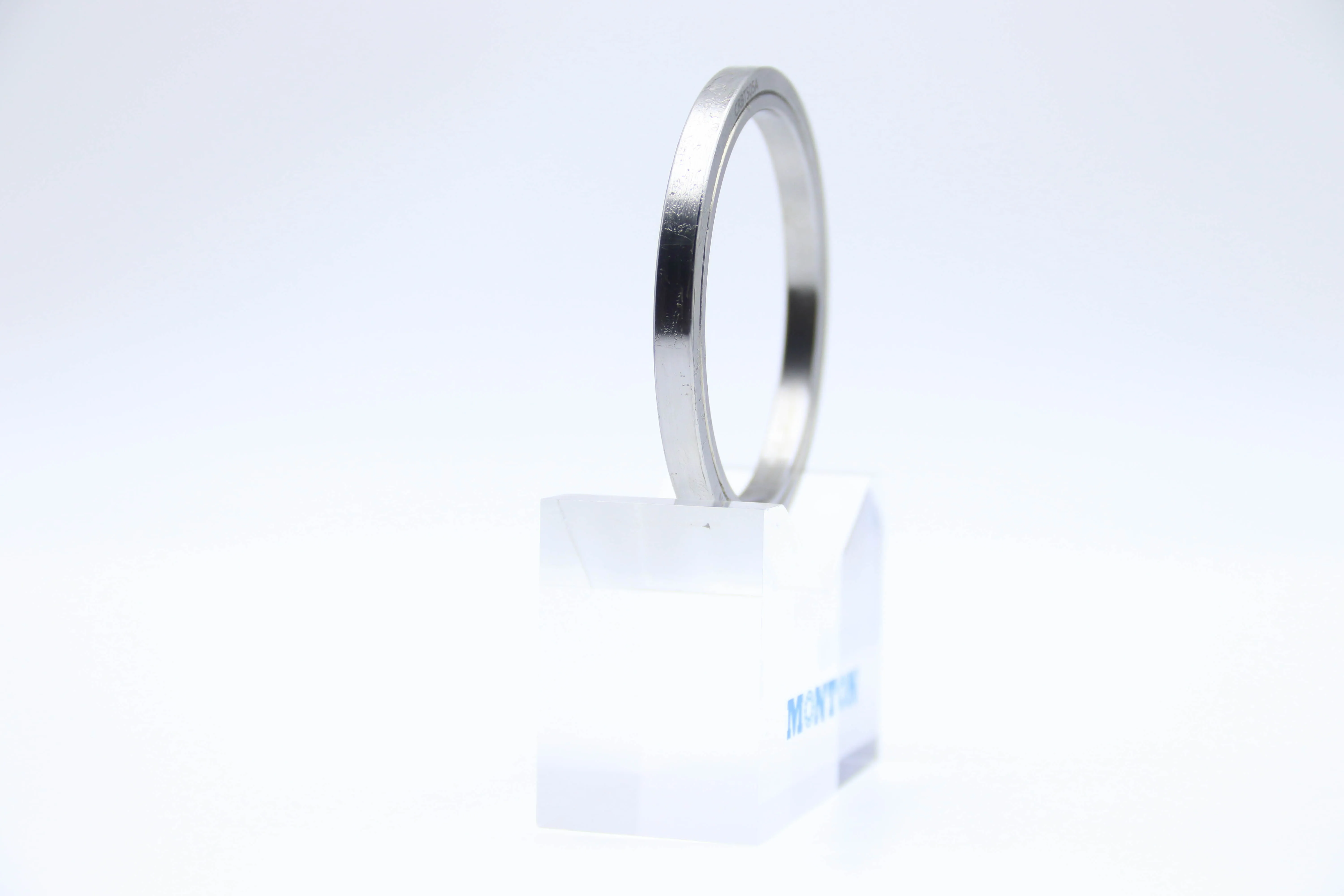

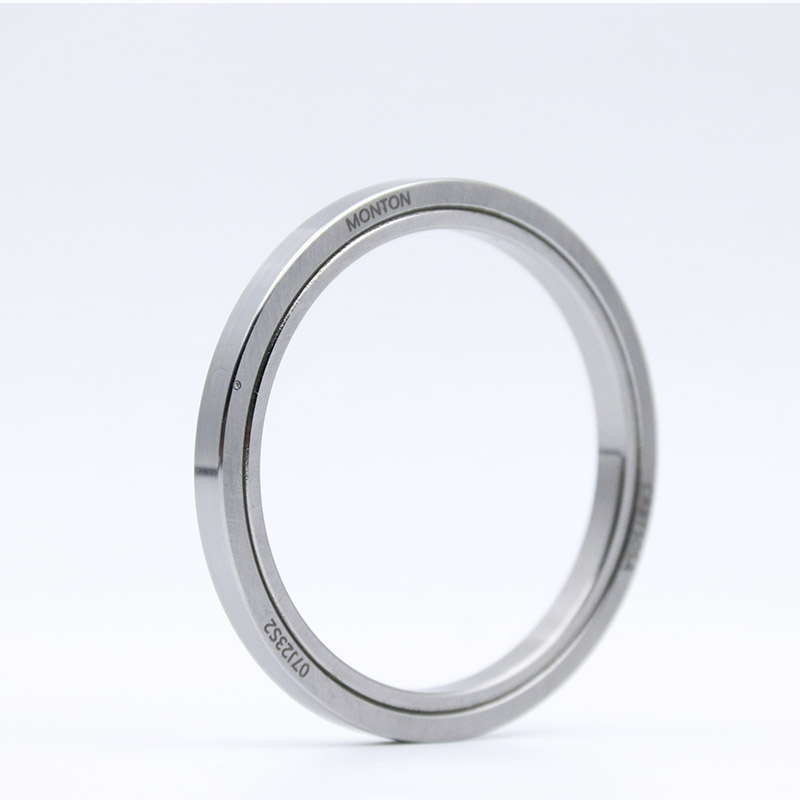

CRBT505A Super slim Crossed Roller Bearing

The slim cross roller bearing CRBT505A adopts an integrated structure to enhance rigidity, with a cross-sectional height of only 5mm. Compared with traditional models, it reduces weight by 38% and occupies 43% less space, making it suitable for compact equipment. Commonly used in industrial robot joints, humanoid robots, robotic dog actuators, collaborative robots, and exoskeleton devices.

Case Details

Name	Super slim Crossed Roller Bearing
Seires	CRBT series
Brand	MONTON
Open type	CRBT505A
d	50mm
D	61mm
B	5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating C	2.43KN
Load rating Ca	3.49KN
Sealed	Open
Weight	32g
Design Structure	Crossed roller
Precision	P4,P5
Vibration
Clearance	C0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Compact Hand Robot Compact Surveillance Camera
