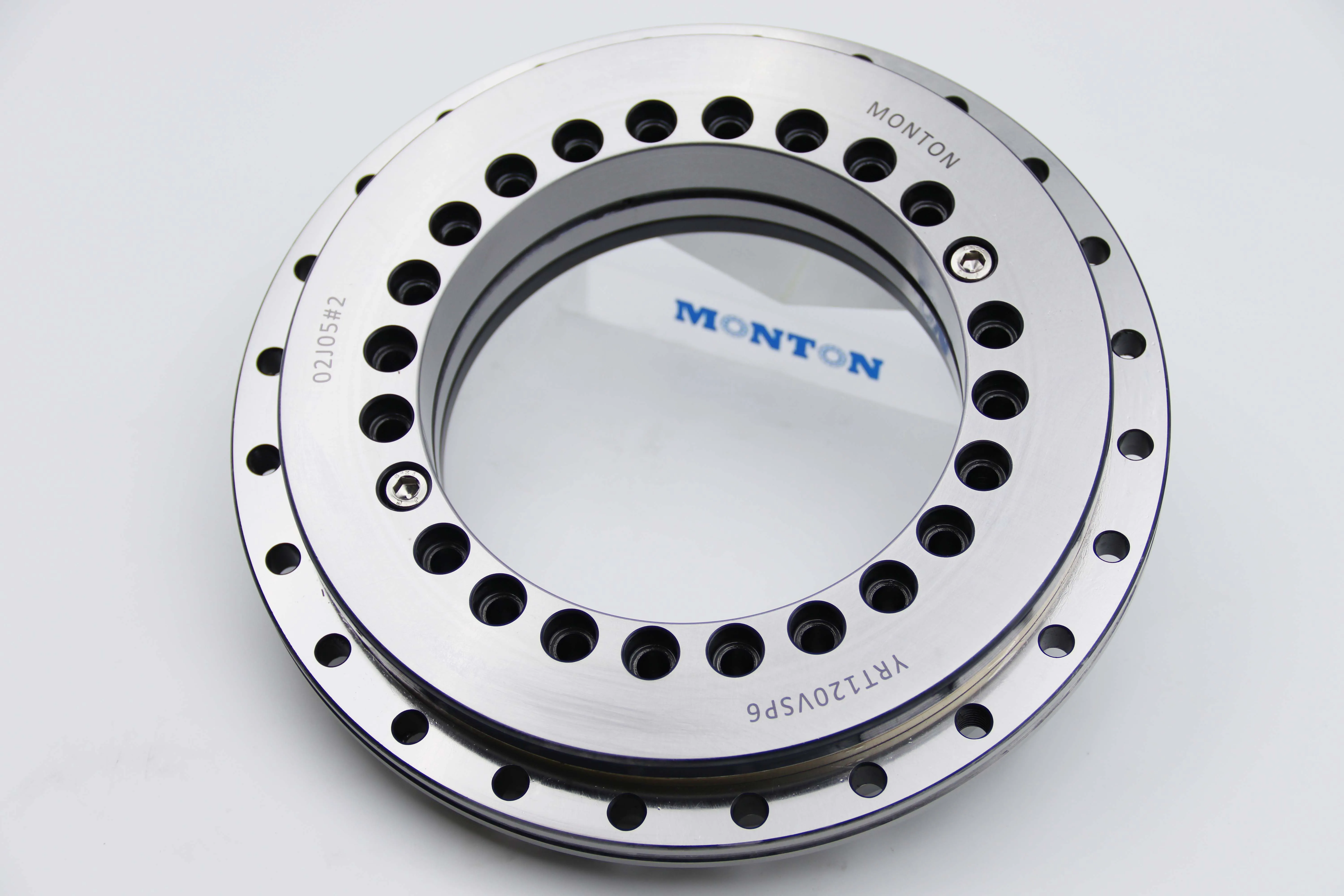

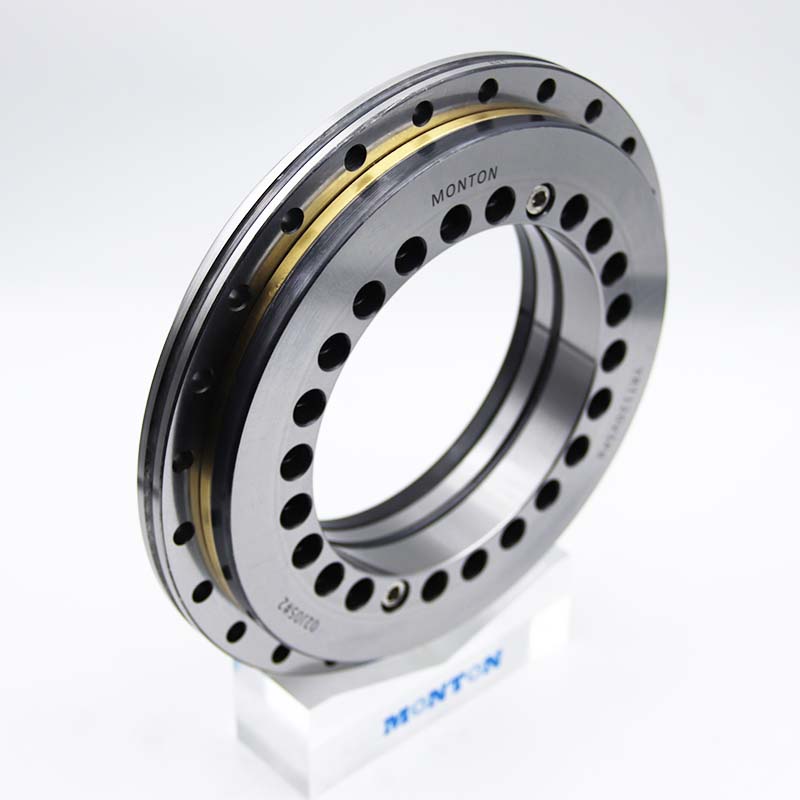

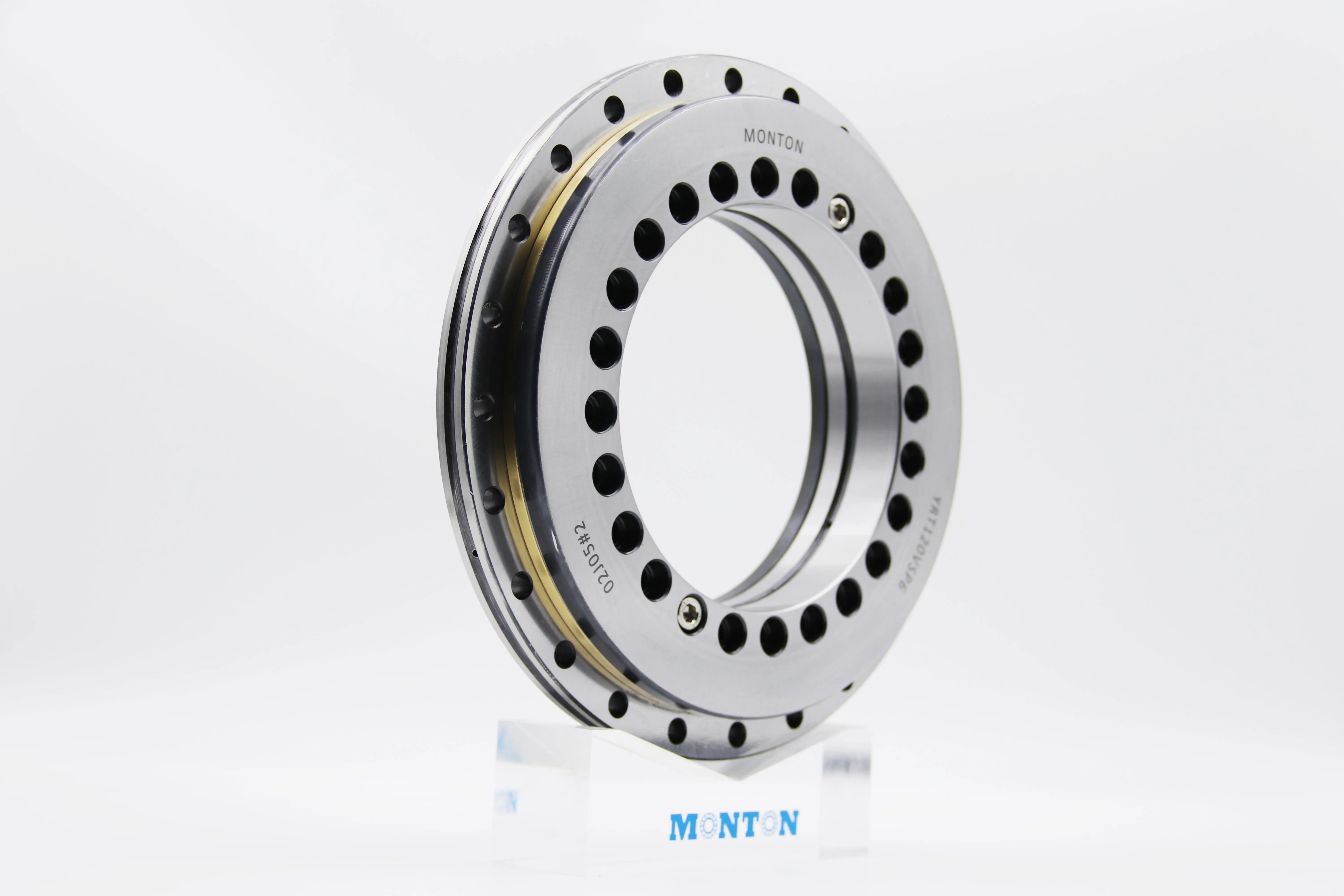

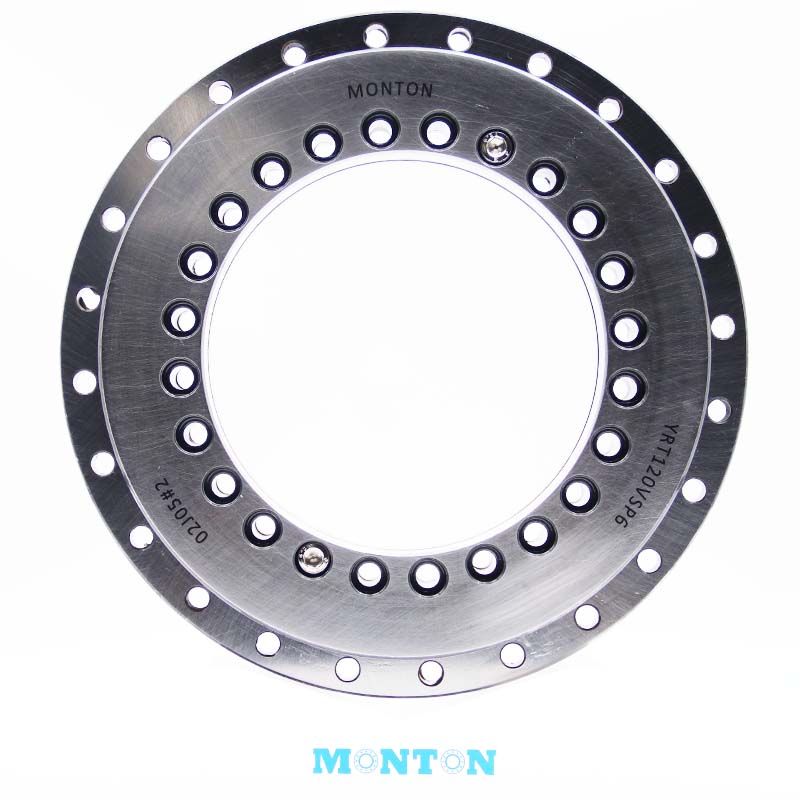

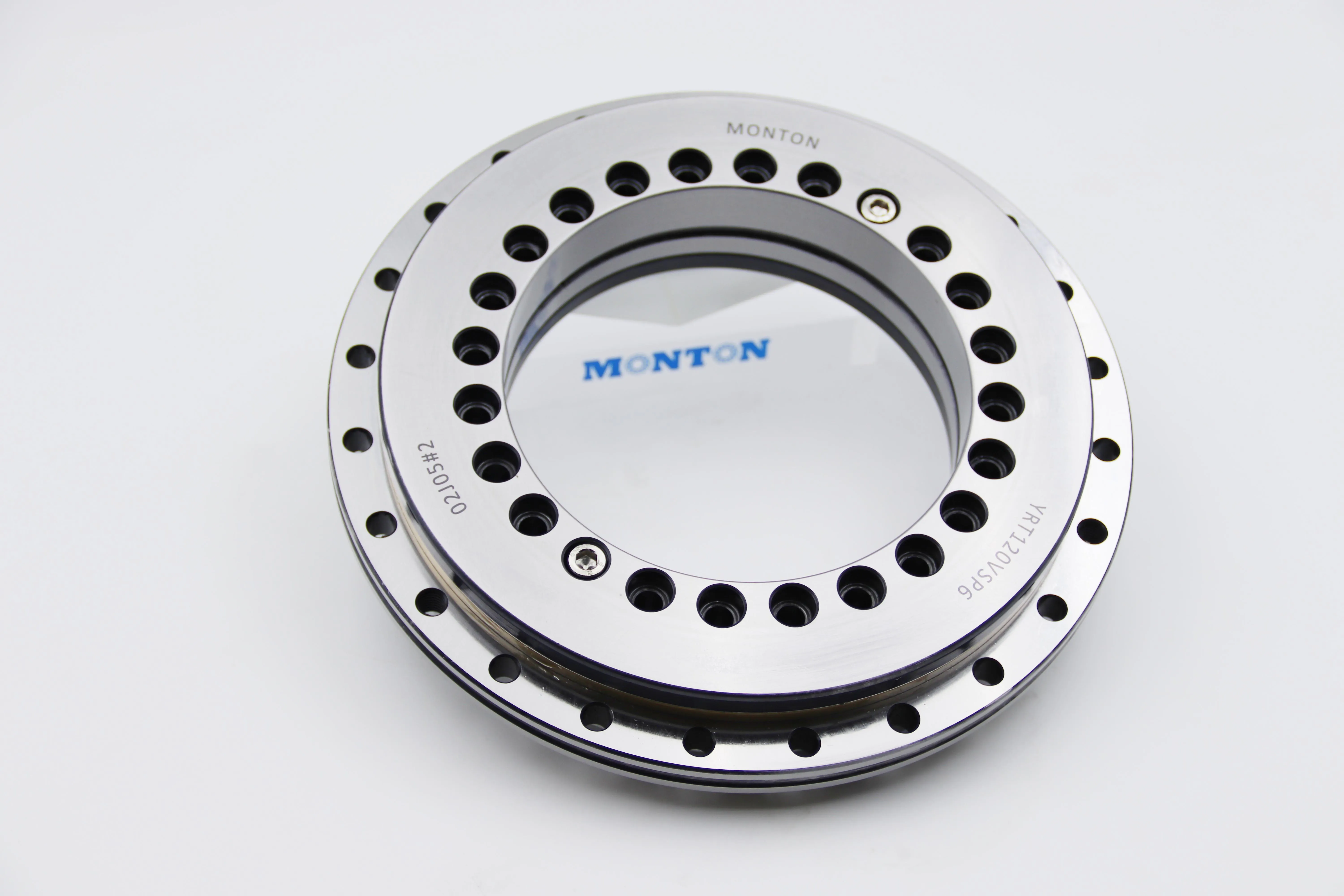

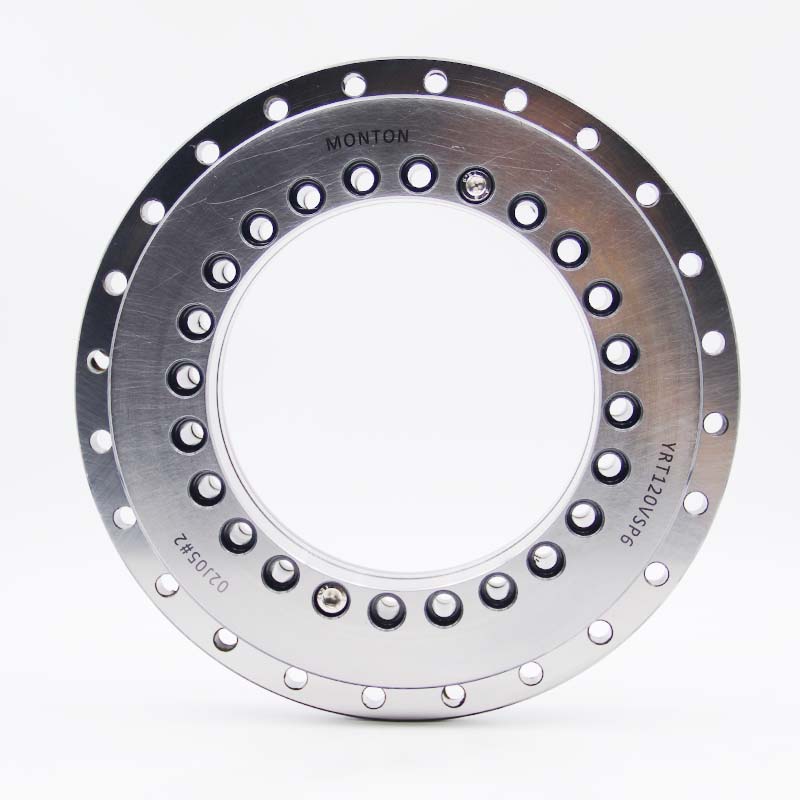

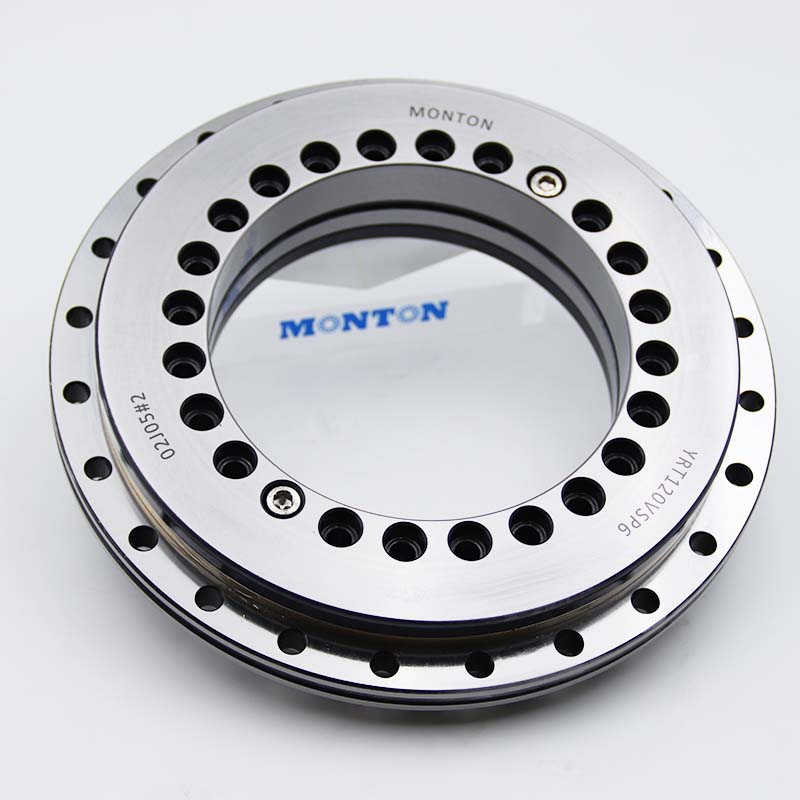

YRT120VSP Rotary Table Bearing

The design structure of the YRT120 turntable bearing consists of two rows of axial rollers bearing bidirectional axial loads, providing high stability, and one row of radial rollers bearing radial forces and overturning moments, enhancing deformation resistance. It mainly consists of shaft rings, seat rings, washers, rollers, and brass/nylon retainers. The rotation accuracy can reach P4/P2 level, commonly used in CNC machine tool four/five axis turntables, indexing discs, milling heads, precision measuring equipment, military radar, aerospace testing platforms.

Case Details

Name	Rotary Table Bearing
Seires	YRT series
Brand	MONTON
Model	YRT120
d	120mm
D	210mm
B	40mm
Ring Material	Gcr15 Bearing steel
Cage Material	nylon/Brass cage
Dynamic load rating radial Cr	69.00KN
Static load rating radial Cor	124.00KN
Dynamic load rating axial Ca	112.00KN
Static load rating axial Coa	520.00N
nG	900 1/min
Weight	4.5KG
Design Structure	Roller
Precision	P4,P2 VSP
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tool Rotary table
