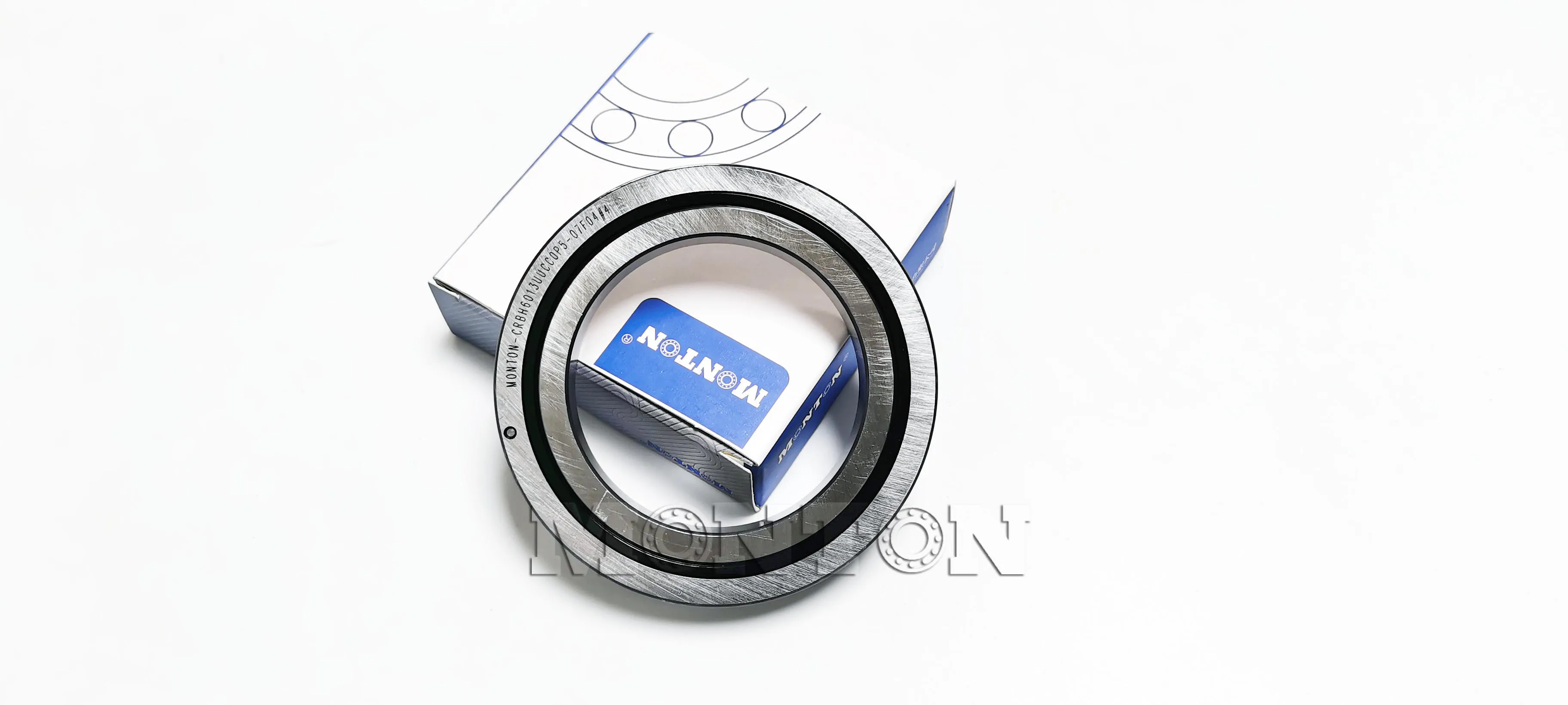

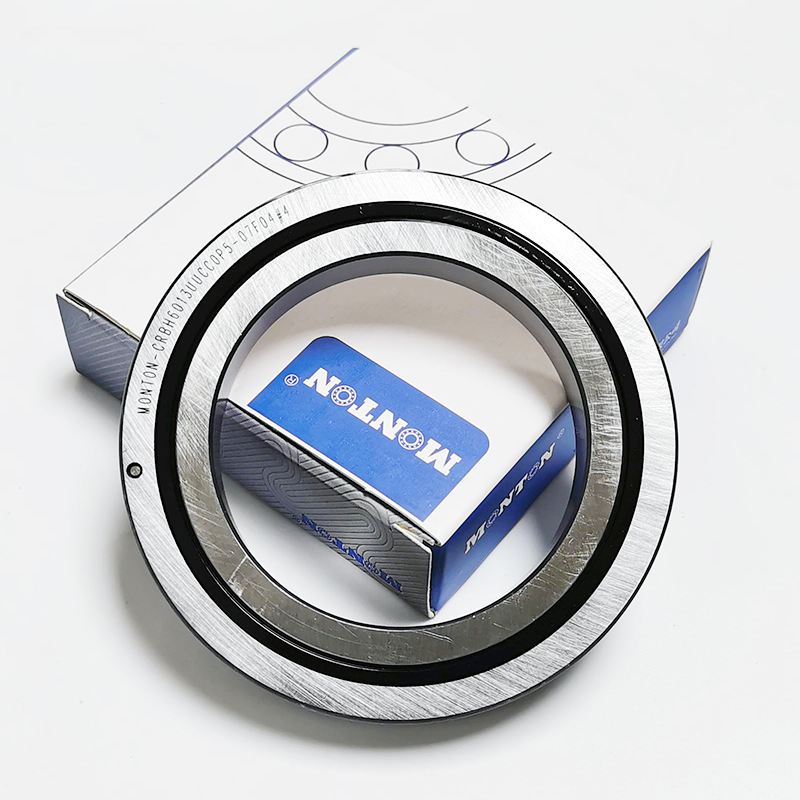

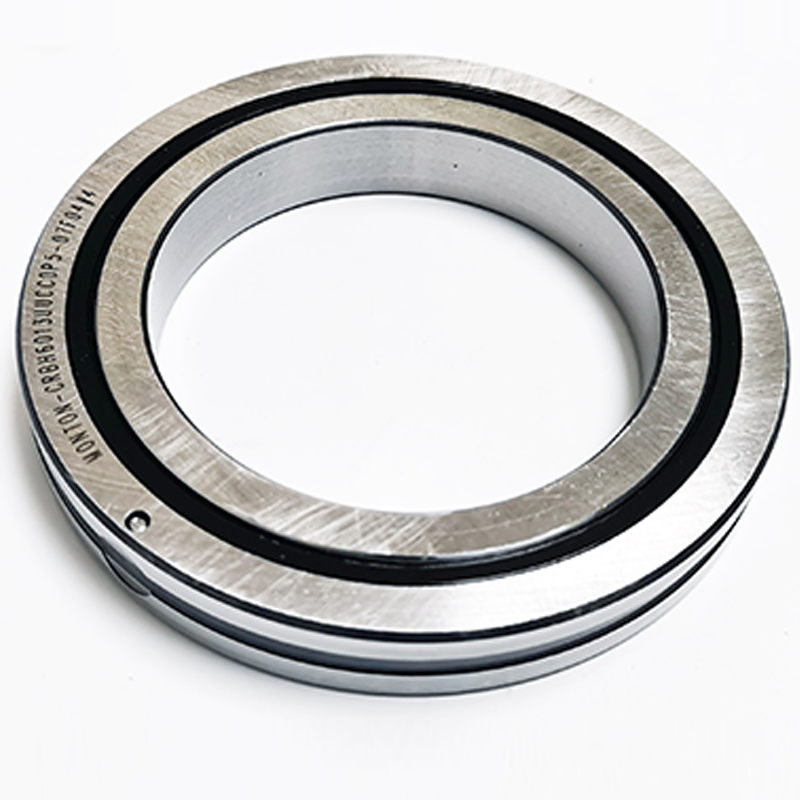

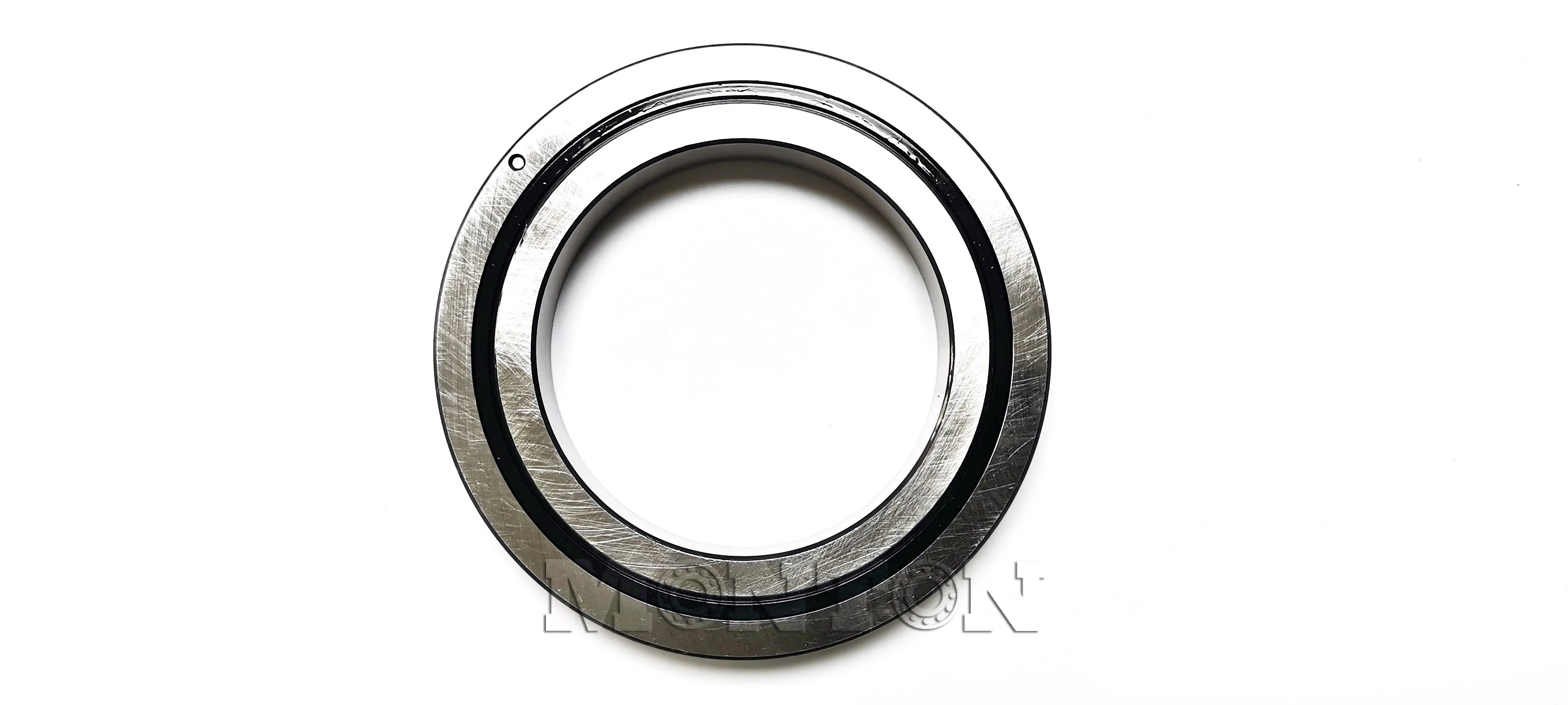

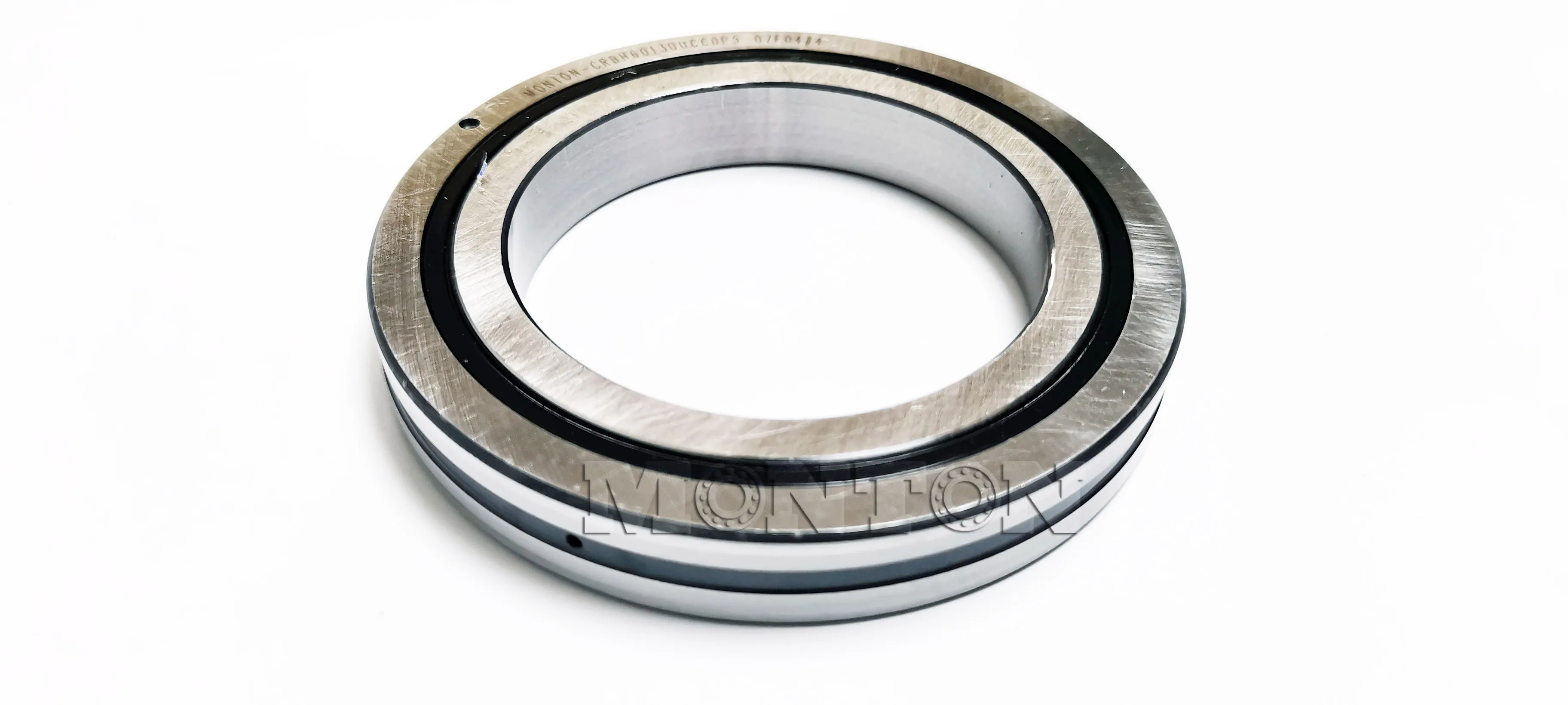

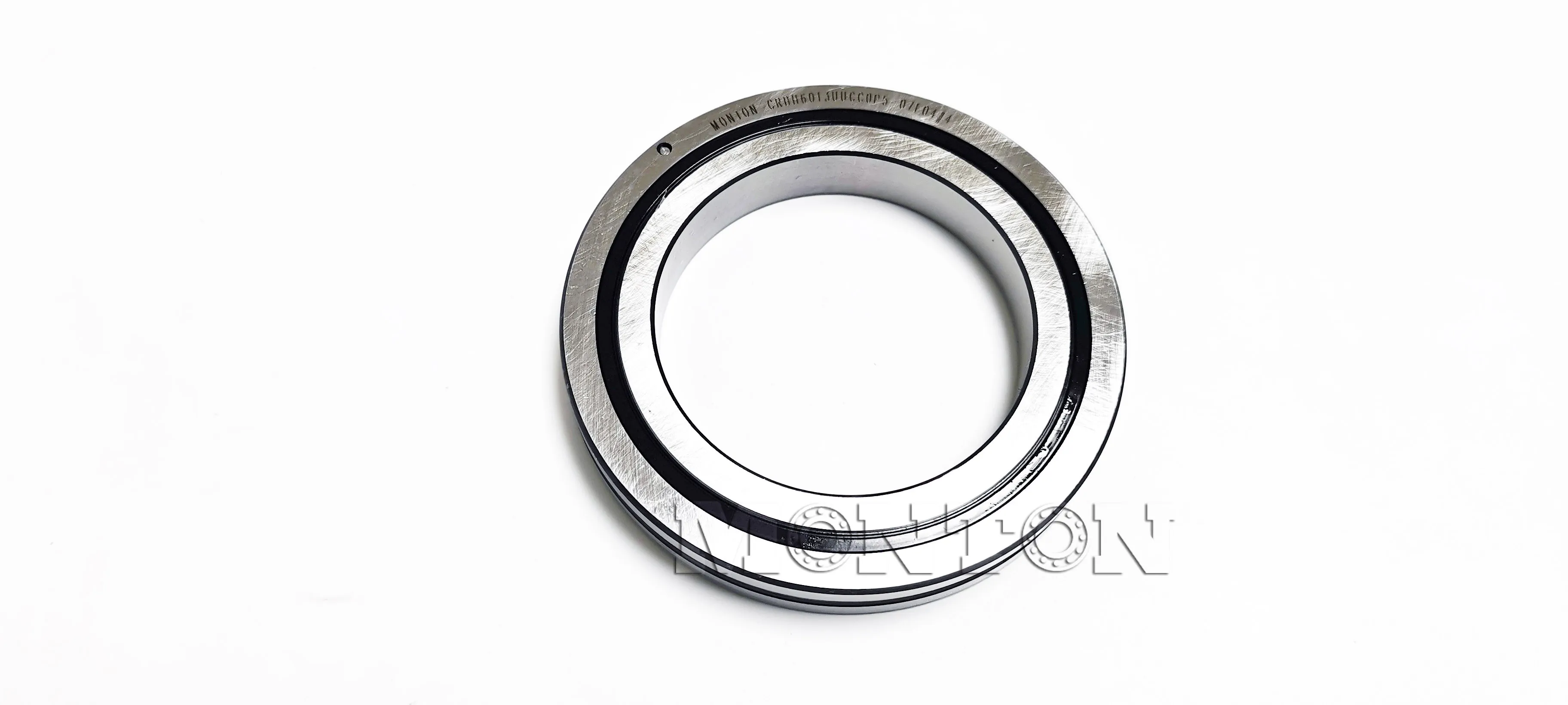

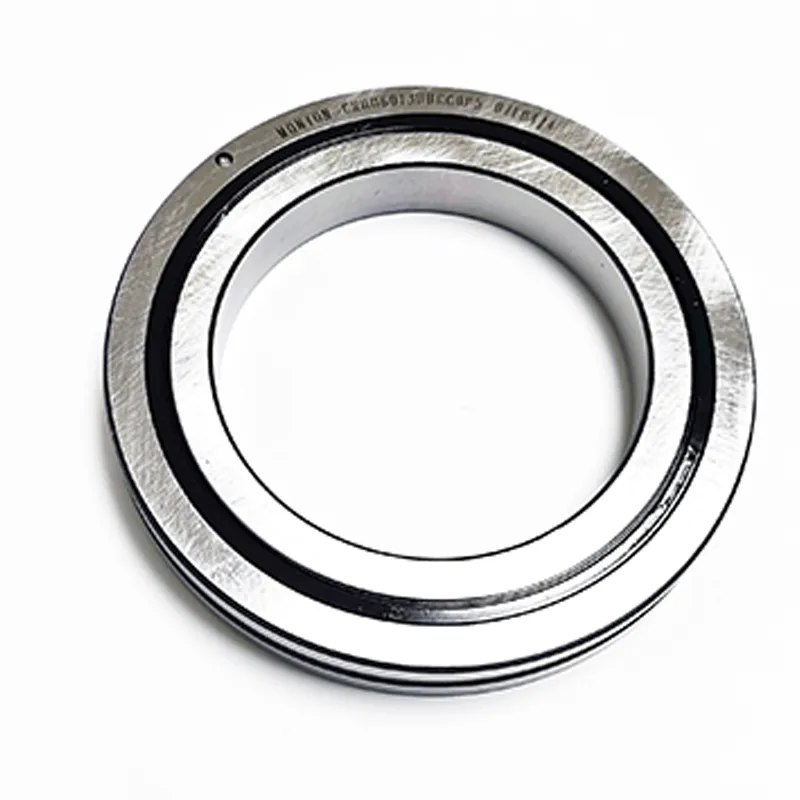

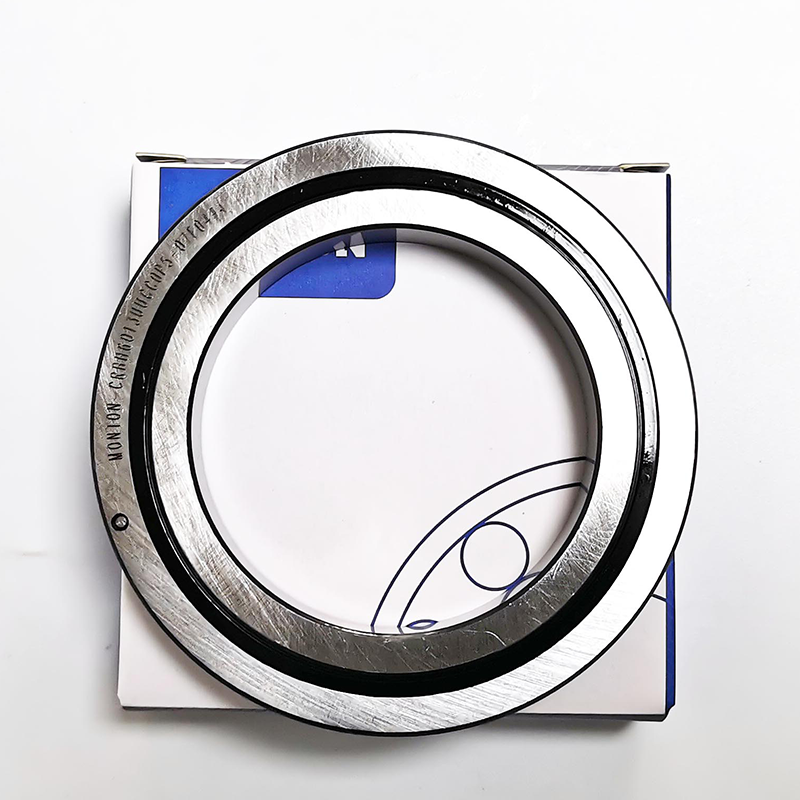

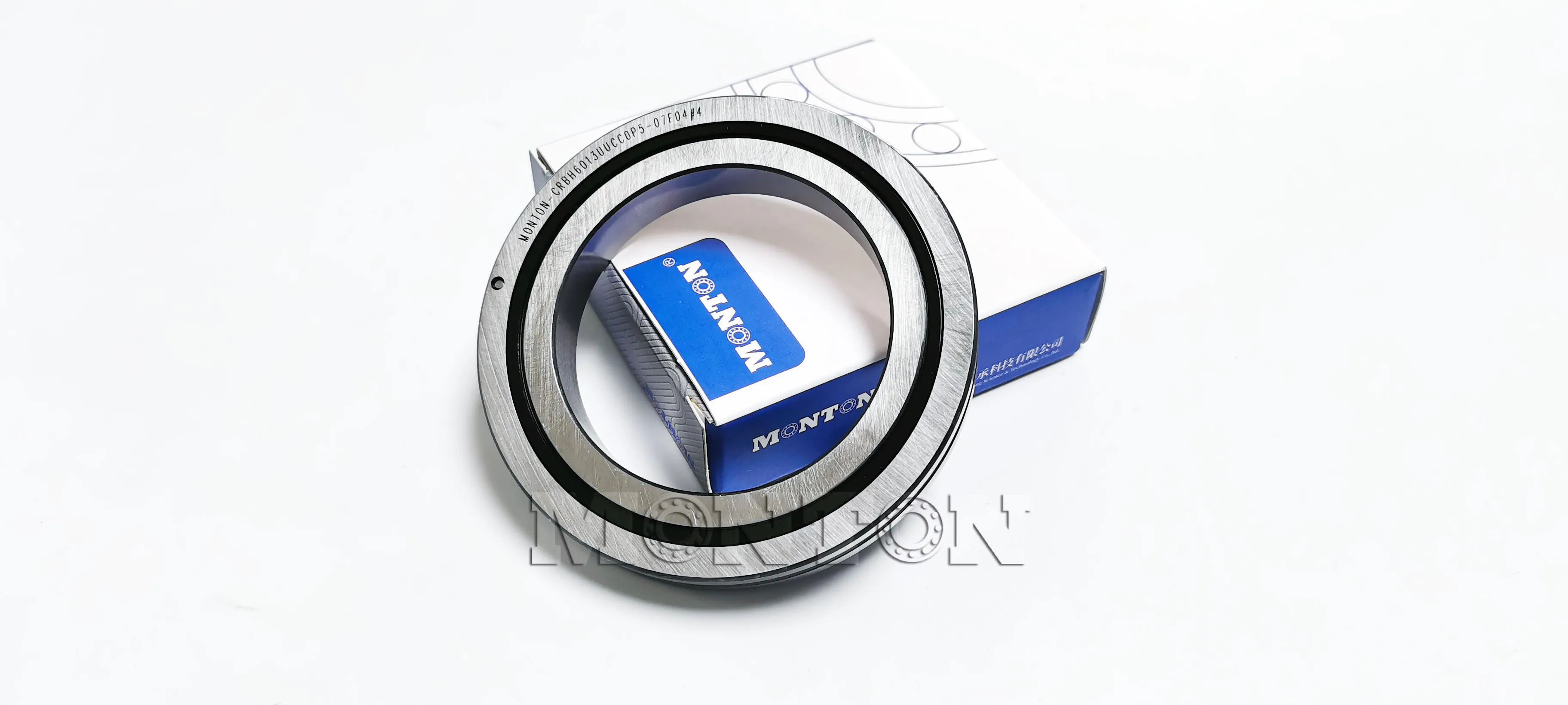

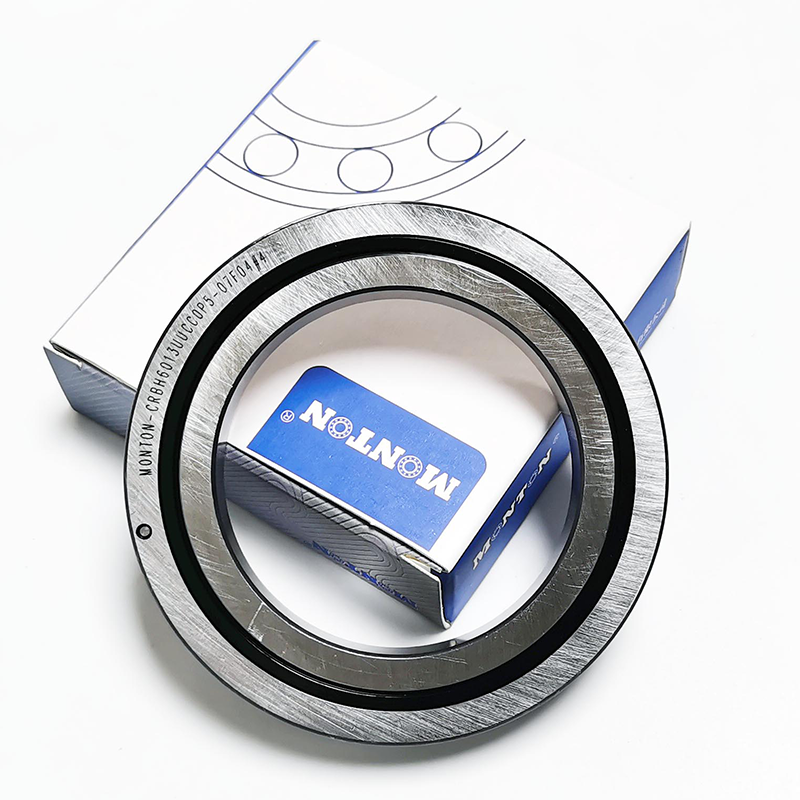

CRBH6013AUUCC0P5 Crossed Roller Bearing

CRBH6013AUCC0P5 adopts a cross roller layout to reduce axial and radial runout, ensuring the precision of robot joint motion. The thin-walled design adapts to the spatial limitations of harmonic reducers and reduces the overall weight of the robotic arm. It is a high-precision cross roller bearing designed specifically for robot harmonic reducers, with high rigidity, low friction, and compact structure, suitable for automation scenarios that require precision transmission (such as industrial robot joints, rotating workbenches, etc.).

Case Details

Name	Crossed Roller Bearing
Seires	CRBH series
Brand	MONTON
Open type	CRBH6013ACC0P5
Sealed type	CRBH6013AUUCC0P5
d	60mm
D	90mm
B	13mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	18800N
Load rating Cor	24300N
Sealed	According to requirement
Weight	0.33KG
Design Structure	Crossed roller
Precision	P4,P5 P2 or according to requirement
Vibration	as requirement
Clearance	CC0 /T1/C1/C2
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Robot Medical equipment Machine tools Motor Windmills Marine antenna Security Camera
