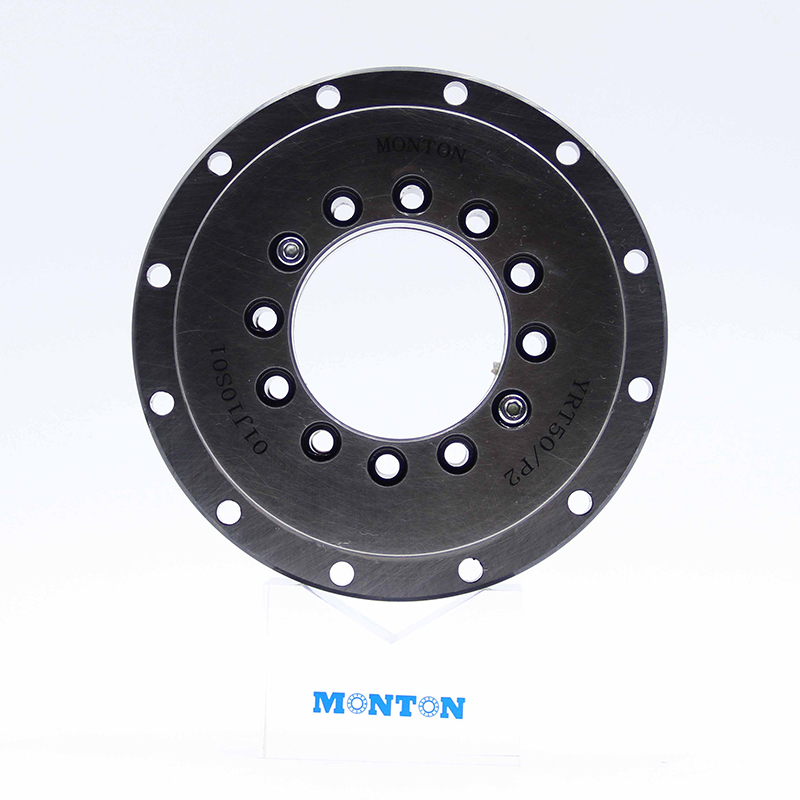

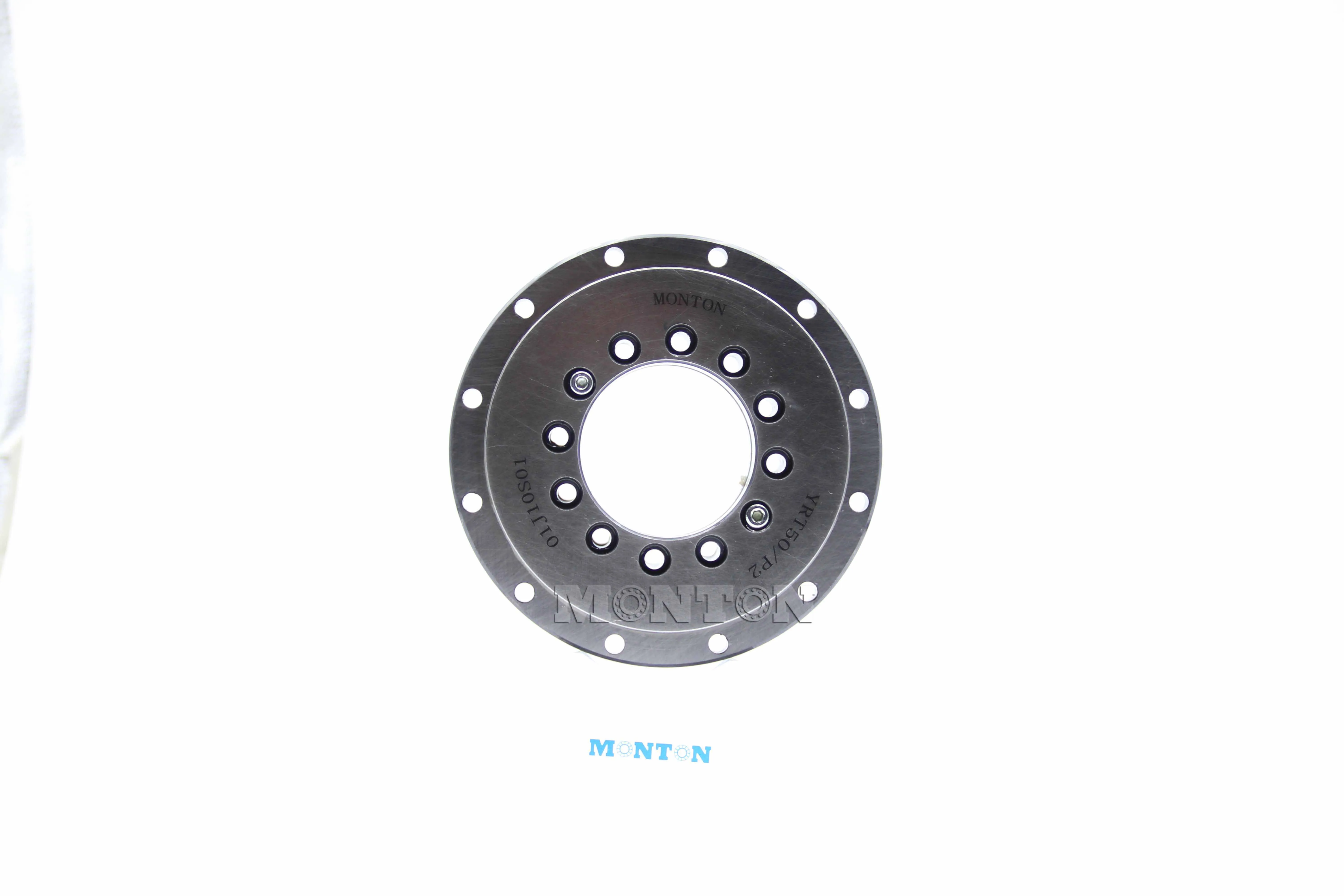

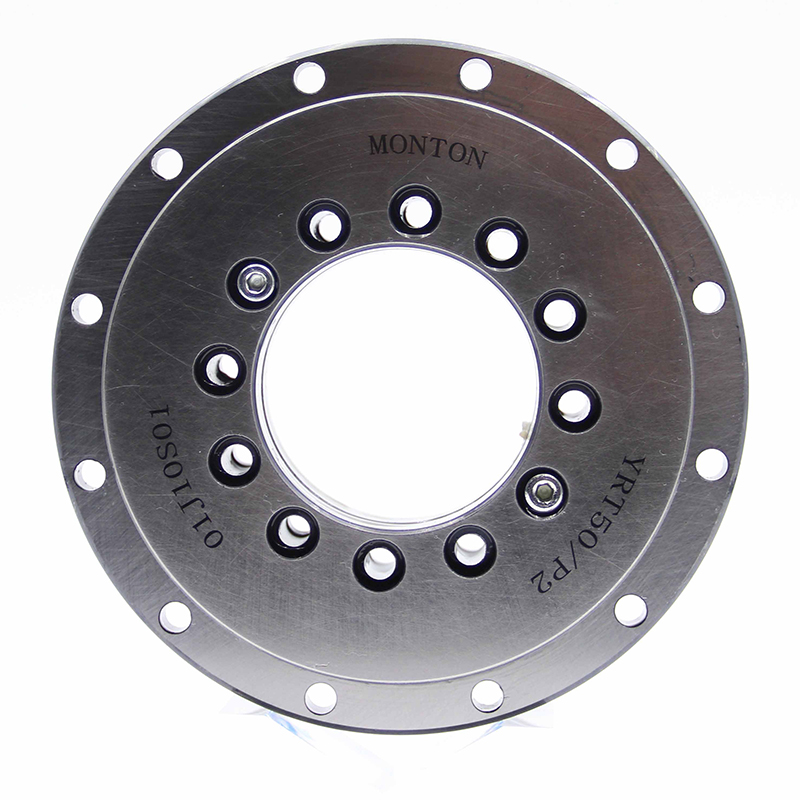

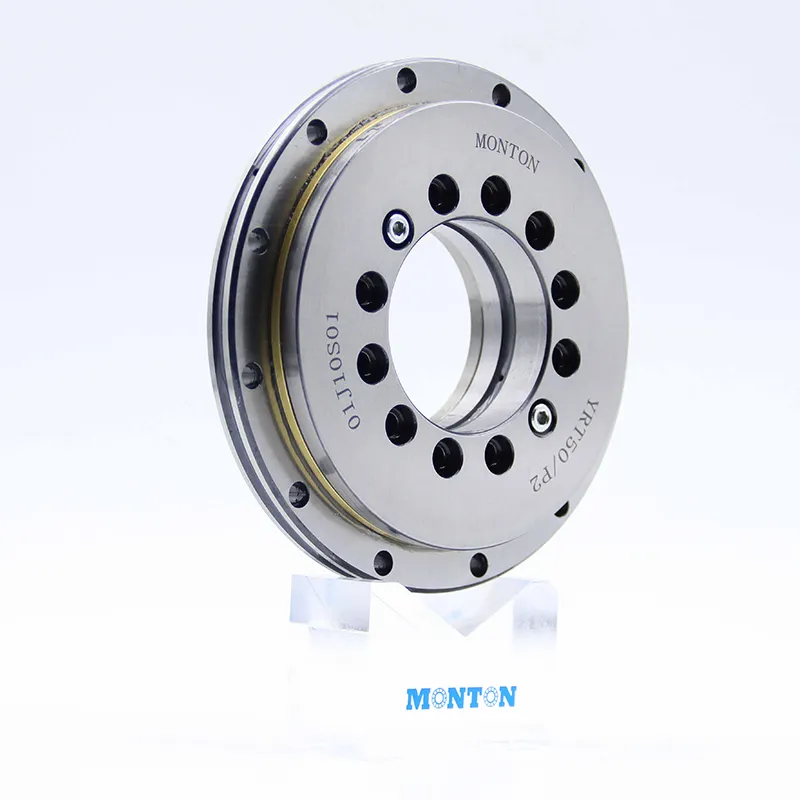

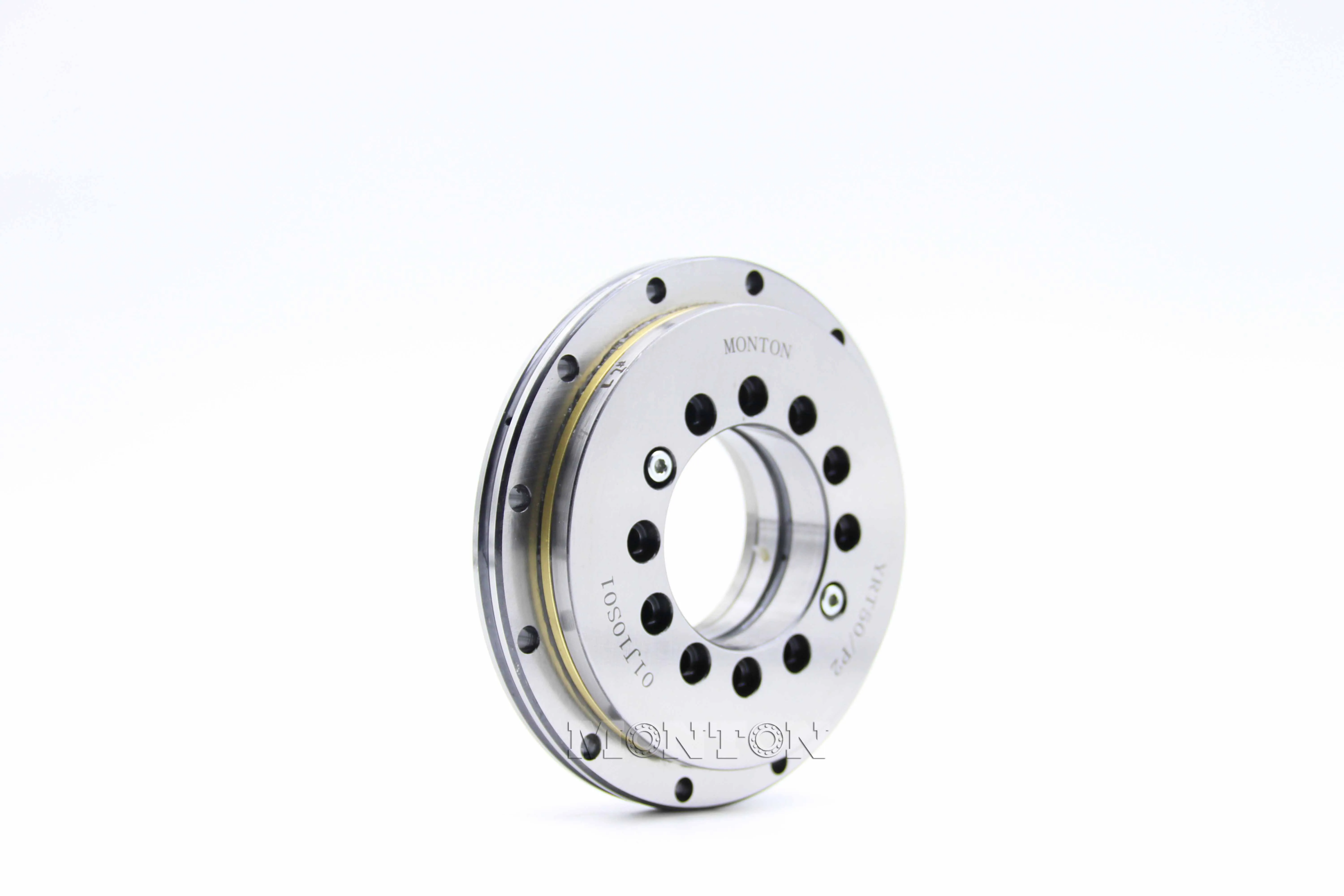

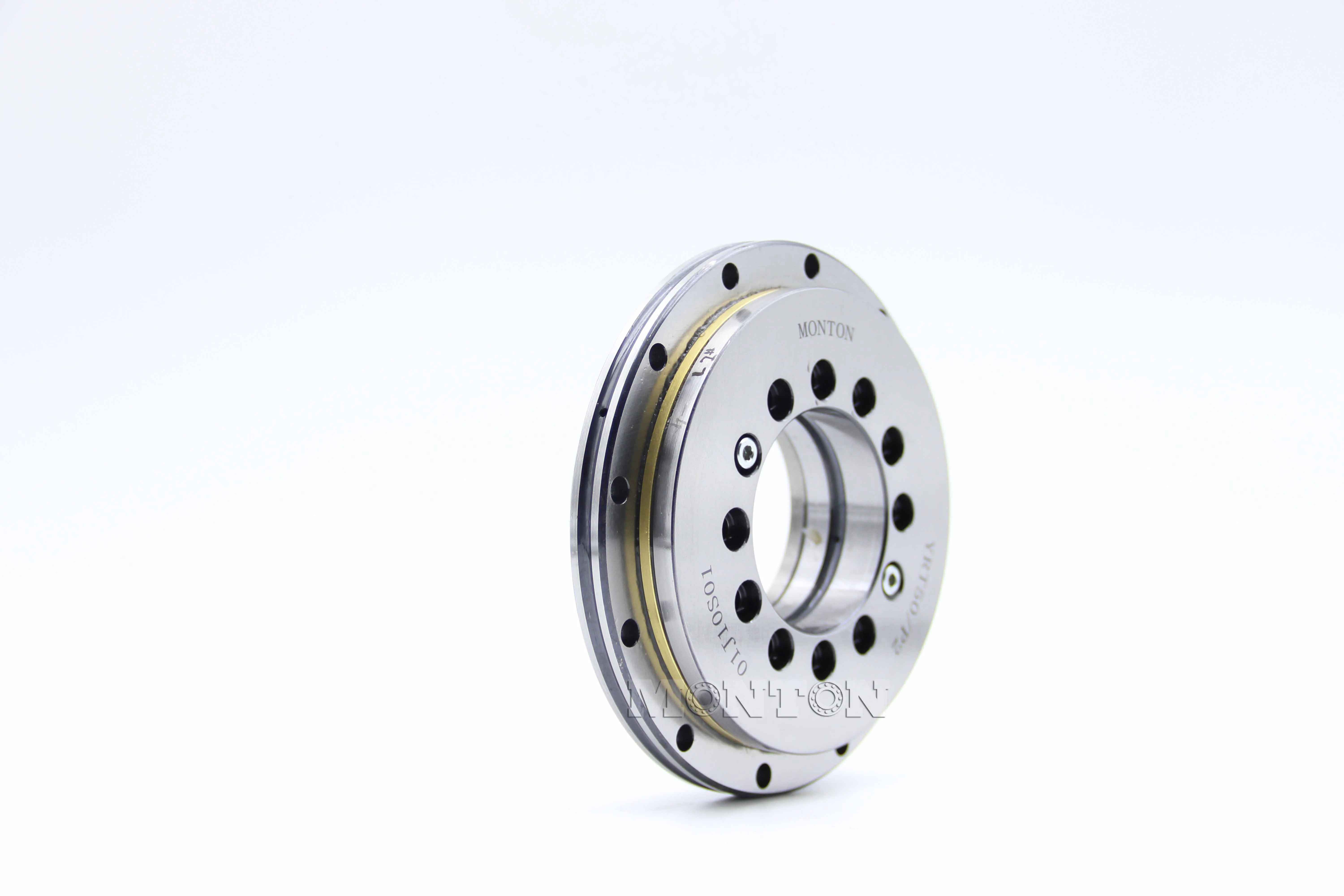

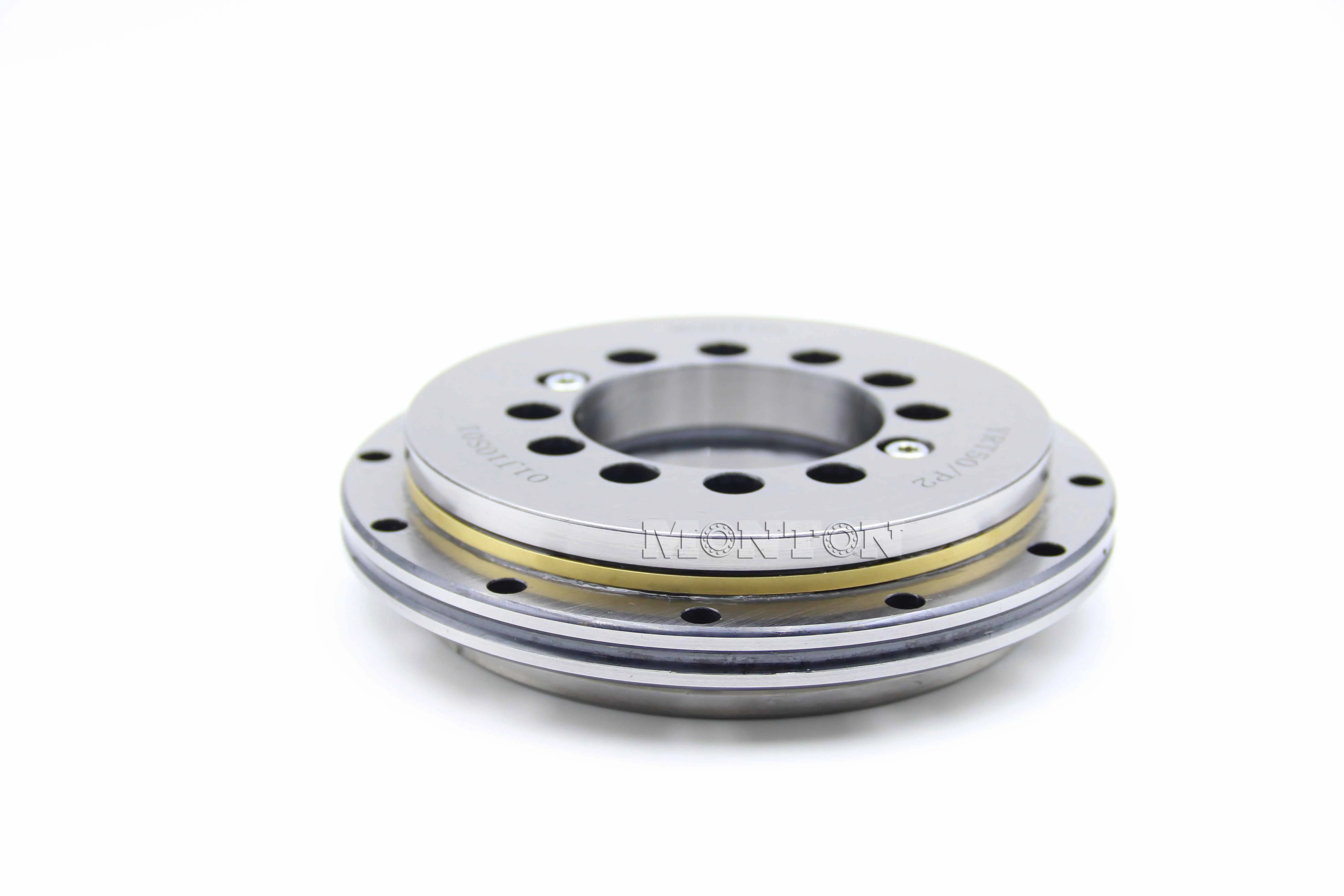

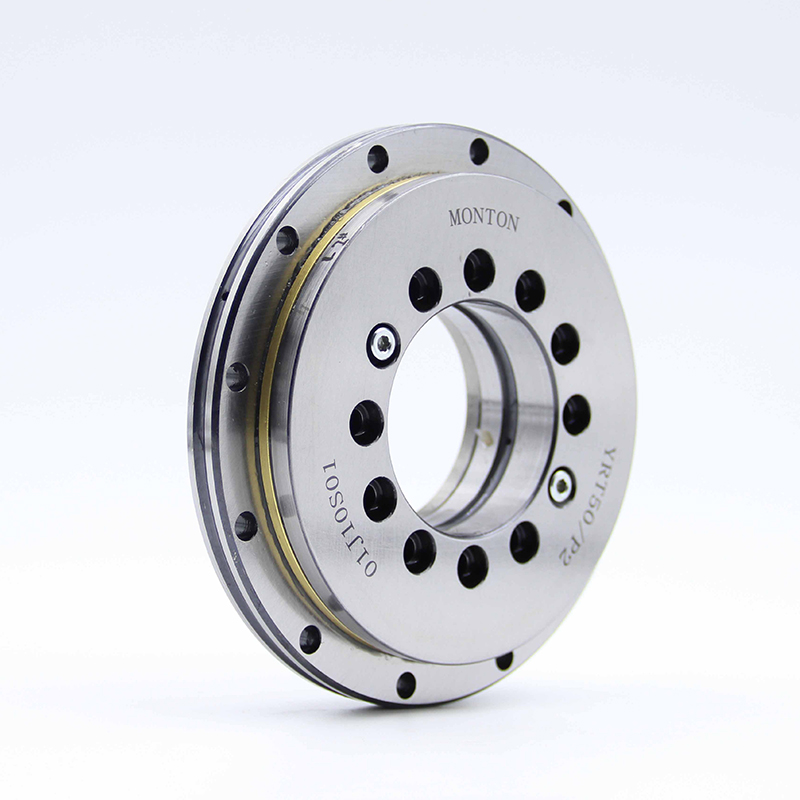

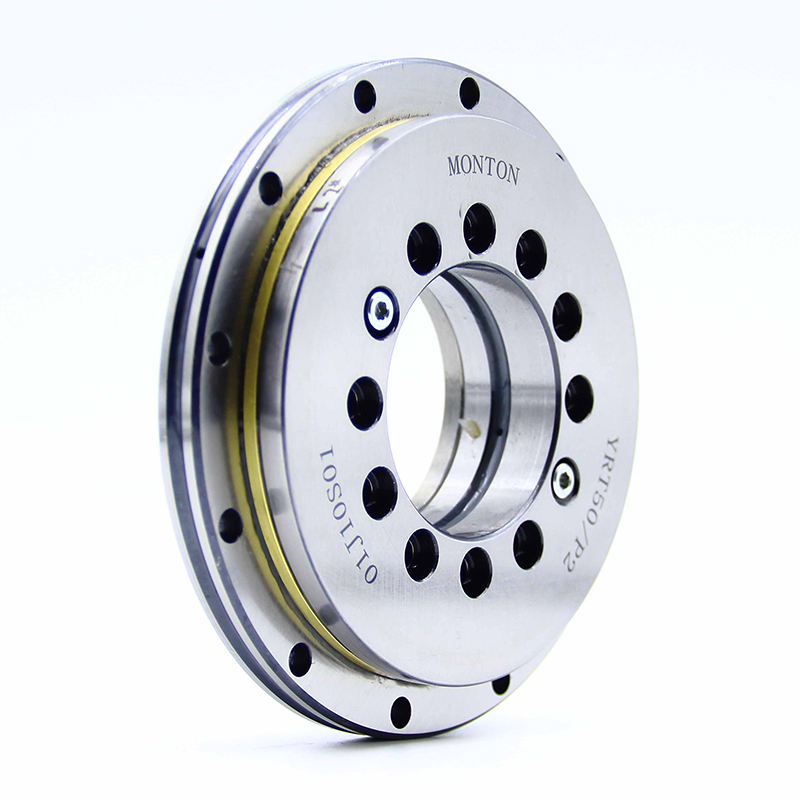

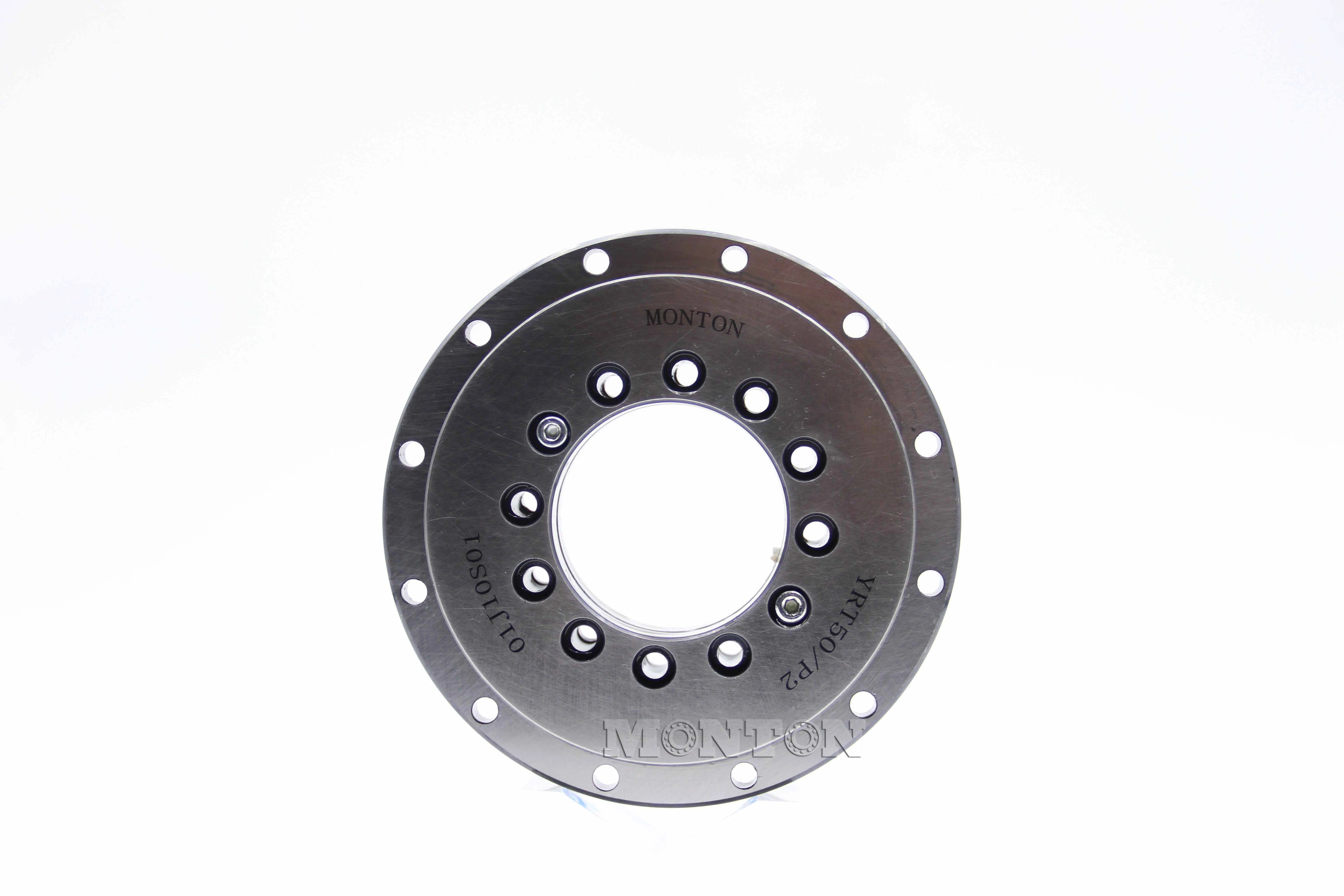

YRT50 Rotary Table Bearing

YRT bearings consist of a thrust/radial seat ring, a thrust/radial shaft ring, a thrust washer, two needle roller cage assemblies and a set of radial cylindrical rollers. The seat ring and shaft ring have evenly distributed mounting screw holes. This type of bearing has high axial and radial load capacity. YRT bearings are usually used to support rotary tables, indexing heads and multi-axis heads of machining centers.

Case Details

Name	Rotary Table Bearing
Seires	YRTseries
Brand	MONTON
Model	YRT50
d	50mm
D	126mm
B	30mm
Ring Material	Bearing steel
Cage Material	nylon/Brass cage
Dynamic load rating radial Cr	28.5KN
Static load rating radial Cor	49.5KN
Dynamic load rating axial Ca	30000 N
Static load rating axial Coa	53000 N
nG	440 1/min
Weight	1.6KG
Design Structure	Roller
Precision	P4,P2 VSP
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tool Rotary table
