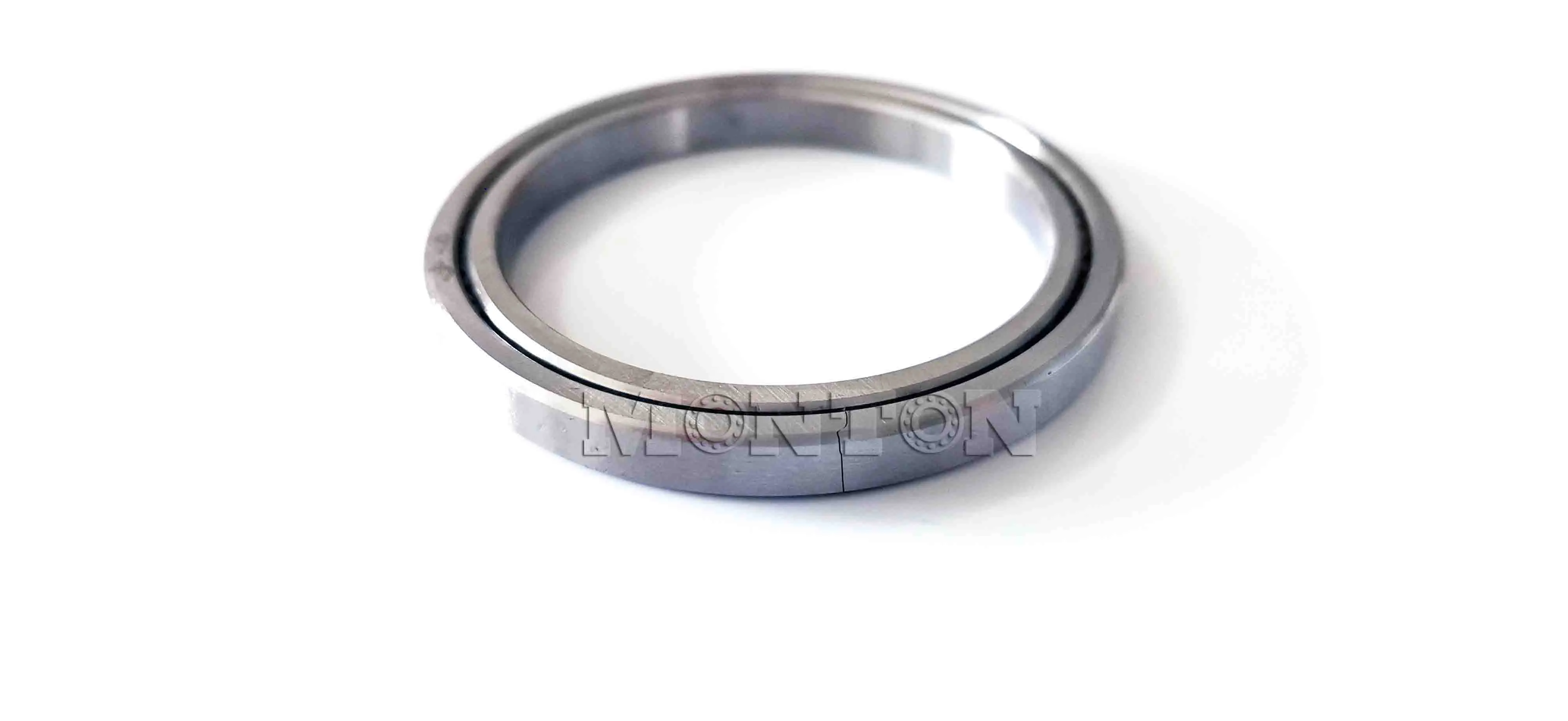

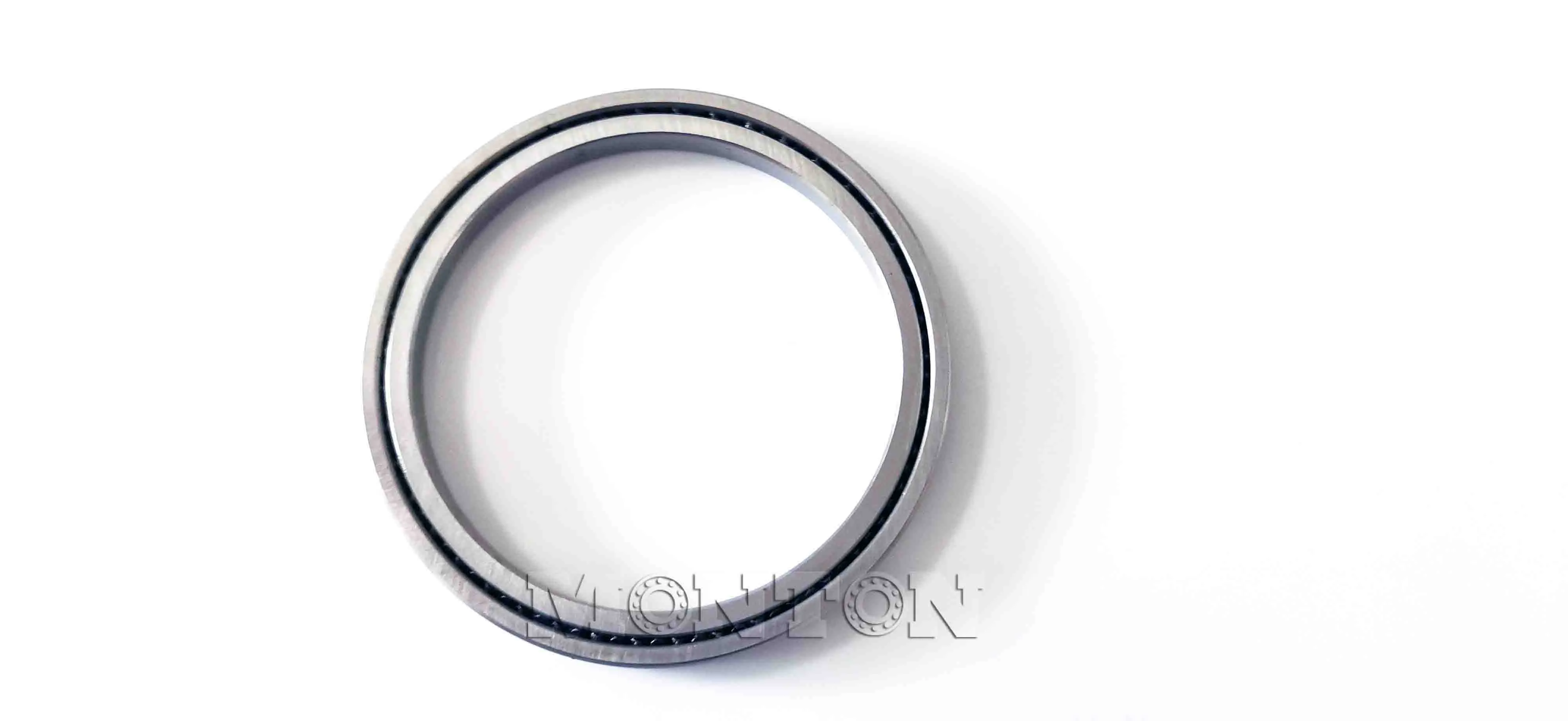

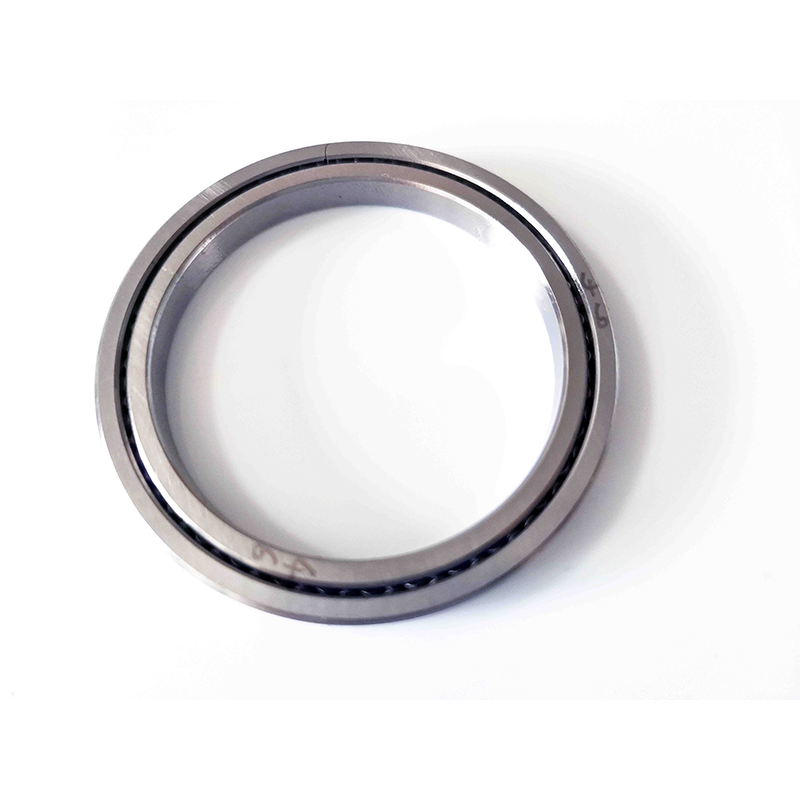

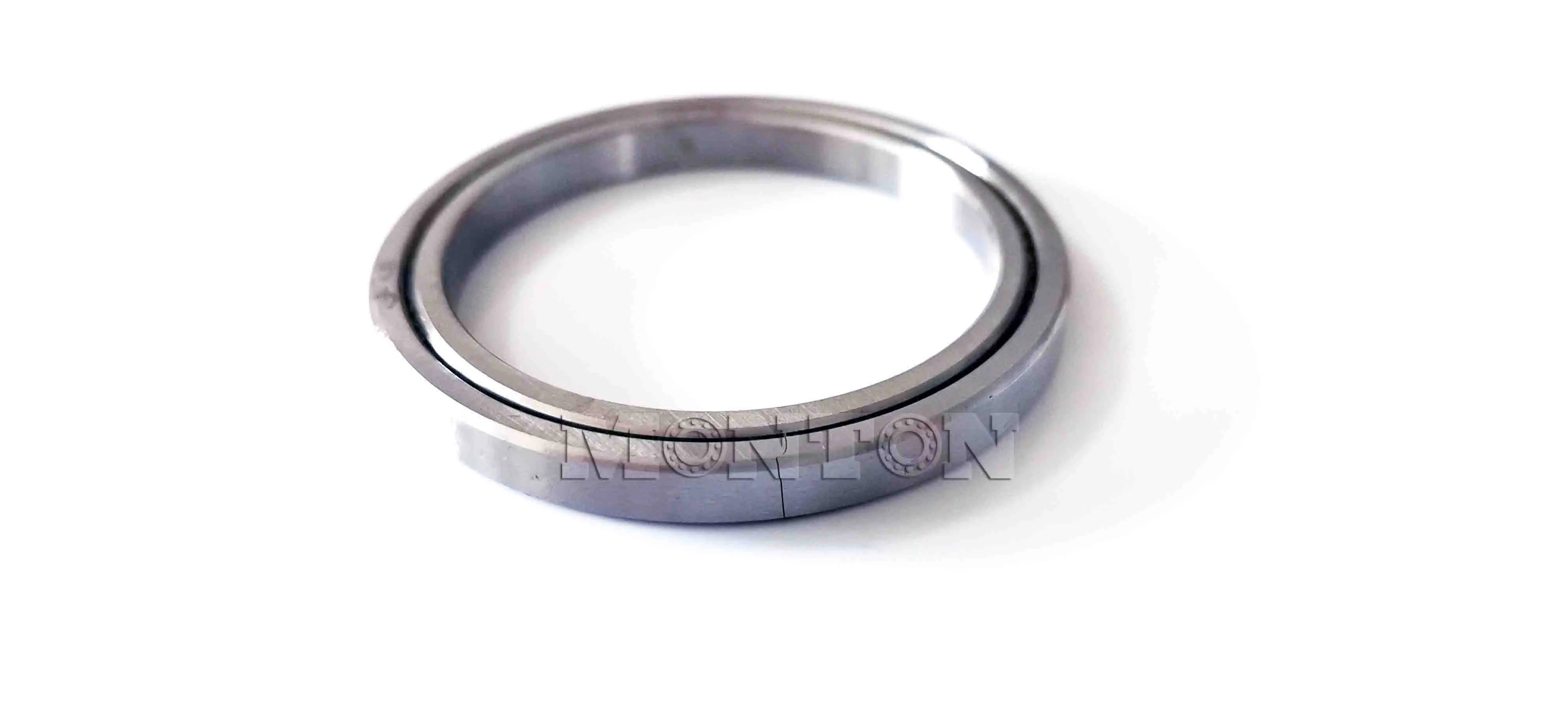

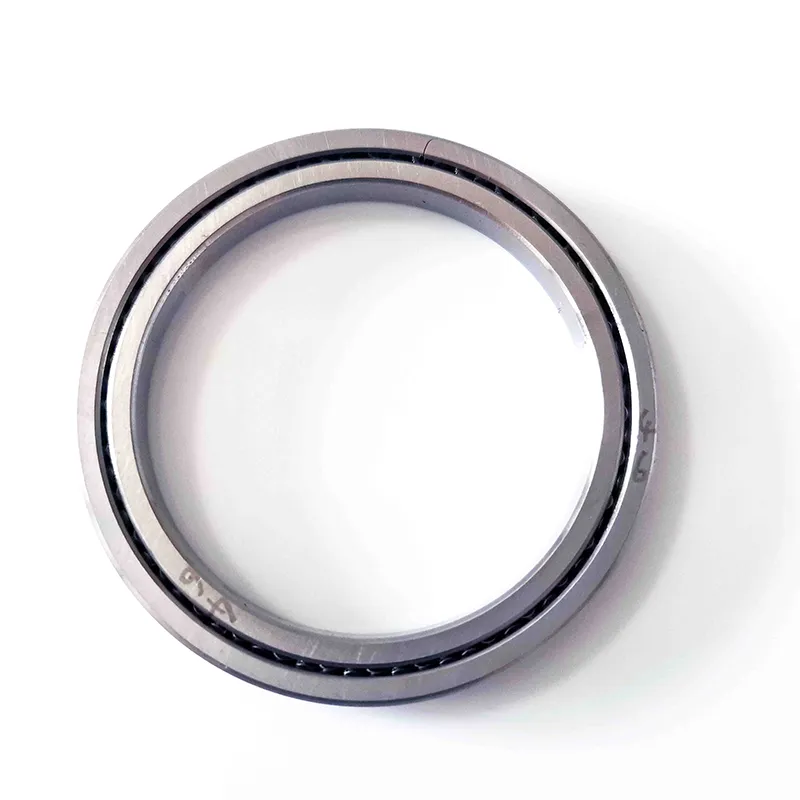

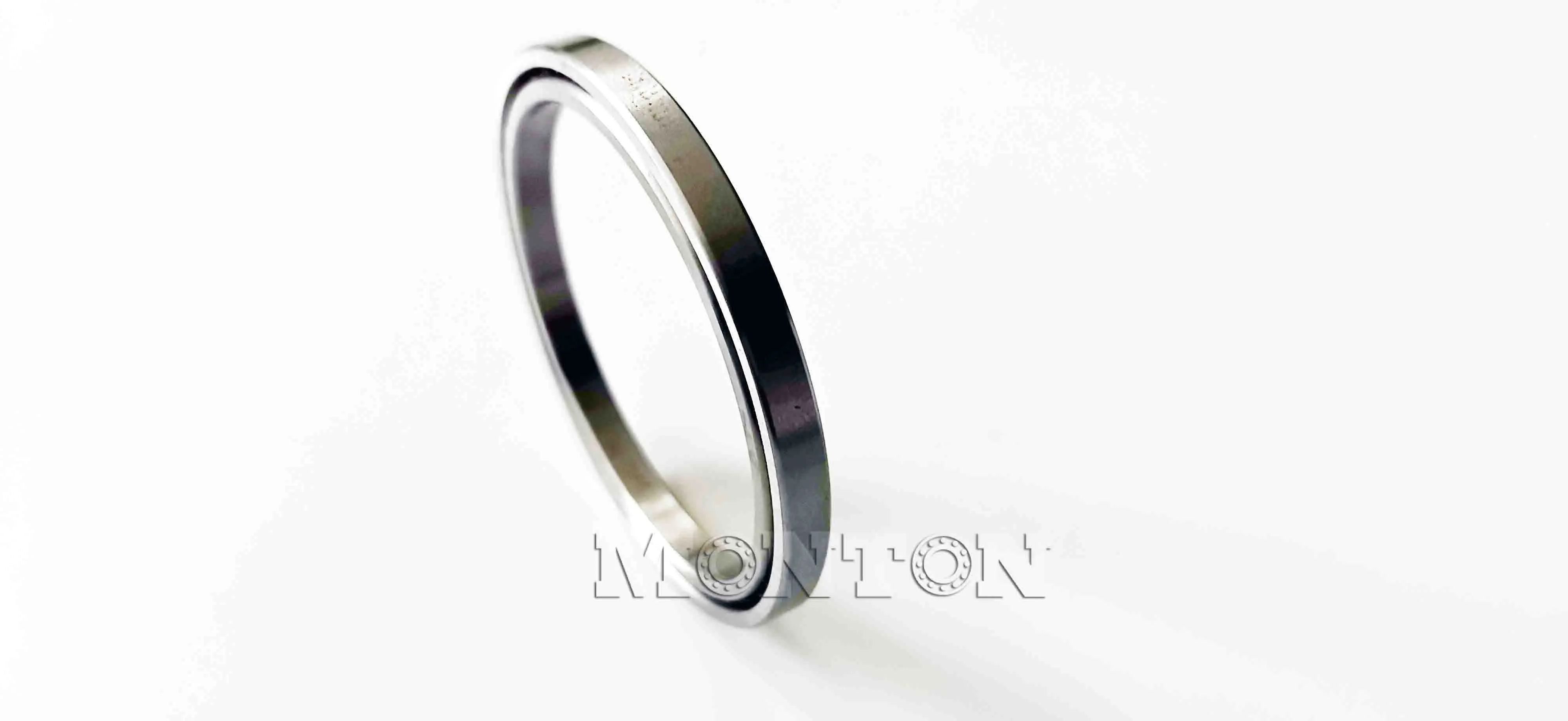

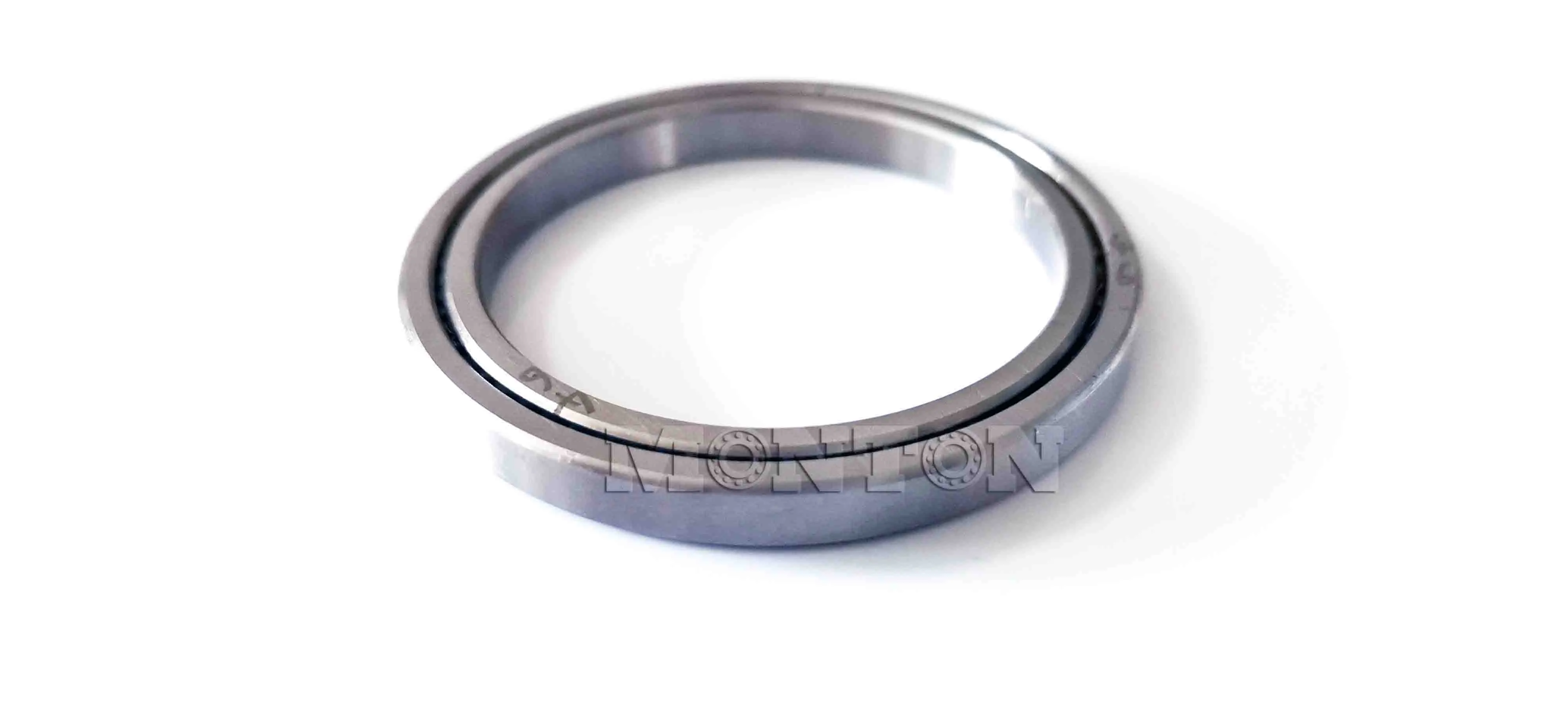

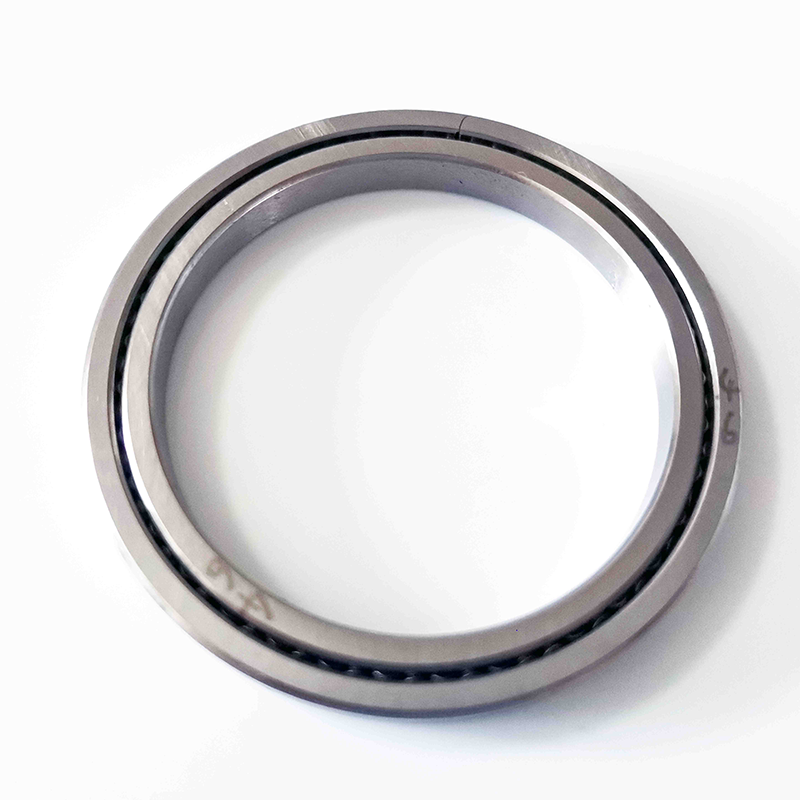

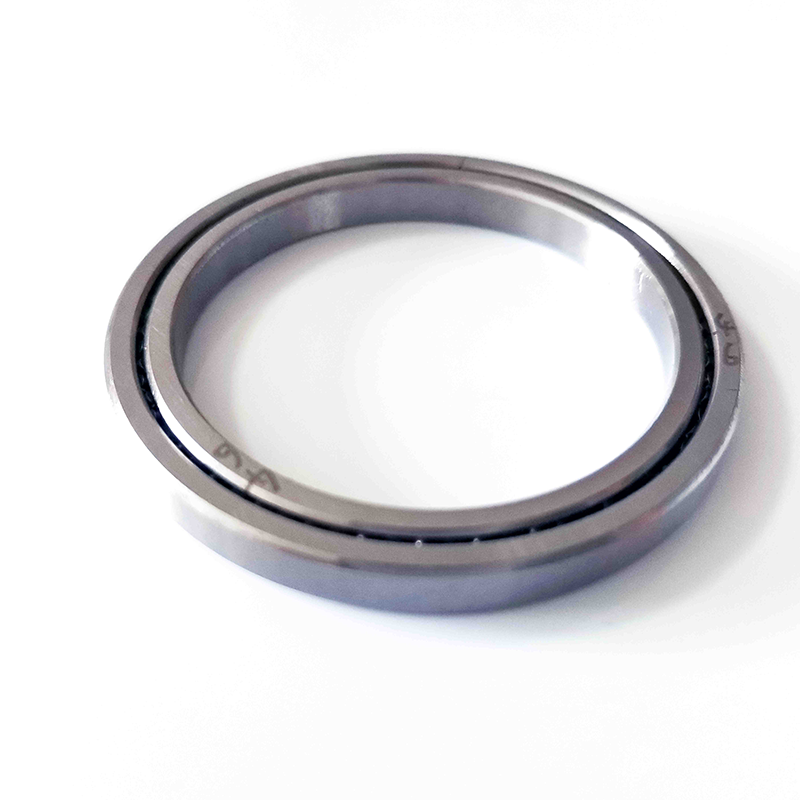

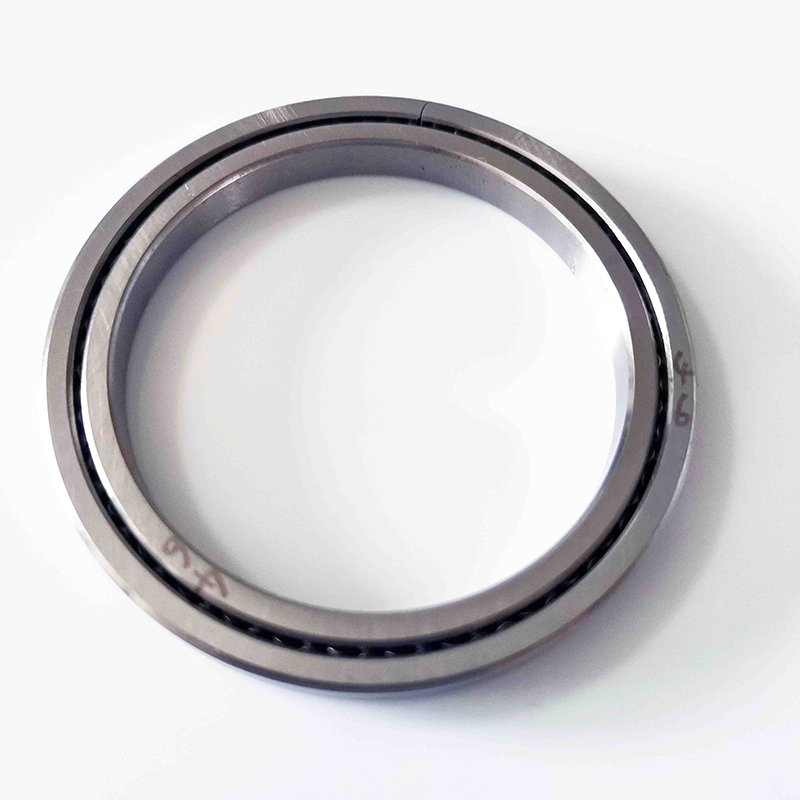

CRBT105A Super slim Crossed Roller Bearing

CRBT105A, as a cross roller bearing, is suitable for small robotic arms and surveillance cameras. Its dimensions include an inner diameter of 10mm, an outer diameter of 21mm, a thickness of 5mm, and a cross-sectional height of only 5.5mm. It belongs to an ultra-thin design, which is about 62% lighter than traditional models and reduces cross-sectional area by 57%. It is suitable for applications in compact spaces.

Case Details

Name	Super slim Crossed Roller Bearing
Seires	CRBT series
Brand	MONTON
Open type	CRBT105A
CRBTF type	CRBTF105AT
d	10mm
D	21mm
B	5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating C	1120N
Load rating Ca	811N
Sealed	Open
Weight	9g
Design Structure	Crossed roller
Precision	P4,P5
Vibration
Clearance	CC0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Compact Hand Robot Compact Surveillance Camera
