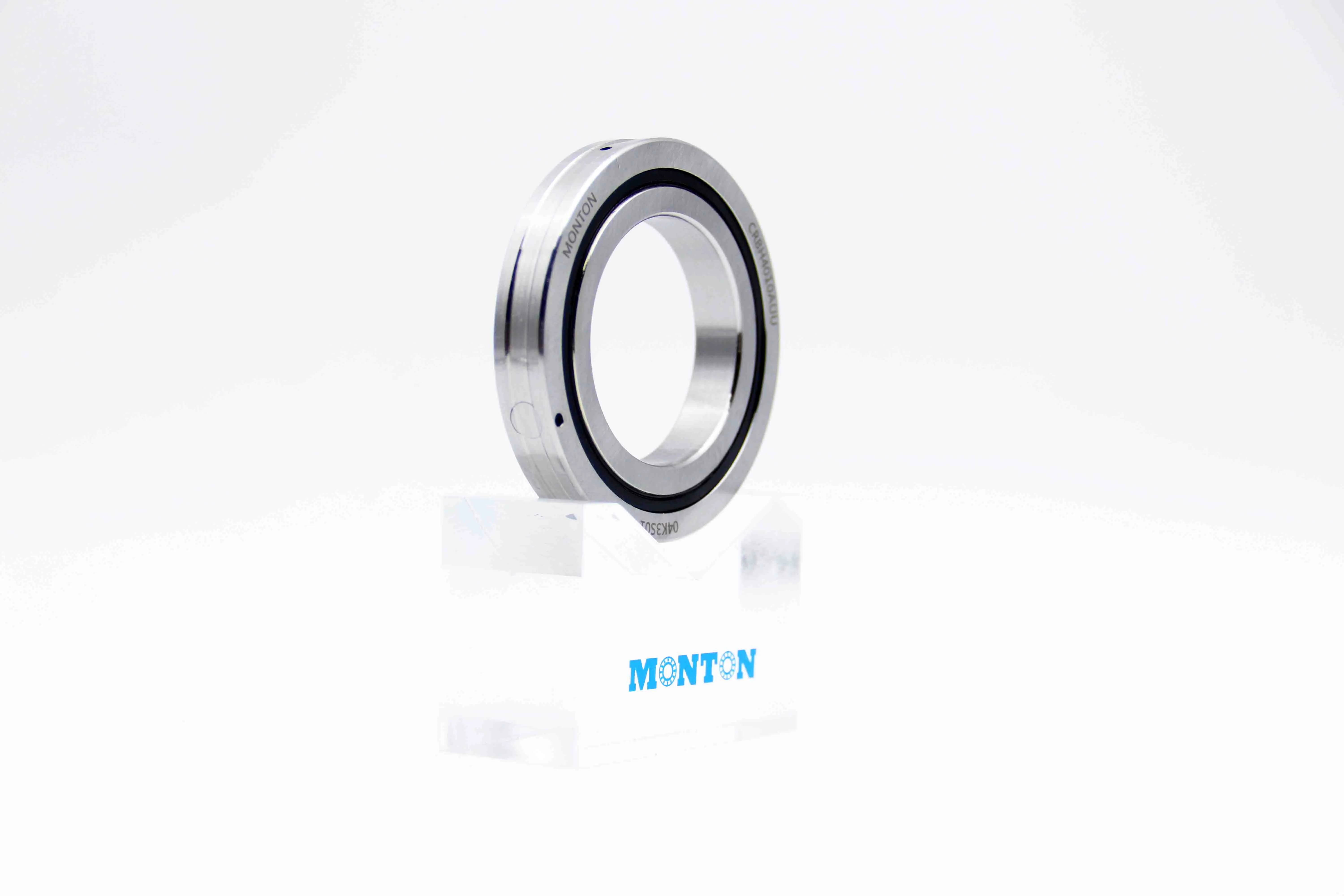

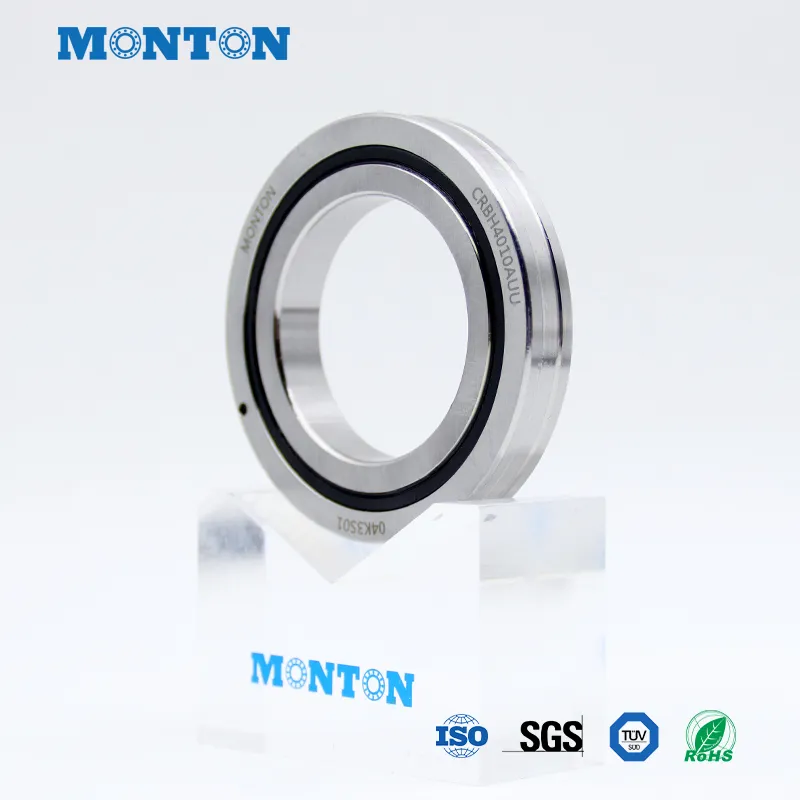

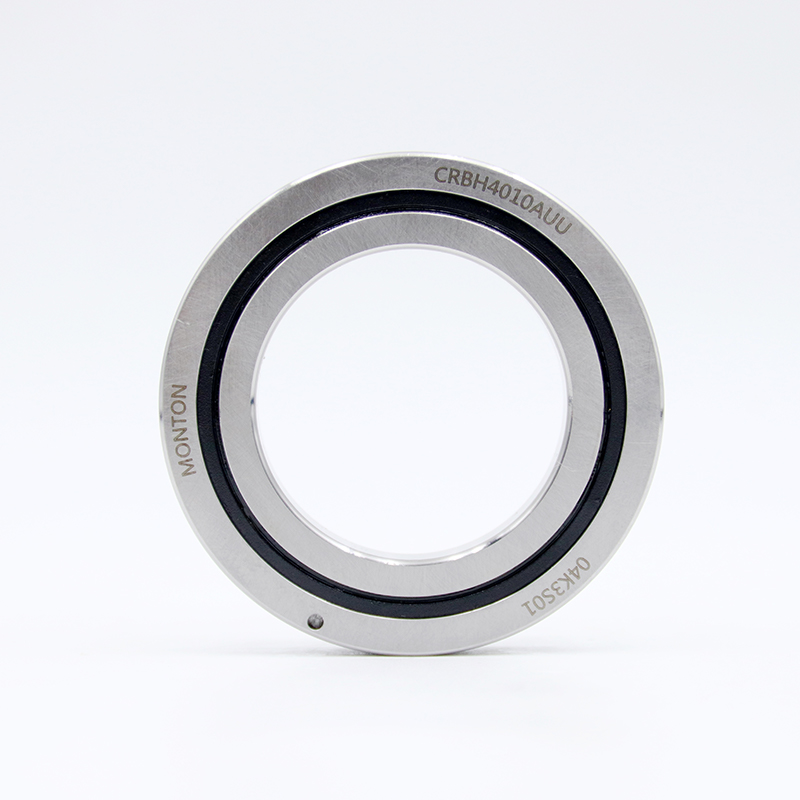

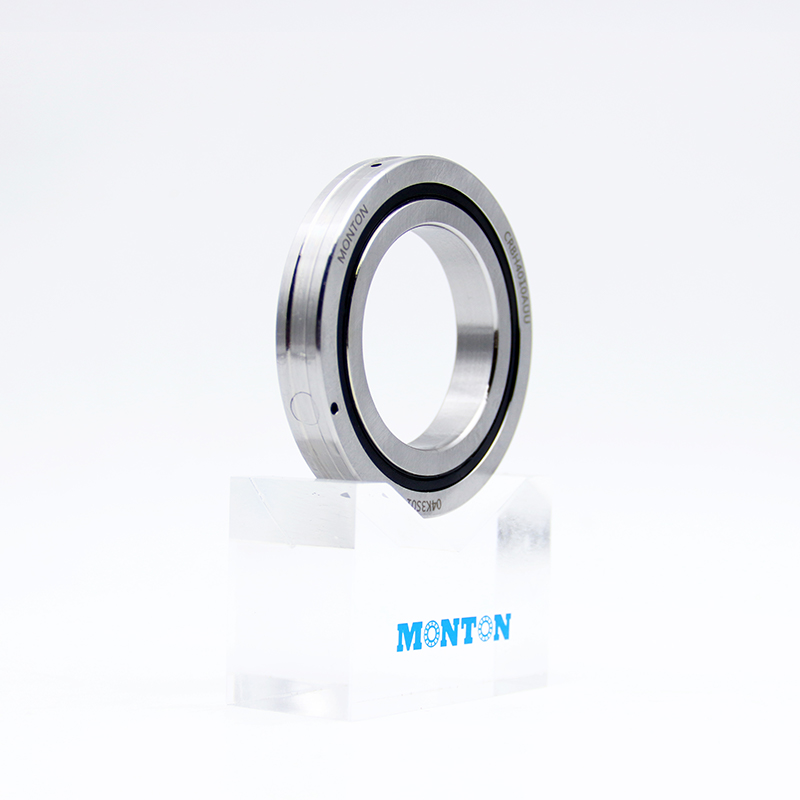

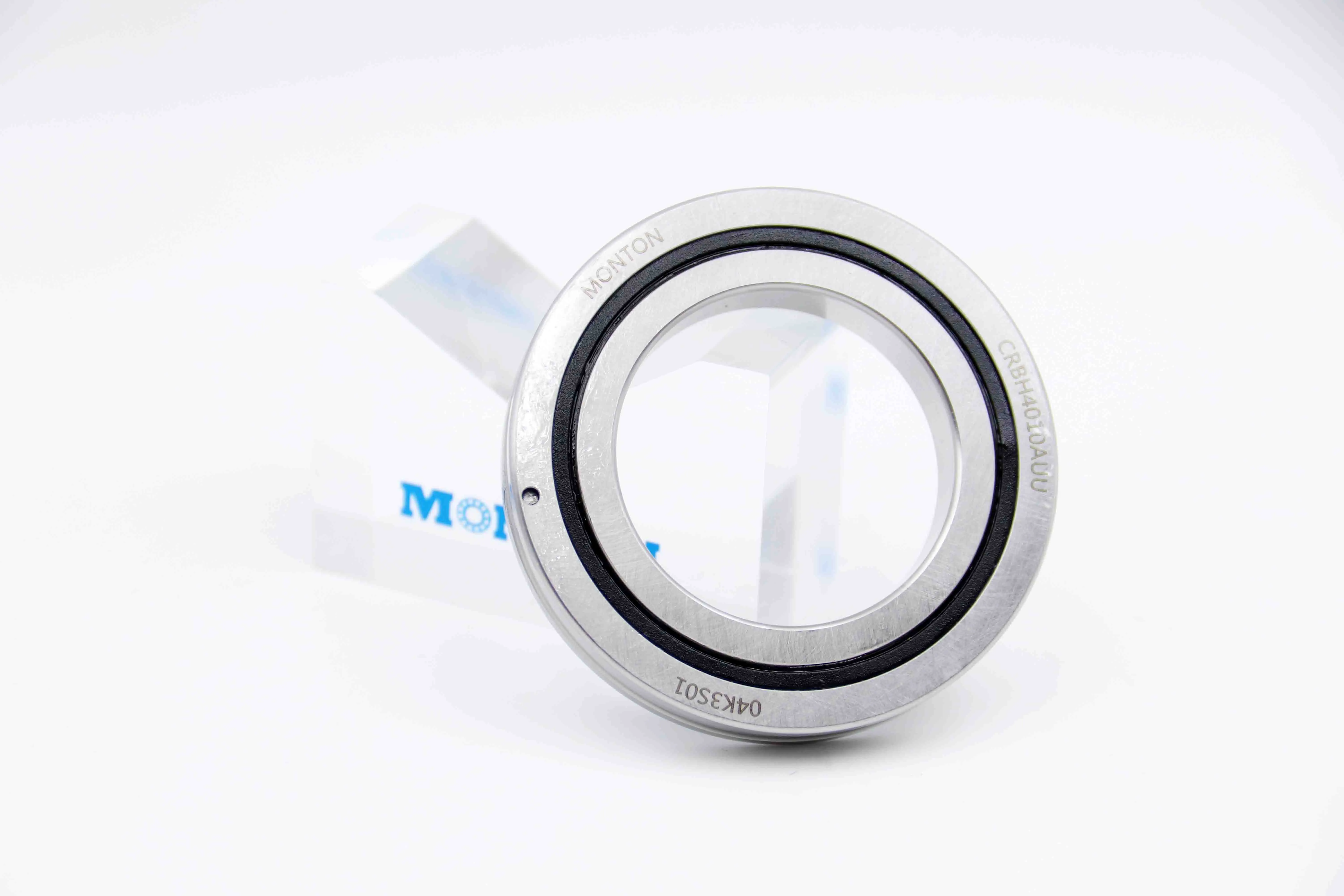

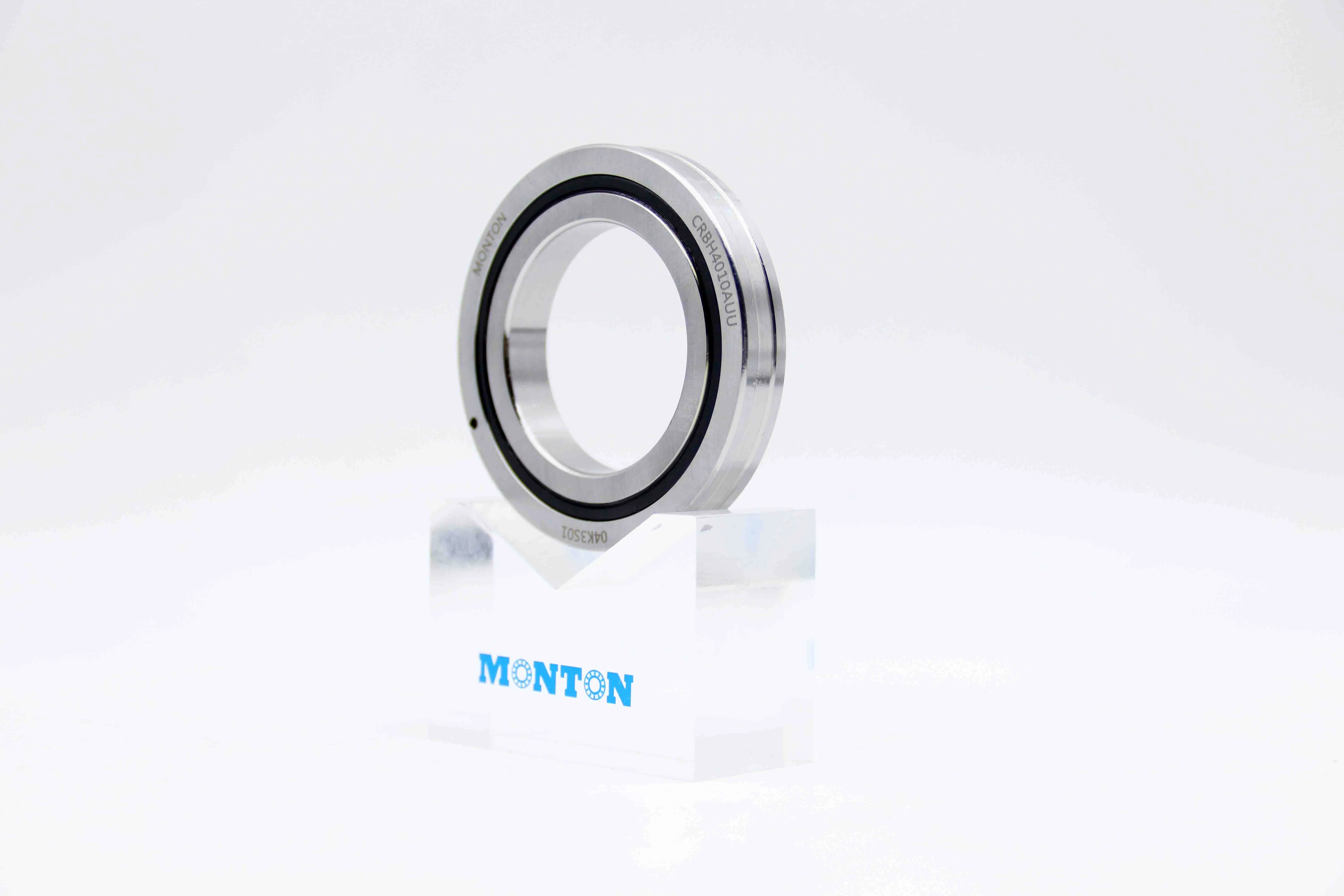

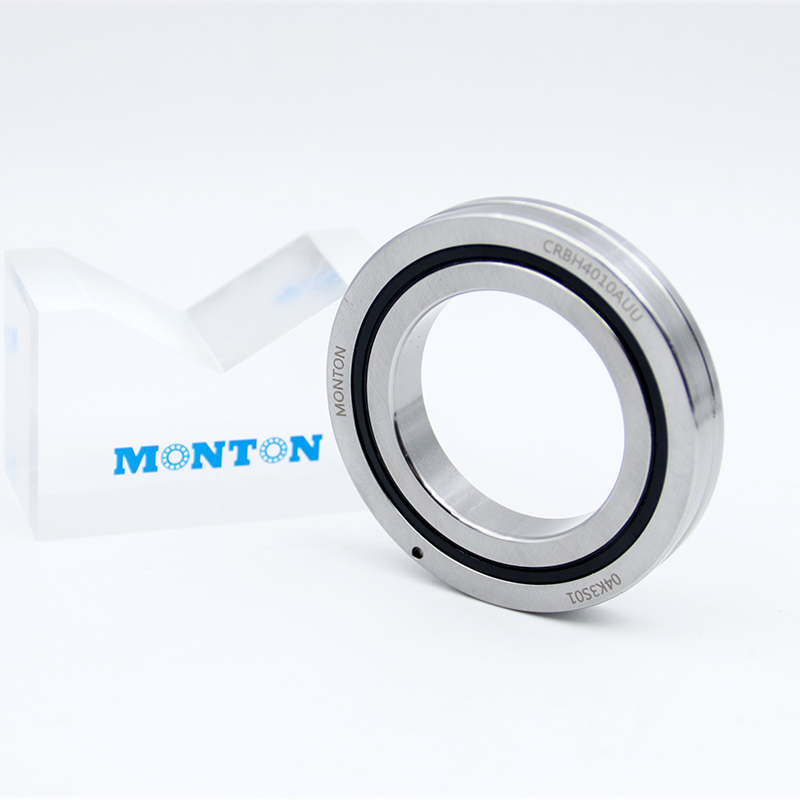

CRBH4010AUUCC0P5 Crossed Roller Bearing

CRBH4010AUCC0P5 is a high-precision, ultra-thin cross-section cross roller bearing with an integrated structure of inner and outer rings, no installation holes, and an ultra-thin cross-section design. It is installed through fixed flanges and support seats, which has little impact on performance and can achieve stable rotation accuracy and torque. The rollers are arranged in a cross pattern, and a single set can withstand composite loads of radial, axial, and overturning moments, with rigidity increased by 3-4 times compared to traditional bearings. Widely used in applications that require high rigidity, high rotational accuracy, and compact design, such as robot joints, turntables, medical equipment, and precision machine tools.

Case Details

Name	Crossed Roller Bearing
Series	CRBH series
Brand	MONTON
Open type	CRBH4010ACC0P5
Sealed type	CRBH4010AUUCC0P5
d	40mm
D	65mm
B	10mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	8.16KN
Load rating Cor	10.6KN
Sealed	According to requirement
Weight	0.15KG
Design Structure	Crossed roller
Precision	P4,P5 P2 or according to requirement
Vibration	as requirement
Clearance	CC0 /T1/C1/C2
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Robot Medical equipment Machine tools Motor Windmills Marine antenna Security Camera
