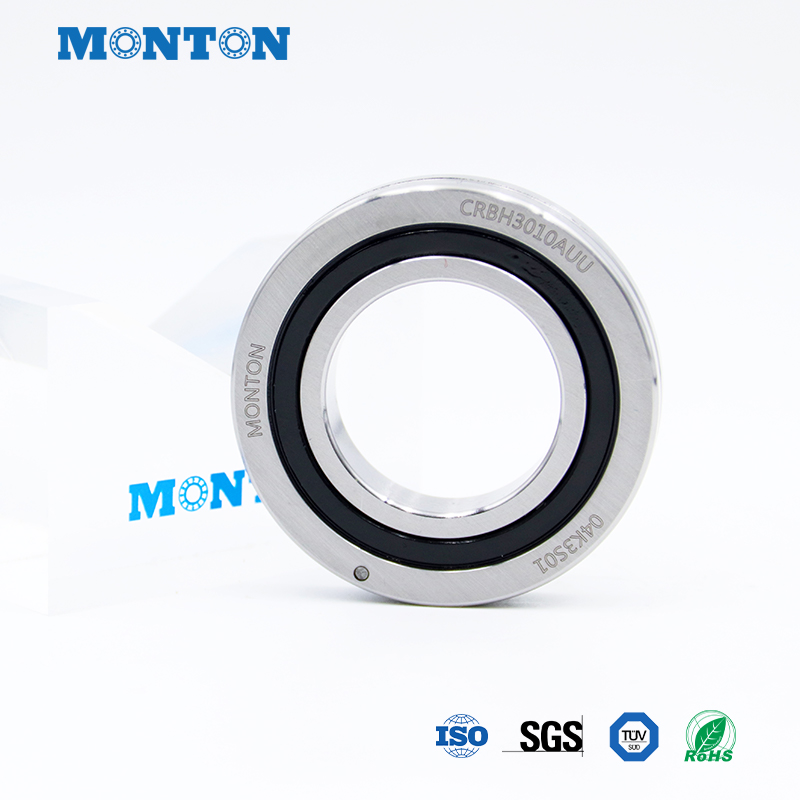

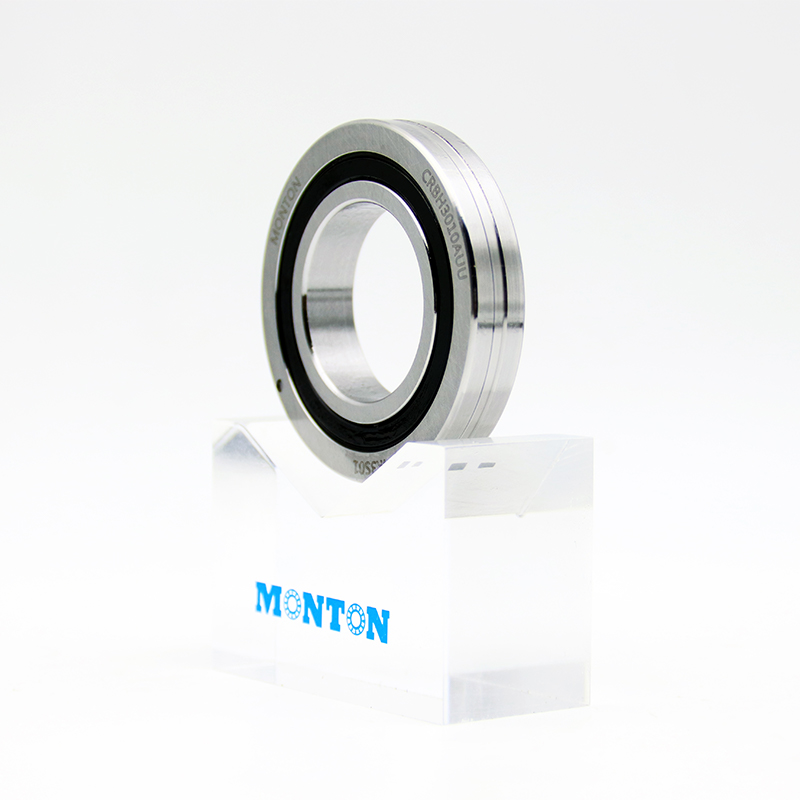

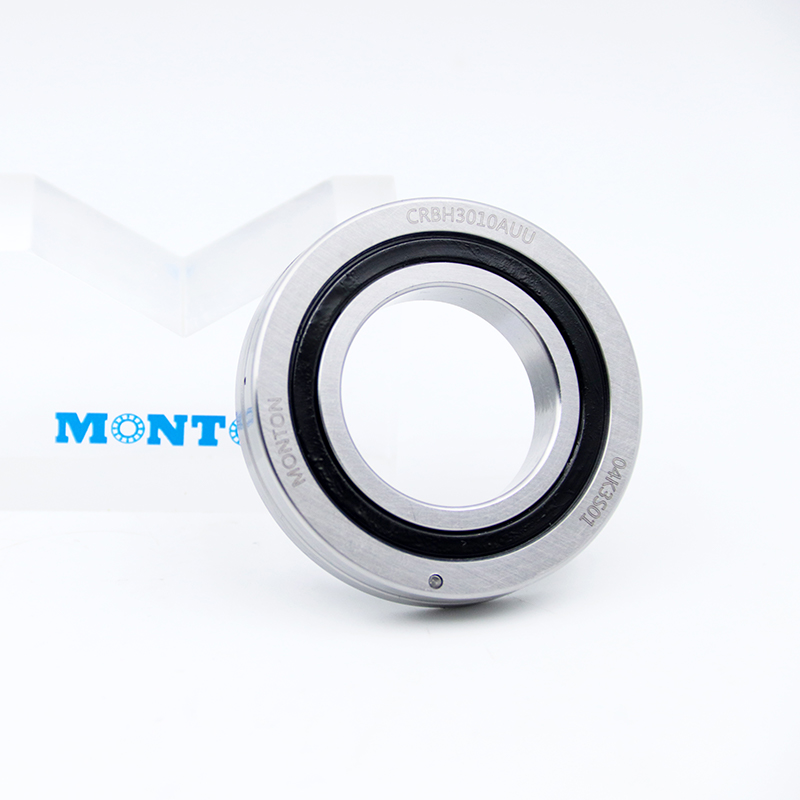

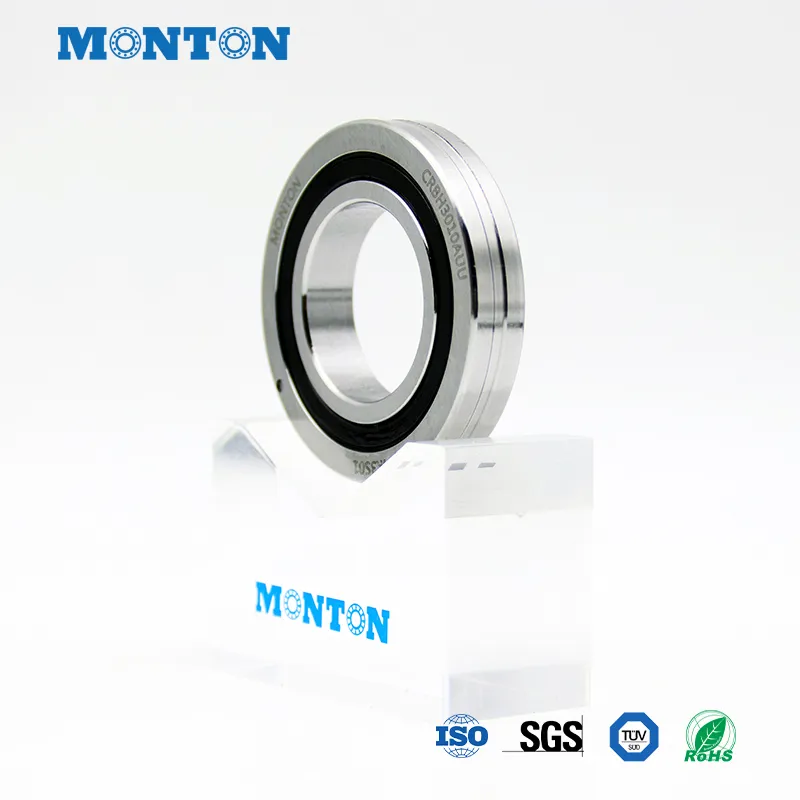

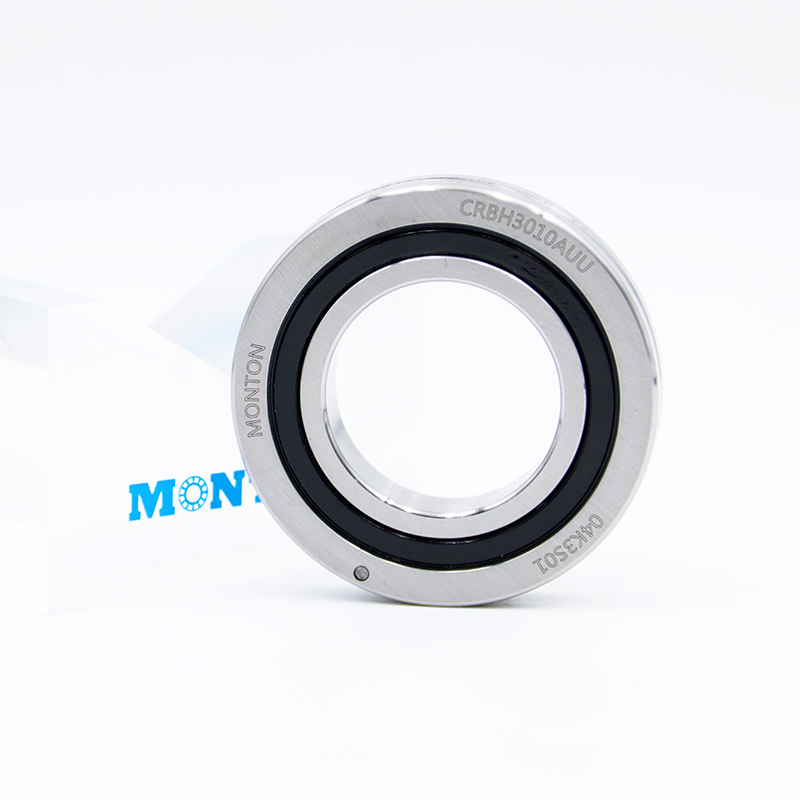

CRBH3010AUU Crossed Roller Bearing

CRBH3010AUU is a full roller cross roller bearing produced by MONON company. It is a high-precision bearing with a thin section integral design and is widely used in equipment with high requirements for rotational accuracy and rigidity. The load-bearing capacity of CRBH3010AUU full roller bearings is stronger. The inner and outer rings of this series of bearings are both integral structures, and only the flange and support seat need to be fixed during installation to achieve stable rotation accuracy and torque control. CRBH3010AUU is made of high-quality bearing steel, with extremely low friction coefficient and excellent lubrication performance, suitable for transmission systems of harmonic reducers, machine tool spindles, precision instruments, and robot joints.

Case Details

Name	Crossed Roller Bearing
Series	CRBH series
Brand	MONTON
Open type	CRBH 3010 A
Sealed type	CRBH 3010 A UU
d	30mm
D	55mm
B	10mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	7.6KN
Load rating Cor	8.3KN
Sealed	According to requirement
Weight	0.12KG
Design Structure	Crossed roller
Precision	P4,P5 P2 or according to requirement
Vibration	as requirement
Clearance	CC0 /T1/C1/C2
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Robot Medical equipment Machine tools Motor Windmills Marine antenna Security Camera
