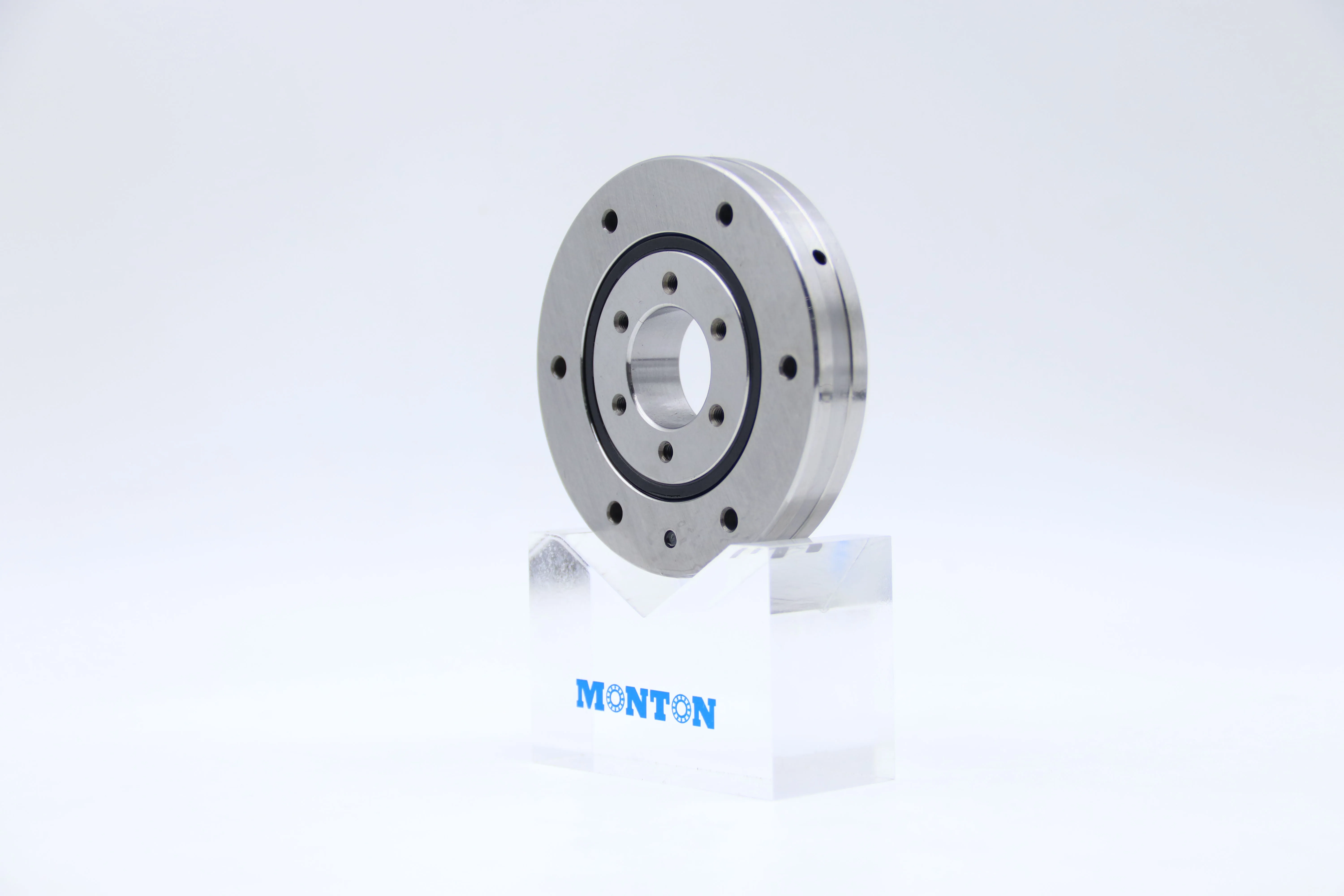

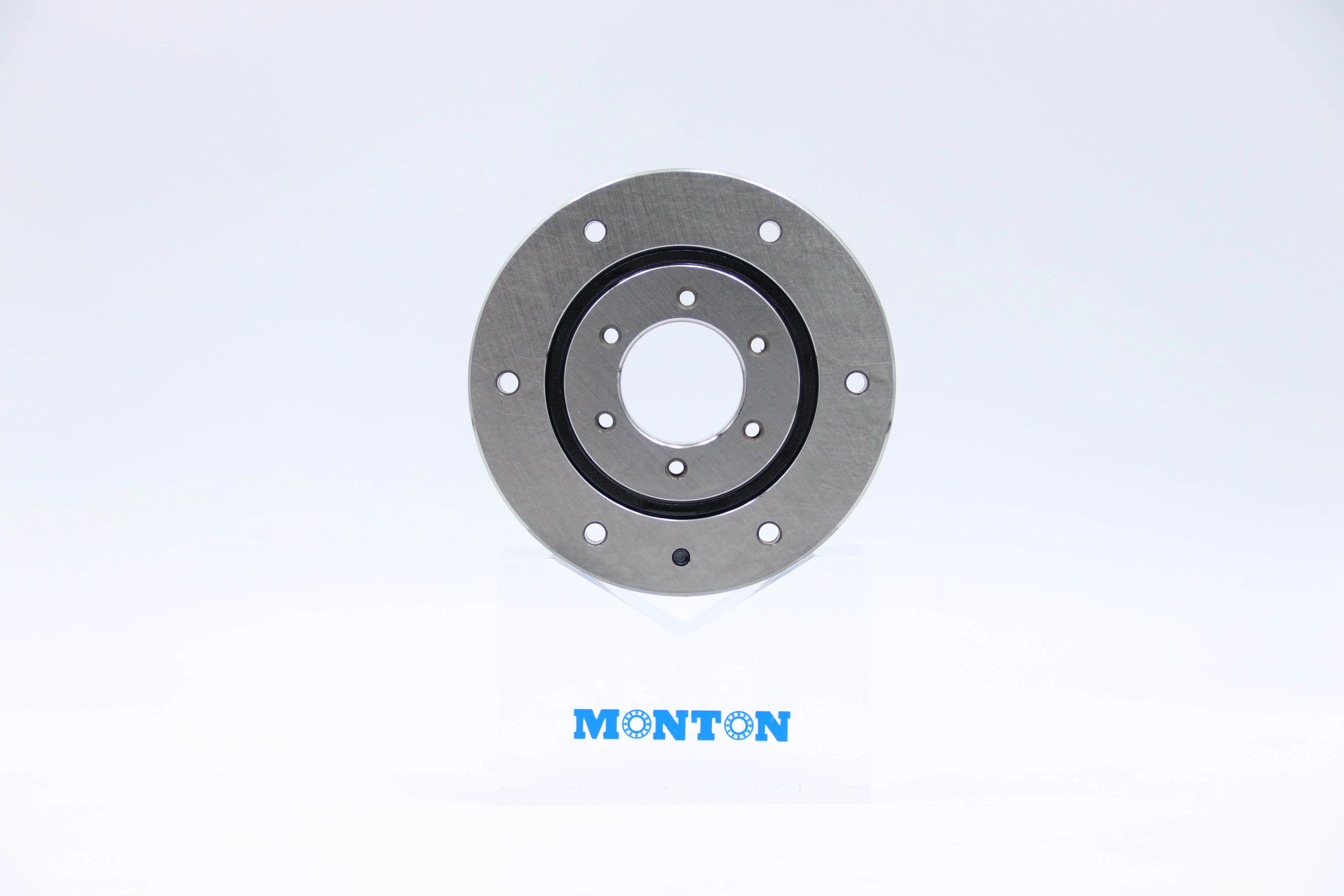

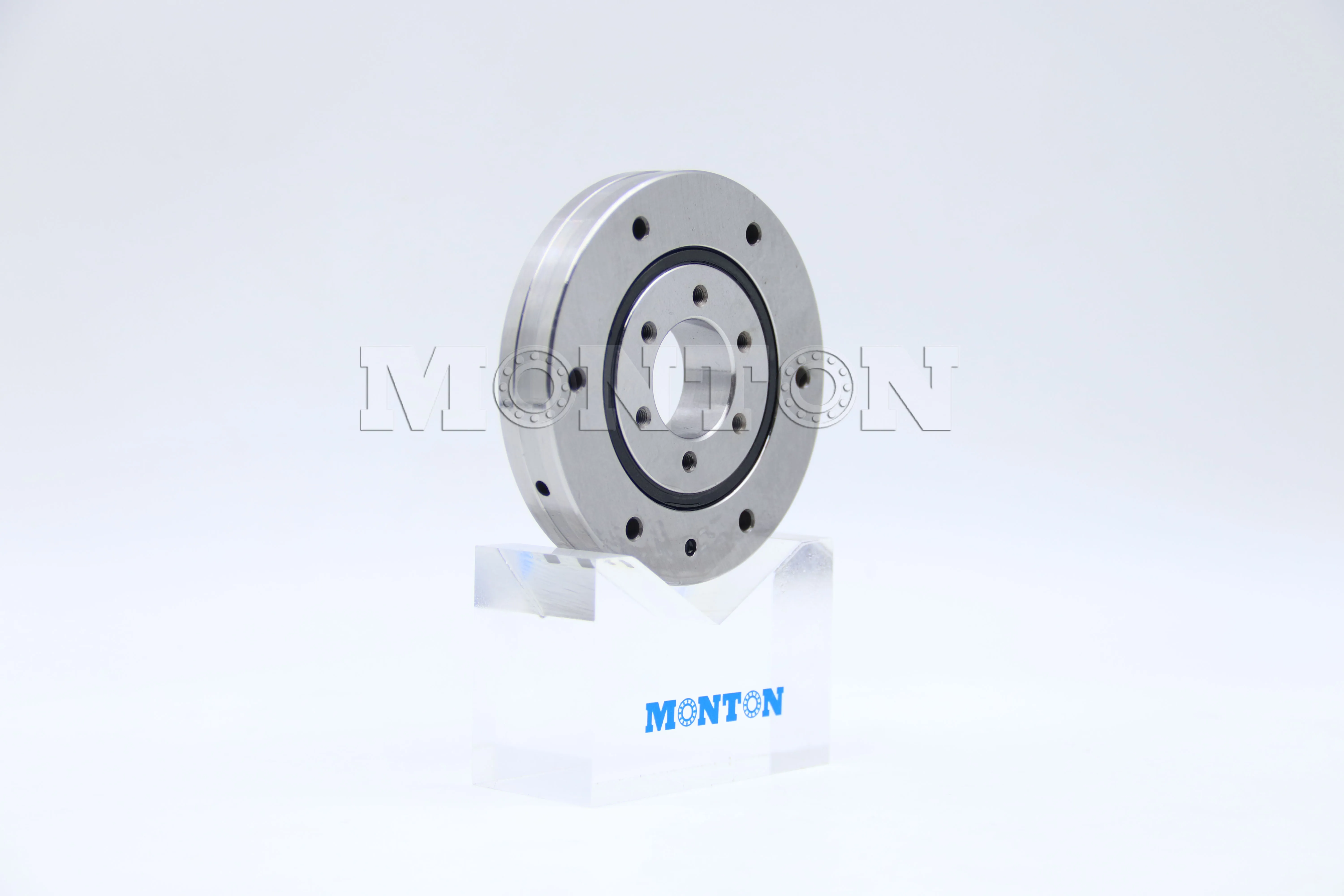

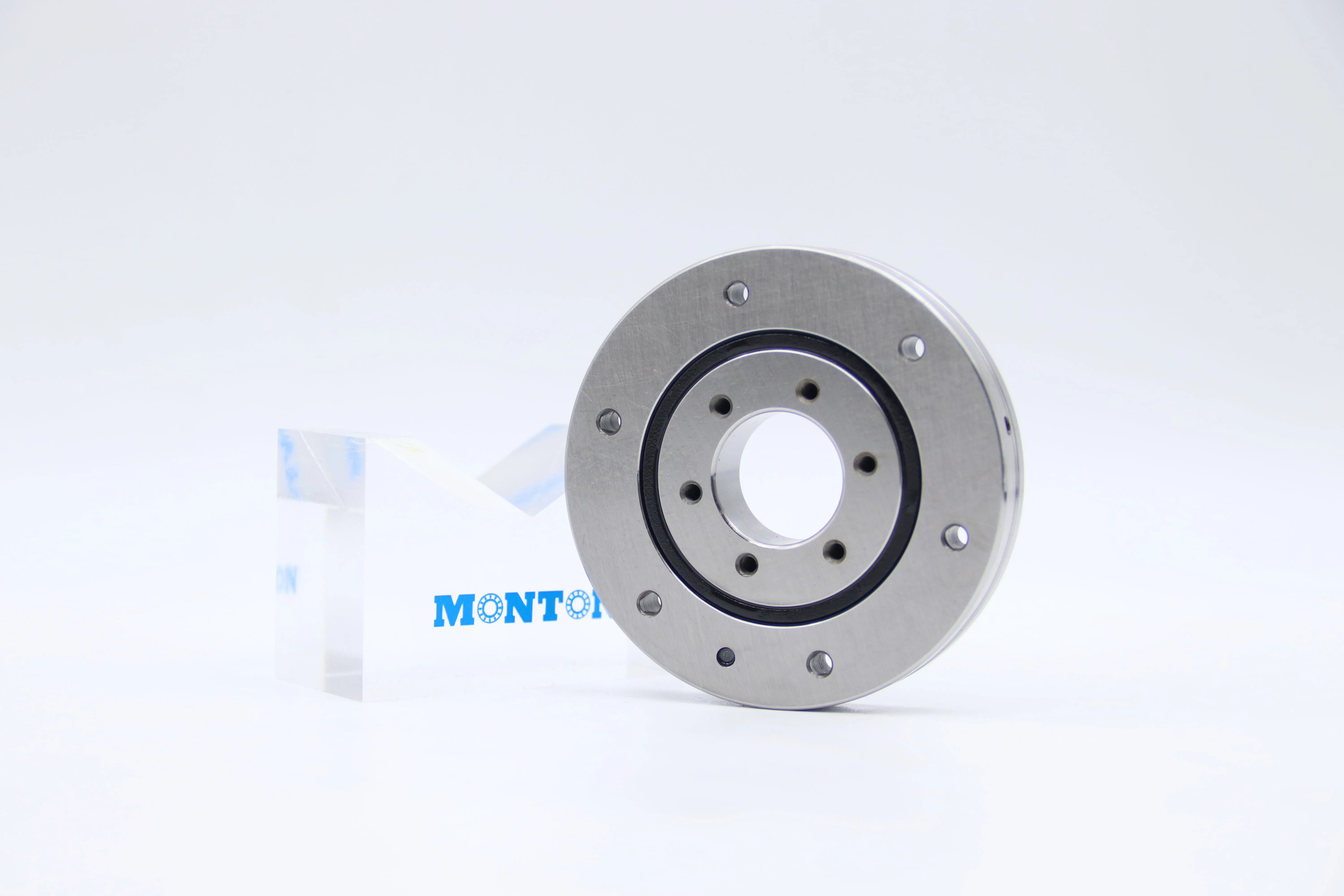

RU42UUCC0P5 Crossed Roller Bearing

RU42UUCC0P5 cross roller bearing is a high rigidity and high-precision rotary bearing, widely used in automation equipment with high requirements for rotational accuracy and structural compactness. Its core feature is that both the inner and outer rings are integral structures with installation holes, which can be directly installed without the need for additional flanges or support seats, effectively reducing assembly errors and improving system stability. RU42UUCC0P5 has installation holes on both the inner and outer rings, which can be directly fixed to the equipment, simplifying the structural design and reducing overall costs. Commonly used in industrial robot joints and rotating axes, CNC machine tool four/five axis turntables, radar antenna rotating mechanisms, medical imaging equipment rotating components, precision testing instruments and alignment platforms.

Case Details

Name	Crossed Roller Bearing
Seires	RU series
Brand	MONTON
Model	RU42UUCC0P5
d	20mm
D	70mm
B	12mm
Ring Material	Gcr15
R	0.6
Load rating Cr	7.35kN
Load rating Cor	8.35kN
Sealed	According to requirement
Weight	0.29KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Clearance	CC0
Quality standard	ISO9001: 2015/TUV/SGS/RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tools Centrifuges Manipulators Hoists Luggage scanner Medical technology Antennas such as radar systems and telescopes Automation, such as robot and handling systems
