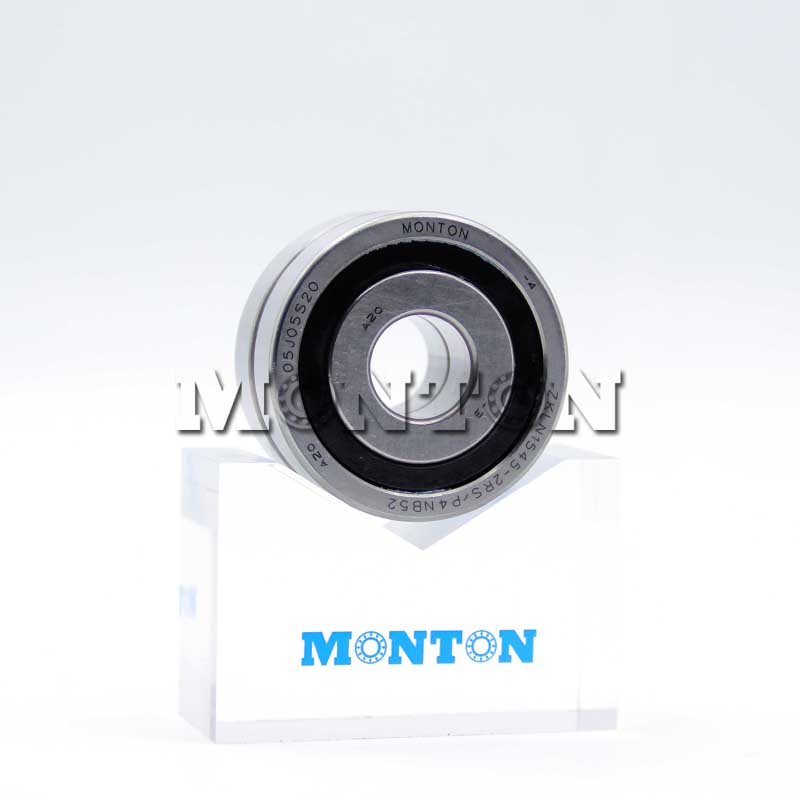

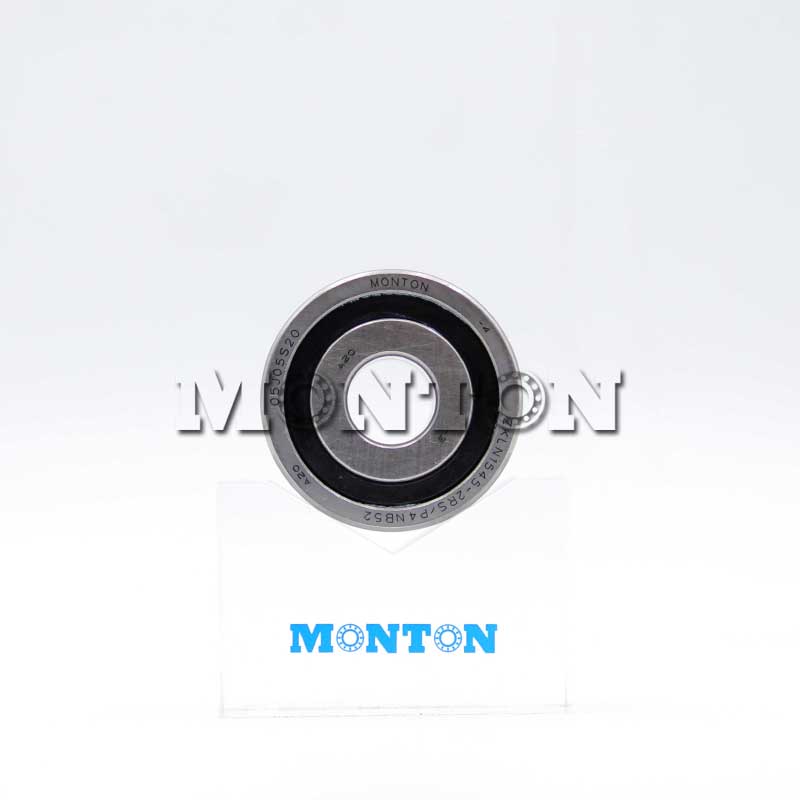

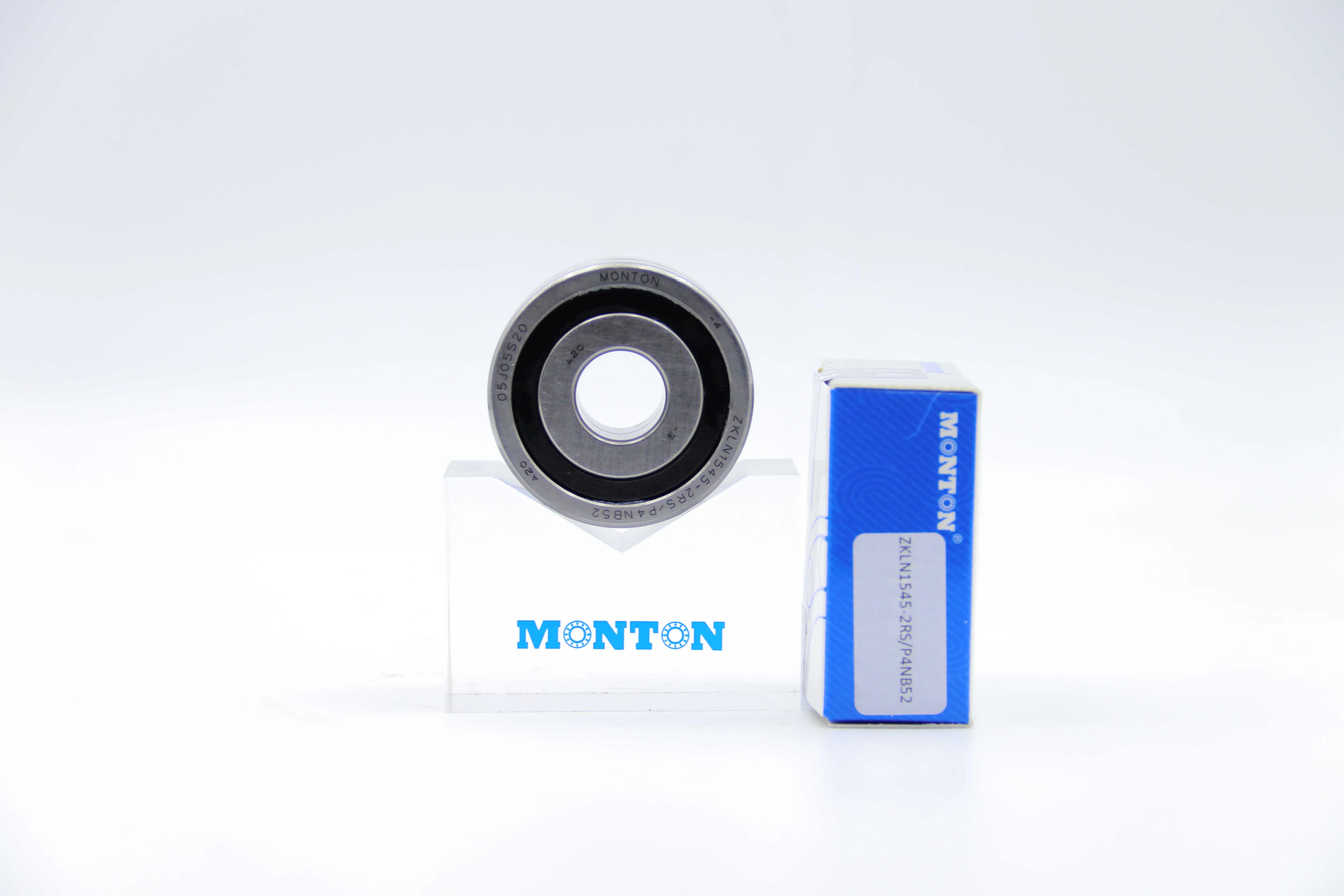

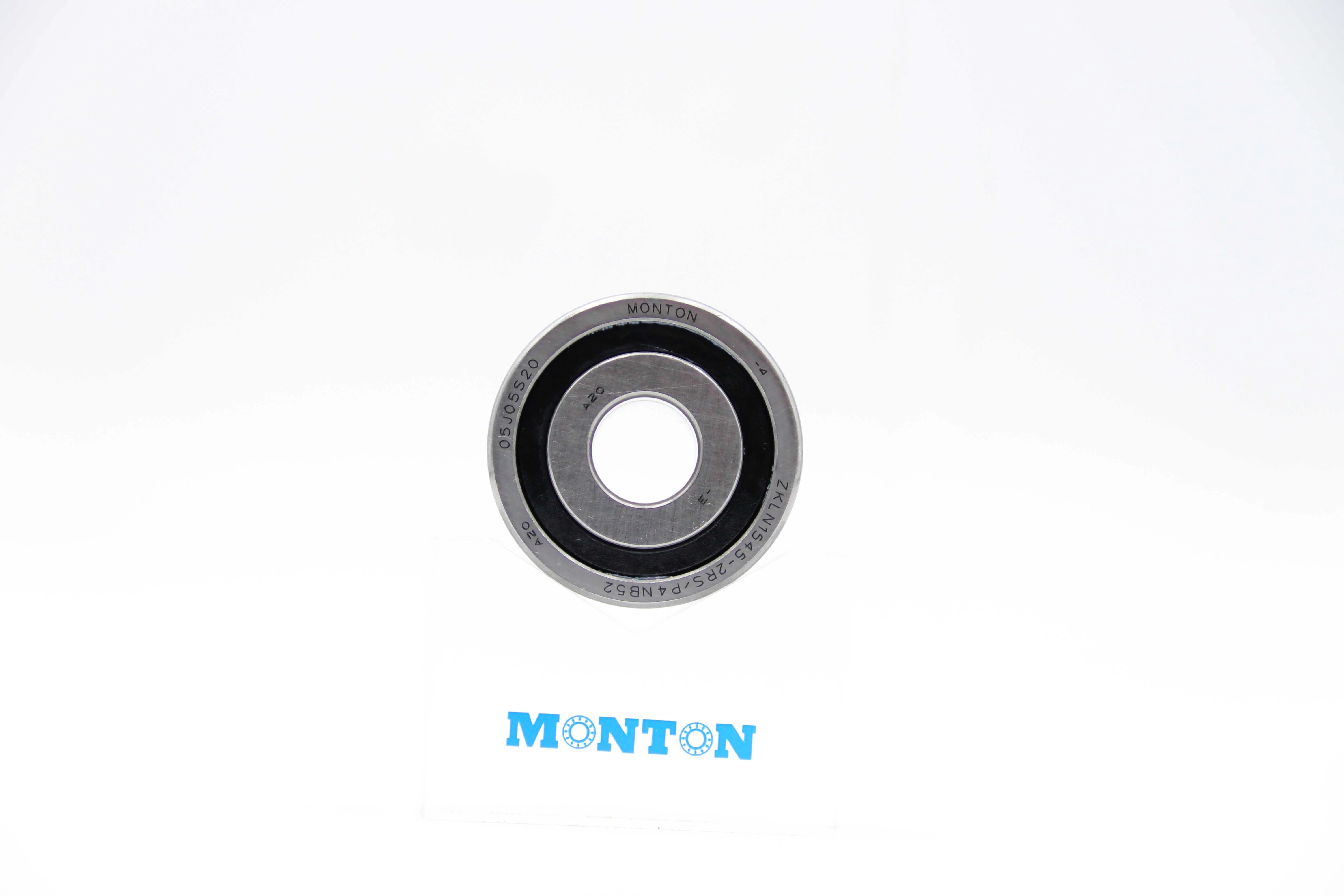

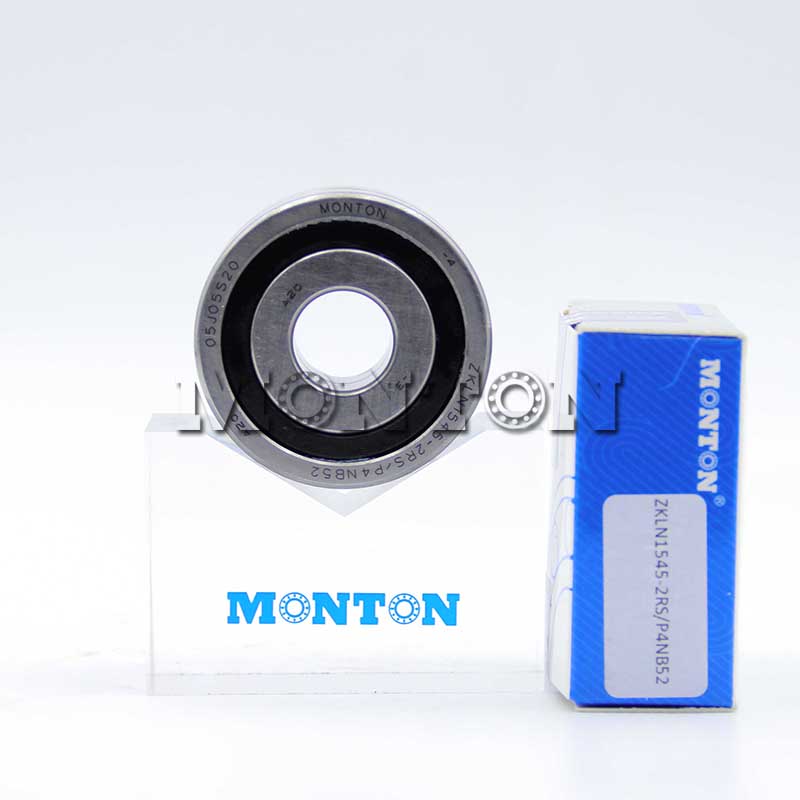

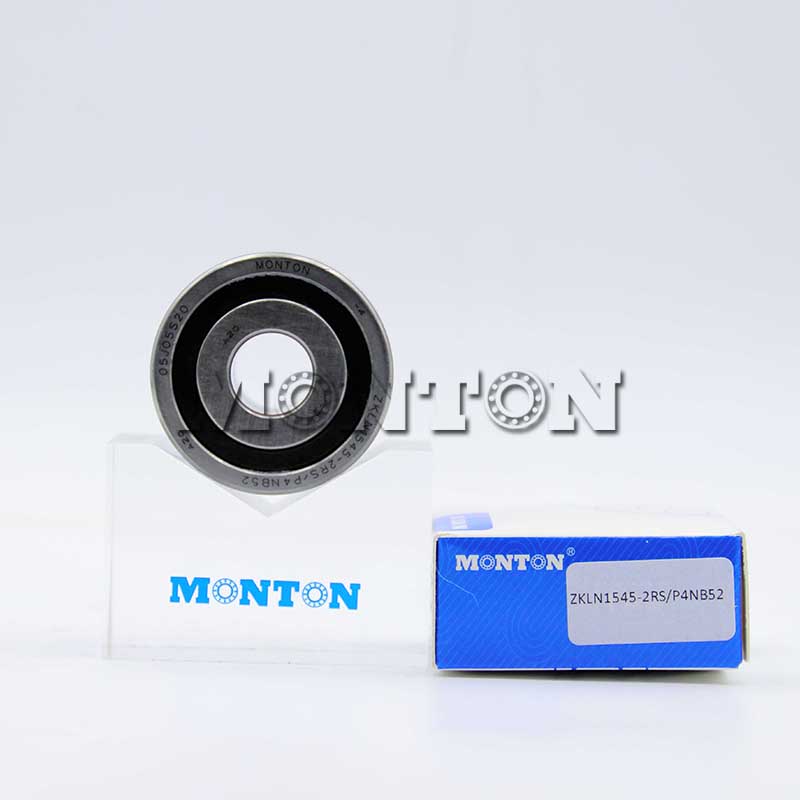

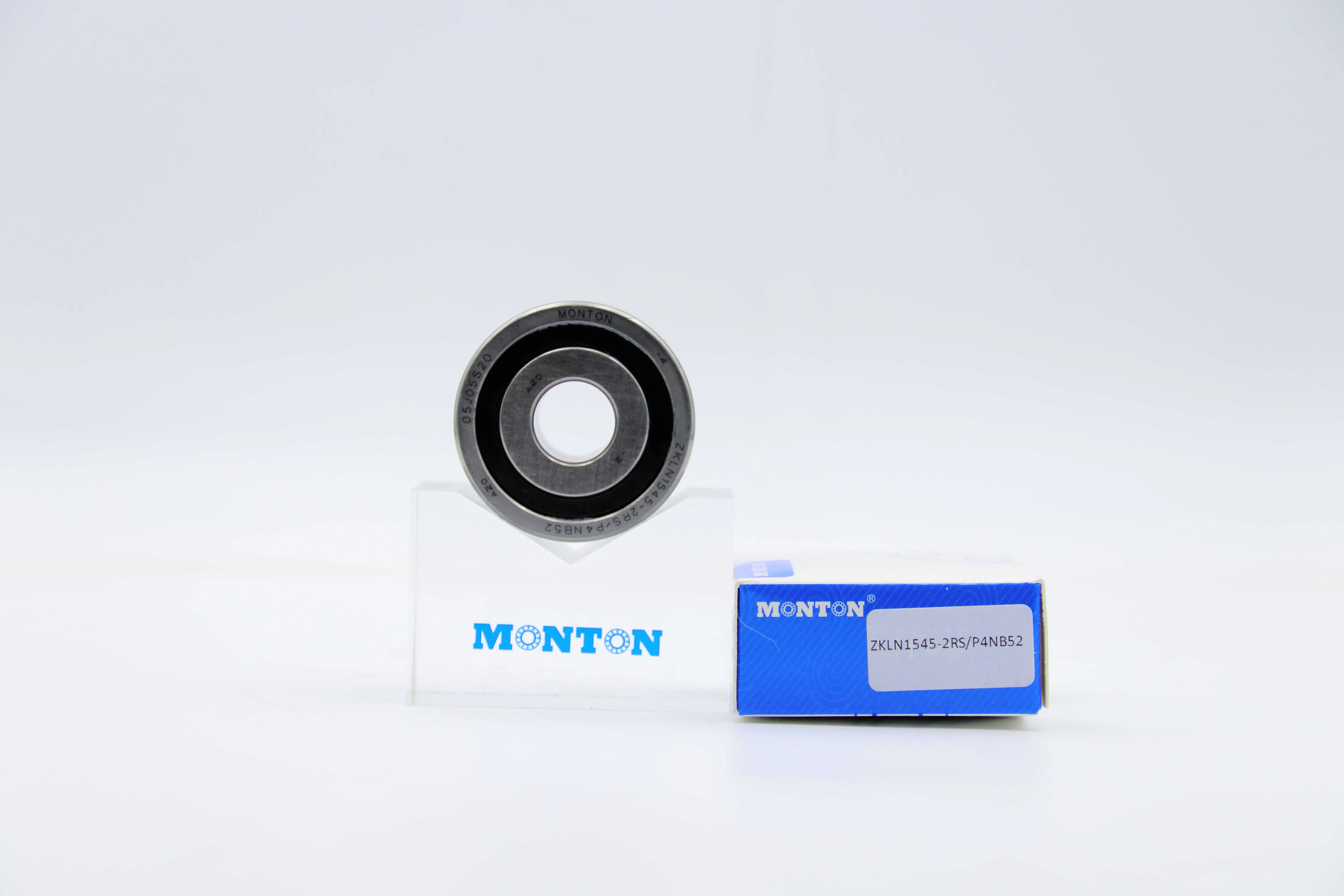

ZKLN1545-2RS/P4NB52 Axial angular contact ball bearing

The bearing ZKLN1545-2RS is a double-row angular contact ball bearing fromMONTON, designed for high rigidity and precision applications. Here’s a detailed breakdown:double-row angular contact ball bearing, Rubber seals on both sides (contact seals for dust/moisture protection).Precision: Likely P4 or P5 (high precision, but suffix may vary).Load Capacity: Double-row design handles combined radial + axial loads. Application for :Precision machinery (CNC spindles, medical devices).,Food/pharmaceutical industries (stainless steel variant).Robotics and high-speed equipment.If you need exact dimensions, load ratings, or a cross-reference, let me know!

Case Details

Name	Axial angular contact ball bearing
Brand	MONTON
Model	ZKLN1545-2RS/P4NB52
Bore diameter	15mm
Outside diameter	45mm
B(width)	25mm
Ring Material	Bearing steel
Cage Material	Nylon
Basic dynamic load rating, axial	17900 N
Basic static load rating, axial	28000 N
Limiting speed for Grease lubrication	8200 1/min
Thermally safe operating speed	3500 1/min
Bearing frictional torque	0.2Nm
Sealed	as customer requested
Weight	0.22KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
