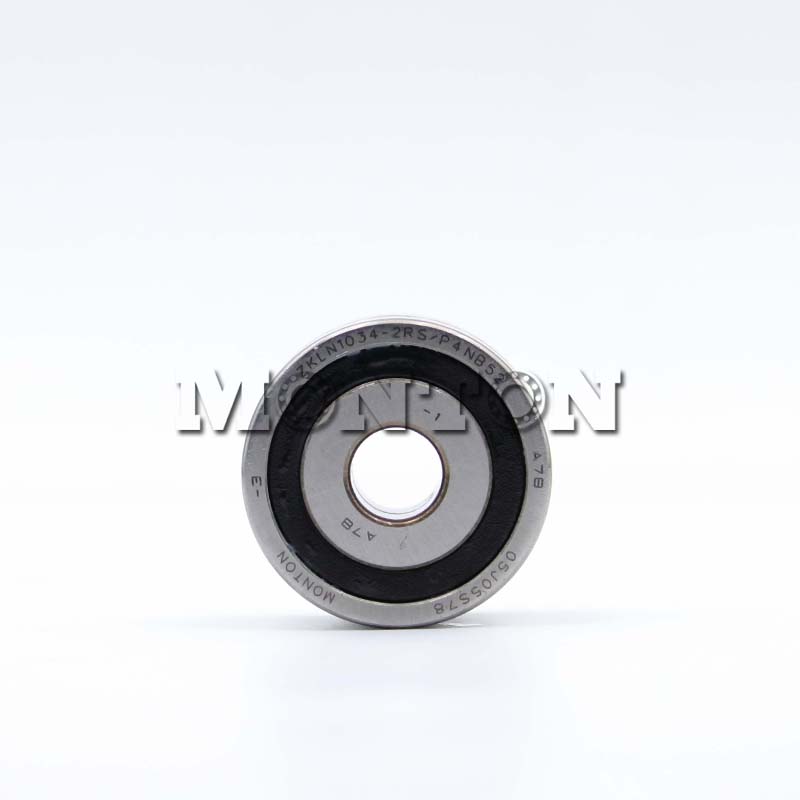

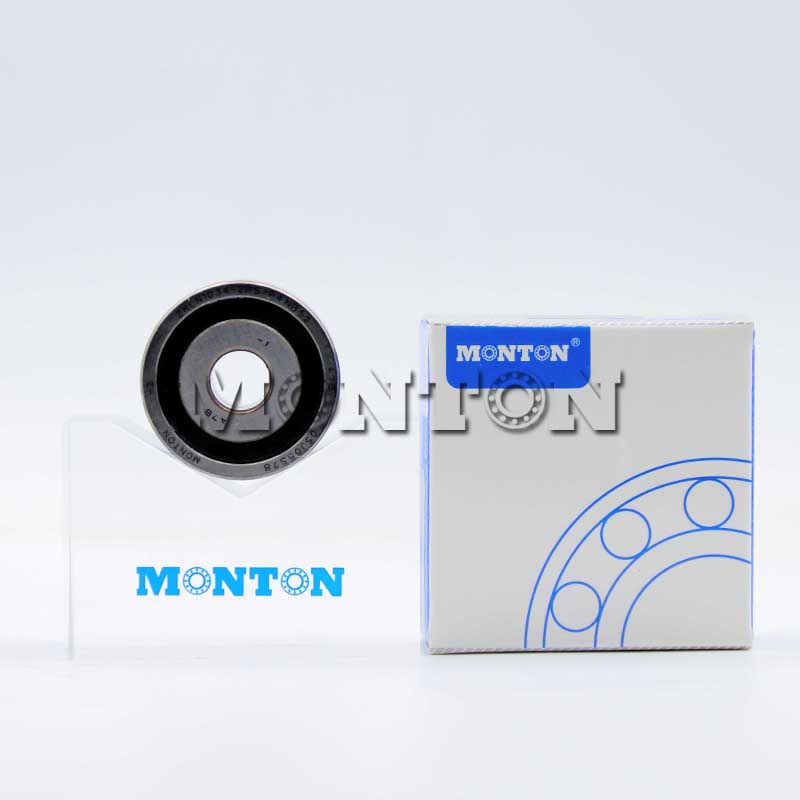

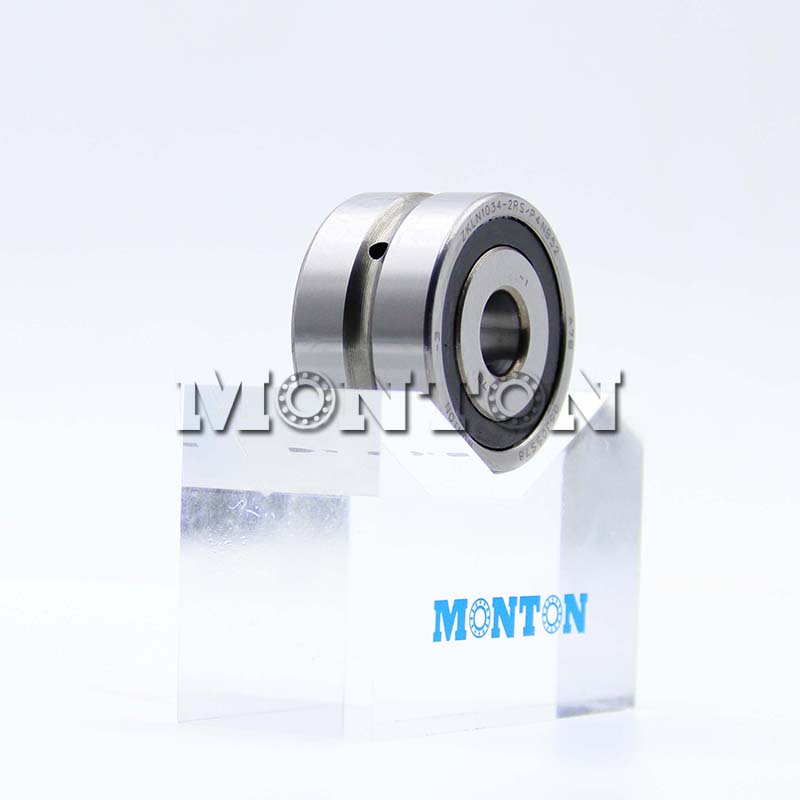

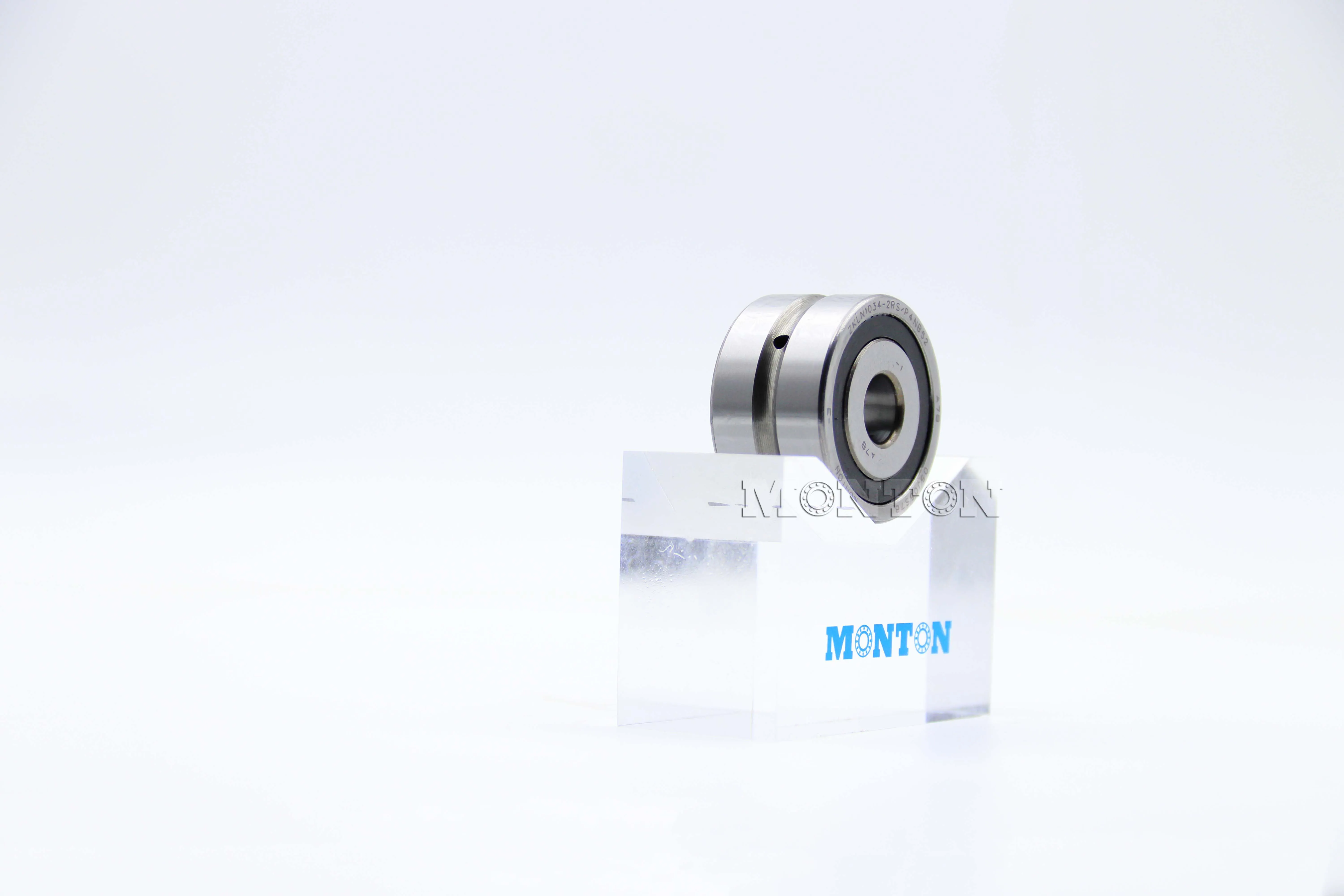

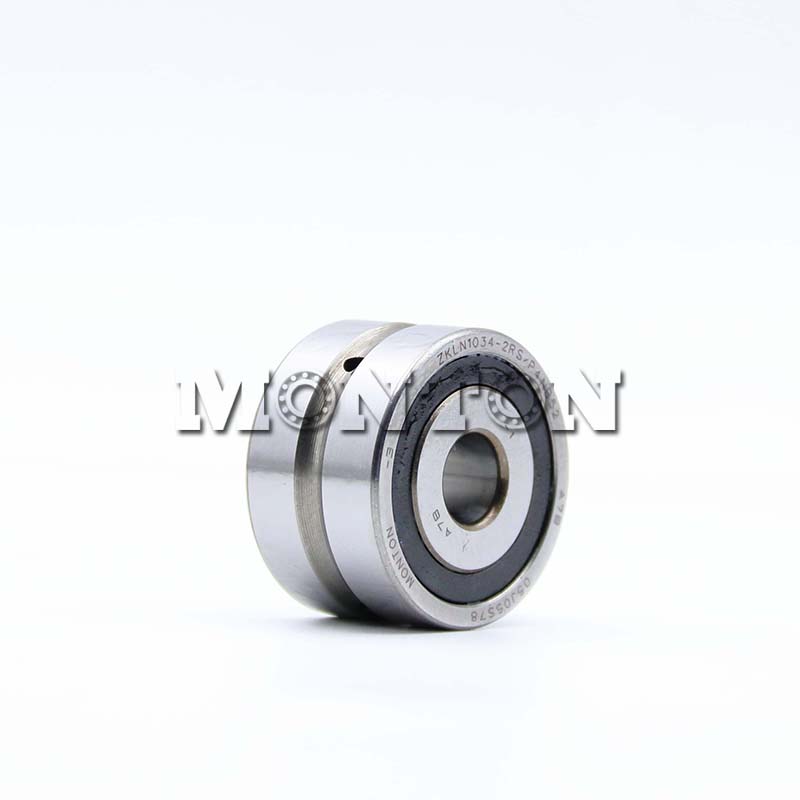

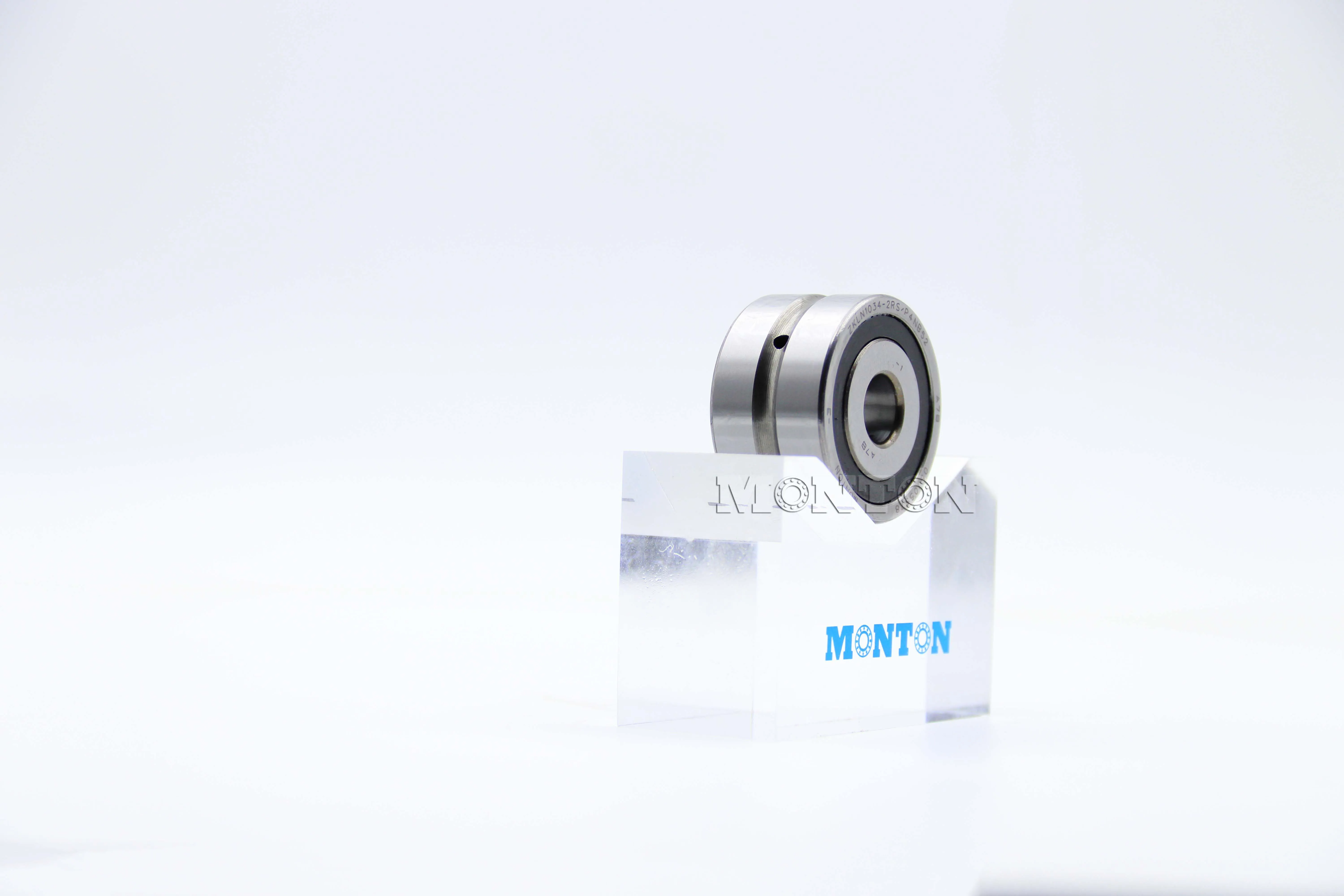

ZKLN1034-2RS/P4NB52 Axial angular contact ball bearing

ZKLN034-2RS/P4NB52 precision thrust angular contact ball bearings are commonly used in high load and high-speed scenarios such as precision machine tool spindles and industrial robot joints. The sealing design (2RS) in the model supports long-term operation in polluted environments, but attention should be paid to the rubber material's resistance to high temperature environments. The ZKLN034-2RS/P4NB52 produced by MONTON is a precision P4 bearing filled with NB52 grease, which can be directly installed and used by customers.

Case Details

Name	Axial angular contact ball bearing
Brand	MONTON
Model	ZKLN1034-2RS/P4NB52
Bore diameter	10mm
Outside diameter	34mm
B(width)	20mm
Ring Material	Bearing steel
Cage Material	Nylon
Basic dynamic load rating, axial	14700 N
Basic static load rating, axial	18800 N
Limiting speed for Grease lubrication	10900 1/min
Thermally safe operating speed	4600 1/min
Bearing frictional torque	0.12Nm
Sealed	as customer requested
Weight	0.1KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
