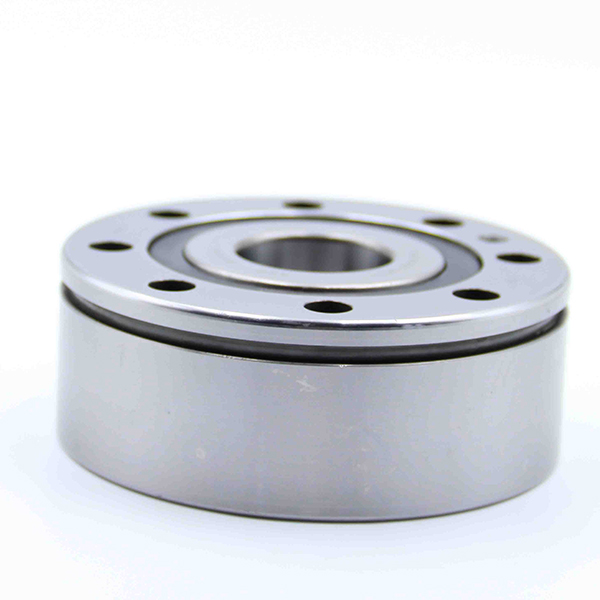

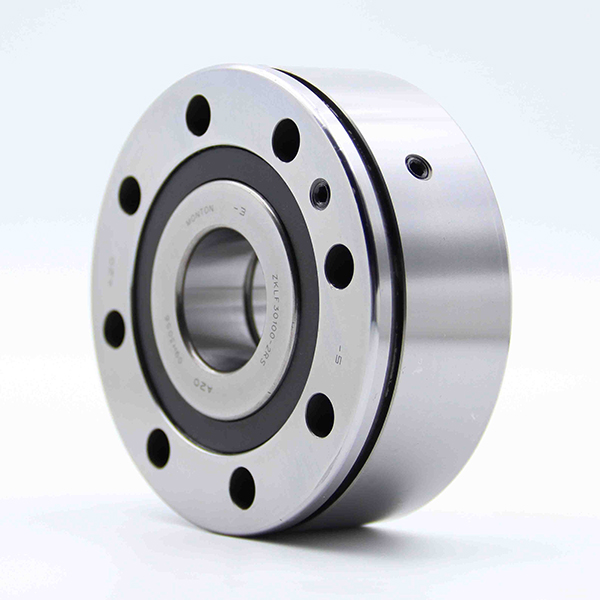

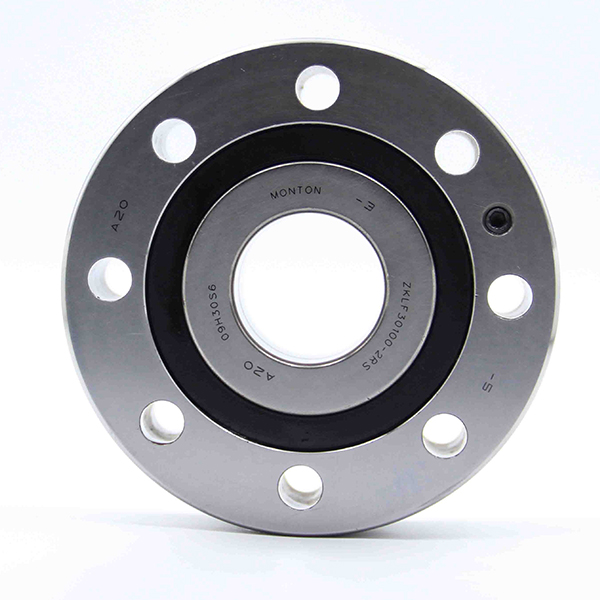

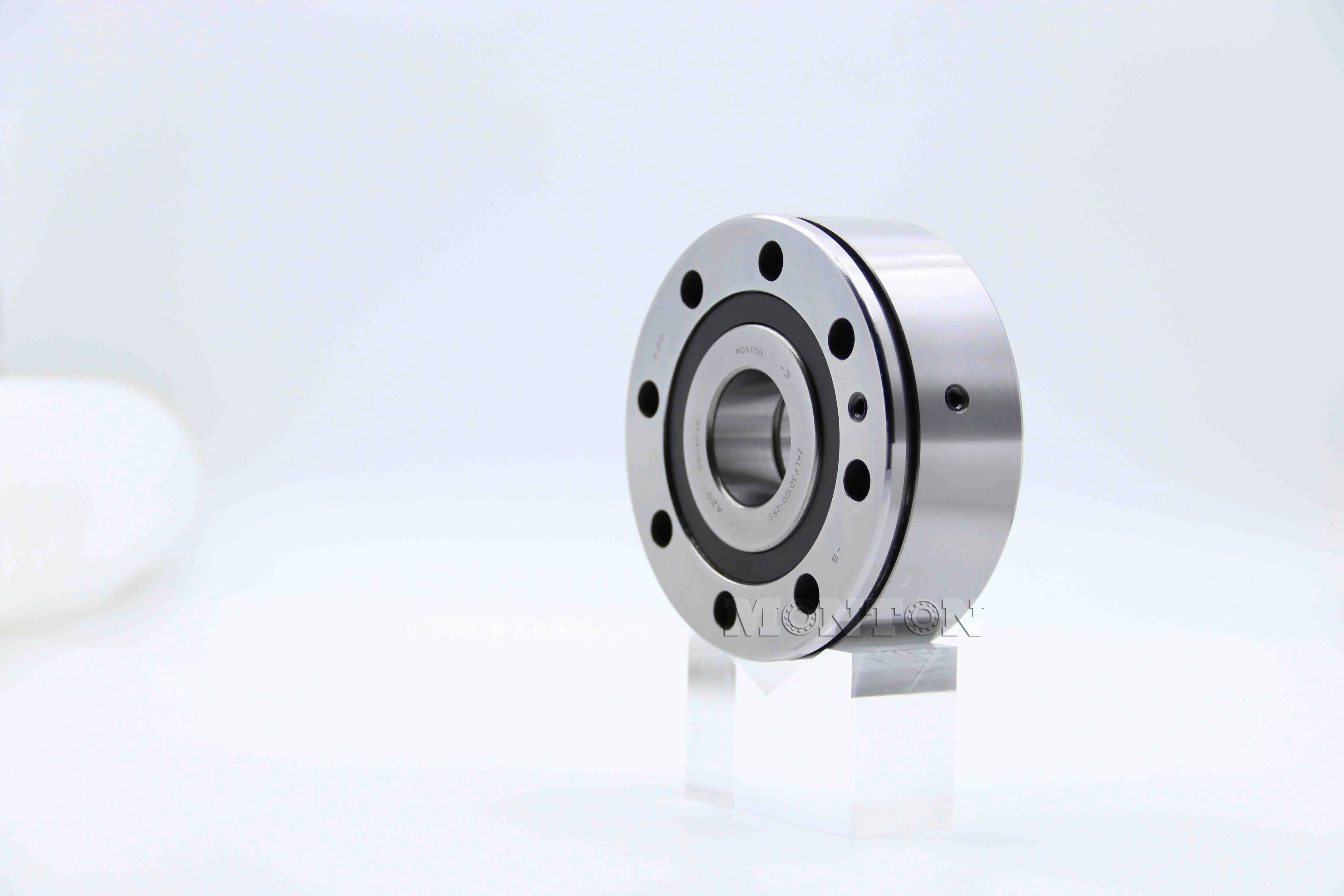

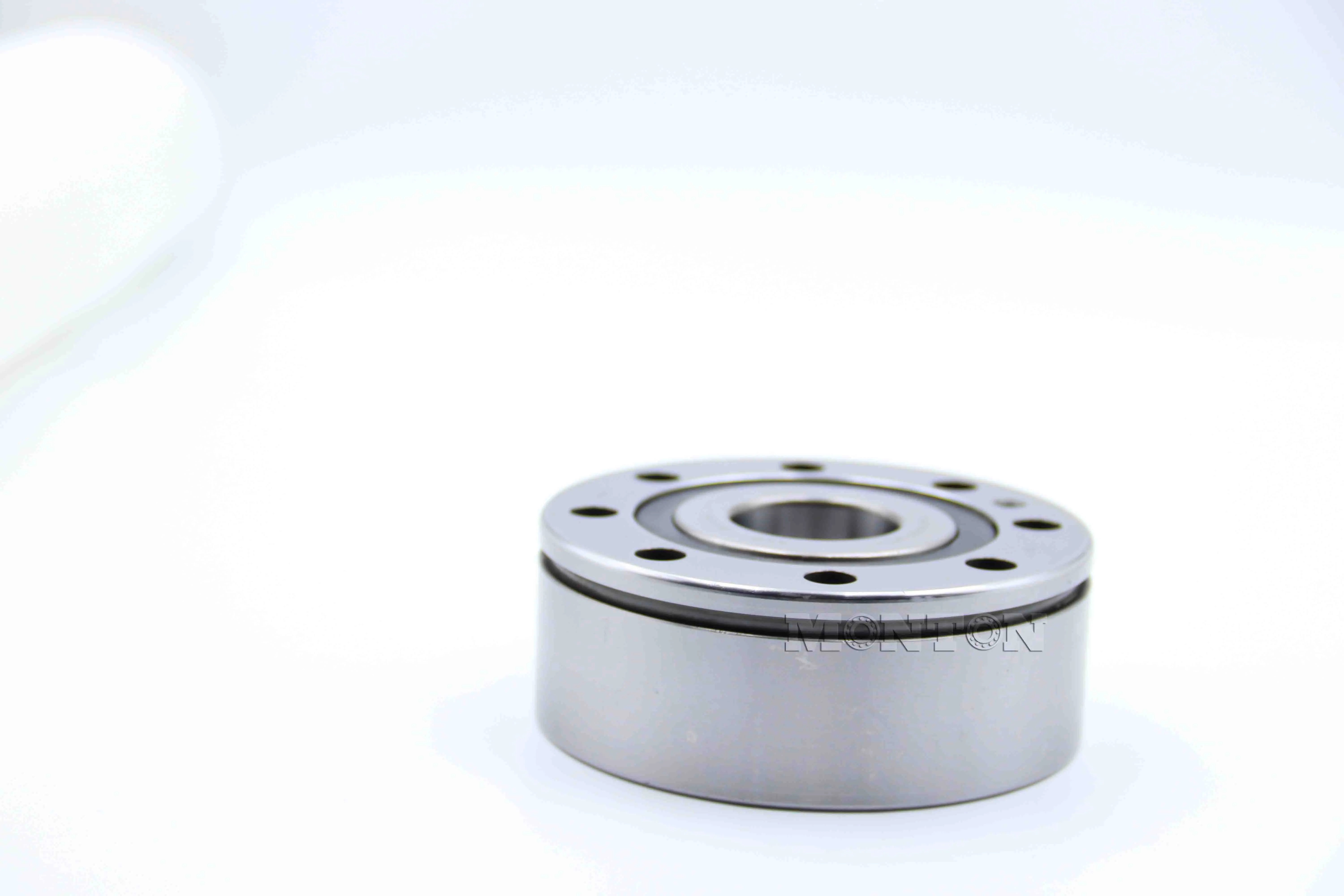

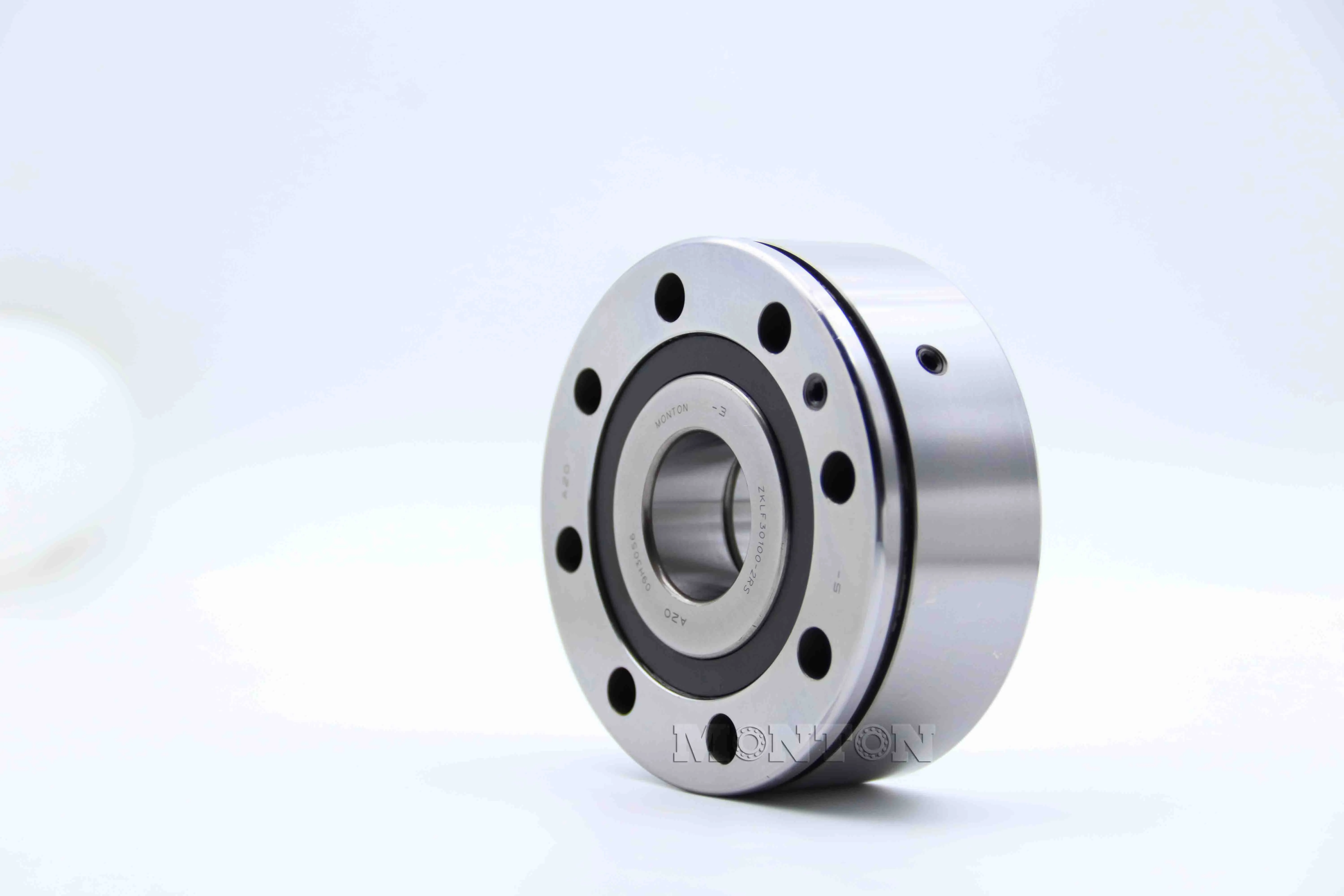

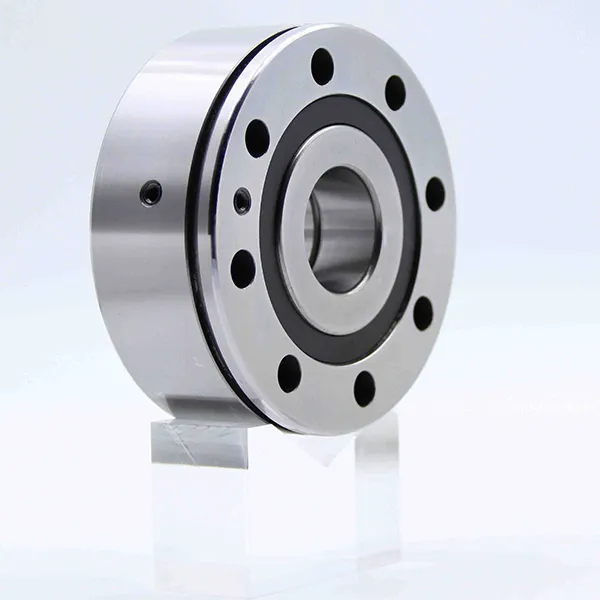

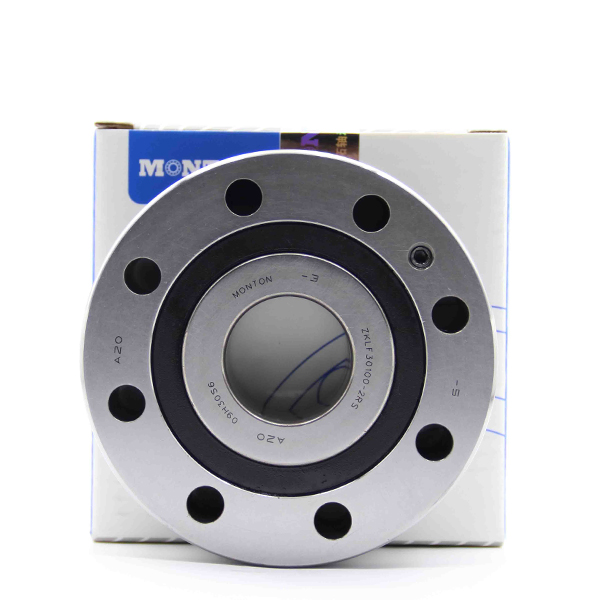

ZKLF30100-2RS-XL Axial-angular Contact Ball Bearings For Screw Drives

ZKLF thrust angular contact ball bearing is a type of thrust angular contact ball bearing mainly used to withstand axial loads and has the characteristic of bi-directional force.
ZKLF thrust angular contact ball bearings consist of an outer ring, an inner ring, steel balls, and a cage, which can work stably at high speeds. This type of bearing is commonly used in precision machine tool spindles and is generally used in conjunction with double row cylindrical roller bearings. It can withstand bidirectional axial loads and has the advantages of high precision, good rigidity, low temperature rise, high speed, and easy assembly and disassembly.

Case Details

Name	Axial-angular Contact Ball Bearings For Screw Drives
Brand	MONTON
Model	ZKLF30100-2RS-XL
Bore diameter	30mm
Outside diameter	100mm
B(width)	38mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating, axial	65000N
Basic static load rating, axial	108000 N
Limiting speed for Grease lubrication	4500 1/min
Thermally safe operating speed	2100 1/min
Bearing frictional torque	0.8Nm
Sealed	Double seals
Weight	1.7KG
Quality standard	ISO9001: 2000/SGS

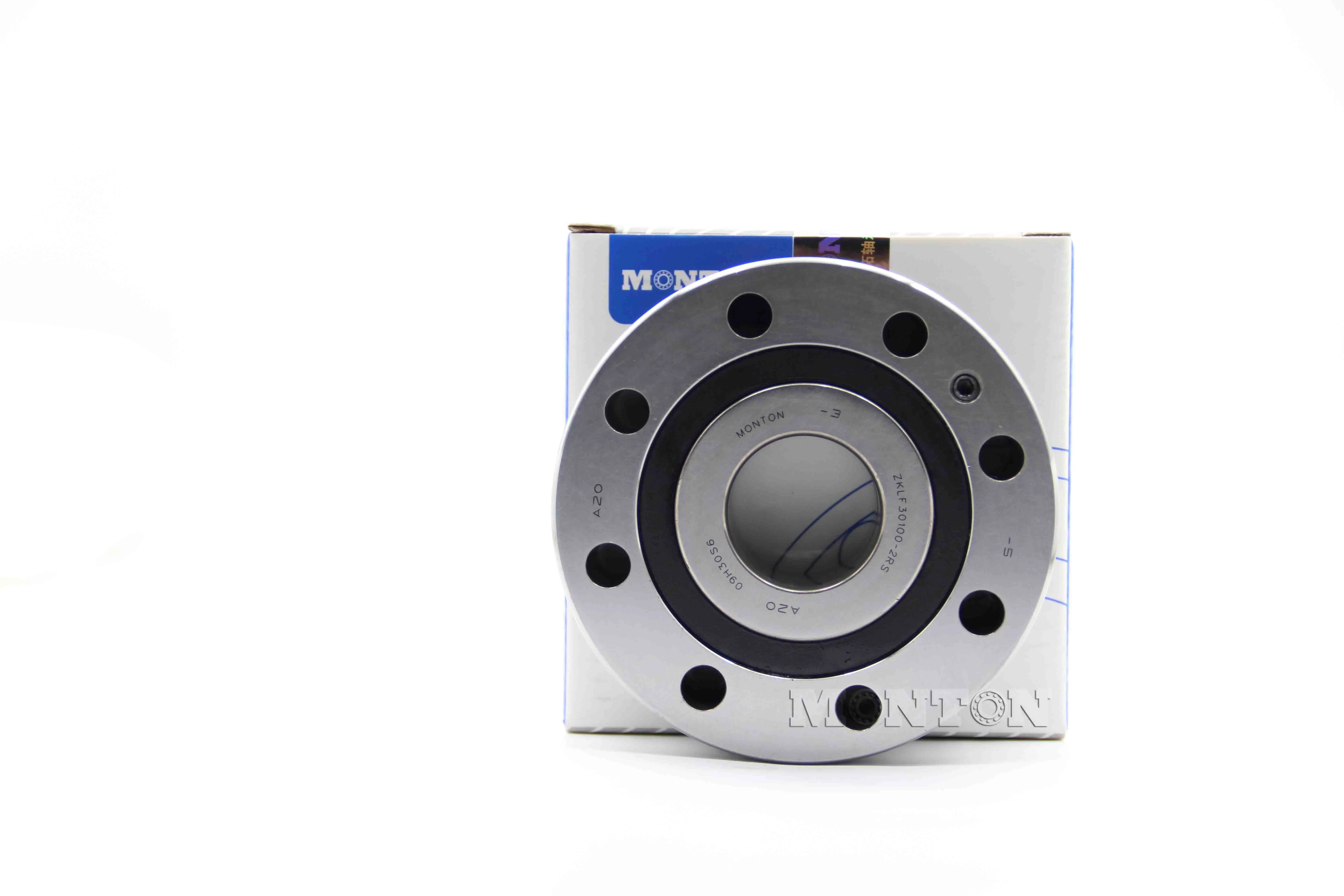

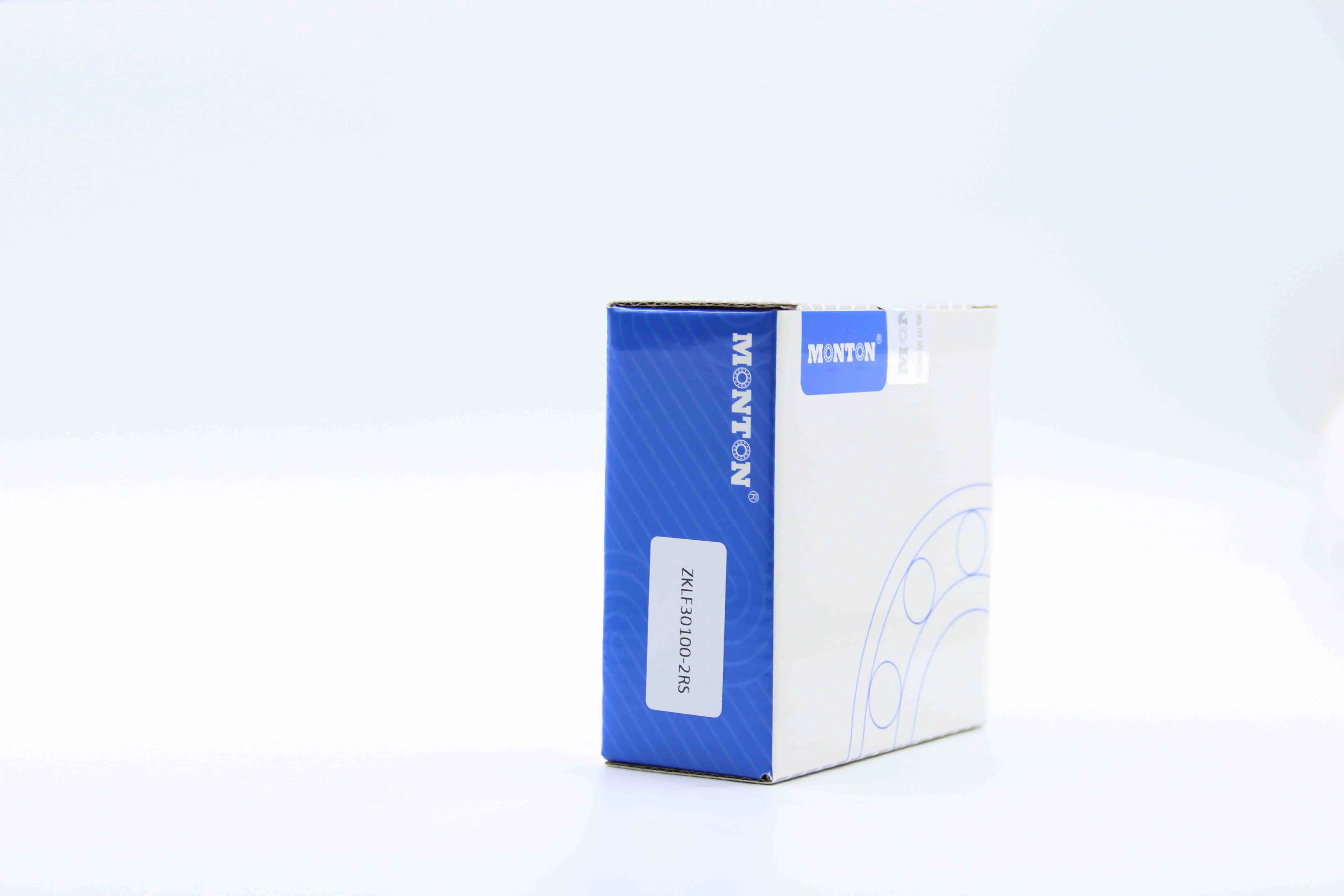

Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
