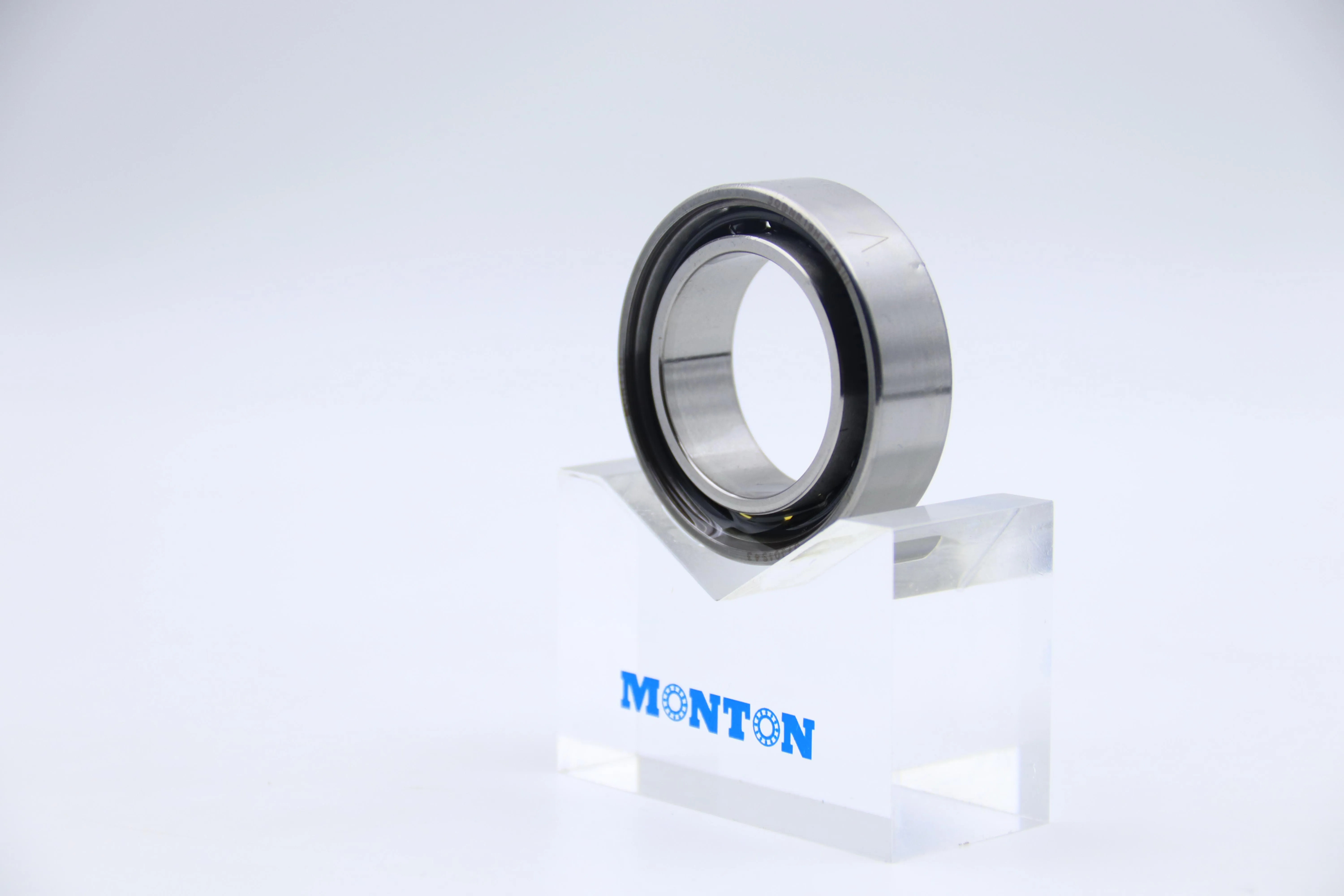

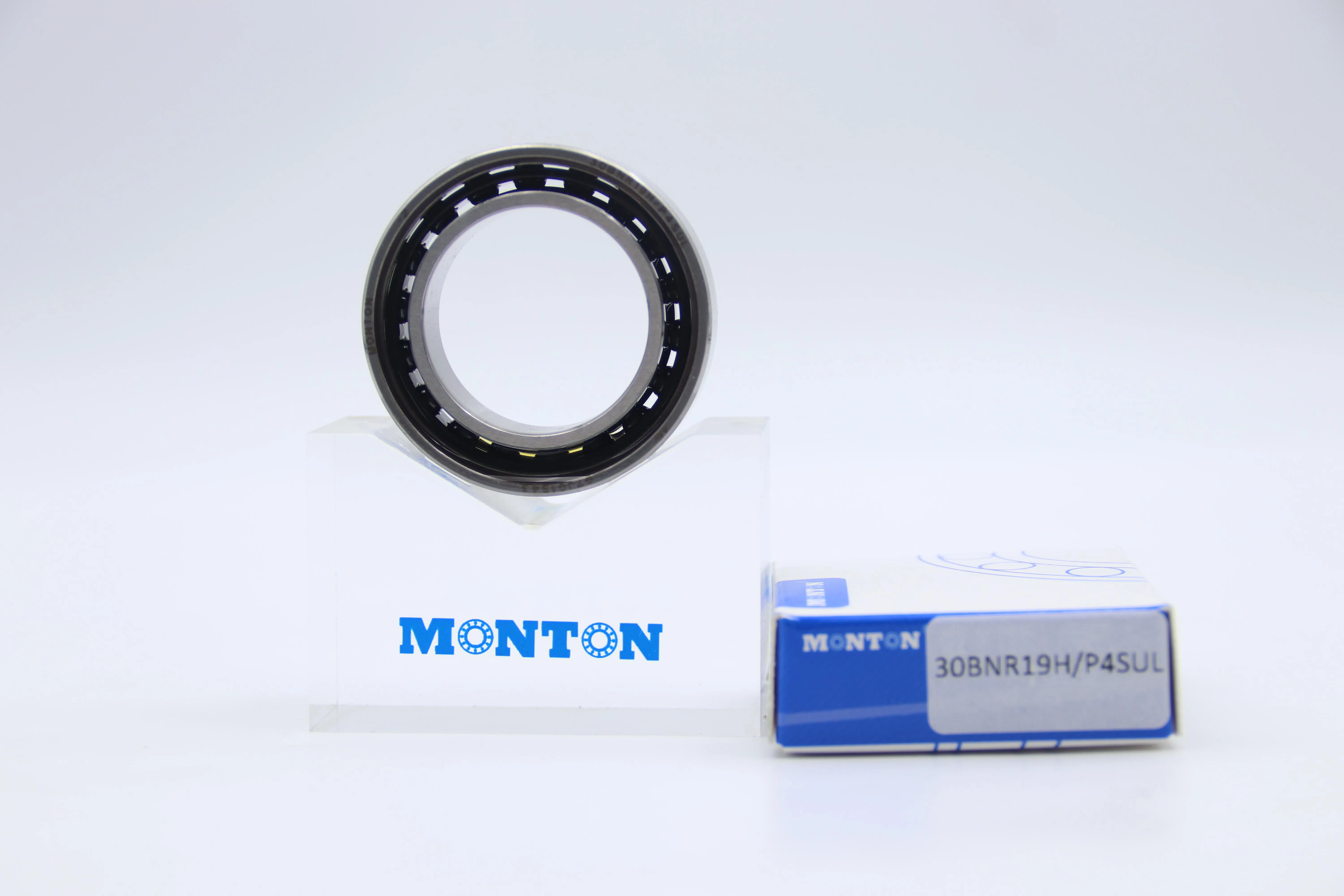

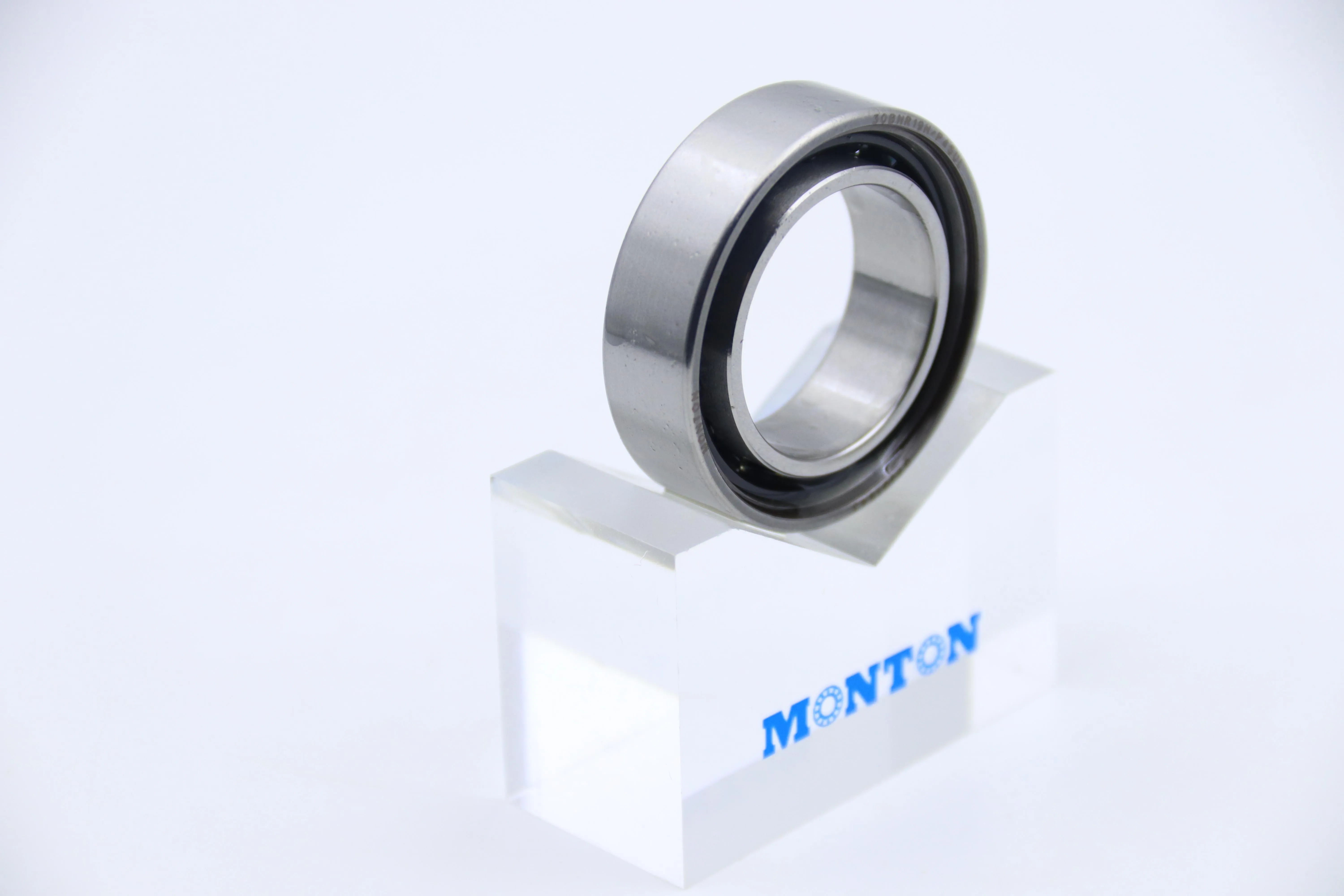

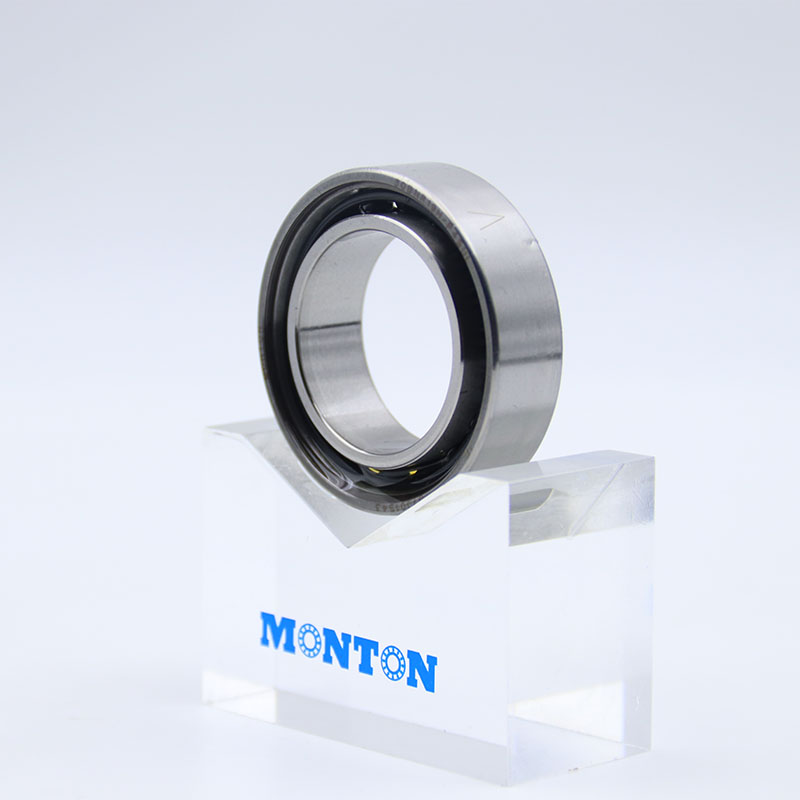

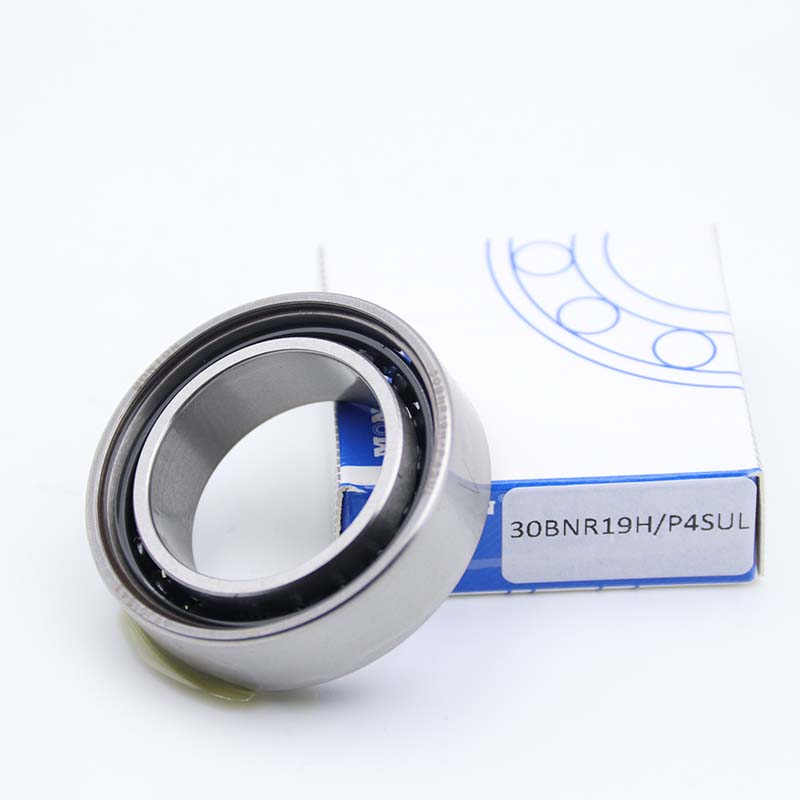

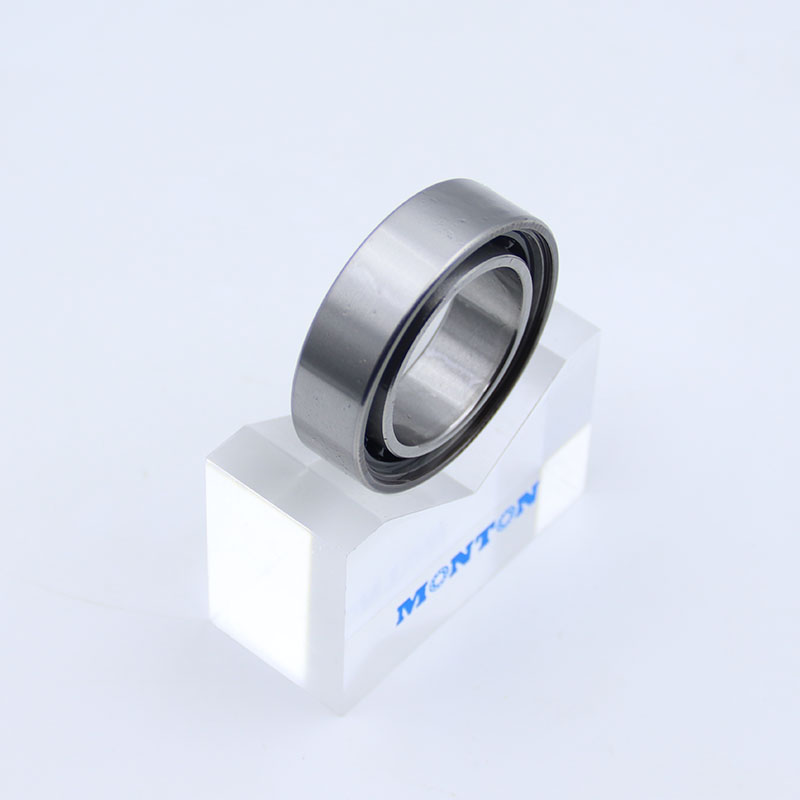

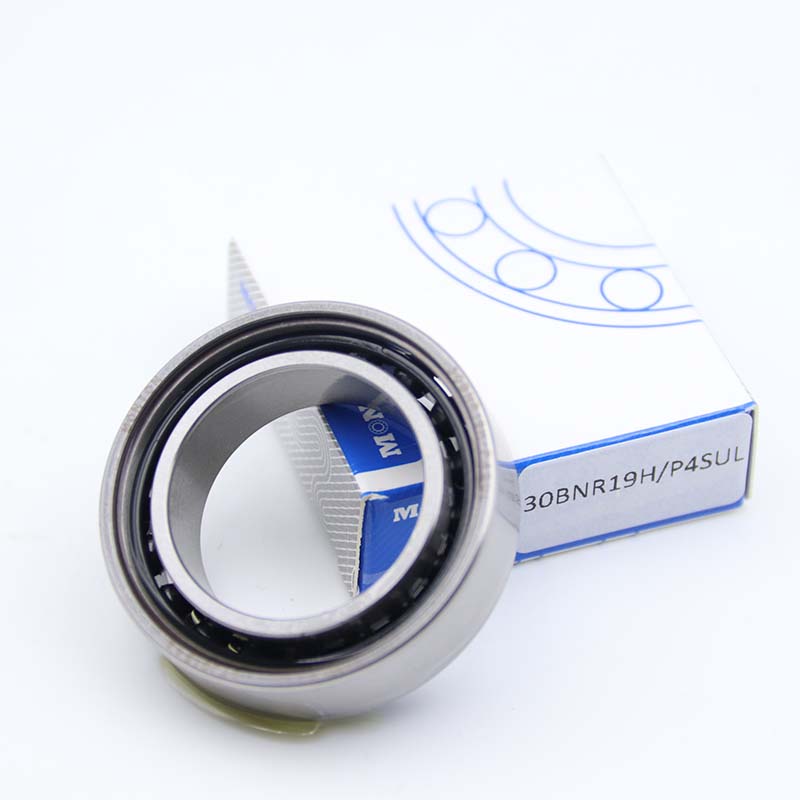

  • 30BNR19HP4S high precision angular contact ball bearing is a specialcustomized product for customers by MONTON Bearing. It's size is 30 * 47 * 13mm, and the thickness is non-standard customized. It is made of 30Cr15Mo1N wear-resistant high nitrogen stainless steel material to enhance the life and wear resistance of the bearing. Our company can design and produce customized precision bearings for customers. Please feel free to communicate with us at any time.
Case Details

Name

High Precision Angular Contact Ball Bearings

Brand

MONTON

Model

30BNR19HP4S

Contact angle

18°

Balls

Ceramic ball

Bore diameter

30mm

Outside diameter

47mm

B(width)

13mm

Ring Material

30Cr15Mo1N

Cage Material

PEEK

Basic dynamic load rating C

6.3KN

Basic static load rating  C0

5.2KN

Sealed

NBR seals

Row

Single row

Weight

0.05KG

Quality standard

ISO9001: 2000/SGS

Package

single box

Original

Luoyang

Service

OEM

Delivery date

75 days

Application

Machine tools
Robots
Optical scanning and
imaging equipment
Food processing machinery
Packaging equipment
CT scanners
Laboratory diagnostic equipment
Surgical robotics
Surgical chairs, tables
