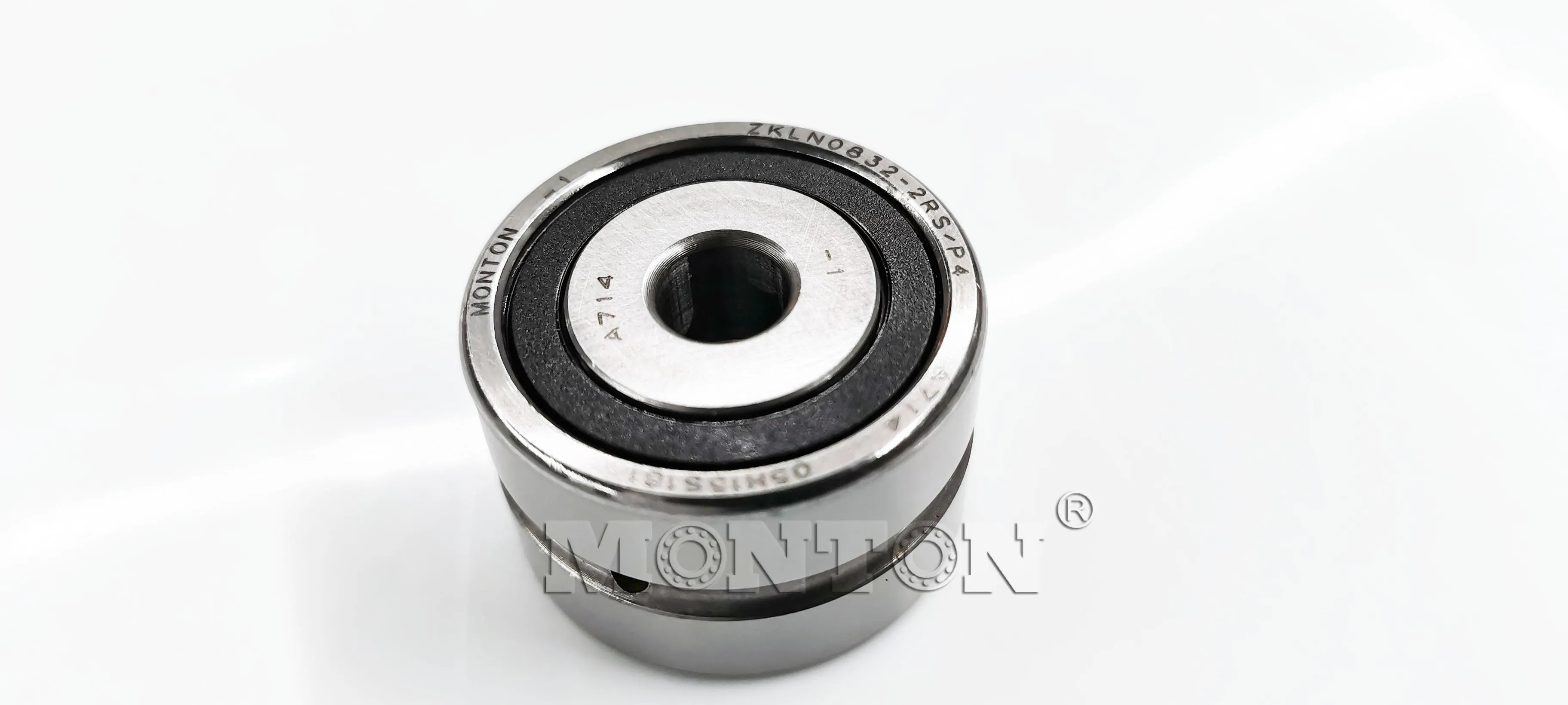

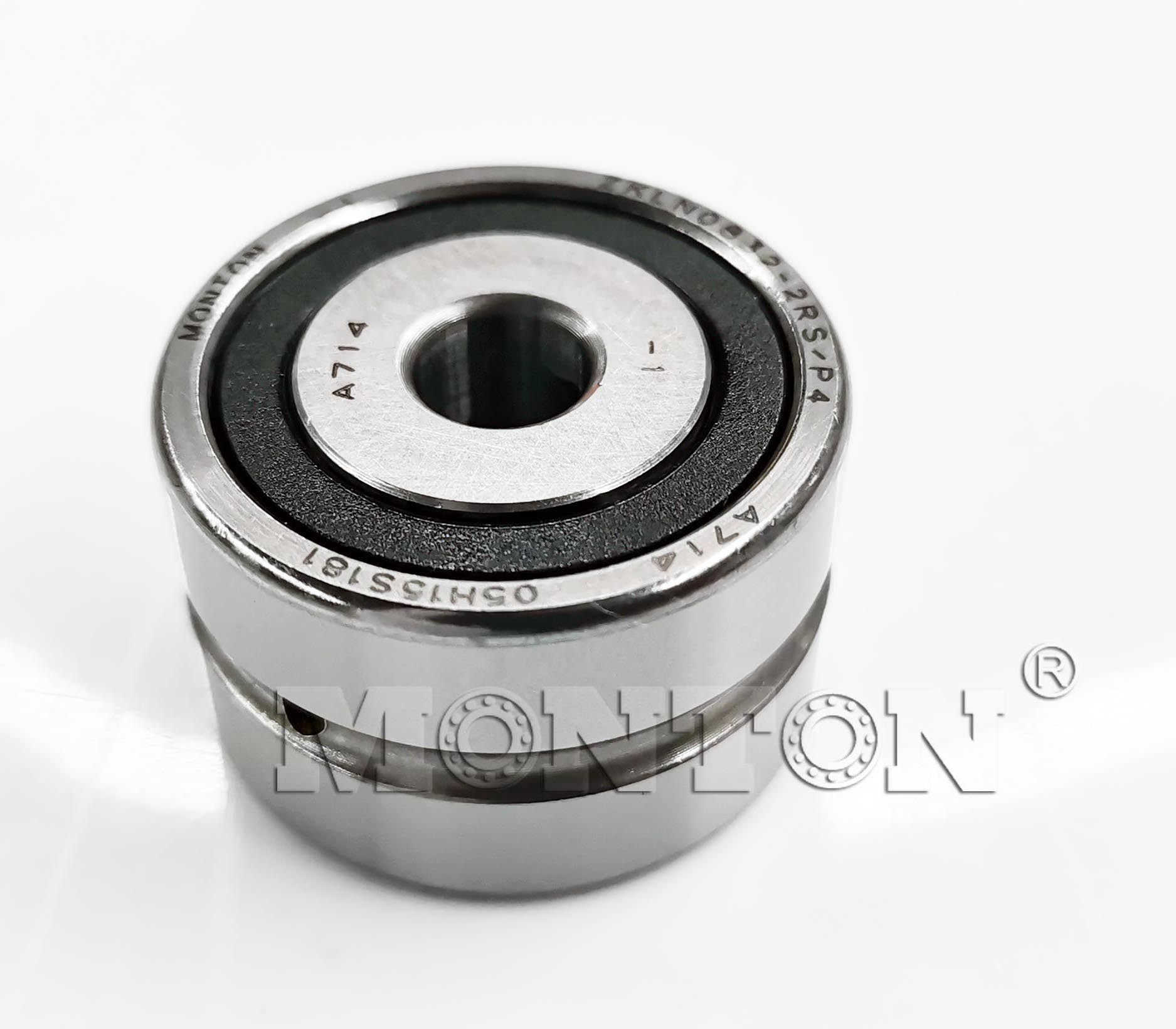

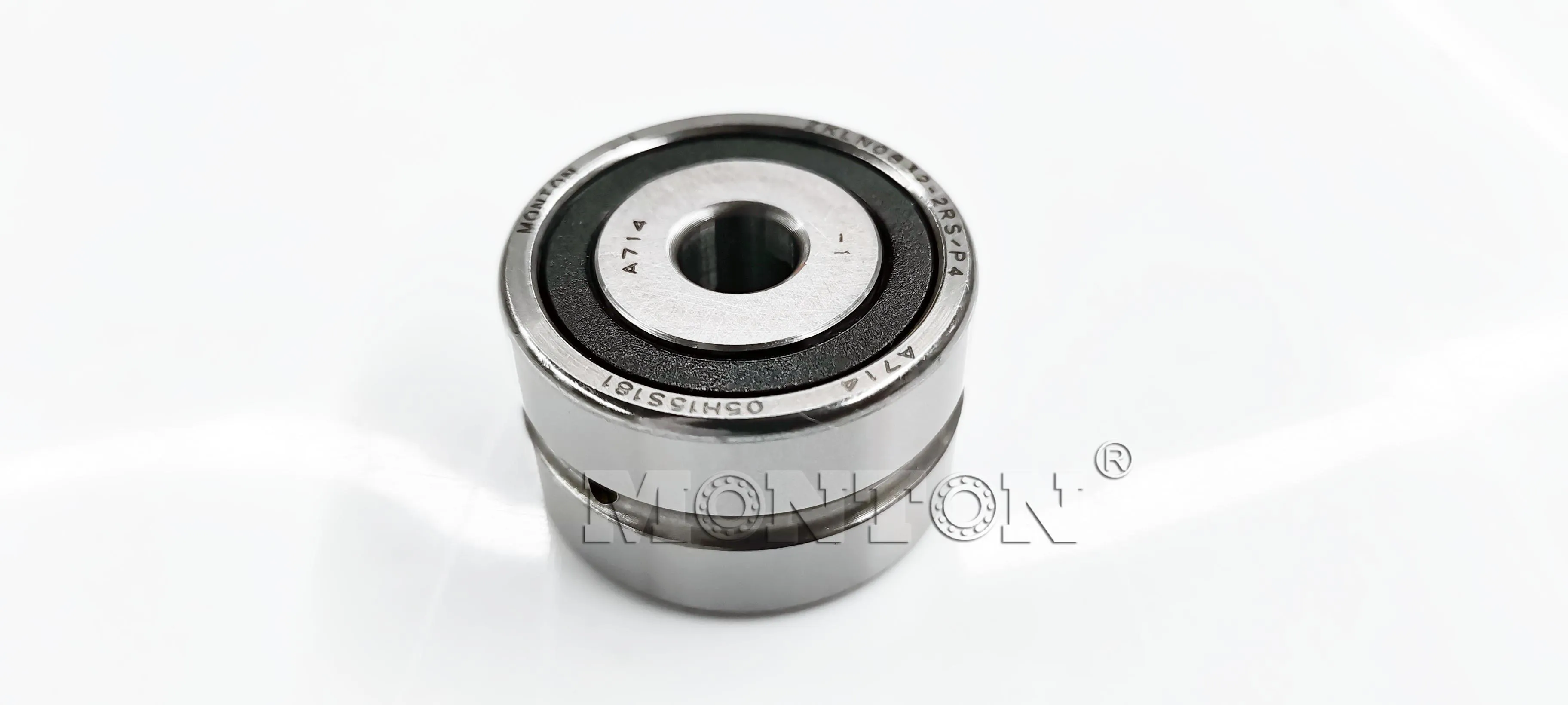

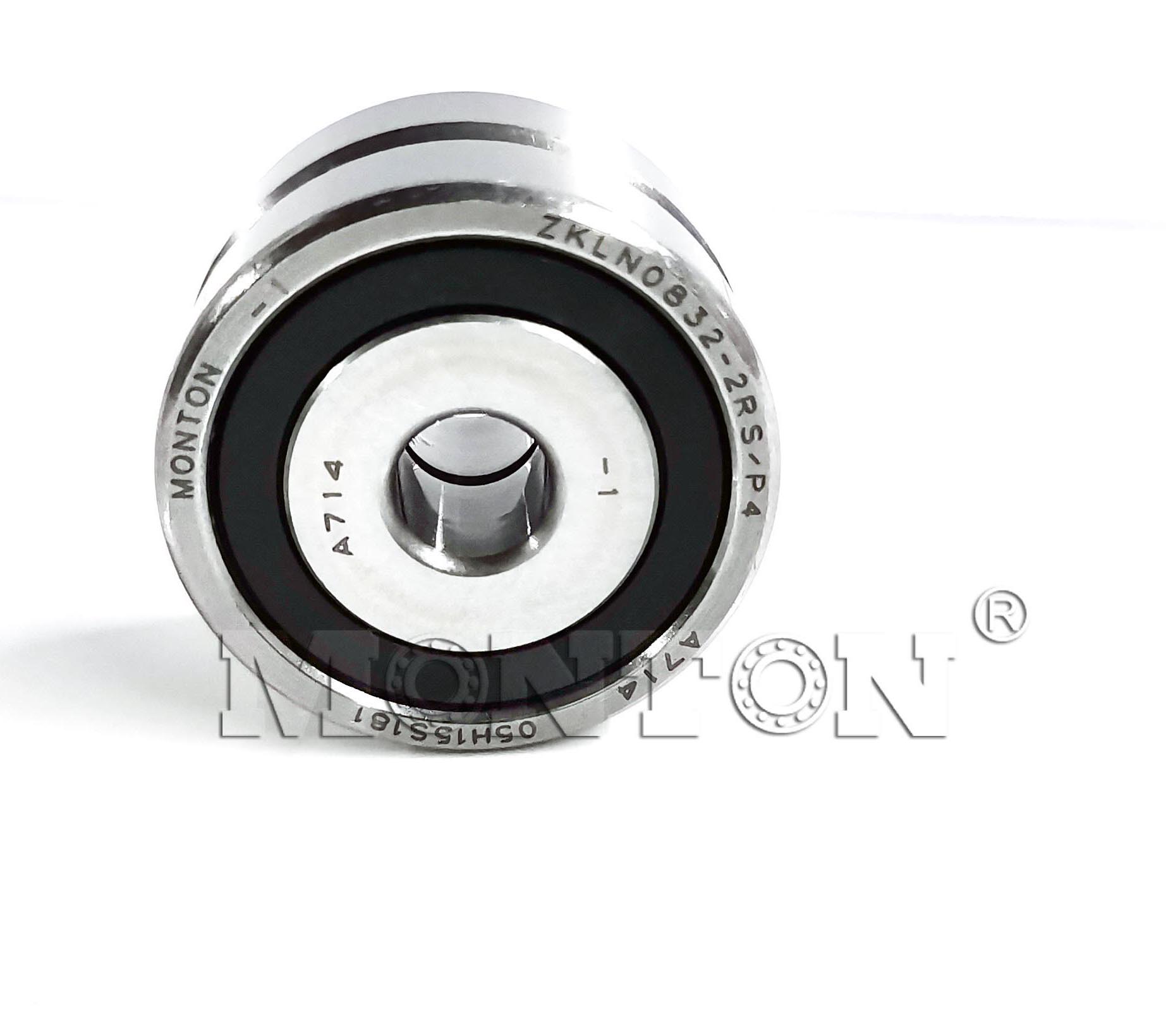

ZKLN0832-2RS-XL Axial angular contact ball bearing
ZKLN0832-2RS-XL Axial angular contact ball bearing
ZKLN0832-2RS-XL Axial angular contact ball bearing
ZKLN0832-2RS-XL Axial angular contact ball bearing
ZKLN0832-2RS-XL Axial angular contact ball bearing
ZKLN0832-2RS-XL Axial angular contact ball bearing

ZKLN0832-2RS-XL Axial angular contact ball bearing

  • ZKLN screw support bearing is a support bearing with an integrated outer ring and double row thrust angular contact ball structure without mounting holes. This series has four structures: sealed series ZKLN..-2RS, ZKLN..-2Z, ZKLN..-2RS-PE and ZKLN..-2RS-2AP matched bearings. Due to the improvement in raceway accuracy and raceway quality, compared with standard bearings, the contact stress between the rolling elements and the raceway is significantly reduced under the same load. The improvement of quality reduces the friction and temperature rise of the bearing, thereby reducing the operating resistance, reducing the lubrication resistance, extending the life of the grease, and at the same time, under appropriate circumstances, the relubrication cycle is extended. Under low-friction conditions, the efficiency of the bearing arrangement increases simultaneously.
Case Details

Name

Axial angular contact ball bearing

Brand

MONTON

Model

ZKLN0832-2RS-XL

Bore diameter

8mm

Outside diameter

32mm

B(width)

20mm

Ring Material

Bearing steel

Cage Material

Nylon

Basic dynamic load rating, axial

13.800 N

Basic static load rating, axial

16.300 N

Limiting speed for Grease lubrication

12.100 1/min

 Thermally safe operating speed

5.100 1/min

Bearing frictional torque

0.08Nm

Sealed

as customer requested

Weight

887g

Quality standard

ISO9001: 2000/SGS

Package

single box

Original

Luoyang

Service

OEM

Delivery date

Accordingly

Application

Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
