Angular Contact Ball Bearings
|
Name |

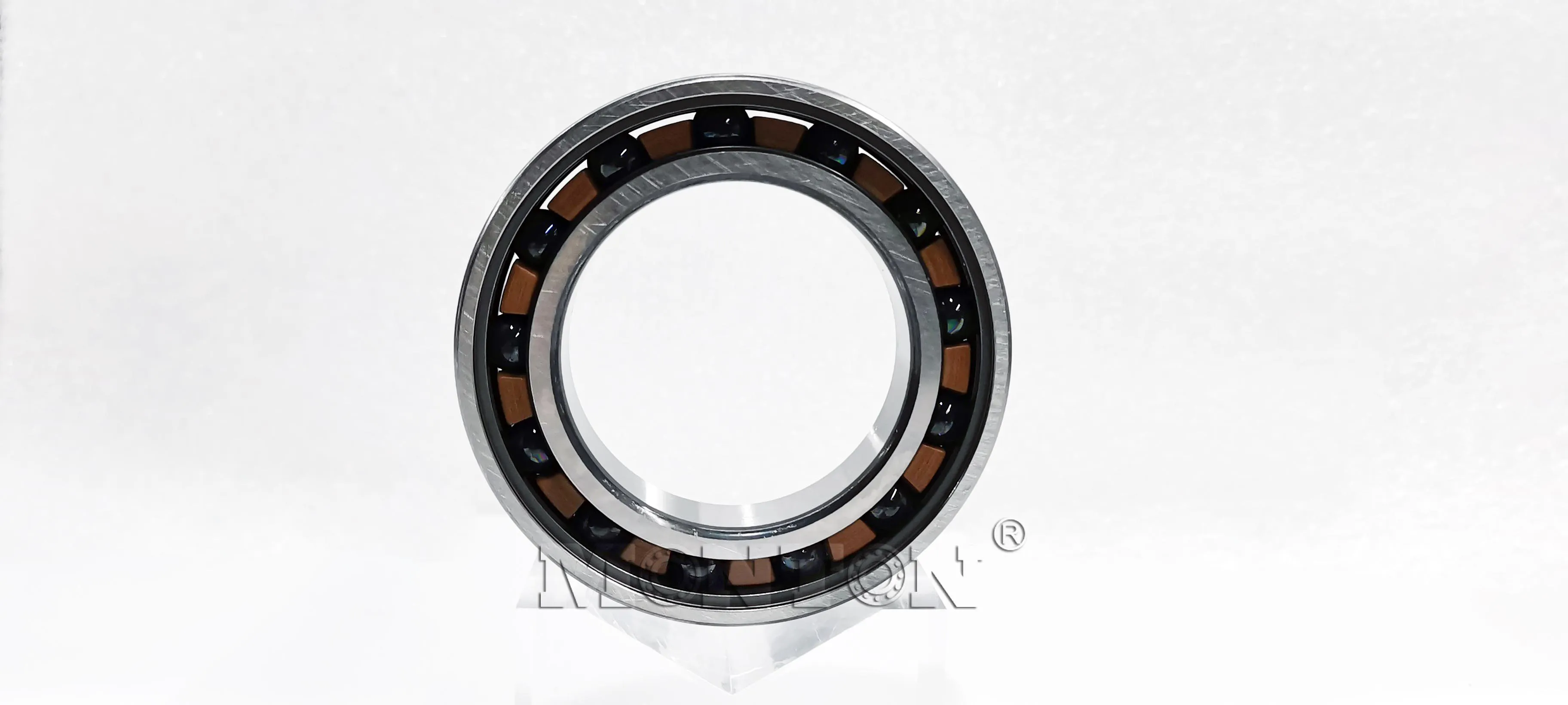

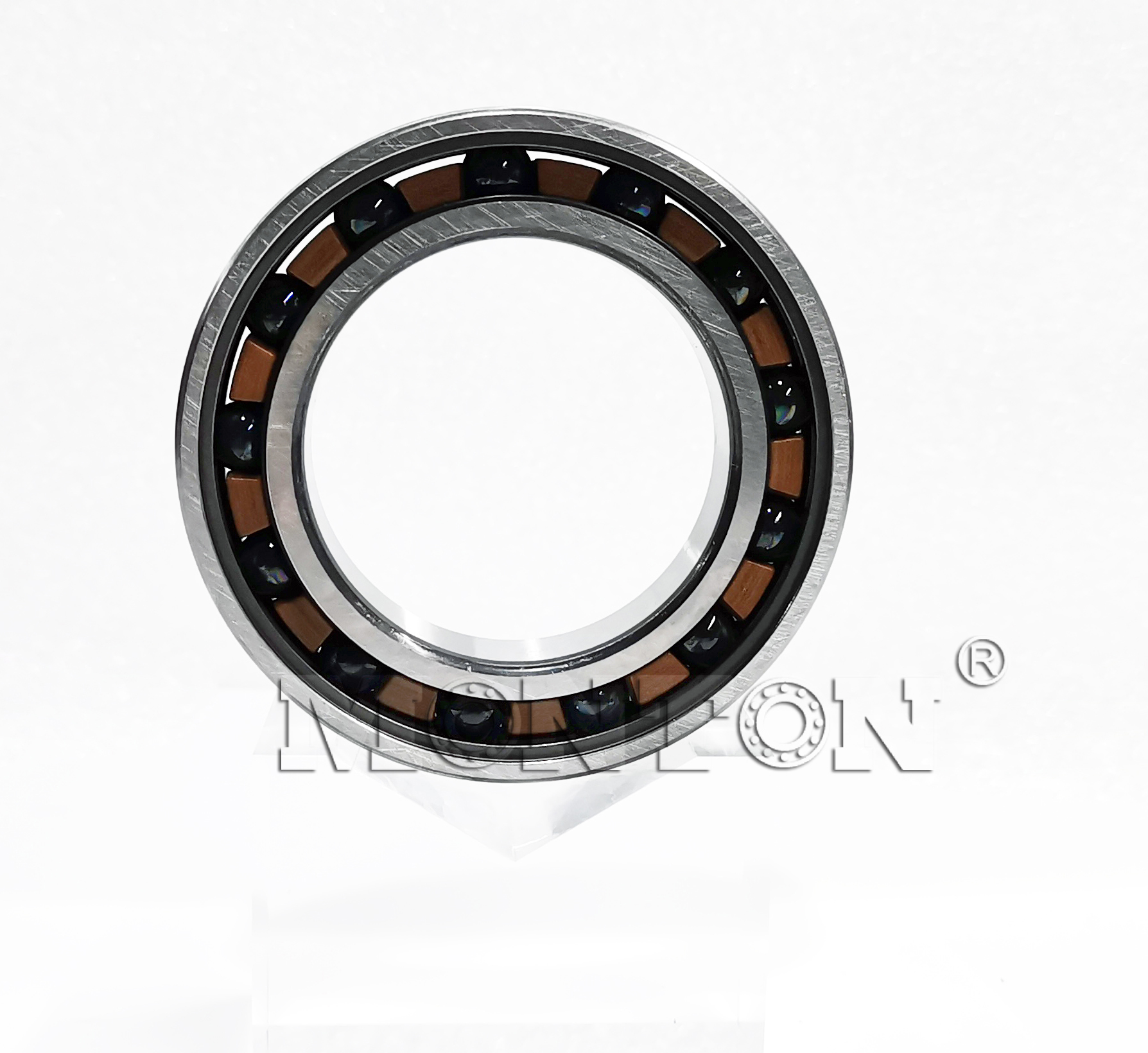

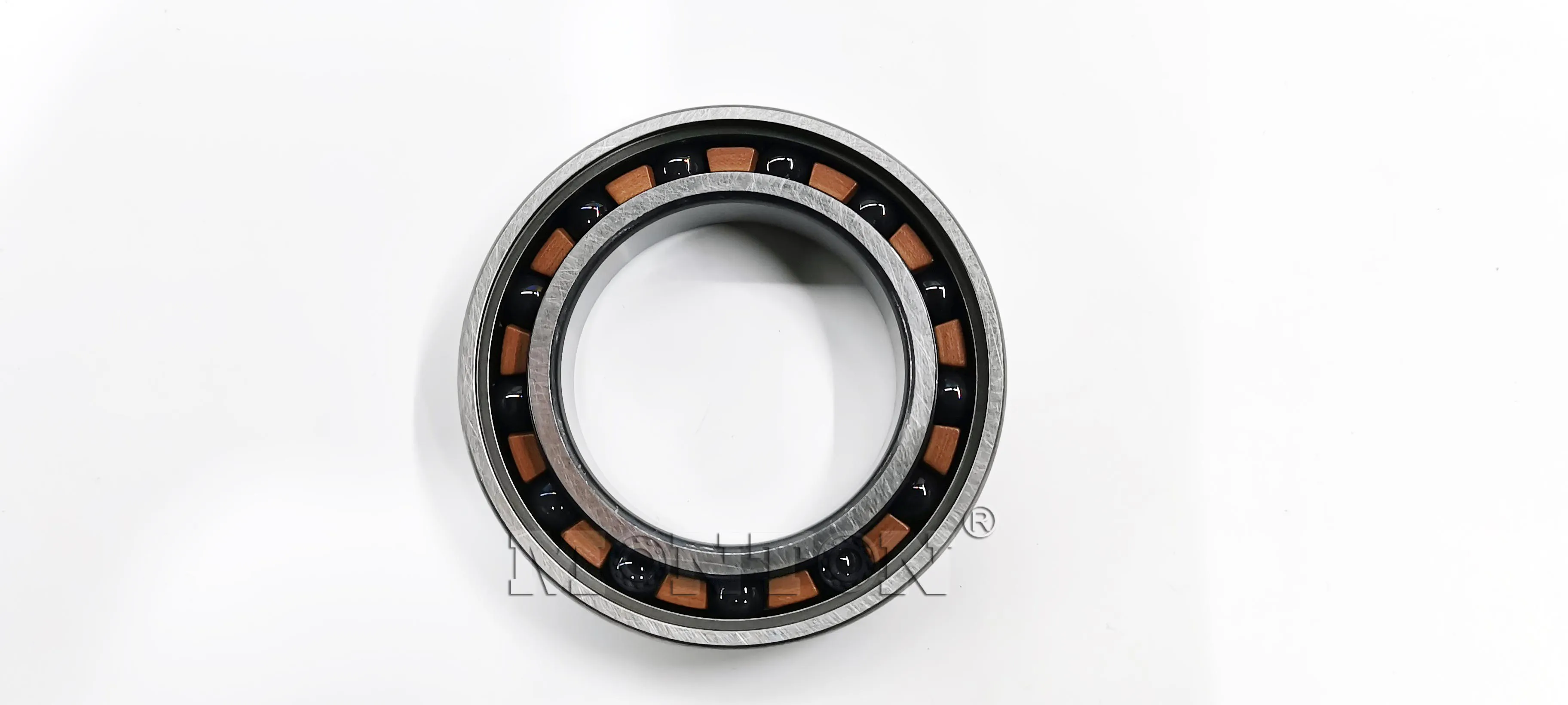

Hybird deep groove ball bearing with Ceramic ball Phenolic resin cage |
|
Brand |
MONTON |
|
Model |

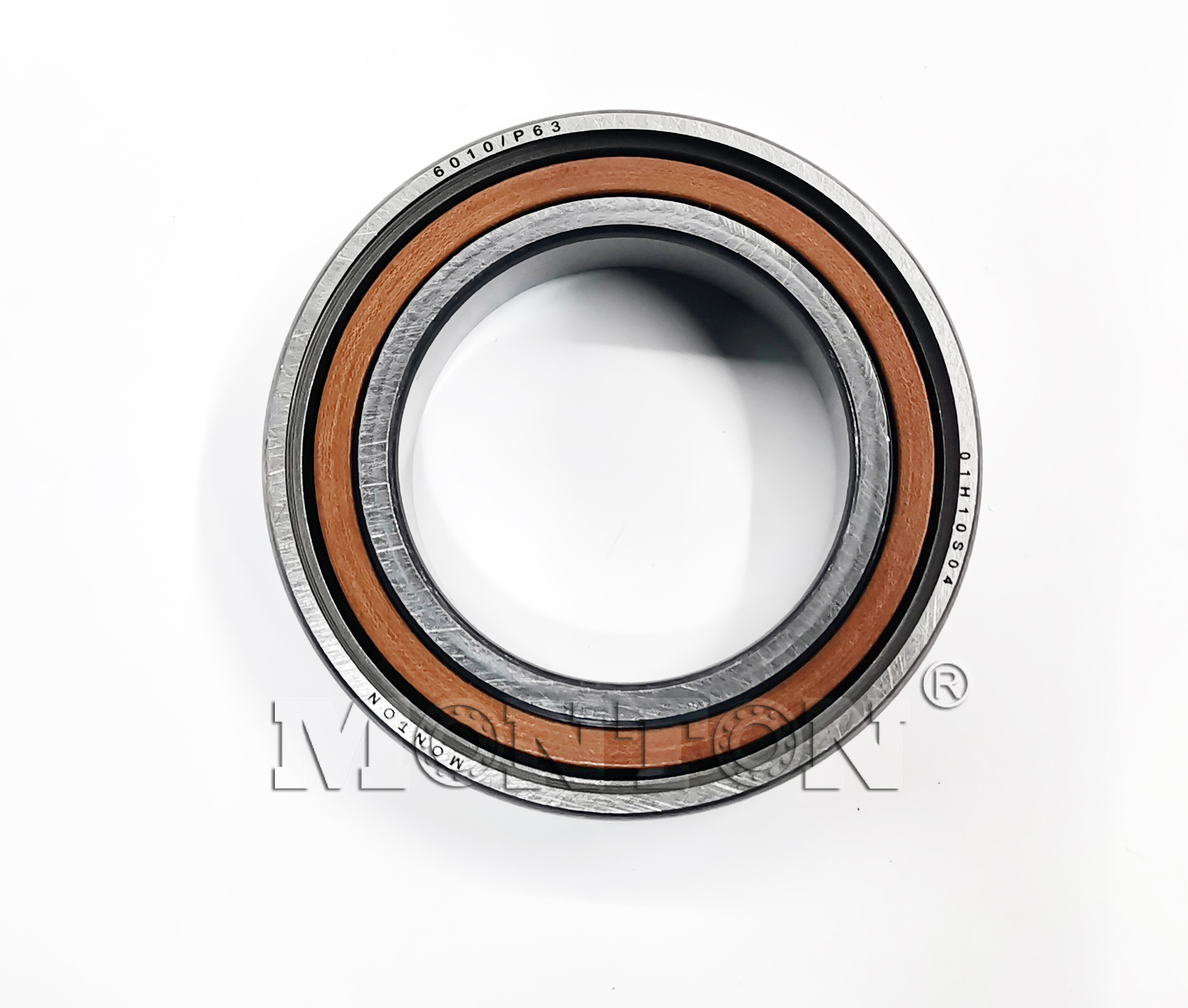

6010/P63 |
|
Cage |
Phenolic resin cage |
|
Balls |
Ceramic ball Silicon nitride balls Si3N4 |
|
Boundary dimensions :d |
50 |
|
Boundary dimensions: D |
80 |
|
Boundary dimensions :B(width) |
16 |
|
Balls :dm |
65 |
|
Balls:dw |
8.731 |
|
Balls: z |
19 |
|
d1 |
59.7 |
|
d2 |
N/A |
|
D1 |
70 |
|
D2 |
73.6 |
|
r1,2 |
1 |
|
r3,4 |
0.6 |
|
Weight m |
0.256 |
|
contact angle |
15 |
|
C |
28000 |
|
C0 |
24300 |
|
C0 HY |
17100 |
|
Speed value:n oil |
26000 |
|
Speed value:n grease |
19500 |
|
Spring preload Ff |
715 |
|
Design Structure |
Balls |
|
Vibration |
ZV1, ZV2, ZV3, or as customer requested |
|
Quality standard |
ISO9001: 2005/SGS/TUV |
|

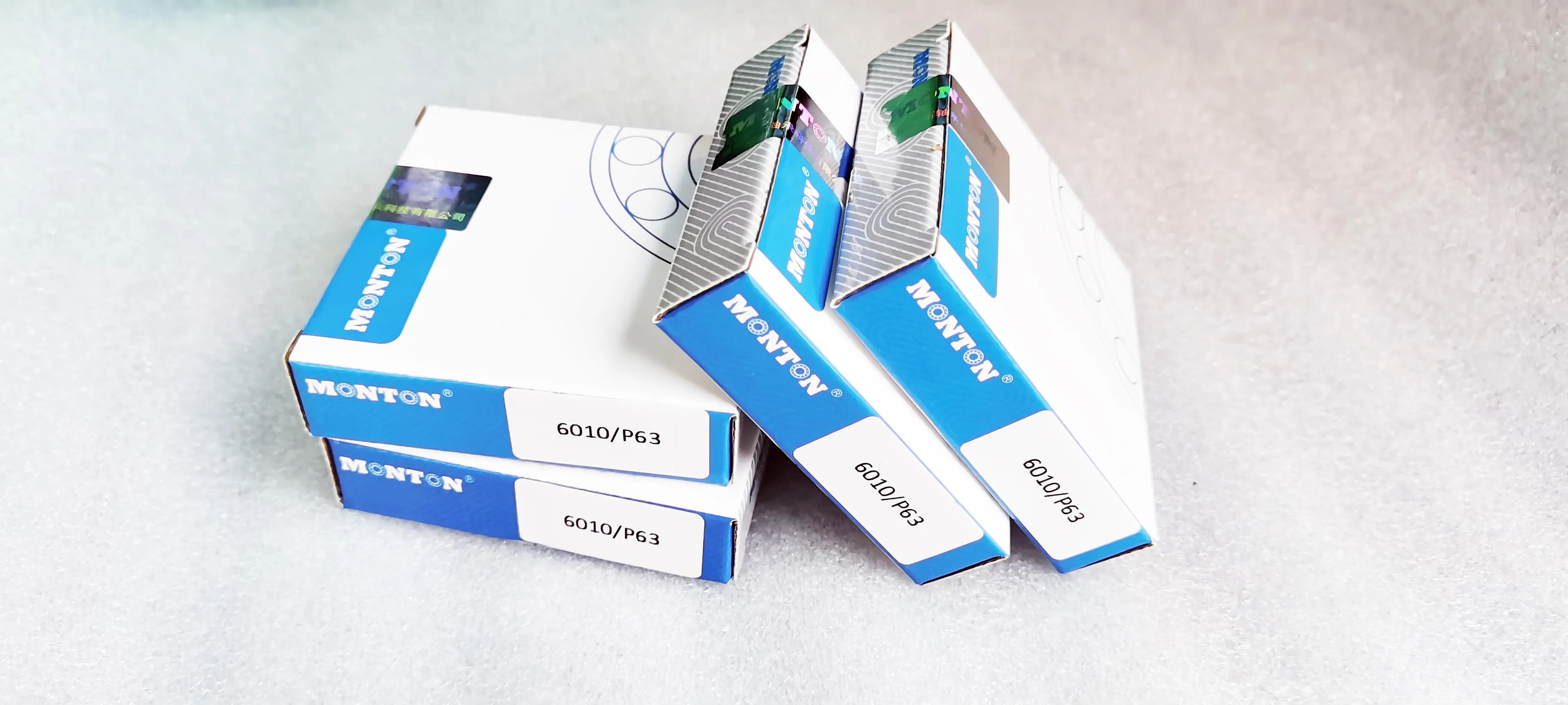

Package |
single box |
|
Original |
Luoyang |
|
Delivery date |
7-15 days |
|
Application |
drilling, milling, or grinding spindles for special operating conditions. |
