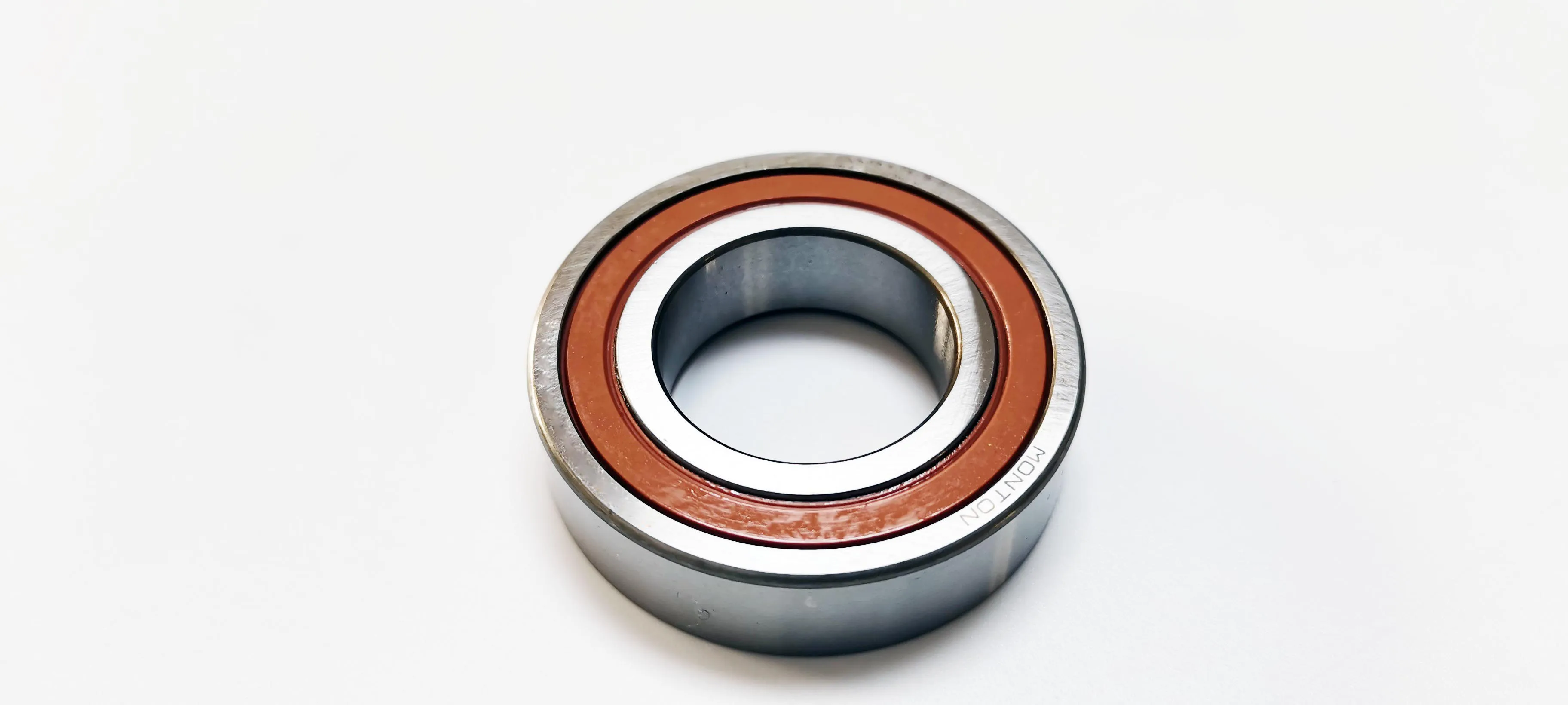

Angular Contact Ball Bearings
|
Name |
Ultra long life angular contact ball bearings |
|
Seires |
XCB70 Series |
|
Brand |
MONTON |
|
Model |
XCB7004E.PKP.P4.UL.D40.SV140 |
|
Contact Angle |
25° |
|
d |
20mm |
|
D |
40mm |
|
B |
12mm |
|
Ring Material |
Cronidur 30/X30 High nitrogen stainless steel |
|
Cage Material |
PEEK |
|
Load rating Cr |
6527kN |
|
Load rating Cor |
4094kN |
|
RPM Grease |
67000 |
|
RPM Oil |
100000 |
|
Sealed |
According to requirement |
|
Weight |
0.07KG |
|
Bearing Arrangement |
U/DB/DT/TBT/QBC/DU/QU ect. |
|
Design Structure |
Angular contact ball |
|
Precision |
P4,P5 or according to requirement |
|
Vibration |
ZV1, ZV2, ZV3, or as requirement |
|
Clearance |
C0, C2, C3, or as customer requirement |
|
Quality standard |
ISO9001: 2000/SGS RoHS ect. |
|
Package |
single box |
|
Original |
Luoyang |
|
Service |
OEM |
|
Delivery date |
Accordingly |
|
Application |
filling and packaging beverages and liquid food machine,glass bottling line filling equipment,PET injection moulding machine,PET containers bottling line |
