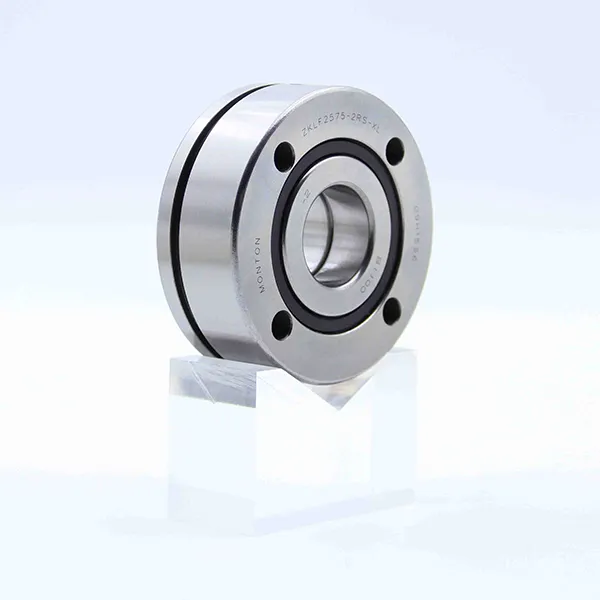

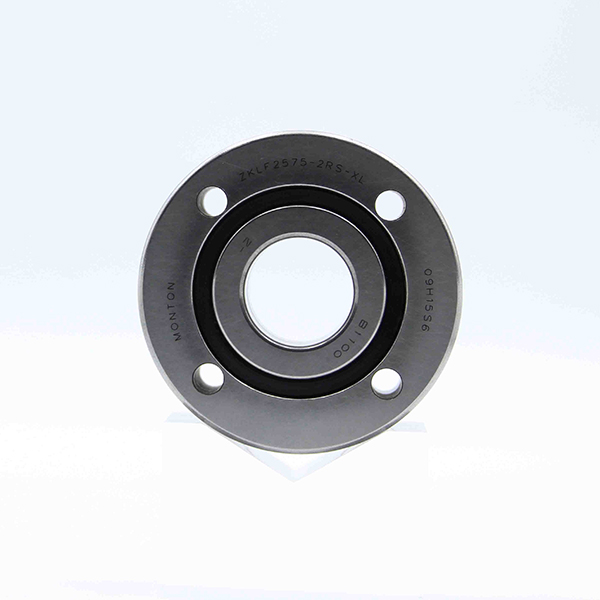

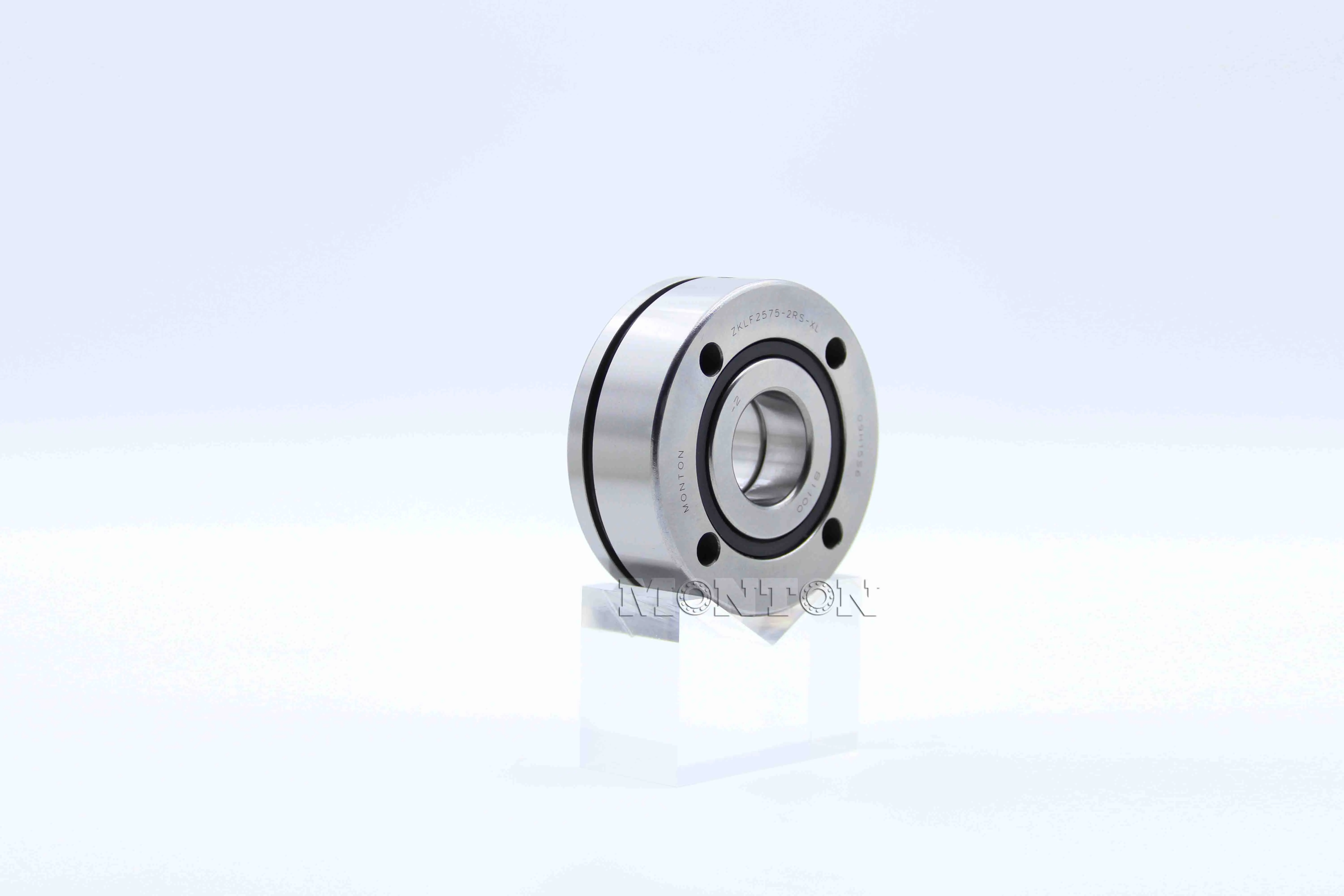

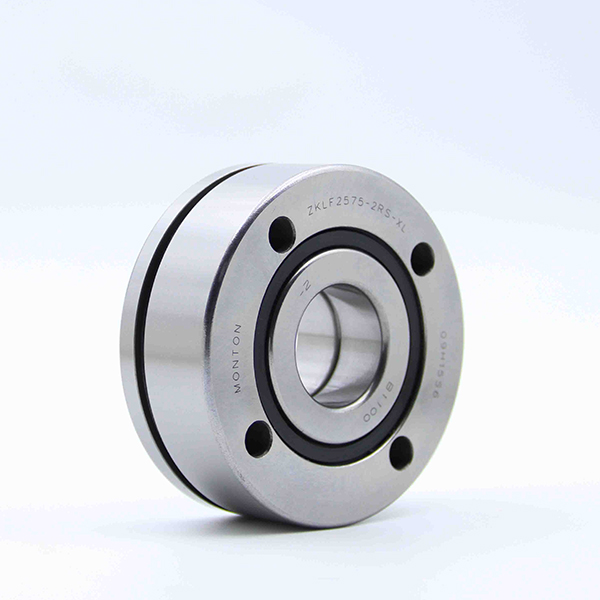

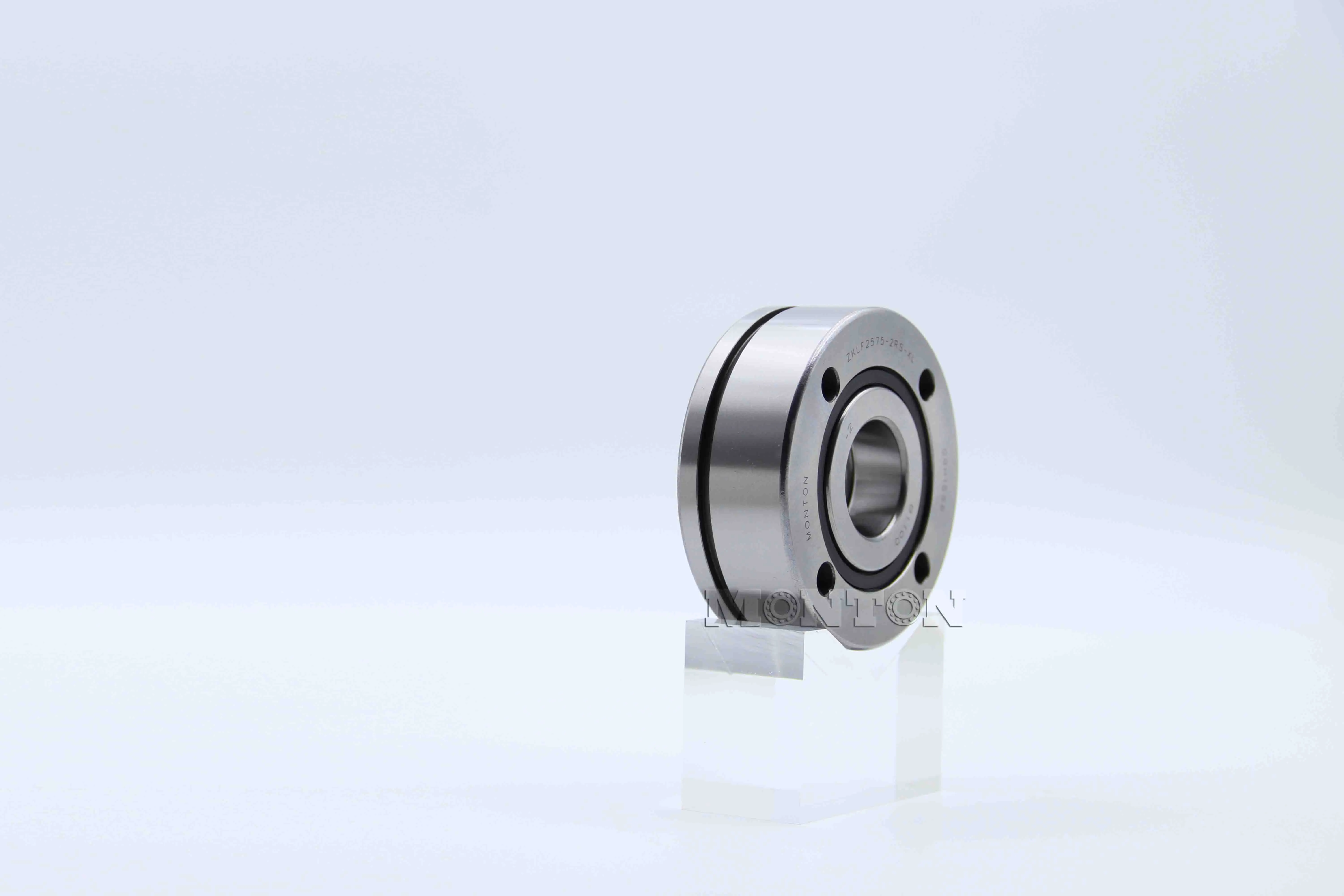

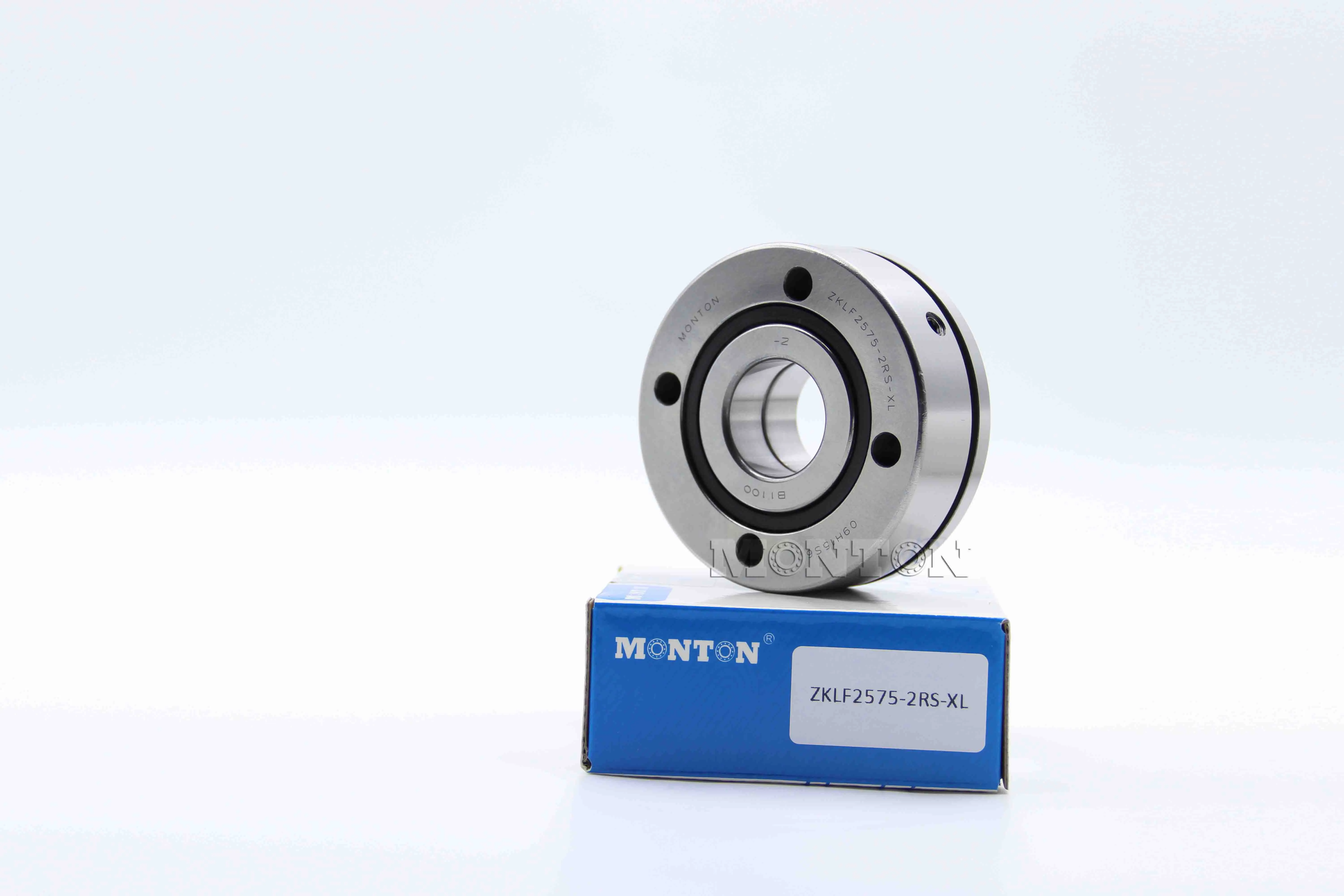

ZKLF2575-2RS-XL Axial-angular Contact Ball Bearings For Screw Drives

The ZKLF screw support bearing is a double-row ball with mounting holes. This series has four structures of bearings paired with sealed series ZKLF..-2RS, ZKLF..-2Z, ZKLN..-2RS-PE and ZKLF..-2RS-2AP.

Case Details

Name	Axial-angular Contact Ball Bearings For Screw Drives
Seires	ZKLF series
Brand	MONTON
Model	ZKLF2575-2RS-XL
d	25mm
D	75mm
B	28mm
Ring Material	Gcr15
Cage Material	nylon
Load rating Ca	30000 N
Load rating Coa	53000 N
Sealed	Double seals
Weight	0.09KG
Design Structure	Balls
Precision	P4,P5 or according to requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.

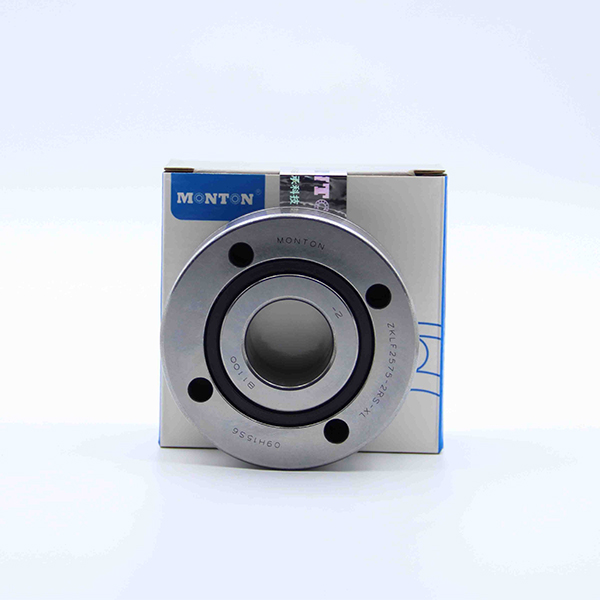

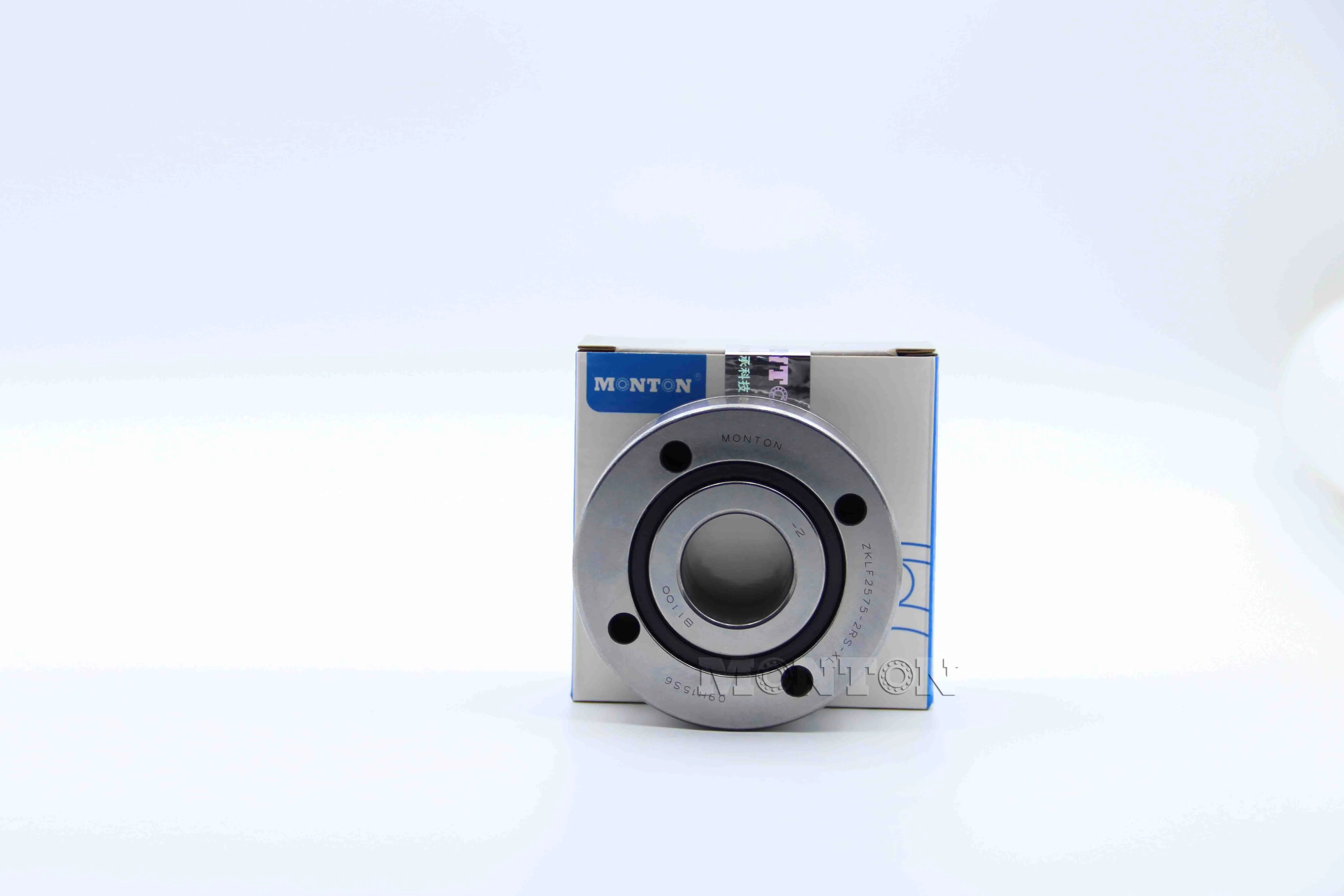

Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tools Motor Drive Spindle Spindle Rotary table Medical technology Antennas such as radar systems and telescopes Automation, such as robot and handling systems
