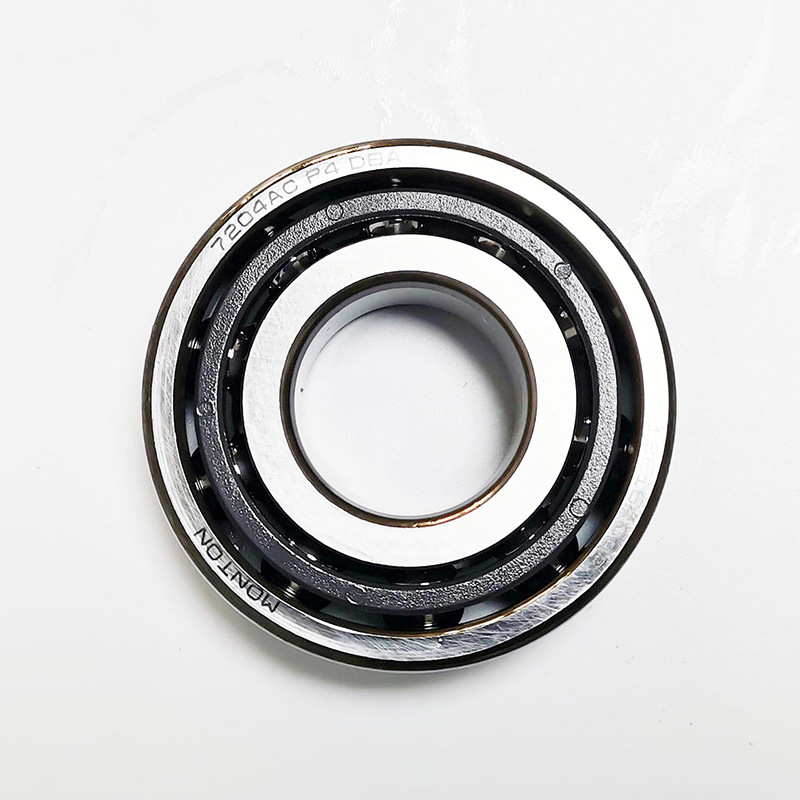

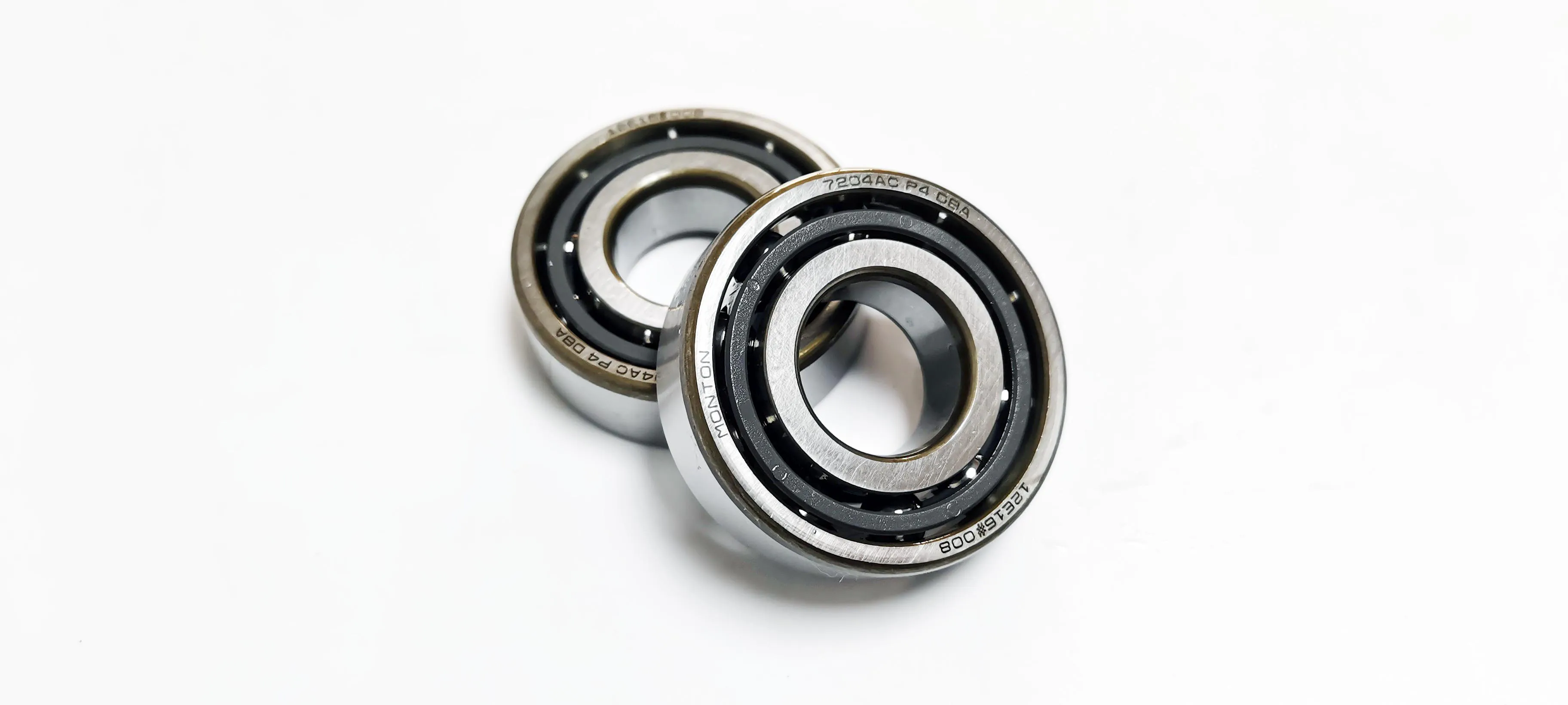

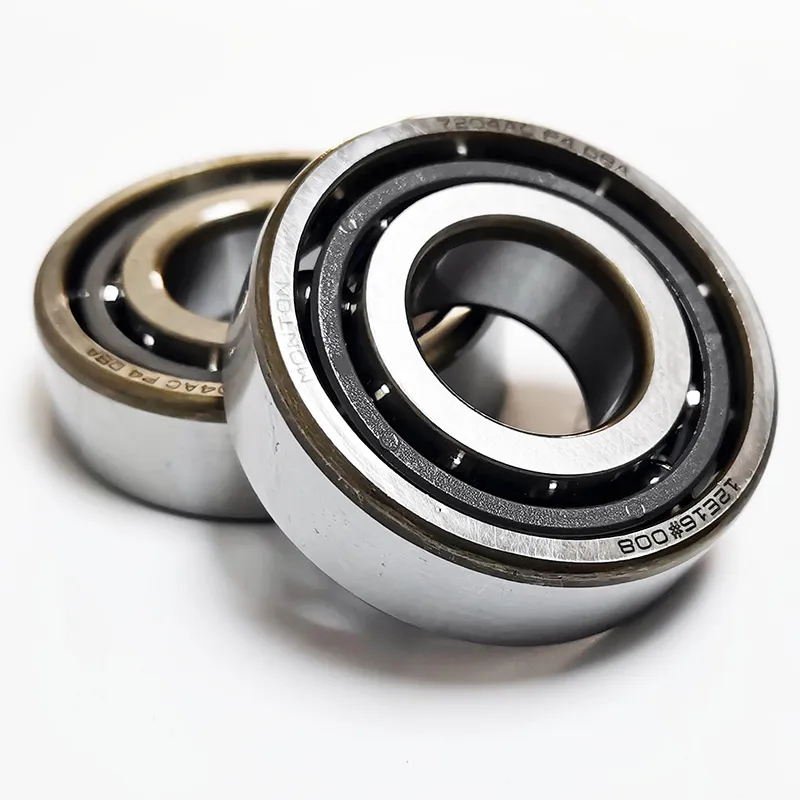

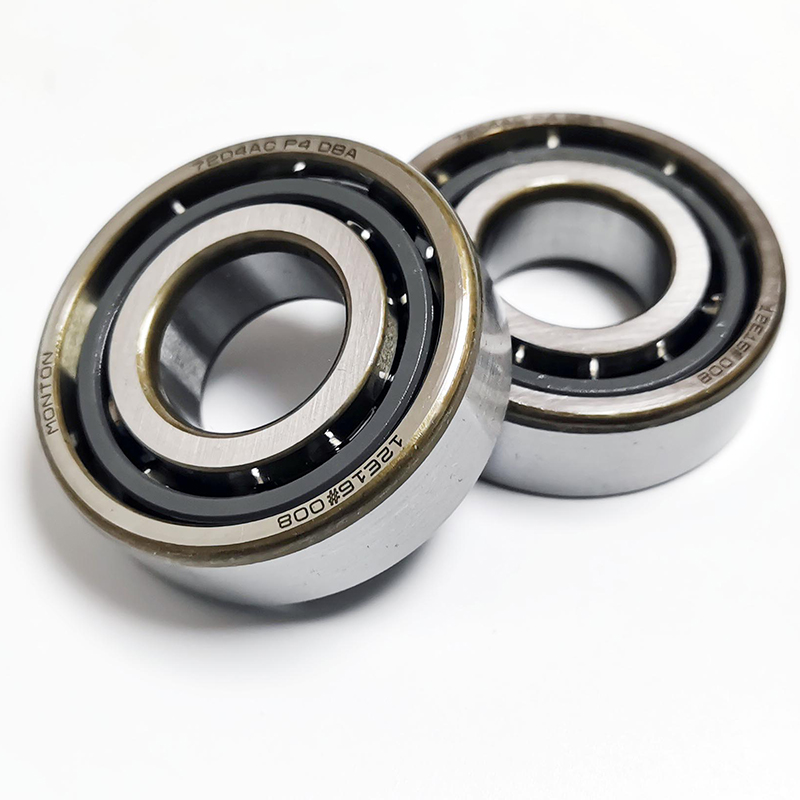

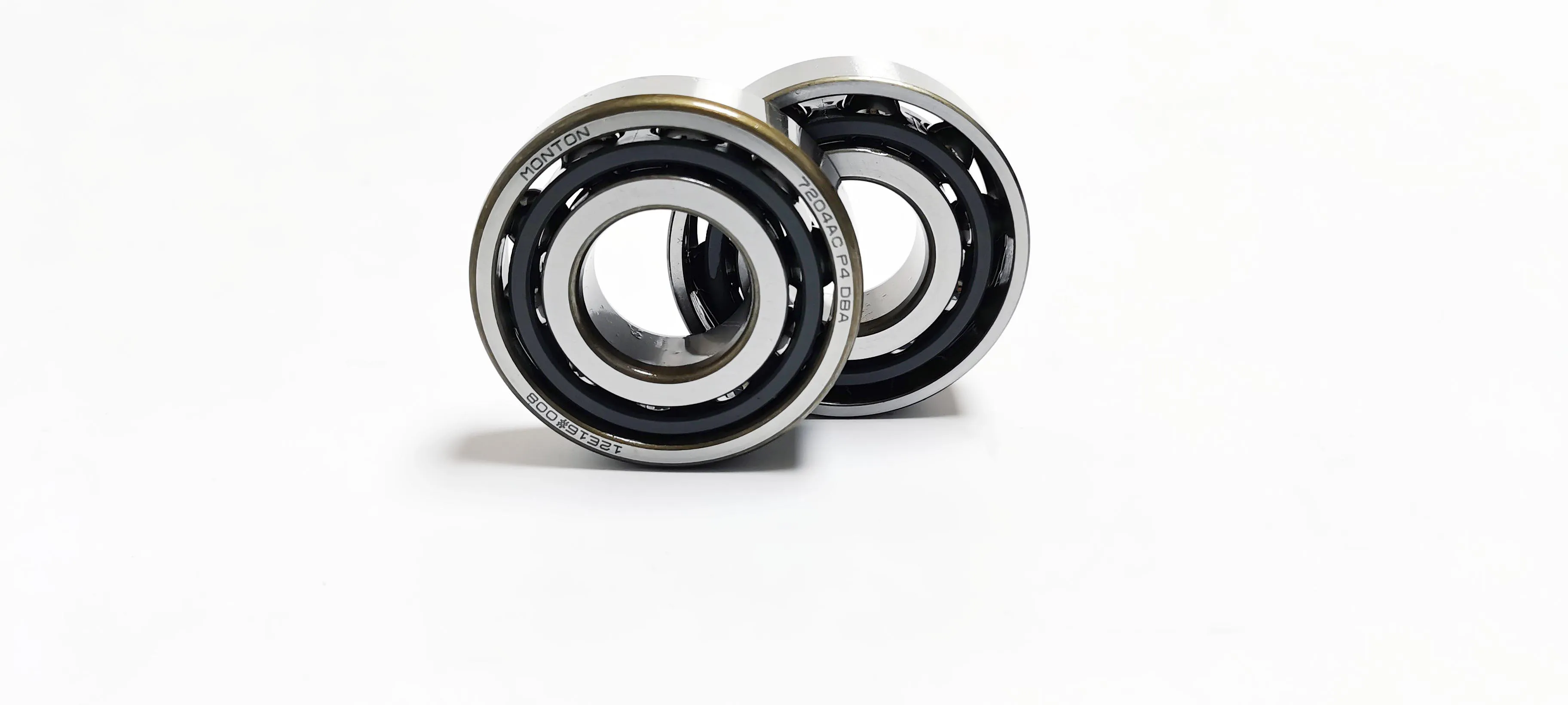

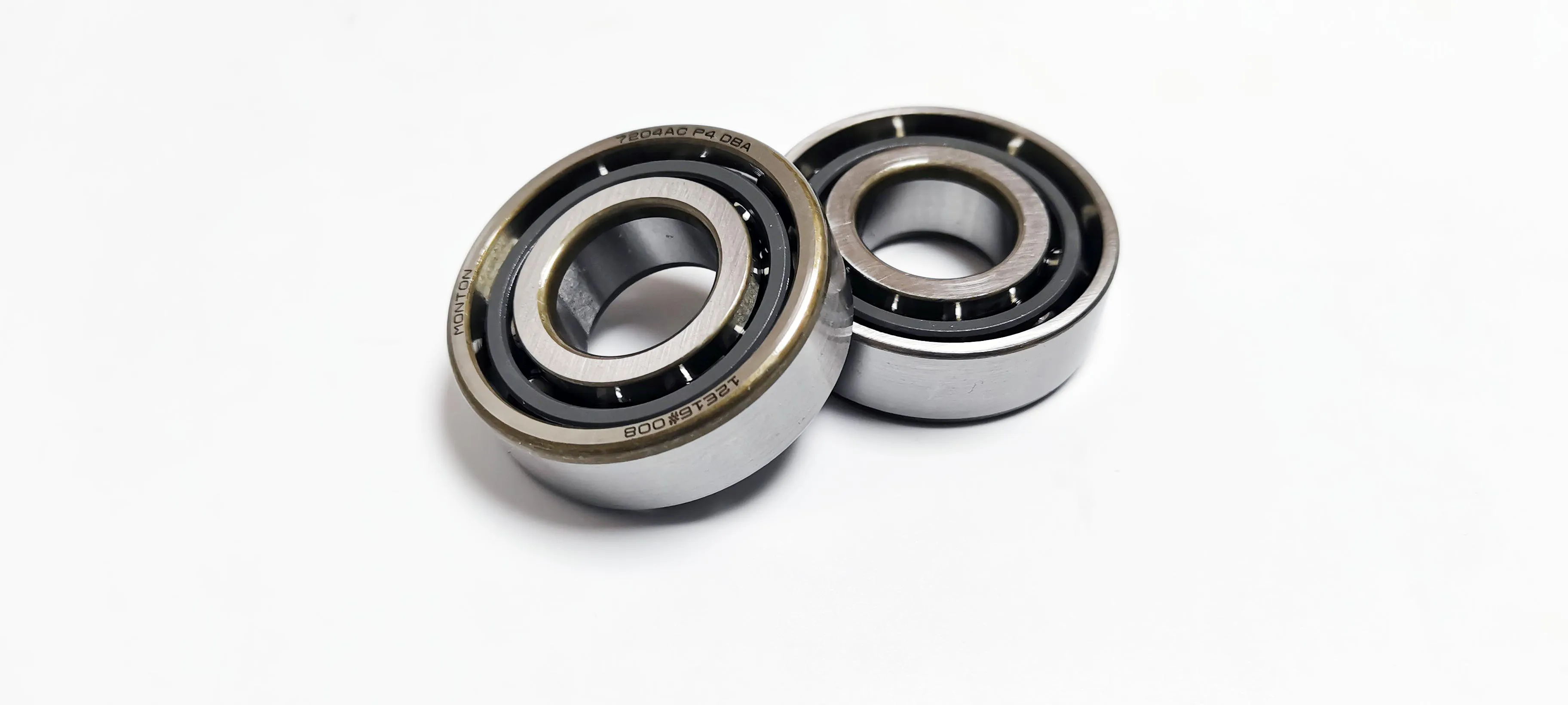

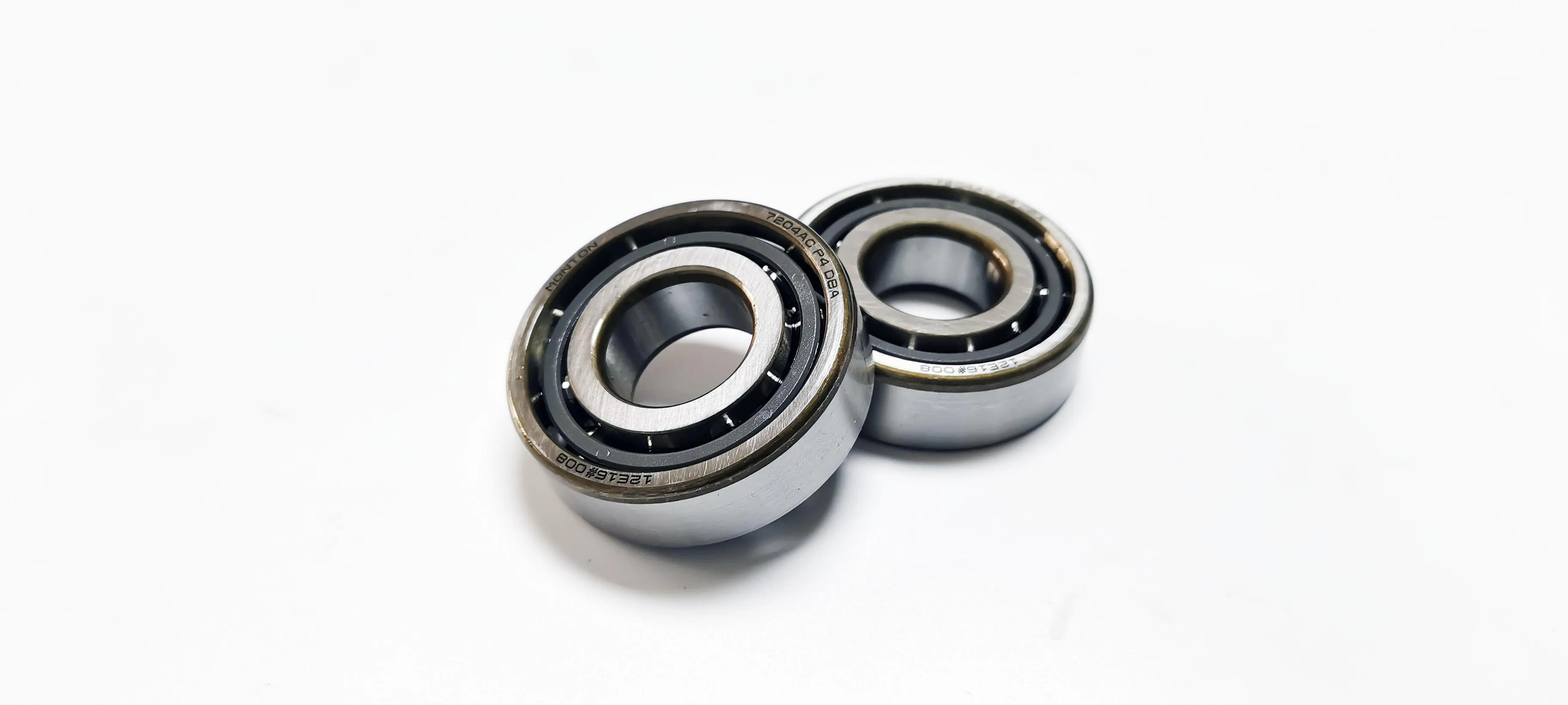

7204ACP4DBA Angular Contact Ball Bearings

Single row angular contact ball bearings can only withstand axial loads in one direction. When subjected to radial loads, additional axial forces are generated, and corresponding reverse loads must be applied. Therefore, this type of bearing is generally used in pairs. Double row angular contact ball bearings can withstand large combined radial and axial loads, mainly radial loads, as well as torque loads. They can limit the bi-directional axial displacement of the shaft or housing, with a contact angle of 30 degrees.

Case Details

Name	Angular Contact Ball Bearings
Brand	MONTON
Model	7204ACP4DBA
Contact angle	15°
Ball Dia.	7.938mm
Bore diameter	20mm
Outside diameter	47mm
B(width)	14mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating C	11.4KN
Basic static load rating C0	5.6 kN
Sealed	Open
Row	Single row
Weight	0.1KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
