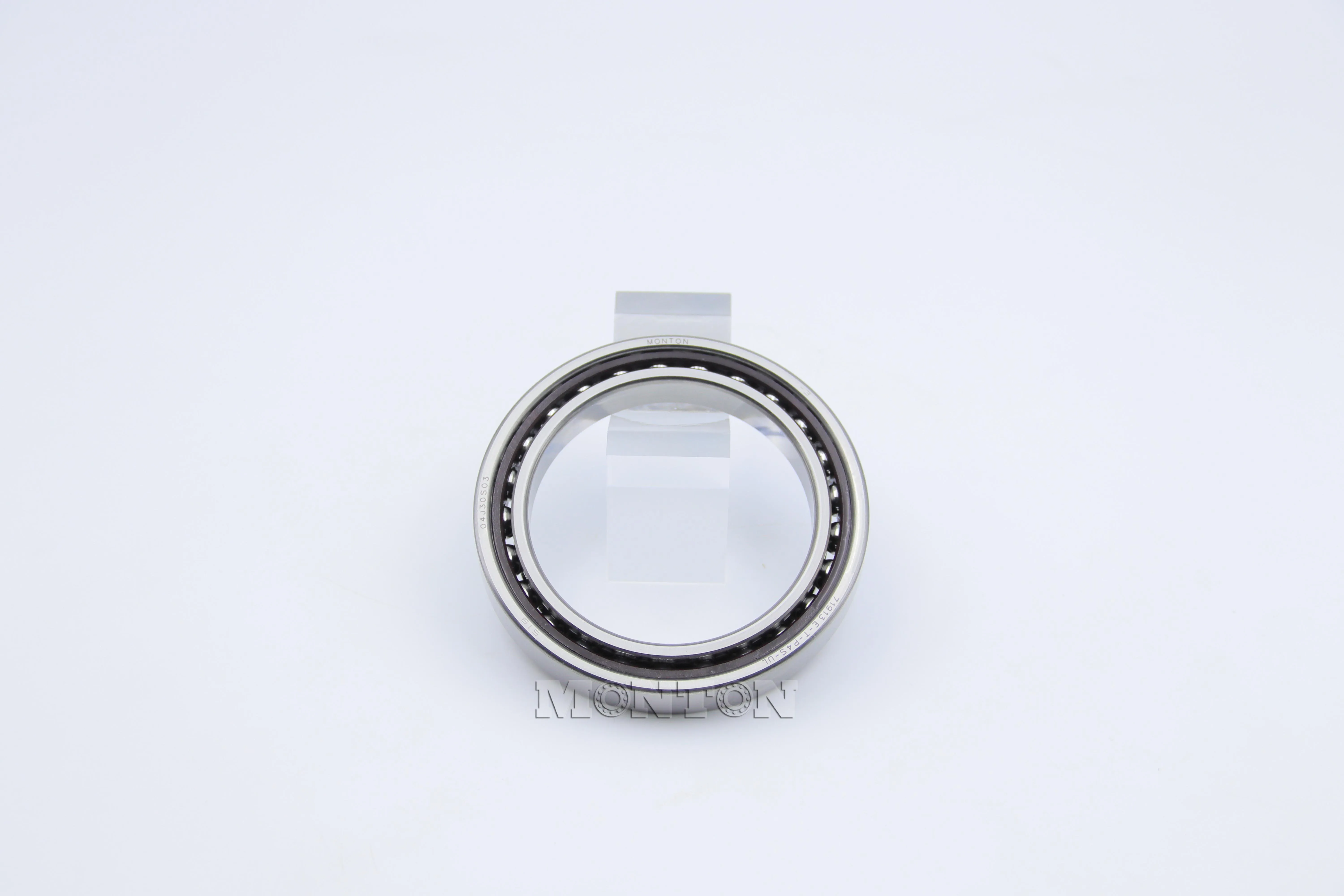

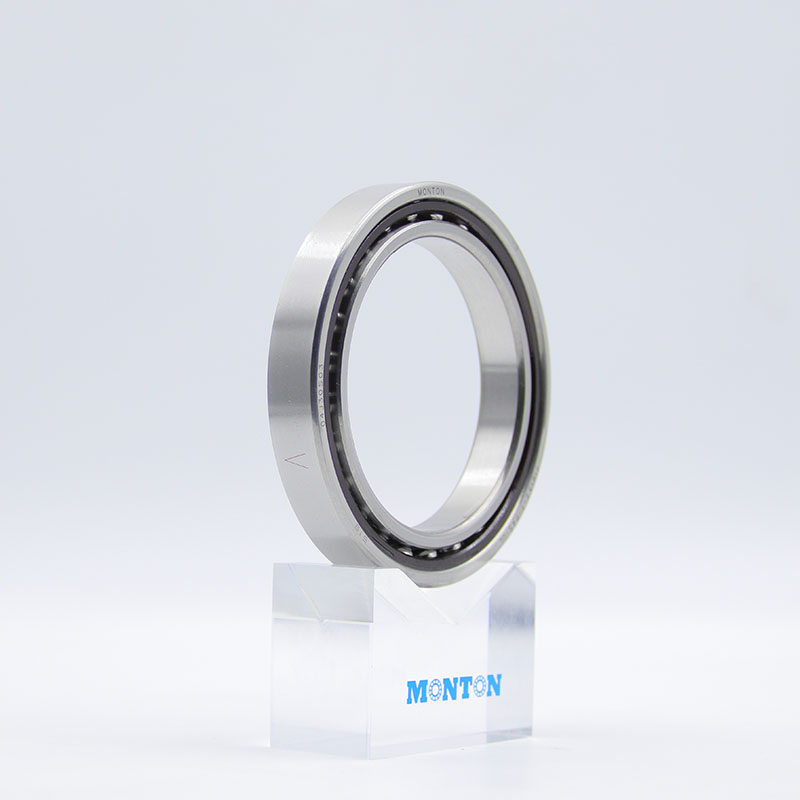

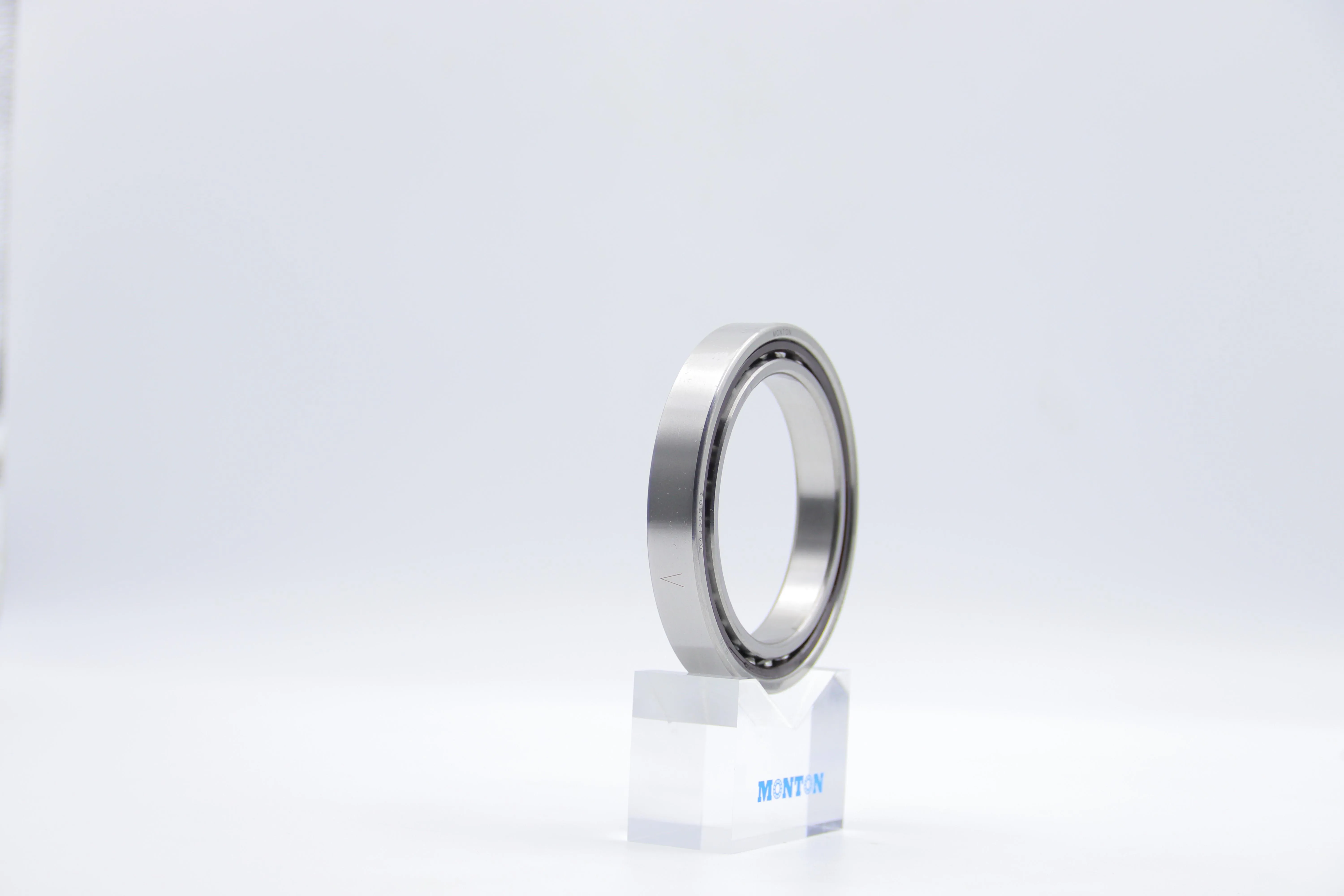

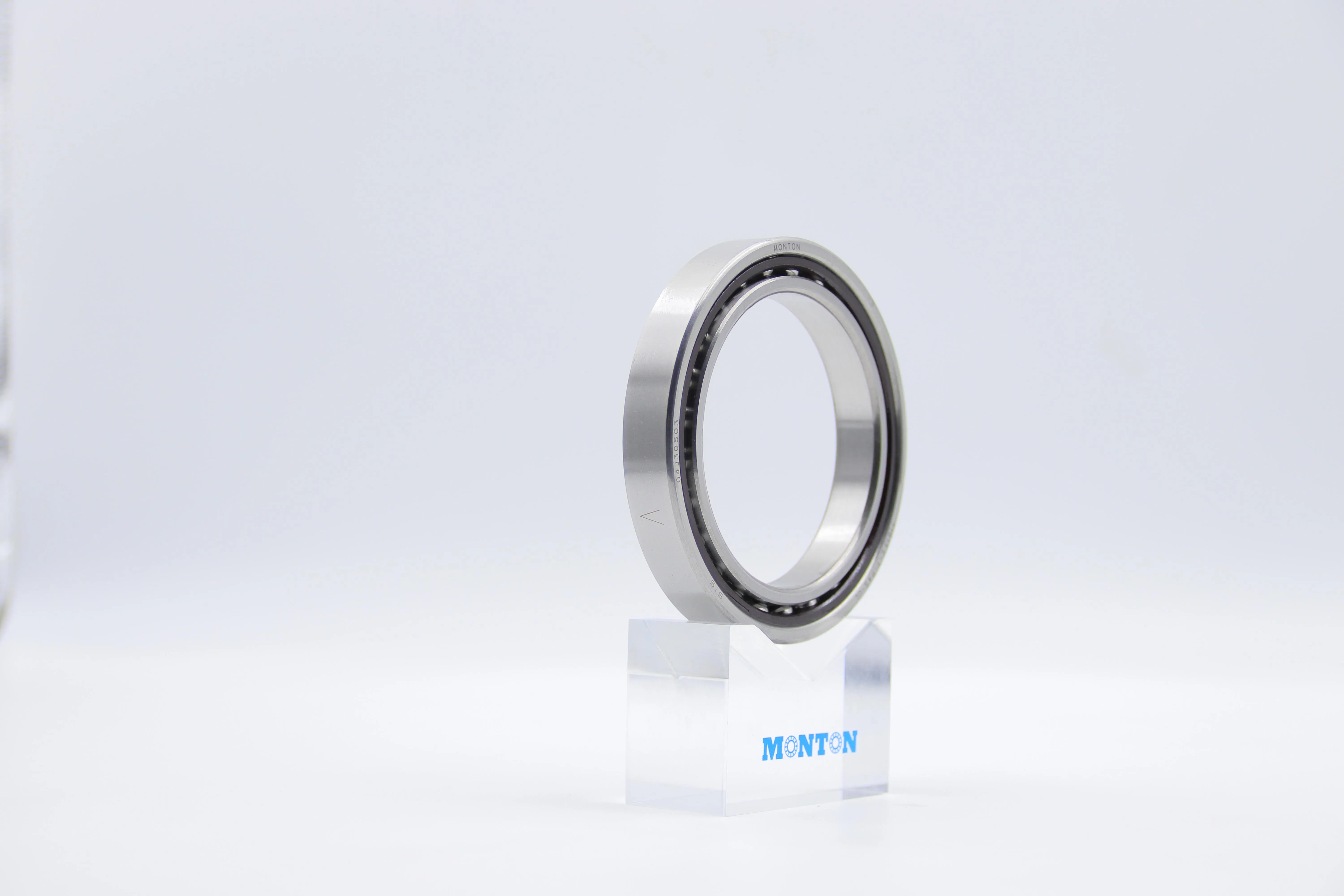

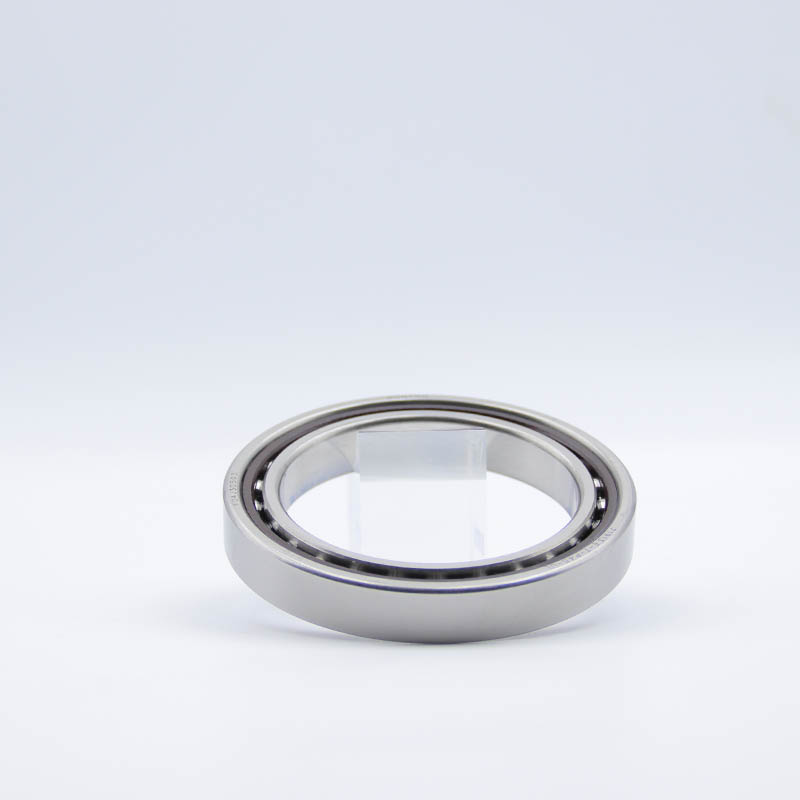

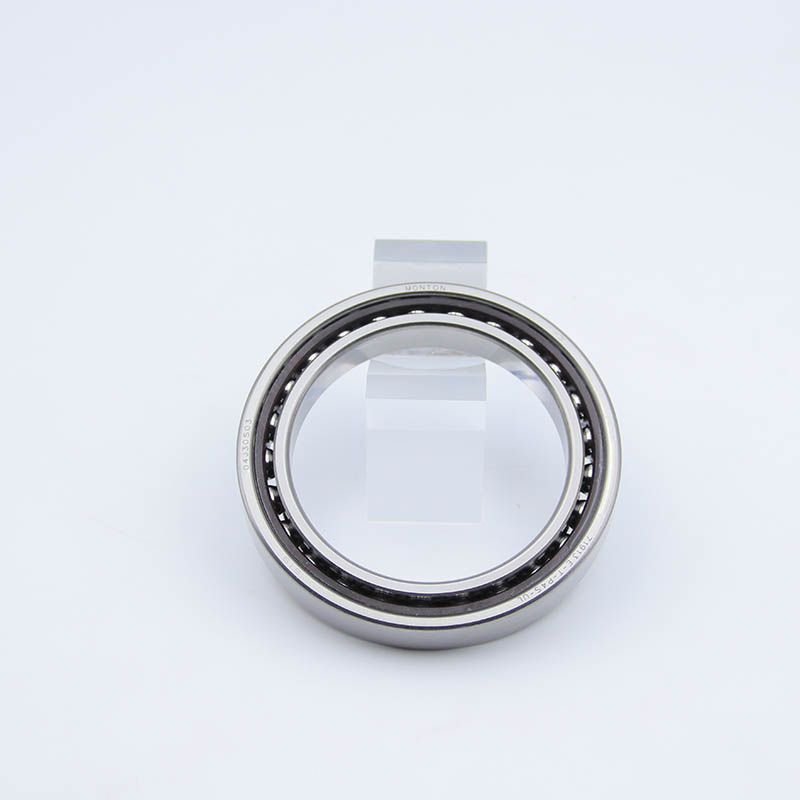

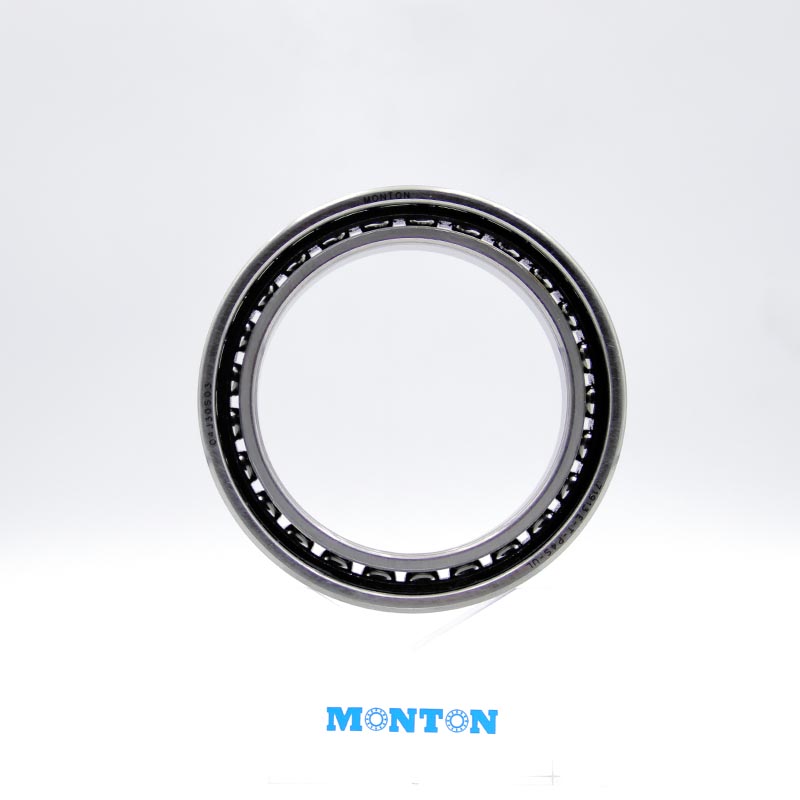

71913-E-T-P4S-UL Angular contact bearing High speed precision low noise bearing

71913-E-T-P4S-UL Precision Angular Contact Calculation Bearing Inner Diameter: 65 mm Outer Diameter: 90 mm Thickness: 13 mm
Weight: Approximately 0.23 kg, internal structure: steel ball, 25 ° contact angle design, optimized load distribution. Suitable for high-speed precision equipment, such as rolling mill gearboxes, roller track subsystems, printing machinery, etching machines, medical equipment, high-speed spindles, open chillers, coking equipment, circular saw machines, etc

Case Details

Name	Angular Contact Ball Bearings
Brand	MONTON
Model	71913-E-T-P4S-UL
Contact angle	25°
Ball Dia.	mm
Bore diameter	65mm
Outside diameter	90mm
B(width)	13mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating C	23700N
Basic static load rating C0	16000N
Sealed	Open
Row	Single row
Weight	0.2KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
