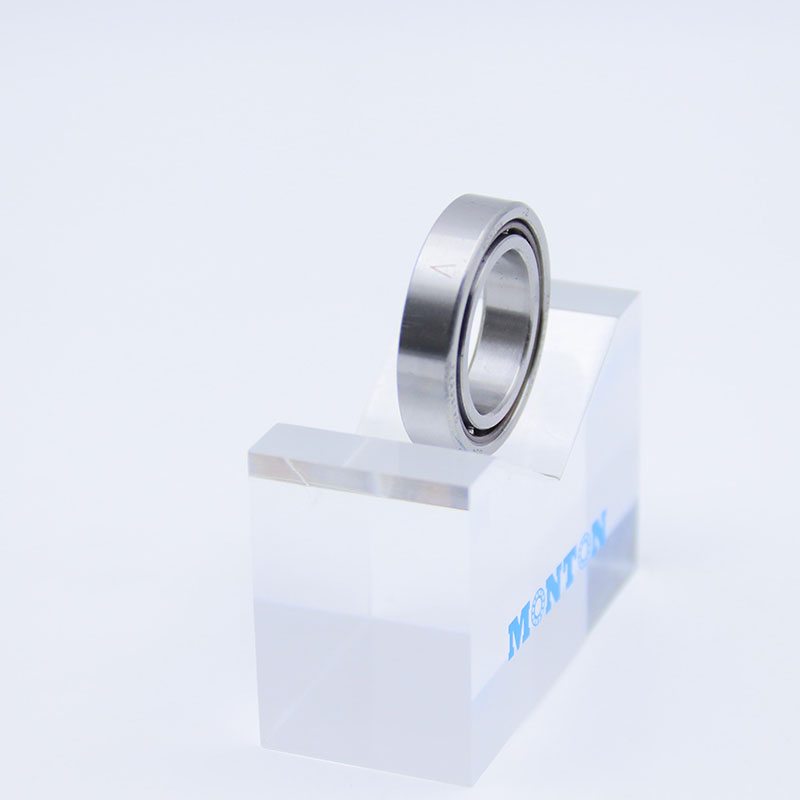

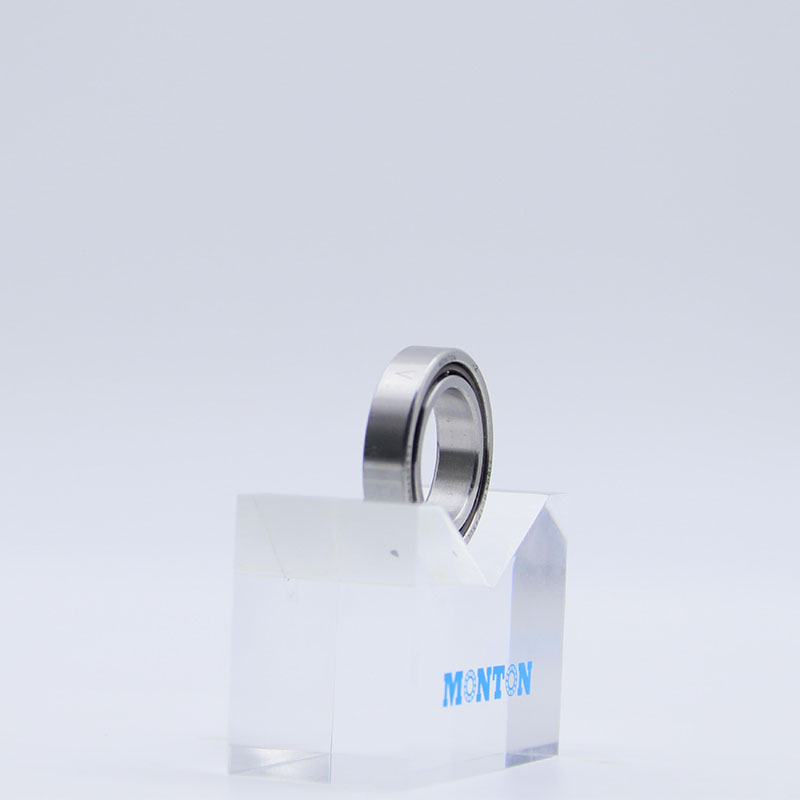

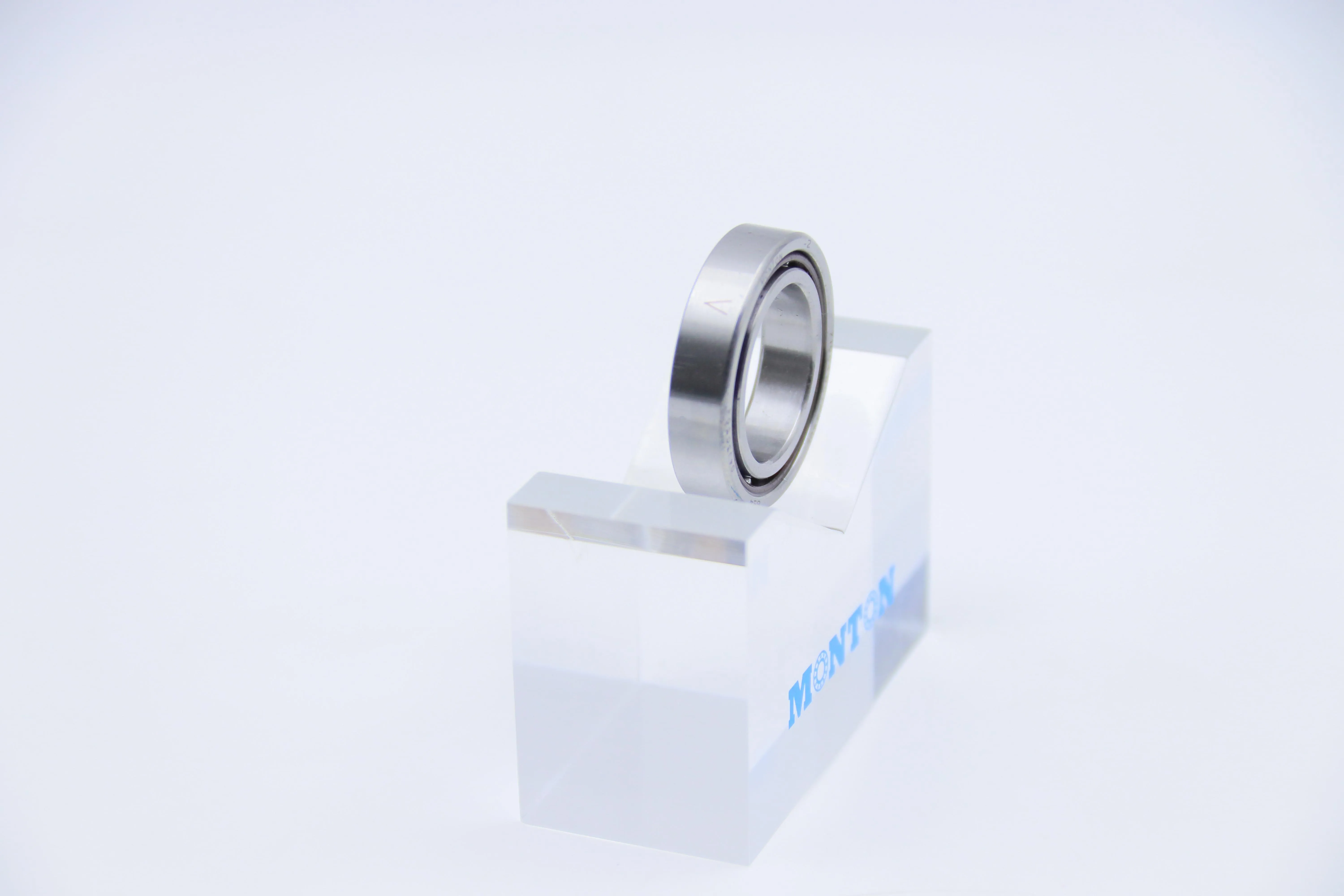

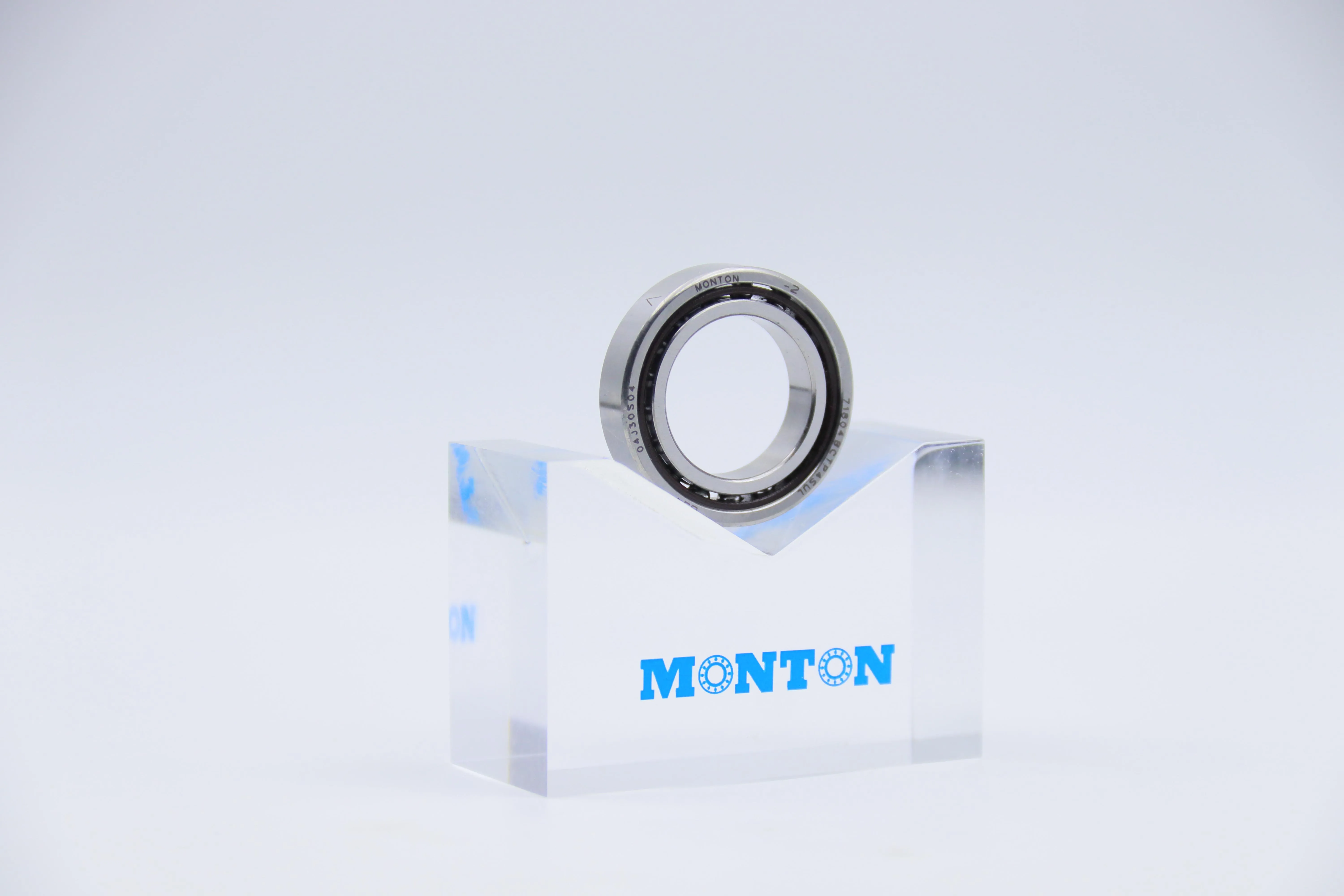

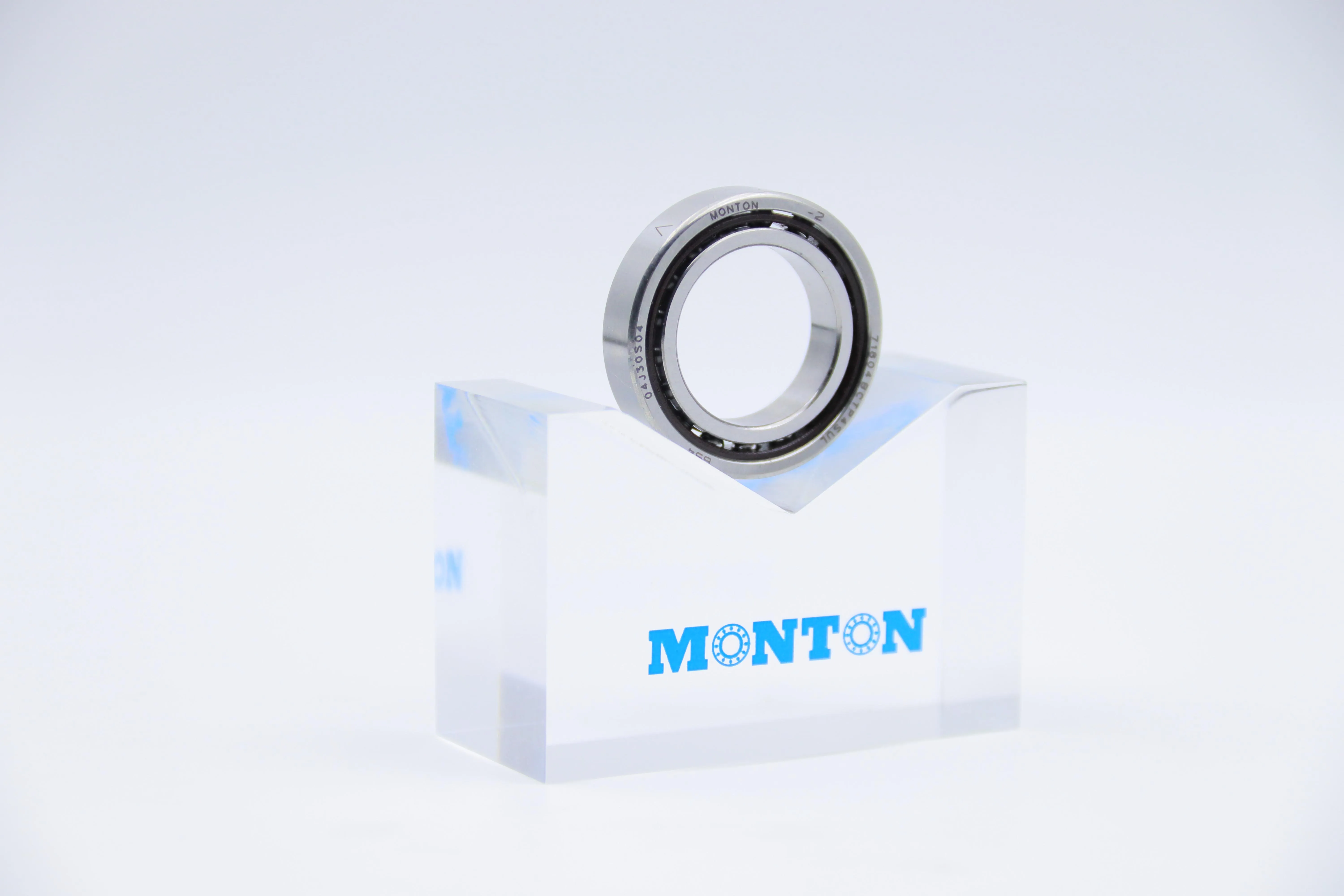

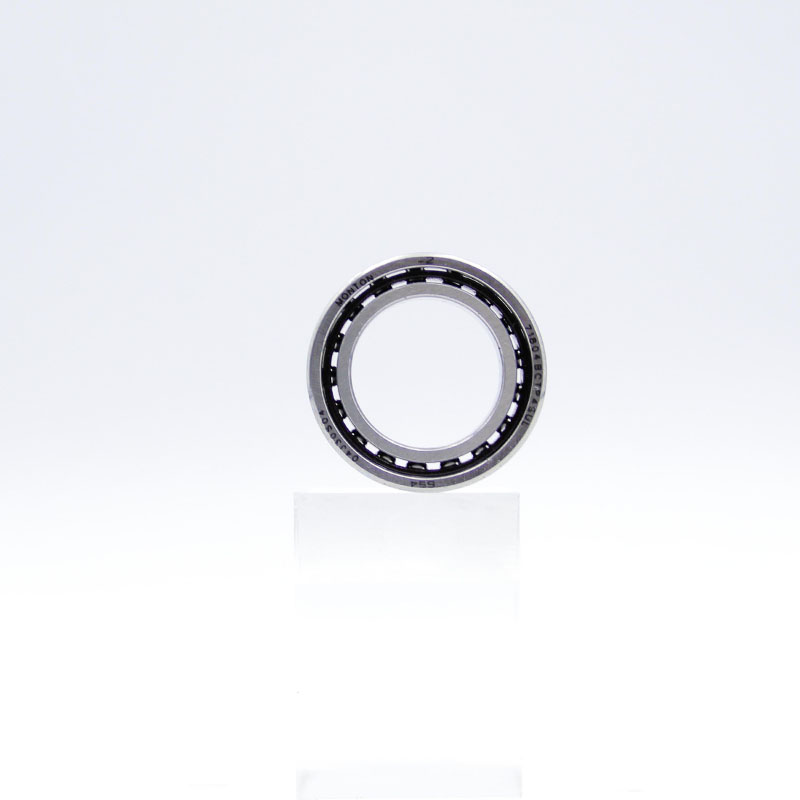

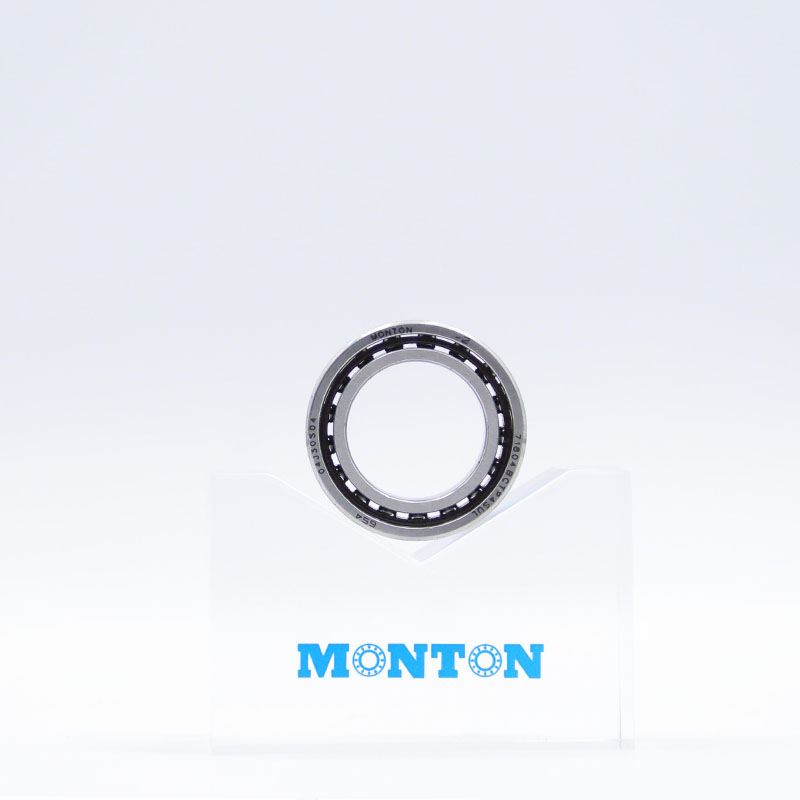

B71804-C-TPA-P4 Angular Contact Ball Bearings

  • B71804-C-TPA-P4-UL spindle bearing is a standard specification single row angular contact ball bearing designed with large-diameter steel balls. Especially suitable for situations that require high guidance accuracy and high-speed performanceMainly used in various types of machine tool spindle systemsThis bearing, with its strict tolerance control and excellent mechanical performance, has become an ideal choice in the field of precision mechanical transmission.
Case Details

Name

Angular Contact Ball Bearings

Brand

MONTON

Model

B71804-C-TPA-P4

Contact angle

15°

r

0.3

Bore diameter

20mm

Outside diameter

32mm

B(width)

7mm

Ring Material

Gcr15 Bearing steel

Cage Material

Nylon

Basic dynamic load rating C

3.8KN

Basic static load rating  C0

2.65KN

Sealed

Open

Row

Single row

Weight

0.02KG

Quality standard

ISO9001: 2000/SGS

Package

single box

Original

Luoyang

Service

OEM

Delivery date

Accordingly

Application

Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
