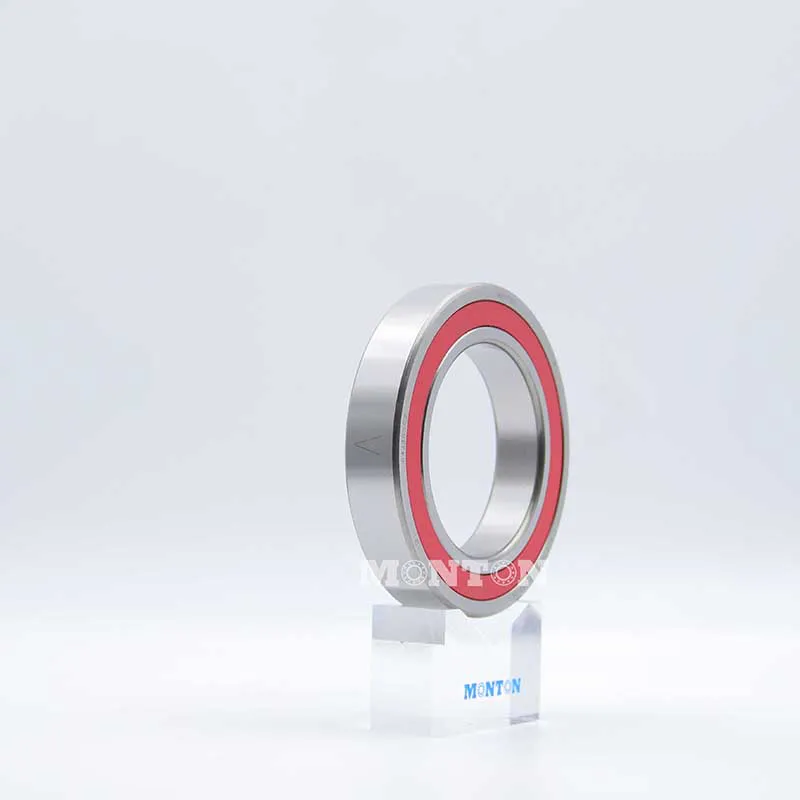

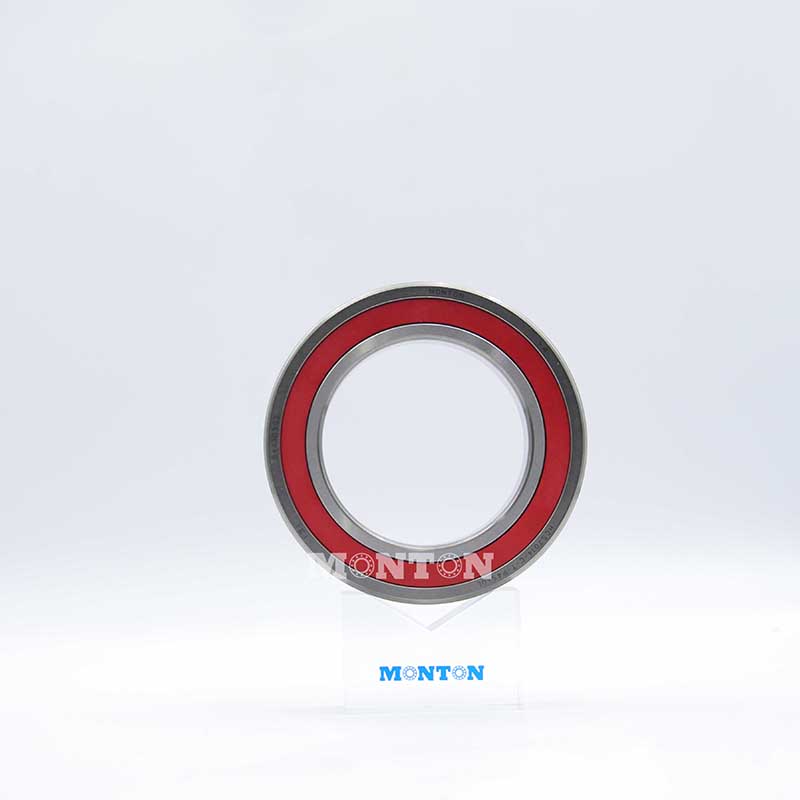

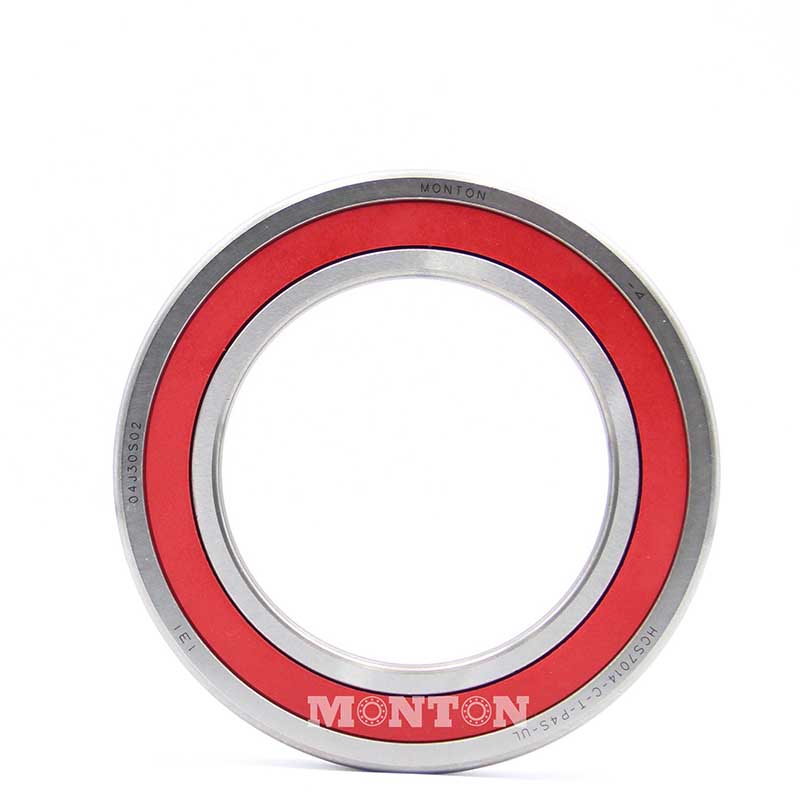

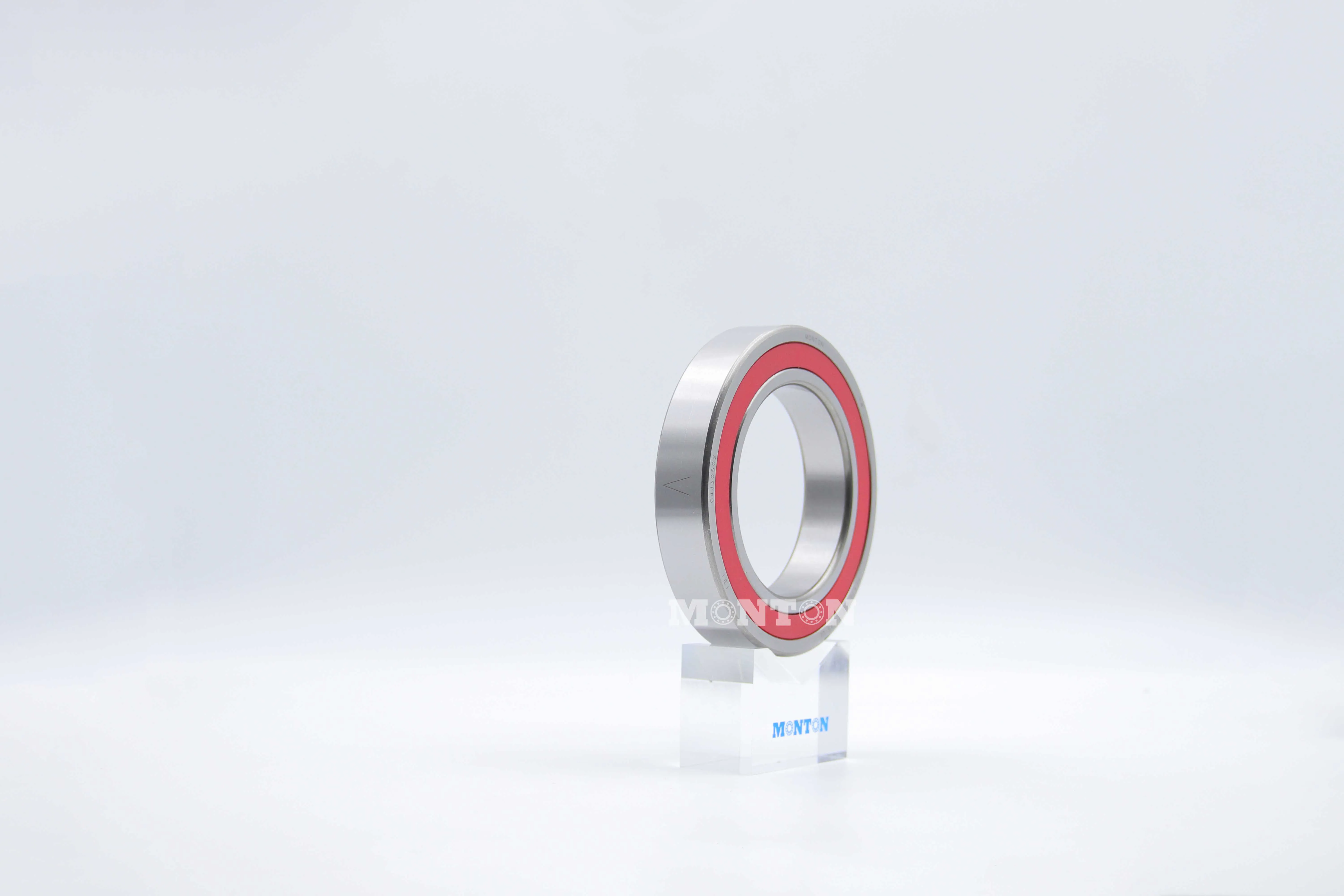

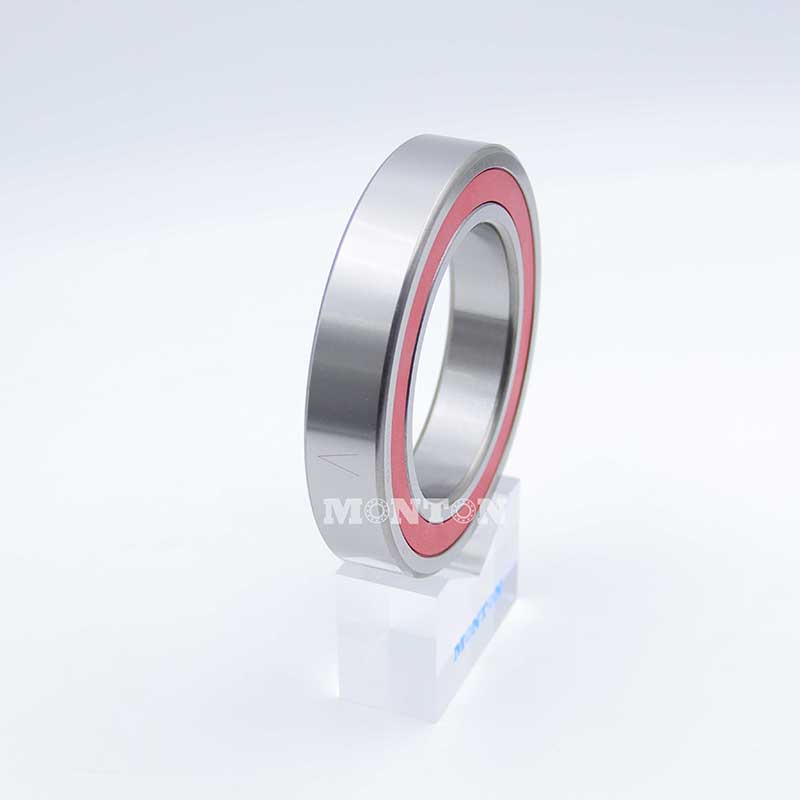

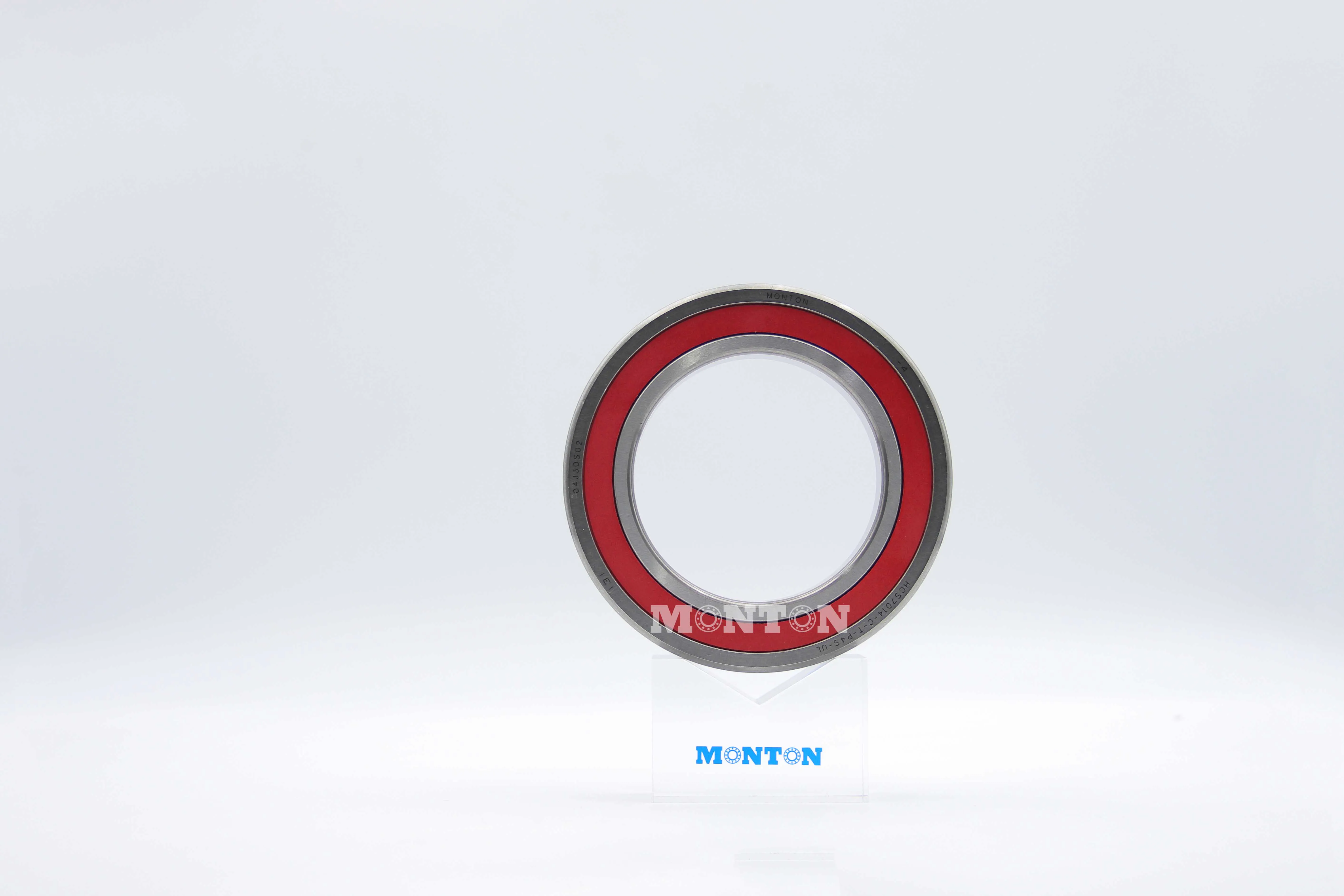

HS7014-C-T-P4S-UL Angular Contact Ball Bearings

  • The HS7014-C-T-P4S-UL high-precision angular contact ball bearing produced byMONTON Bearing is an universal matched P4 level ultra-high precision, 15 ° contact angle, resin reinforced phenolic resin cage open design bearing, with an oil lubrication speed of up to 28000 rpm. It is mainly used in machine tools and equipment such as CNC lathes, deep hole drilling machines, boring machines, machining centers, and gear milling machines; Industrial machinery: wire rolling machine, bending machine, welding machine, filter press, cooling tower; Packaging and printing: plastic packaging machinery, Heidelberg printing machines, multifunctional packaging machines.
Case Details

Name

Angular Contact Ball Bearings

Brand

MONTON

Model

HS7014-C-T-P4S-UL

Contact angle

15°

rmin

1.1mm

Bore diameter

70mm

Outside diameter

110mm

B(width)

20mm

Ring Material

Gcr15 Bearing steel

Cage Material

Nylon

Basic dynamic load rating Cr

 25,000 N

Basic static load rating  Cor

17,200 N

Fatigue load limit, radial Cur

 1,820 N

Sealed

Open

Row

Single row

Weight

0.6KG

Quality standard

ISO9001: 2000/SGS

Package

single box

Original

Luoyang

Service

OEM

Delivery date

Accordingly

Application

Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
