HCB71914-EDLR-T-P4S-UL Direct Lube Super precision angular contact ball bearings

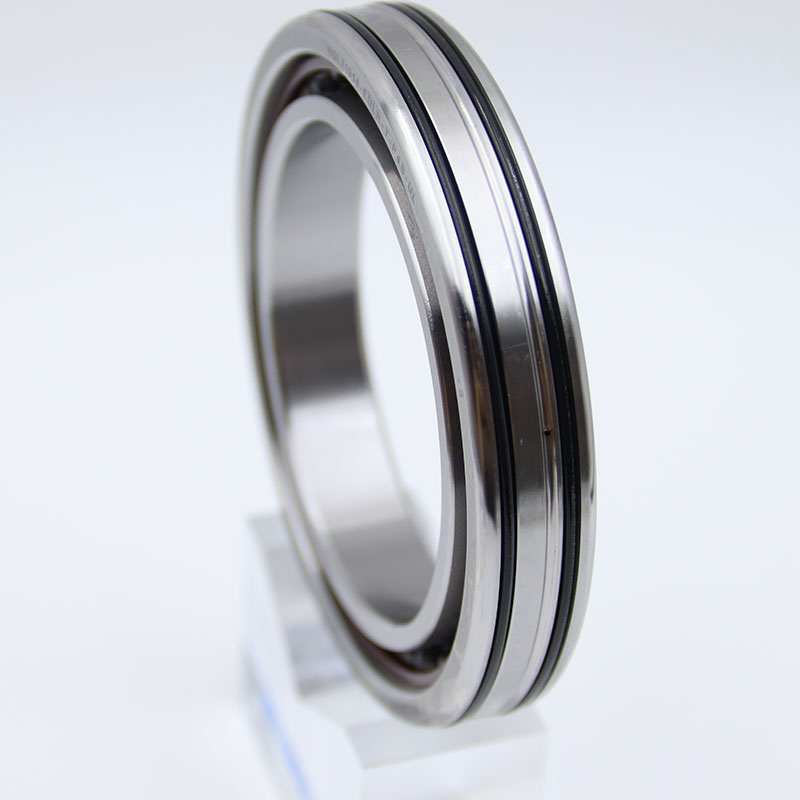

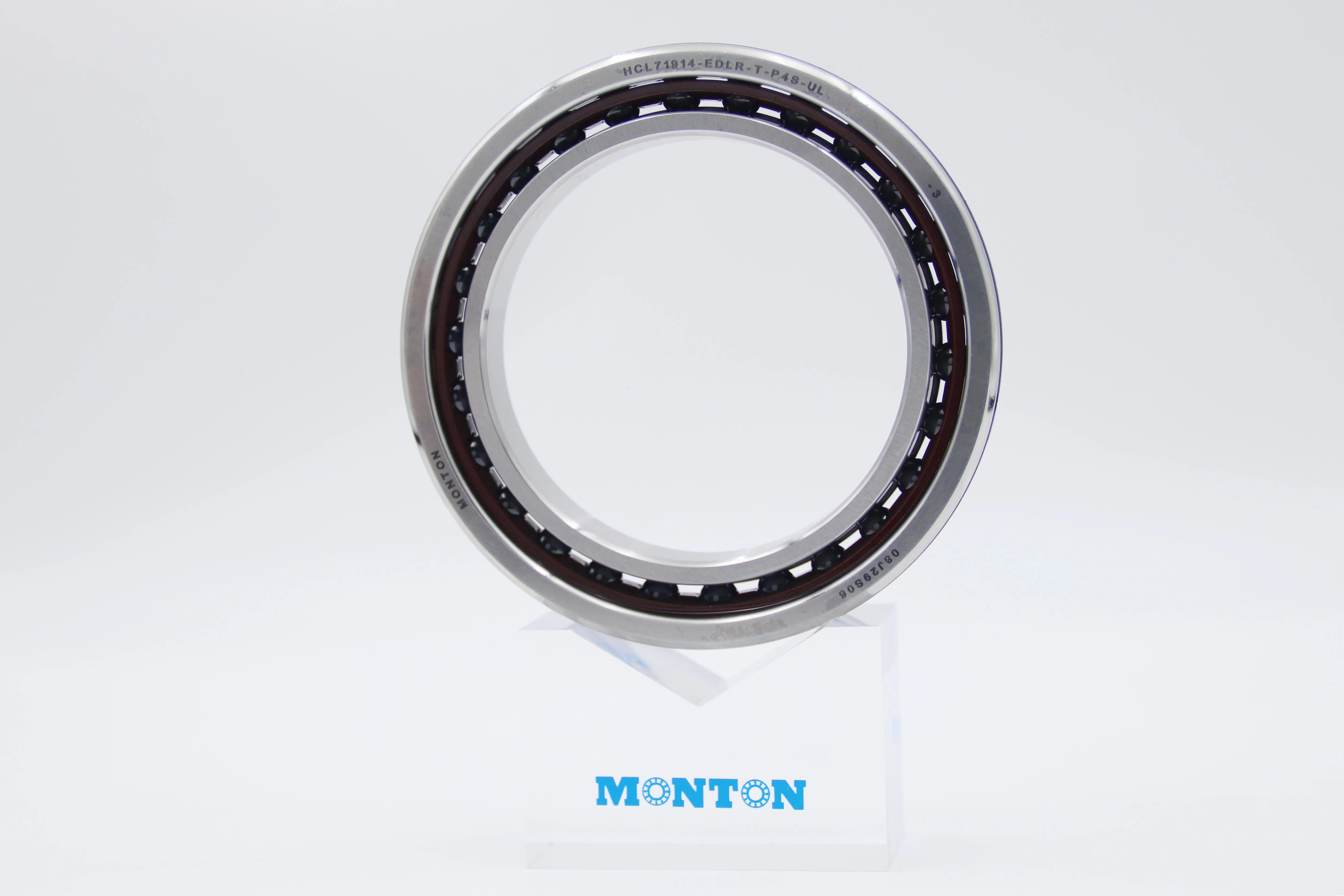

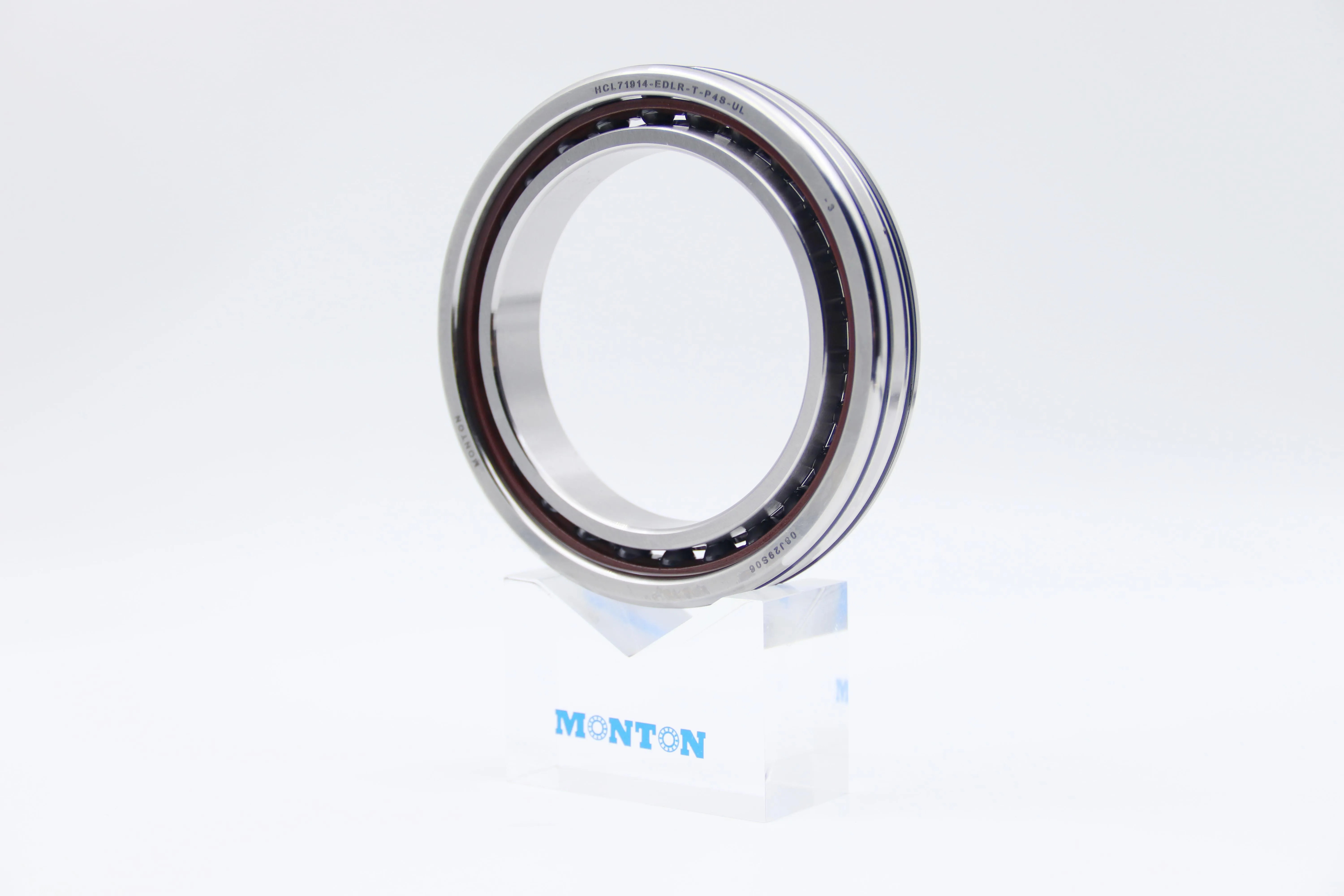

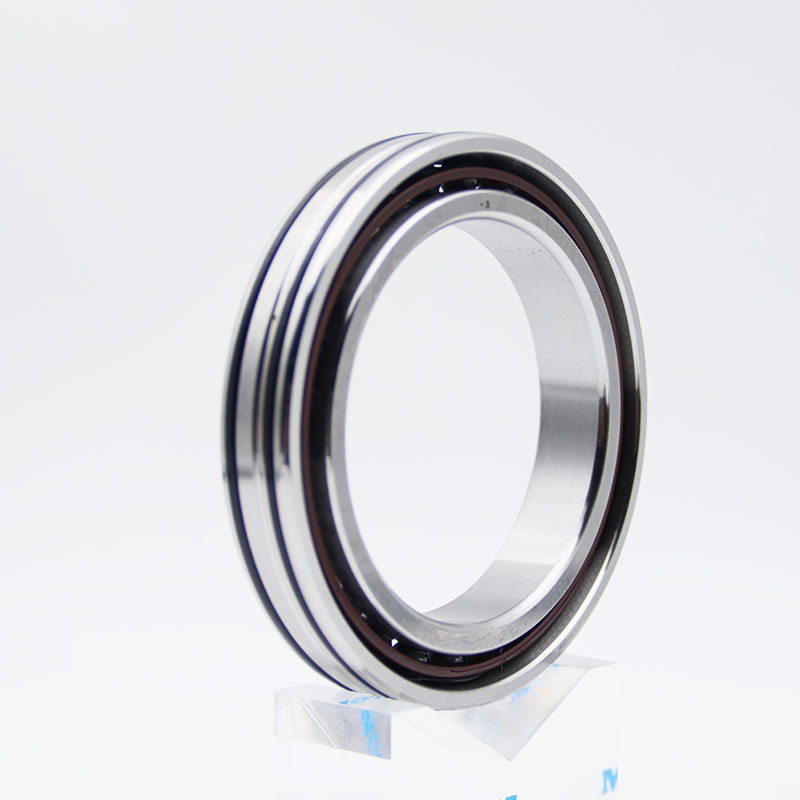

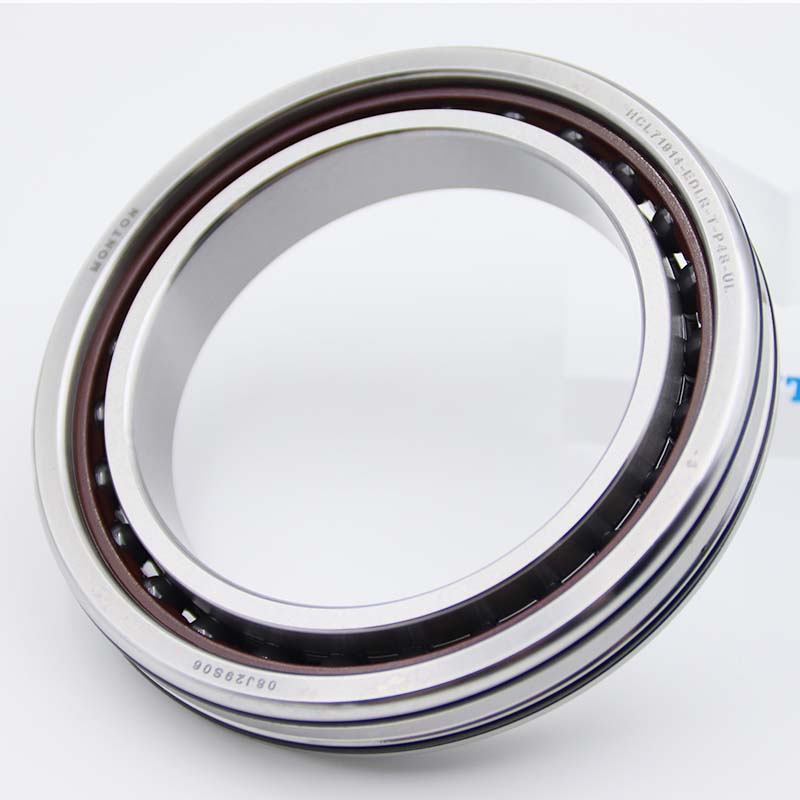

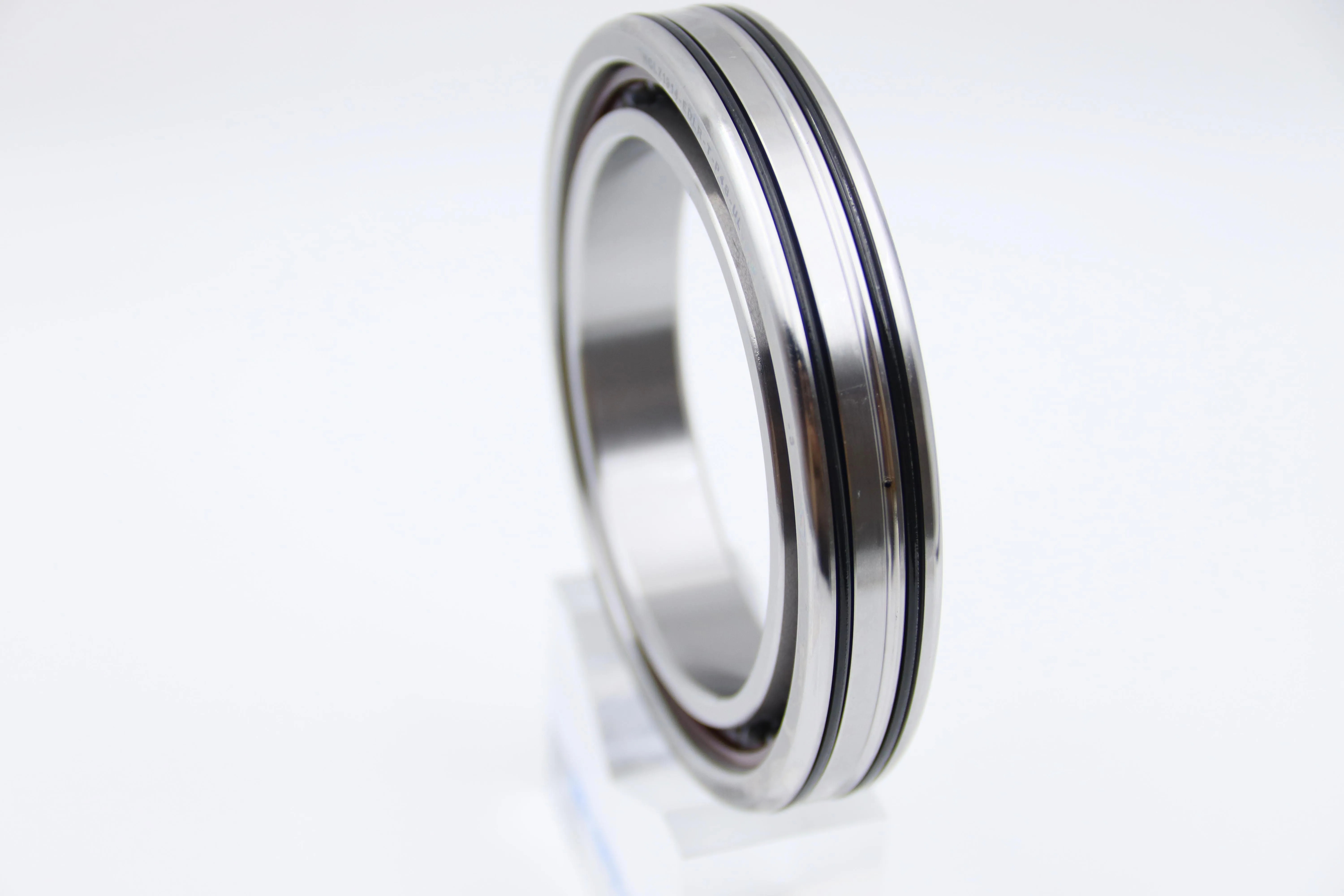

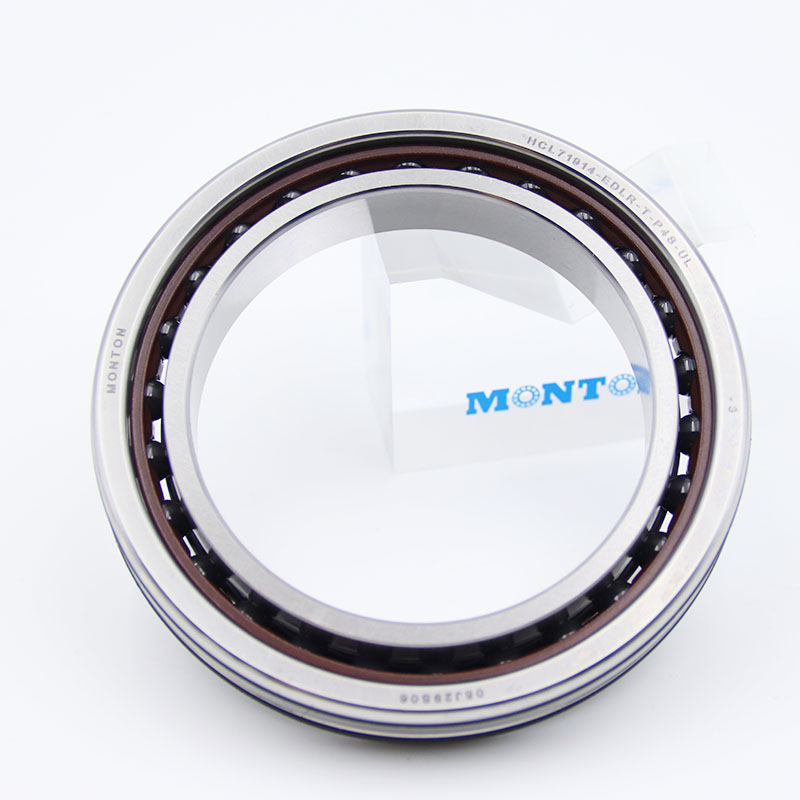

HCB71914-EDLR-T-P4S-UL hybrid ceramic ball spindle bearing from MONTON, designed with a 25° contact Angle.HCB71914-EDLR-T-P4S-UL directly lubricated by the outer ring and is equipped with an embedded O-ring seal and an open design bearing with a phenolic resin reinforced cage. The hybrid ceramic ball bearing design can reduce friction and heat generation. Designed specifically for high-speed and high-precision machine tool spindles, it is suitable for applications requiring low friction, low temperature rise and high rigidity, such as: CNC lathes, deep hole drilling machines, boring machines, machining centers, gear milling machine spindles, etc.

Case Details

Name	Direct Lube Super precision angular contact ball bearings
Brand	MONTON
Model	HCB71914-EDLR-T-P4S-UL
Contact angle	25°
rmin	1mm
Bore diameter	70mm
Outside diameter	100mm
B(width)	16mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	32.5KN
Basic static load rating Cor	20.8KN
Fatigue load limit, radial Cur	1,68KN
Limiting speed for nG Grease	17,000 1/min
Limiting speed for nG Oil	26,000 1/min
Sealed	Open/Sealed
Row	Single row
Weight	0.26KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
