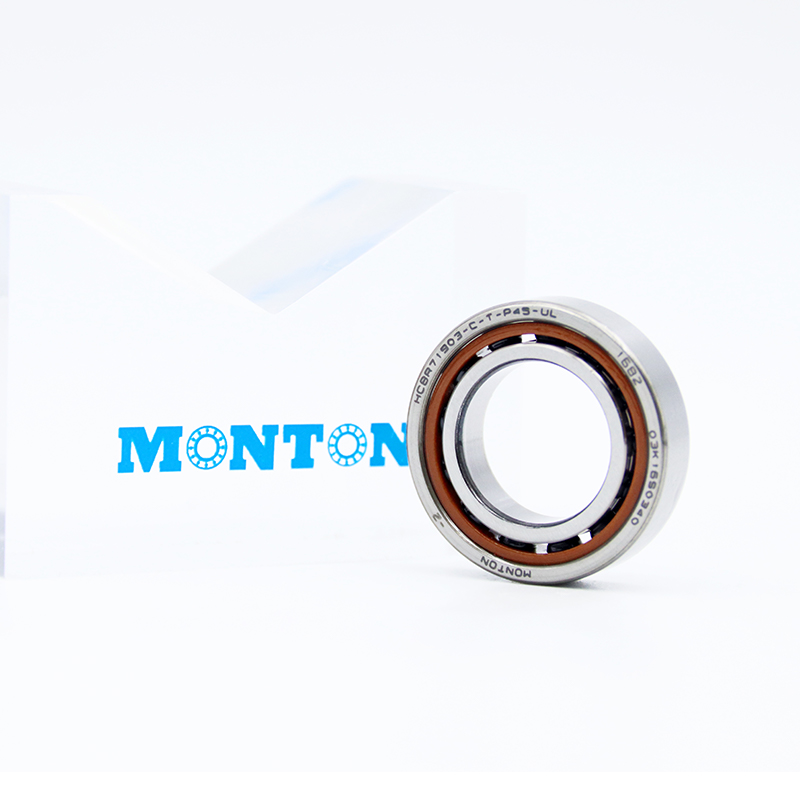

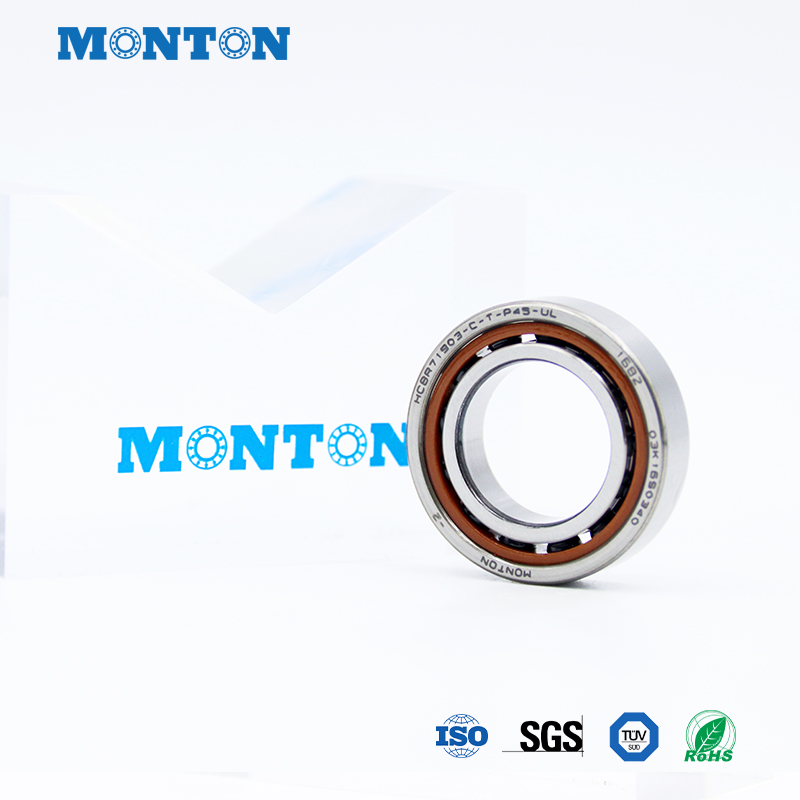

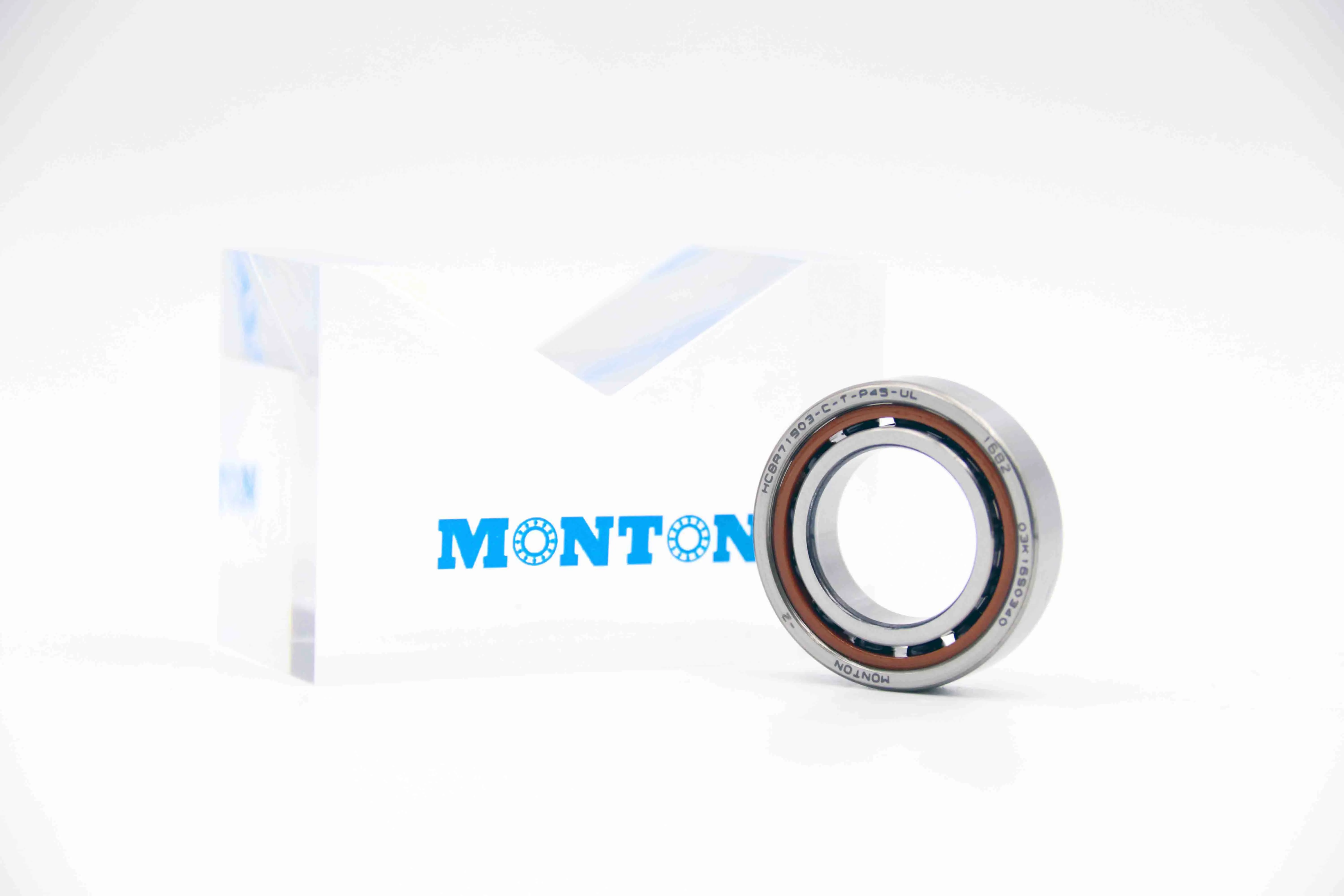

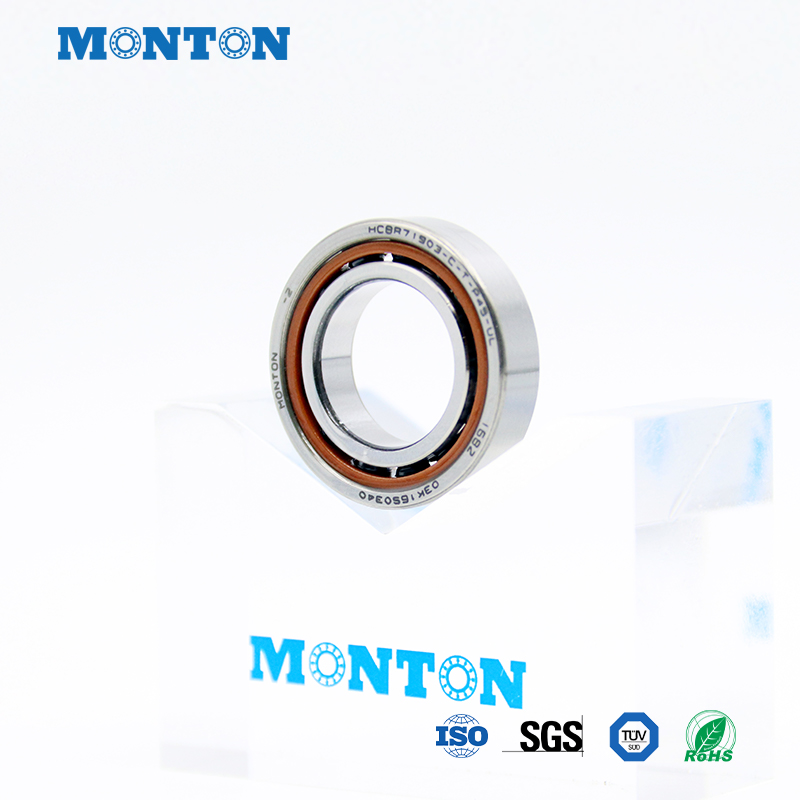

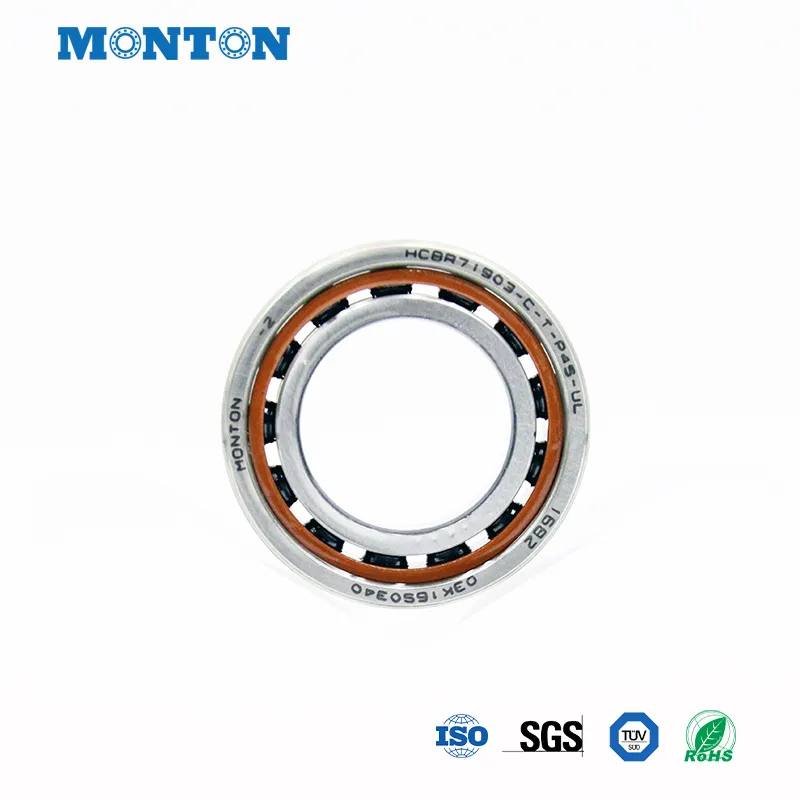

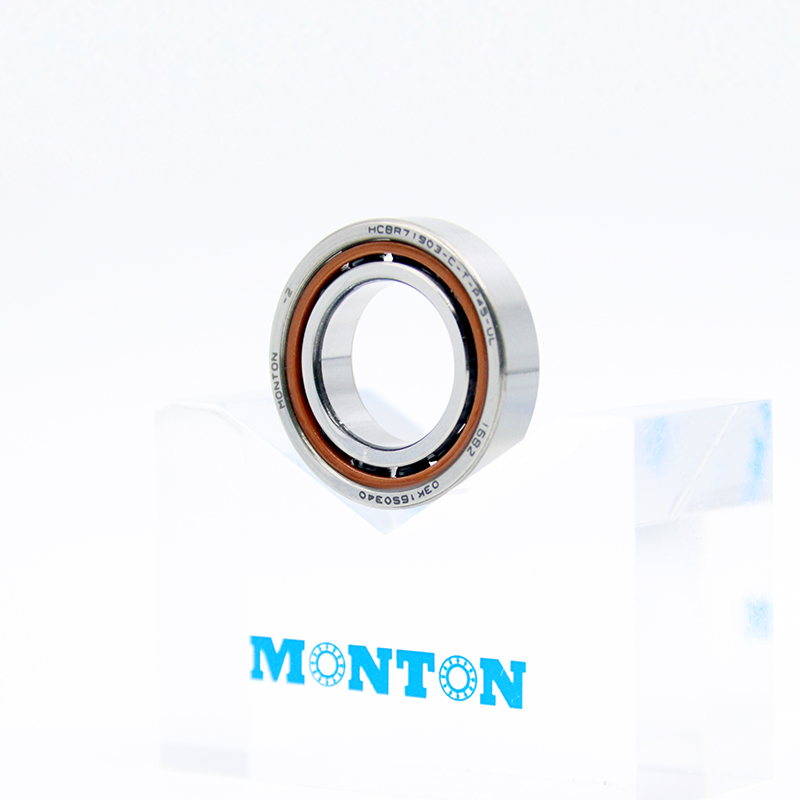

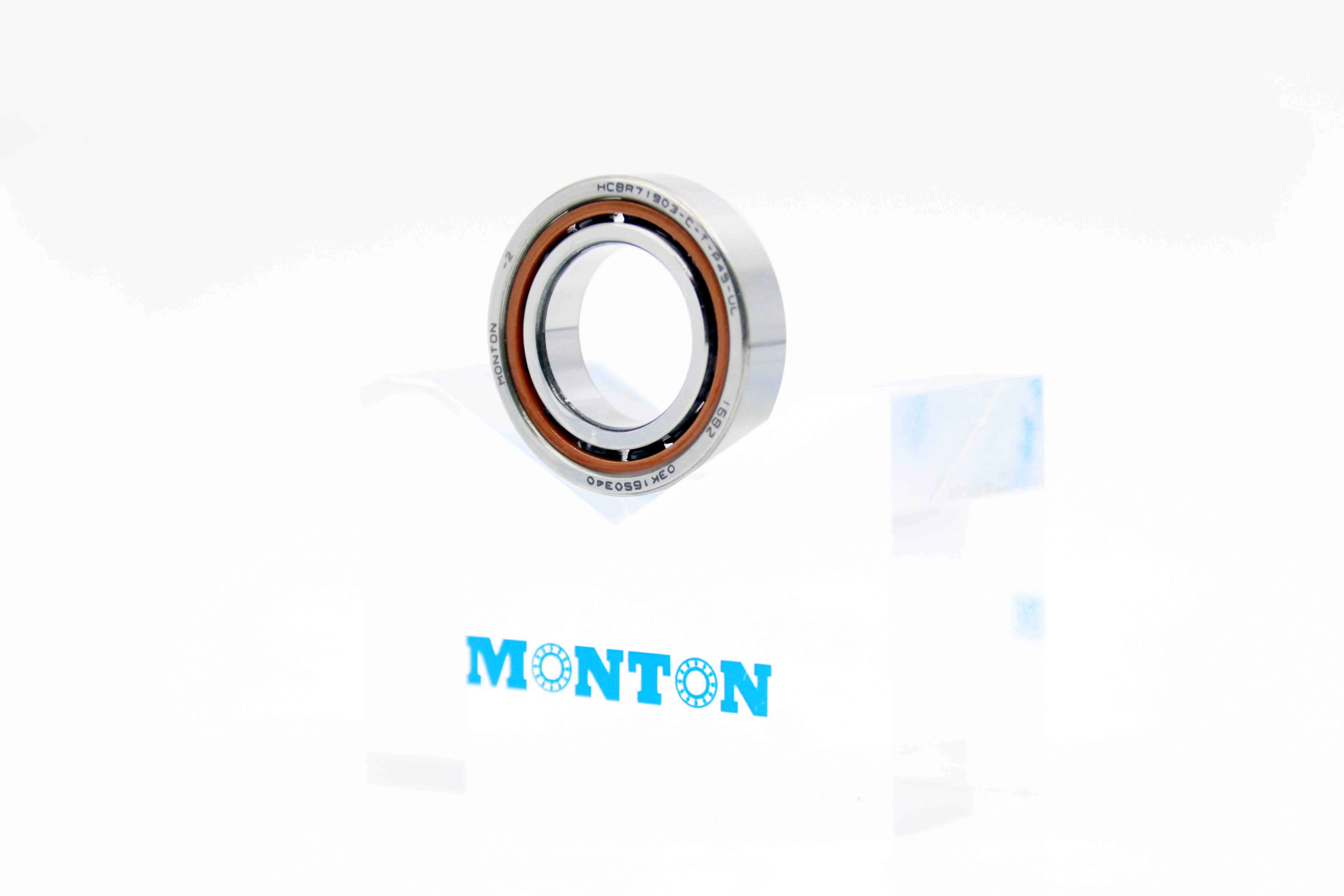

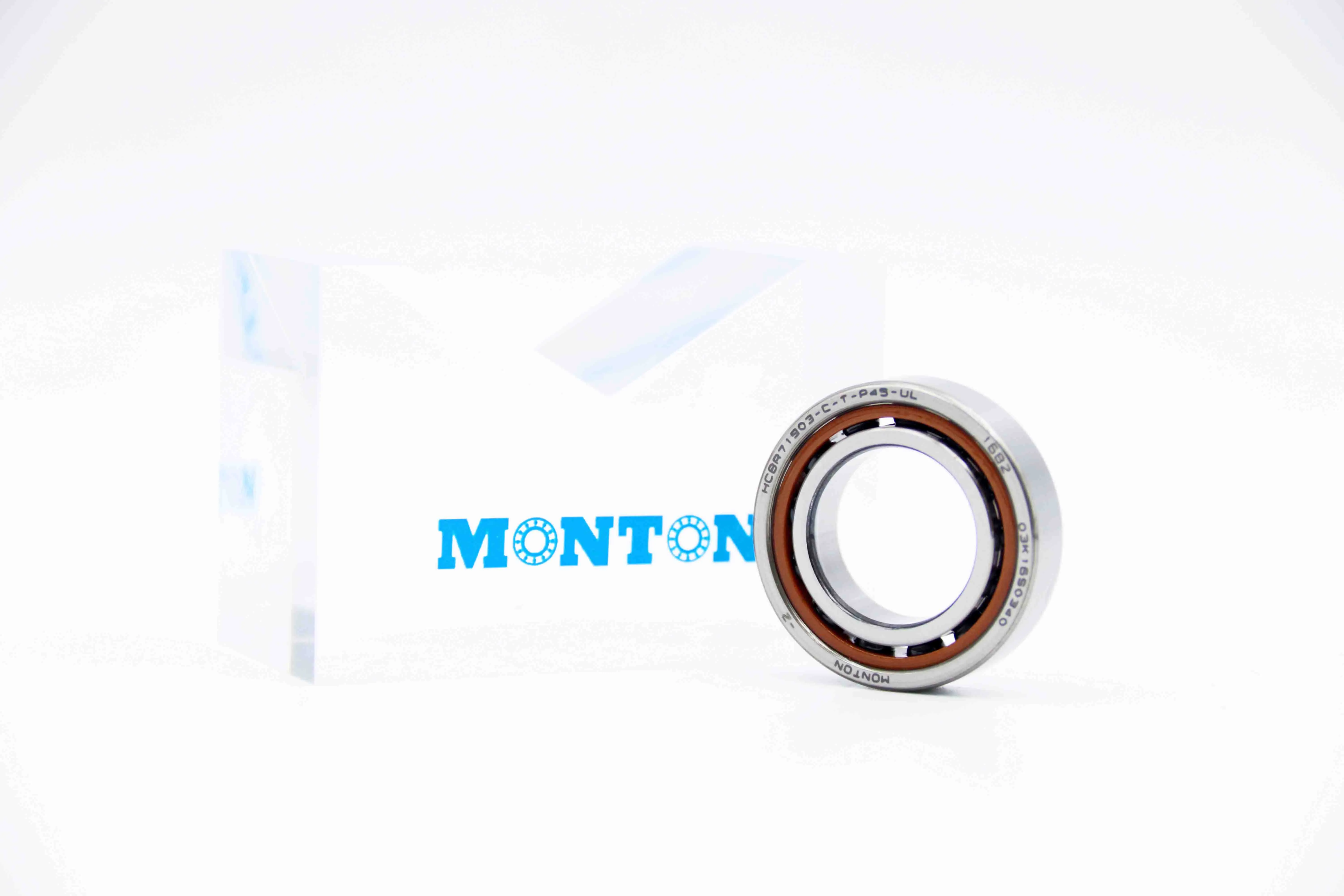

HCBR71903-C-T-P4S-UL Angular Contact Ball Bearings

HCB71903-C-T-P4S-UL is a precision angular contact ball bearing produced by, belonging to the HCB ceramic ball series, designed for high-speed and high-precision application scenarios, widely used in the field of precision machinery such as machine tool spindles. Installation should be carried out in a dry and dust-free environment to avoid contamination of the bearing interior by metal debris or dust. Clean tools and workbenches before homework, and use clean auxiliary tools for operation. Bearings should be stored in a clean and dry place with a relative humidity not exceeding 65%. Unsealing should be done immediately before use to prevent exposure to moisture or contamination in the air.

Case Details

Name	Angular Contact Ball Bearings
Brand	MONTON
Model	HCB71903-C-T-P4S-UL
Contact angle	15°
Ball Dia.	3.969mm
Bore diameter	17mm
Outside diameter	30mm
B(width)	7mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	4.16KN
Basic static load rating Cor	2.08KN
nG Grease	53000 r/min
nG Oil	80000 r/min
Sealed	Open/Sealed
Row	Single row
Weight	0.017KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	1. Machining center 2. Milling machine/lathe/boring machine 3. External cylindrical and surface grinders 4. Cutting or polishing stone and glass Machine tools 5. Semiconductor industry, etc., fault detection unit on silicon wafers 6. Marine gyro stabilizers 7. Telescopes 8. Gas turbine engines 9. Racing/supercar wheels 10. Medical equipment 11. Spindle for PCB drilling 12. Woodworking machine tools 13. Turbomolecular pumps
