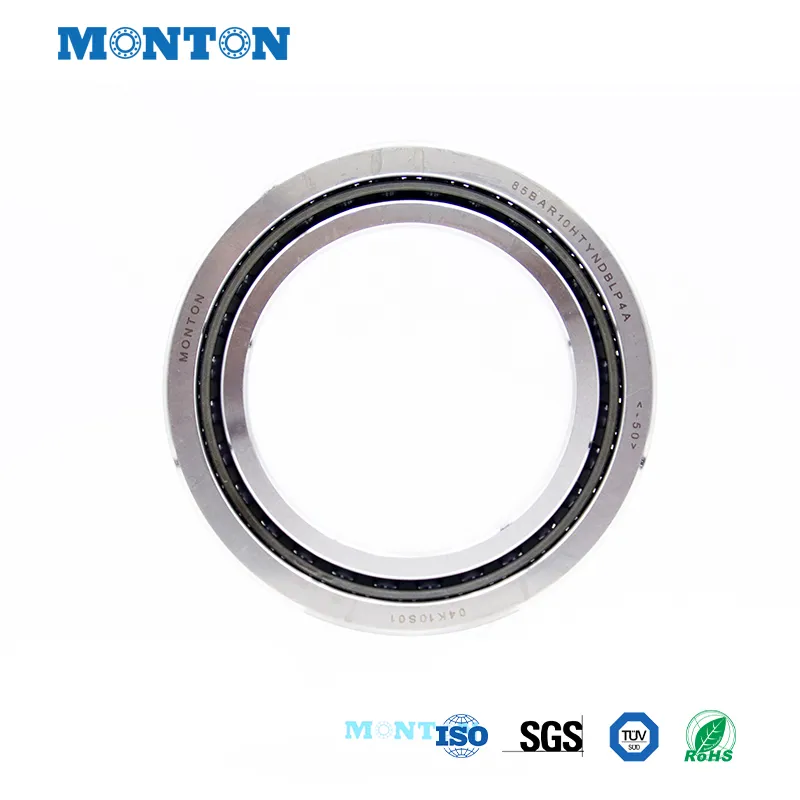

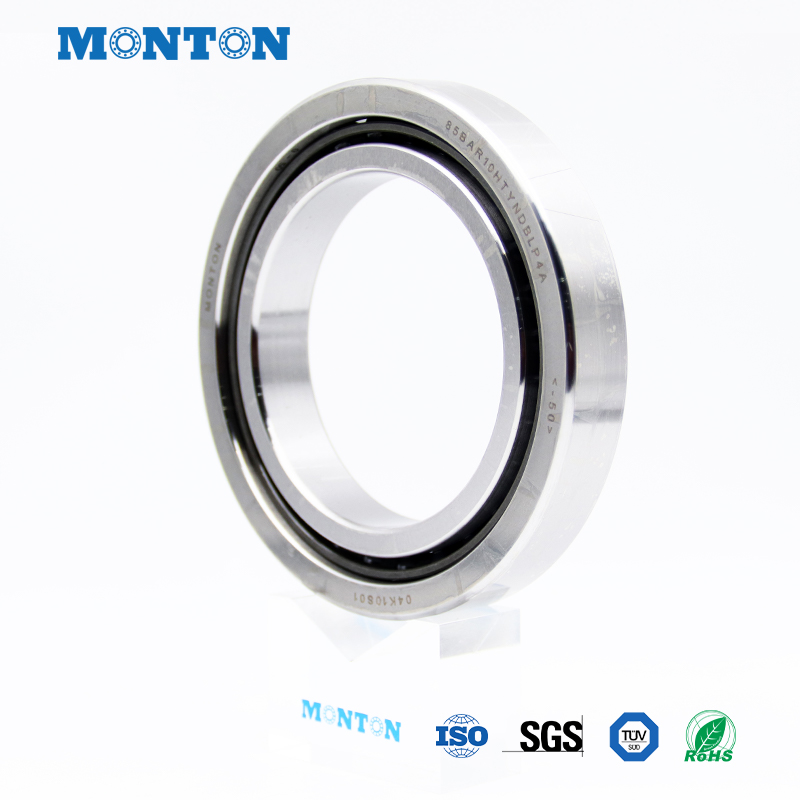

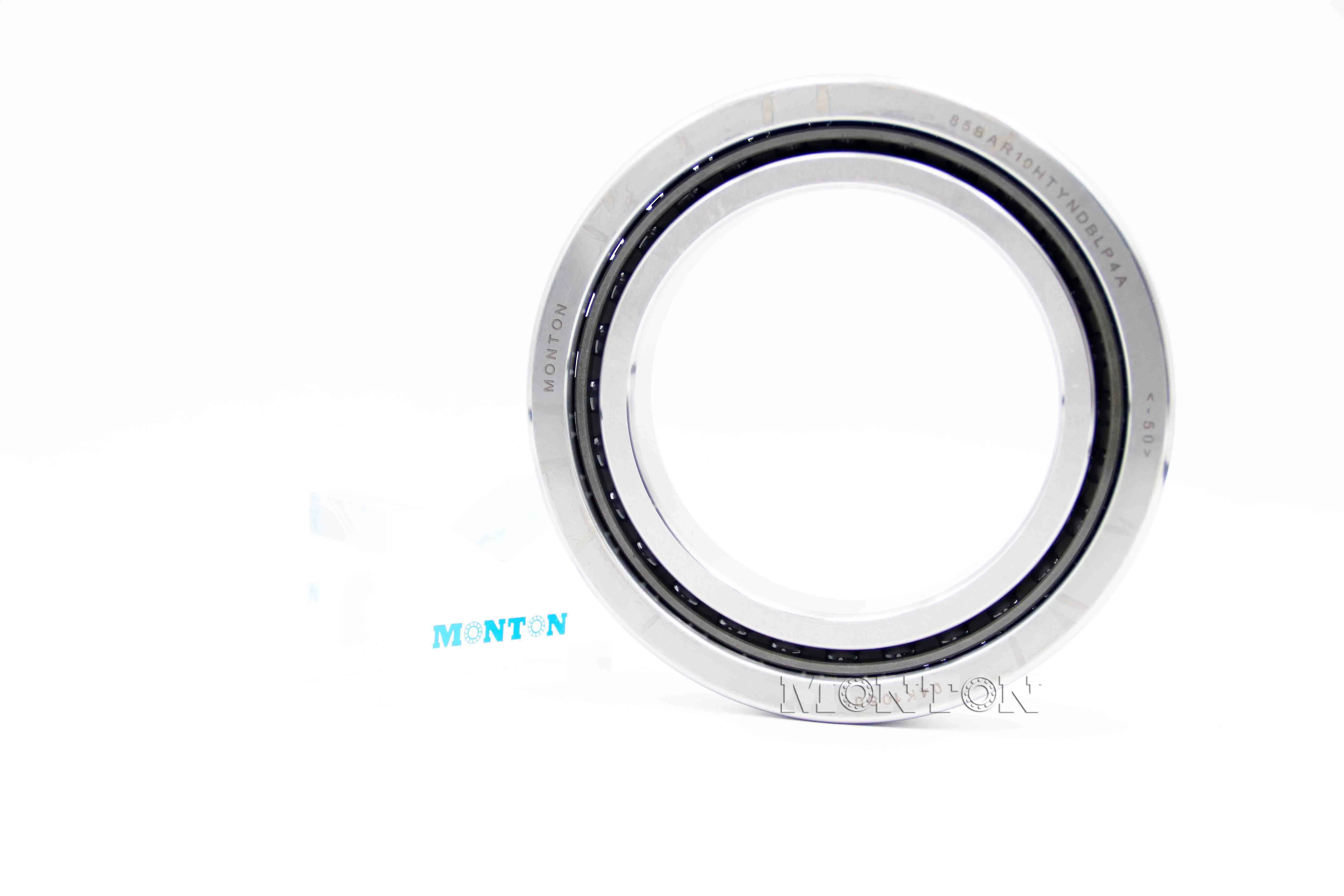

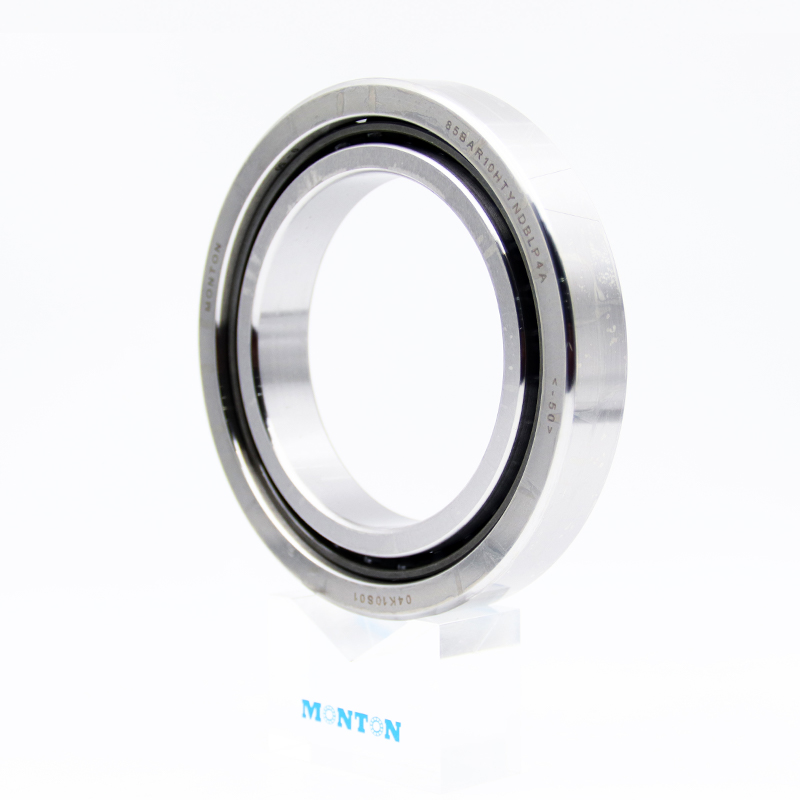

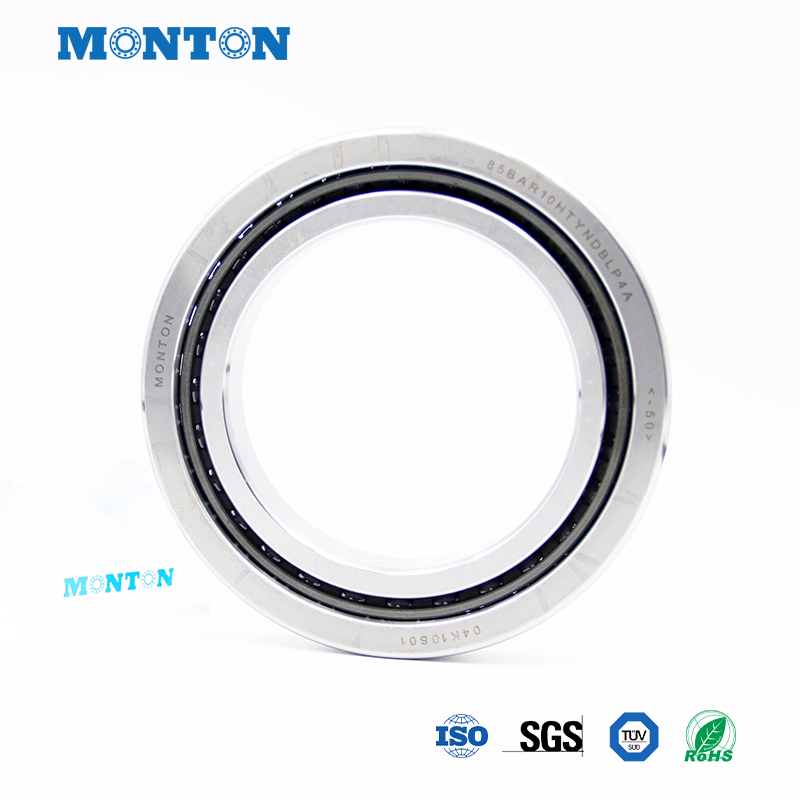

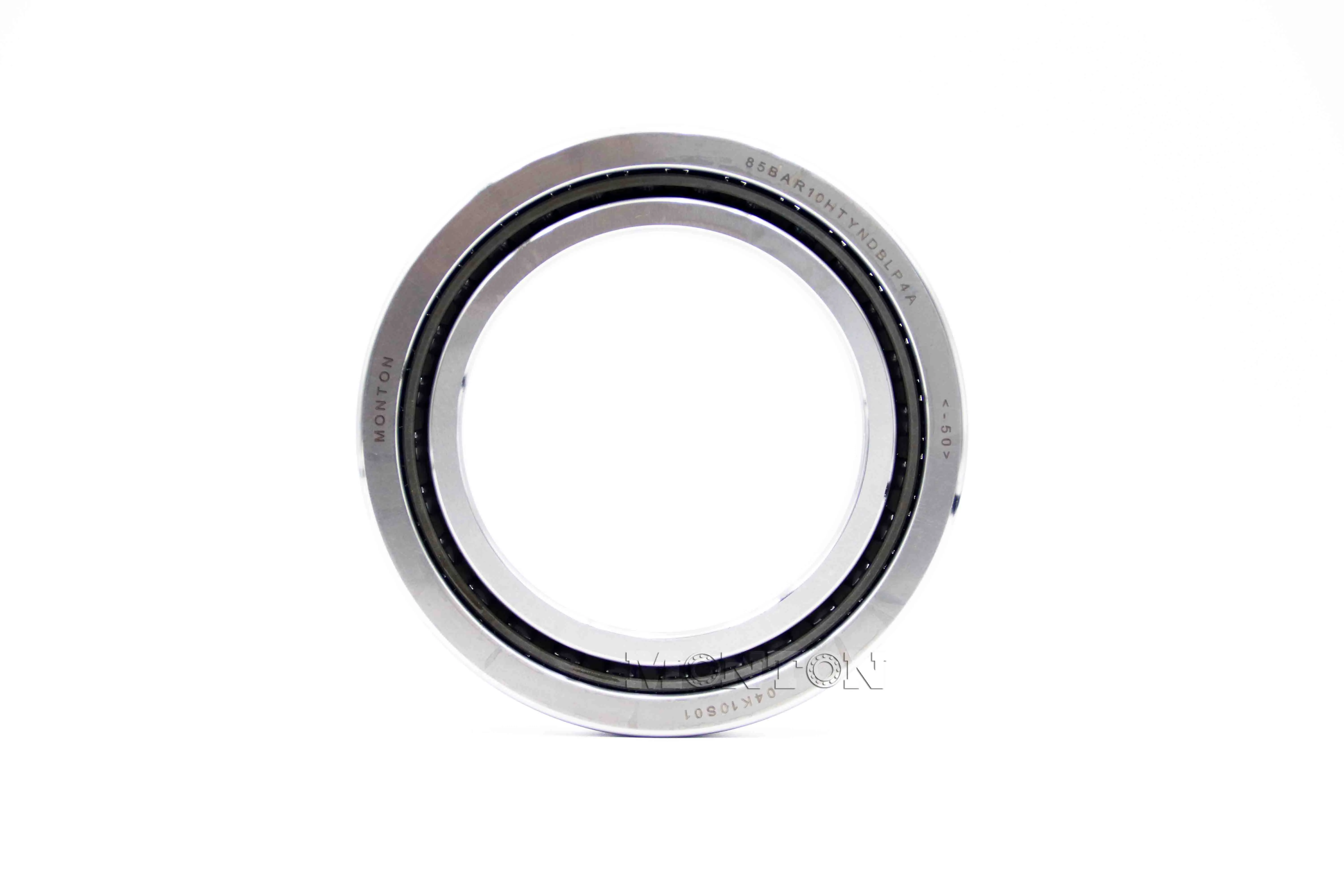

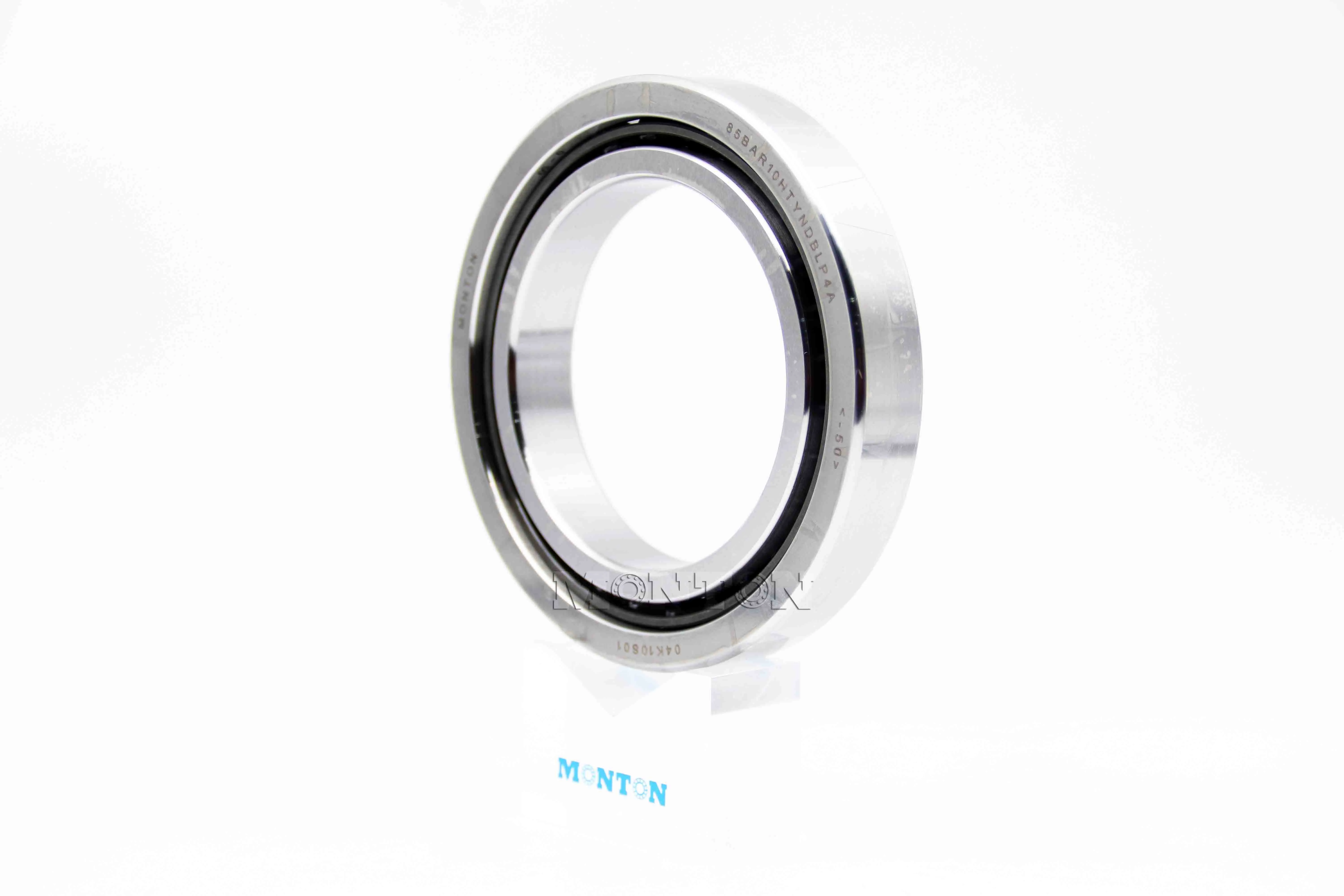

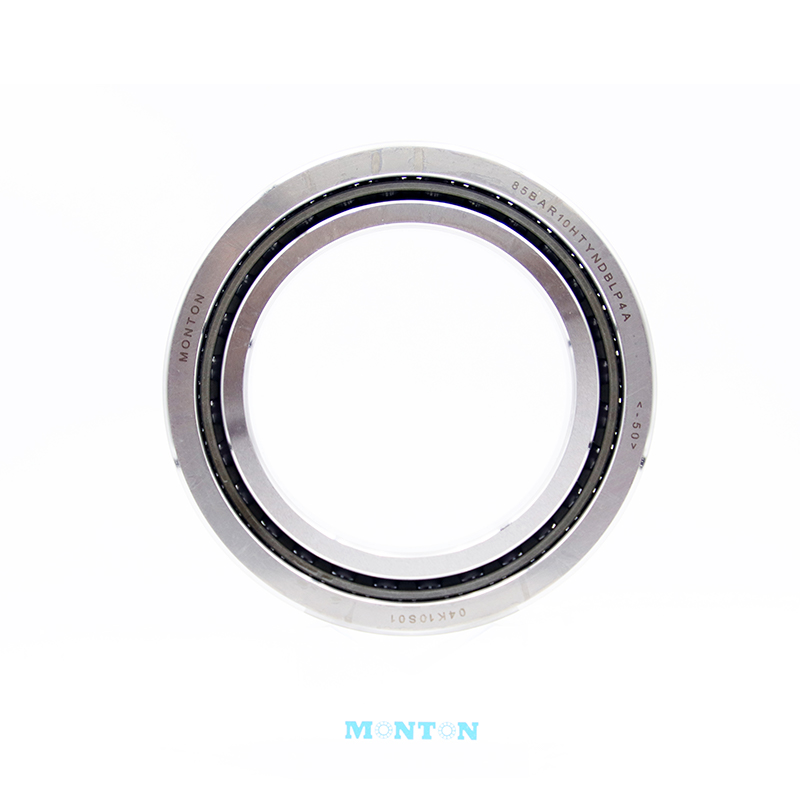

85BAR10HTYNDBLP4A High-Speed Angular Contact Thrust Ball Bearings

The 85BAR10HTYNDBLP4A high-speed angular contact ball bearing is specially designed by MONTON for high-precision and high-speed working conditions, and is commonly used in precision machine tool spindles and other equipment with strict requirements for dynamic performance. Made of high carbon chromium bearing steel (GCr15) and fully quenched, it has excellent wear resistance and fatigue life. Widely used in high-end equipment manufacturing fields such as CNC machine tools, machining centers, high-speed electric spindles, and precision measuring instruments.

Case Details

Name	High-Speed Angular Contact Thrust Ball Bearings
Brand	MONTON
Model	85BAR10HTYNDBLP4A
Contact angle	90°
Series	BAR Series
Bore diameter	85mm
Outside diameter	130mm
B(width)	40.5mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Load rating Ca	40.5KN
Load rating C0a	68.5KN
Sealed	Open/Sealed
Row	Single row
Weight	0.93KG
Quality standard	ISO9001: 2015/SGS/TUV/RoHs/CE
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	1. Machining center 2. Milling machine/lathe/boring machine 3. External cylindrical and surface grinders 4. Cutting or polishing stone and glass Machine tools 5. Semiconductor industry, etc. 6. Marine gyro stabilizers 7. Telescopes 8. Gas turbine engines 9. Racing/supercar wheels 10. Medical equipment 11. Spindle for PCB drilling 12. Woodworking machine tools 13. Turbomolecular pumps
