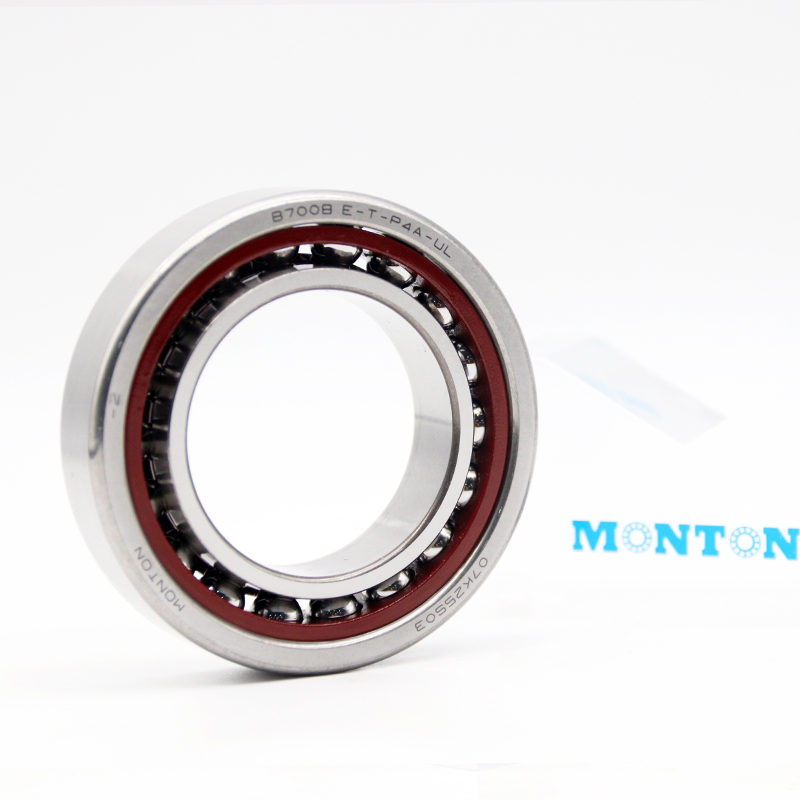

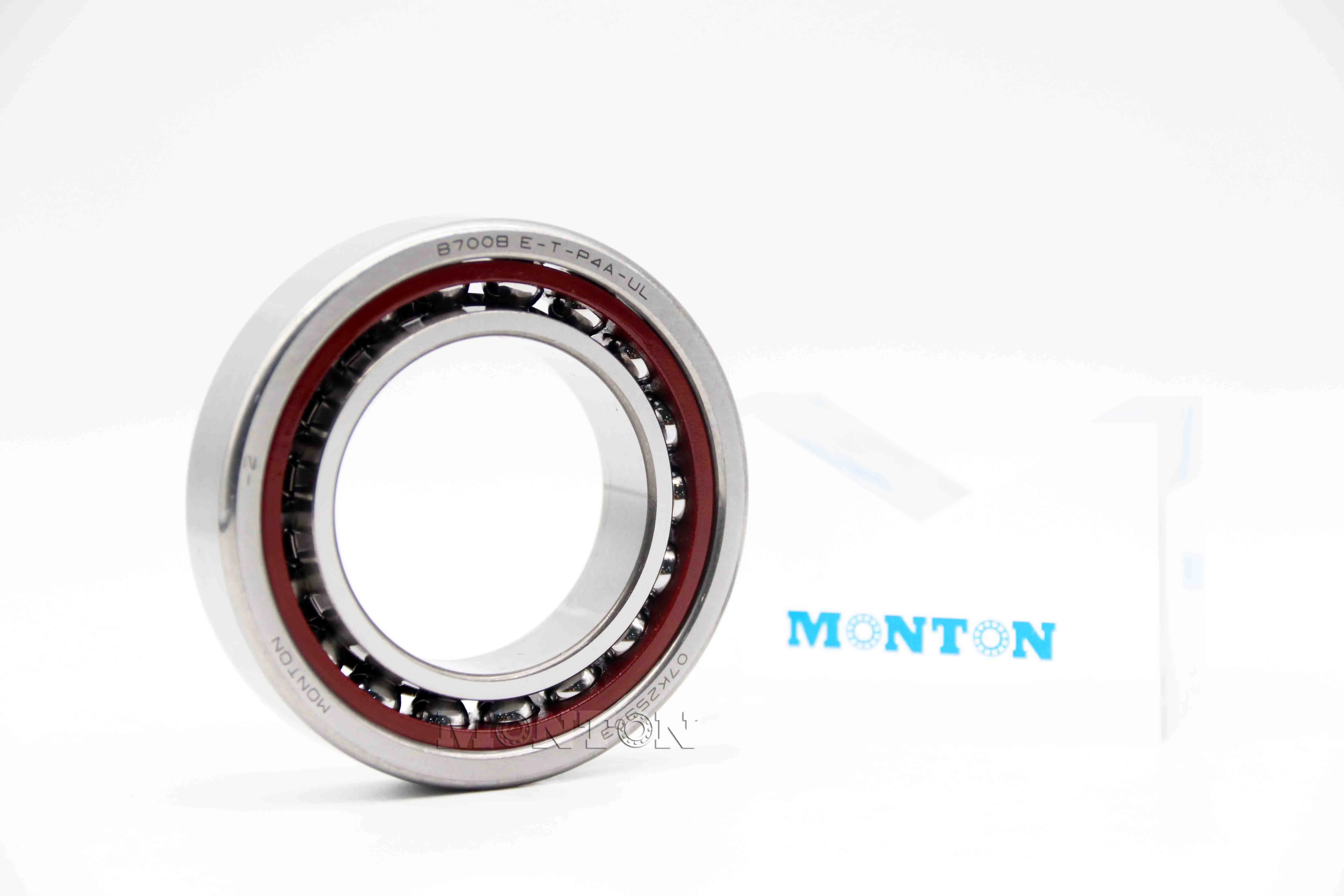

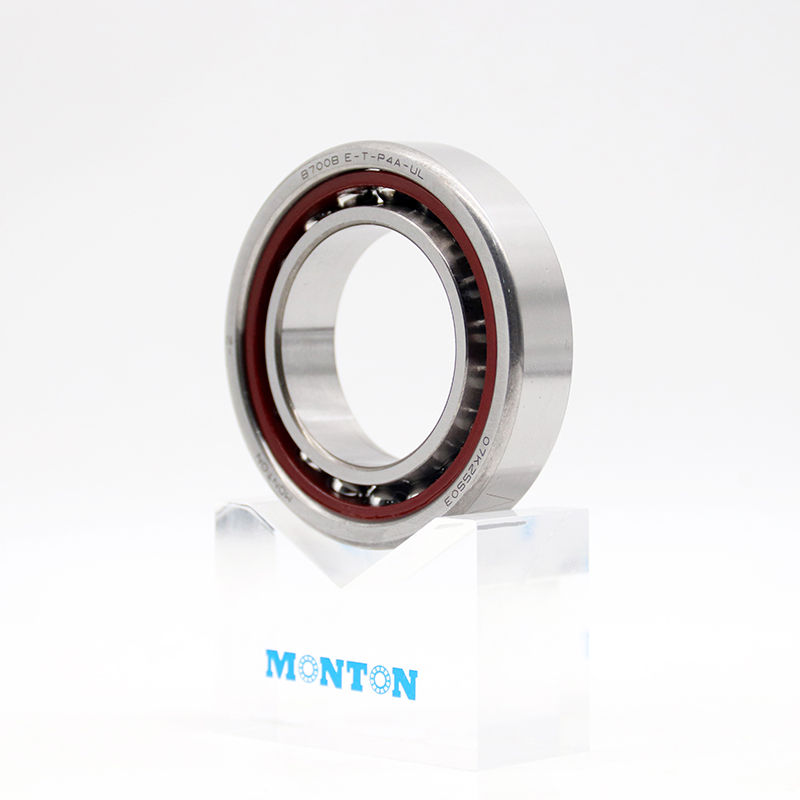

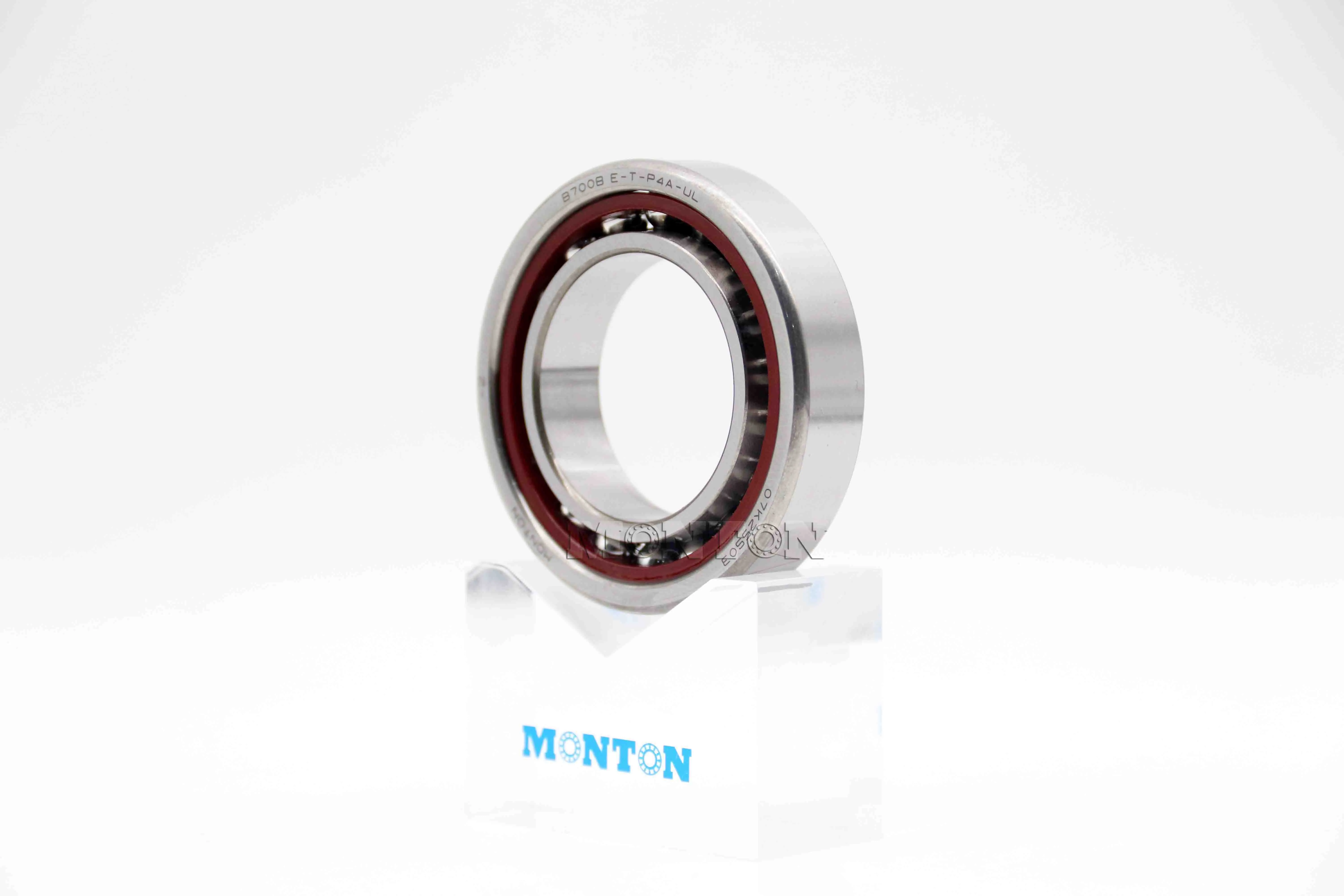

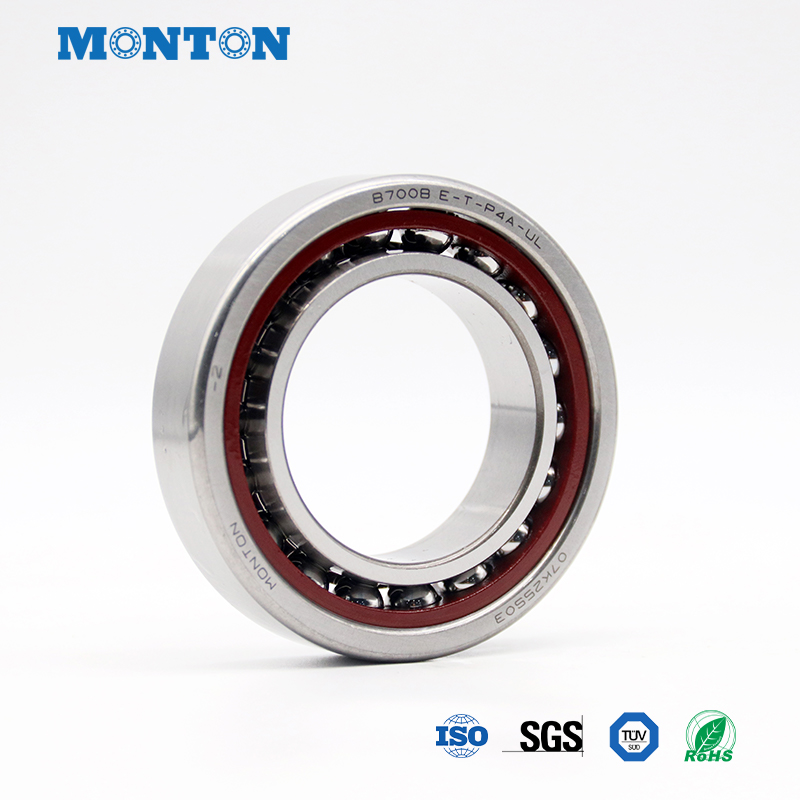

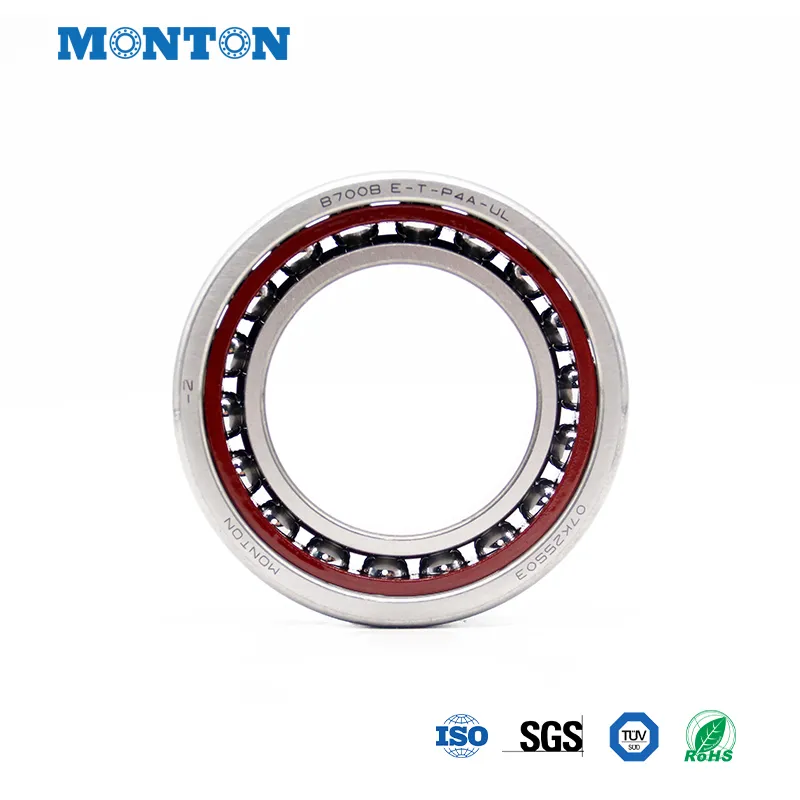

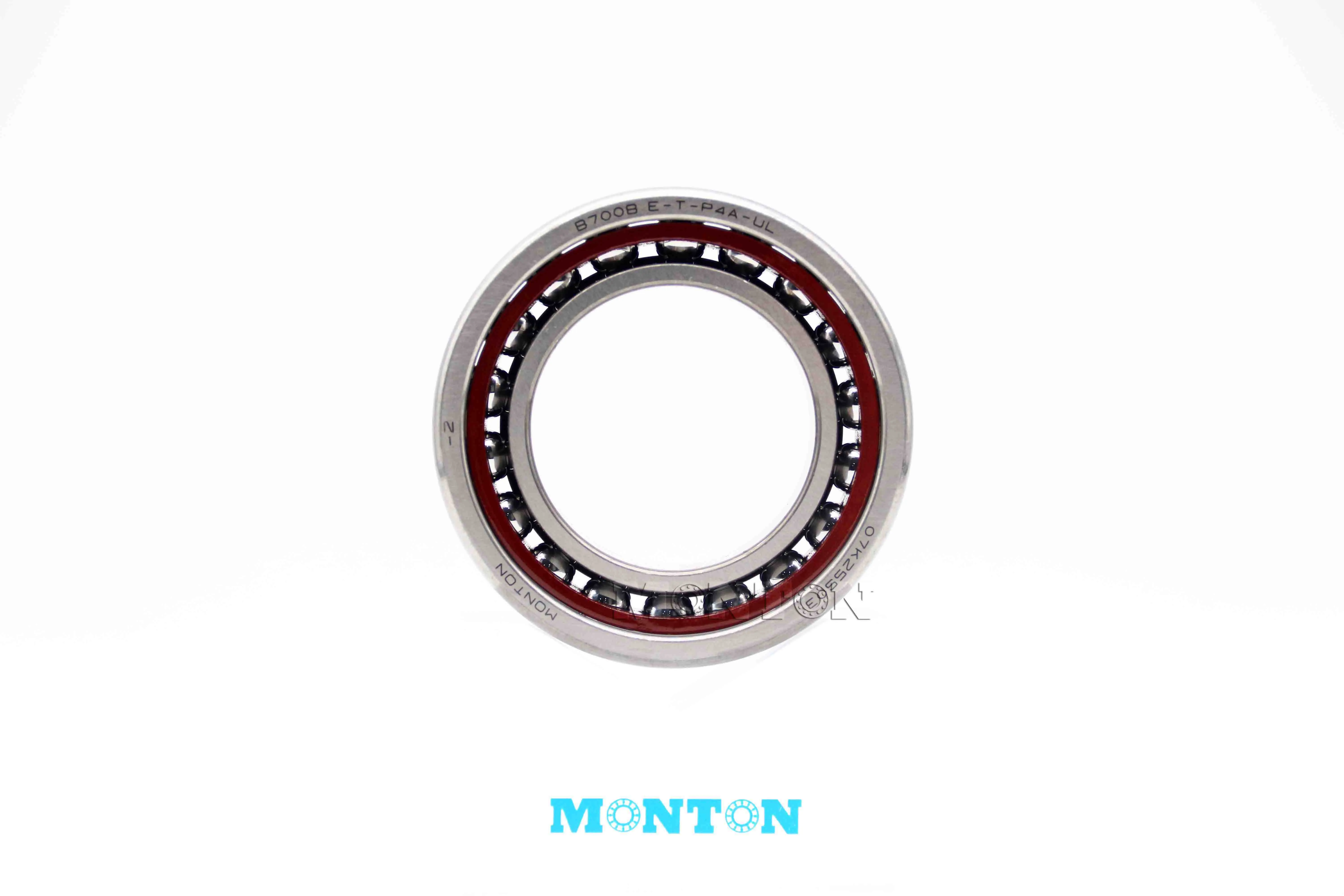

B7008-E-T-P4A-UL Angular contact ball bearing

B7008-E-T-P4A-UL is a super-precision single-row angular contact ball bearing with standard steel ball design. Under standardized dimensions, it balances high load capacity and high rigidity, and is widely applied in scenarios with extremely high requirements for speed, rigidity and precision stability, such as high-speed motor spindles, precision grinder spindles, CNC machining centers, robot joint reducers, etc. It is a core basic component in the field of precision transmission.

Case Details

Name	Angular contact ball bearing
Brand	MONTON
Designation	B7008-E-T-P4A-UL
Contact angle	25°
Ball diameter	7.938mm
d Bore diameter	40 mm
D Outside diameter	68 mm
B Width	15mm
Material	Gcr15 Bearing steel
Cage	polyamides
Dynamic load rating C	17.8KN
Static load rating C0	11KN
Sealing type	Open
Row	Single
Weight	0.188KG
Certificate	ISO9001: 2000/SGS
Package	Single box
Original	Luoyang
Service	OEM
Delievry	Stock
Application	Machining center (horizontal or vertical) High speed milling machine Lathe External cylindrical and surface grinders Boring machine Cutting Machine tools for cutting polishing stone and glass
