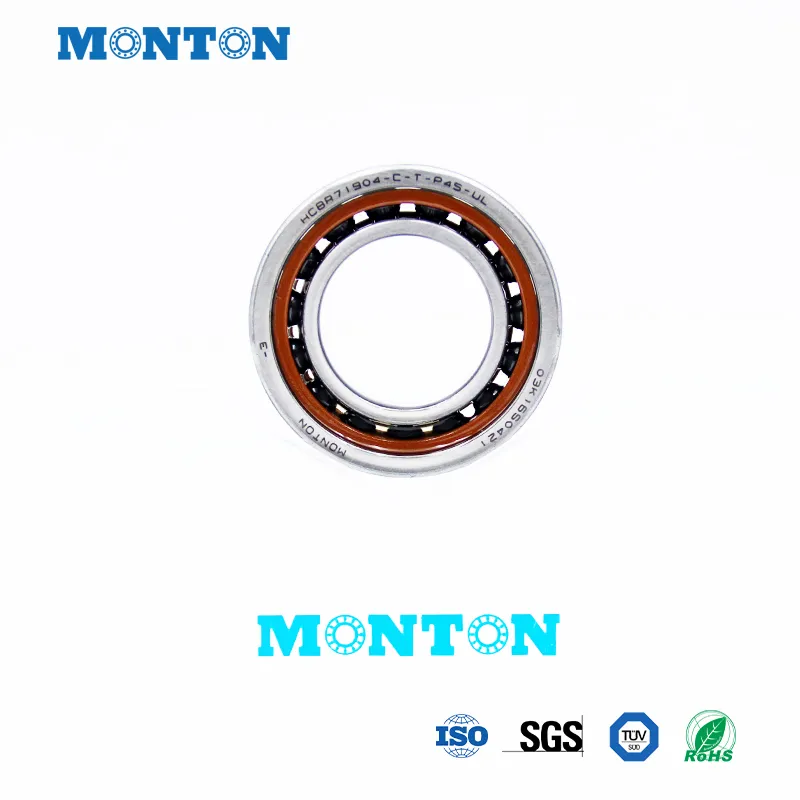

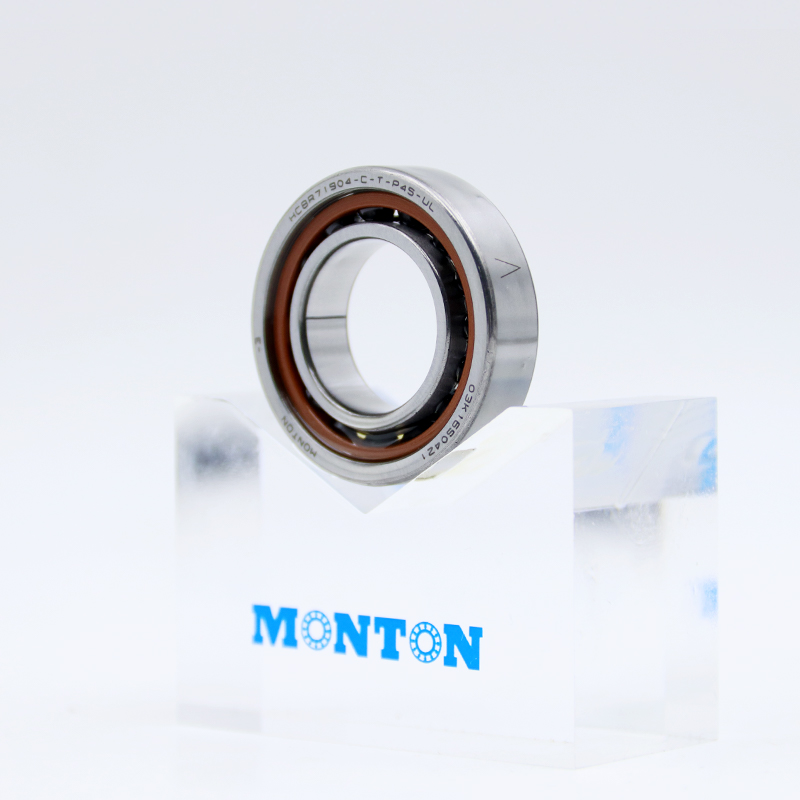

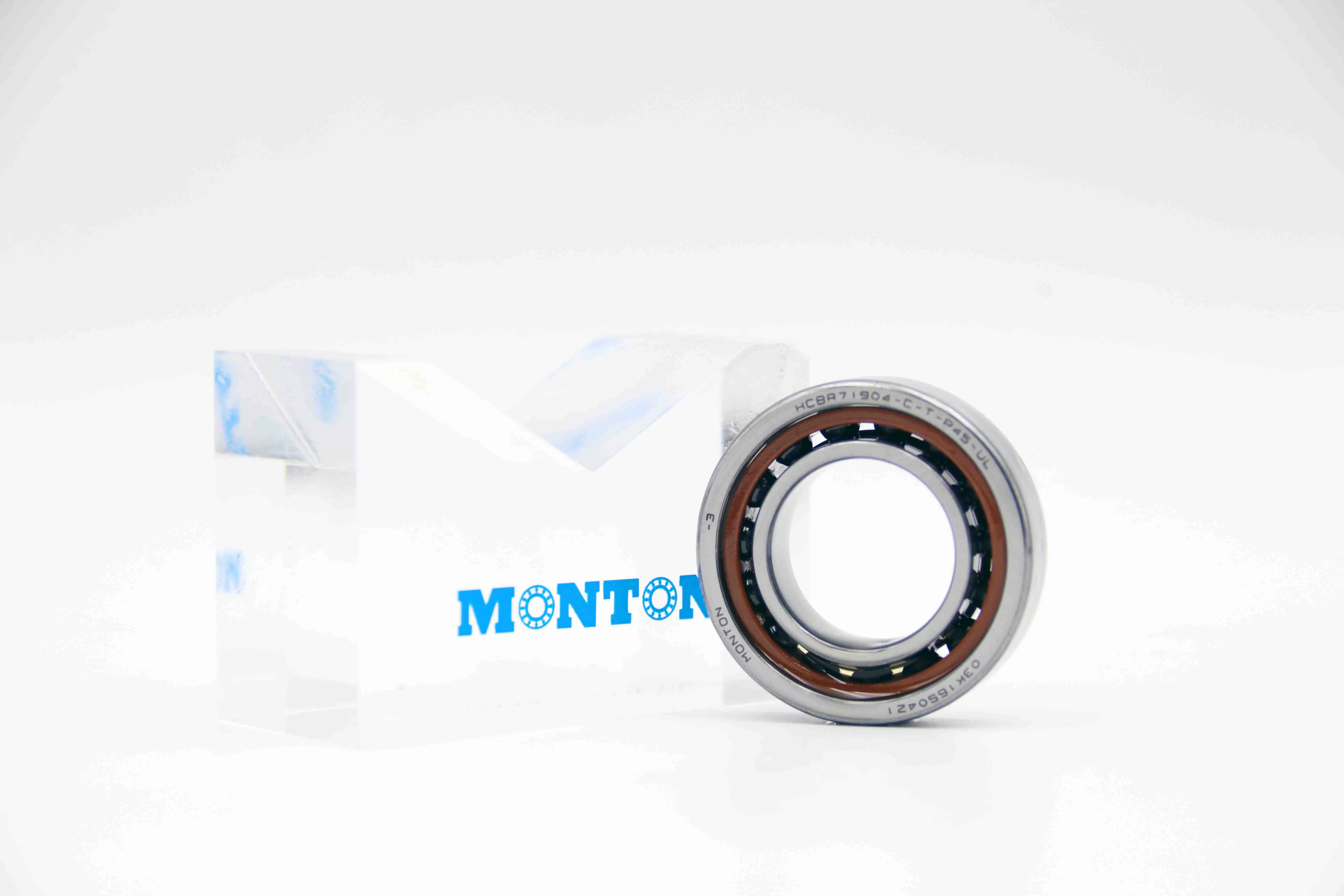

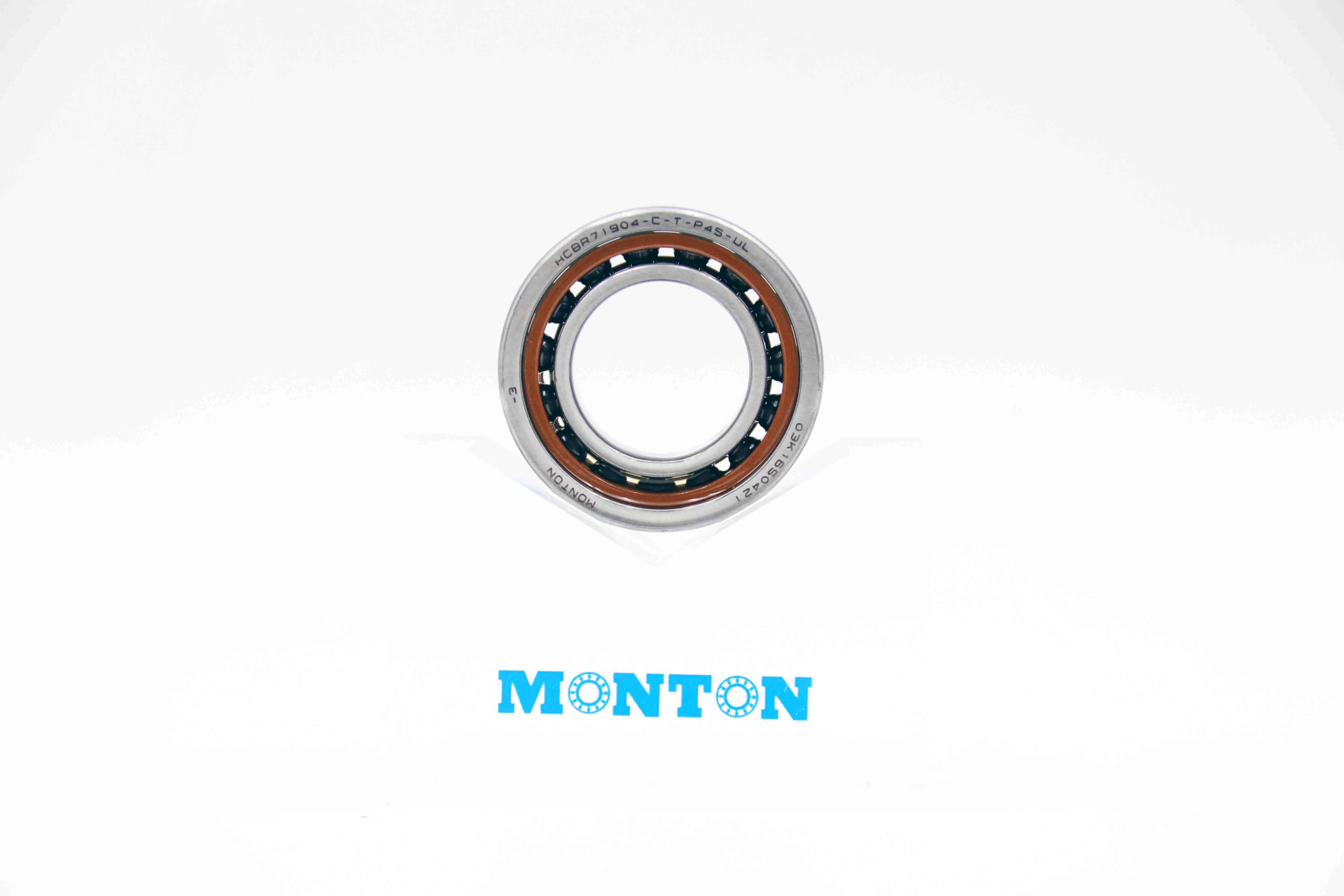

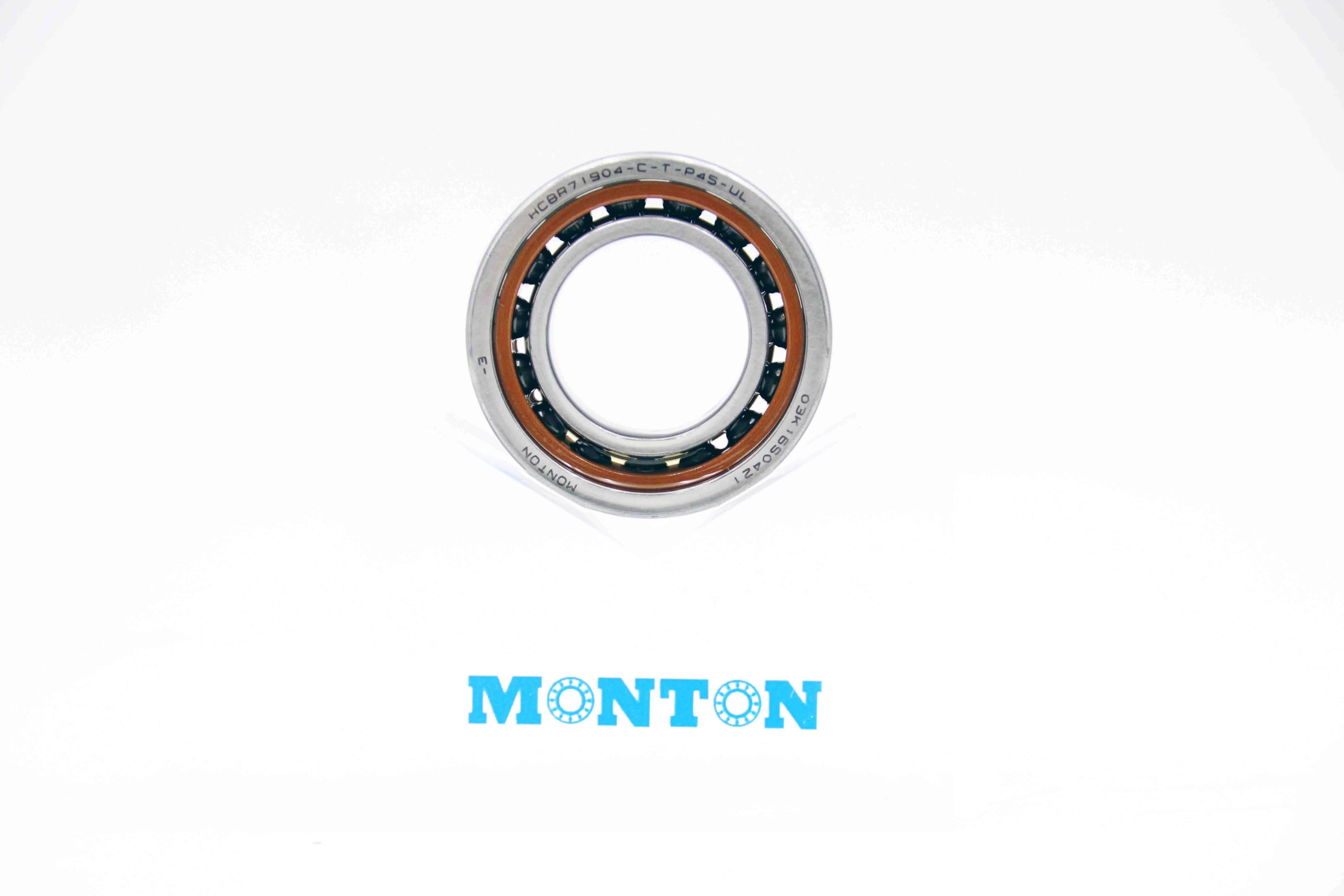

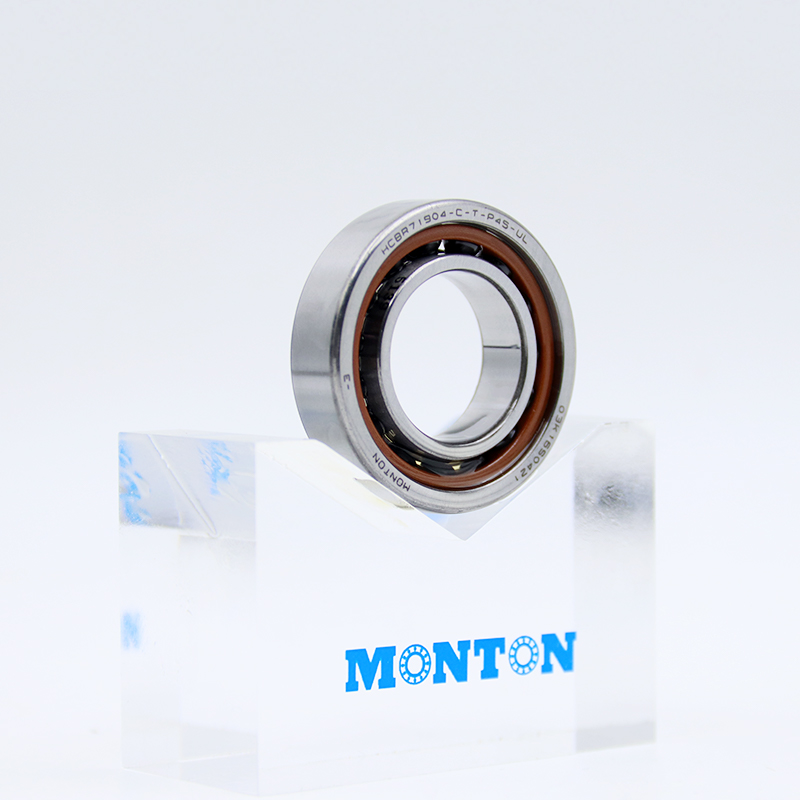

HCB71904-C-T-P4S-DUL spindle bearing

HCB71904-C-T-P4S-UL is a ceramic hybrid angular contact ball bearing (spindle bearing) produced by MONON, designed for high-speed and high-precision application scenarios. It uses a phenolic resin solid window cage and is widely used in equipment such as machine tool spindles, high-speed motors, and medical devices that require extremely high operational stability.

Case Details

Name	Angular Contact Ball Bearings
Brand	MONTON
Model	HCB71904-C-T-P4S-UL
Contact angle	15°
Ball Dia.	4.762mm
Bore diameter	20mm
Outside diameter	37mm
B(width)	9mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	7400N
Basic static load rating Cor	31000N
nG Grease	60000
nG Oil	90000
Sealed	Open/Sealed
Row	Single row
Weight	0.036KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	1. Machining center 2. Milling machine/lathe/boring machine 3. External cylindrical and surface grinders 4. Cutting or polishing stone and glass Machine tools 5. Semiconductor industry, etc., fault detection unit on silicon wafers 6. Marine gyro stabilizers 7. Telescopes 8. Gas turbine engines 9. Racing/supercar wheels 10. Medical equipment 11. Spindle for PCB drilling 12. Woodworking machine tools 13. Turbomolecular pumps
