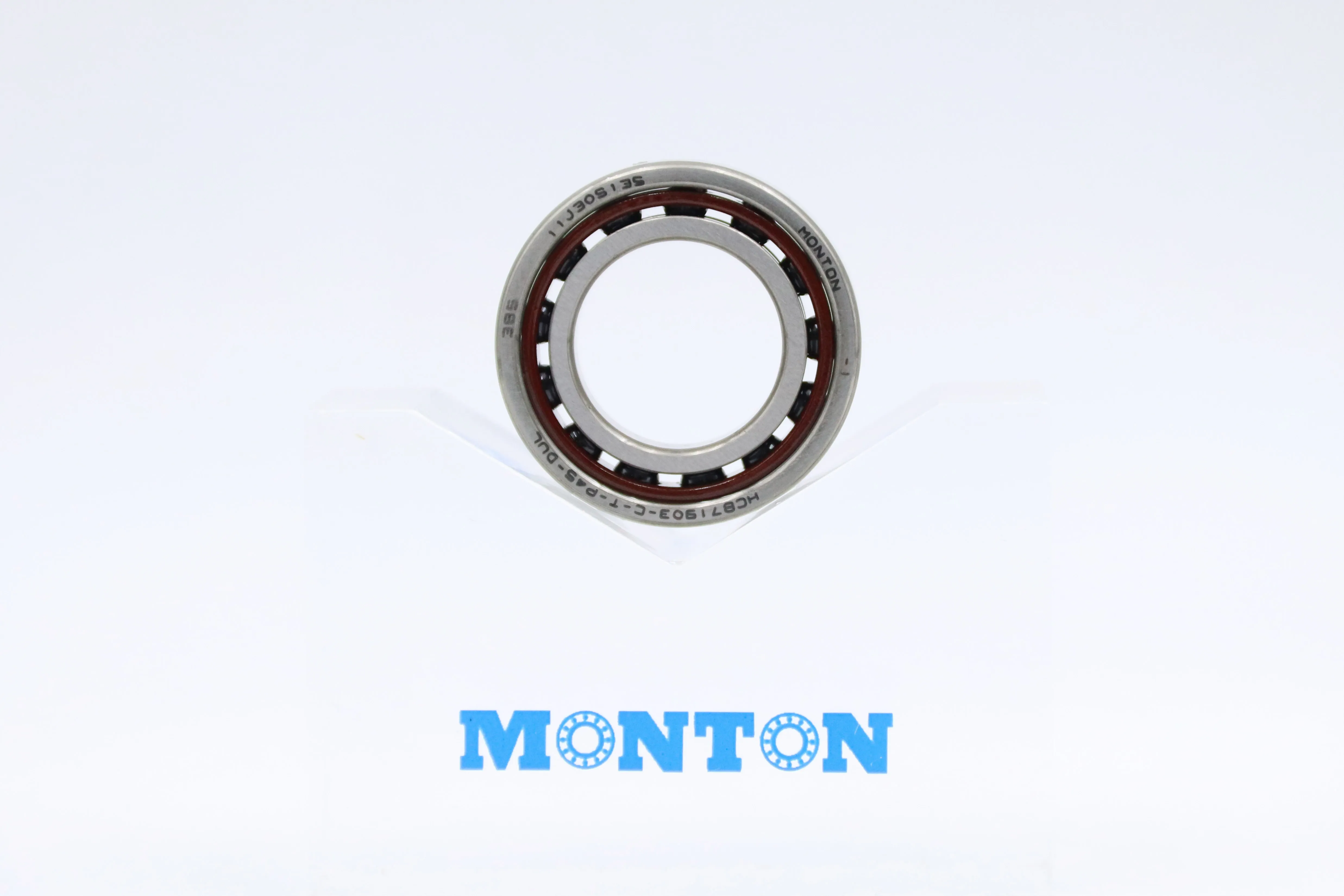

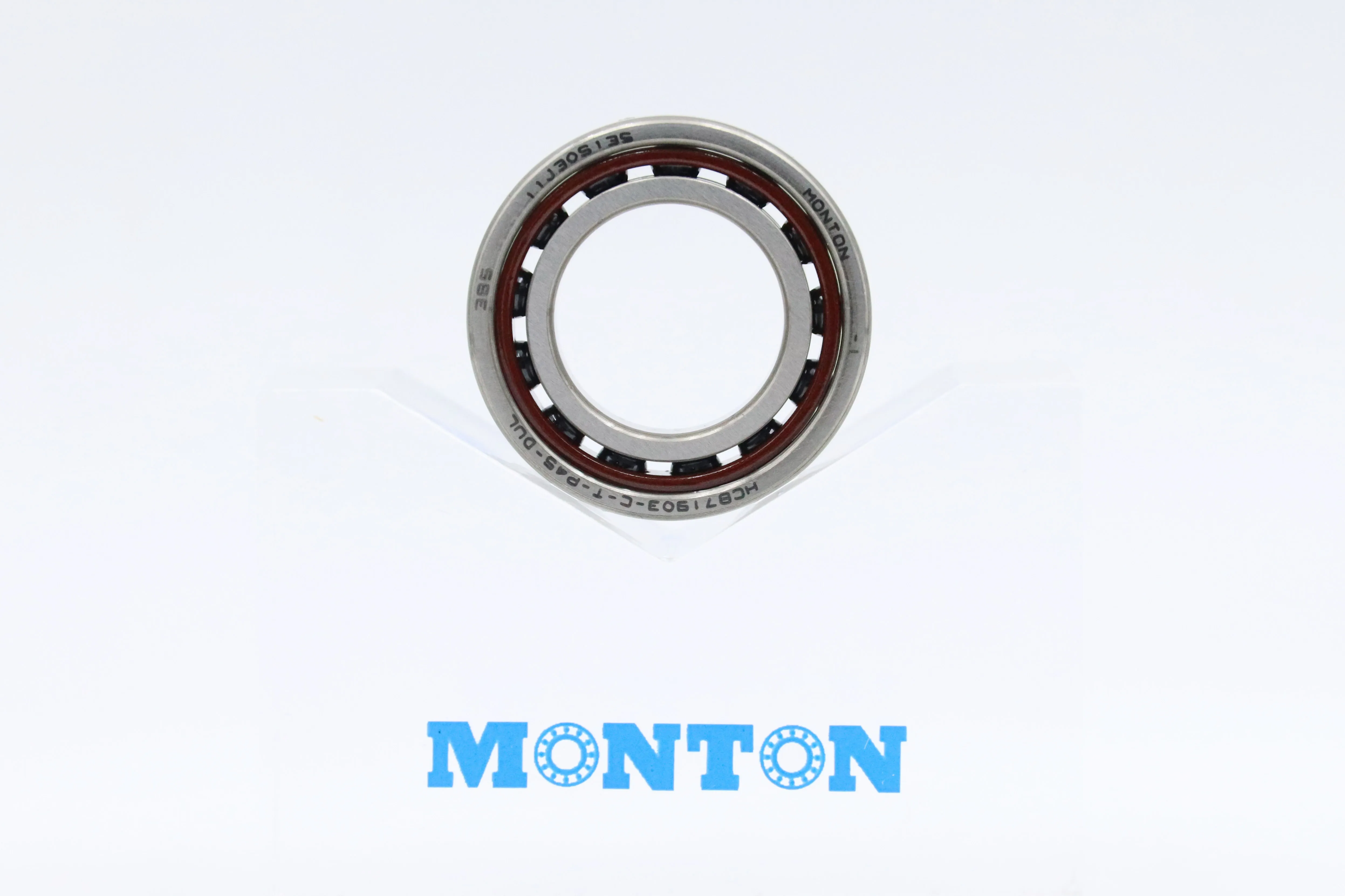

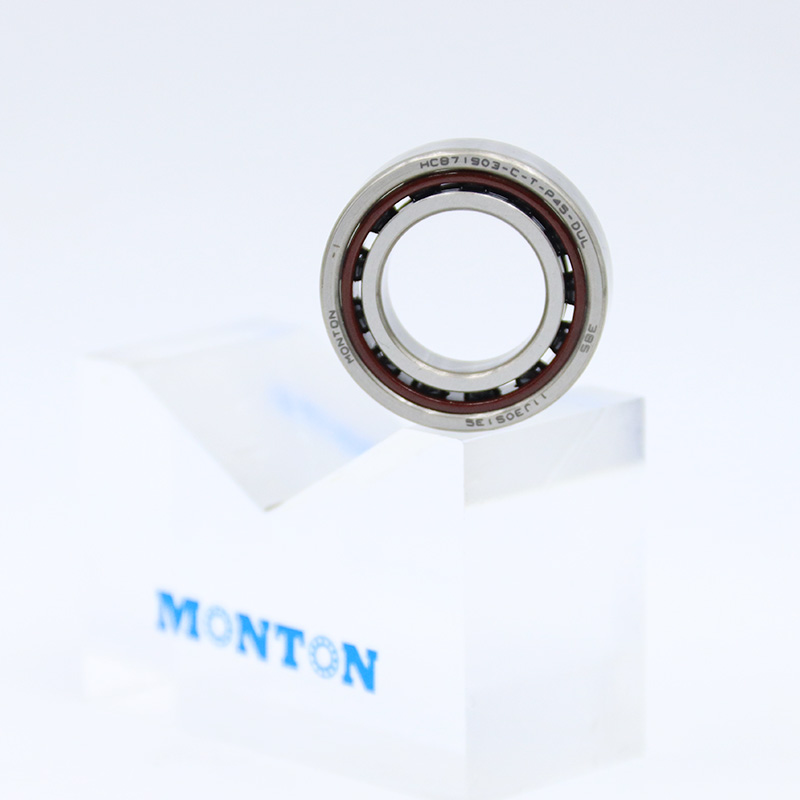

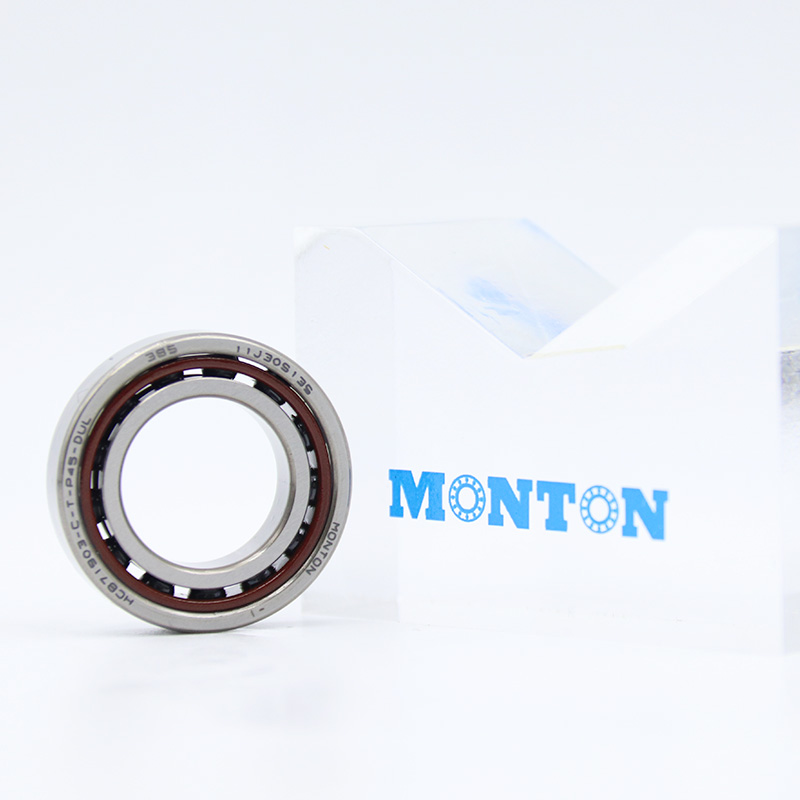

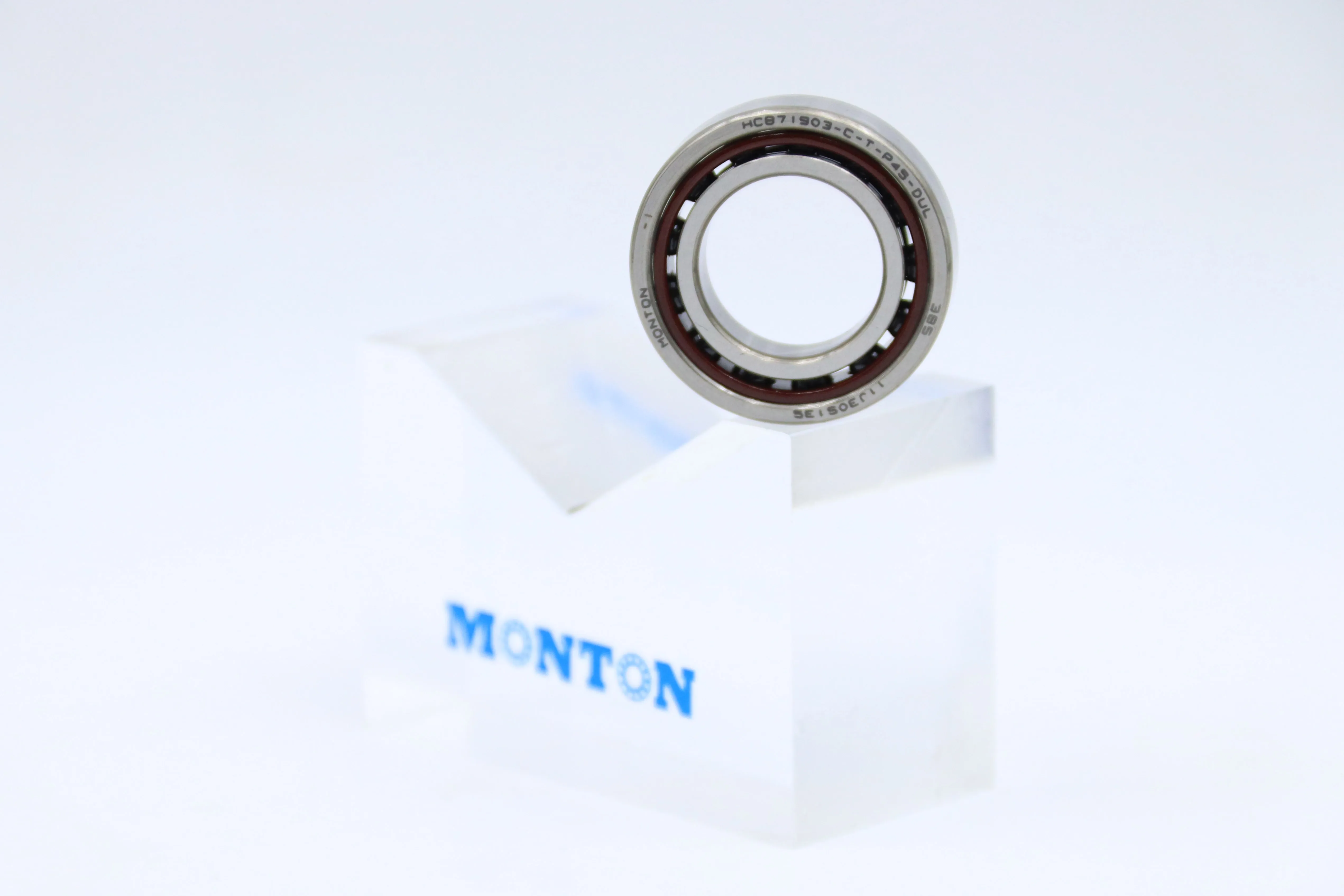

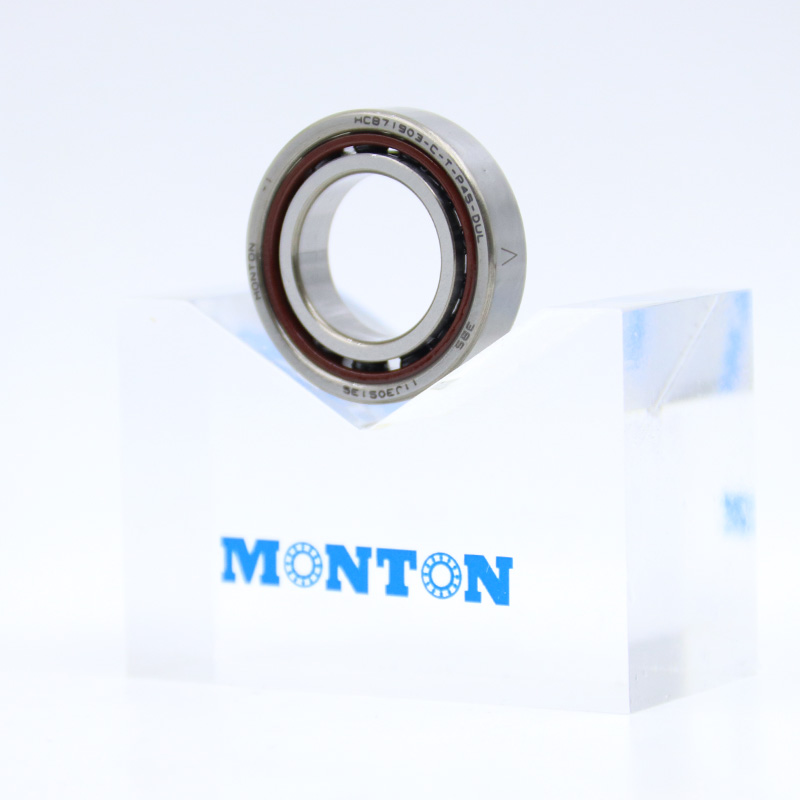

HCB71903-C-T-P4S-UL Angular Contact Ball Bearings

HCB71903-C-T-P4S-UL is a spindle bearing produced by MONON, belonging to the precision angular contact ball bearing series. It has an inner diameter of 17mm, an outer diameter of 30mm, a thickness of 7mm, and supports oil lubrication and grease lubrication. This model adopts a ceramic hybrid design, which has the characteristics of high speed, low friction, and long service life. Its ceramic hybrid material gives it the ability to operate at high speed, low friction coefficient, and longer service life. It is suitable for high-precision scenarios such as machine tool spindles, electric mixers, and chemical equipment.

Case Details

Name	Angular Contact Ball Bearings
Brand	MONTON
Model	HCB71903-C-T-P4S-UL
Contact angle	15°
Ball Dia.	3.969mm
Bore diameter	17mm
Outside diameter	30mm
B(width)	7mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	5.3KN
Basic static load rating Cor	2.2KN
nG Grease	70000 1/min
nG Oil	110000 1/min
Sealed	Open
Row	Single row
Weight	0.015KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
