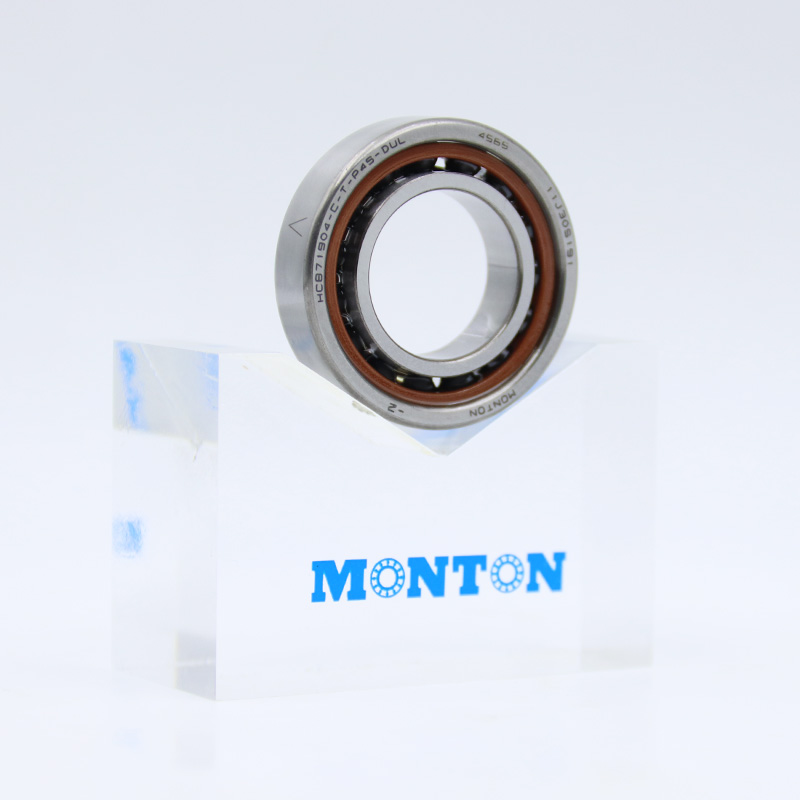

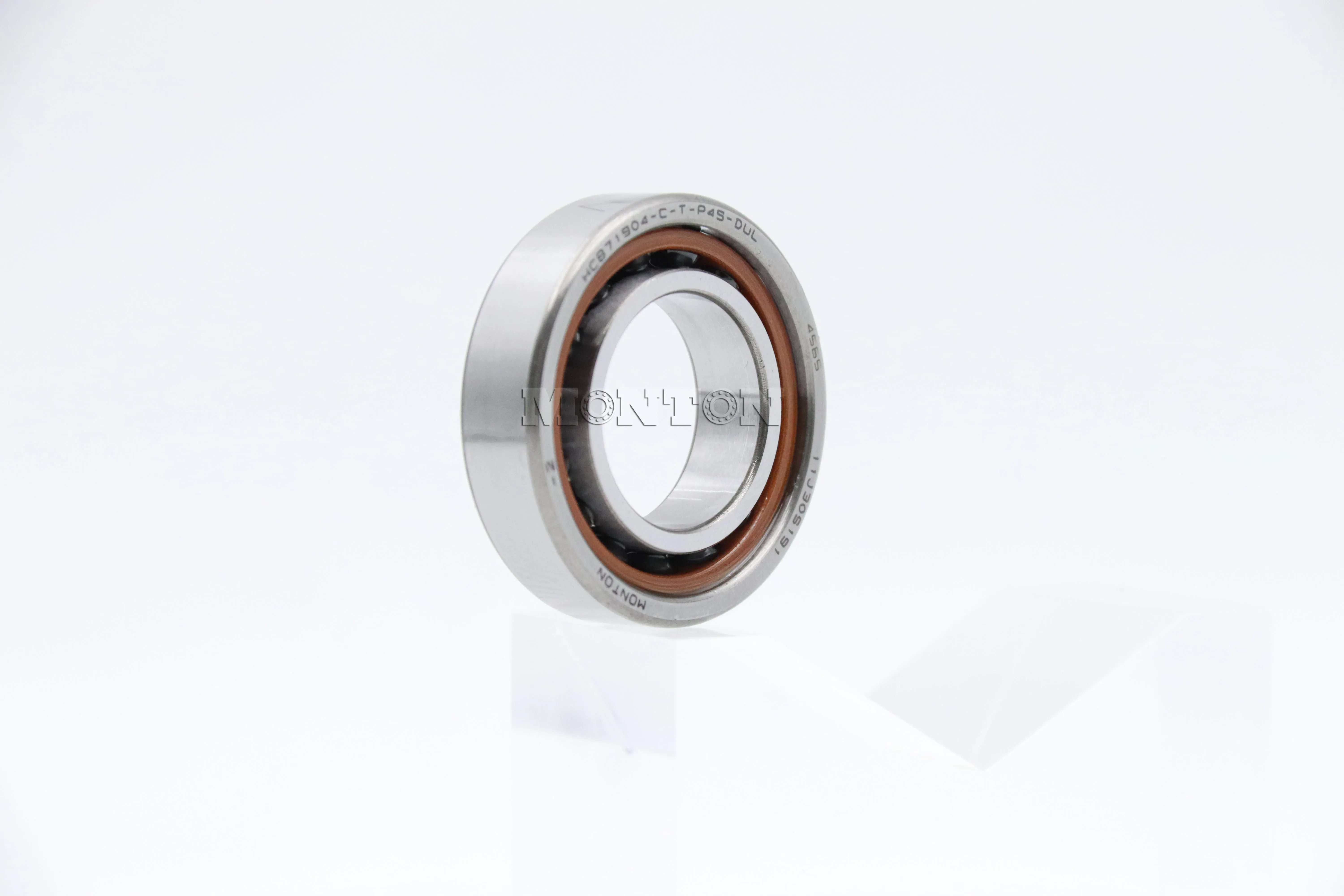

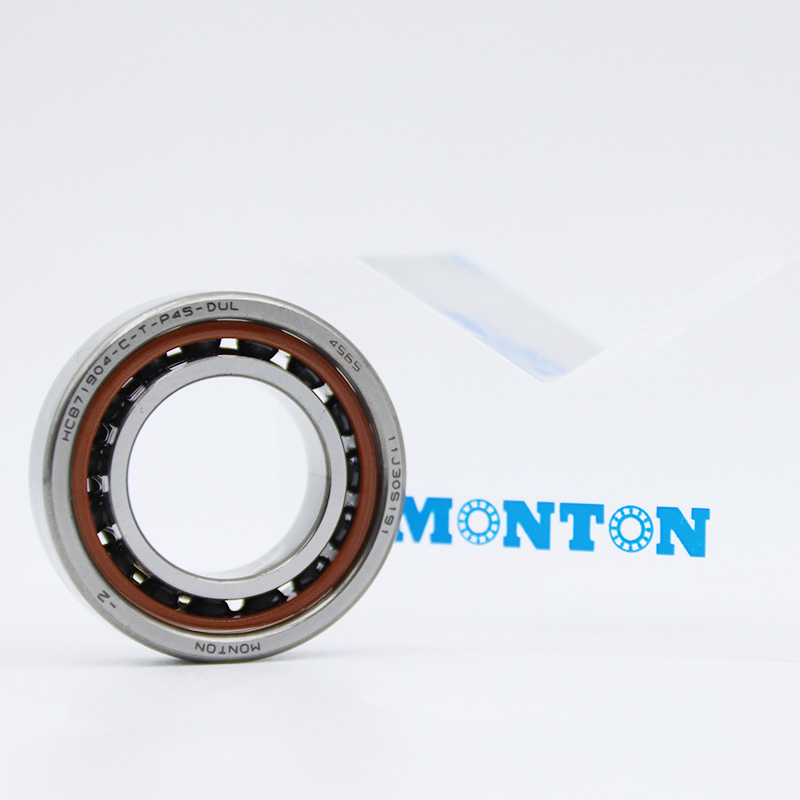

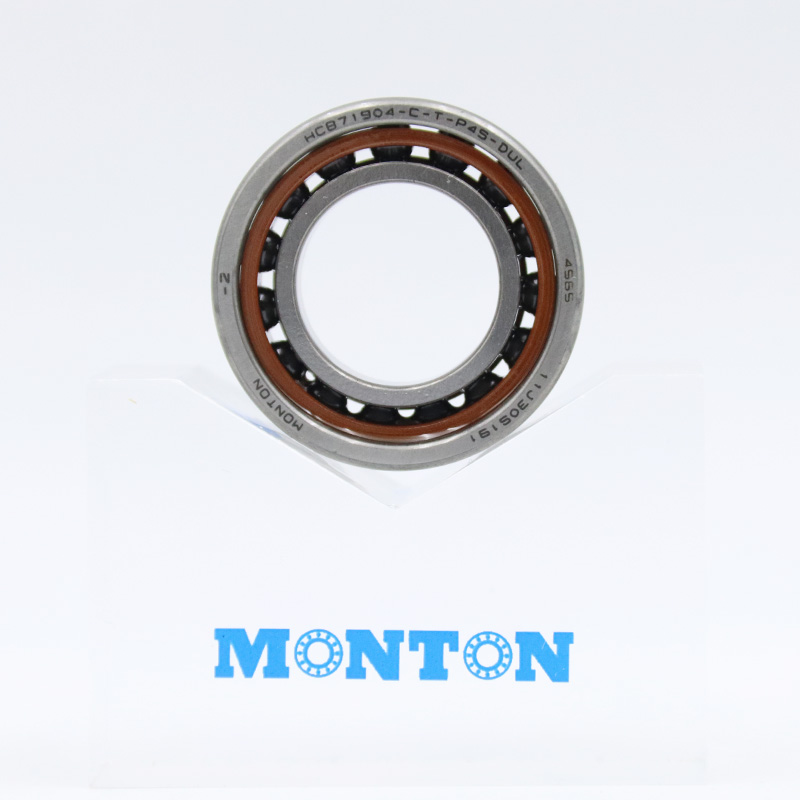

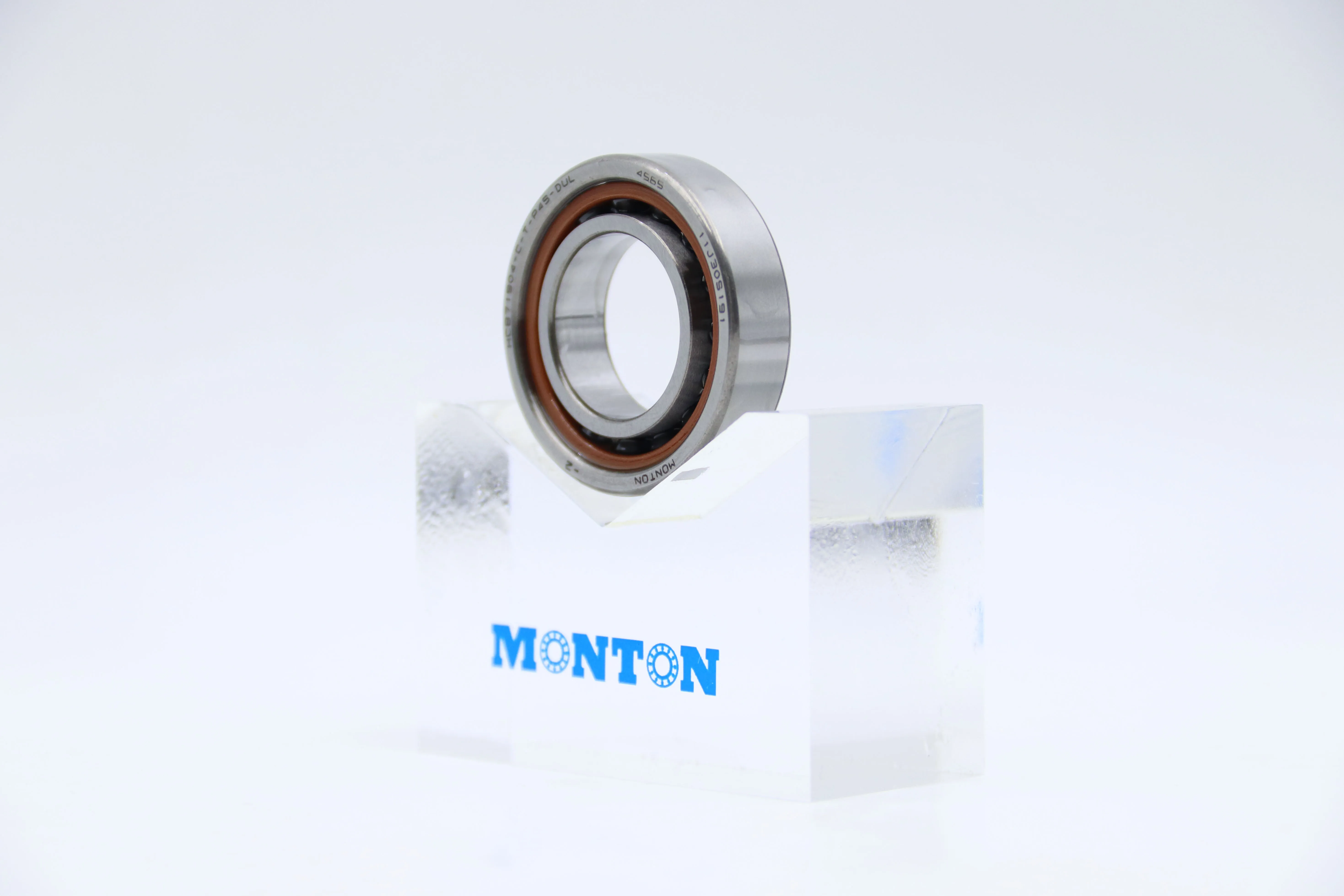

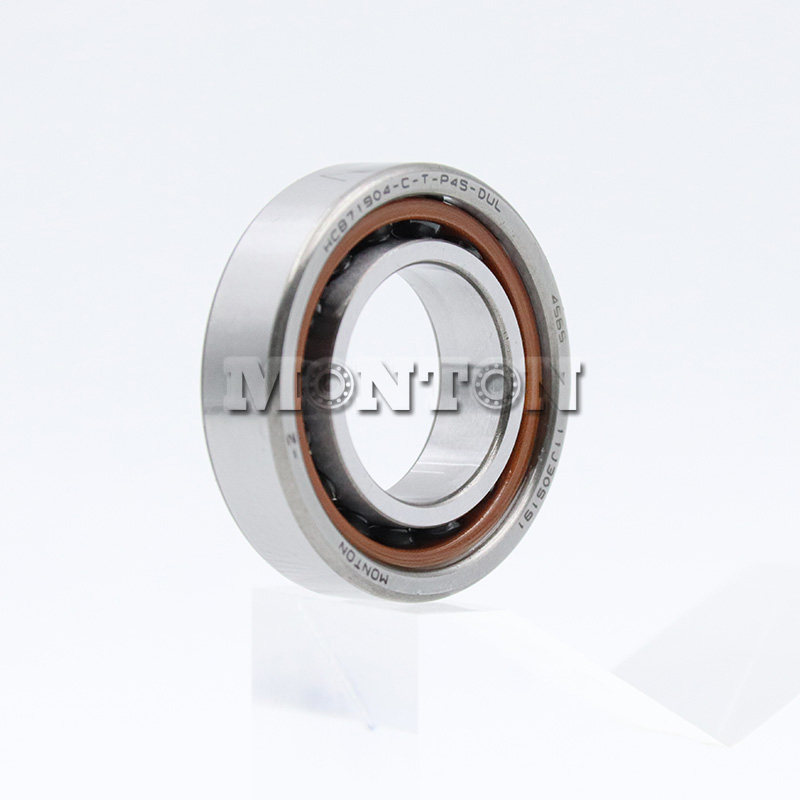

HCB71904-C-T-P4S-UL Angular Contact Ball Bearings

HCB71904-C-T-P4S-UL is a precision spindle bearing from MONON, with an inner diameter of 20mm, an outer diameter of 37mm, and a thickness of 9mm. It belongs to the P4S class high-precision angular contact ball bearing and is suitable for high-speed and high-precision applications. These types of bearings are commonly used in machine tool spindles, high-speed motors, and other equipment, and can withstand both radial and axial loads simultaneously. During installation, attention should be paid to ensuring even clearance and contact surfaces, and regular lubrication and maintenance should be carried out to ensure performance.

Case Details

Name	Angular Contact Ball Bearings
Brand	MONTON
Model	HCB71904-C-T-P4S-UL
Contact angle	15°
Ball Dia.	4.762mm
Bore diameter	20mm
Outside diameter	37mm
B(width)	9mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	7.4KN
Basic static load rating Cor	3.1KN
nG Grease	60000 1/min
nG Oil	90000 1/min
Sealed	Open
Row	Single row
Weight	0.033KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Machining center Milling machine/lathe/boring machine External cylindrical and surface grinders Cutting or polishing stone and glass Machine tools Semiconductor industry, etc., fault detection unit on silicon wafers Marine gyro stabilizers Gas turbine engines Racing/supercar wheels Medical equipment Spindle for PCB drilling

HCB71904-C-T-P4S-UL 精密角接触球轴承
