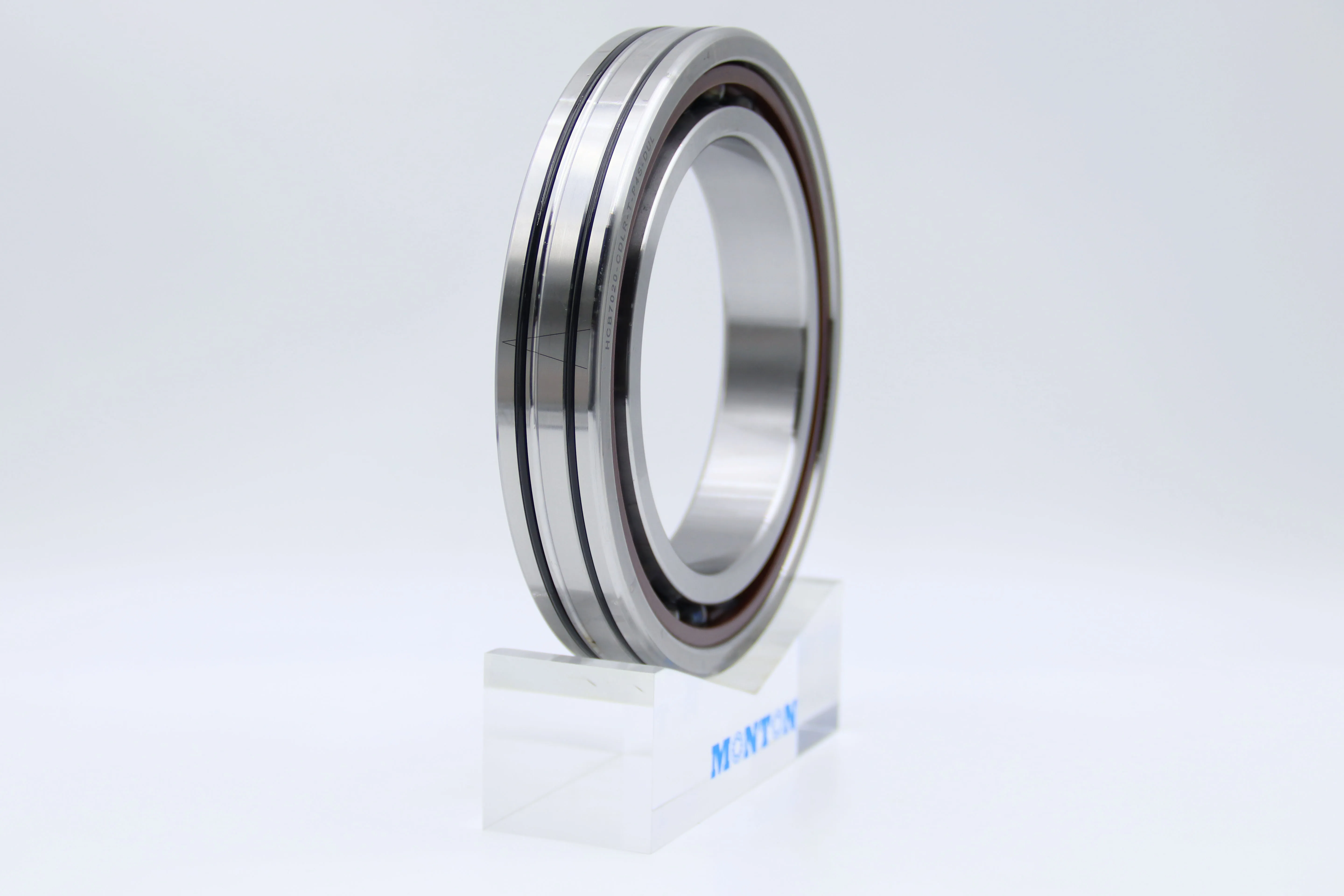

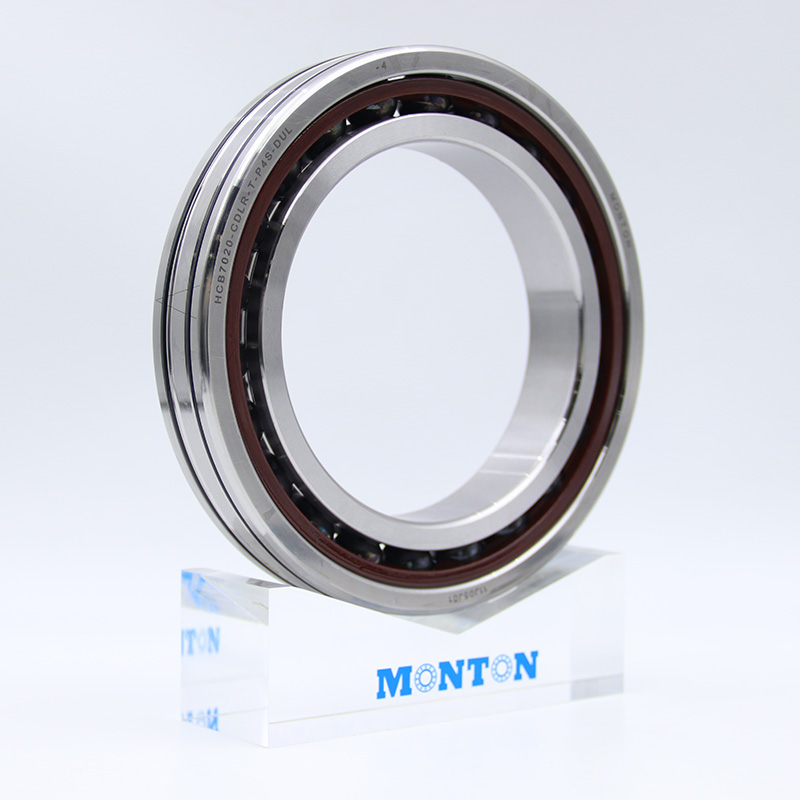

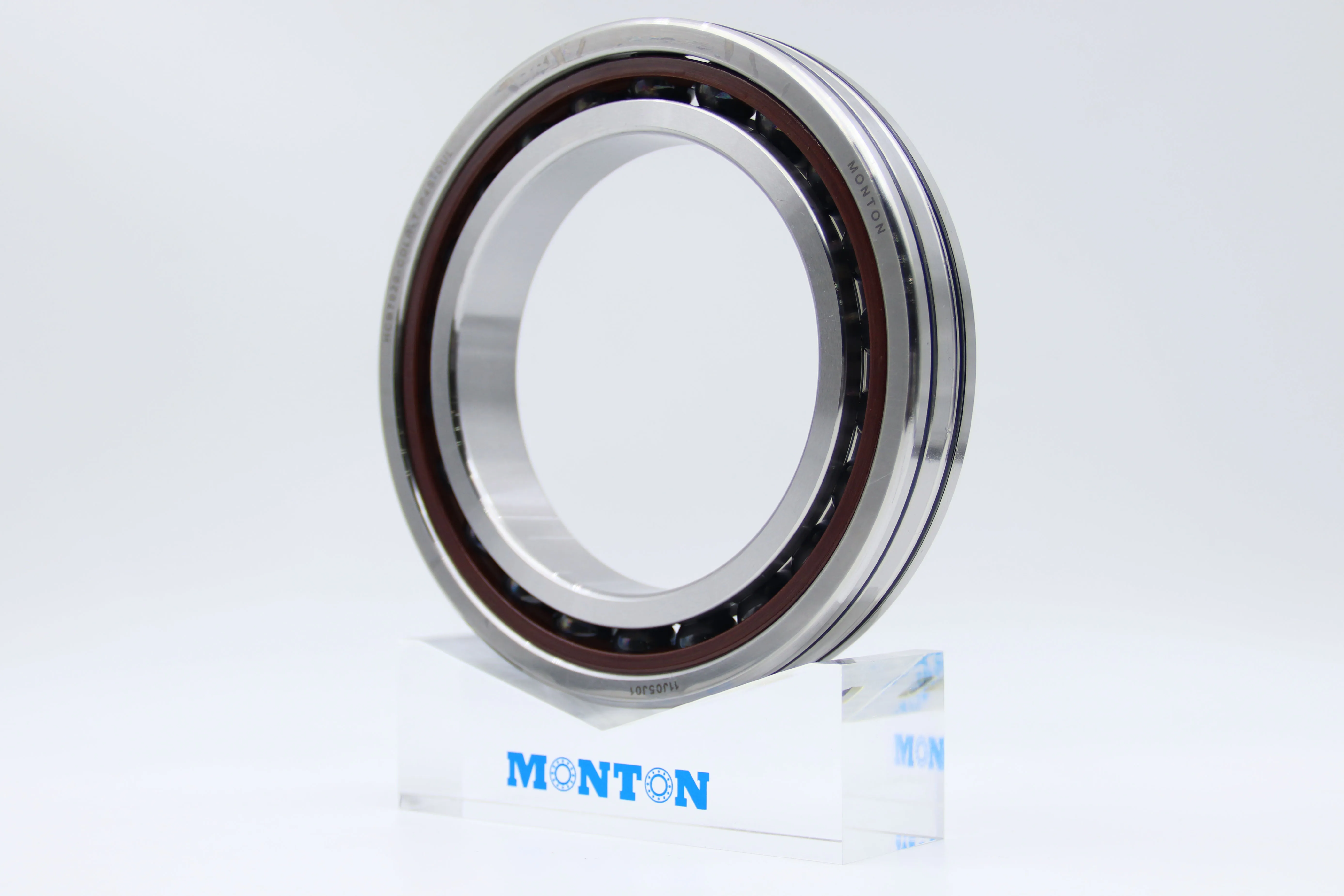

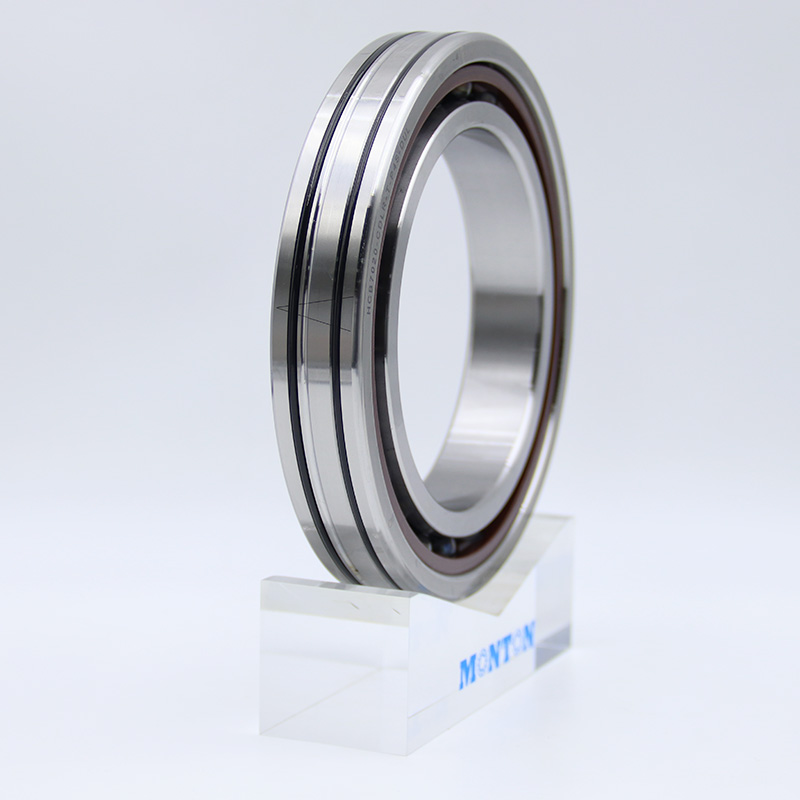

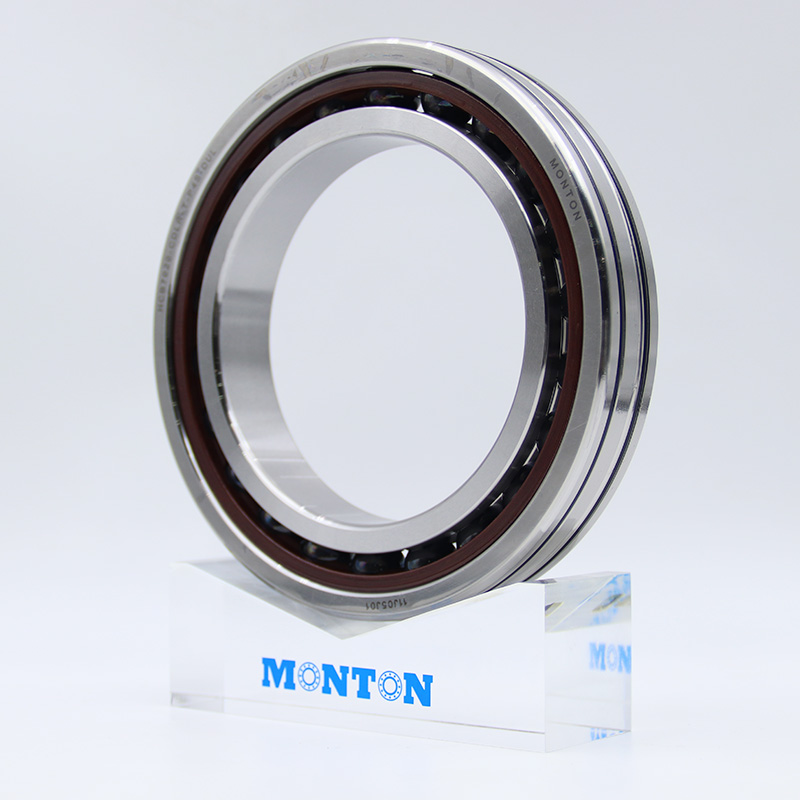

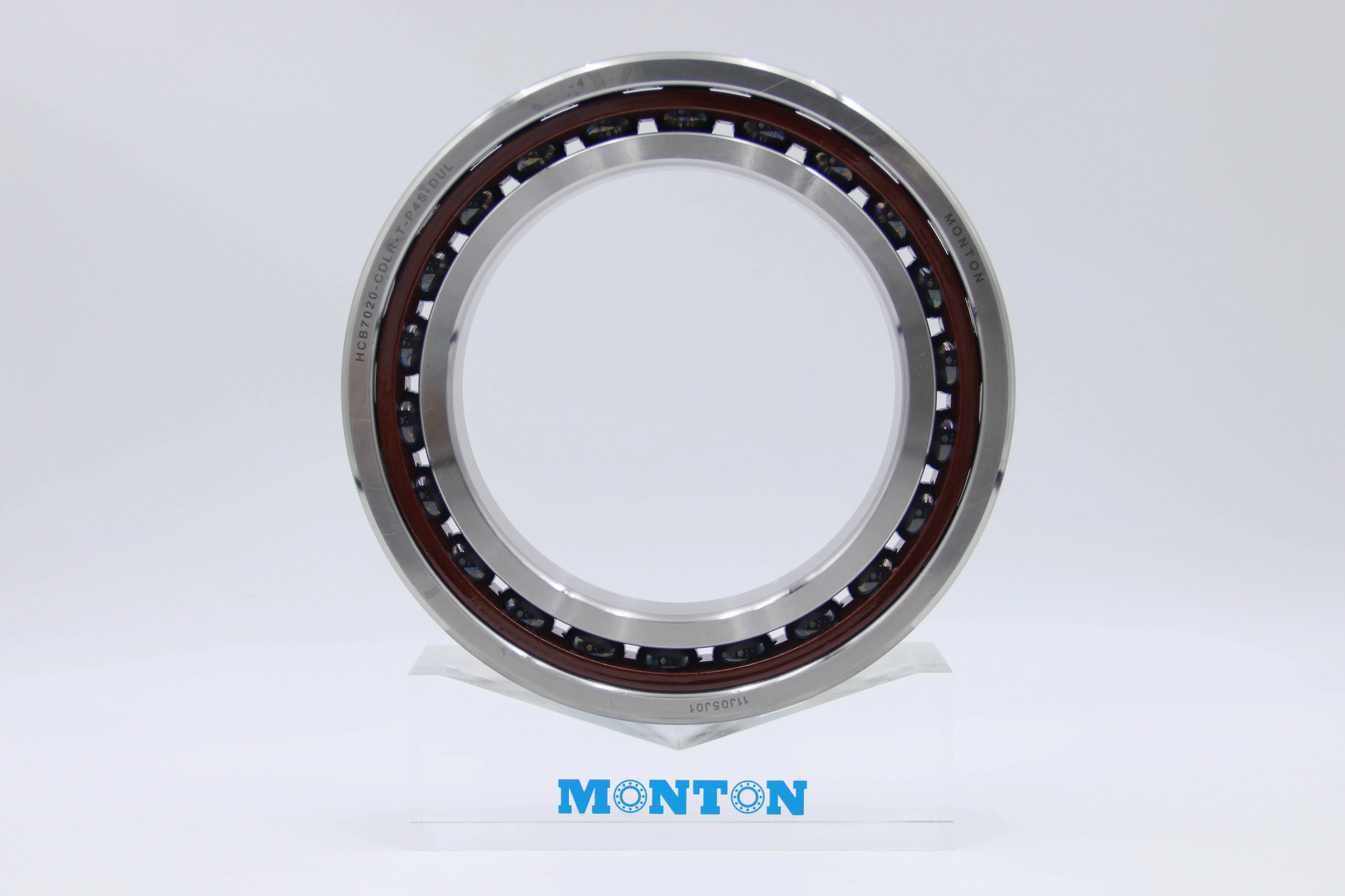

HCB7020-CDLR-T-P4S-UL Direct Lube Super precision angular contact ball bearings

HCB7020-CDLR-T-P4S-UL is a hybrid ceramic ball spindle bearing from MONON. It is designed with a 15 ° contact angle and can be lubricated directly through the outer ring. It is equipped with an embedded O-ring seal and an open design bearing with a phenolic resin reinforced cage. The hybrid ceramic ball bearing design can reduce friction and heat generation. Specially designed for high-speed and high-precision machine tool spindles, suitable for applications that require low friction, low temperature rise, and high rigidity, such as CNC lathes, deep hole drilling machines, boring machines, machining centers, milling machine spindles, etc.

Case Details

Name	Direct Lube Super precision angular contact ball bearings
Brand	MONTON
Model	HCB7020-CDLR-T-P4S-UL
Contact angle	15°
rmin	1.5mm
Bore diameter	100mm
Outside diameter	150mm
B(width)	24mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	83KN
Basic static load rating Cor	55KN
Fatigue load limit, radial Cur	3,950N
Limiting speed for nG Grease	13,000 1/min
Limiting speed for nG Oil	19,000 1/min
Sealed	Open/Sealed
Row	Single row
Weight	1.1KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
