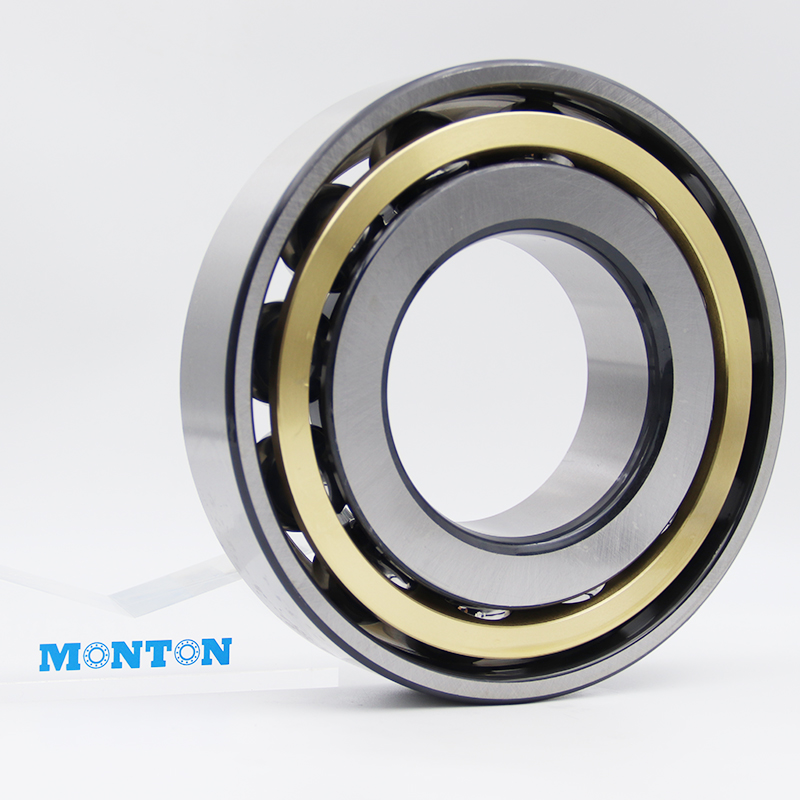

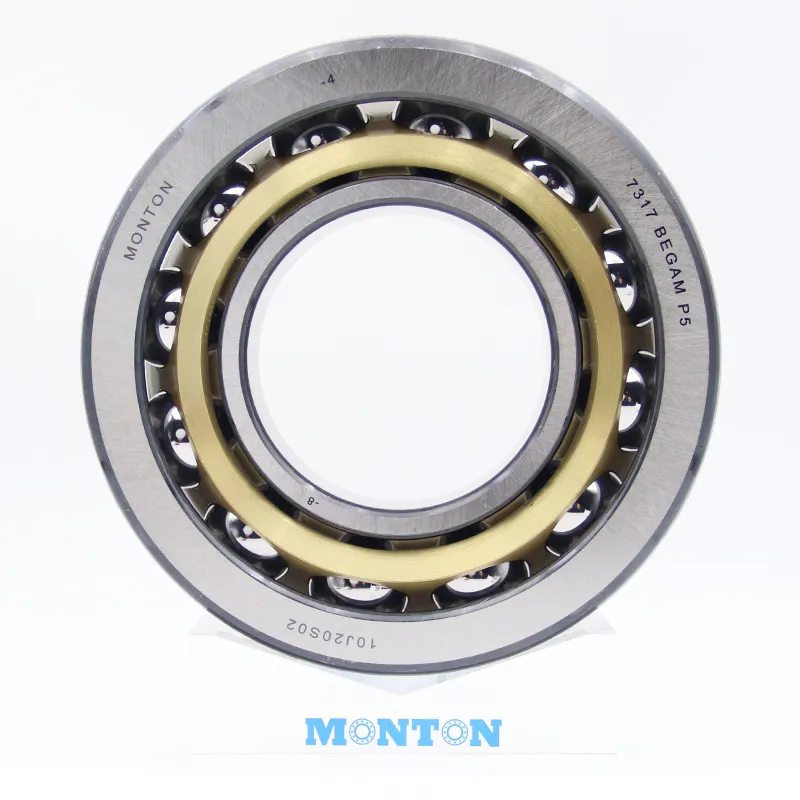

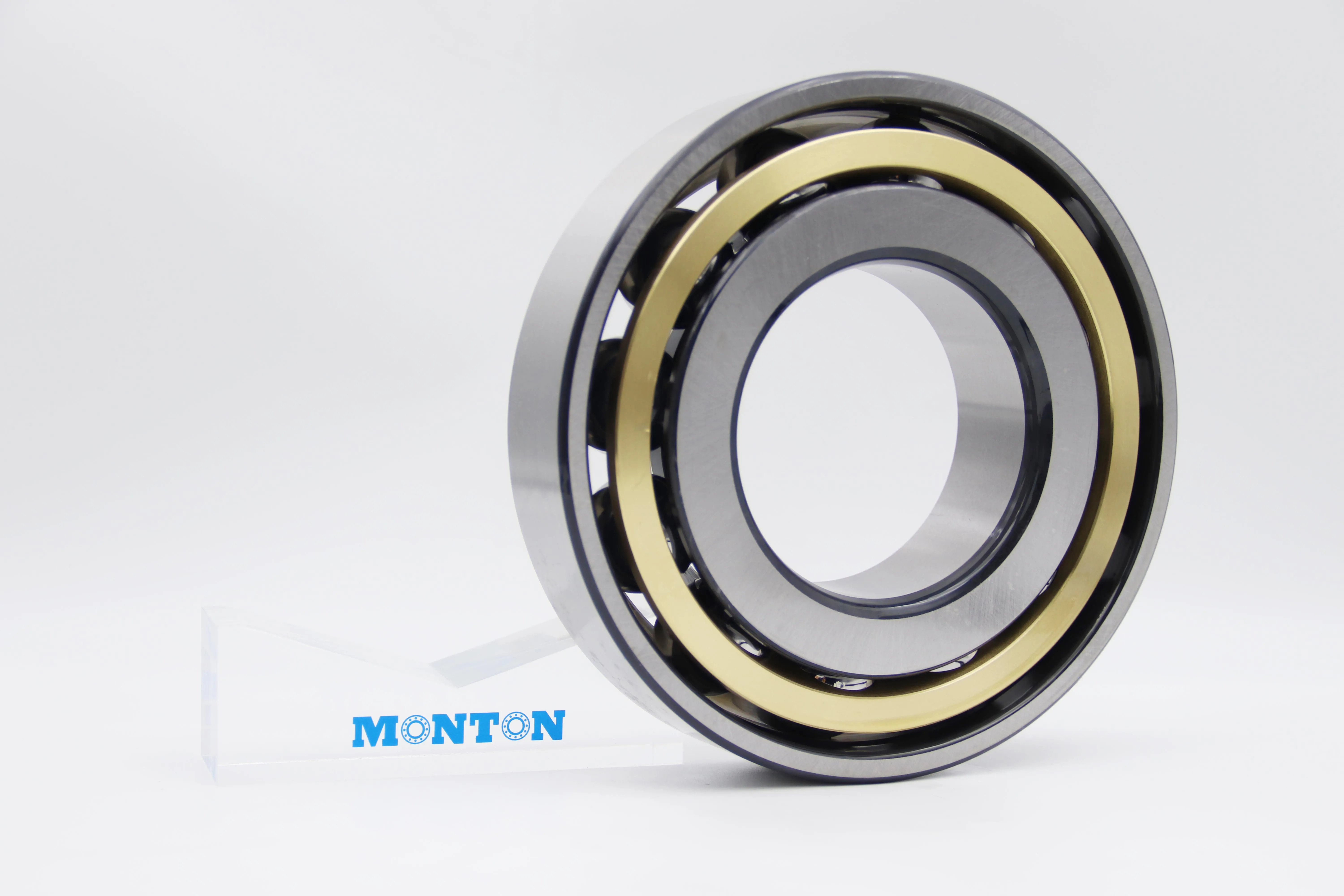

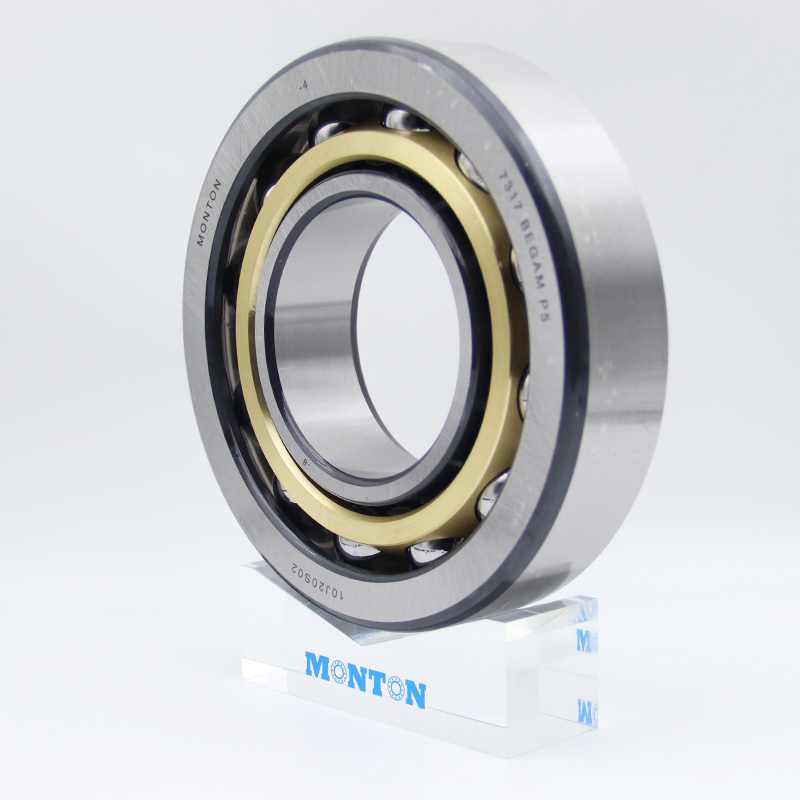

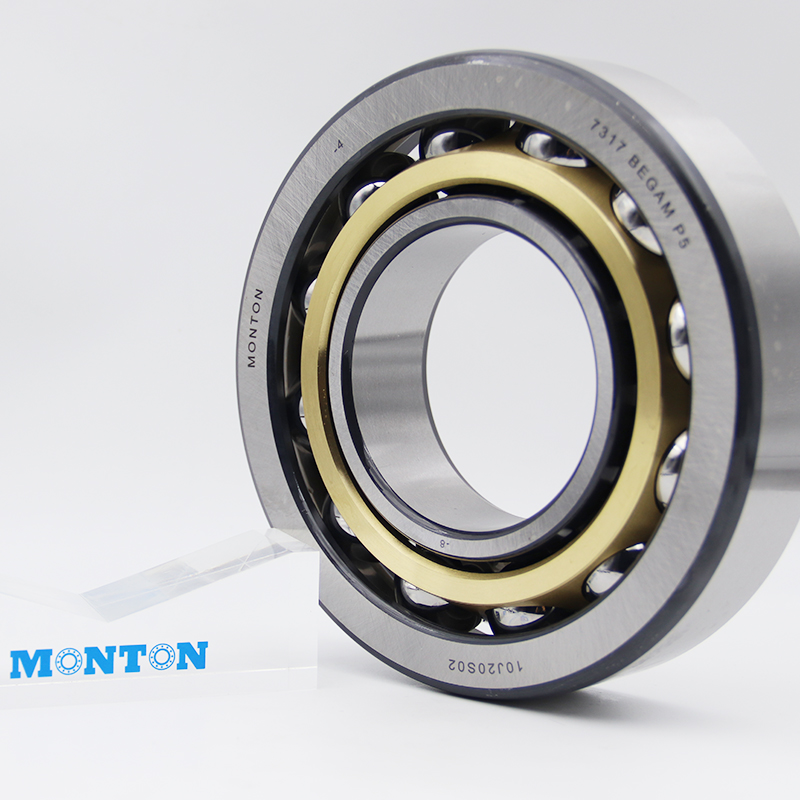

7317BECBM Angular contact ball bearings

7317BECBM produced by MONTON is a high-precision single row angular contact ball bearing designed specifically for high-speed, high load industrial applications. The contact angle is 40 ° (optimized design, suitable for bearing radial and unidirectional axial composite loads), and the retainer is made of brass material. Matching flexibility, can be combined in series, back-to-back, or face-to-face to meet different working conditions. Commonly used in machine tool spindles, motors and motors, automotive industry, industrial equipment, high-frequency motors, gas turbines, oil pumps, Roots blowers, air compressors, printing machinery, etc.

Case Details

Name	Angular contact ball bearings
Brand	MONTON
Model	7317BECBM
Contact angle	40°
rmin	3mm
Bore diameter	85mm
Outside diameter	180mm
B(width)	41mm
Ring Material	Gcr15 Bearing steel
Cage Material	Brass cage
Basic dynamic load rating C	156KN
Basic static load rating Co	132KN
Fatigue load limit Pu	4.9KN
Reference speed	4800 r/min
Limiting speed	6300 r/min
Sealed	Open
Row	Single row
Weight	4.6KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Multi-axis drills such as machine tools Robots Printing machines Measuring devices Gearboxes Automobile assembly lines Engraving machine spindles Tool holder sleeves
