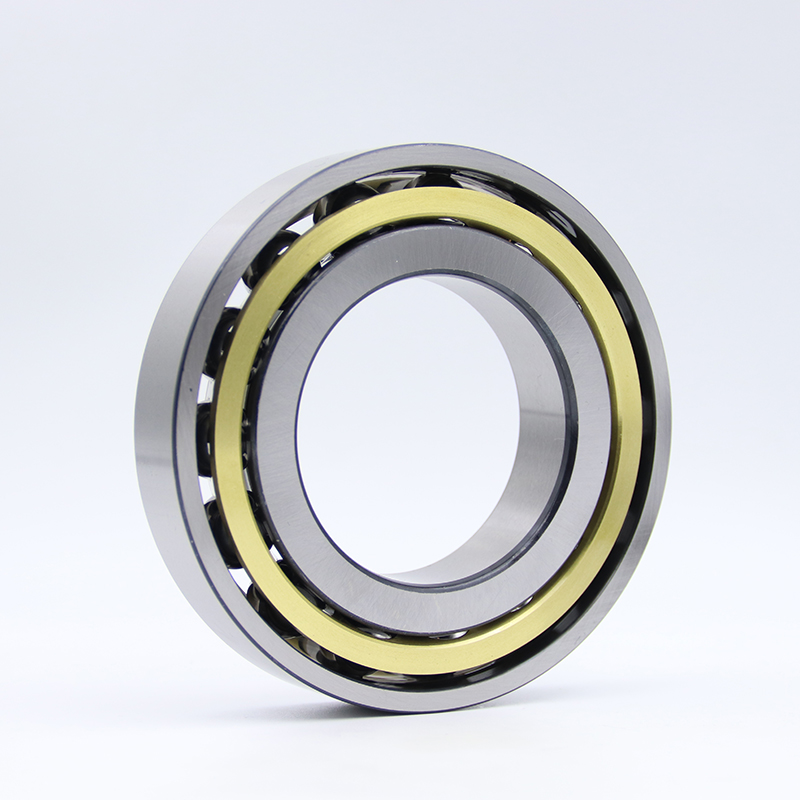

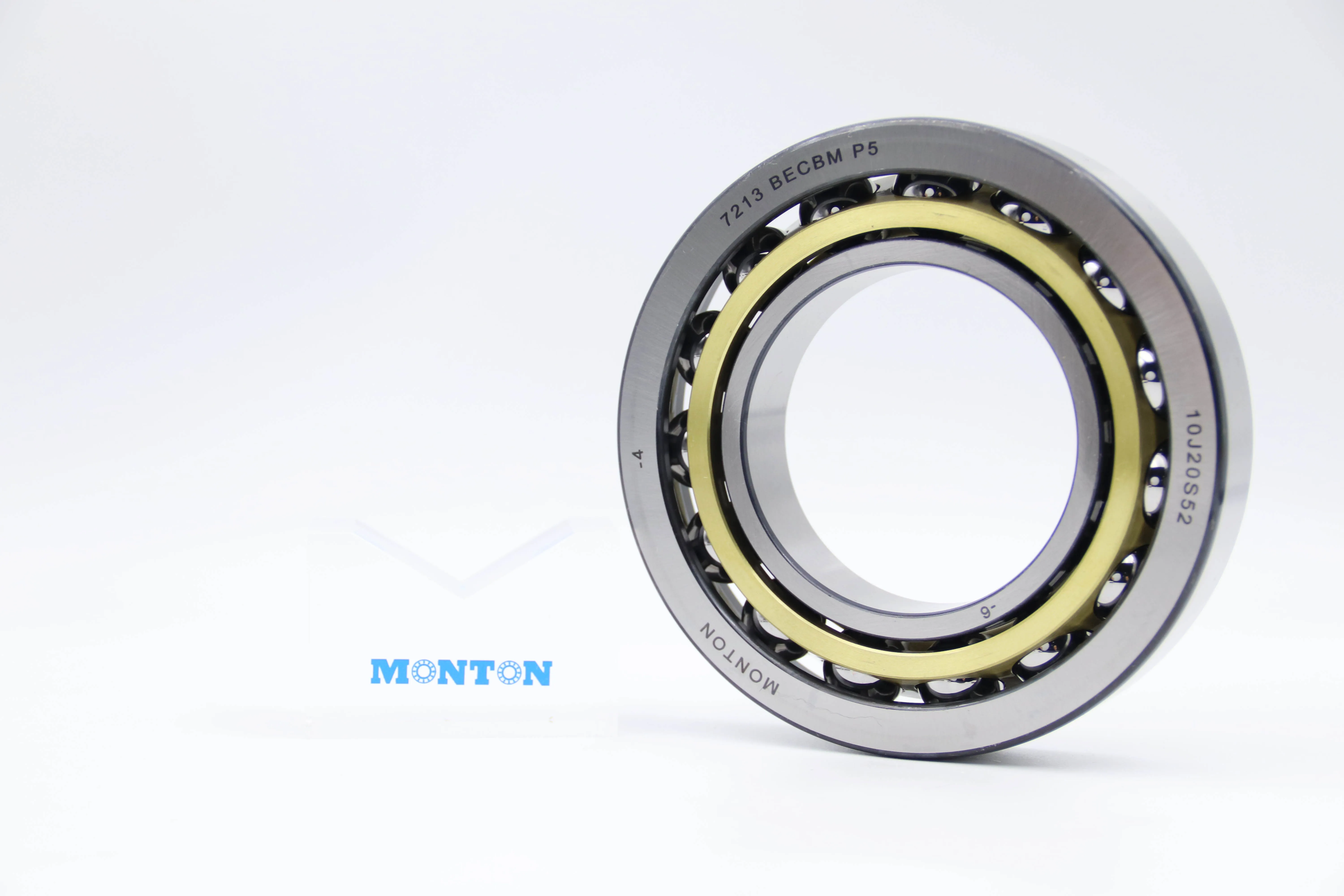

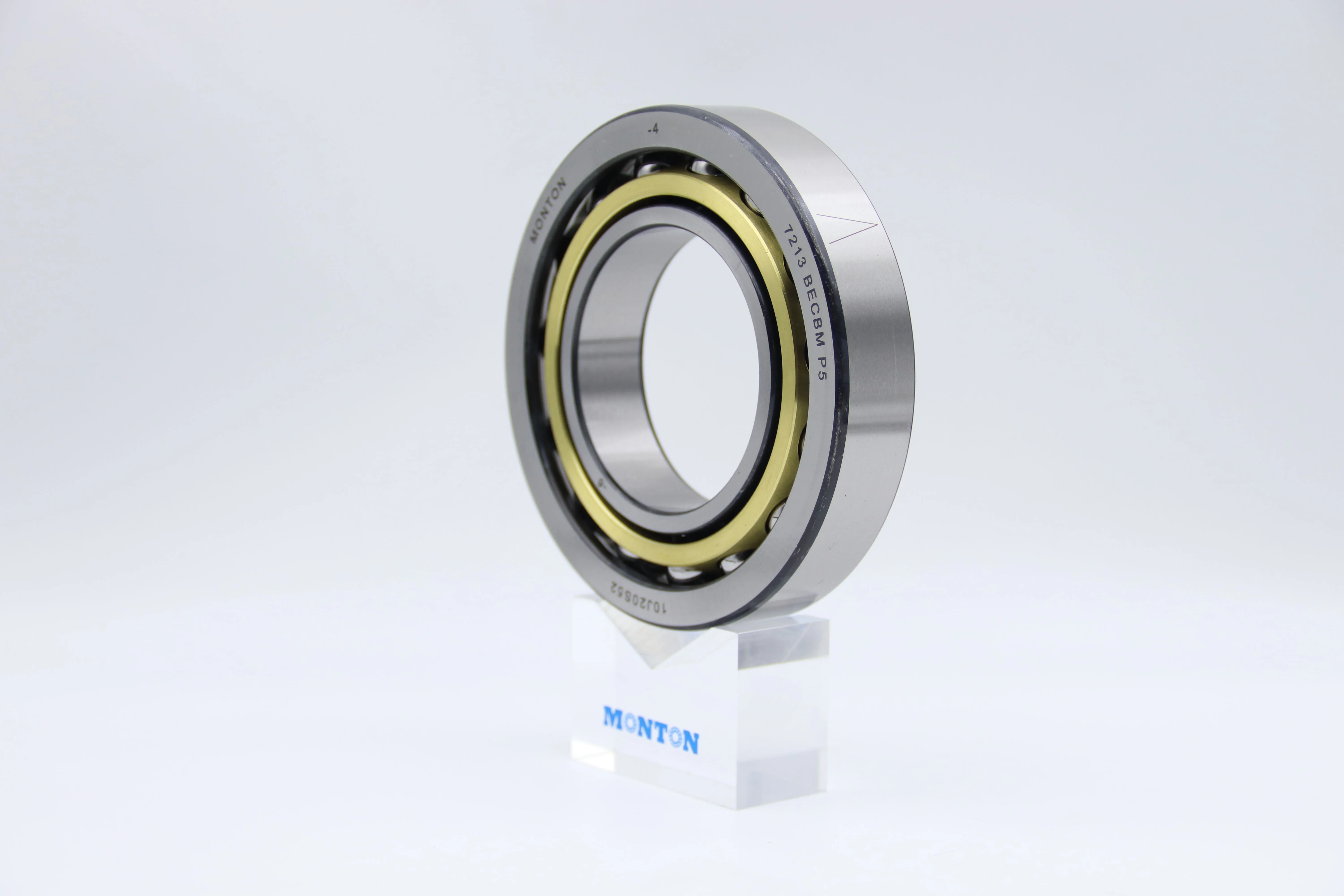

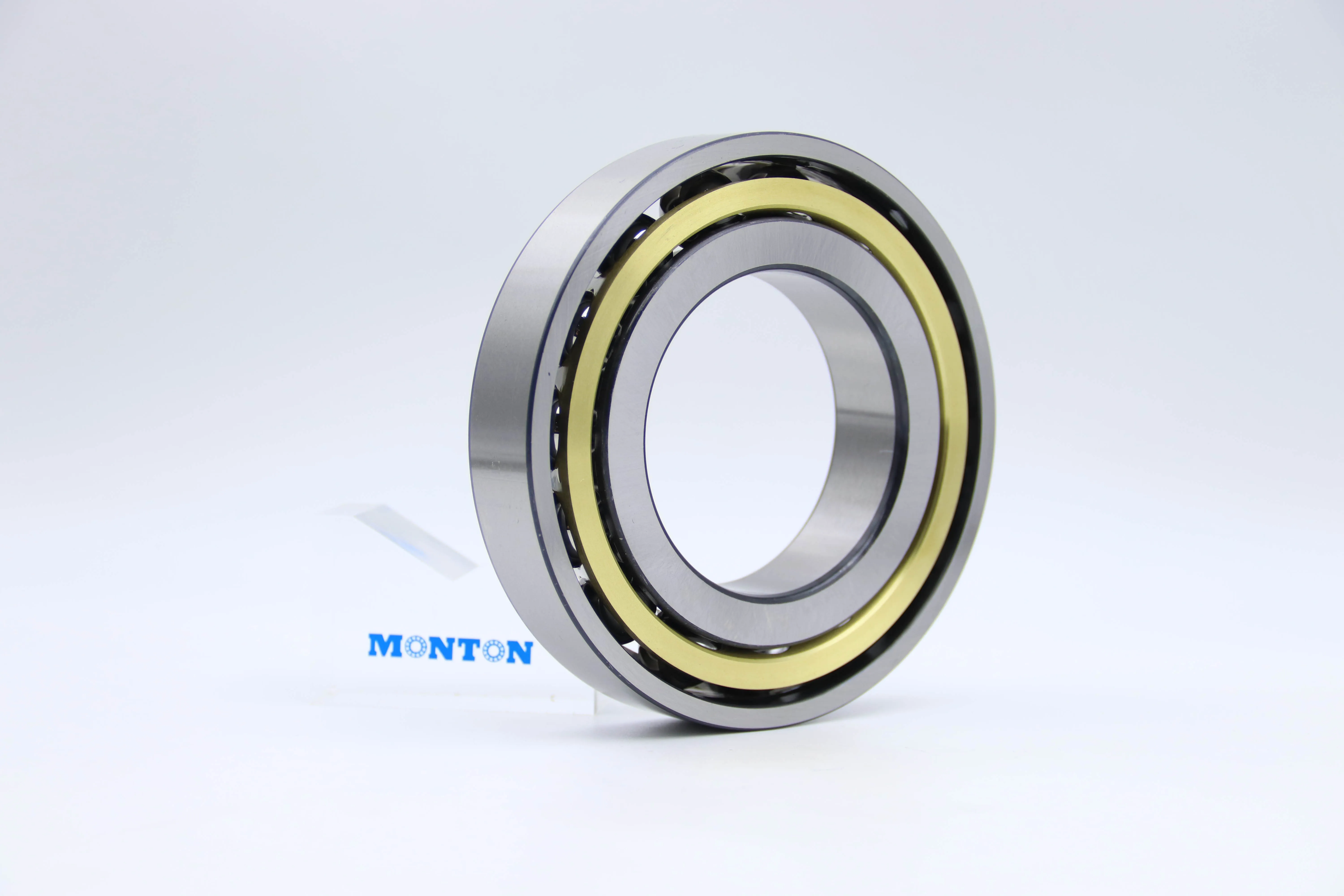

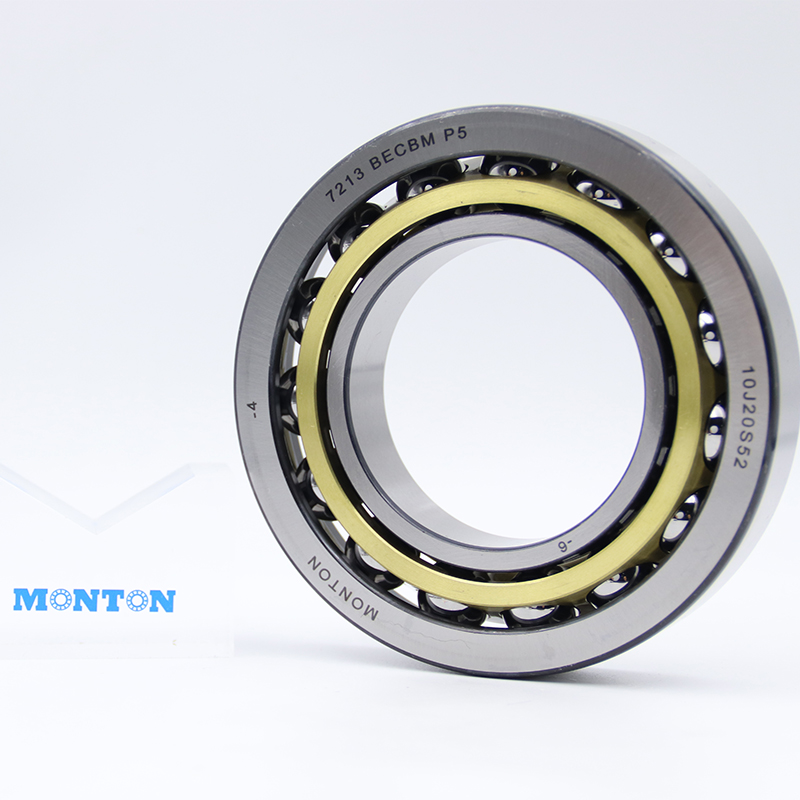

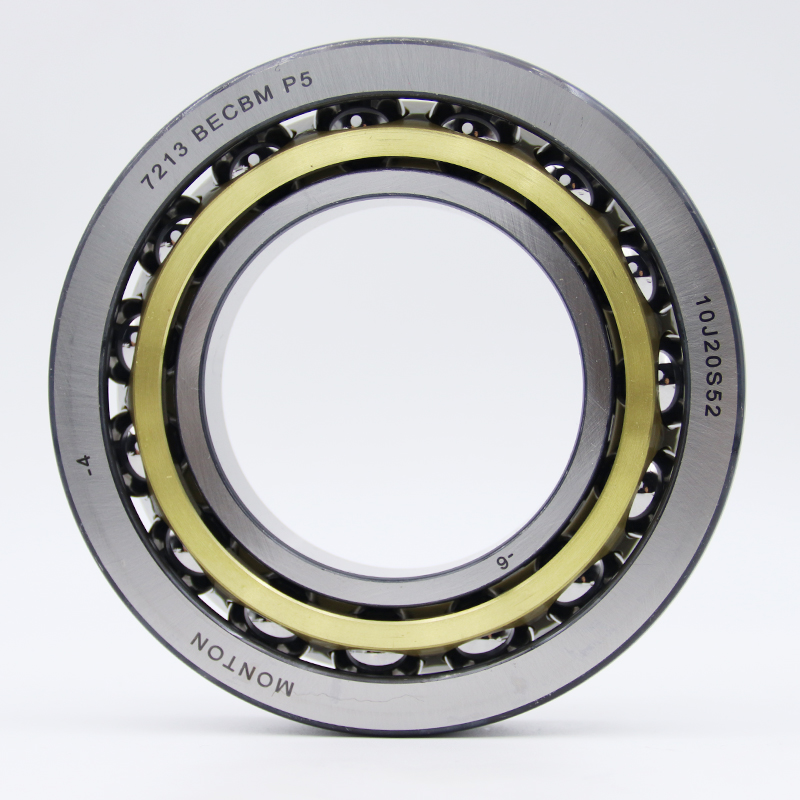

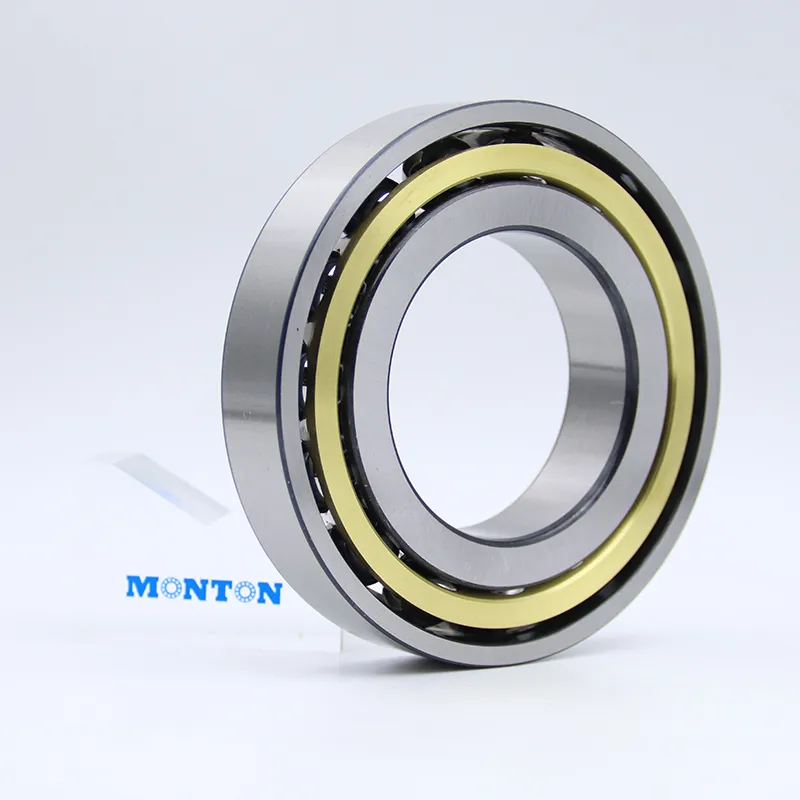

7213BECBM Angular contact ball bearings

The 7213BECBM produced by MONTON is a single-row angular contact ball bearing. This bearing is suitable for mechanical scenarios that require combined loads, such as high-speed rotating equipment or precision transmission systems. Its design features include high precision and rigidity, and performance can be optimized by adjusting the clearance through paired installation. It is commonly used in CNC lathes, deep hole drilling machines, boring machines, machining centers, and gear milling machines. Thread rolling machines, packaging and printing machines, etc.

Case Details

Name	Angular contact ball bearings
Brand	MONTON
Model	7213BECBM
Contact angle	40°
rmin	1.5mm
Bore diameter	65mm
Outside diameter	120mm
B(width)	23mm
Ring Material	Gcr15 Bearing steel
Cage Material	Brass
Basic dynamic load rating C	69.5KN
Basic static load rating Co	57KN
Fatigue load limit Pu	2.45KN
Reference speed	6 700 r/min
Limiting speed	9 000 r/min
Sealed	Open/Sealed
Row	Single row
Weight	1.09KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Multi-axis drills such as machine tools Robots Printing machines Measuring devices Gearboxes Automobile assembly lines Engraving machine spindles Tool holder sleeves
