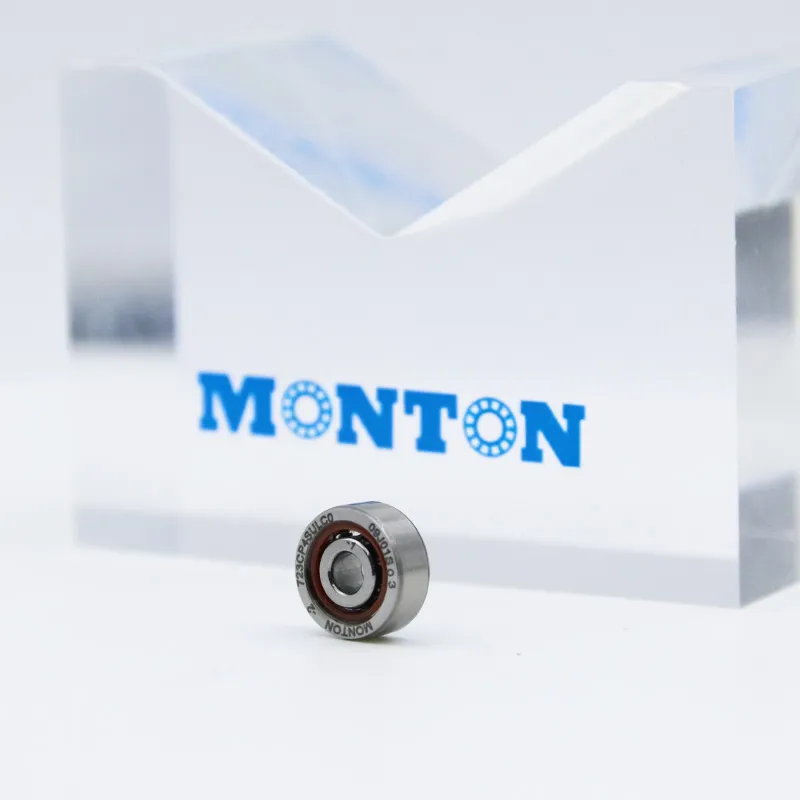

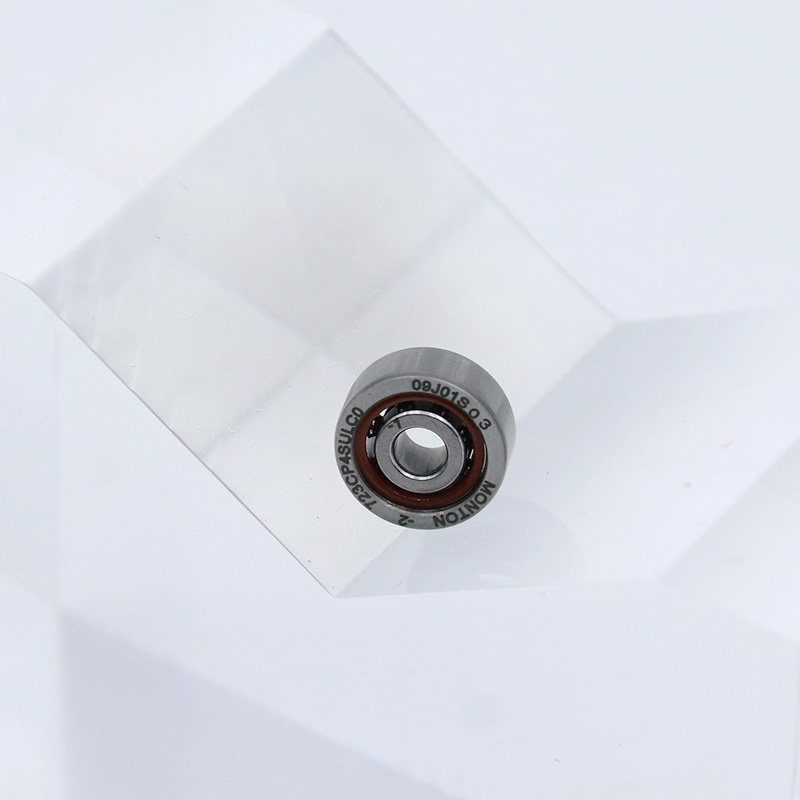

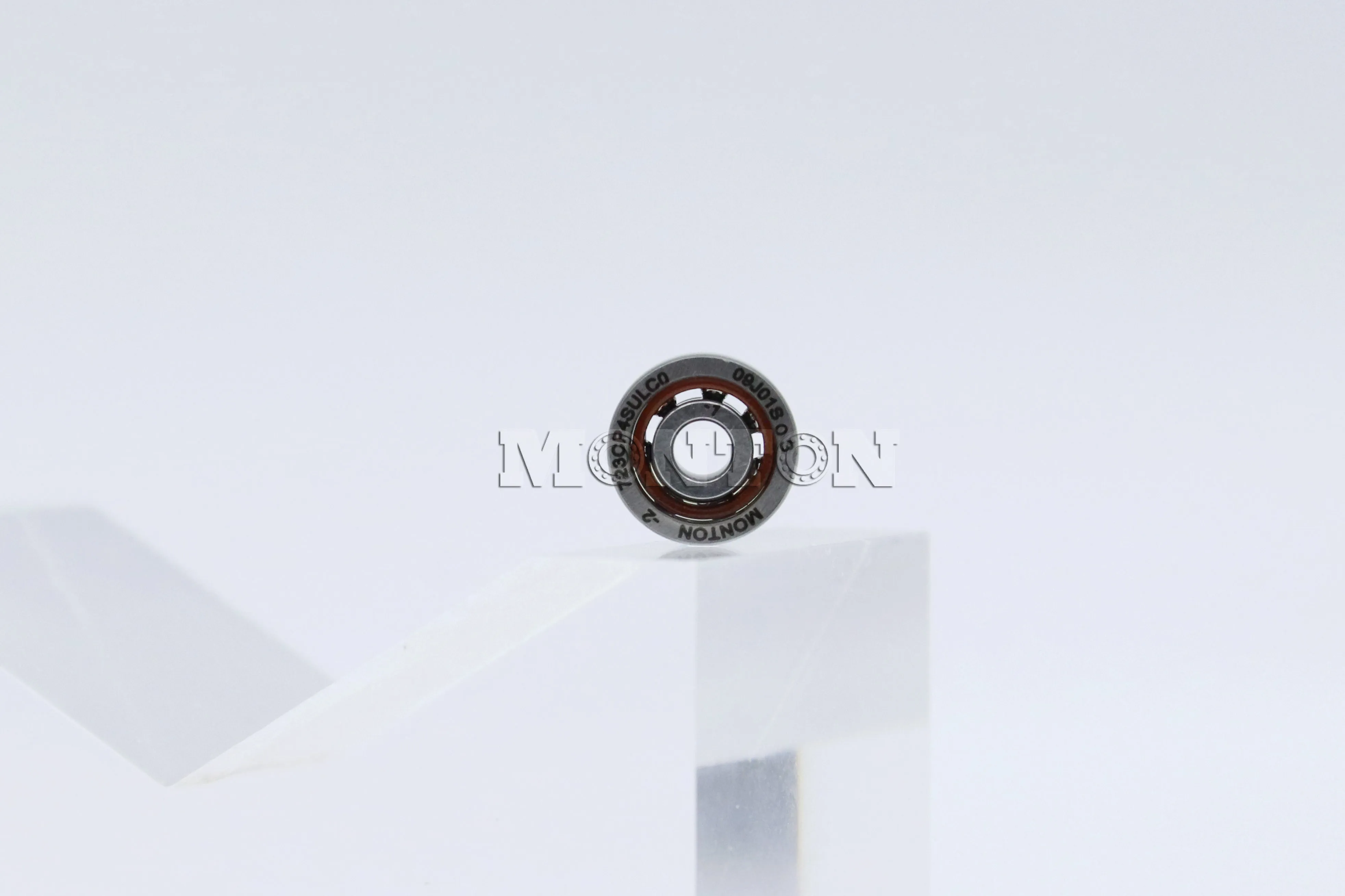

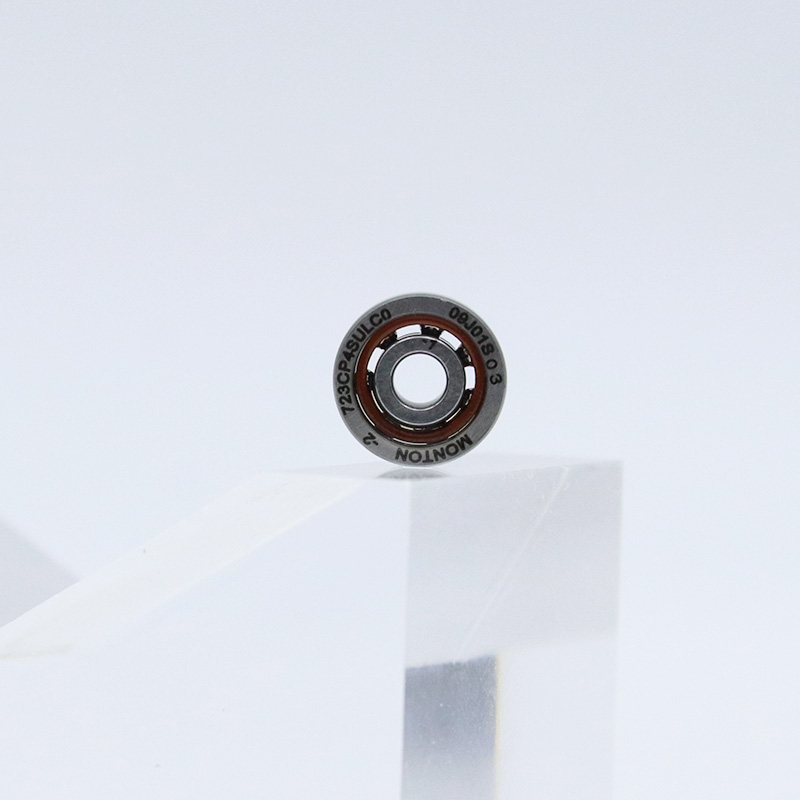

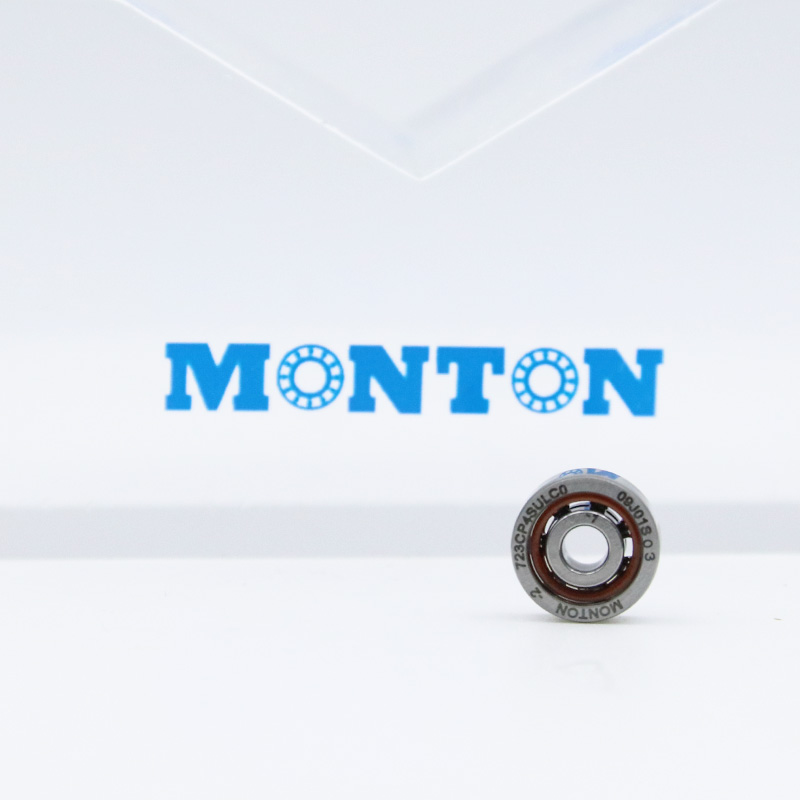

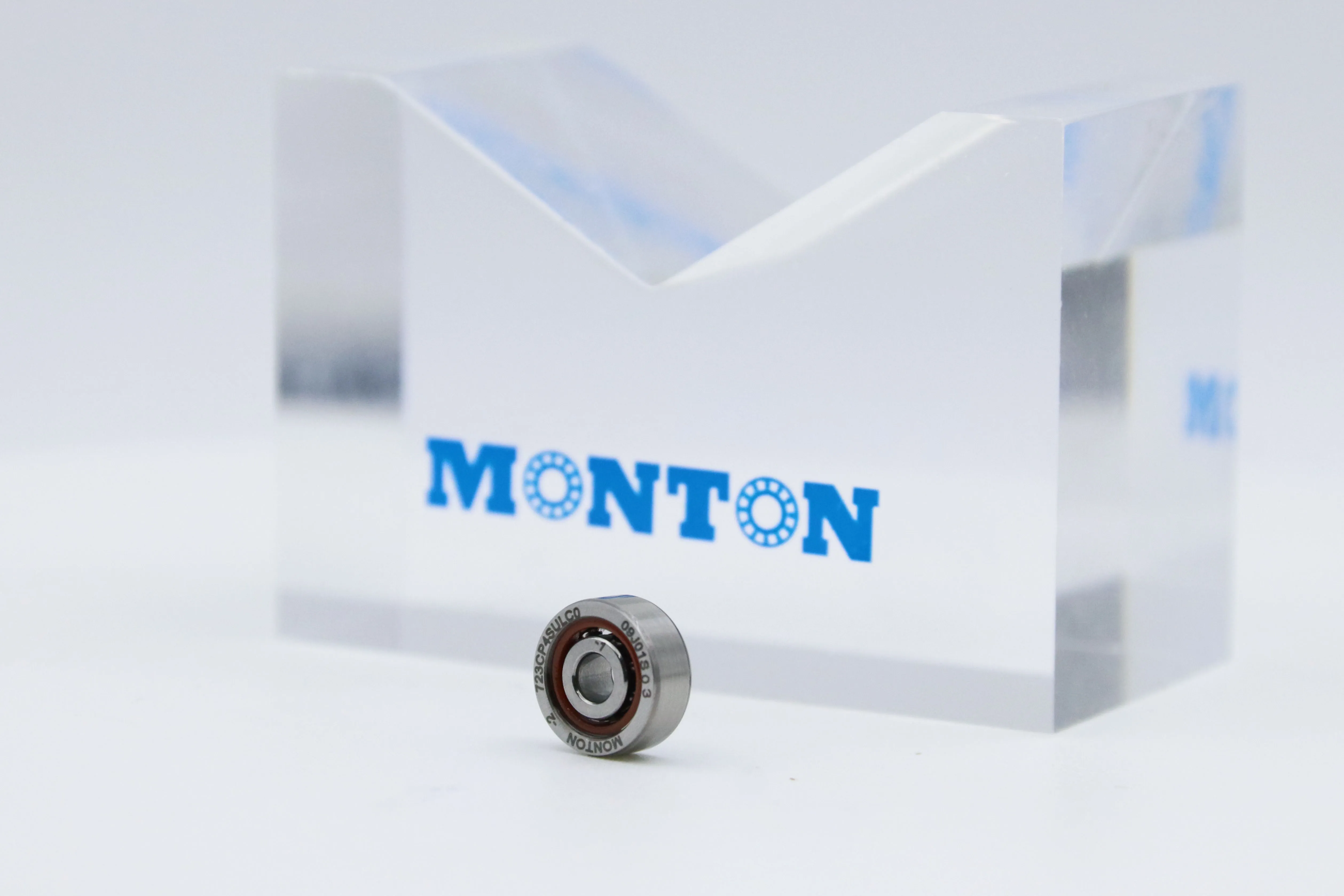

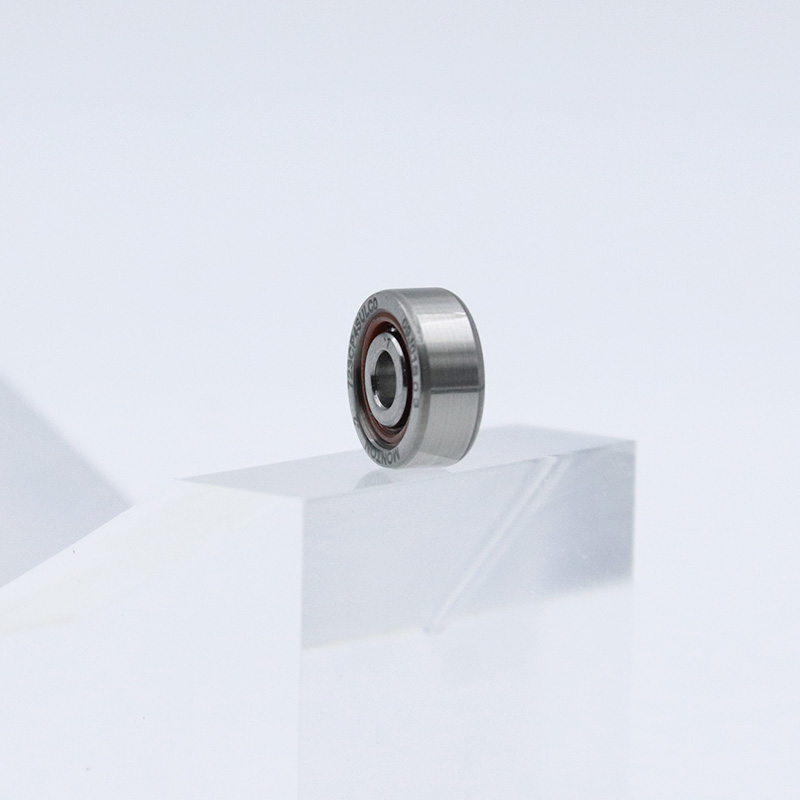

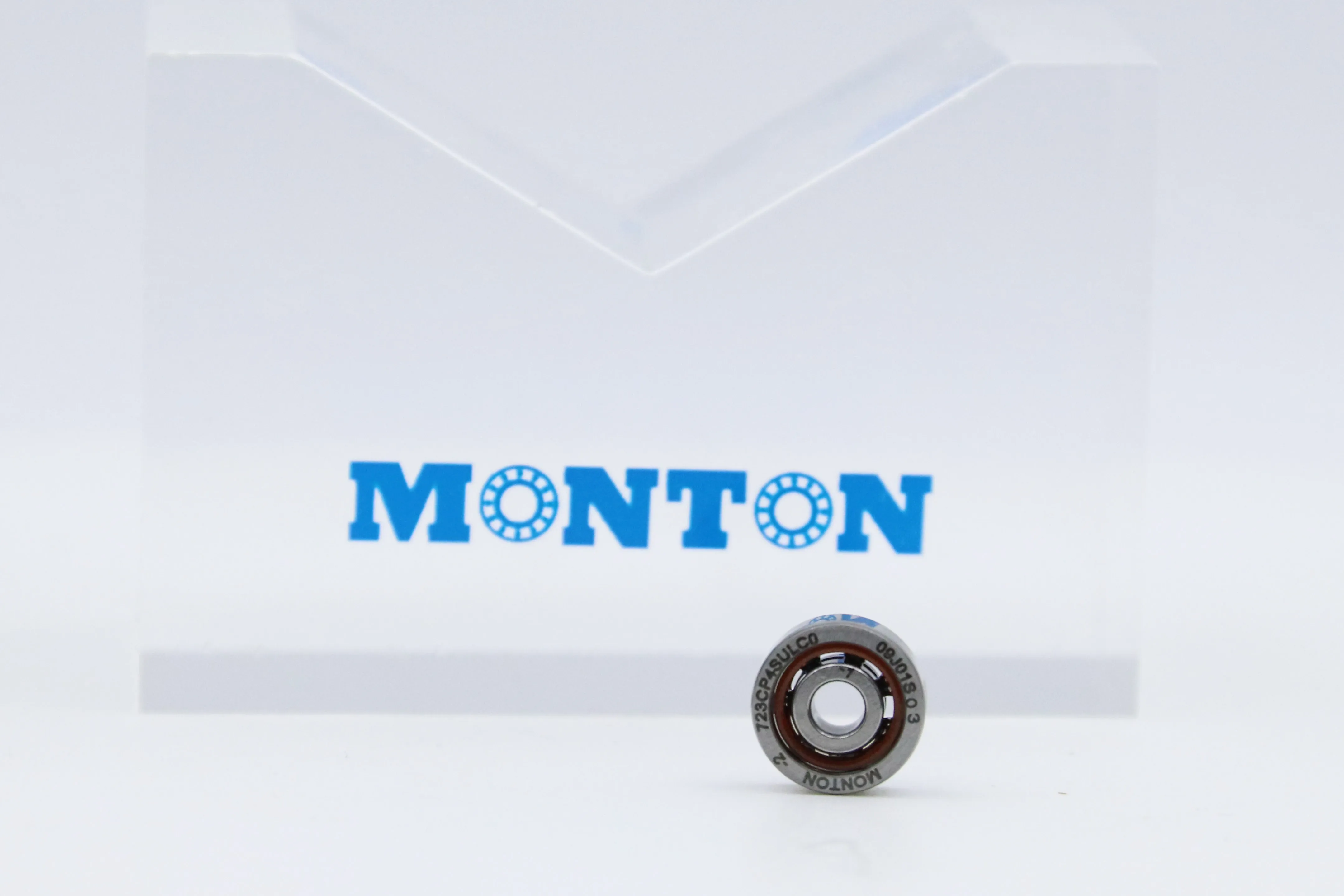

723CP4SUL Angular contact ball bearings

The 723CP4SUL produced by MONTON belongs to micro precision angular contact ball bearings, with an accuracy of P4 level, meeting the needs of high-precision and high-speed equipment such as high-speed machine tool spindles, motors, and water pumps. The rotational speed can reach 100000 revolutions per minute. The company can also provide other WeChat series of angular contact ball bearings, such as 708C, 705C, 723C, 724C, 725C, 726C and other models. We can provide miniature bearings with a minimum inner diameter of 3mm. Please feel free to inquire to us.

Case Details

Name	Angular contact ball bearings
Brand	MONTON
Model	723CP4SUL
Contact angle	15°
rmin	0.3mm
Bore diameter	3mm
Outside diameter	10mm
B(width)	4mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	650N
Basic static load rating Cor	240N
Limiting speed for nG Grease	95000 1/min
Limiting speed for nG Oil	100,000 1/min
Sealed	Open/Sealed
Row	Single row
Weight	0.0016KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	linear transmission equipment machine tool workpiece shafts sanding shafts high-speed electric spindle planetary reducers drill shafts servo motors automated production lines 5G base station small fans motor production line winding activity monitoring and control probes precision measuring instruments such as 3D printers aerospace precision machine tools servo motors automatic production lines 5G base station small fans motor production line winding activity monitoring probes electric cylinders
