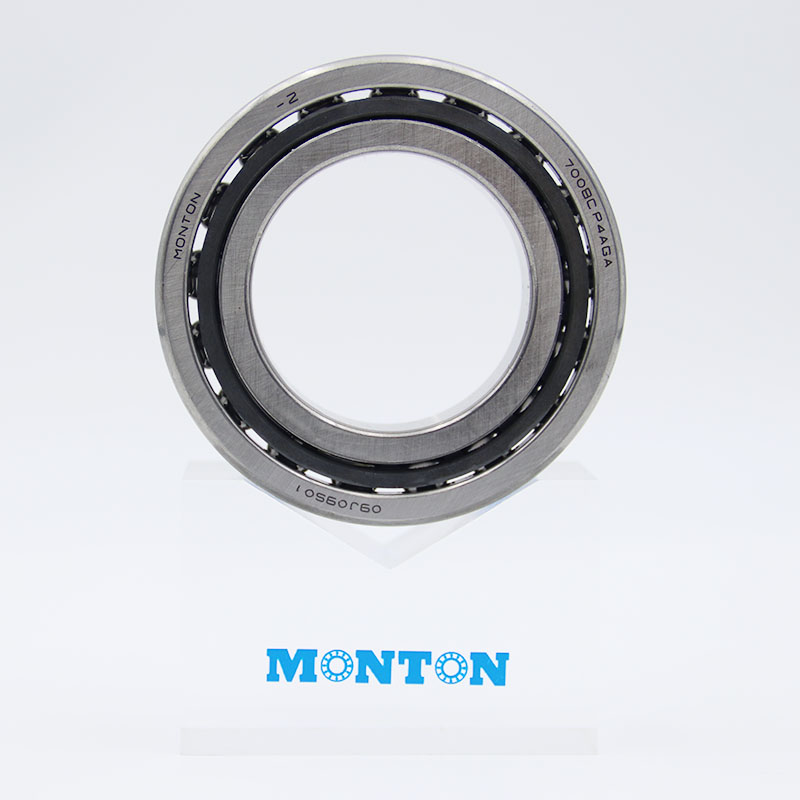

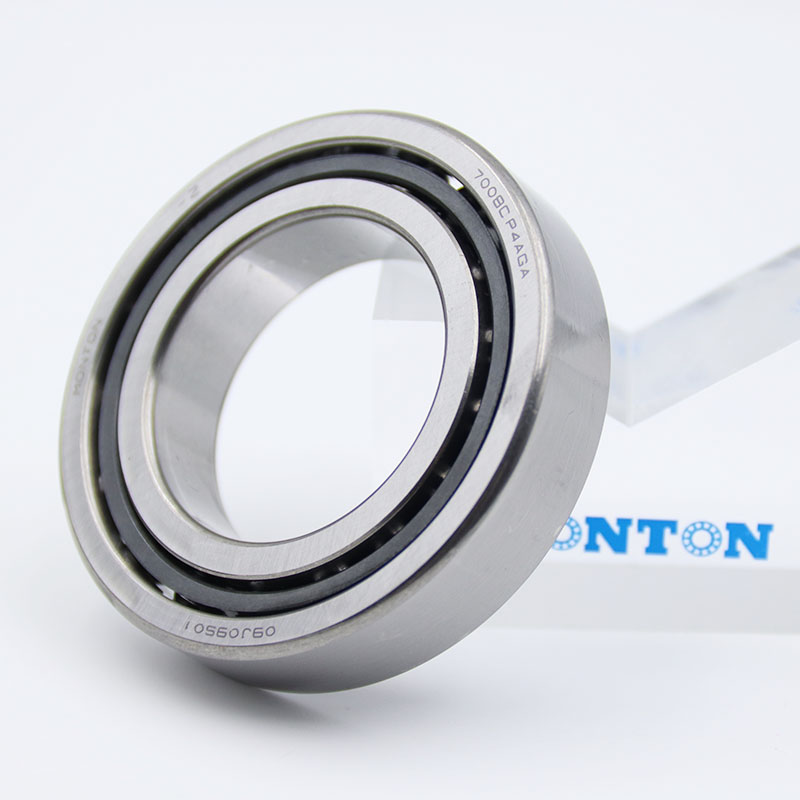

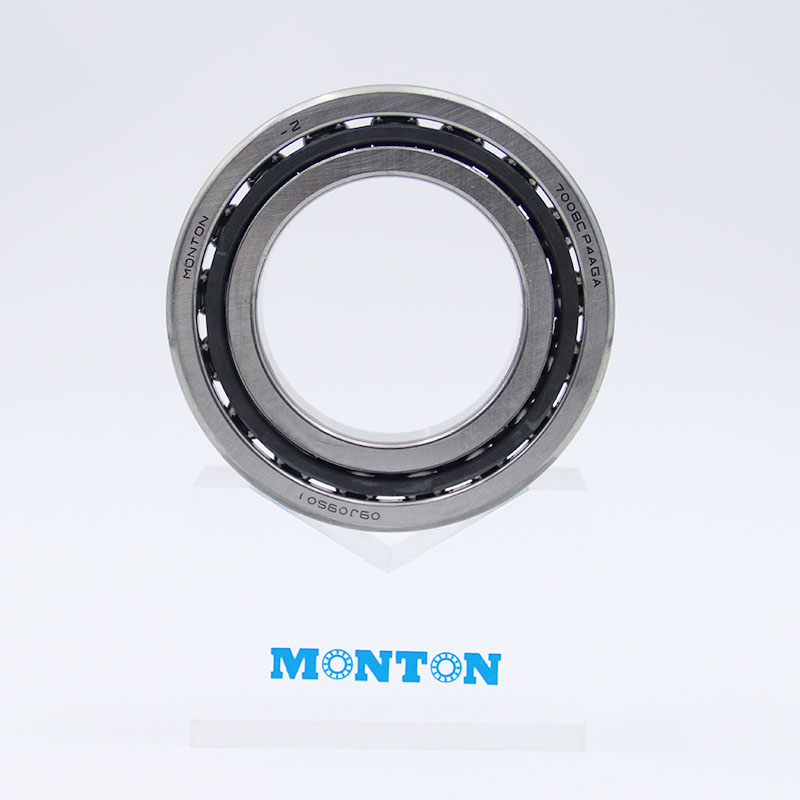

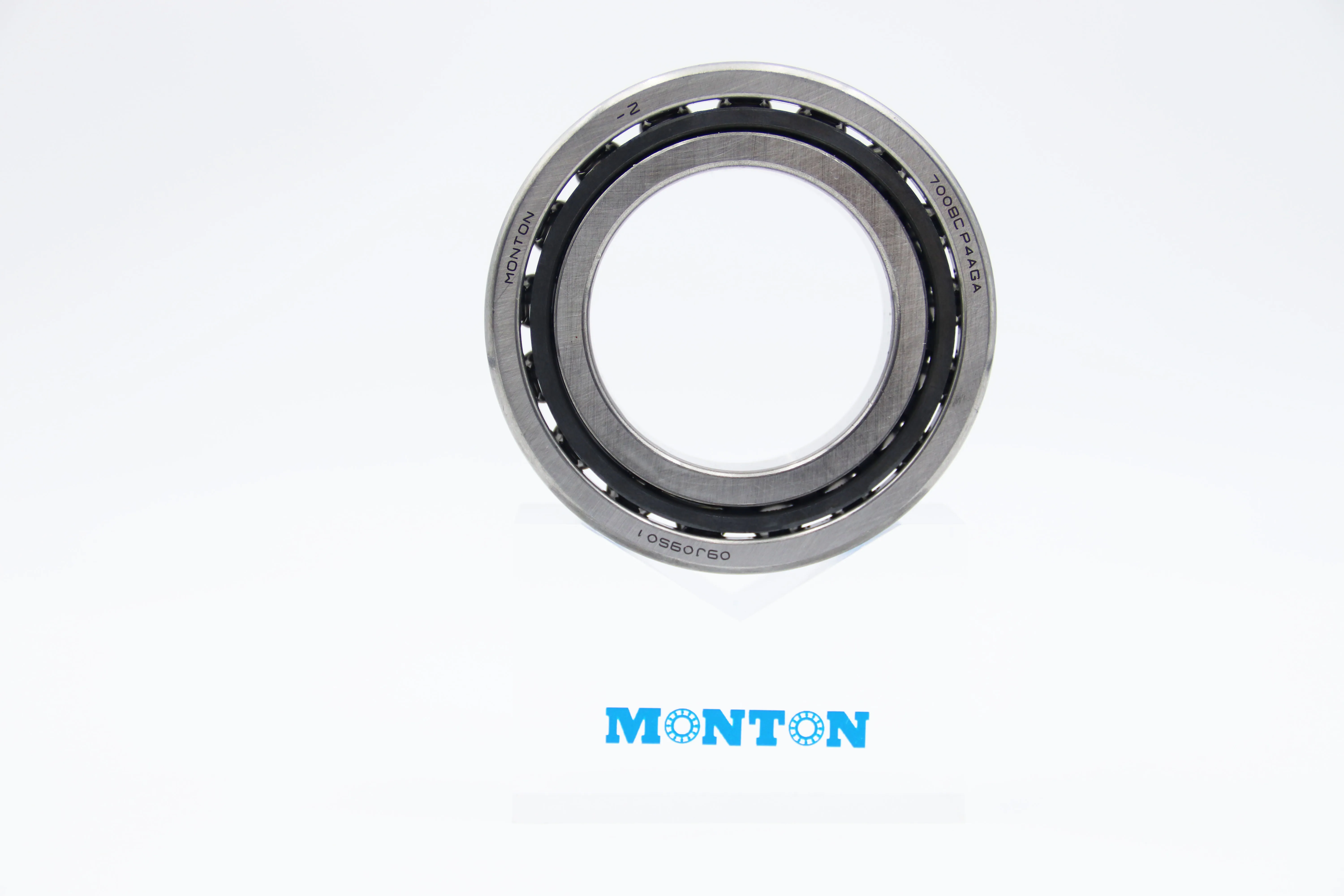

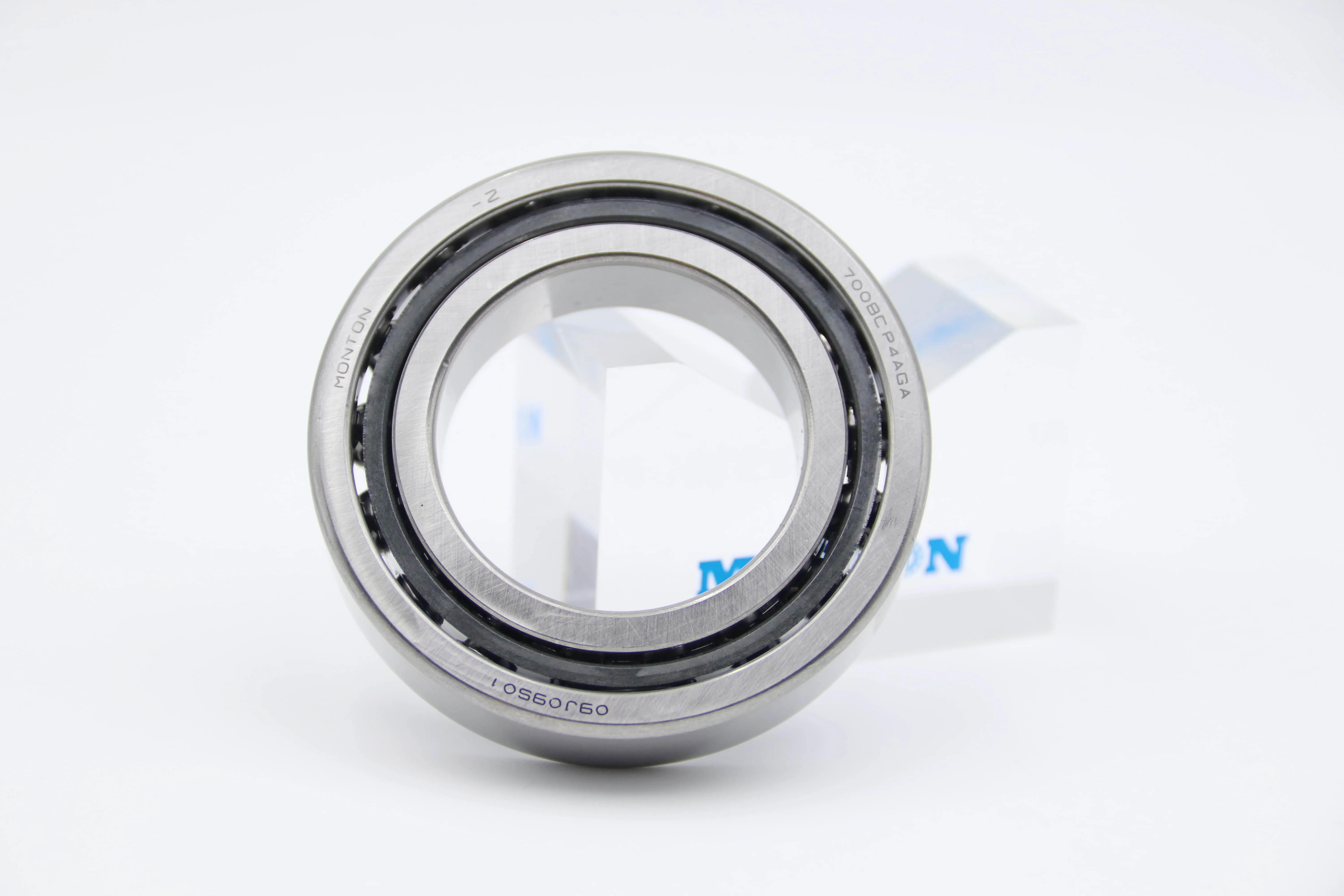

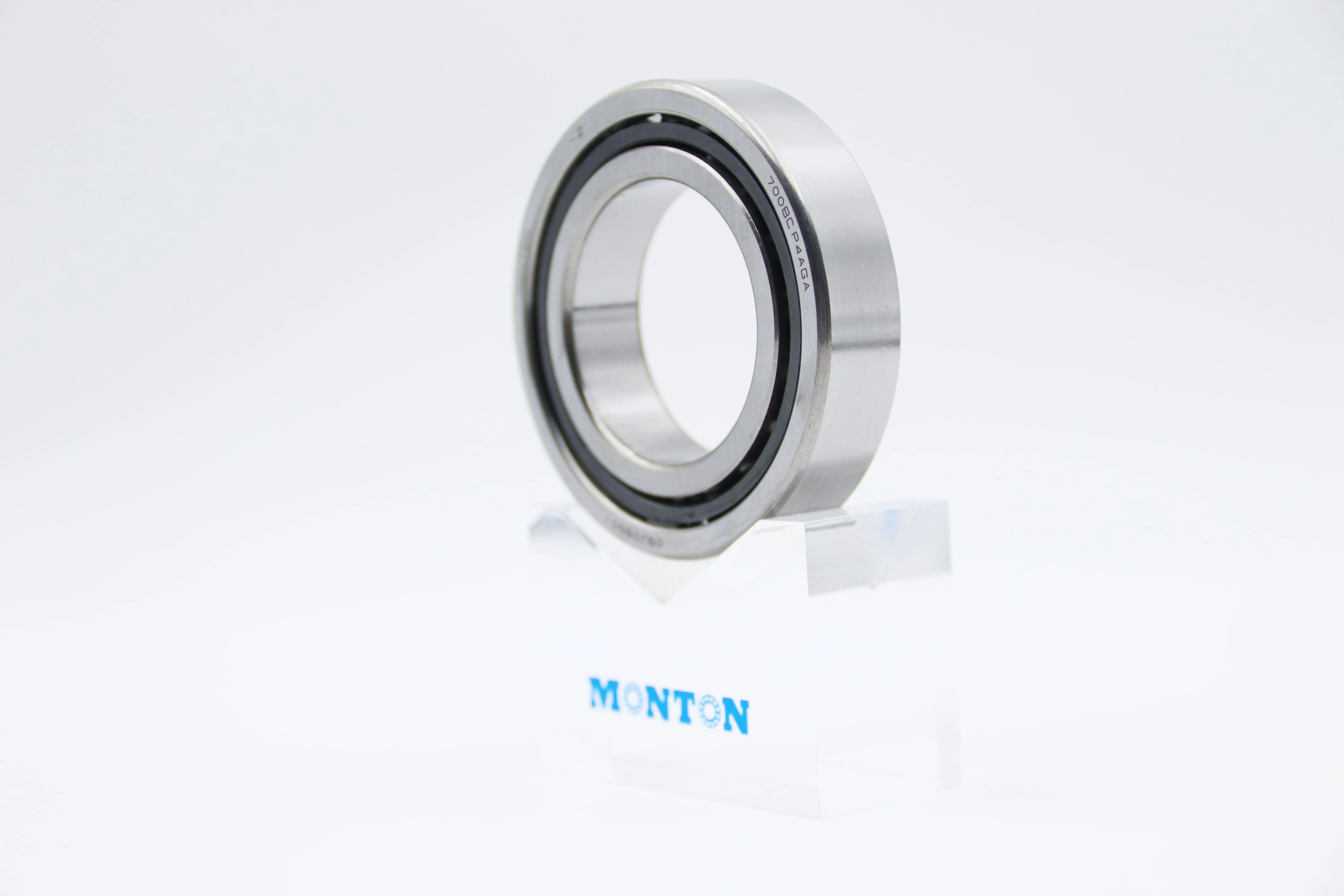

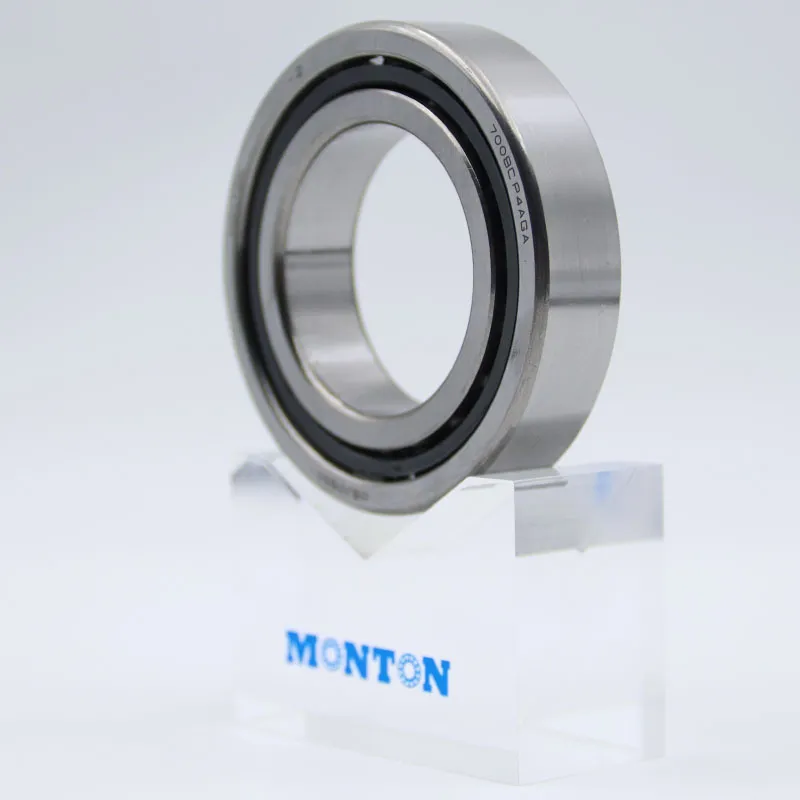

7008CP4GA Angular contact ball bearings

7008CP4GA precision angular contact ball bearing, equivalent model 7008CTYNSUP4, designed with a contact angle of 15 °, can withstand both radial and unidirectional axial loads simultaneously. The open design bearing with resin reinforced phenolic resin cage can be paired or used in triplicate Commonly used in high-speed precision equipment such as carving machines, CNC machine tools, high-speed motors, screw supports, etc. MONTON can provide you with professional product services. Welcome to inquire.

Case Details

Name	Angular contact ball bearings
Brand	MONTON
Model	7008CP4GA
Contact angle	15°
rmin	0.1mm
Bore diameter	40mm
Outside diameter	68mm
B(width)	15mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	15.9KN
Basic static load rating Cor	10.4KN
Fatigue load limit, radial Cur	0.44N
Limiting speed for nG Grease	20000r/min
Limiting speed for nG Oil	34000 1/min
Sealed	Open/Sealed
Row	Single row
Weight	0.188KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
