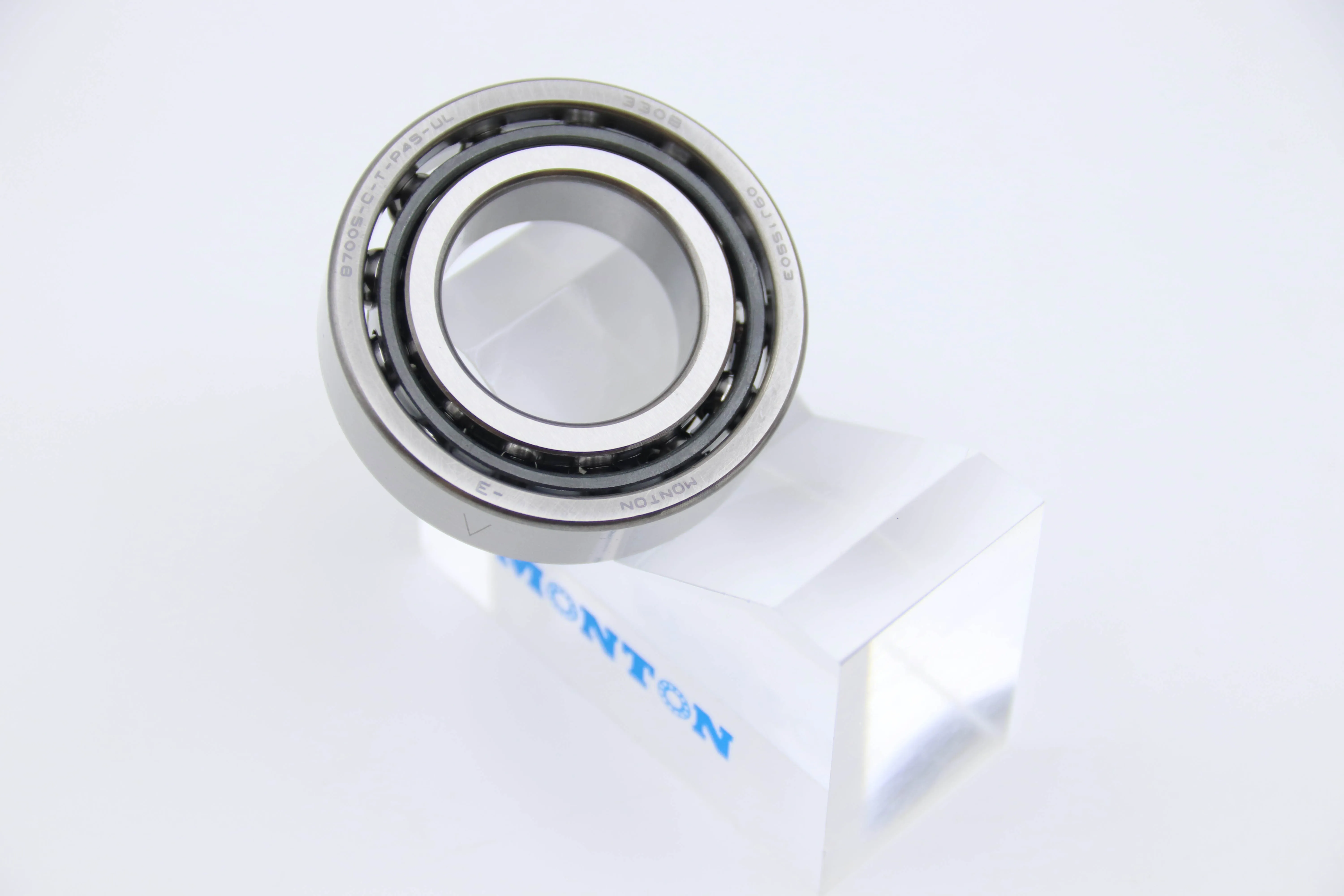

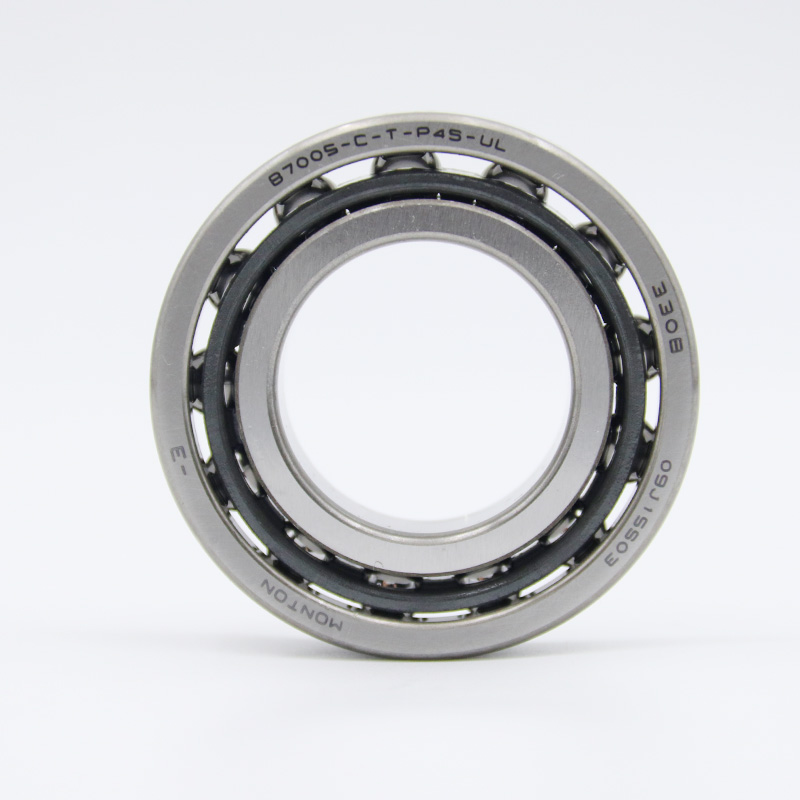

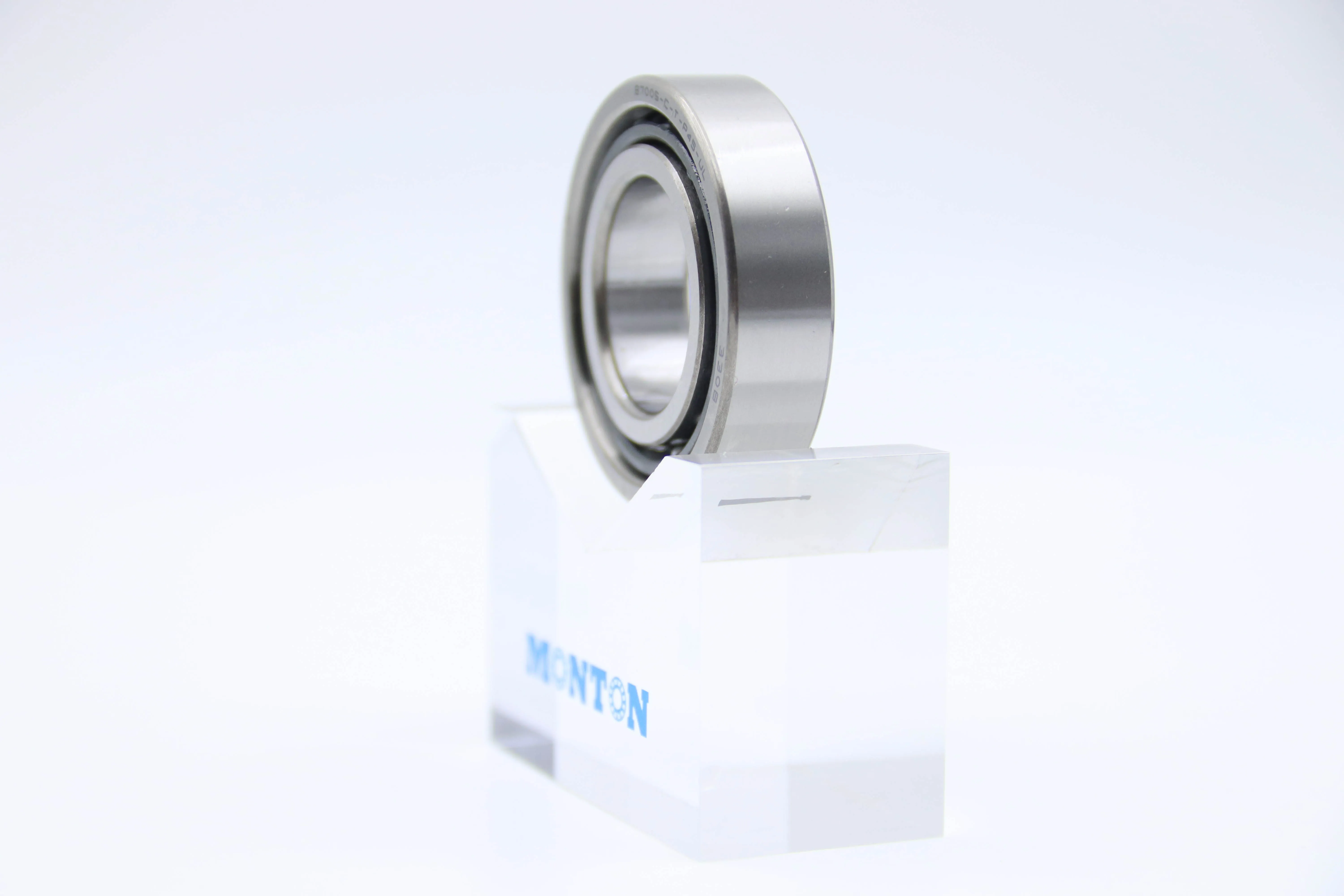

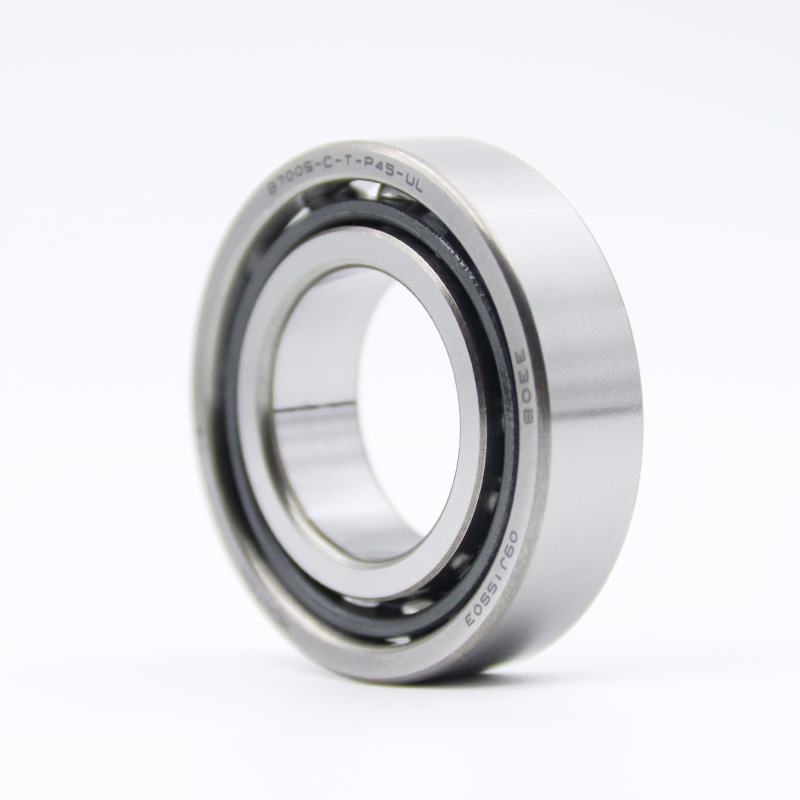

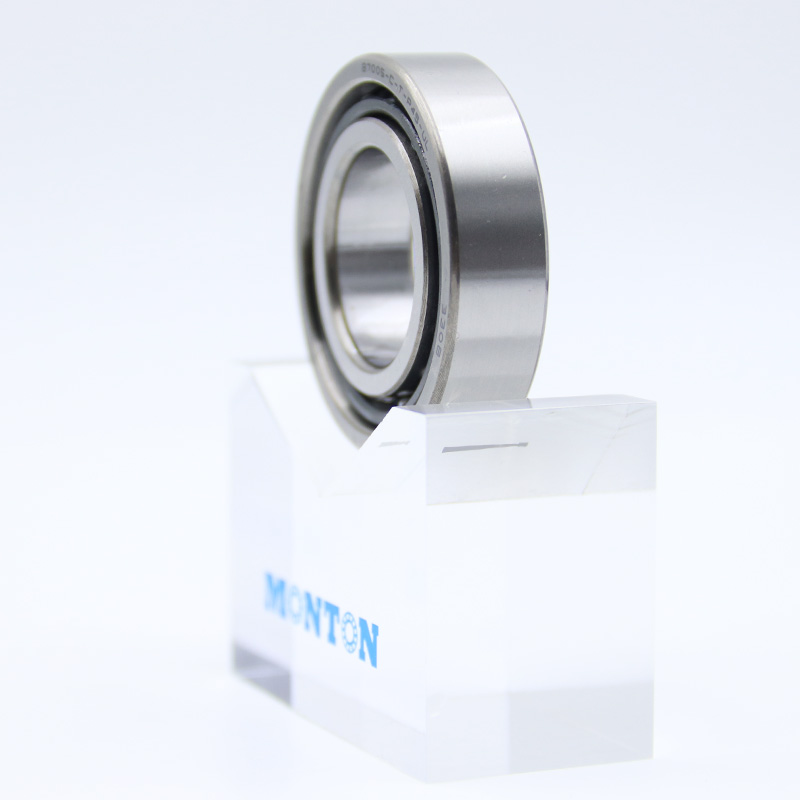

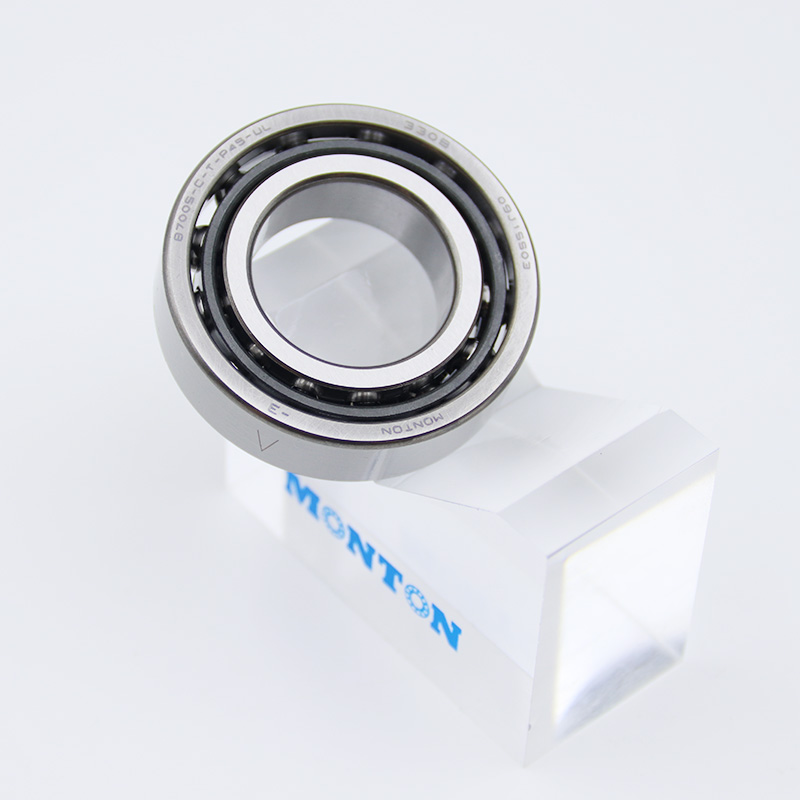

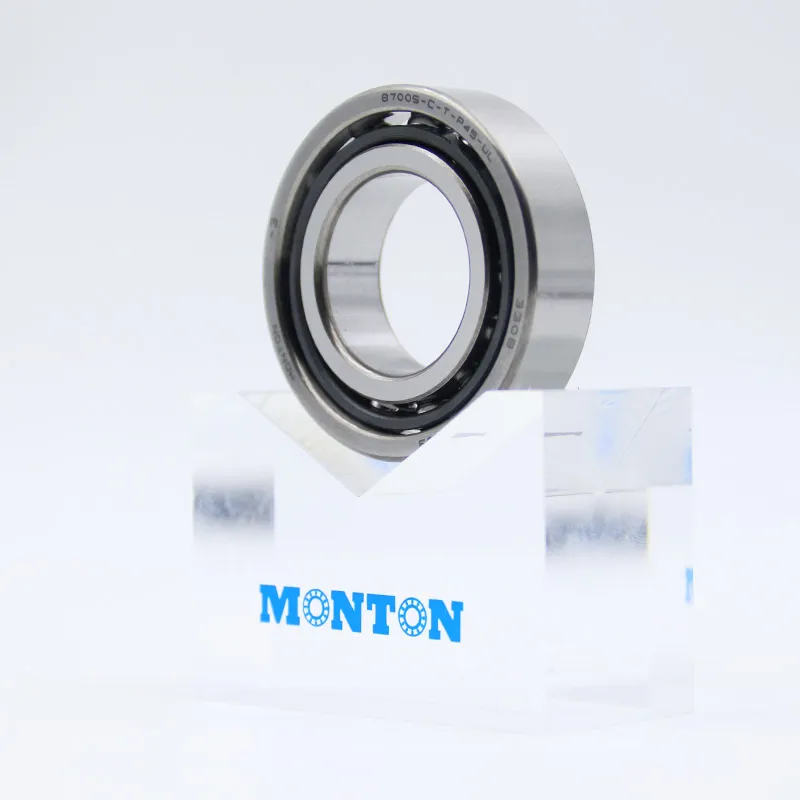

B7005-C-T-P4S-UL High Speed Angular contact ball bearings

The B7005-C-T-P4S-UL precision angular contact ball bearing is a universal light preload P4 grade angular contact ball bearing with a designed contact Angle of 15°. It is an open design bearing with a phenolic resin cage and can be lubricated with oil at a speed of up to 50,000 rpm. It is commonly used in CNC lathes, deep hole drilling machines, boring machines, machining centers, and gear milling machines. Threading machines, PCB spindles, engraving machine spindles, packaging and printing machines, etc.

Case Details

Name	High Speed Angular contact ball bearings
Brand	MONTON
Model	B7005-C-T-P4S-UL
Contact angle	15°
rmin	0.6mm
Bore diameter	25mm
Outside diameter	47mm
B(width)	12mm
Ring Material	Gcr15 Bearing steel or special steel
Cage Material	Nylon/phenolic resin
Basic dynamic load rating Cr	13.7KN
Basic static load rating Cor	5.9KN
Fatigue load limit, radial Cur	620N
Limiting speed for nG Grease	34000 1/min
Limiting speed for nG Oil	50,000 1/min
Sealed	Open/Sealed
Row	Single row
Weight	0.07KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	machine tool spindle robot high-speed motor Data storage device Semiconductor Manufacturing Equipment PCB spindle Carving machine spindle
