Harmonic Drive Crossed Roller Bearings: The Core Support Component for Precision Transmission

Harmonic drives represent a revolutionary advancement in the field of precision transmission, operating on the principle of elastic deformation for force transfer. Their core components include a wave generator, a flexspline, a circular spline, and crossed roller bearings. These drives offer a compelling combination of compactness and light weight, high torque capacity, high rigidity, and micron-level precision. Consequently, they are widely utilized in high-end manufacturing applications such as industrial robot joints, CNC machining center feed mechanisms, wind turbine pitch systems, aerospace satellite attitude adjustment mechanisms, and deep-sea exploration equipment.

As the primary support element at the output end of a harmonic drive, the crossed roller bearing directly determines the service life, load-carrying capacity, and long-term operational precision of the complete unit, making it a critical component affecting overall system performance.

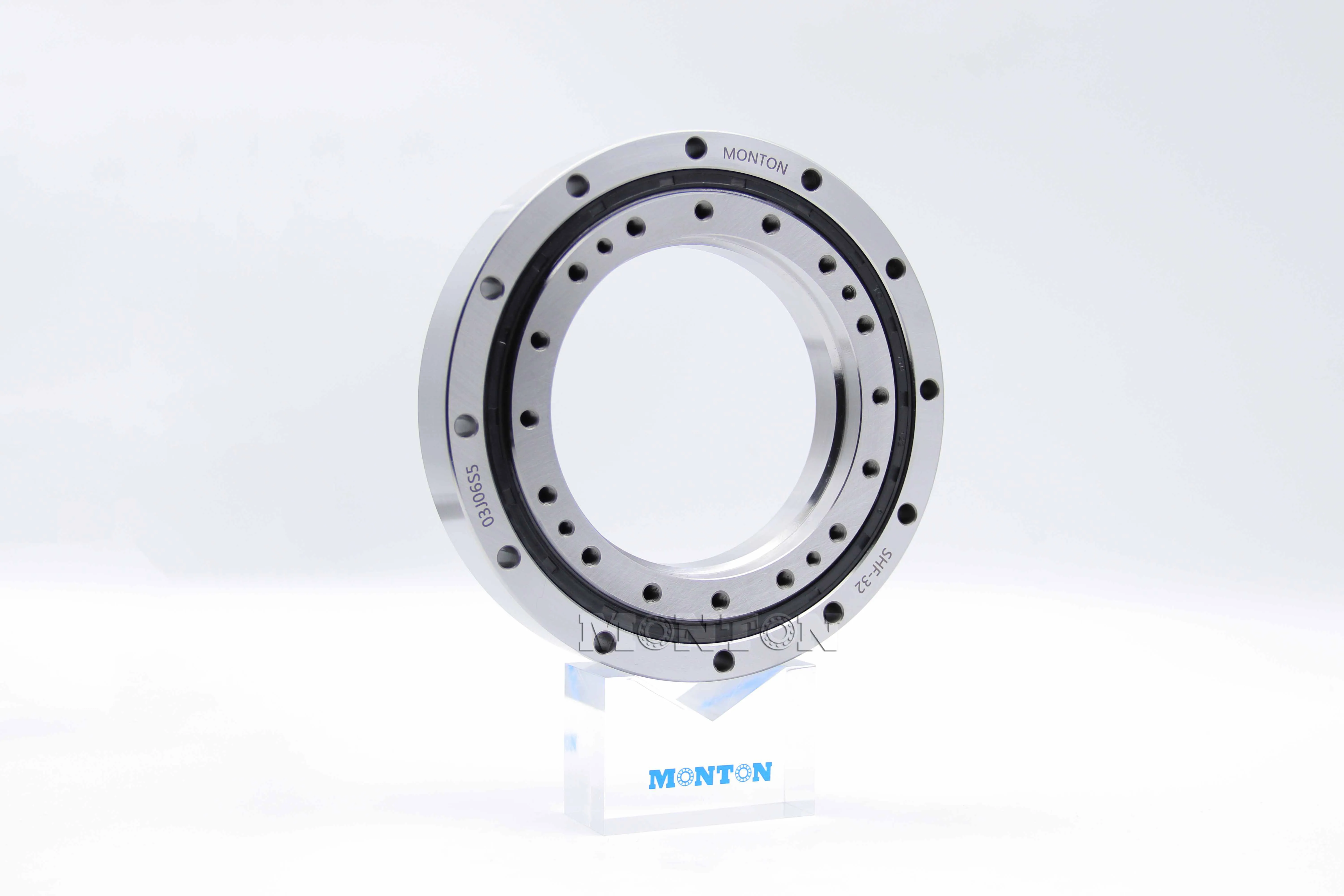

Crossed roller bearings specifically designed for harmonic drives differ significantly from general-purpose products. The inner and outer ring end faces are equipped with multiple layers of high-precision mounting threaded holes, featuring micron-level positional accuracy, to facilitate precise assembly with various components. These bearings are manufactured from GCr15 bearing steel, employing a customized process that includes segmented quenching, cryogenic treatment, and multiple tempering cycles. This carefully controlled heat treatment regimen ensures both high hardness of the raceways and low internal stress, effectively preventing thread-hole deformation and loss of precision over prolonged service.

Luoyang Monton Bearing Science & Technology Co., ltd., a local enterprise in Luoyang, leverages the region's established industrial expertise to produce these specialized bearings, which offer seven core advantages: omnidirectional composite high load capacity, rigidity that is over 30% higher than that of conventional products, precision meeting international grades P2/P4, start-up torque fluctuation below 5%, lightweight construction that supports overall system weight reduction, factory-preloaded configuration that eliminates the need for additional clearance adjustment, and support for non-standard customization.

Based on the matching structural configuration, these bearings can be classified into three types: the CSF/CSG series features a one-piece inner ring and a split outer ring, and is widely used in industrial robotics; the SHF series employs an integrated inner and outer ring design, providing greater rigidity and suitability for high-speed, high-load conditions; and the CSD series, also of an integrated construction, offers a more lightweight solution tailored for ultra-thin harmonic drives.

In recent years, national policies have consistently promoted the development of the industrial robotics industry, driving growing demand for high-performance harmonic drives. Domestic bearing manufacturers have continuously overcome technological barriers, optimized entire production processes, narrowed the quality gap with leading international brands, and enhanced their global market competitiveness. These efforts are laying a solid foundation for the self-reliant and independent development of China's industrial robotics sector.
