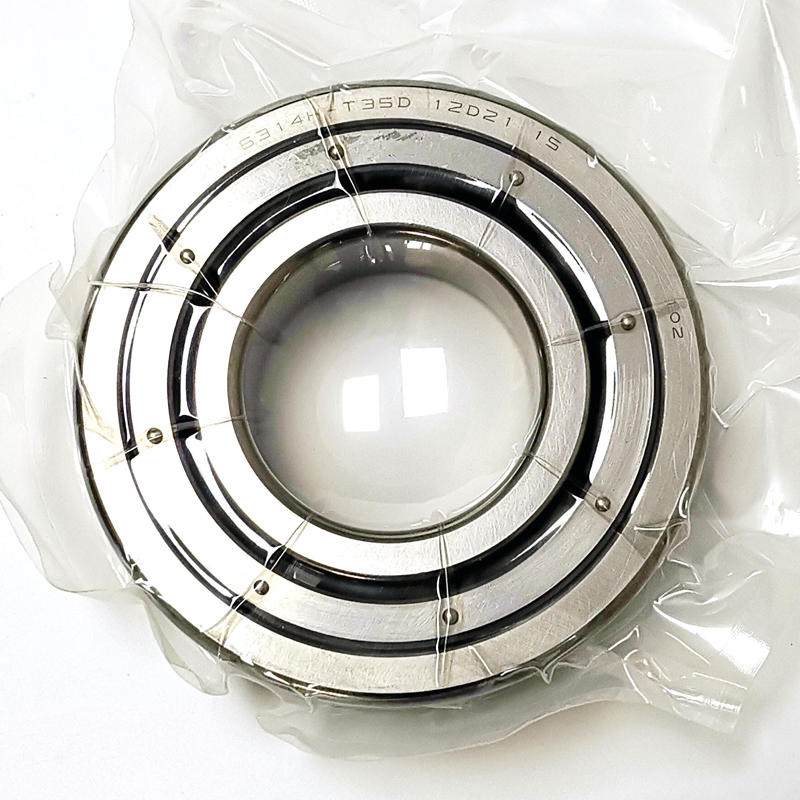

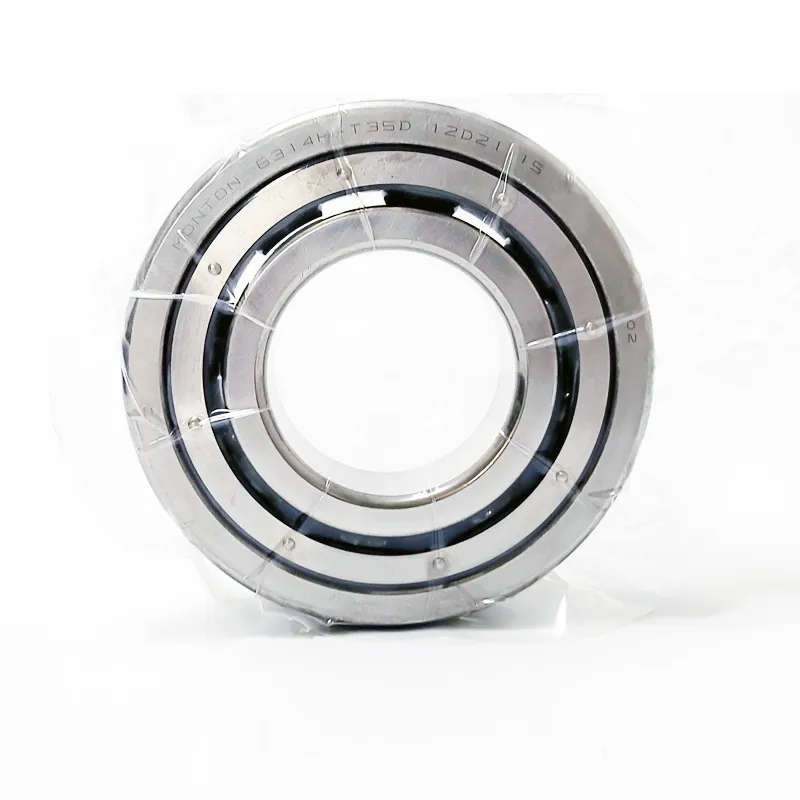

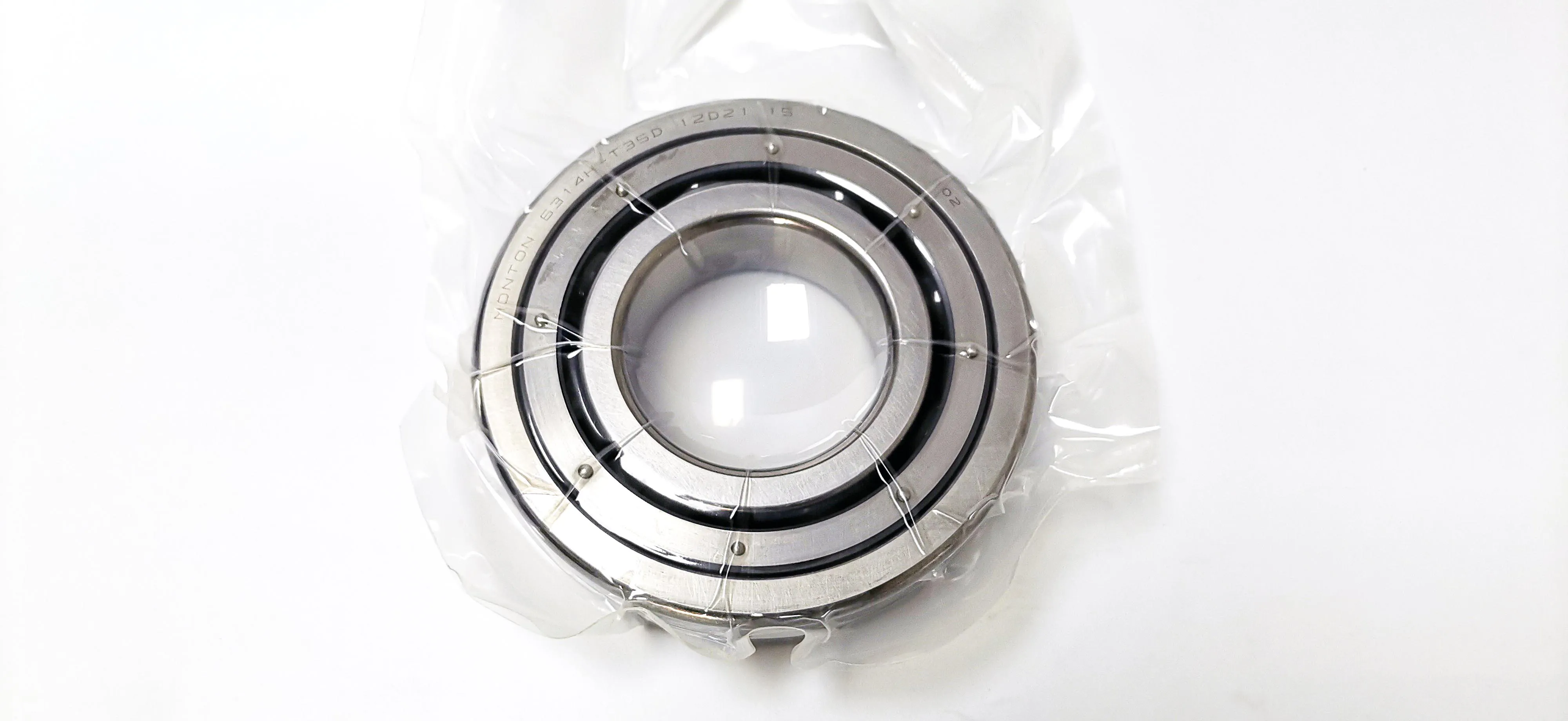

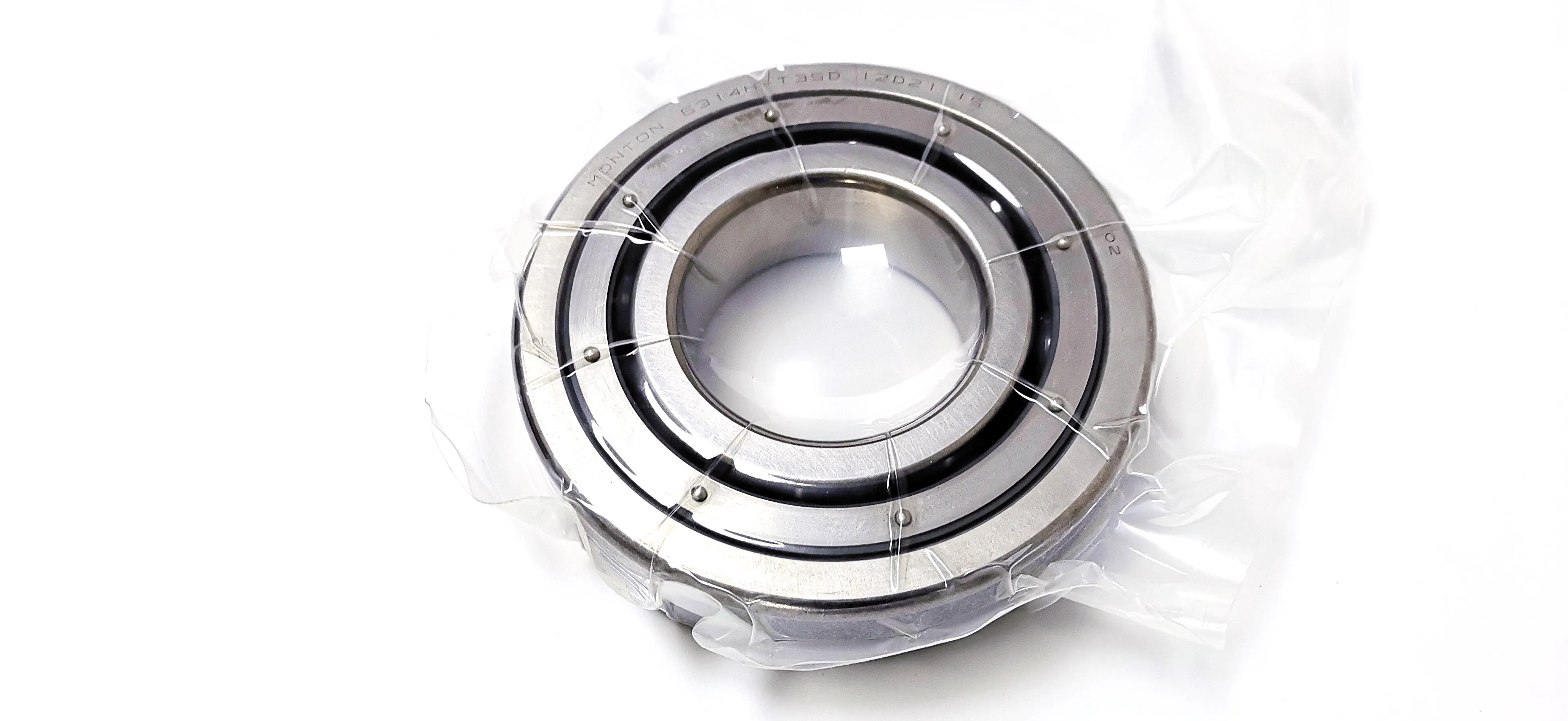

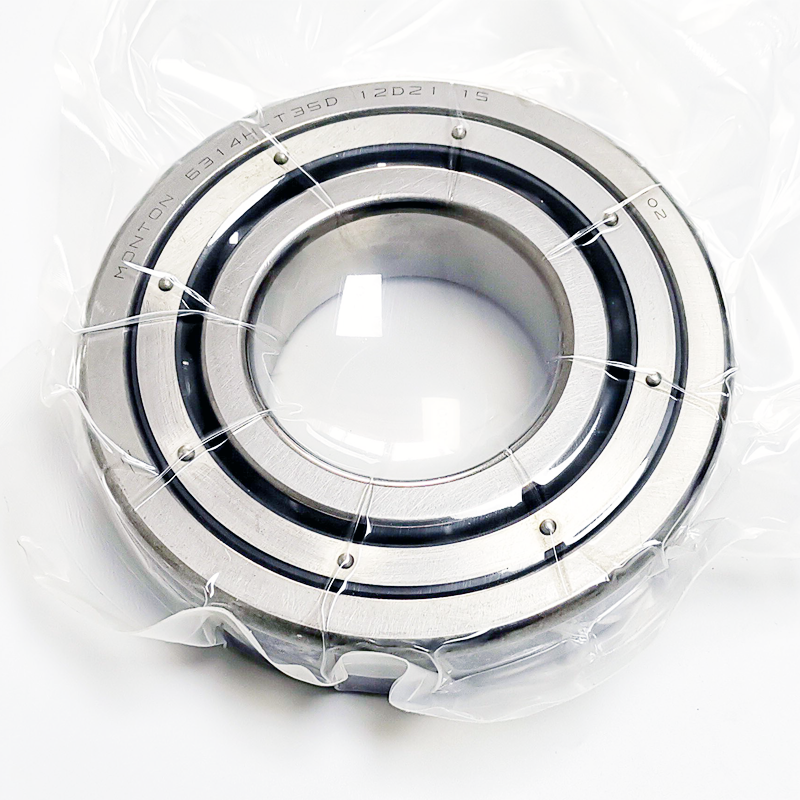

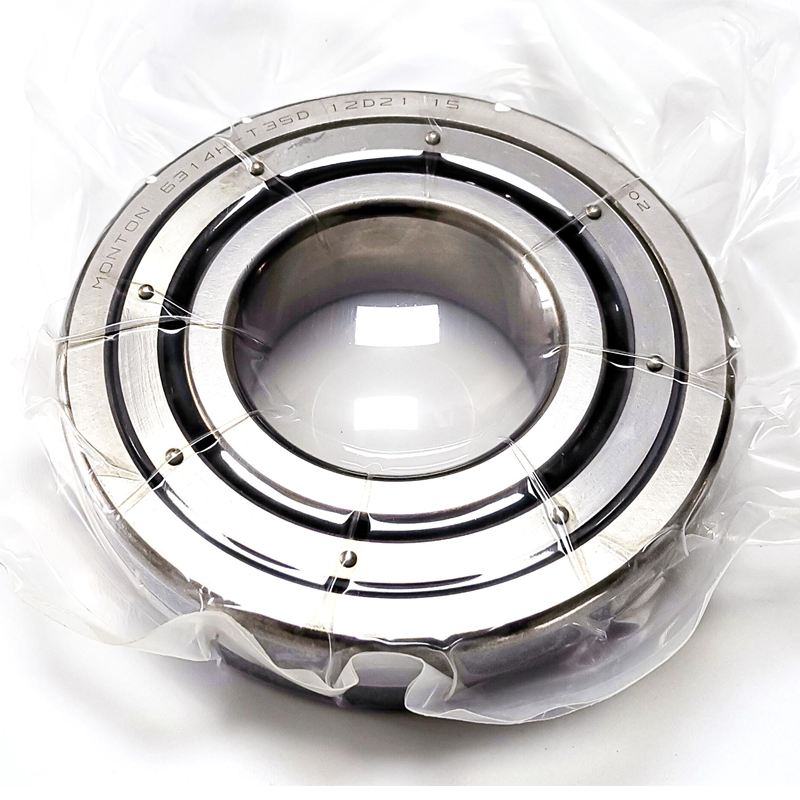

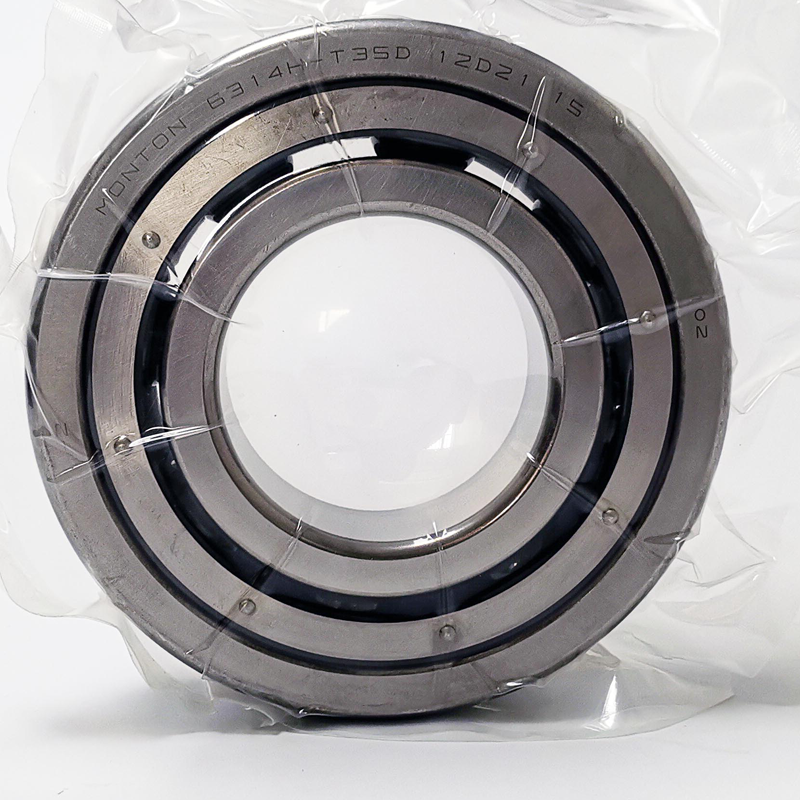

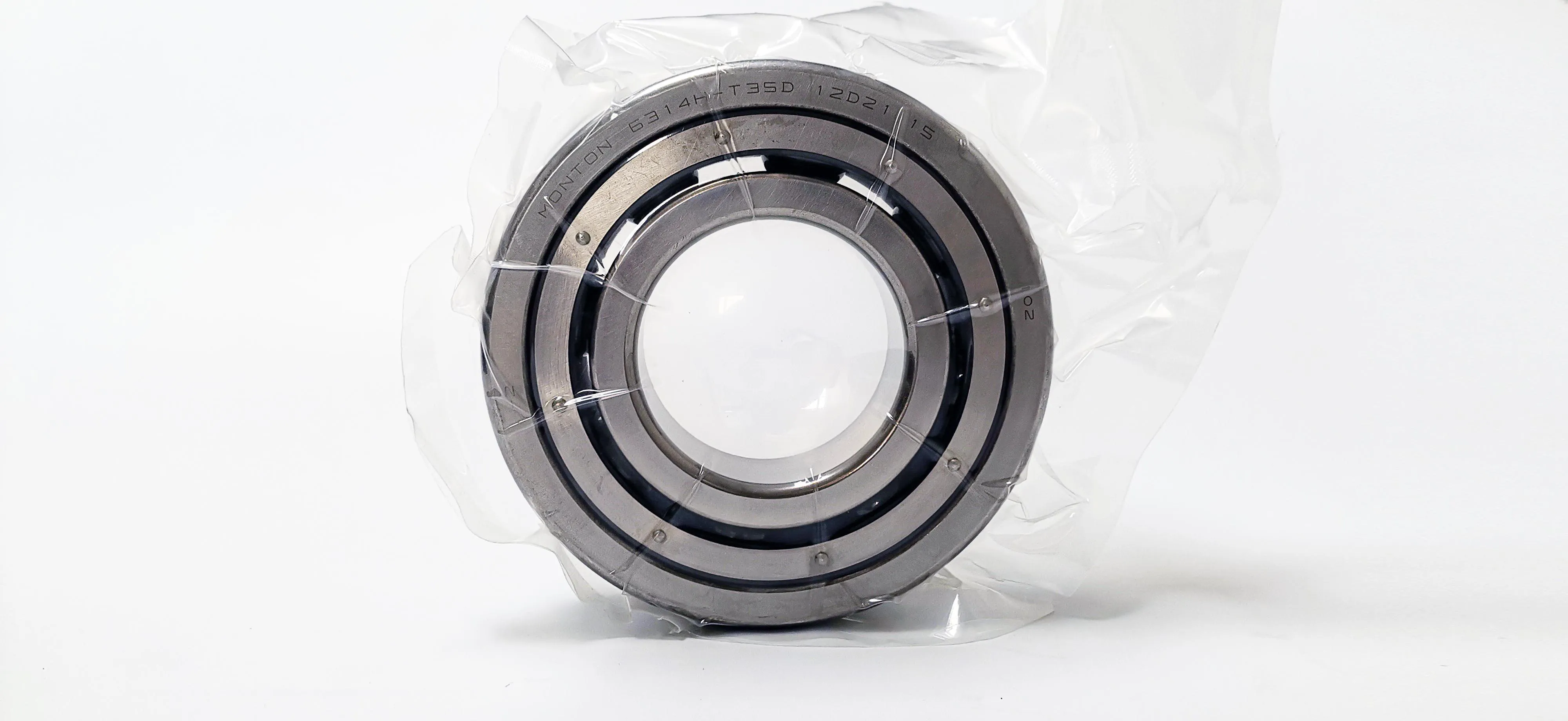

  • 6314-H-T35D is a deep groove ball bearing designed specifically for extreme low-temperature conditions, widely used in submersible low-temperature centrifugal pumps in fields such as liquefied natural gas (LNG). 6314-H-T35D, with optimized low-temperature materials, special retaining frames, and sealing designs, has become the core component of ultra-low temperature equipment such as LNG pumps, ensuring high reliability operation under extreme conditions of -196 ℃ without external lubrication.
Case Details

Name

Cryogenic bearing

Brand

MONTON

Model

6314H-T35D

Bore diameter

70mm

Outside diameter

150mm

B(width)

35mm

Ring Material

Speical bearing steel

Cage Material

PTFE cage

Bore type

deep groove

Basic dynamic load ratingCr

102KN

Basic static load ratingCor

66KN

Reference speed

9000r/min

Sealed

as customer requested

Weight

2.5KG

Sealing type

open

Quality standard

ISO9001: 2000/SGS

Package

single box

Original

Luoyang

Service

OEM

Delivery date

5-35 days Accord to order qty

Application

LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -256°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.
