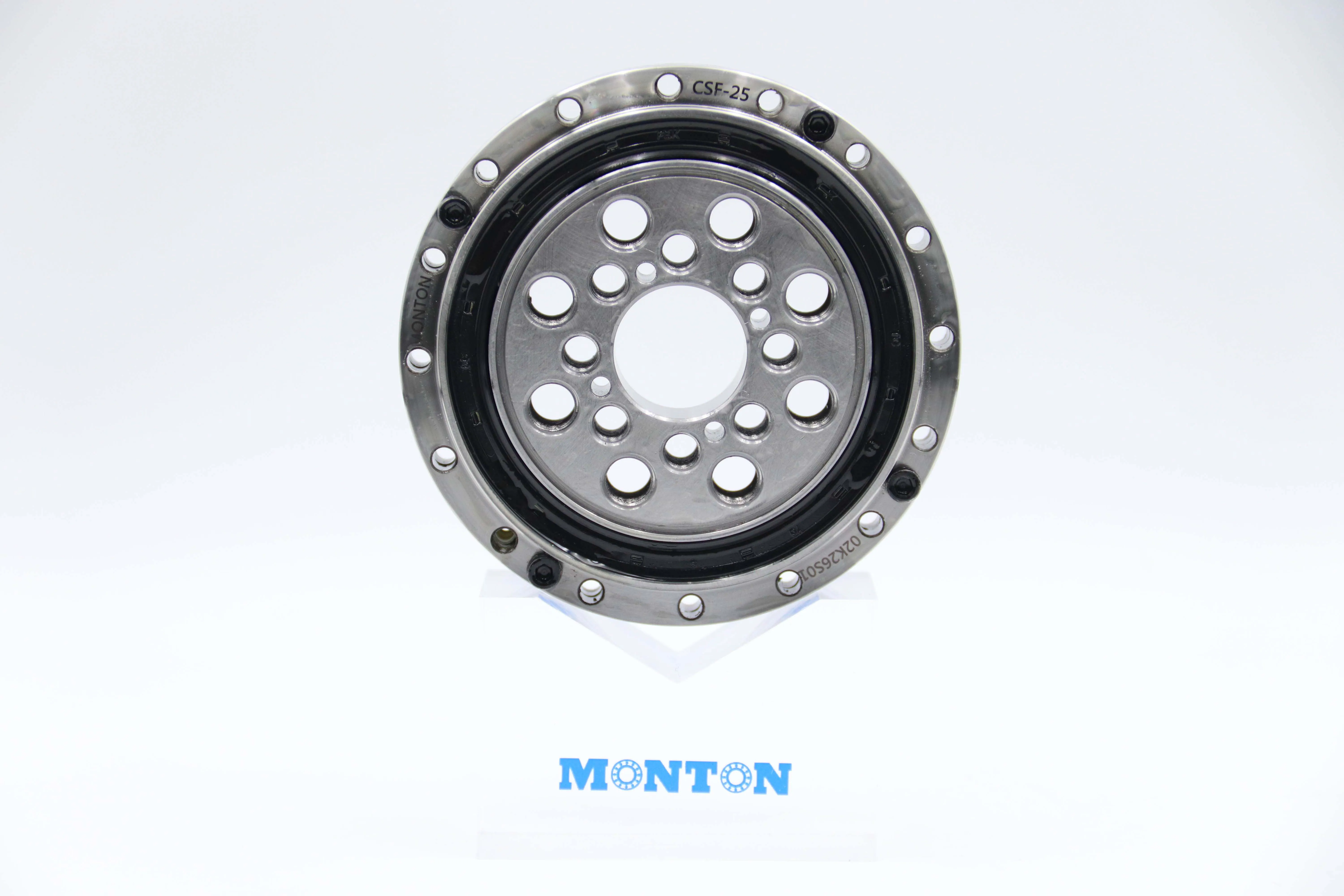

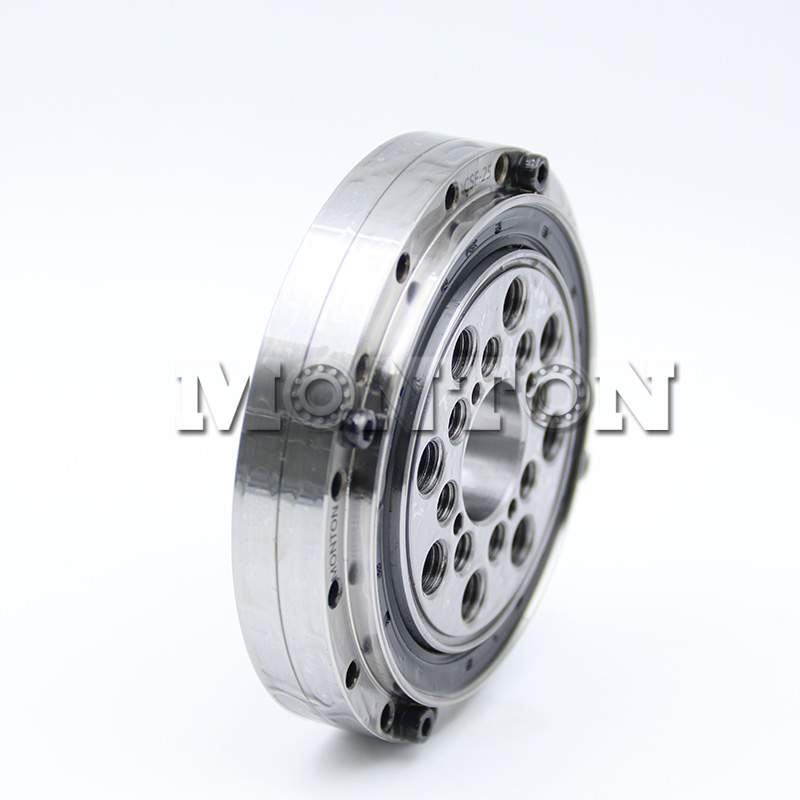

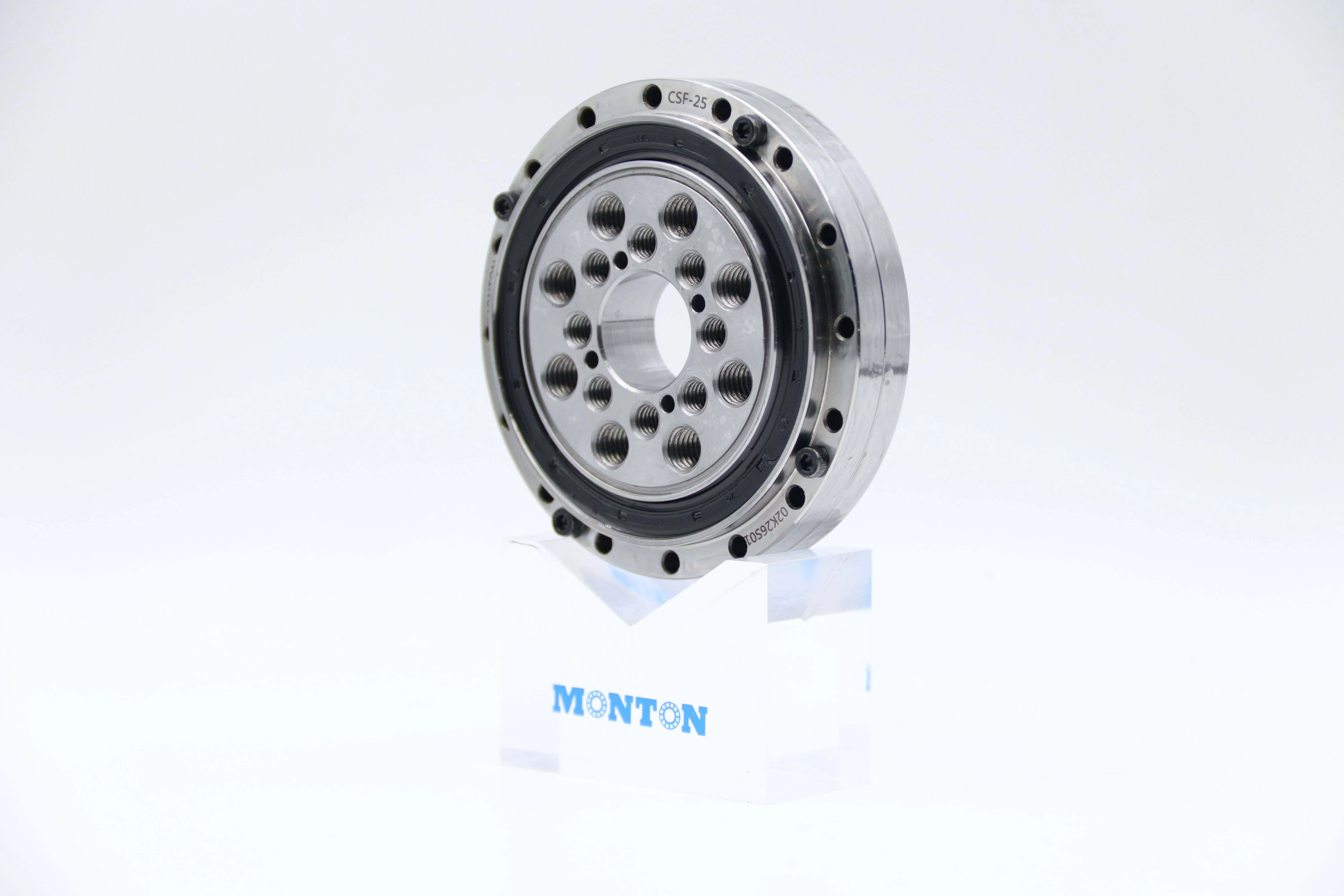

CSF-25 Harmonic Drive Crossed Roller Bearing

CSF-25 crossed roller bearings are the core rigid support components of harmonic reducers, especially the CSF series. They adopt a unique "outer ring split, inner ring integral" structure, designed to withstand composite loads of axial force, radial force, and overturning moment, ensuring the rigidity and stability of the reducer under high-precision transmission. CSF-25 is mainly used in situations with heavy loads and strict space limitations, such as industrial robot joints, precision robotic arms, and aviation servo mechanisms. This cross roller structure enables a single bearing to simultaneously handle complex loads in multiple directions. Compared to traditional bearings, it provides higher rotational accuracy and anti overturning ability while being more compact in size.

Case Details

Name	Harmonic Drive Crossed Roller Bearing
Seires	CSF series
Brand	MONTON
Model	CSF-25
d	20mm
D	85mm
B	18.5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	11.2KN
Load rating Cor	16kN
Sealed	According to requirement
Weight	0.65KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2015/TUV/ROhs/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive reducer,Robotics
