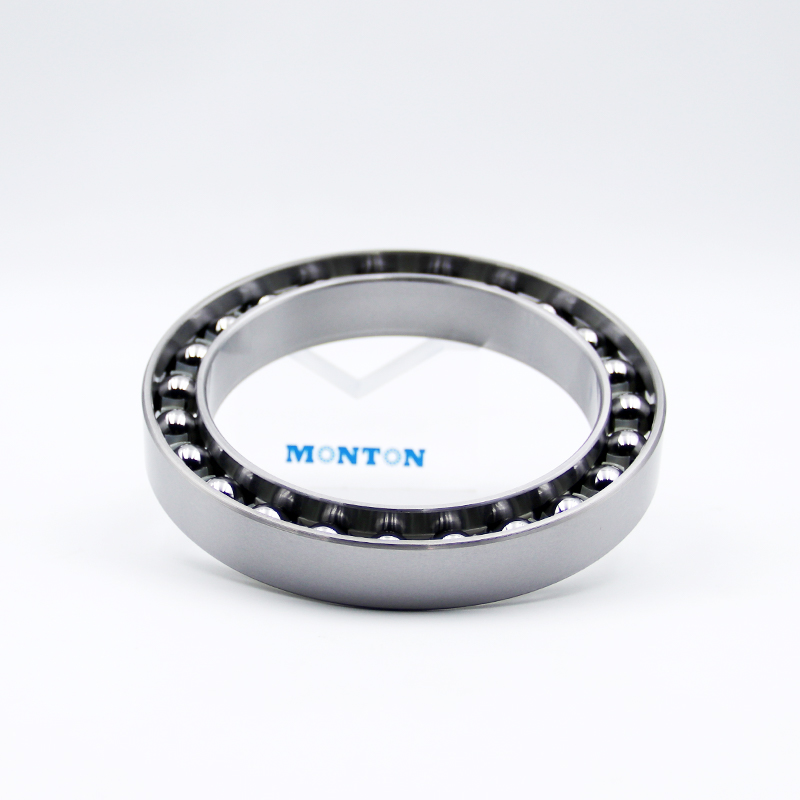

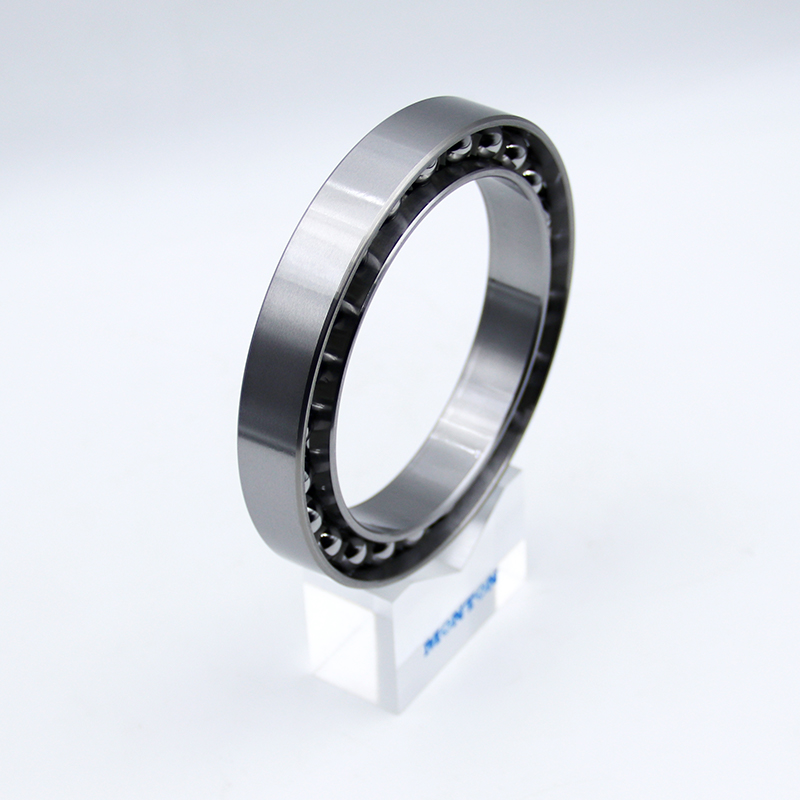

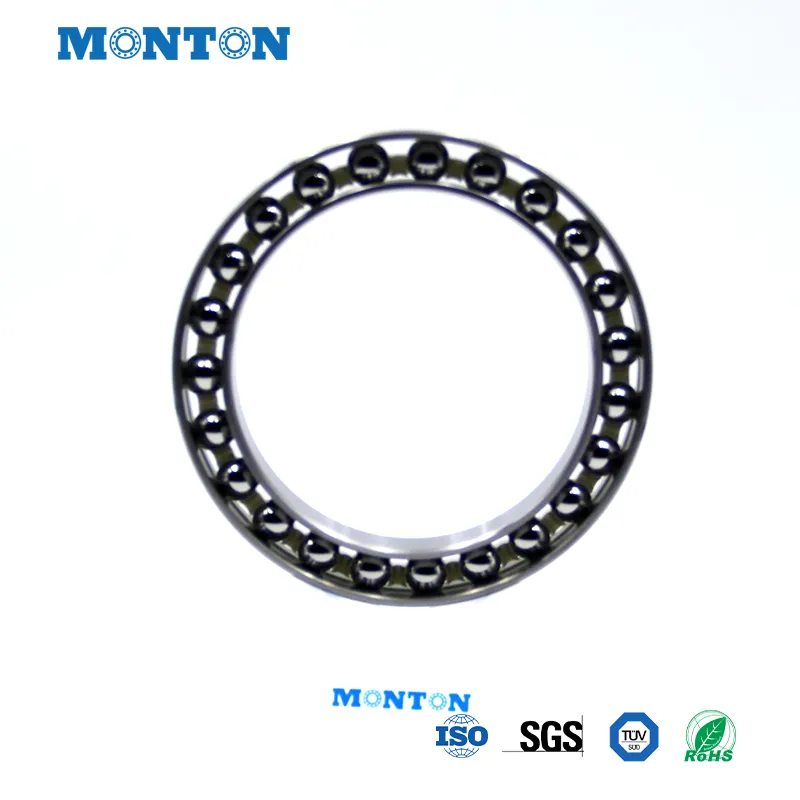

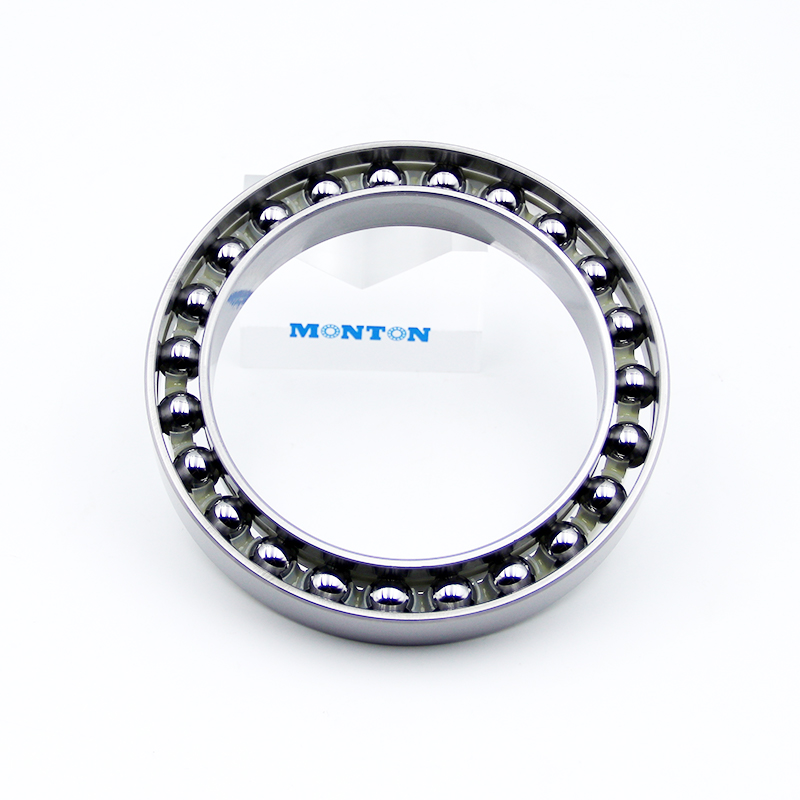

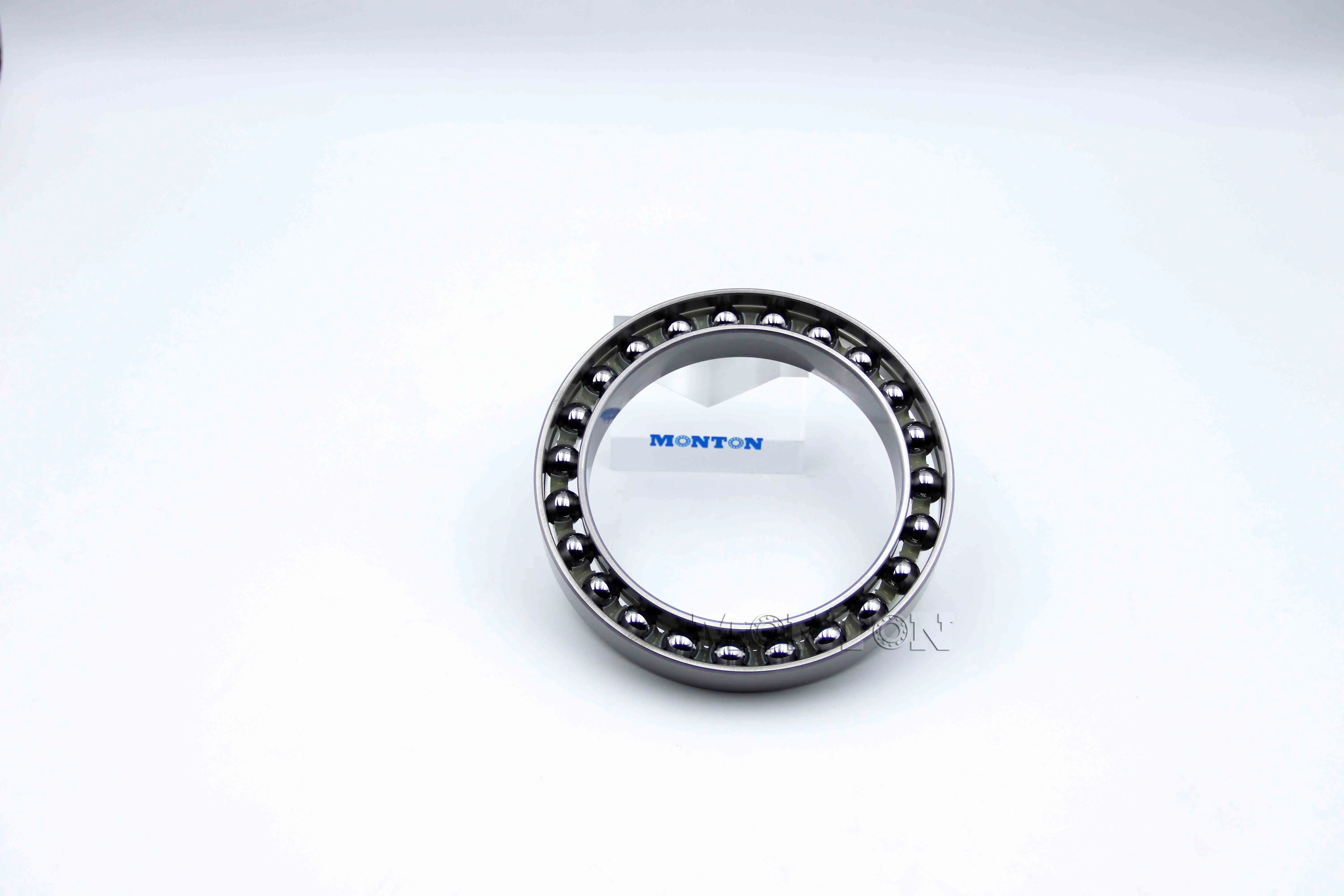

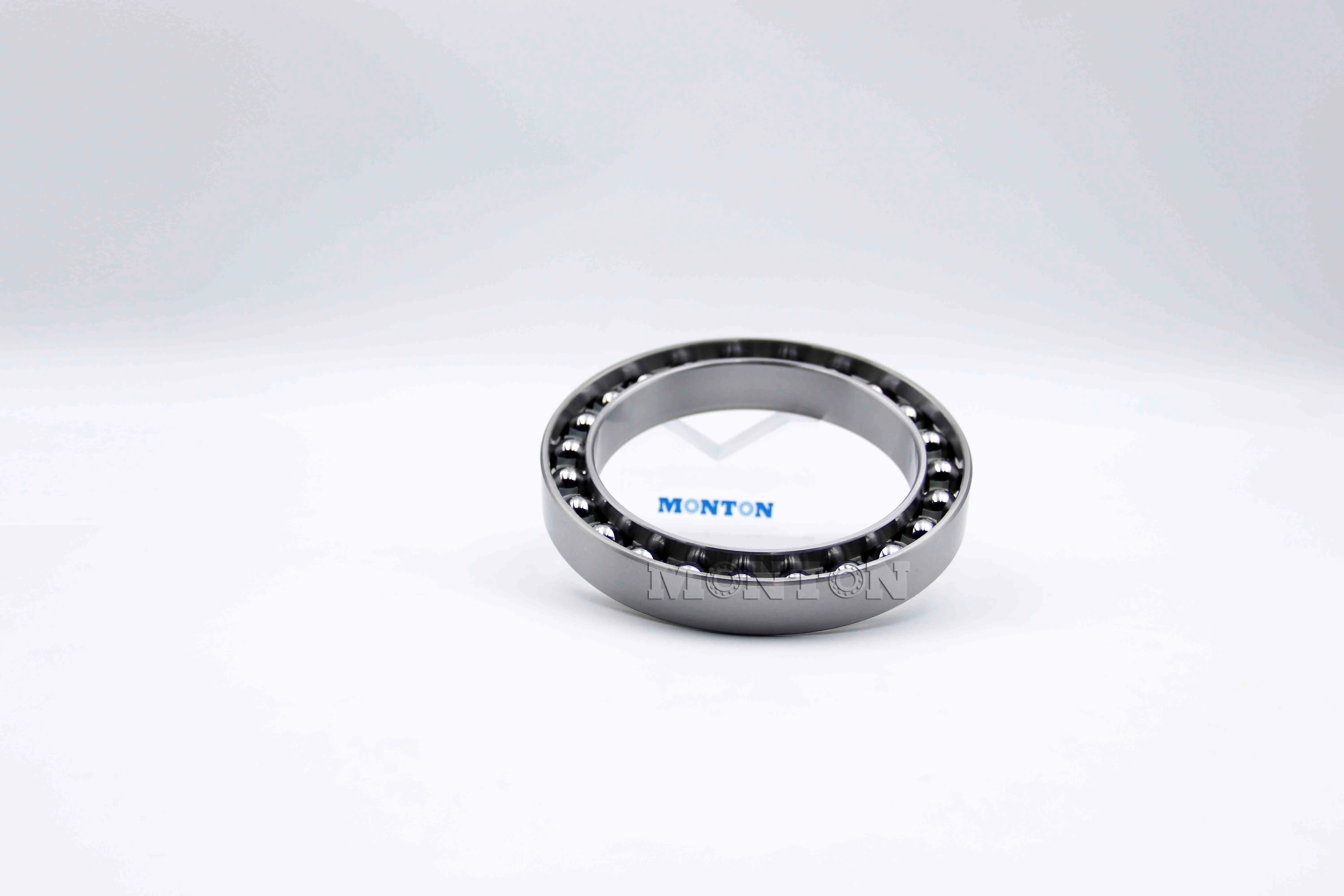

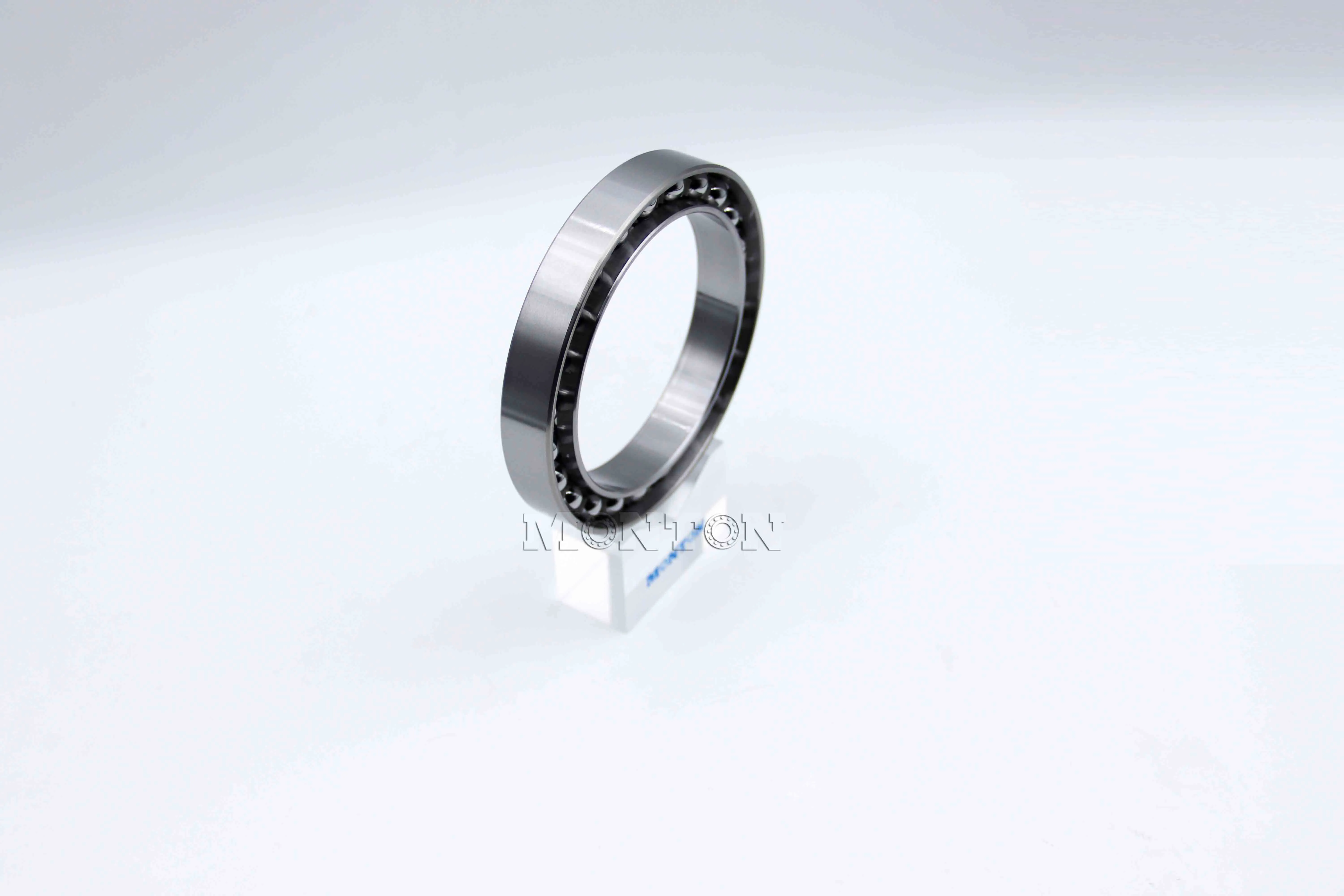

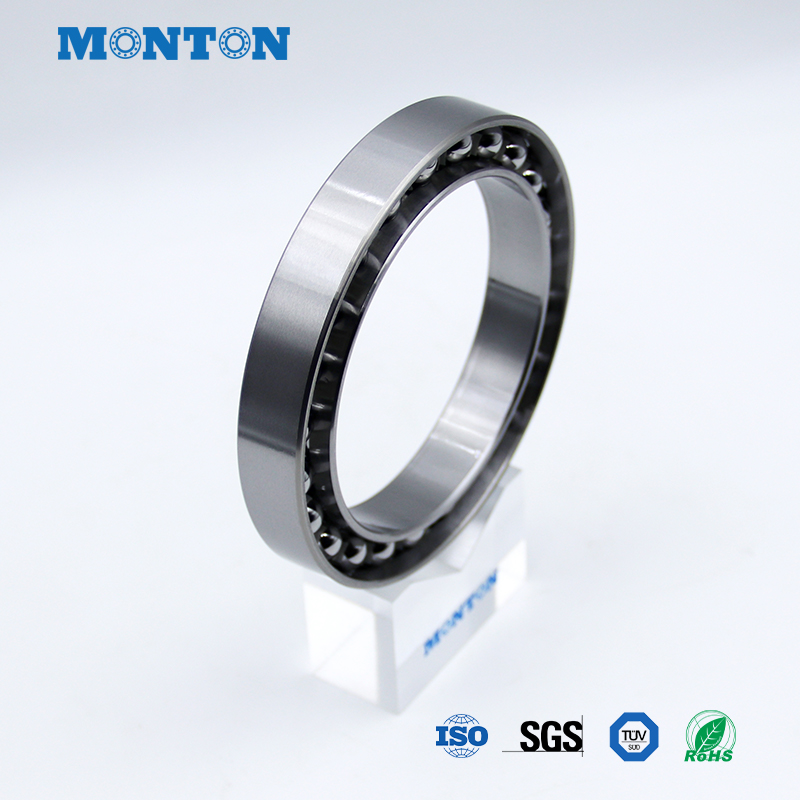

3E812KAT2 Human robot Flexible Bearing

3E812KAT2 flexible bearing is the core component of the harmonic reducer for humanoid robots. It adopts a thin-walled design (with an outer ring thickness of only 12mm) and achieves high reduction ratio transmission through elastic deformation. It is suitable for humanoid robots, industrial robots, harmonic reducers and other fields. The inner and outer rings, as well as the rolling elements, are made of high-quality bearing steel and have a lifespan of over 10 years. The retainer is a nylon integral retainer that can withstand alternating cyclic stress loads. Often used in conjunction with cross roller bearings in the field of harmonic reducers.

Case Details

Name	Flexible Bearing
Brand	MONTON
Model	3E812KAT2
Bore diameter	60mm
Outside diameter	80mm
B(width)	12mm
Ring Material	ZGcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating C	15.51KN
Basic static load rating C0	14.44KN
Input rotate speed	3000
Radial Deformation	0.5
Sealed	Open
Row	Single row
Weight	0.12KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Harmonic drive reducer Machine tool Robotics Satellite
