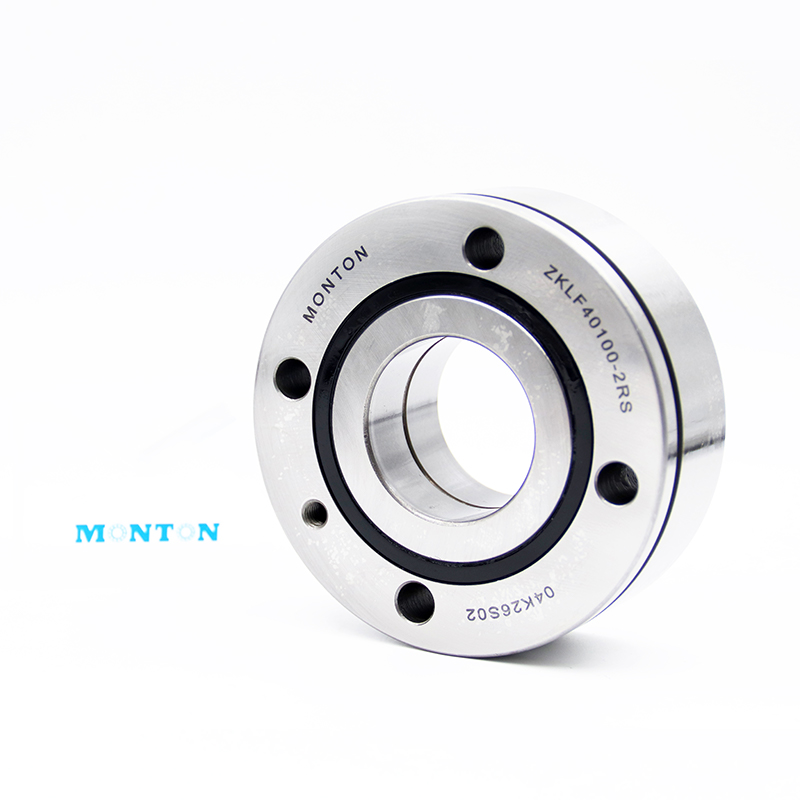

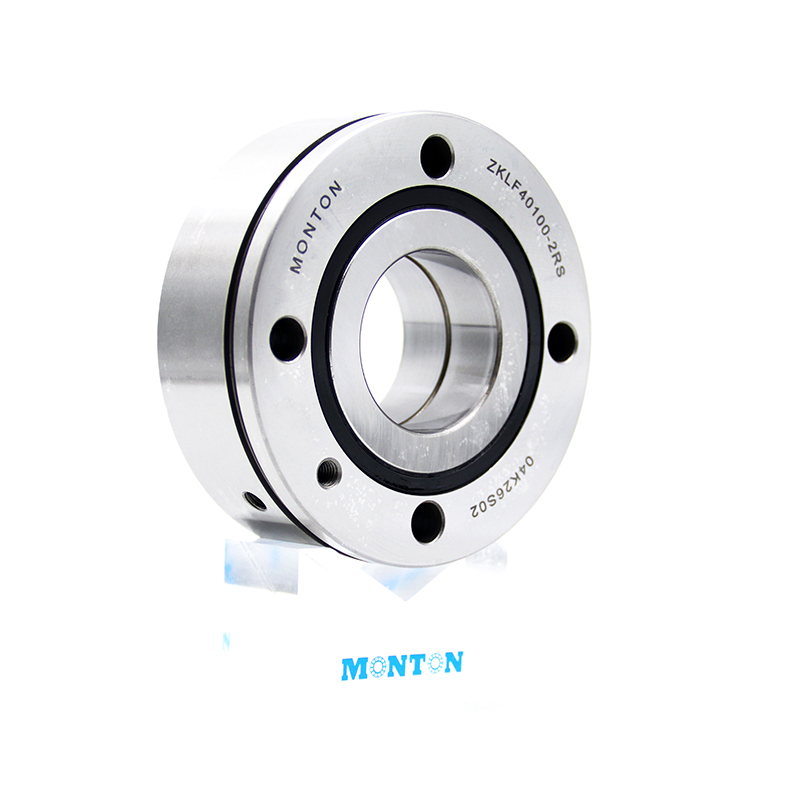

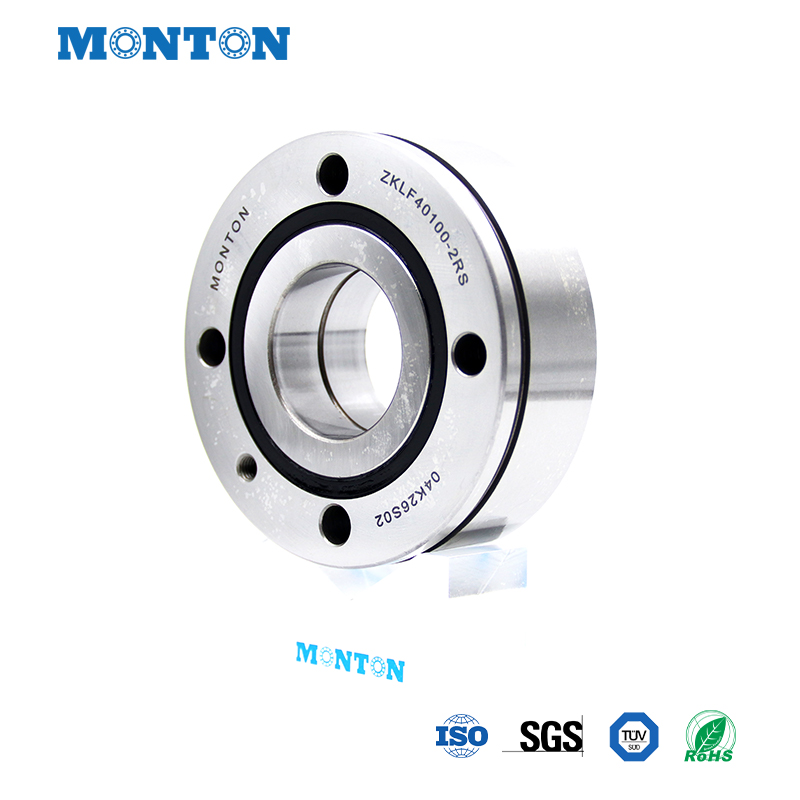

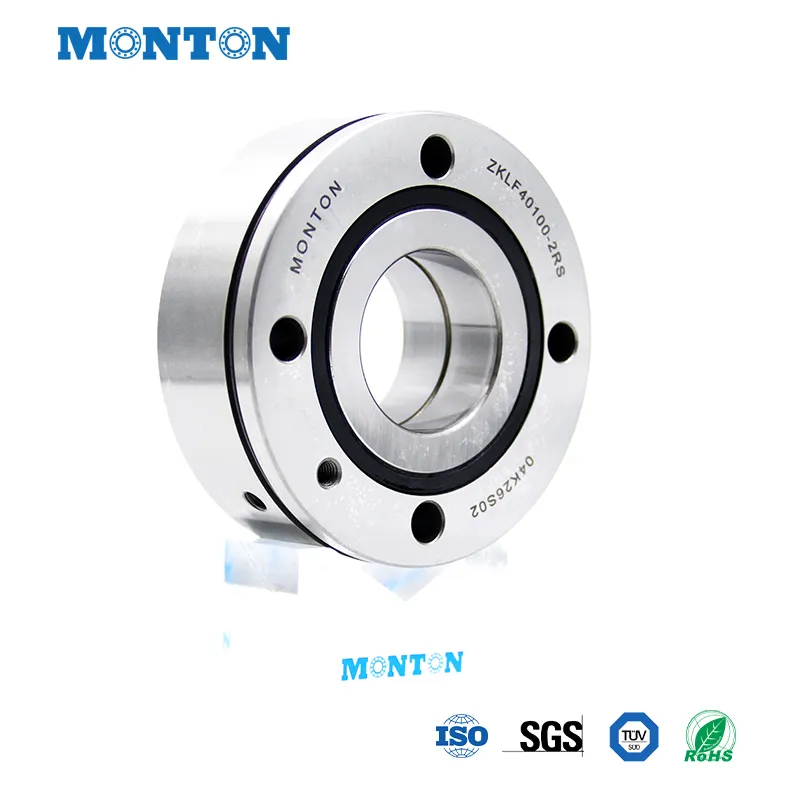

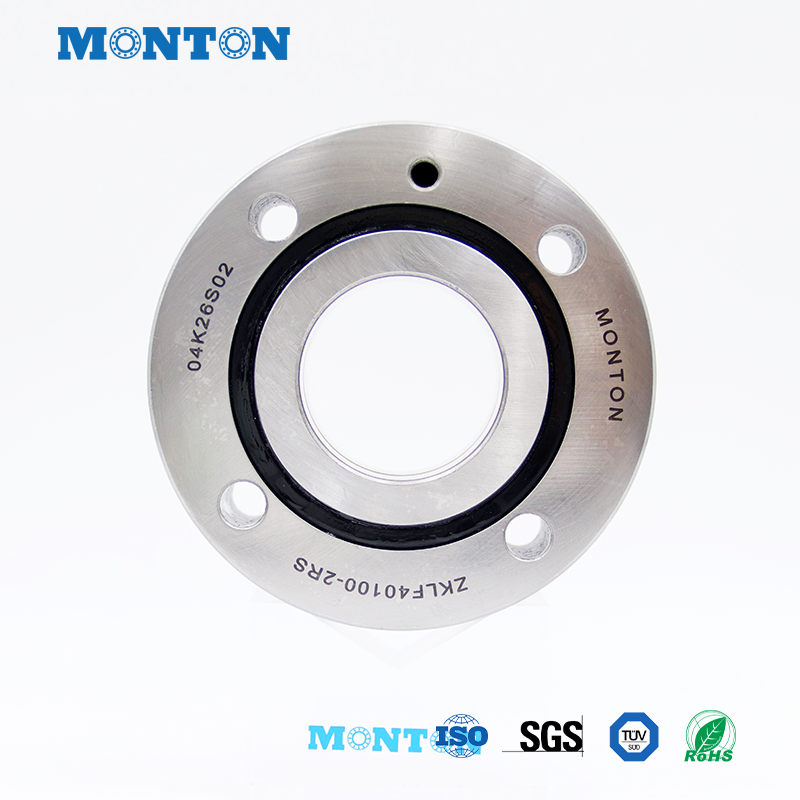

ZKLF40100-2RS Axial-angular Contact Ball Bearings For Screw Drives

The ZKLF40100-2RS thrust angular contact ball screw support bearing produced by Mengtuo Bearing is designed for bi-directional force, using screw installation and equipped with double-sided contact lip seals. It is mainly used for screw support in industrial machinery.

Case Details

Name	Axial-angular Contact Ball Bearings For Screw Drives
Brand	MONTON
Model	ZKLF40100-2RS
Bore diameter	40mm
Outside diameter	100mm
B(width)	34mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating, axial Ca	47.5KN
Basic static load rating, axial C0a	101KN
Limiting speed for Grease lubrication	4000 1/min
Thermally safe operating speed	1800 1/min
Bearing frictional torque	0.7Nm
Sealed	Double seals
Weight	1.47KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
