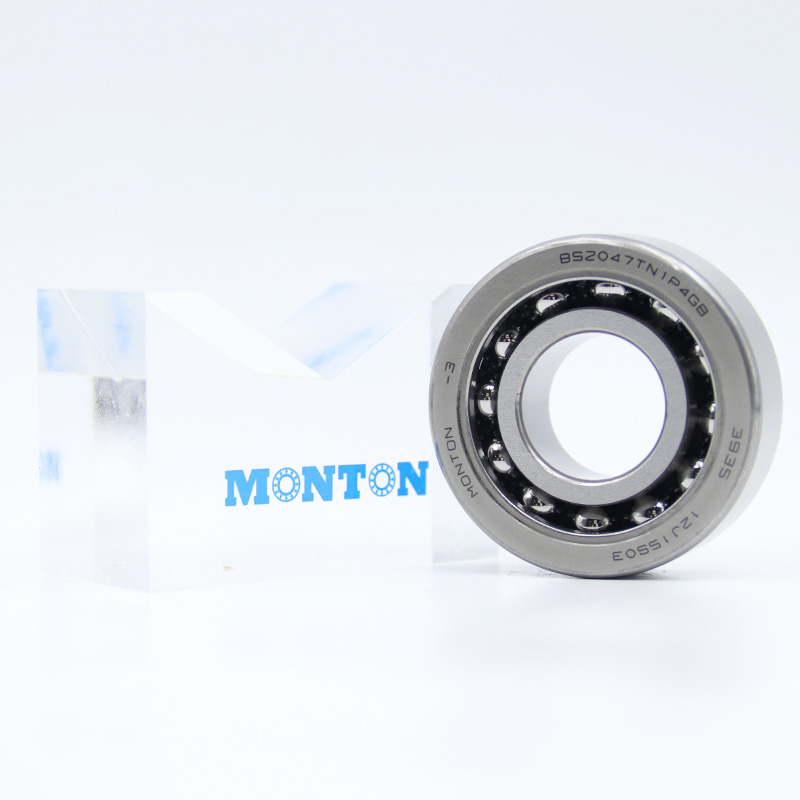

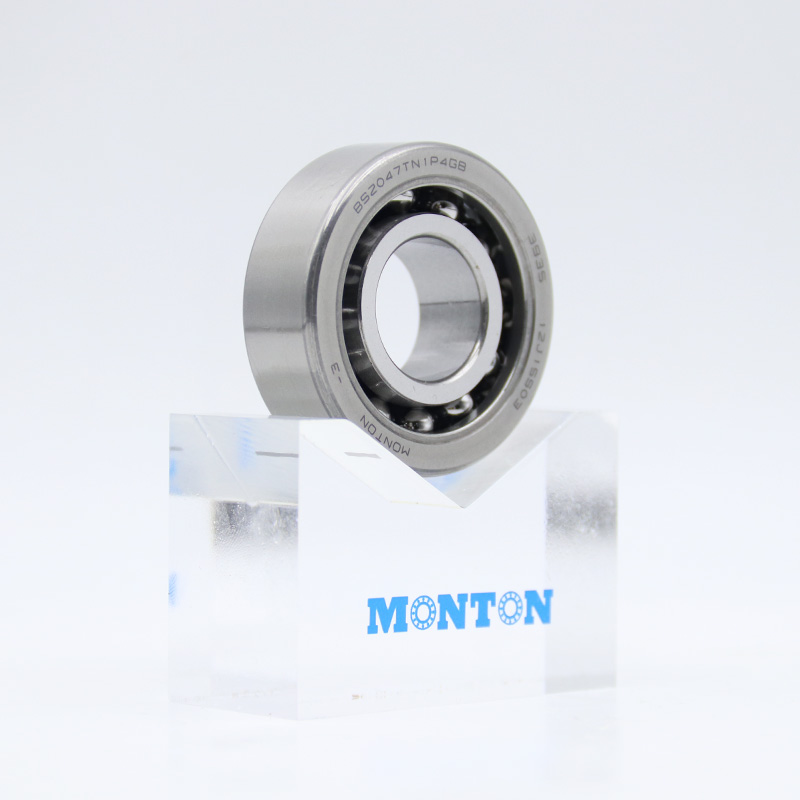

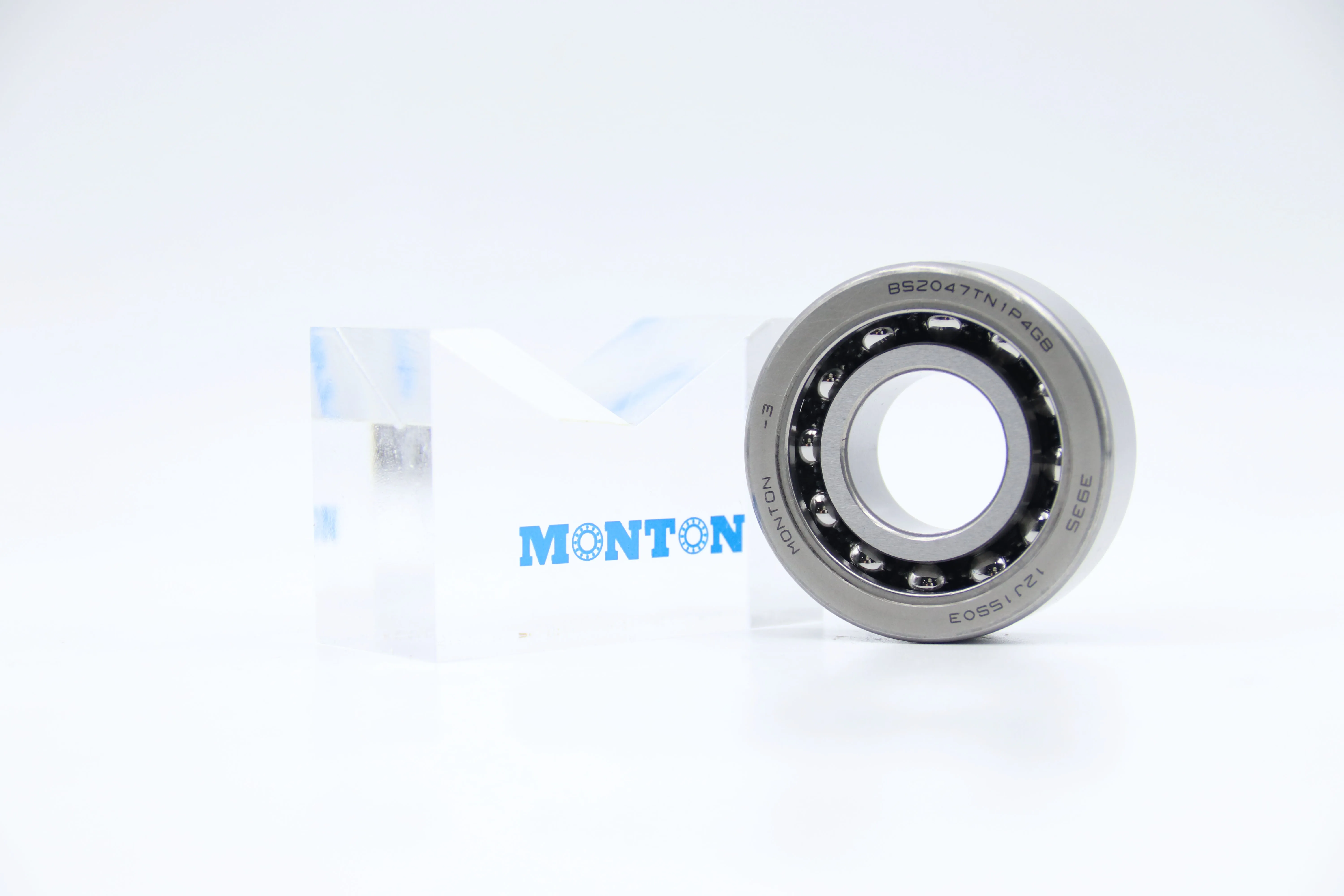

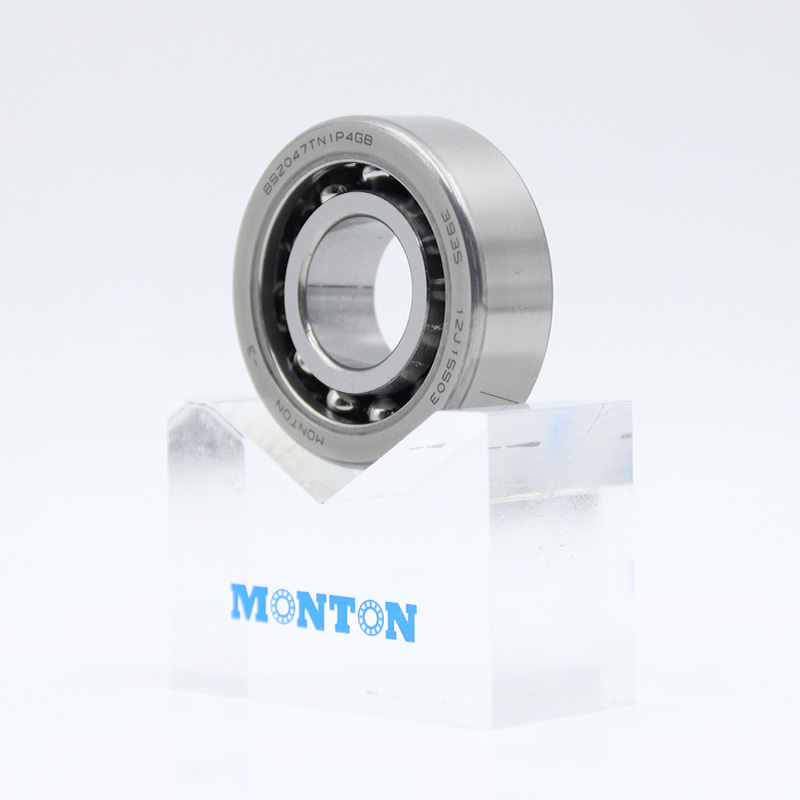

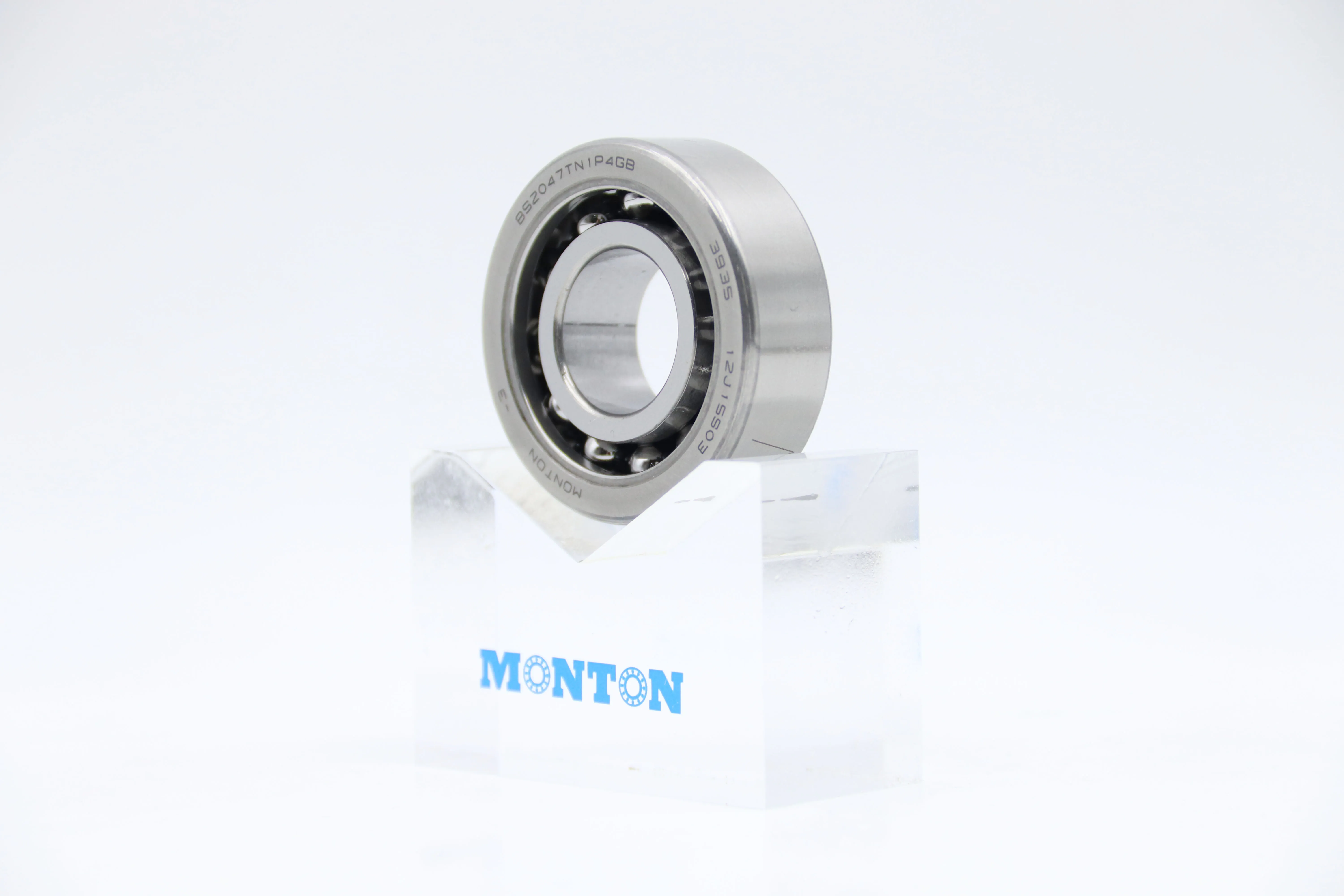

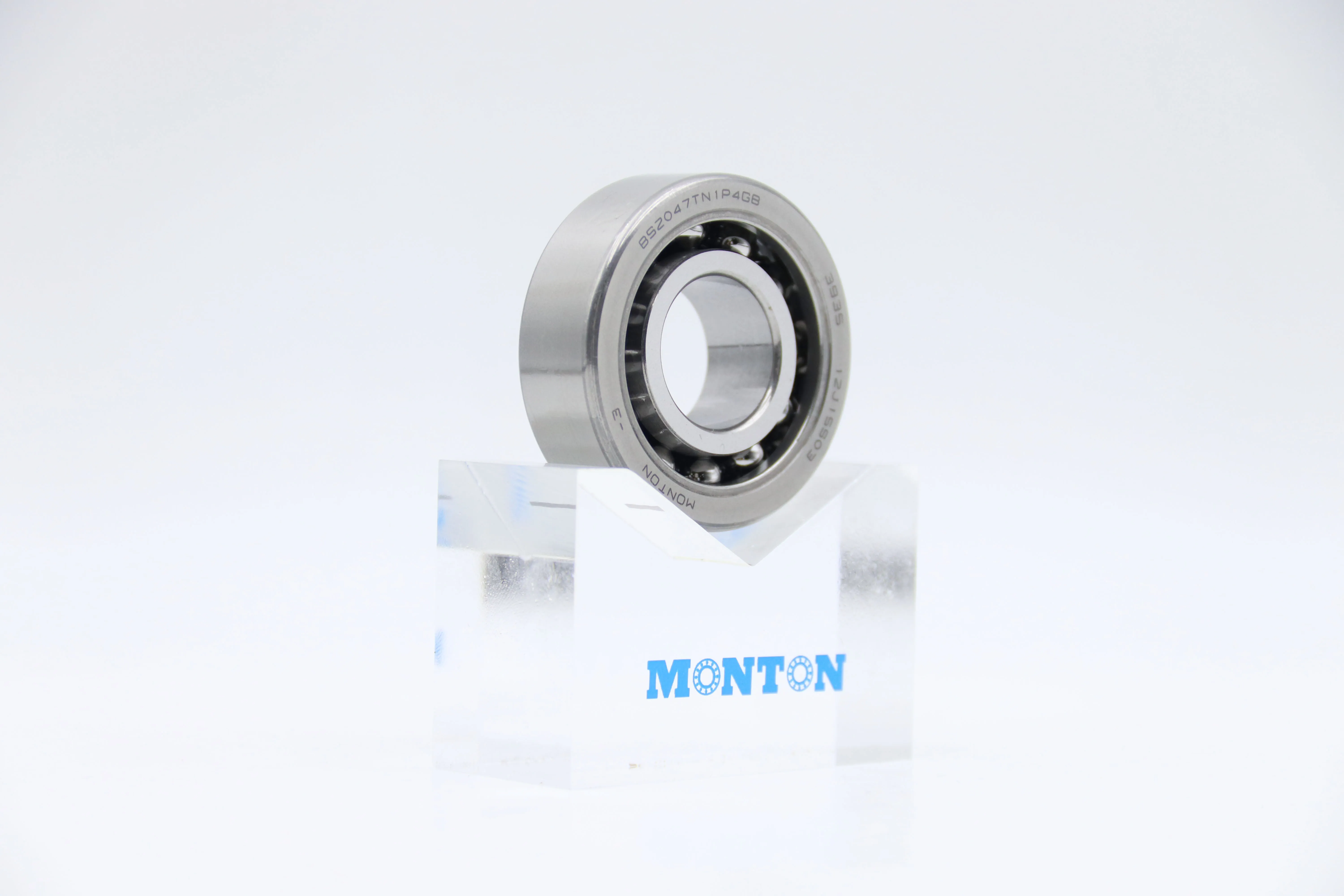

BS2047TN1P4GB Ball scew support bearings

BS2047 TN1P4GB thrust angular contact ball bearing, designed specifically for ball screw support, with high precision and high-speed characteristics. Its inner diameter is 20mm, outer diameter is 47mm, contact angle is 60 °, and it adopts PN7B precision standard (equivalent to ISO4 level). This bearing can be combined into multiple columns for use through the "v" mark on the outer ring, and is suitable for precision equipment such as machine tool spindles and machining centers. Commonly used in CNC lathes, boring machines, machining centers, and gear milling machines; Rolling machines, packaging and printing machines, etc.

Case Details

Name	Ball scew support bearings
Brand	MONTON
Model	BS2047TN1P4GB
Contact angle	60°
rmin	1mm
Bore diameter	20mm
Outside diameter	47mm
B(width)	15mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Ca	19.3KN
Basic static load rating Cor	25KN
Limiting speed for nG Grease	12000 1/min
Limiting speed for nG Oil	17000 1/min
Sealed	Open/Sealed
Row	Single row
Weight	0.13KG
Quality standard	ISO9001: 2000/SGS/TUV
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
