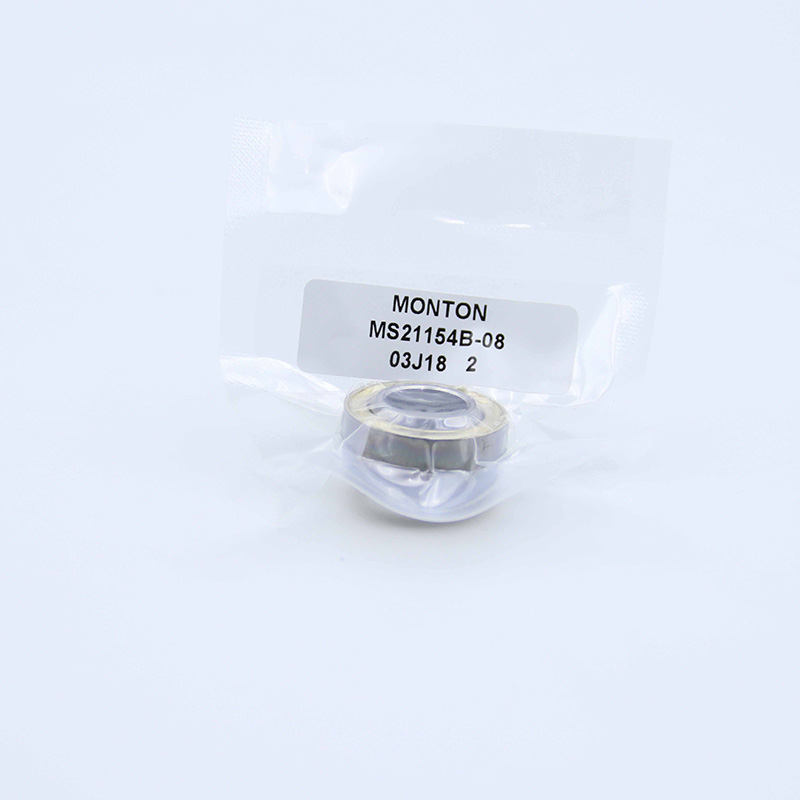

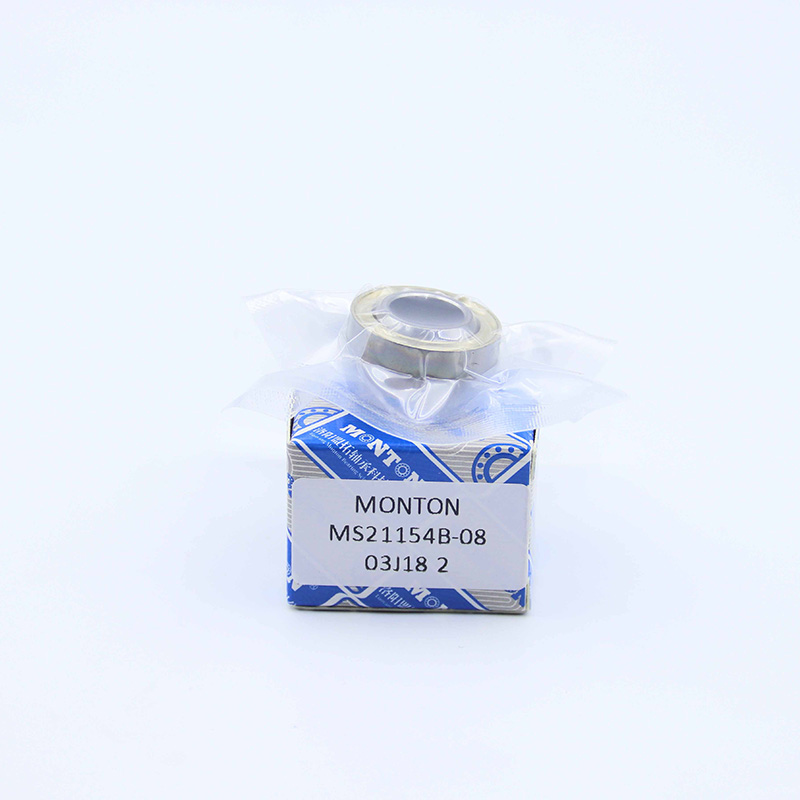

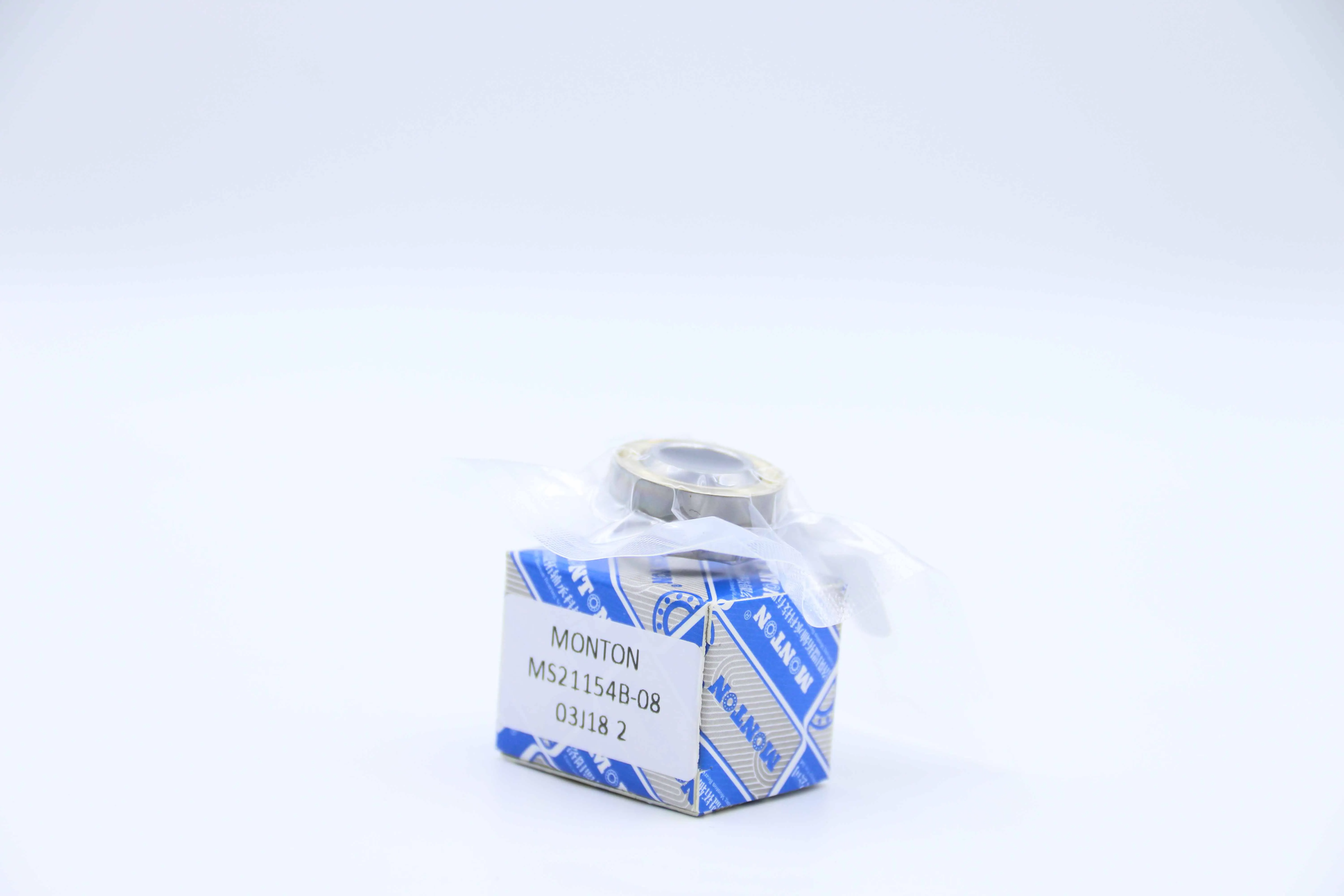

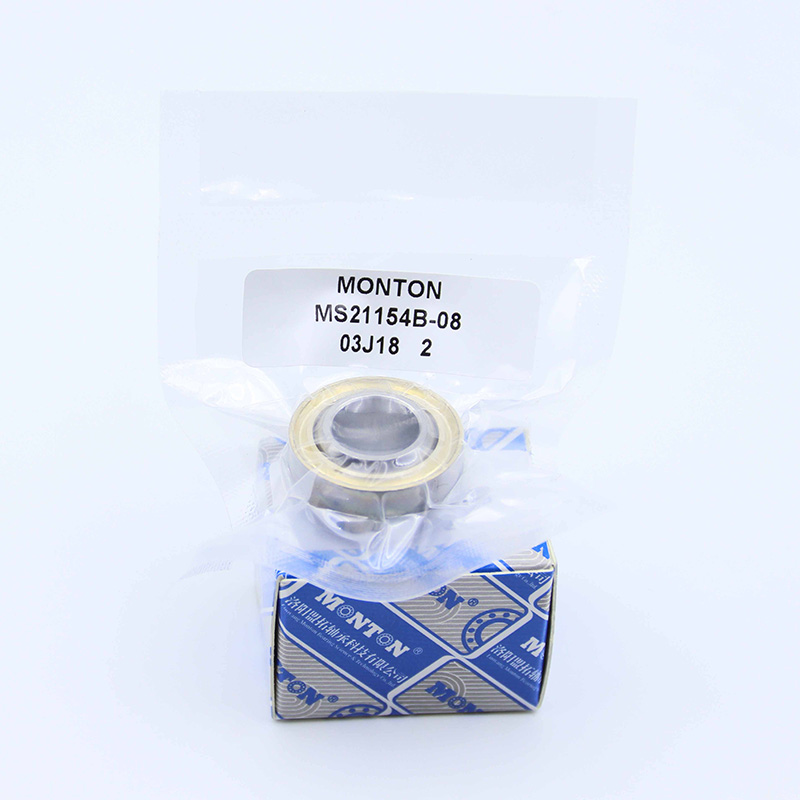

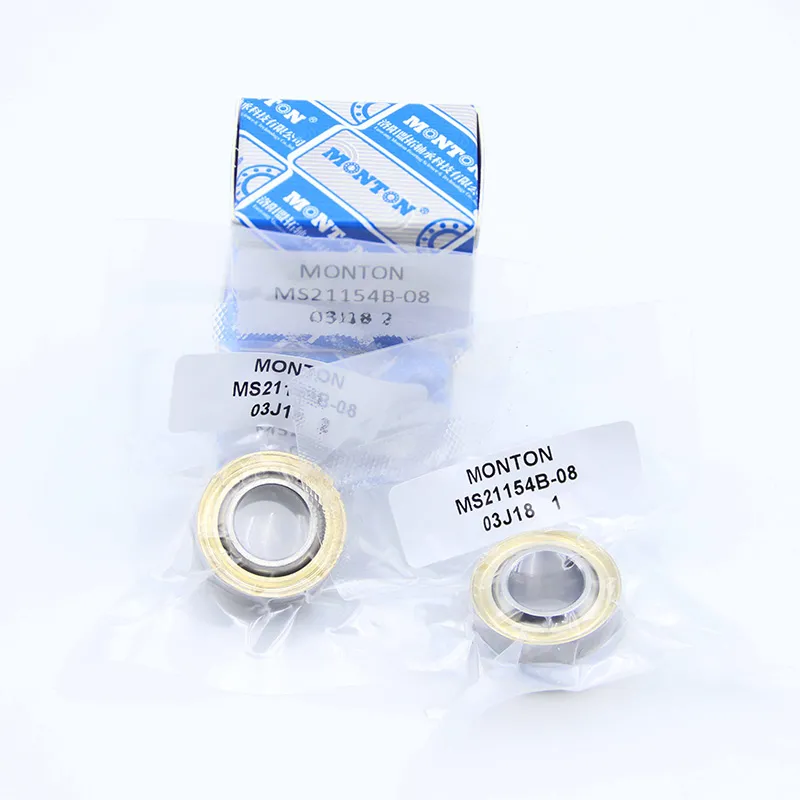

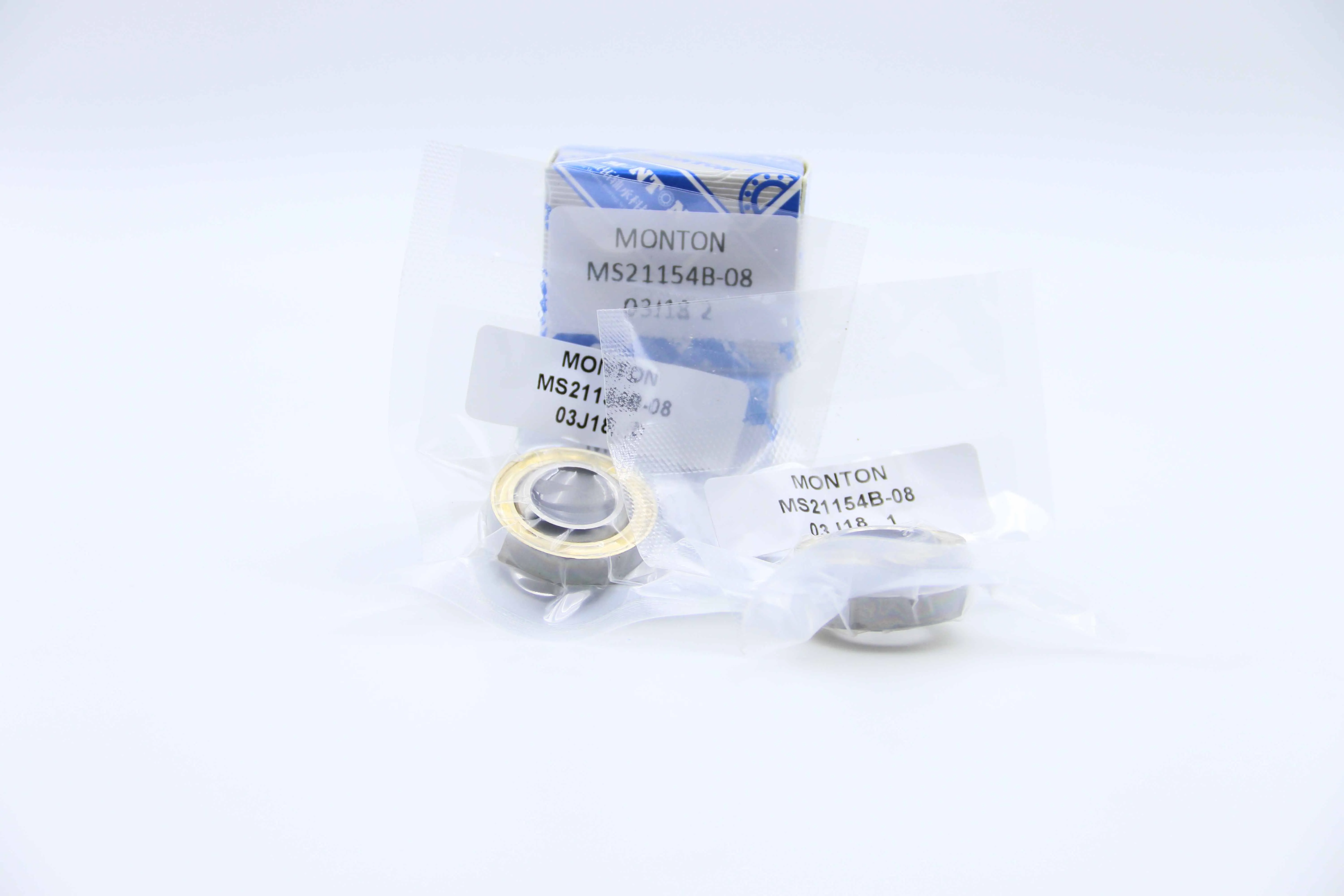

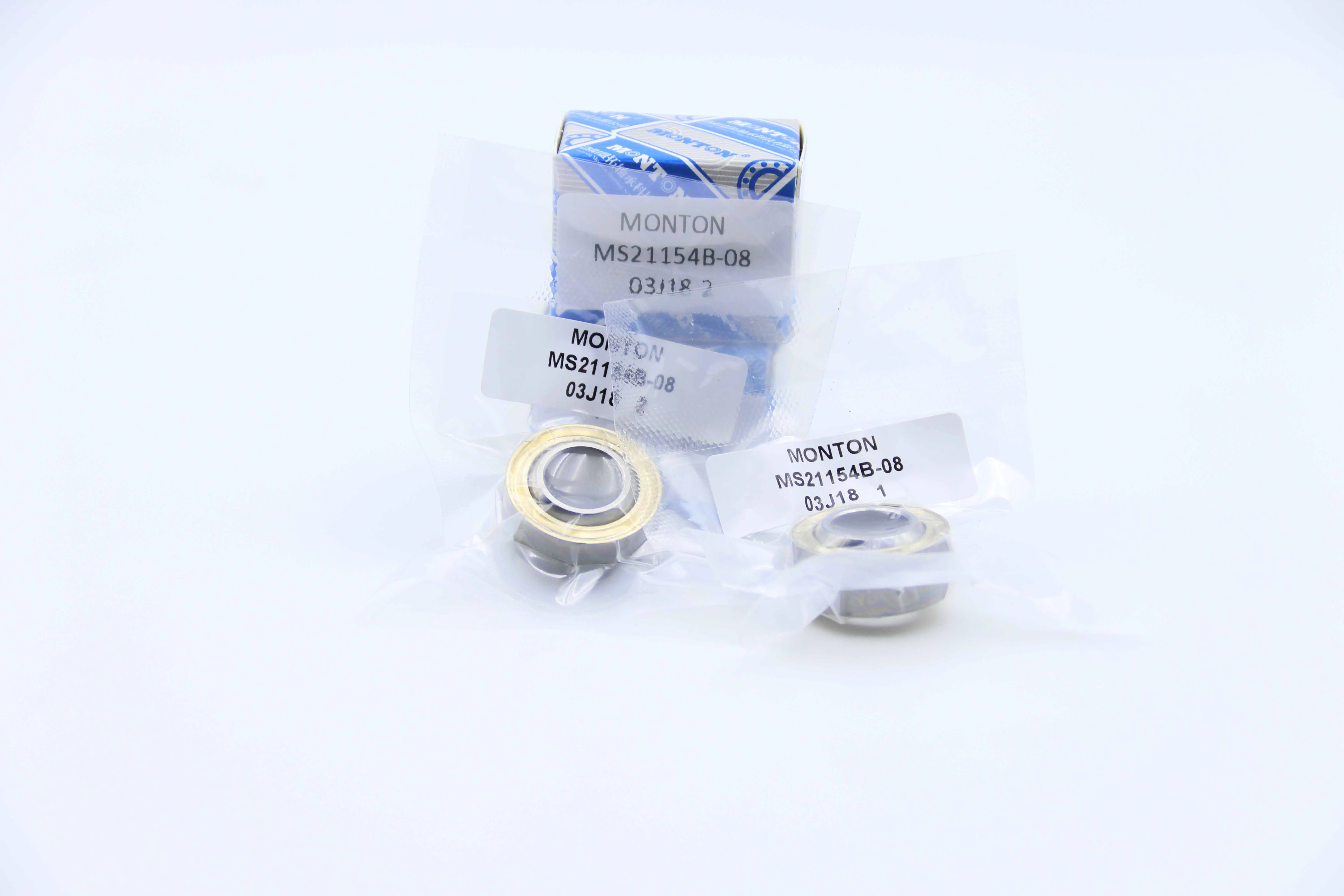

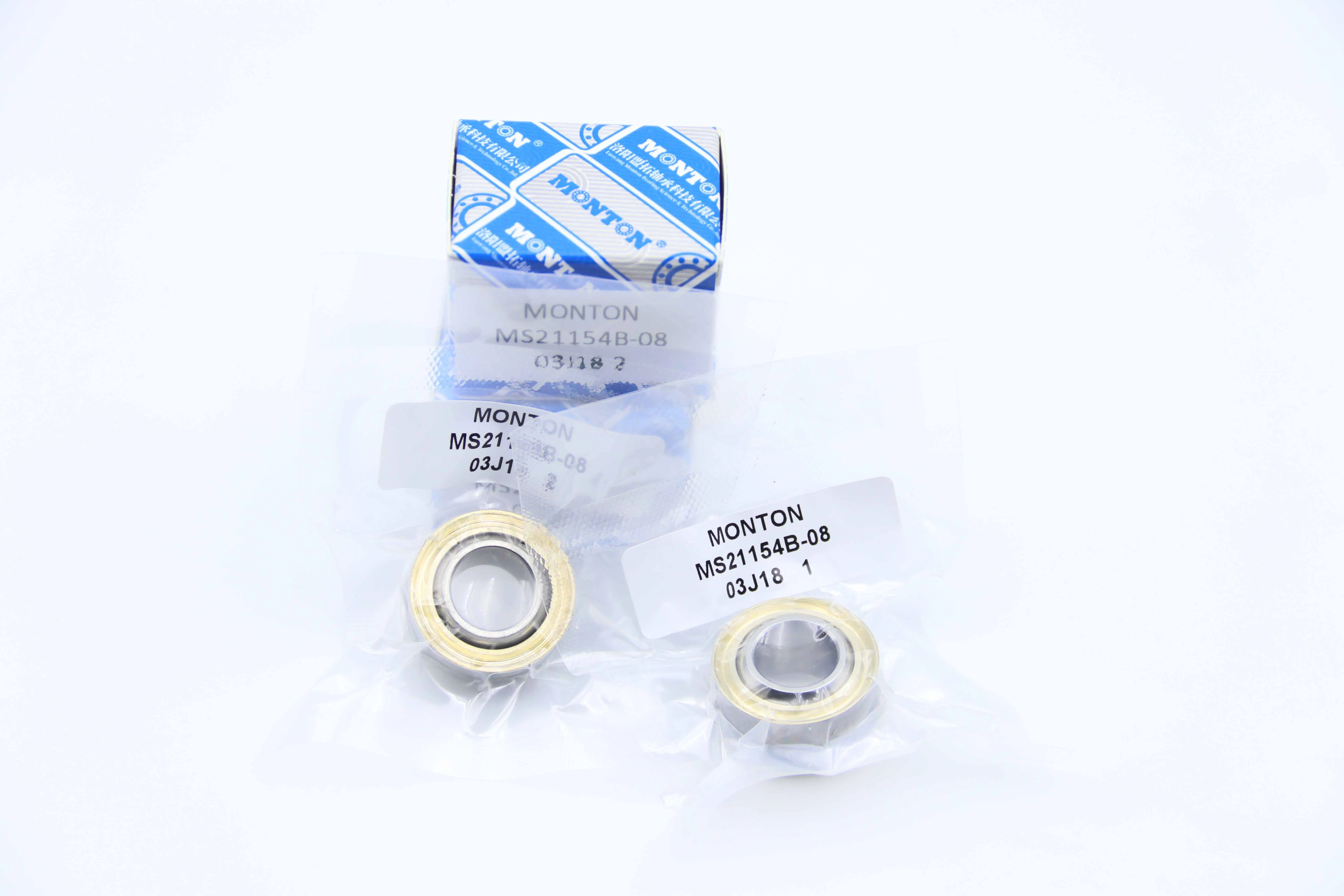

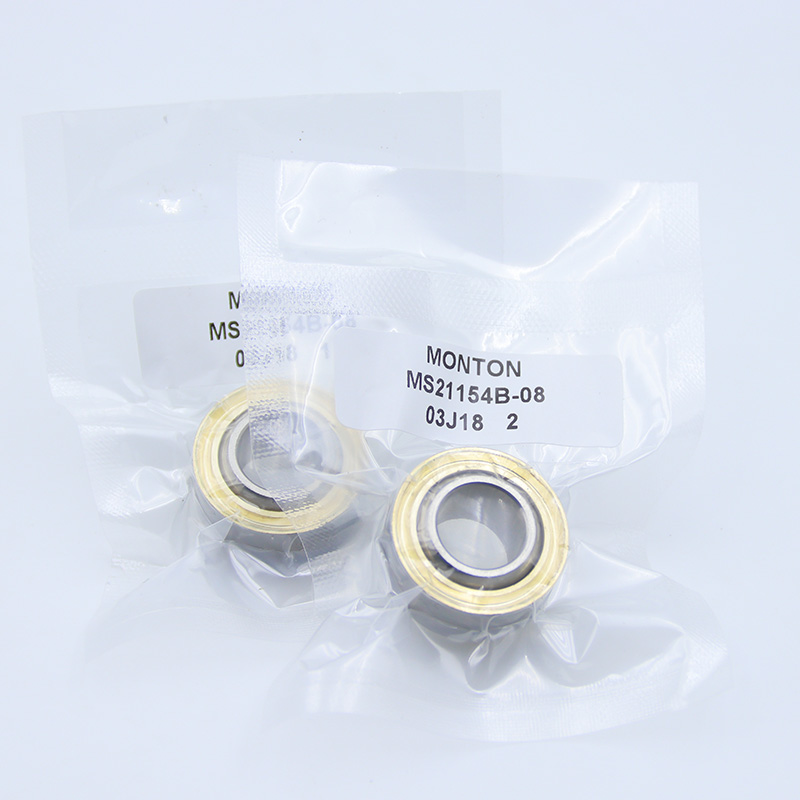

Aerospace bearings MS21154B-08

Aerospace joint bearings, as key components, ensure reliable operation of aircraft and spacecraft in extreme environments, and their design, materials, manufacturing, and maintenance must meet strict requirements. Basic structure: Composed of inner and outer rings, both the outer surface of the inner ring and the inner surface of the outer ring are spherical, achieving multi-directional rotation and swinging. Capable of withstanding radial loads and suitable for flight control surfaces. The material needs to withstand a temperature range of -70 ℃ to 300 ℃, and the lubricant should be a wide temperature grease such as perfluoropolyether (PFPE). Capable of withstanding impact loads and strong corrosion resistance.

Case Details

Name	Aerospace bearings
Brand	MONTON
Model	MS21154B-08
Other model	MS21154B
Bore diameter	12.7mm
Outside diameter	25.4mm
B(width)	9.91mm
Ring Material	Alloy steel
Cage Material	Special cage
Axial Static Limit Load Bronze Race	12450N
Radial Limit Load Rating	51000N
Axial Static Limit Load Approx. Steel Race	31300N
Bearing frictional torque
Weight	0.3KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Delivery date	Accordingly
Application	Aerospace
