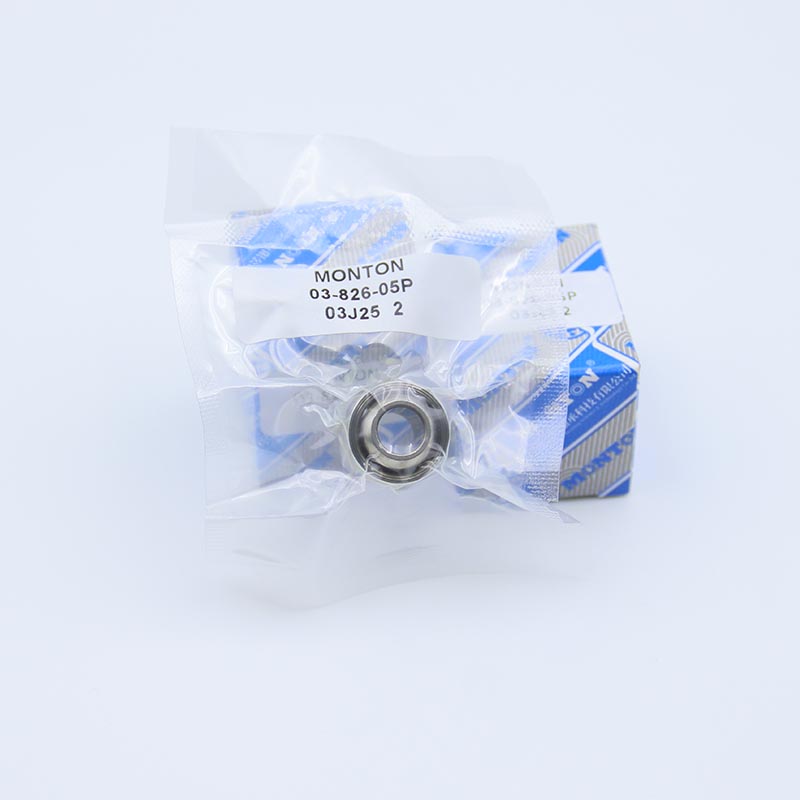

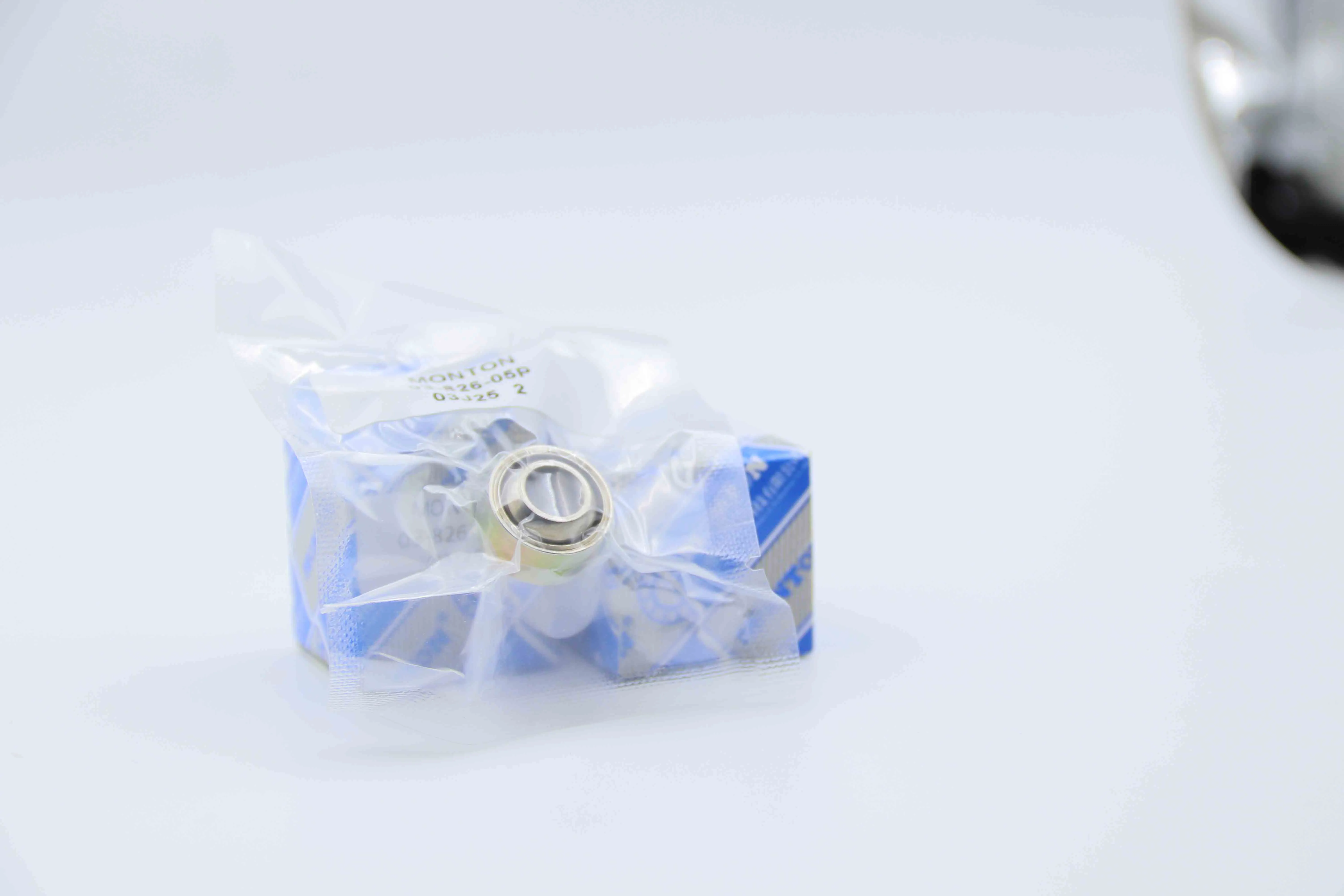

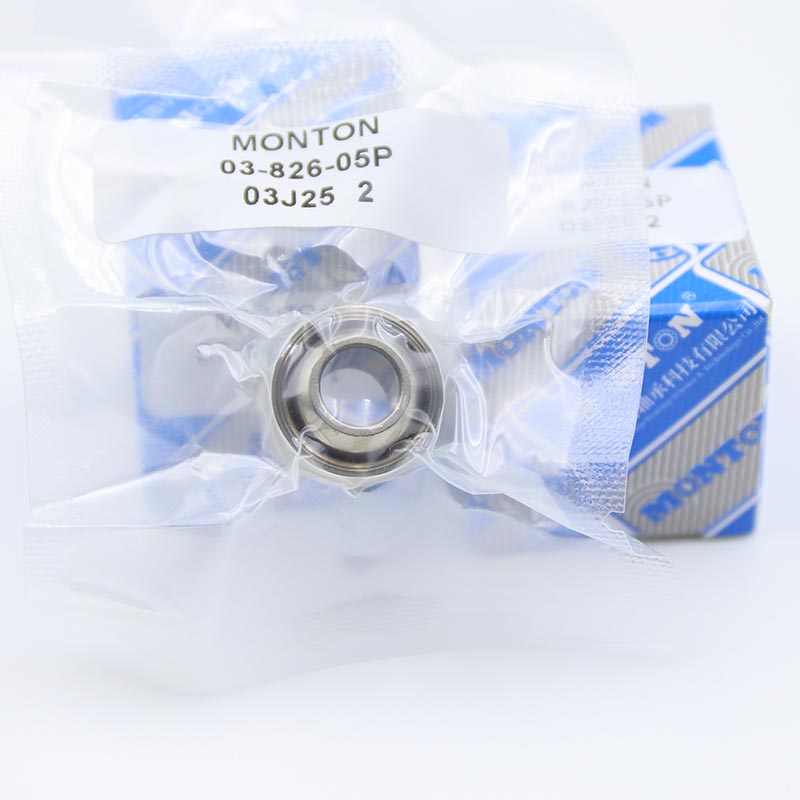

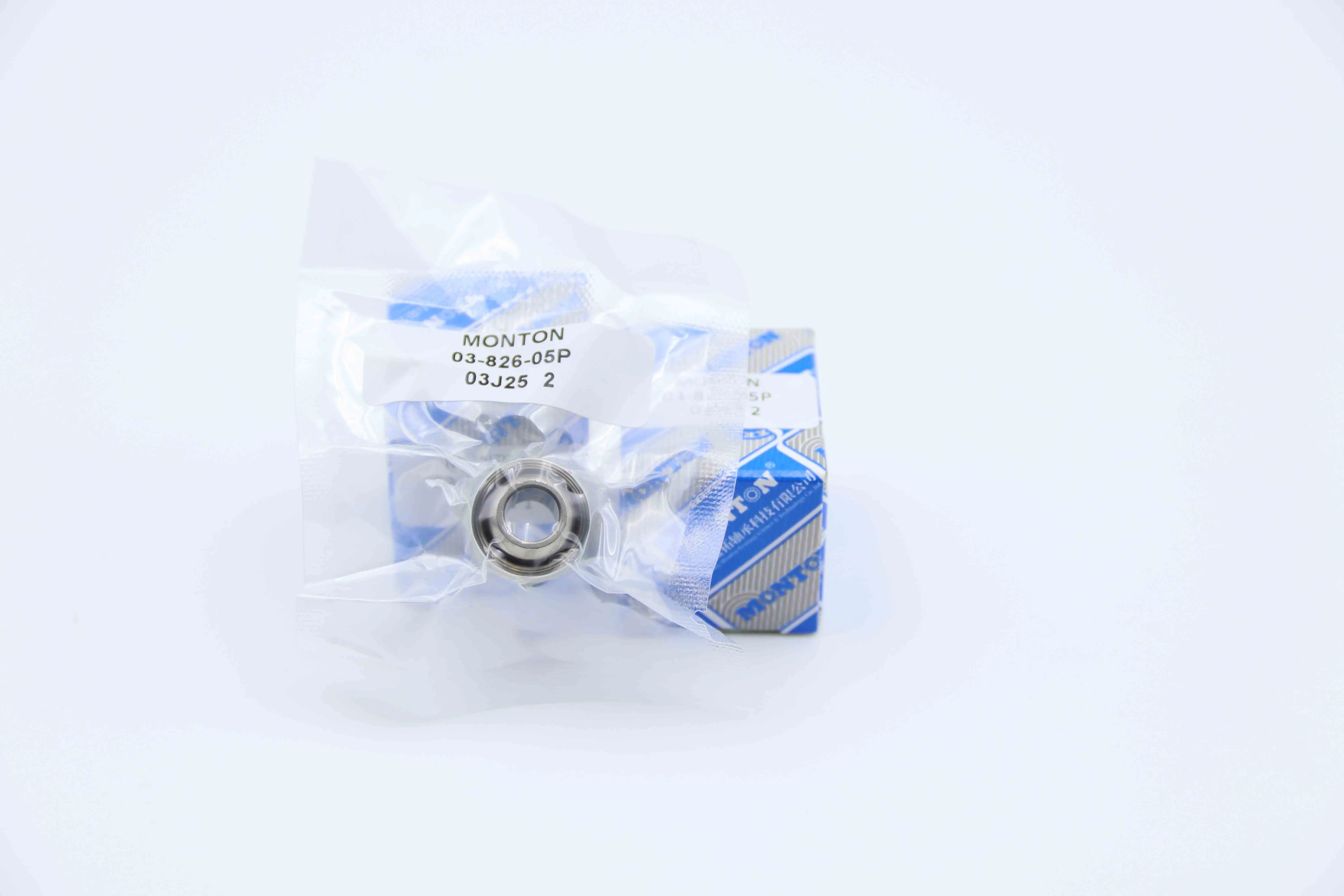

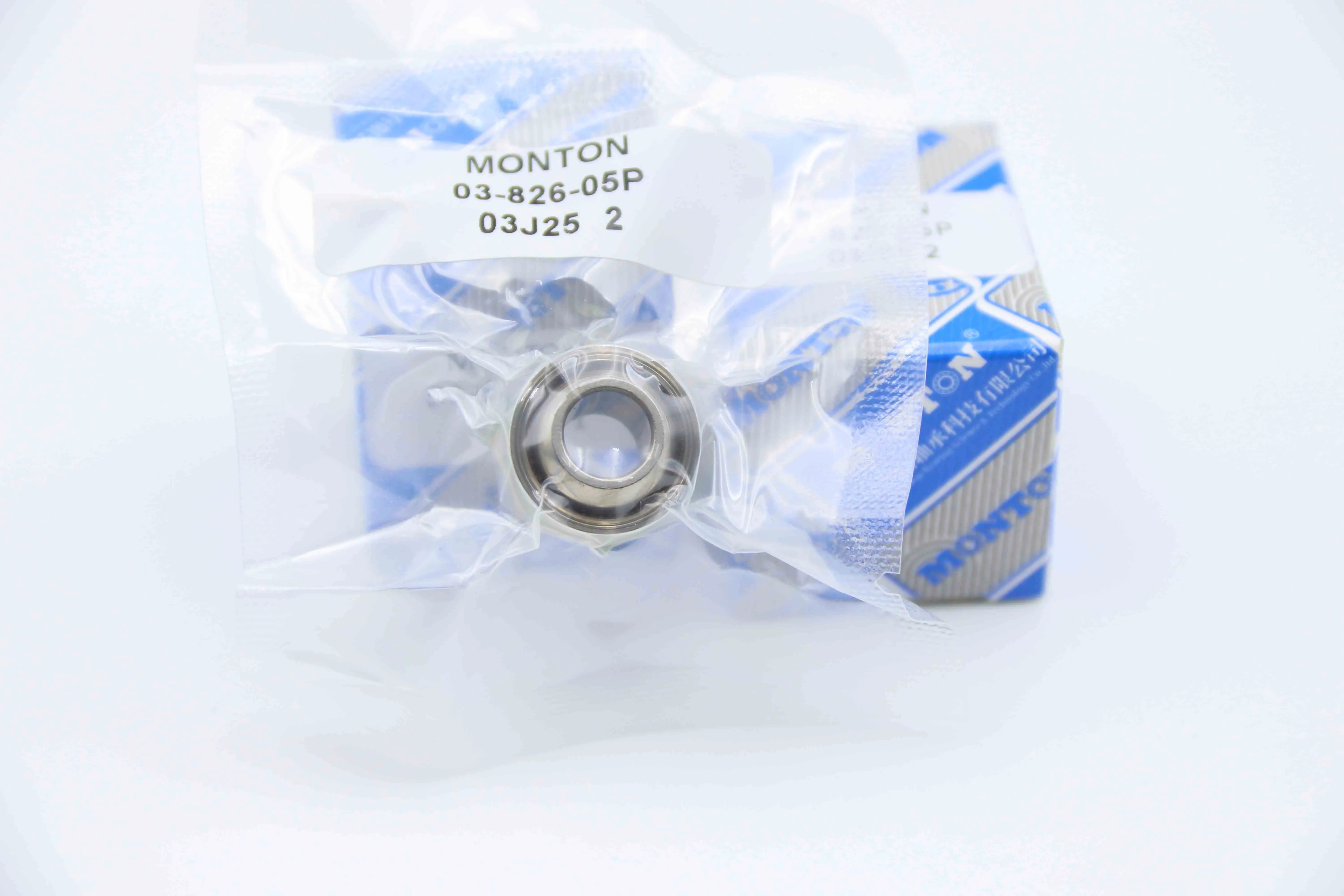

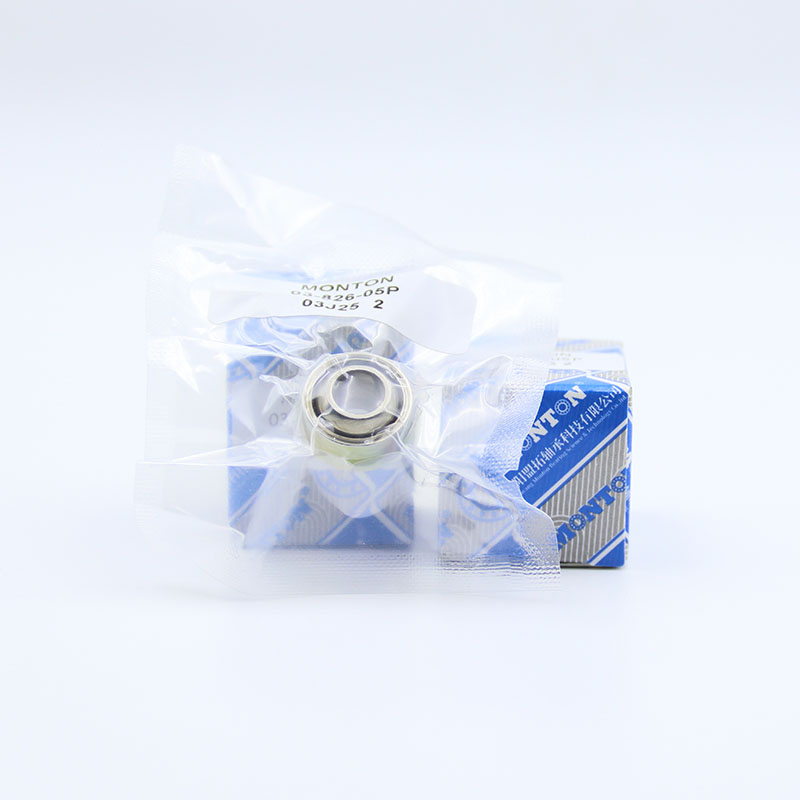

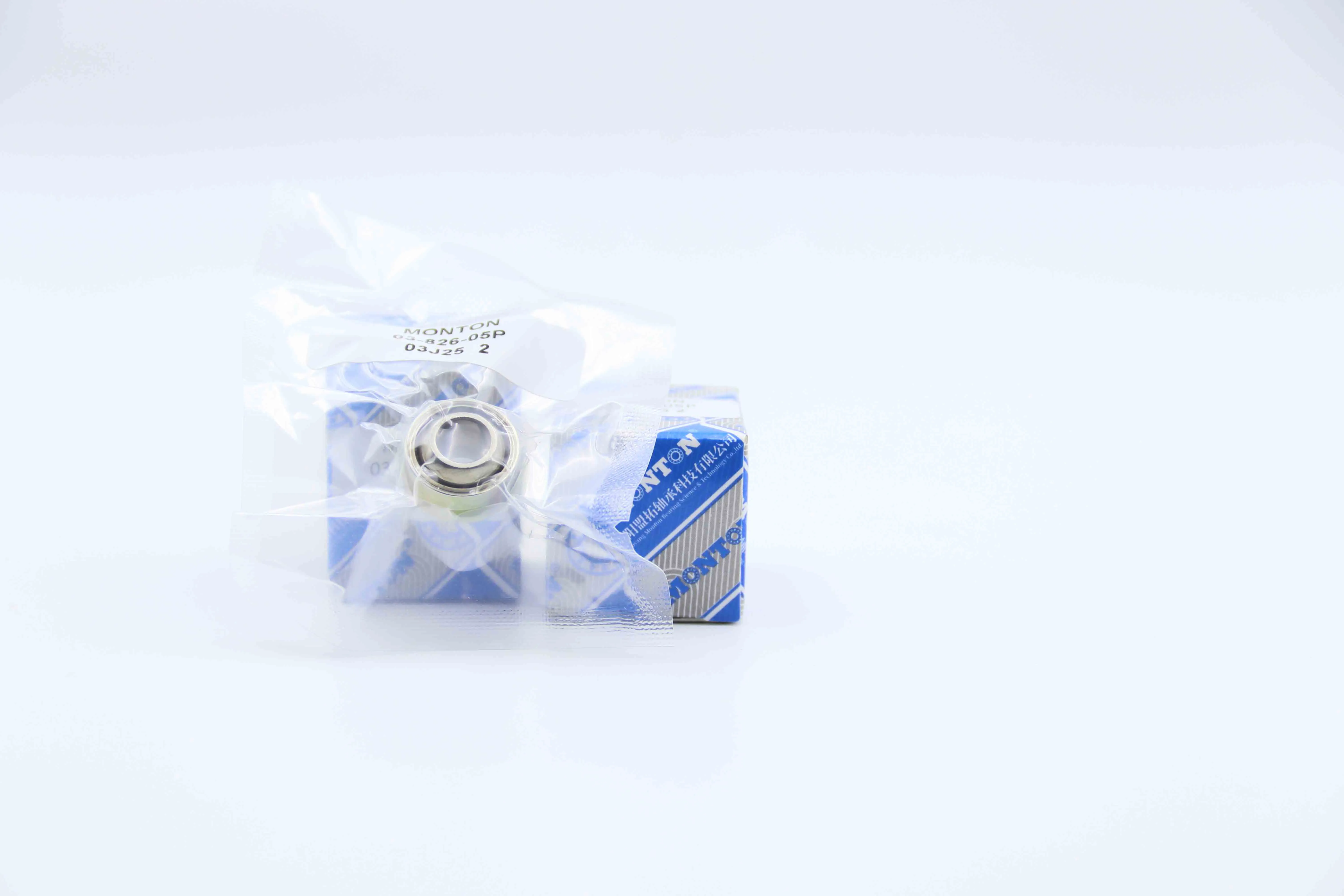

Aerospace bearings 03-826-05P

As a core component in the field of equipment manufacturing, aerospace joint bearings undertake high-precision and high reliability transmission functions under extreme working conditions. They have self-lubricating performance, can withstand extreme temperatures from -200 ℃ to+300 ℃, and are characterized by high-precision design.

Case Details

Name	Aerospace bearings
Brand	MONTON
Model	03-826-05P
Other model	03-826-05
Bore diameter	7.938mm
Outside diameter	17.462mm
B(width)	8.05mm
Ring Material	Alloy steel
Cage Material	Special cage
Axial Static Limit Load Bronze Race	27000N
Radial Limit Load Rating	41800N
Axial Static Limit Load Approx. Steel Race	7350N
Bearing frictional torque
Weight	0.16KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Delivery date	Accordingly
Application	Aerospace
