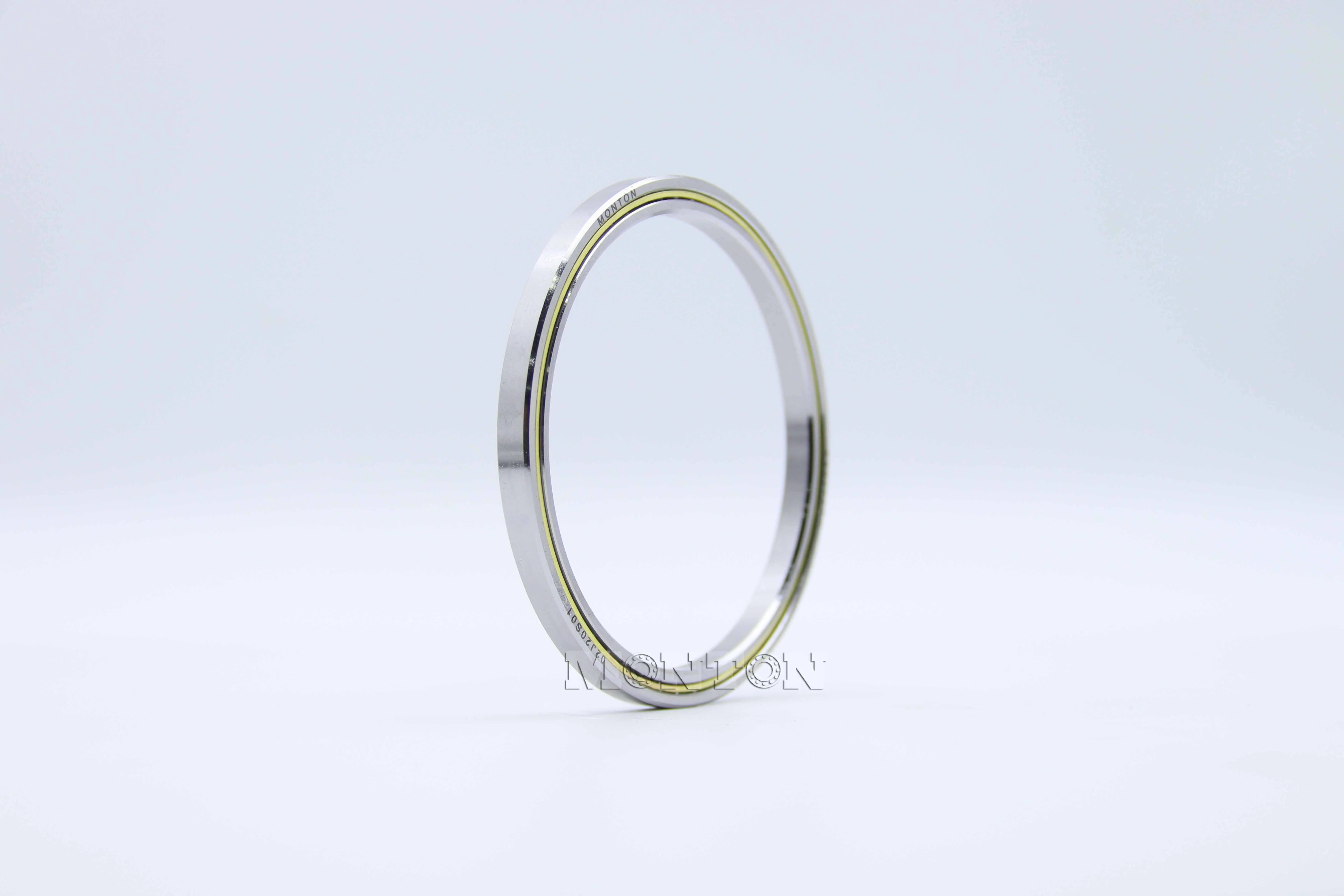

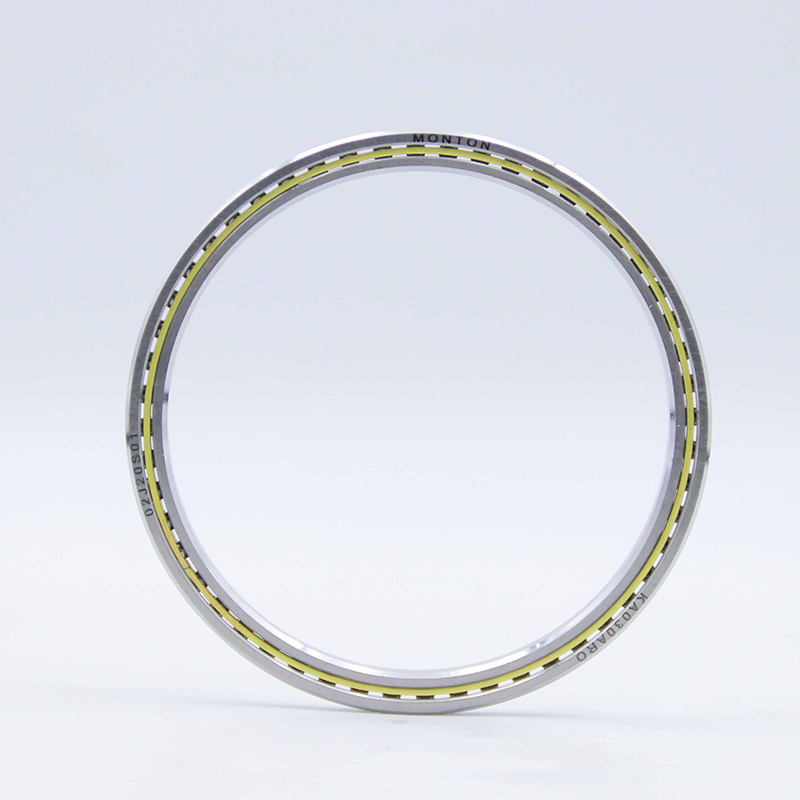

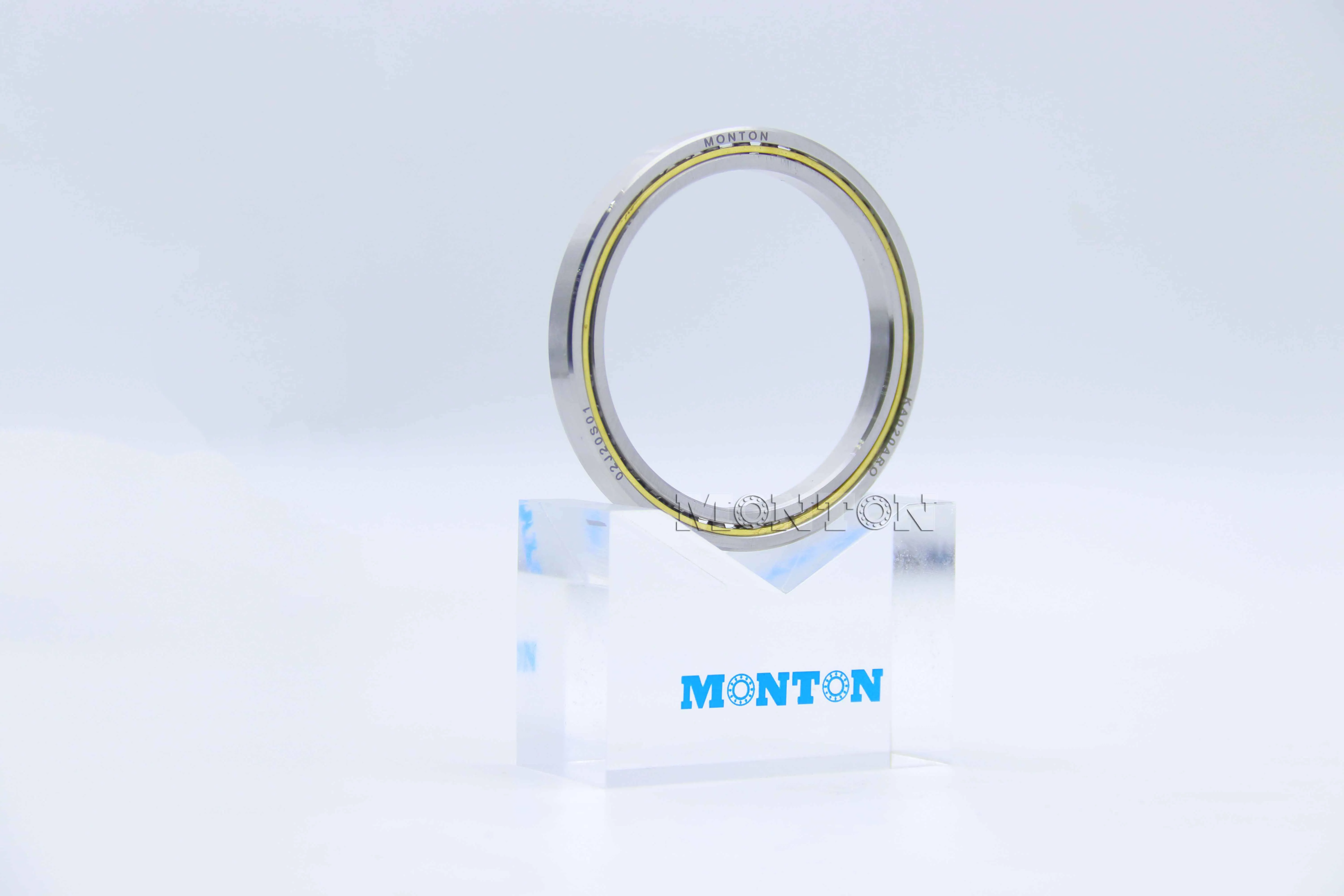

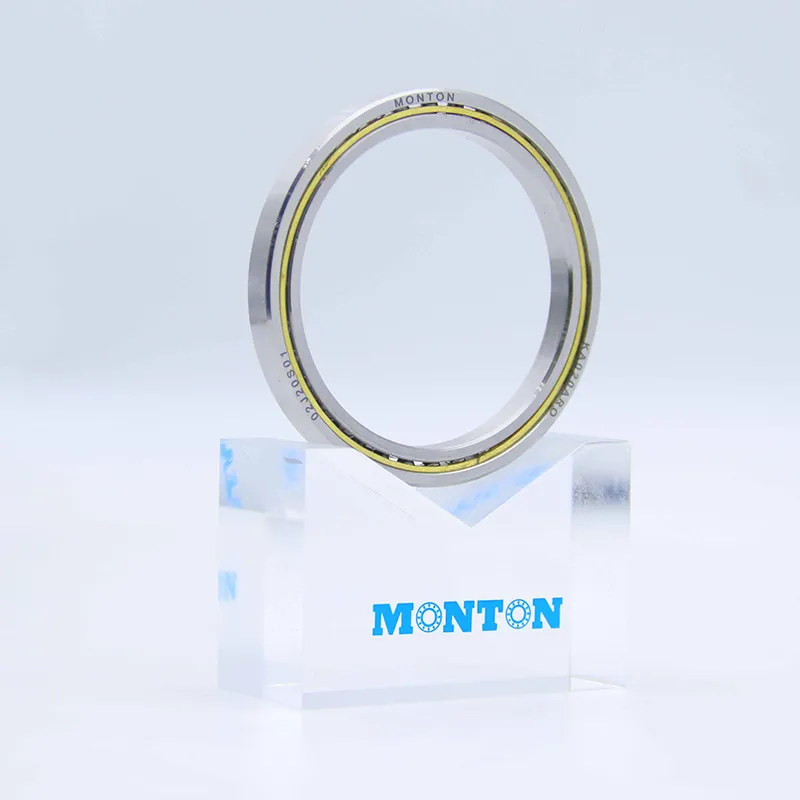

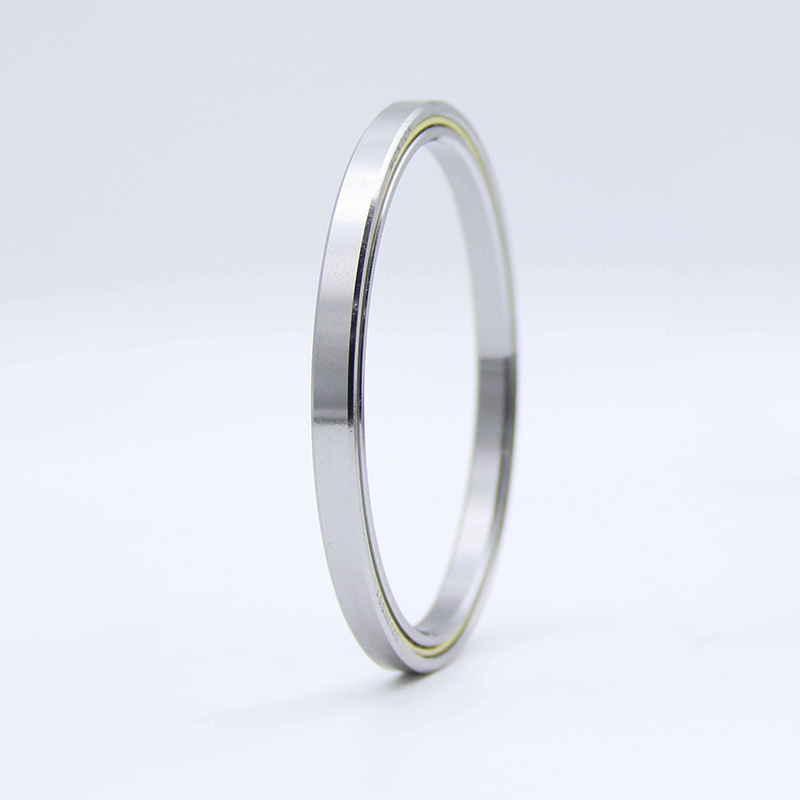

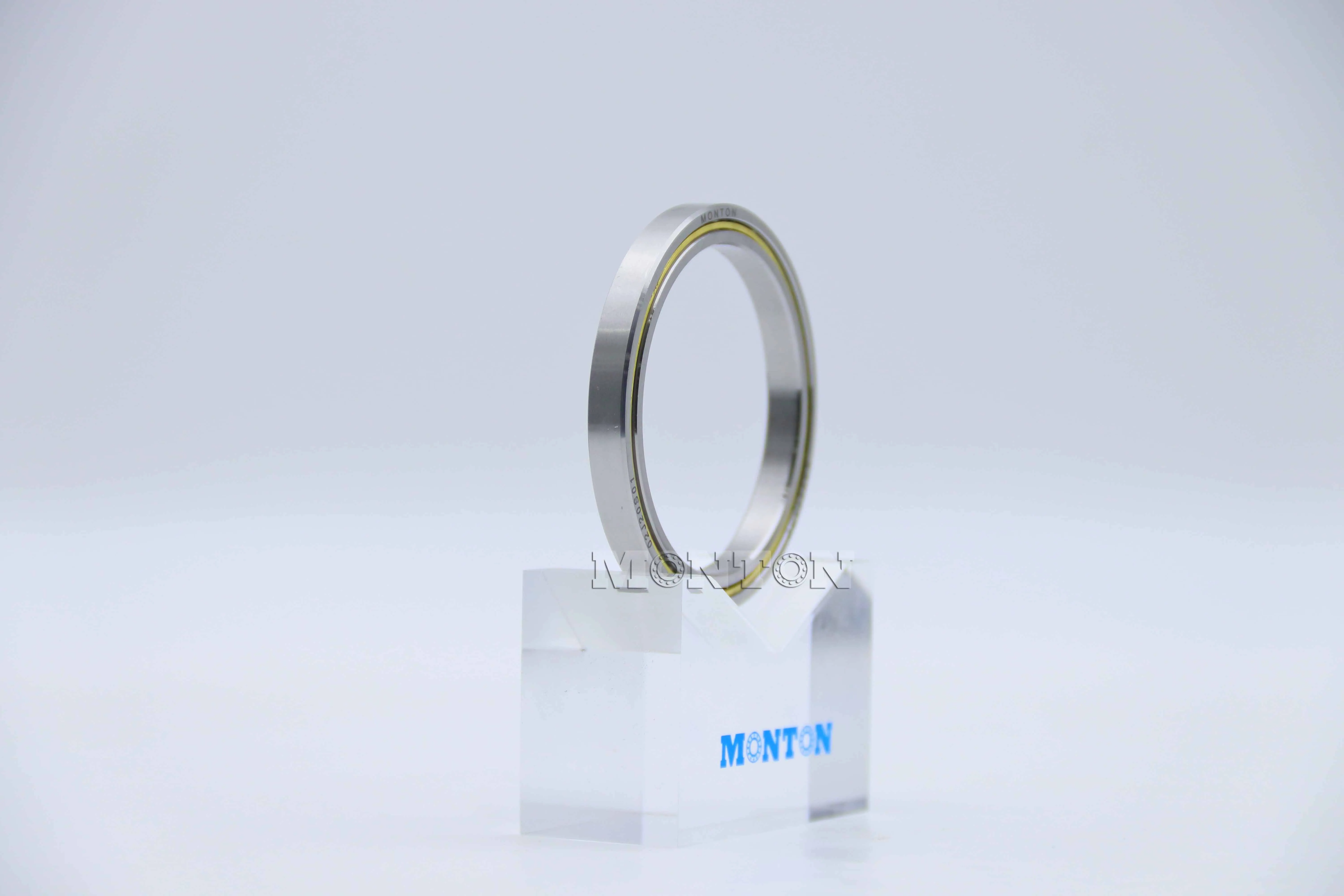

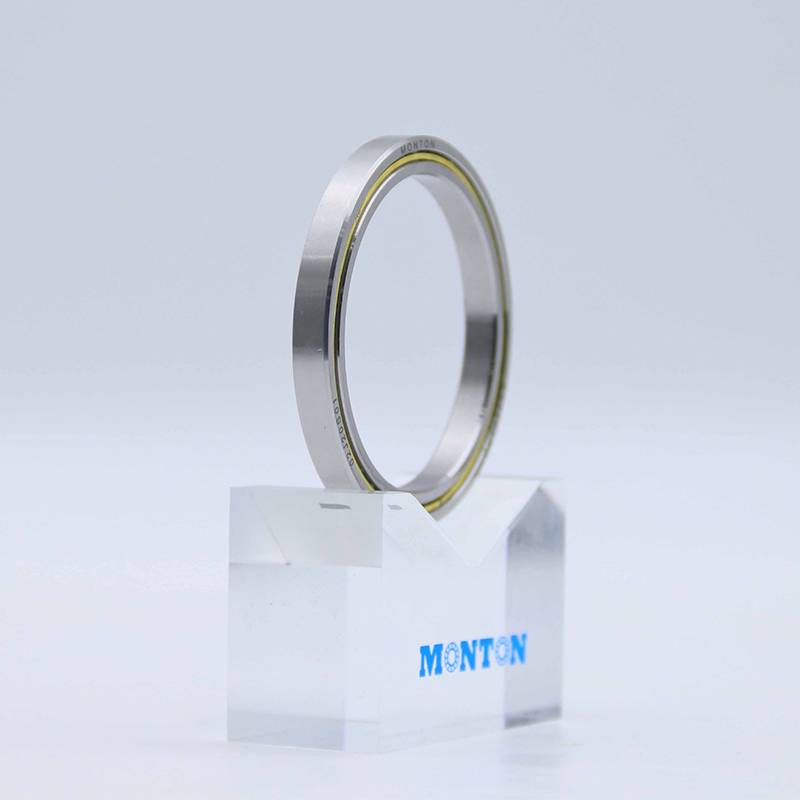

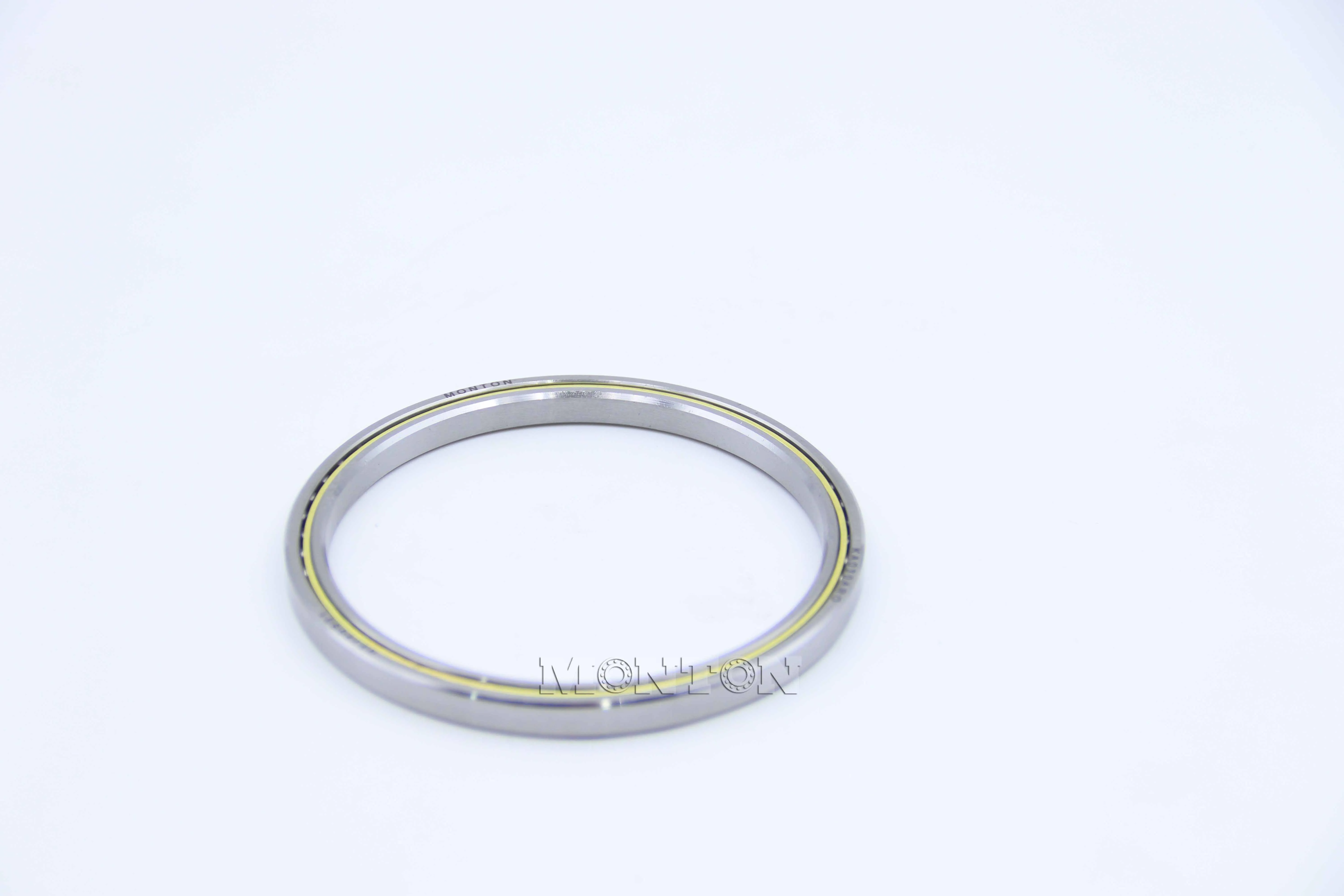

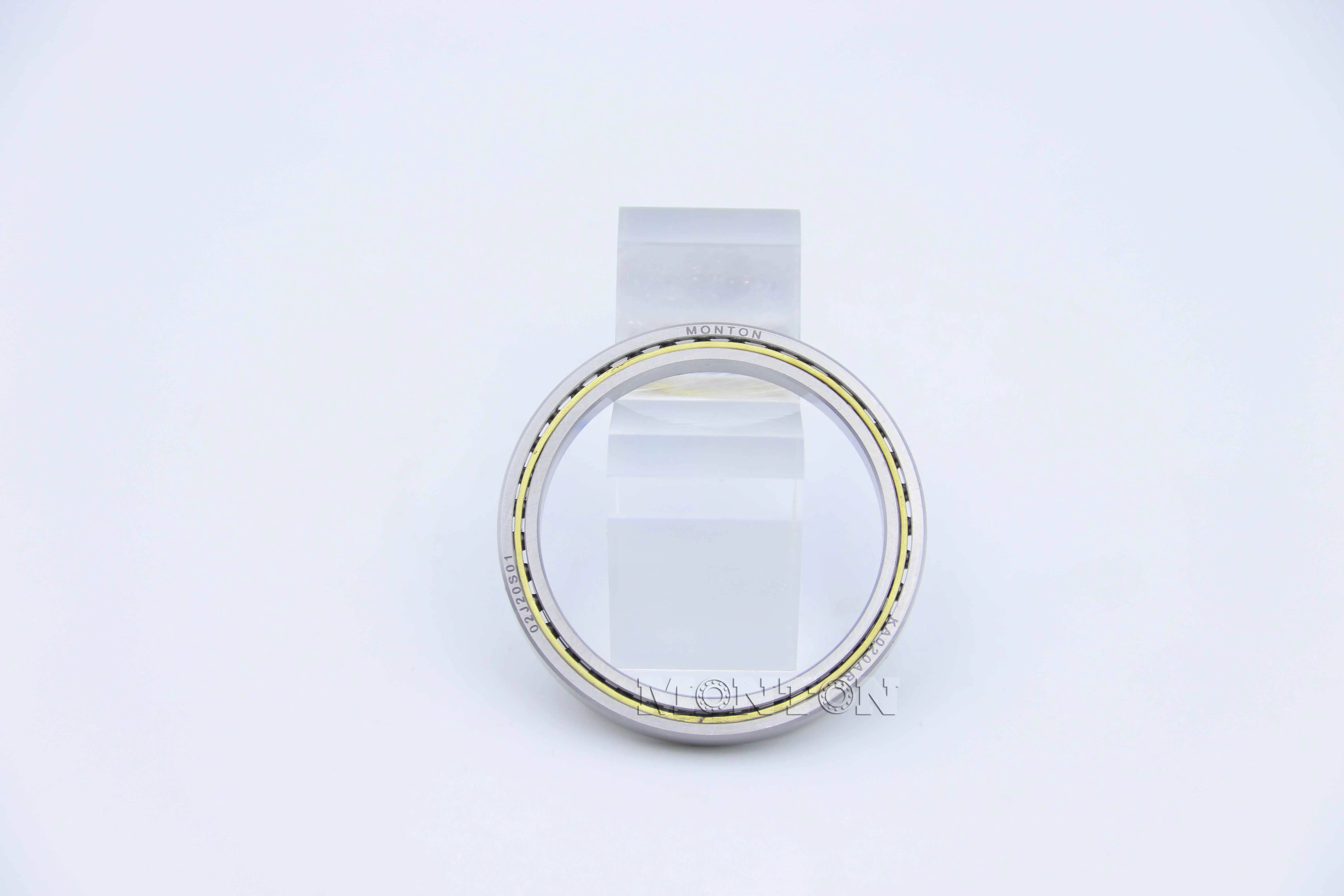

KA020AR0 Thin Section Bearings

Thin section ball bearings have become the core components of modern industry due to their lightweight, high precision, and multi load adaptability. When selecting, it is necessary to consider the load type, environmental conditions, and cost-effectiveness, and give priority to standardized series to optimize design efficiency. With the maturity of domestic technology, its application in aerospace, intelligent manufacturing and other fields will further expand.

Case Details

Name	Thin Section Bearings
Seires	Reali-Slim series
Brand	MONTON
Model	KA020AR0
Equivalent model	L15QA200 /CSEA020
d	50.8mm
D	63.5mm
B	6.35mm
Ball Quantity	36 pcs
Ring Material	Gcr15
Cage Material	brass cage
Radial Static	3510N
Radial Dynamic	2670N
Thrust Static	10140N
Thrust Dynamic	7700N
Sealed	According to requirement
Weight	0.045KG
Design Structure	Balls
Precision	P0,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tools Robots Optical scanning and imaging equipment Food processing machinery Packaging equipment Rotating drill rig equipment Pipe inspection equipment Iron roughnecks Power swivels CT scanners Laboratory diagnostic equipment Surgical robotics Surgical chairs, tables
