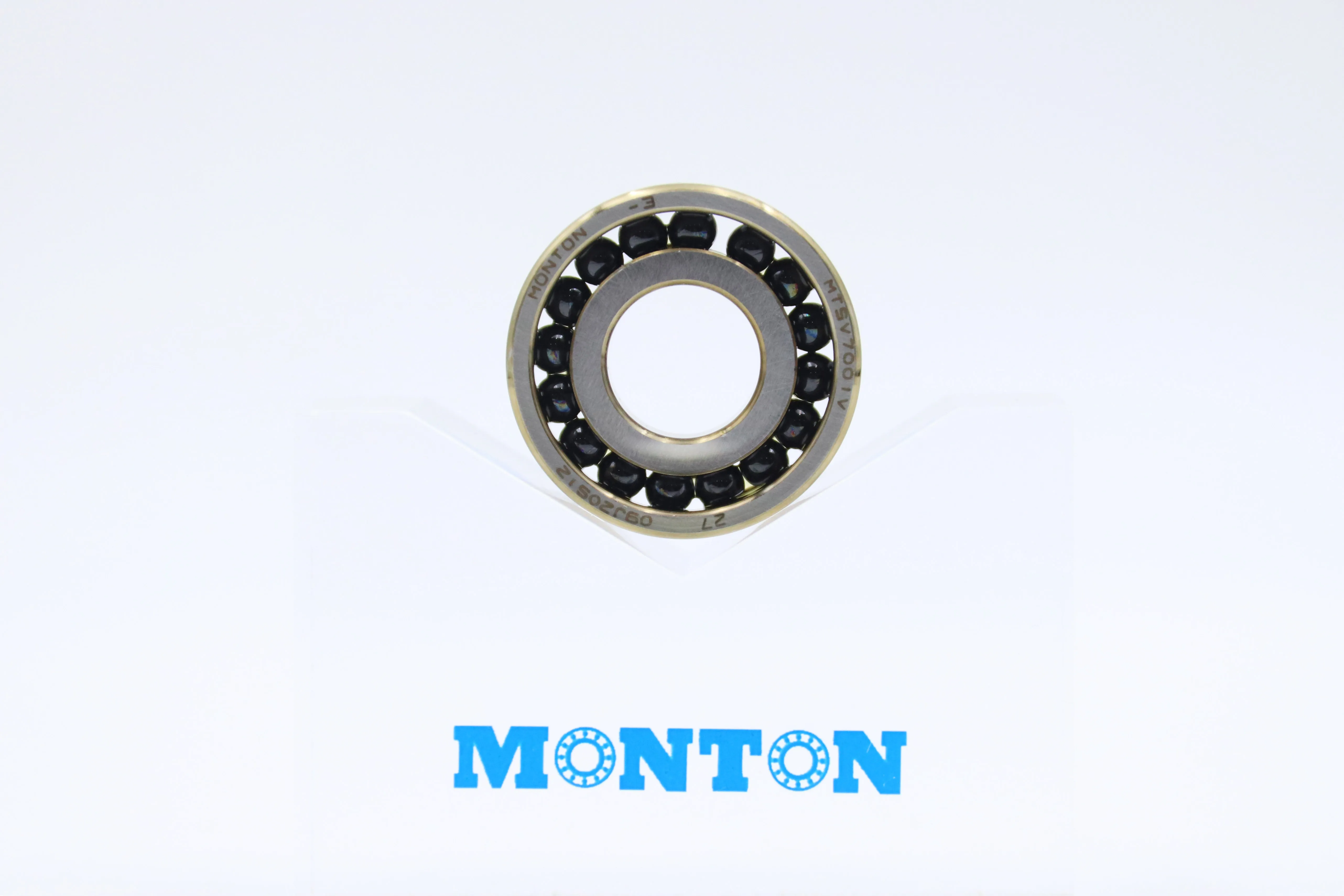

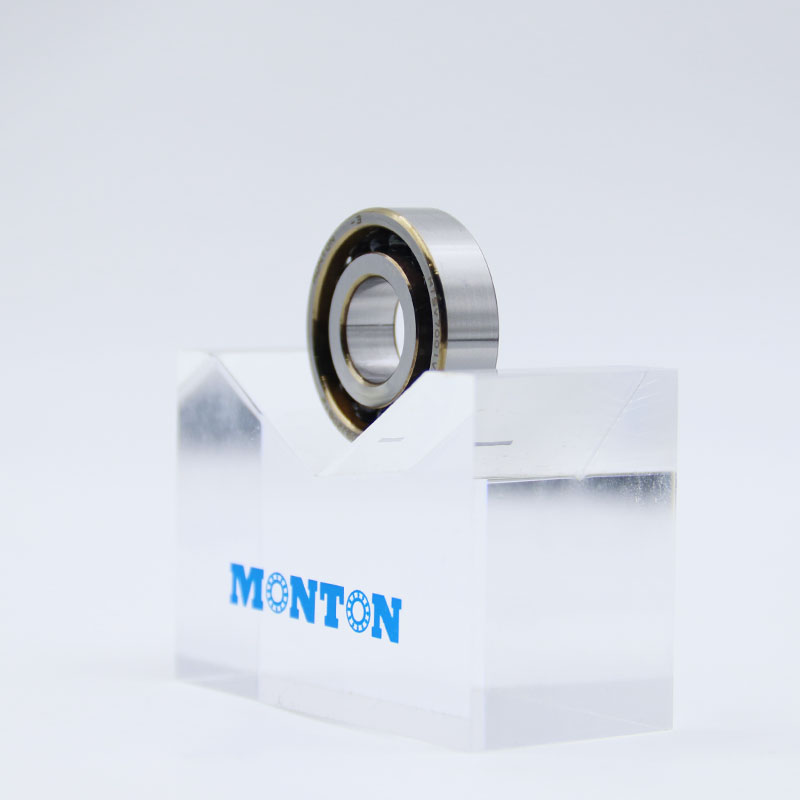

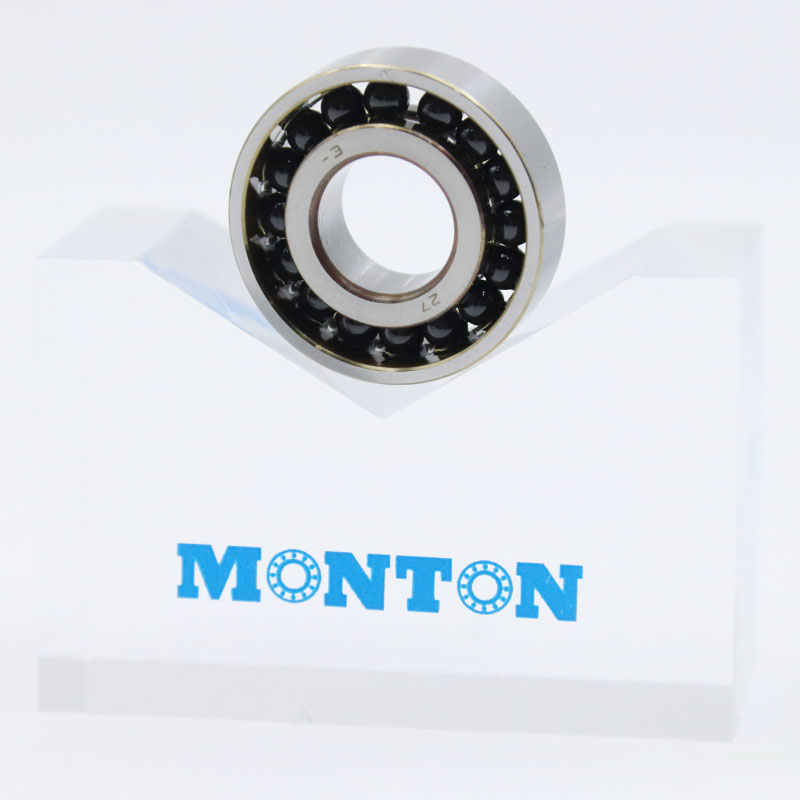

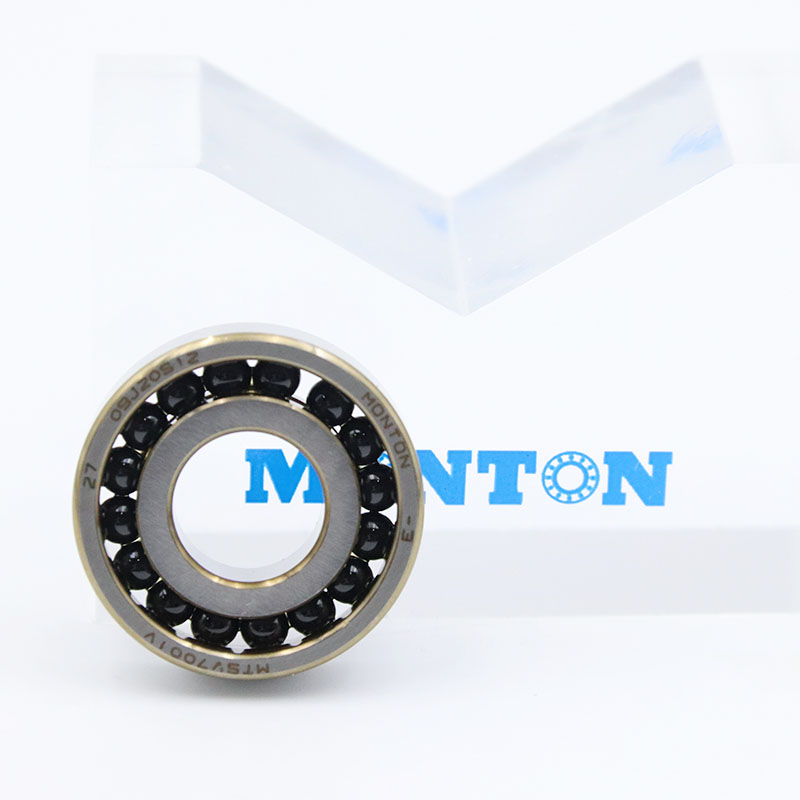

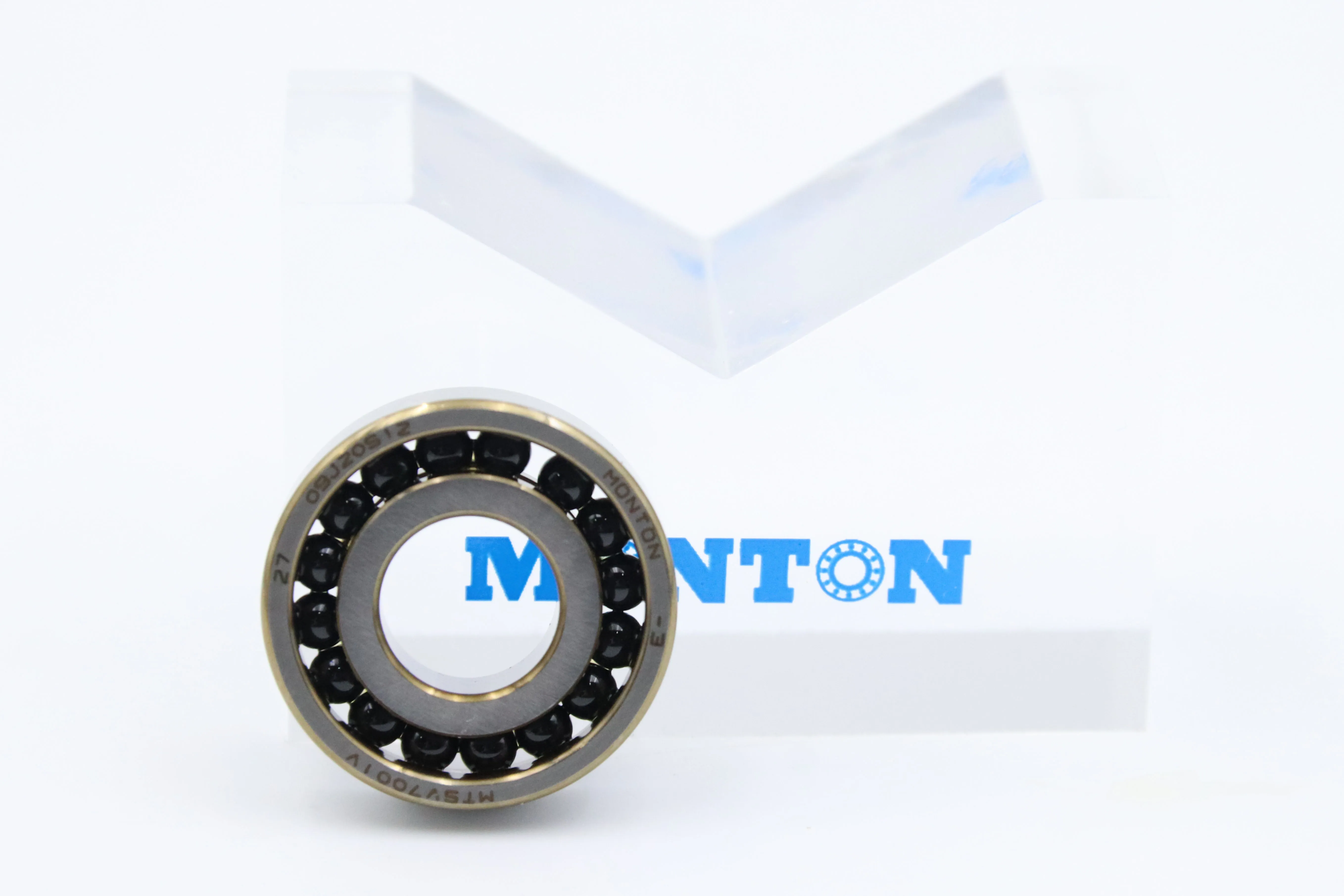

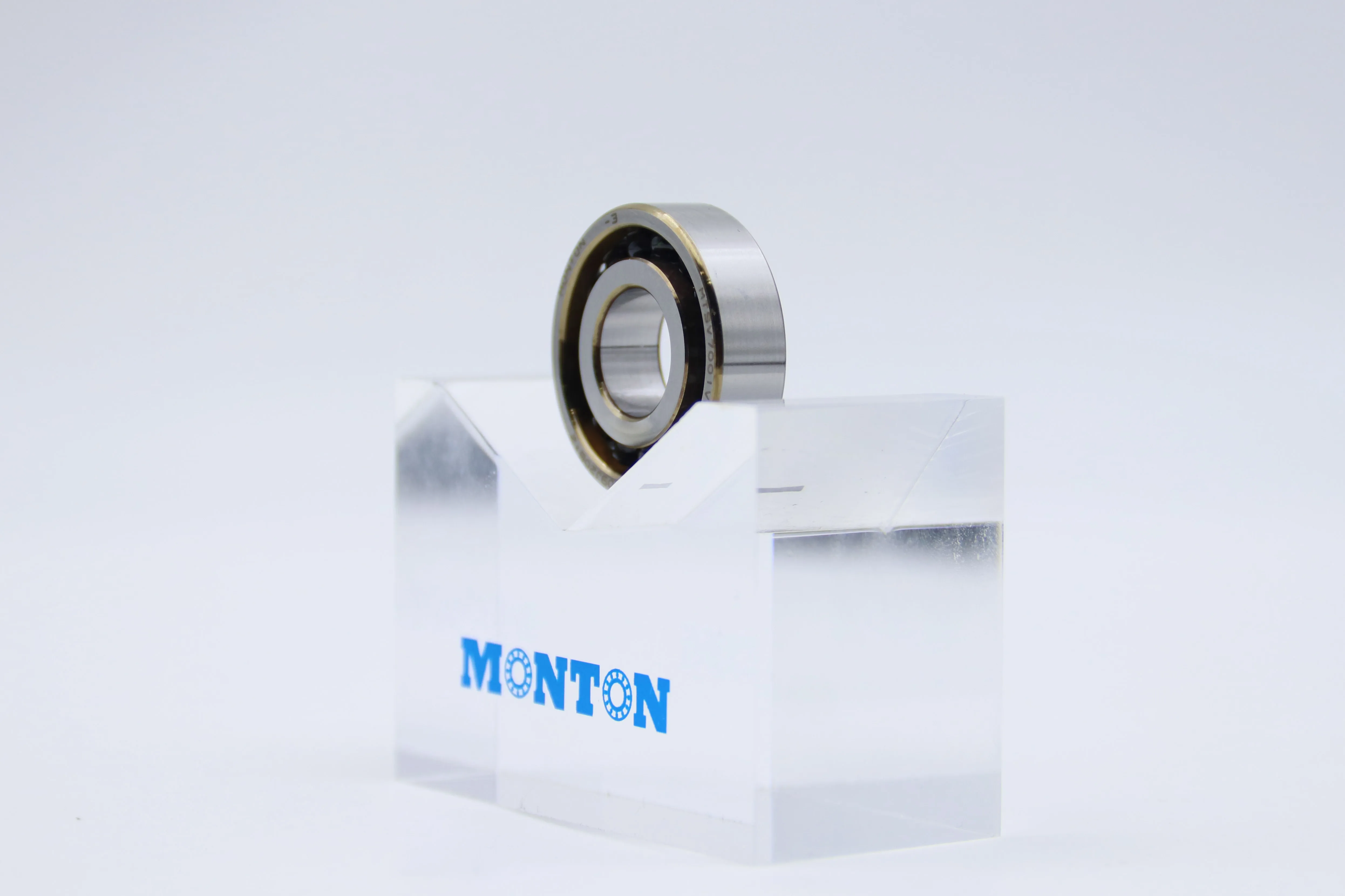

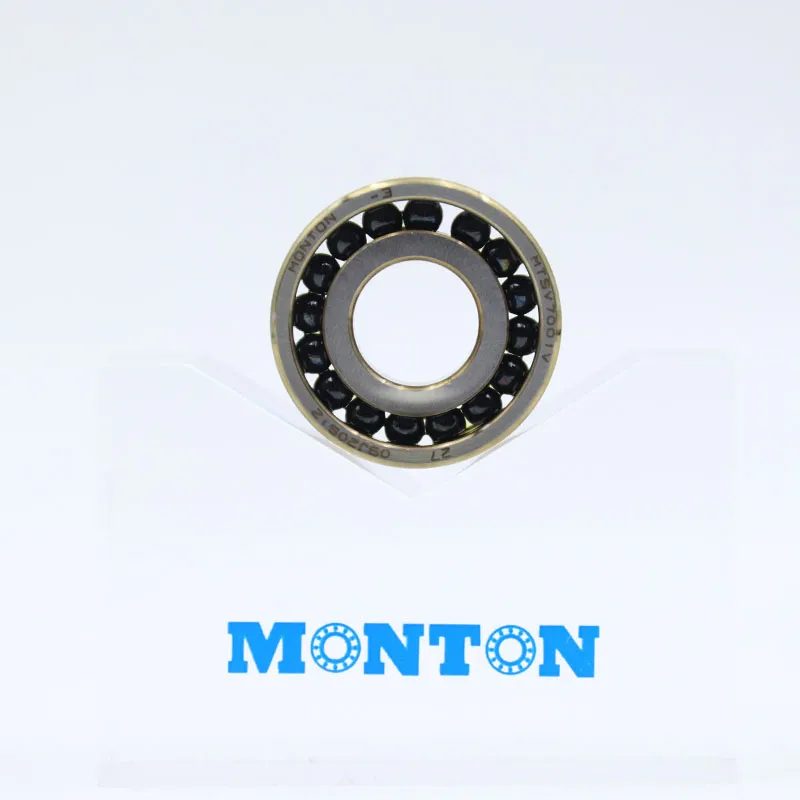

MTSV7001 Turbojet Bearings

The MTSV7001 turbojet engine bearing is made of ceramic balls and X30N high nitrogen wear-resistant stainless steel material, with an inner diameter of 12mm and an outer diameter of 8mm, and a speed of up to 164000RPM. It has a single row angular contact ball bearing structure. Silicon nitride ceramic ball bearings can maintain performance at 400 ℃, with a speed of 1.5 times that of metal bearings. The main type of bearing used in turbojet engines is angular contact ball bearings In turbojet engines, these types of bearings are commonly used in positions that require simultaneous support of rotating components and axial thrust, making them suitable for the turbine rotor of micro turbojet engines.

Case Details

Name	Turbojet Bearings
Series	7000 series
Brand	MONTON
Open type	MTSV7001
d	12mm
D	28mm
B	7mm
Ring Material	X30N wear-resistant and heat-resistant material
Cage Material	Full balls
Sealed	Open
Weight	0.021KG
Design Structure	Angular contact
Precision	P4
Loading rate C	2868N
Loading rate Co	1393N
Limiting Speed	164000
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Turbojet engine
