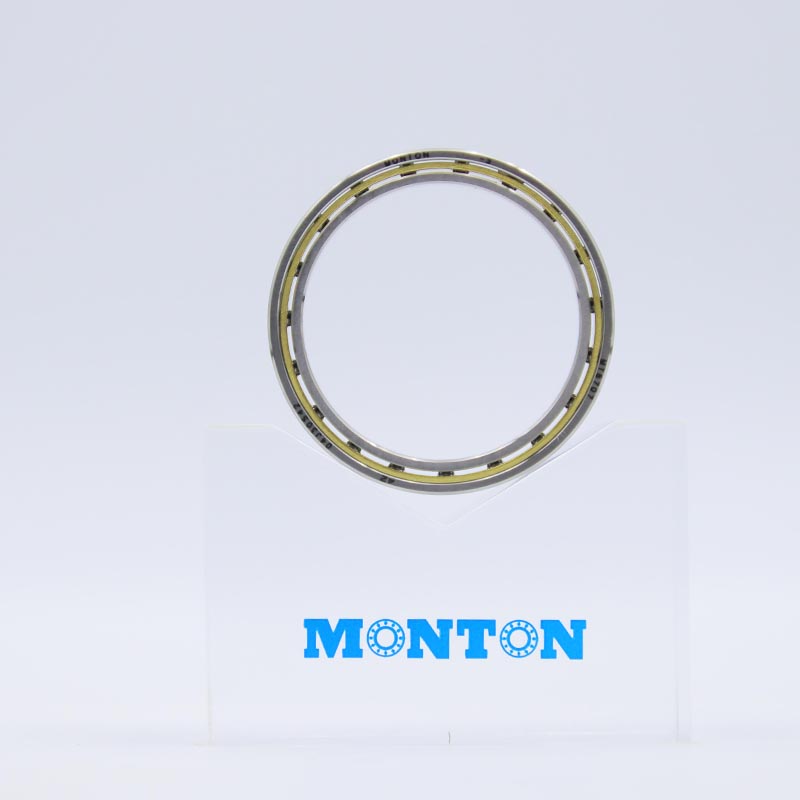

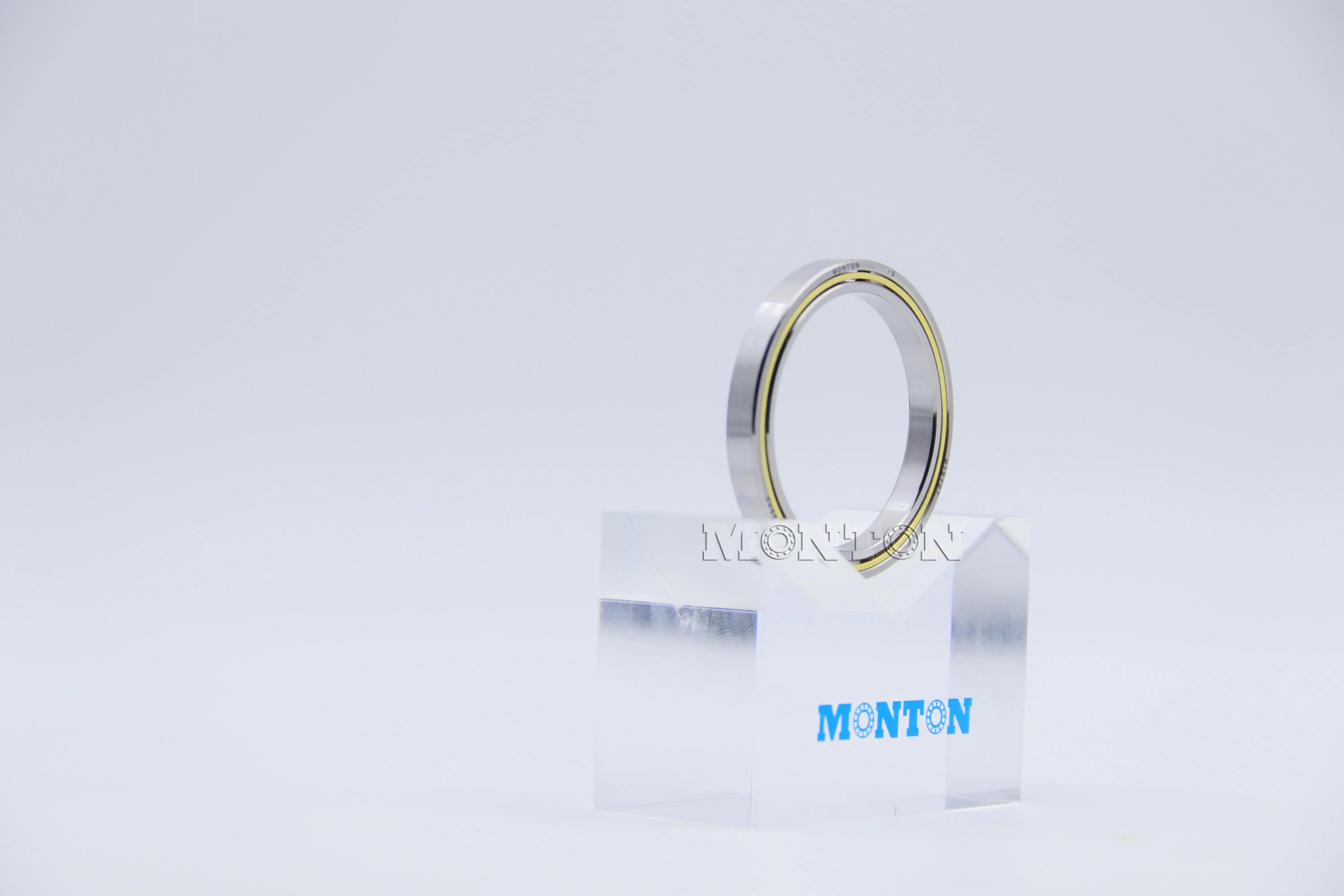

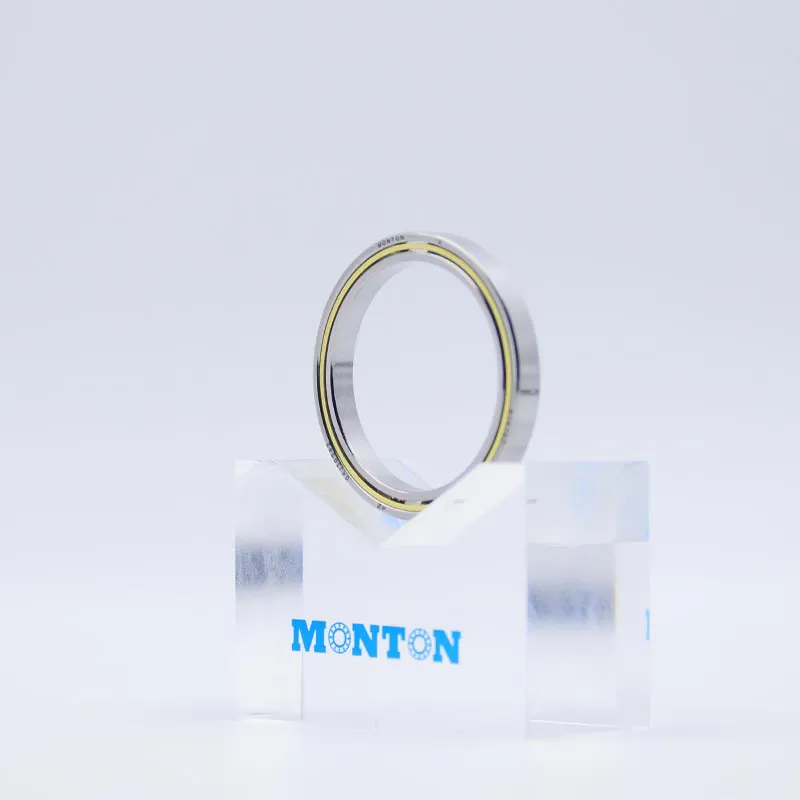

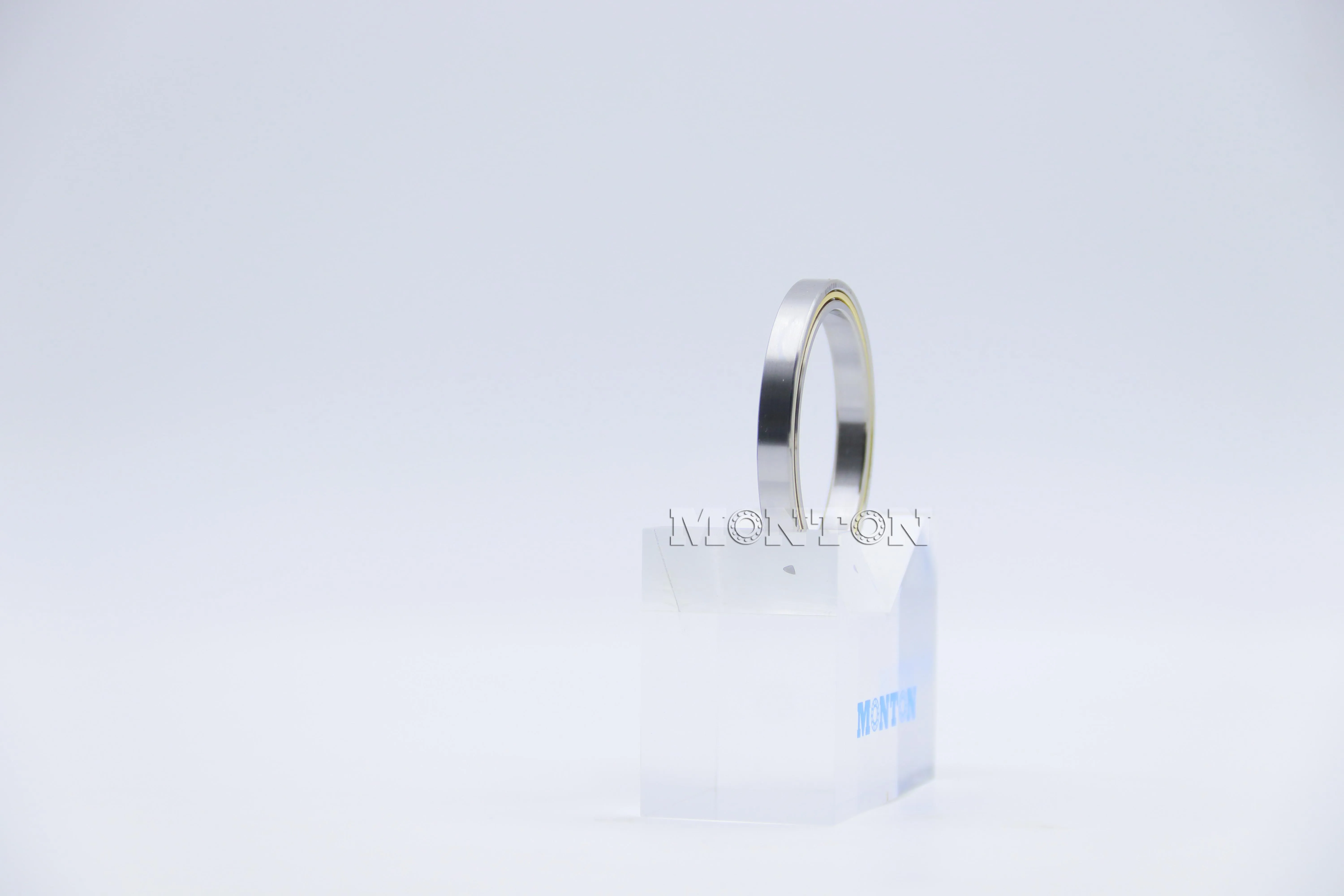

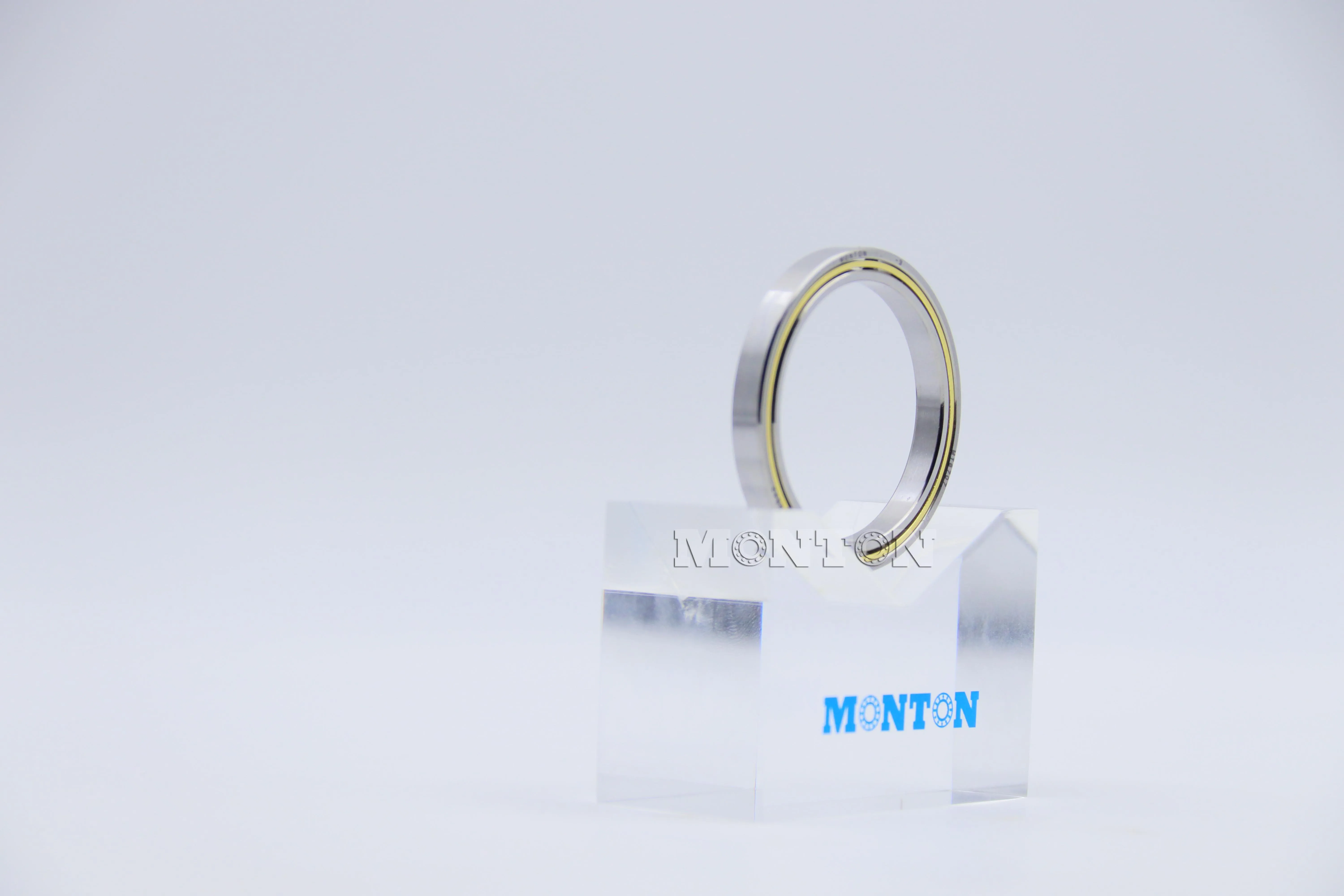

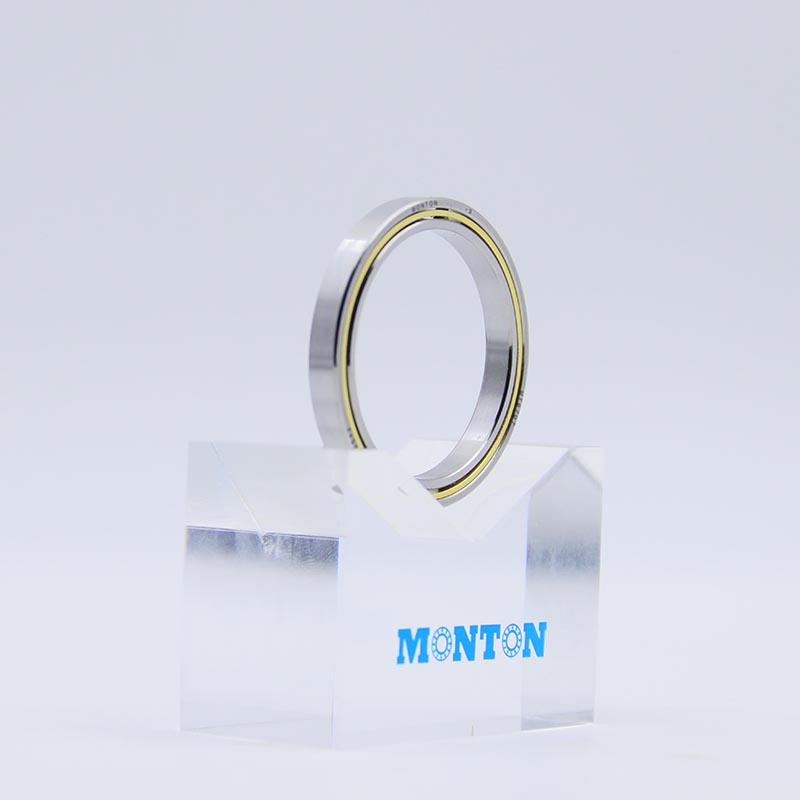

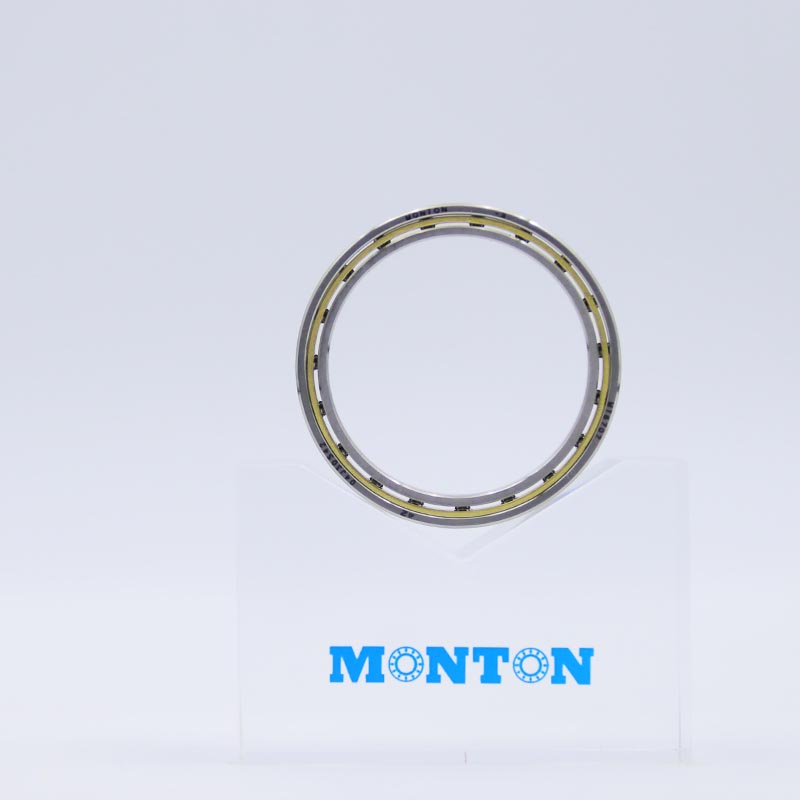

MT6707 Deep Groove Ball Bearing

Slim deep groove ball bearing MT6707, with dimensions of 35 * 44 * 5mm, we can accept customized requirements. Precision components commonly used in high-speed and low-noise equipment such as micro motors, precision instruments, and precision instruments. This bearing has a low friction coefficient and is suitable for high-speed rotating scenarios; Can withstand bidirectional axial and radial loads. Welcome everyone to have technical exchanges with MONTON Bearing.

Case Details

Name	Deep Groove Ball Bearing
Brand	MONTON
Model	MT6707
Cage	Brass cage
Balls	Steel ball
Boundary dimensions :d	35mm
Boundary dimensions: D	44mm
Boundary dimensions :B(width)	5mm
Weight m	0.2KG
Static radial load rating (N)	1630
Dynamic radial load rating (N):	1860
Limiting speed (1/min):	10200
Design Structure	Balls
Precision	P4,P5,P6,P0 or as customer requested
Vibration	ZV1, ZV2, ZV3, or as customer requested
Clearance	C0, C2, C3, or as customer requested
Quality standard	ISO9001: 2005/SGS/TUV
Package	single box
Original	Luoyang
Service	OEM
Delivery date	90 days
Delivery date	90 days
Application	Robots Optical scanning andimaging equipment Target systems and tank sights Helicopter swash plates and gearboxes
