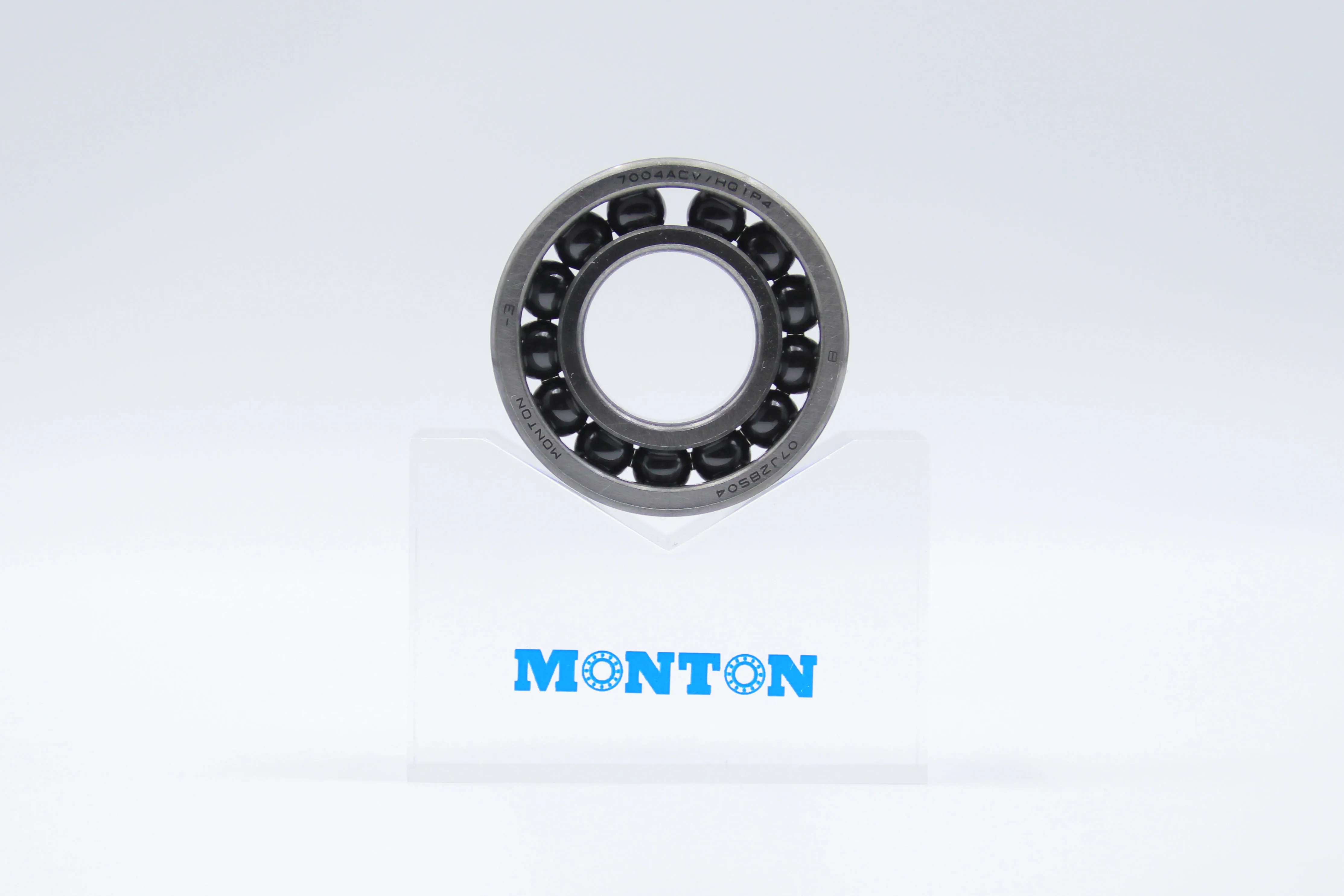

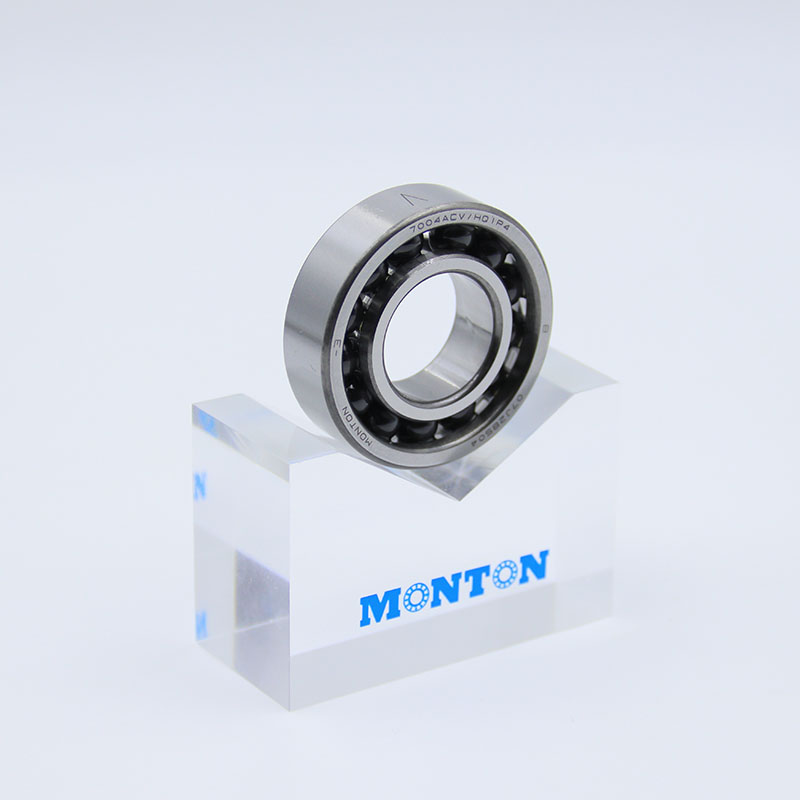

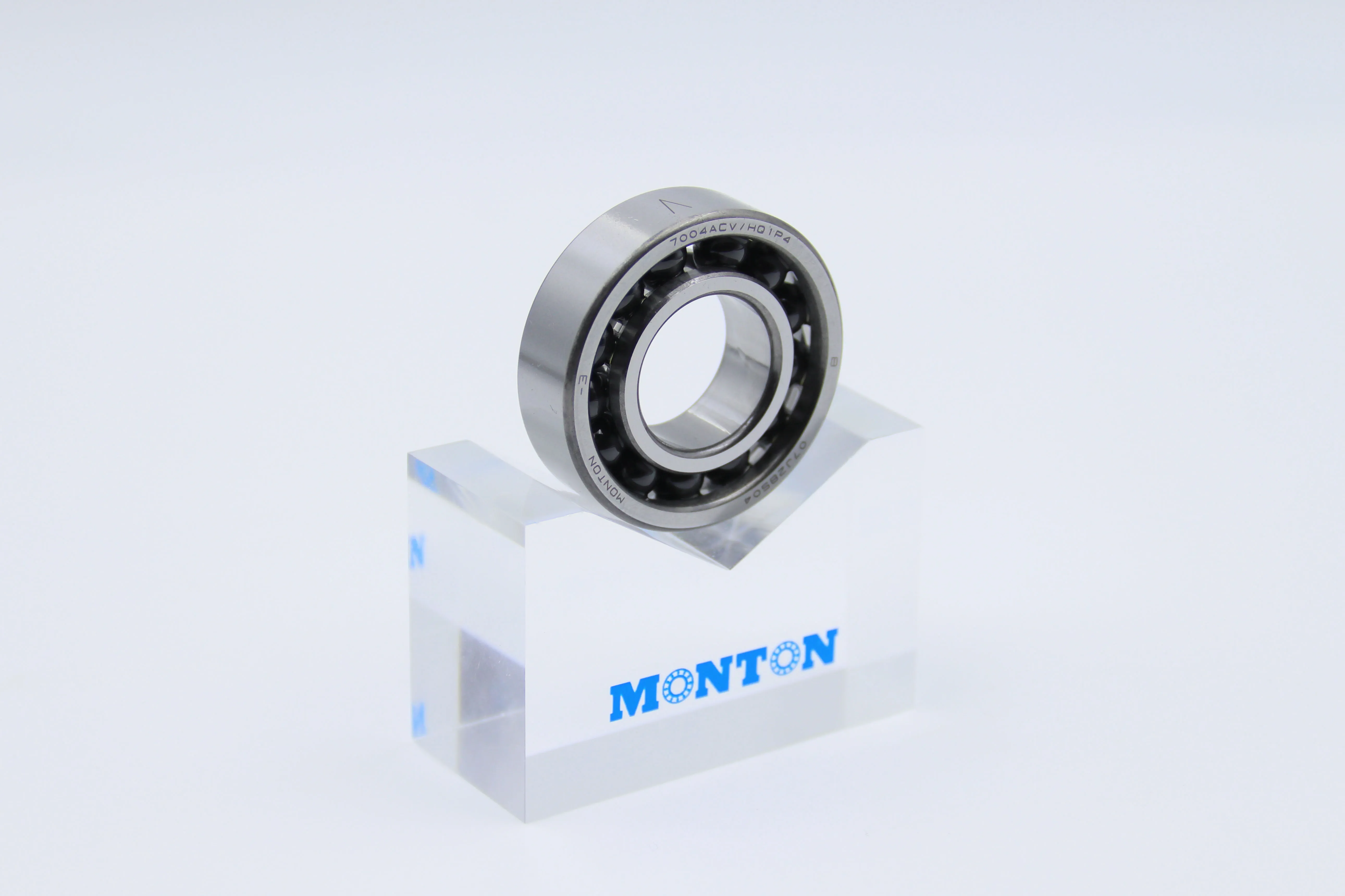

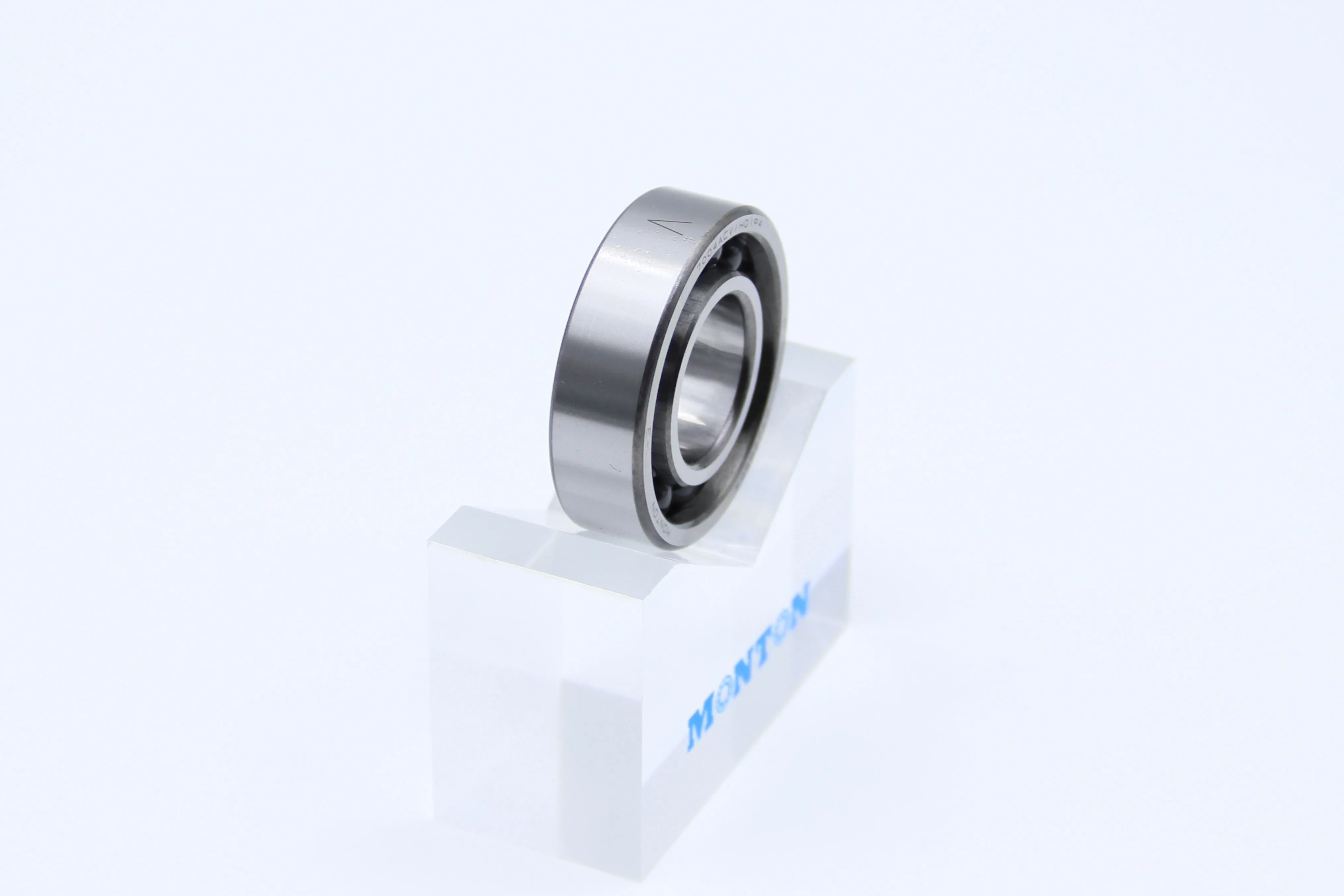

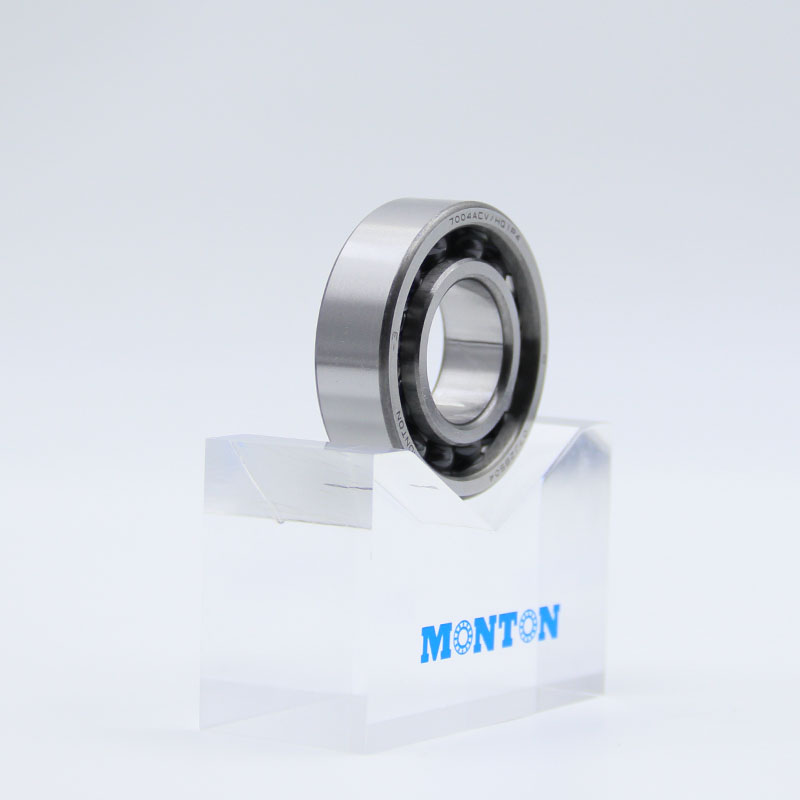

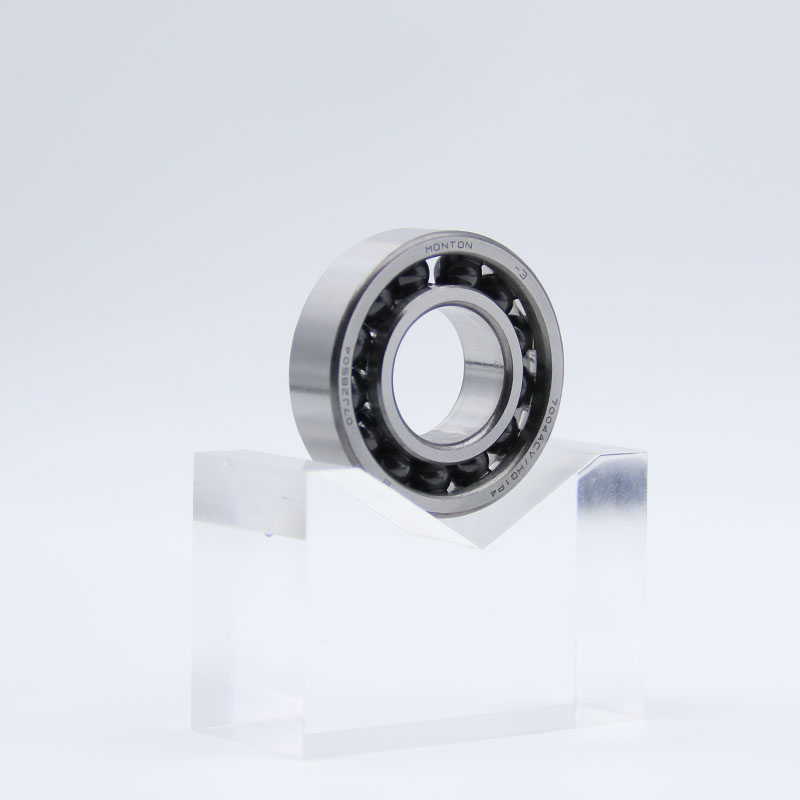

7004ACVHQ1P4 Turbojet Bearings

The 7004V/P4HV3HQ1 turbojet engine bearing is a fully loaded ball high-speed angular contact ball bearing designed by MONTON Bearing. It is used in turbojet engines and is made of high temperature resistant, wear-resistant, and high nitrogen stainless steel. 7004V/P4HV3HQ1 grease lubrication can reach 150000 rpm, and oil lubrication can reach 200000 rpm. Adopting vacuum degassing bearing steel and precision polishing technology to reduce high-speed operation vibration noise, the temperature resistance range covers -60 ℃ to over 200 ℃, suitable for high-temperature environments such as aviation power systems. Its alternative model is 7004V/P4 HV3 HQ1.

Case Details

Name	Turbojet Bearings
Seires	7000 series
Brand	MONTON
Open type	7004ACVHQ1P4/7004V/P4 HV3 HQ1
d	20mm
D	42mm
B	12mm
Ring Material	X30 wear-resistant material
Cage Material	No cage
Sealed	Open
Weight	0.06KG
Design Structure	Angular contact
Precision	P4,P2
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Turbojet engine unmanned aerial vehicle
