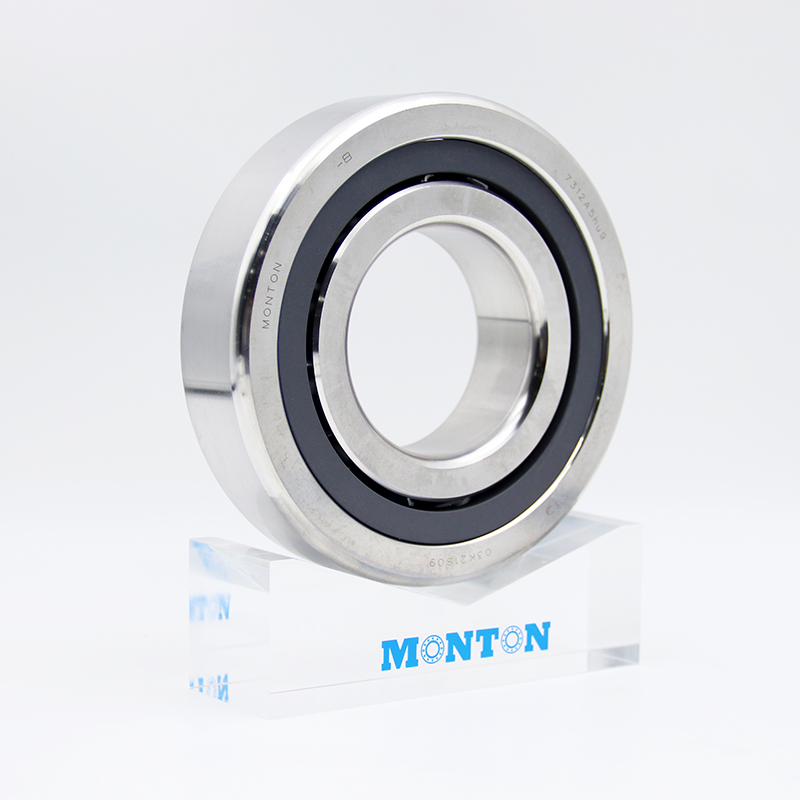

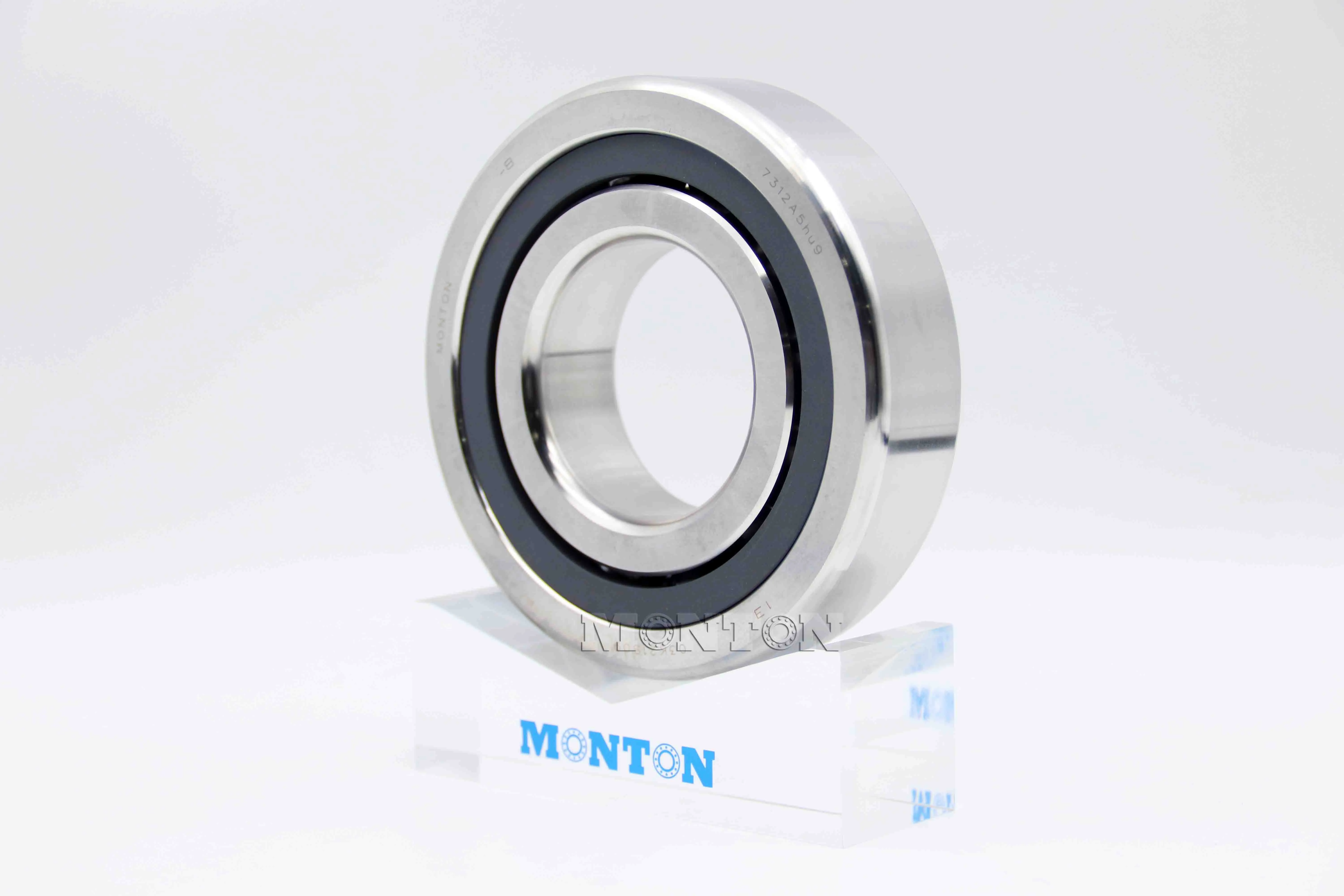

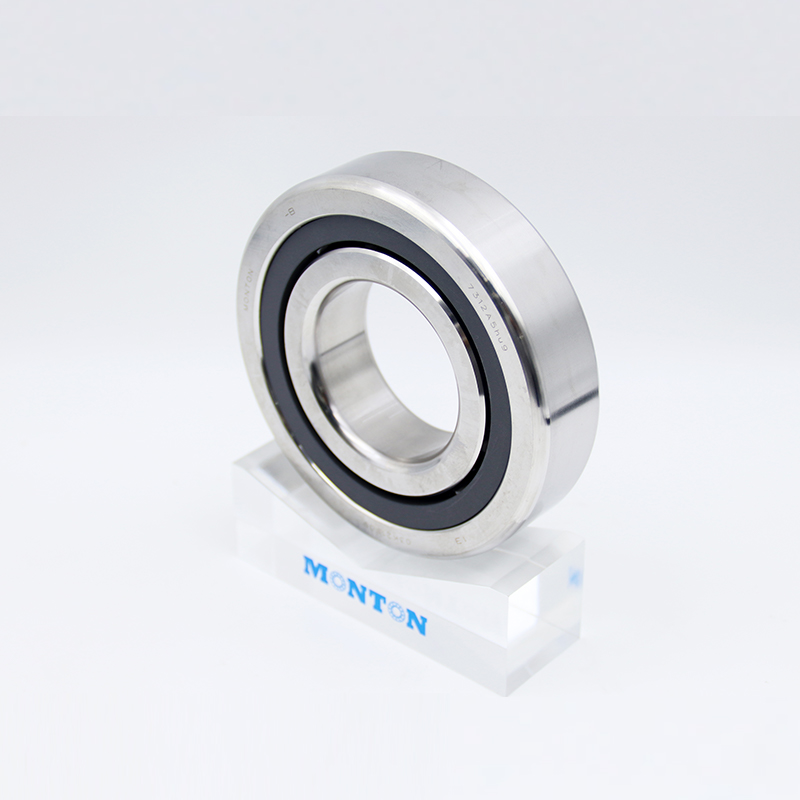

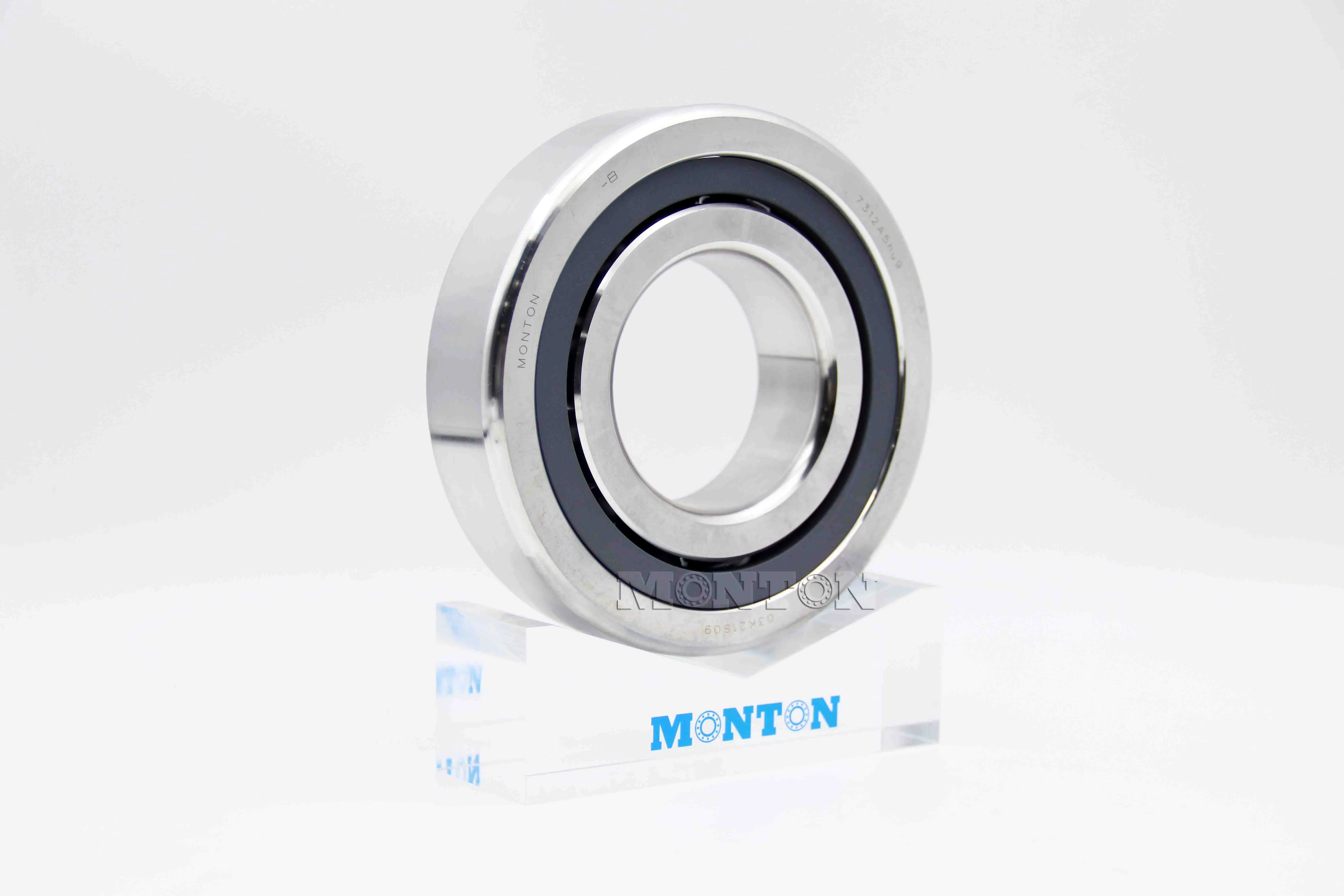

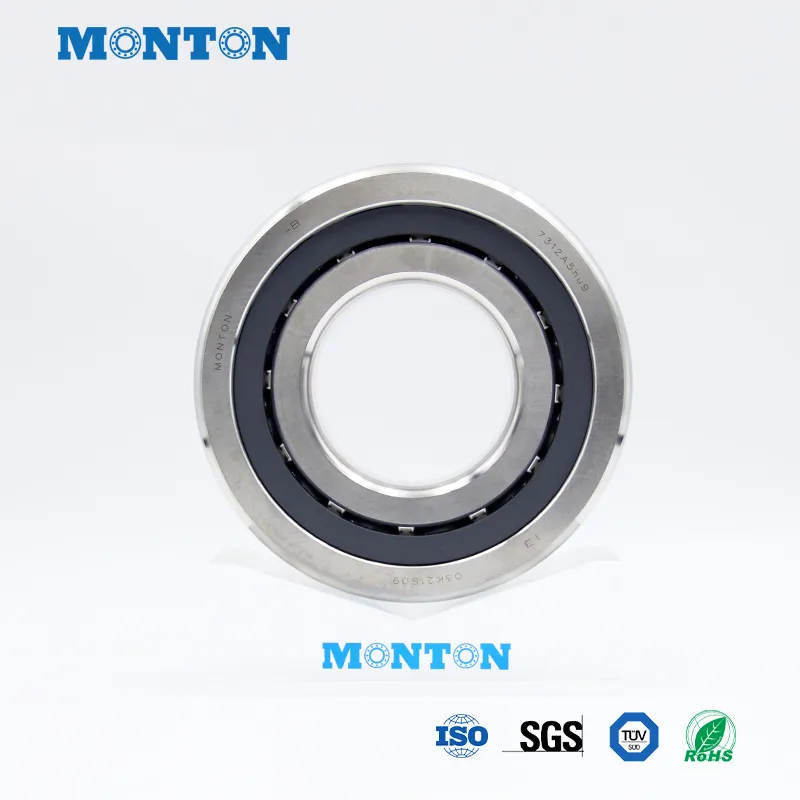

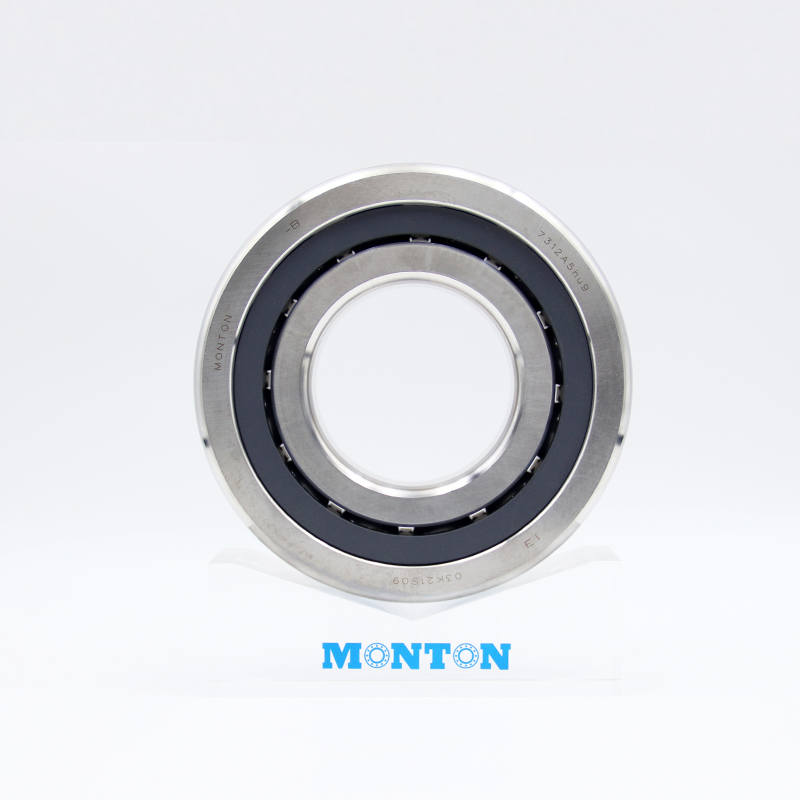

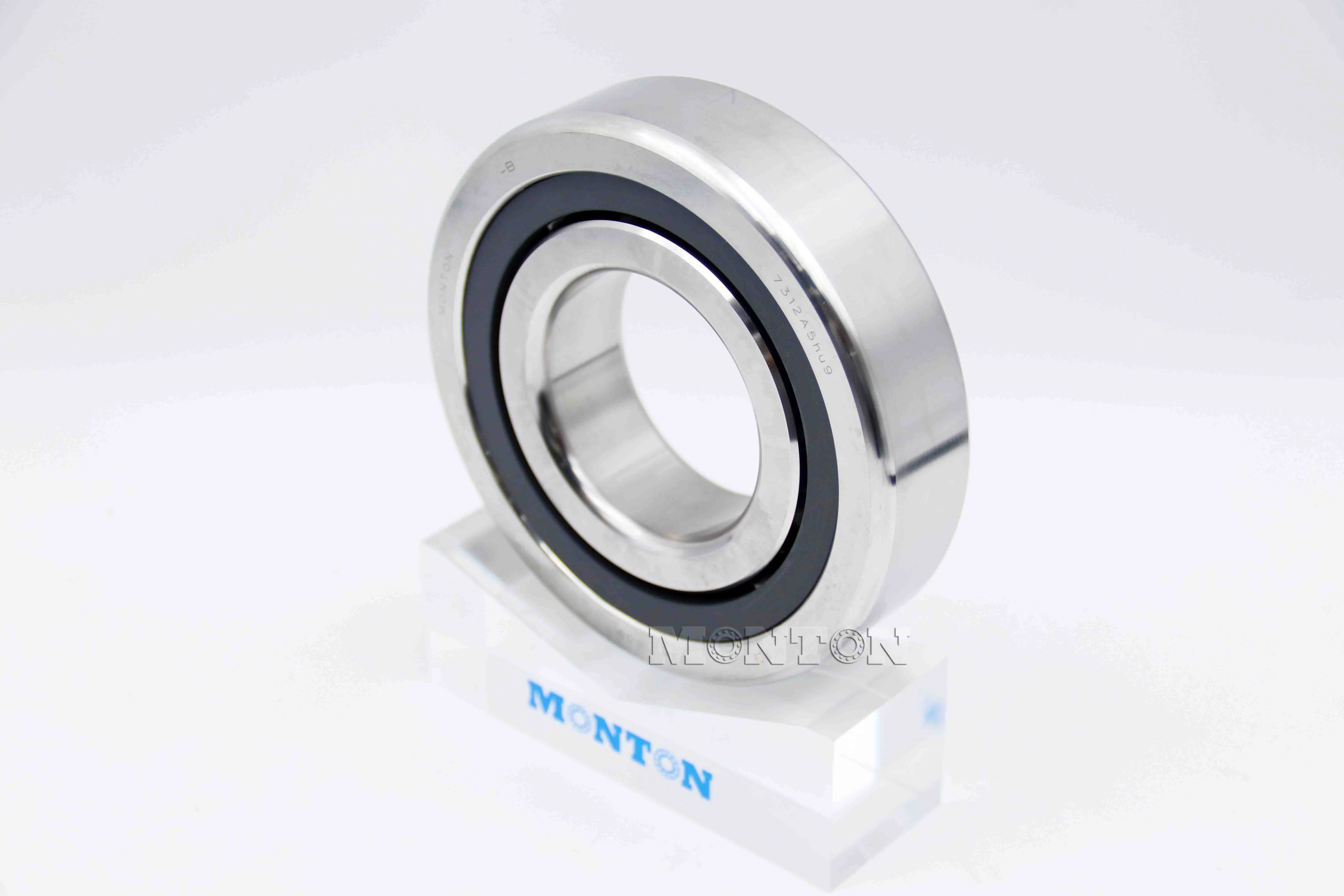

7312A5hU9 Cryogenic bearings

7311A5hU9 low temperature bearing: developed by MONTON , specifically designed for extreme low temperature conditions such as low-temperature pumps, liquefied natural gas (LNG) pumps, and spacecraft liquid fuel pumps in liquid nitrogen environments at -196 ℃. Its characteristics include: the collar is made of high nitrogen stainless steel, the rolling element is made of imported silicon nitride (Si 3 N ₄) material, and the retainer is made of low temperature resistant, self-lubricating non-metallic material with low temperature resistance, wear resistance, and corrosion resistance.

Case Details

Name	Cryogenic bearings
Series	73 series
Brand	MONTON
Model	7312A5hU9
d	60mm
D	130mm
B	31mm
Ring Material	Special steel
Cage Material	PTFE
Load rating Cr	96kN
Load rating Cor	70kN
Sealed	N/A
Weight	1.7KG
Design Structure	Angular Contact
Precision	P4
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	LNG pump Cryogenic pum LOX Turbo Pump Rocket engine Rocket cryogenic liquid pump Spacecraft liquid pump
