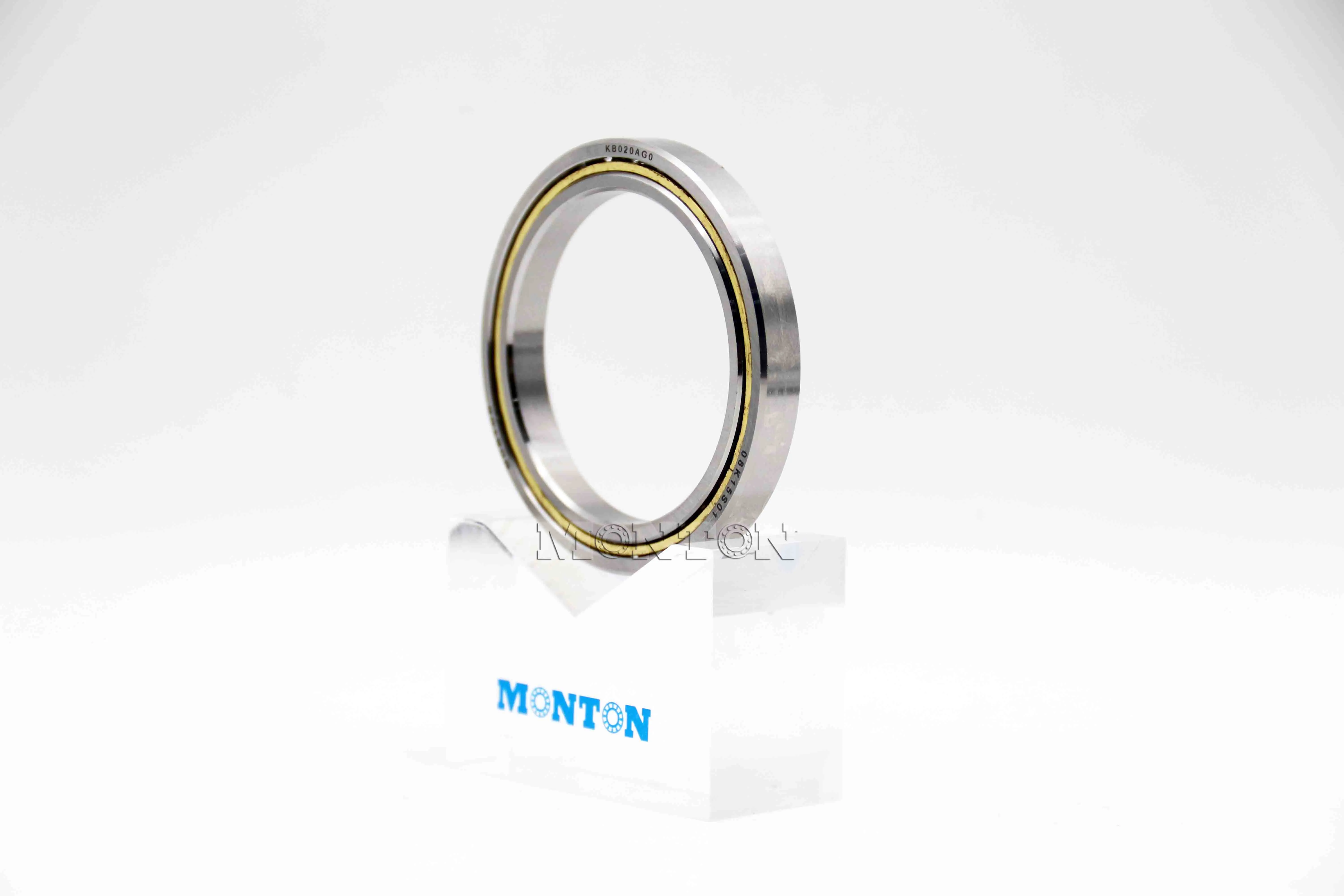

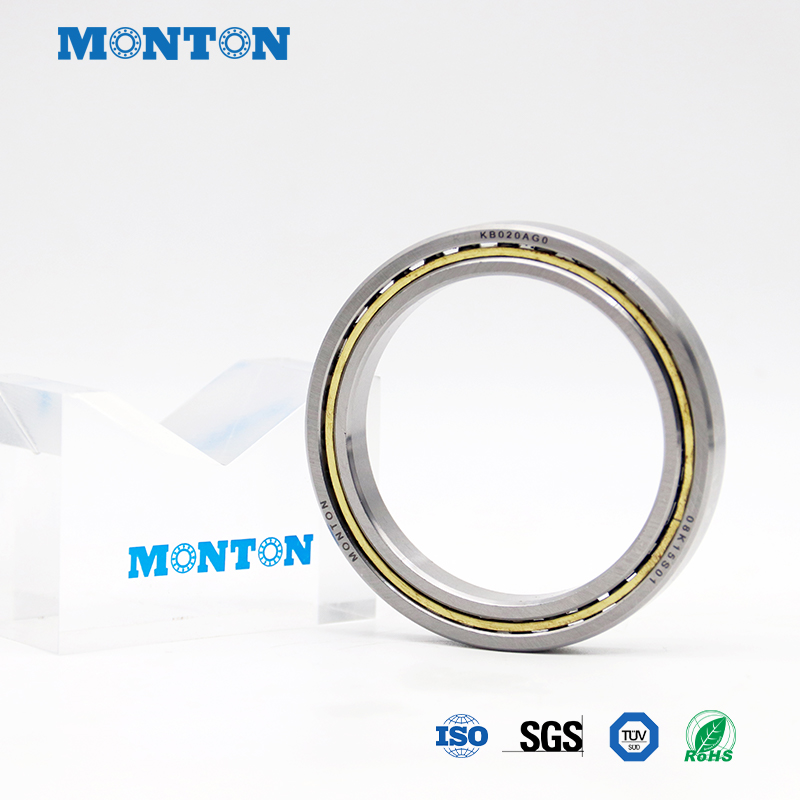

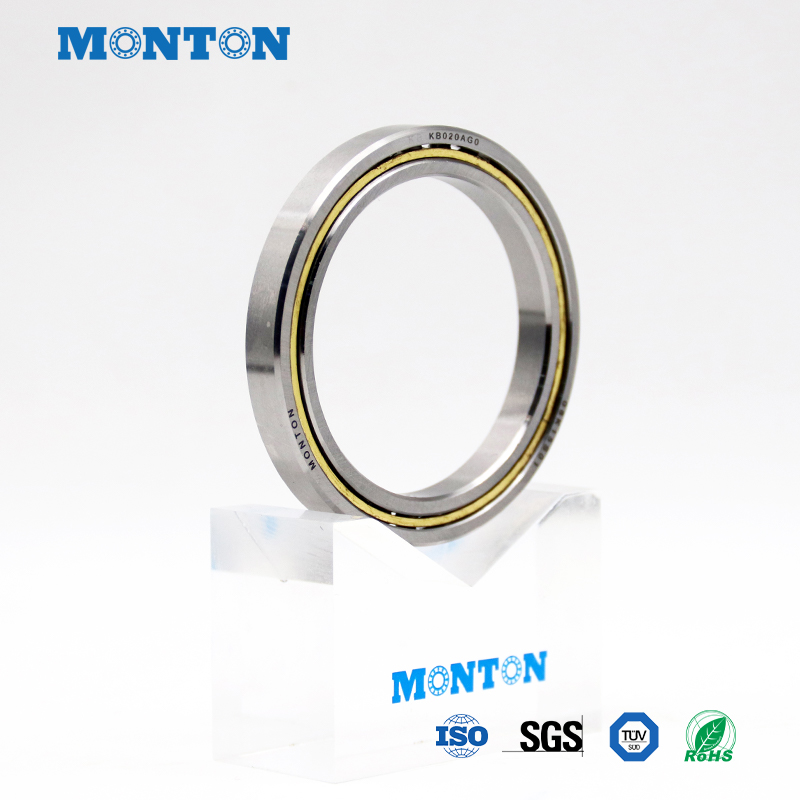

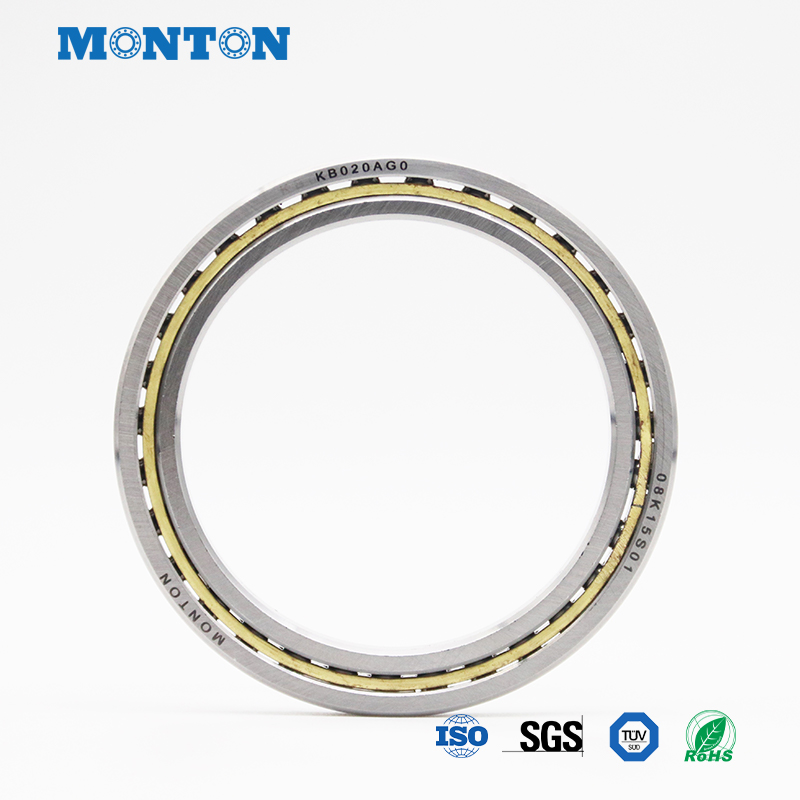

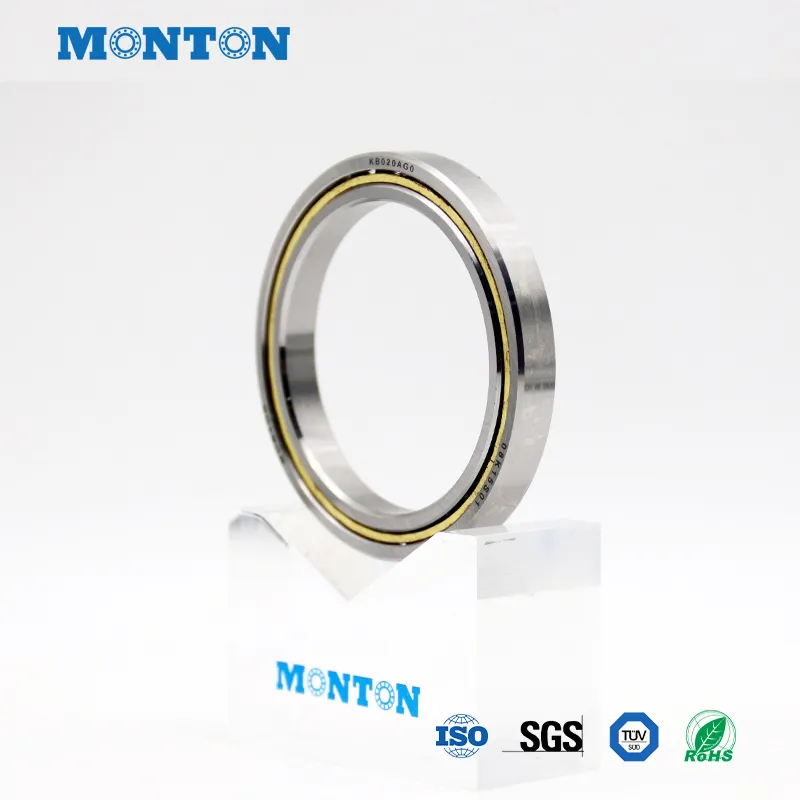

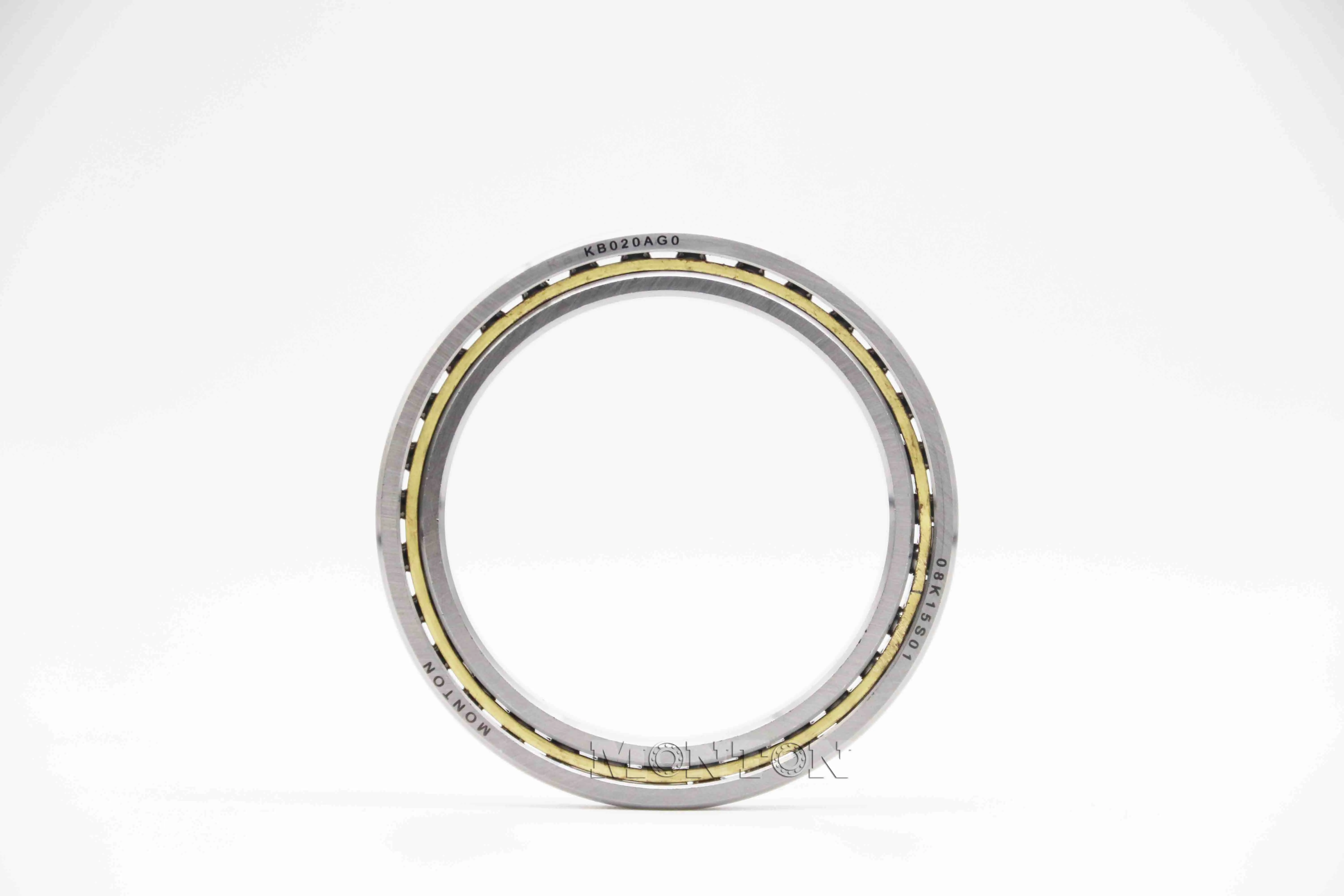

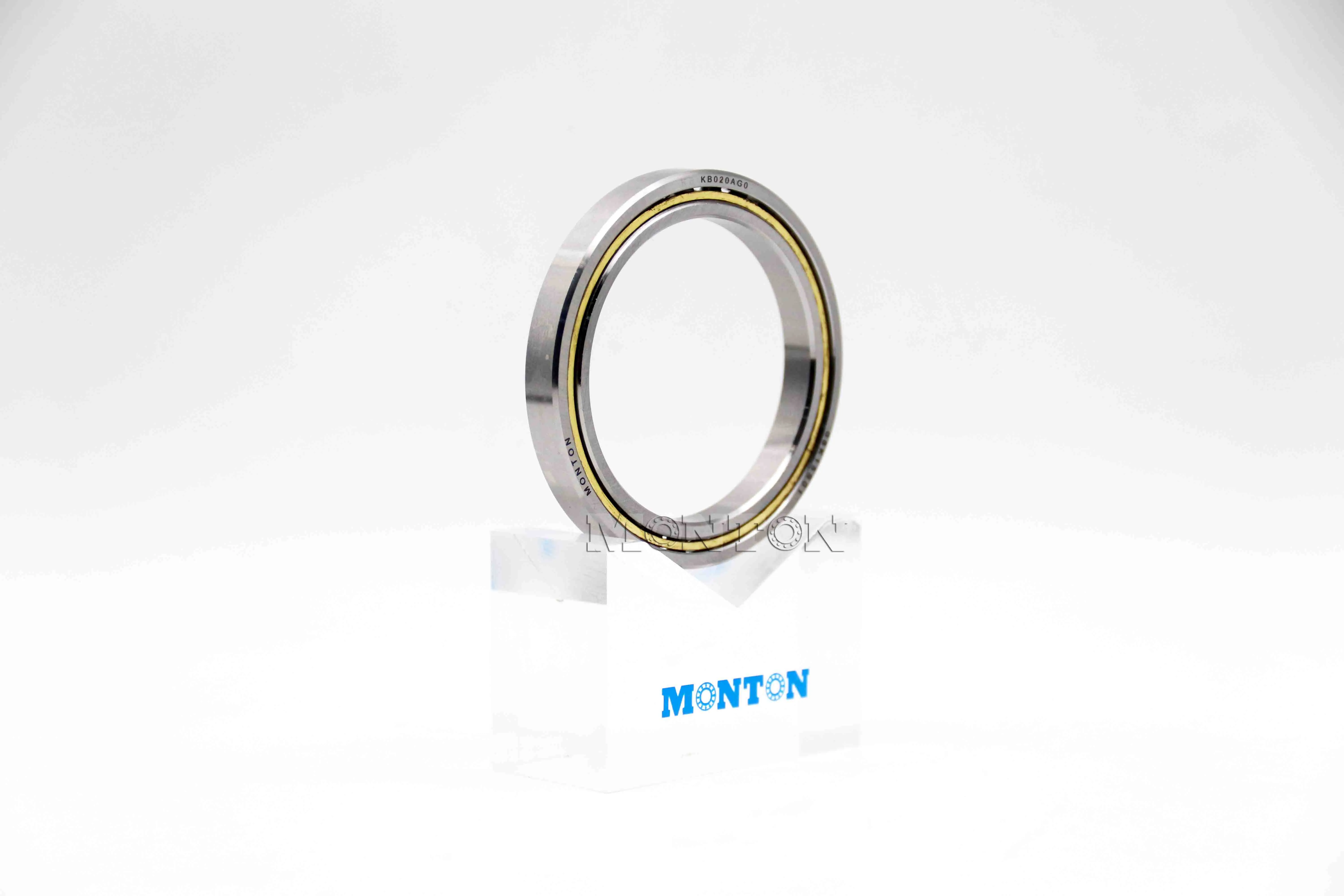

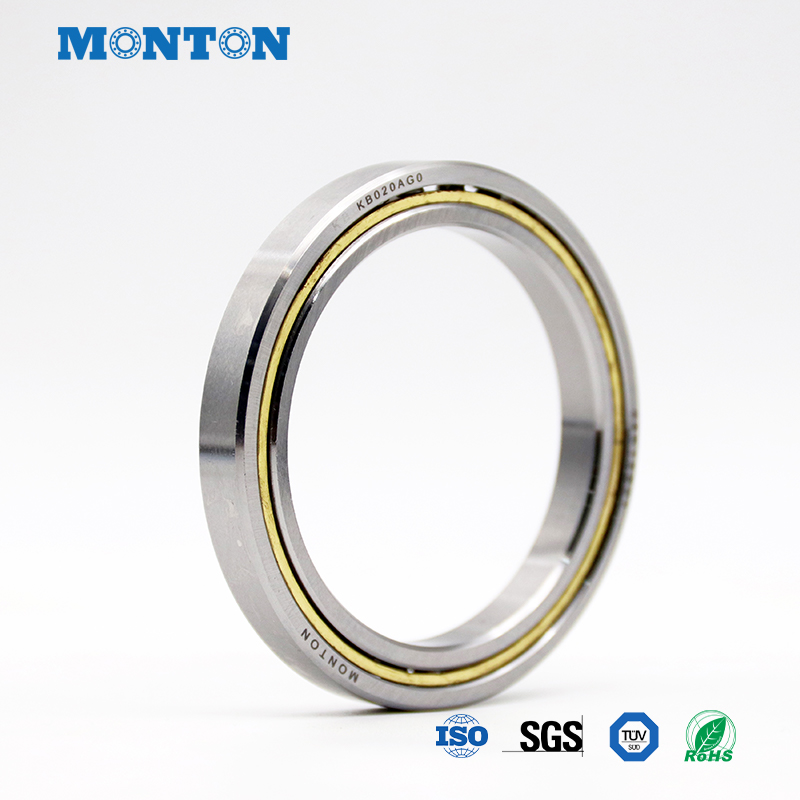

KB020AR0 Thin Section Bearings

KB020AR0 is a single-row angular contact ball bearing with a ‌circular window cage‌, which is available in brass or non-metallic composite material options. It belongs to the KB series of inch-sized thin-section precision bearings, specifically designed for space-constrained applications, achieving an excellent balance between lightweight design and high rigidity.
This is an ‌open-type non-sealed bearing‌, which adapts to user-defined independent lubrication schemes and comes with no pre-packed grease. It is widely used in scenarios with strict requirements for space, weight and rigidity, such as industrial robot joints, precision automation equipment, medical rehabilitation devices, and insulating glass production lines, and is especially suitable for the medium-sized joints of humanoid robots.

Case Details

Name	Thin Section Bearings
Series	Real-Slim series
Brand	MONTON
Model	KB020AR0
Equivalent model	L15RA200/CSEB020/NBA5007/FPAB200
d	50.8mm
D	66.675mm
B	6.35mm
Ball Quantity	31 pcs
Ring Material	Gcr15
Cage Material	brass cage
Radial Static	4,850K
Radial Dynamic	3,780N
Thrust Static	14,010KN
Thrust Dynamic	10.940N
Sealed	According to requirement
Weight	0.073KG
Design Structure	Balls
Precision	P0,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tools Robots Optical scanning and imaging equipment Food processing machinery Packaging equipment Rotating drill rig equipment Pipe inspection equipment Iron roughnecks Power swivels CT scanners Laboratory diagnostic equipment Surgical robotics Surgical chairs, tables
