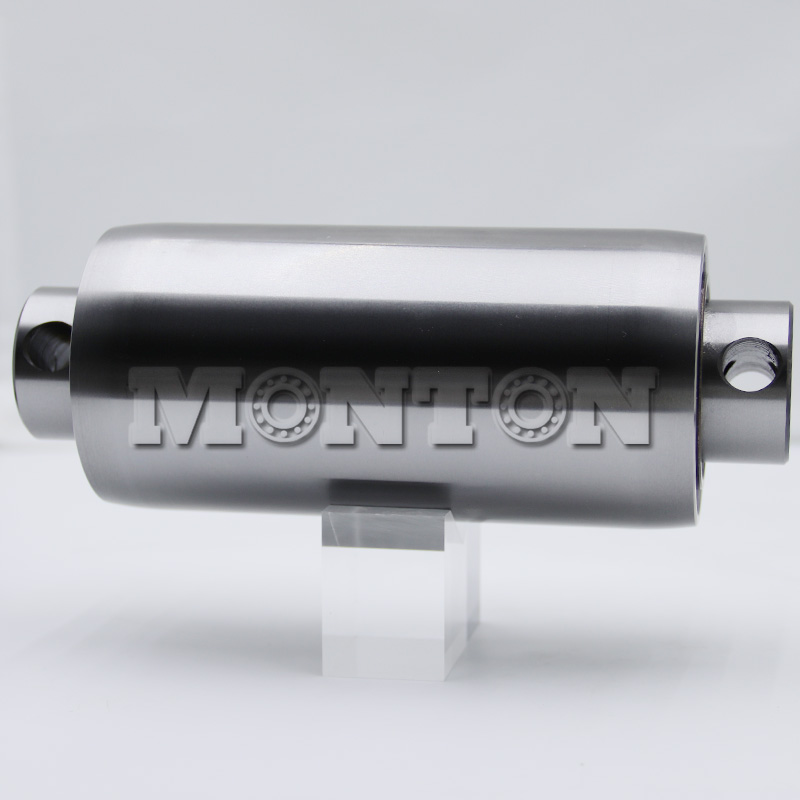

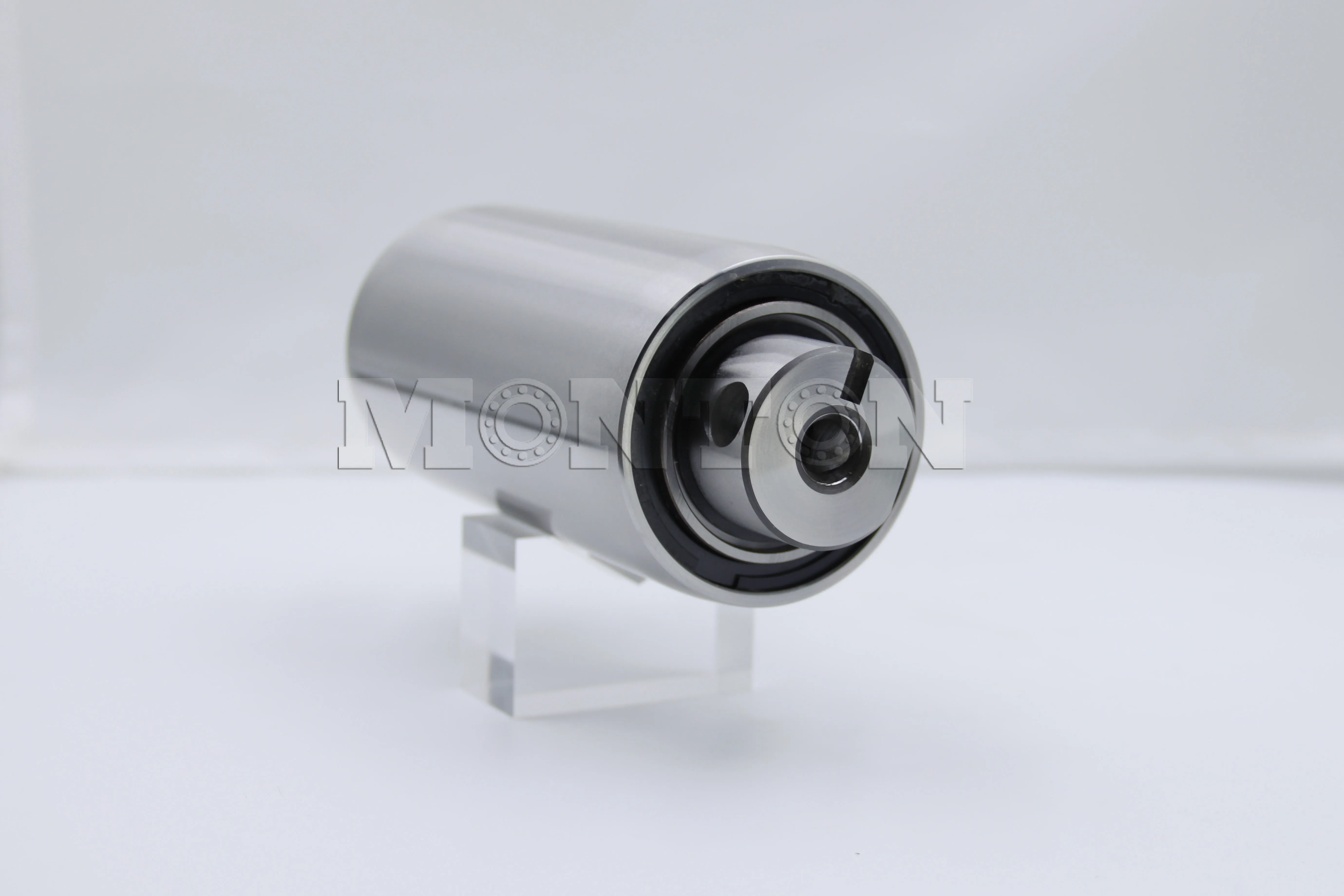

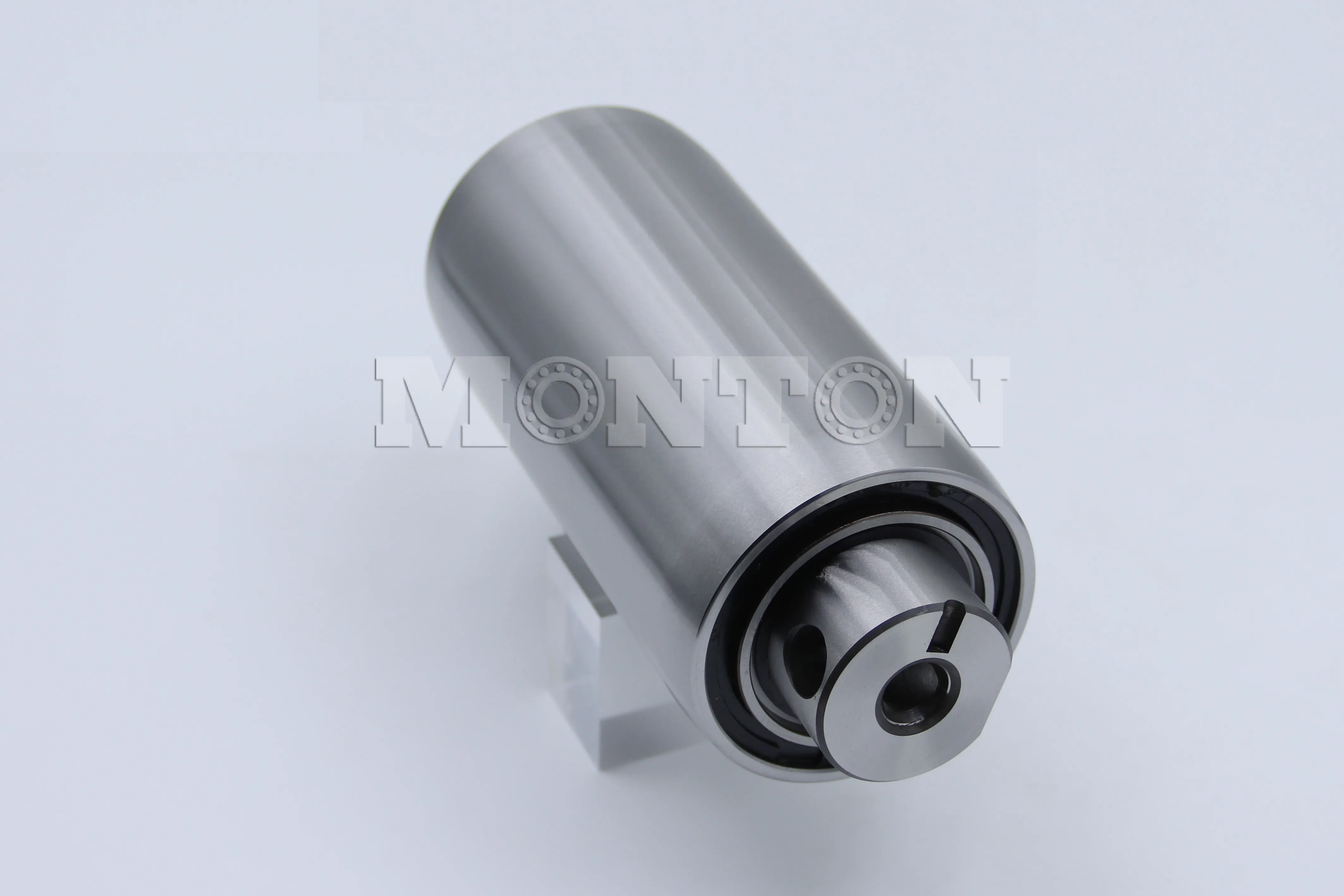

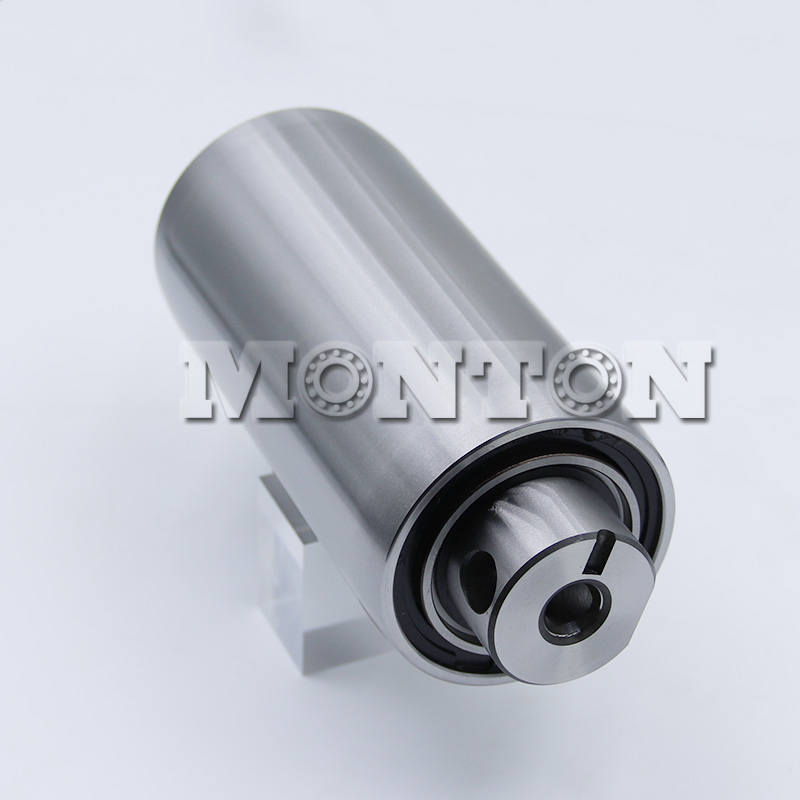

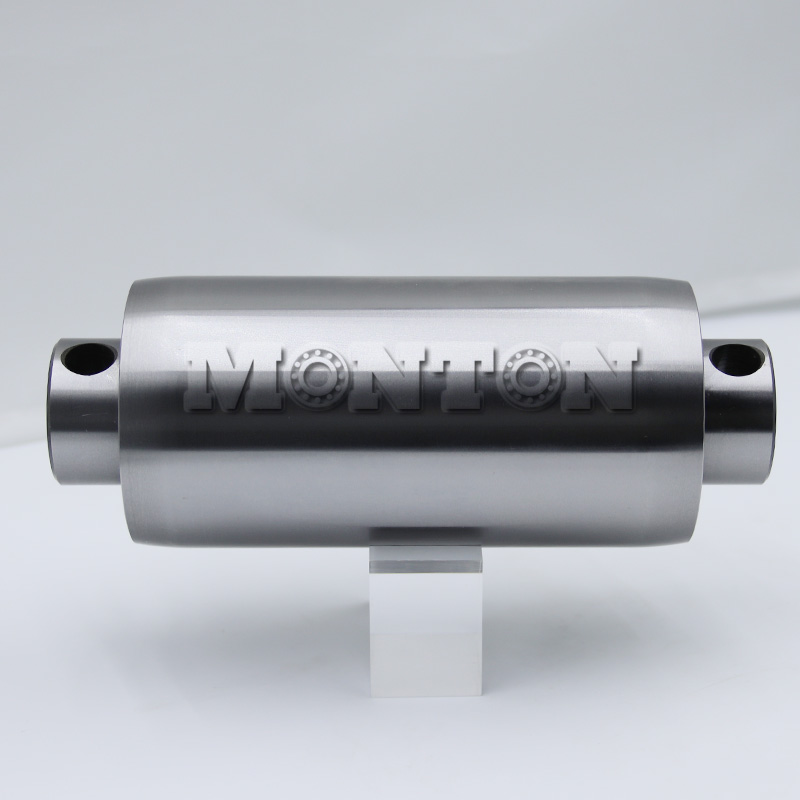

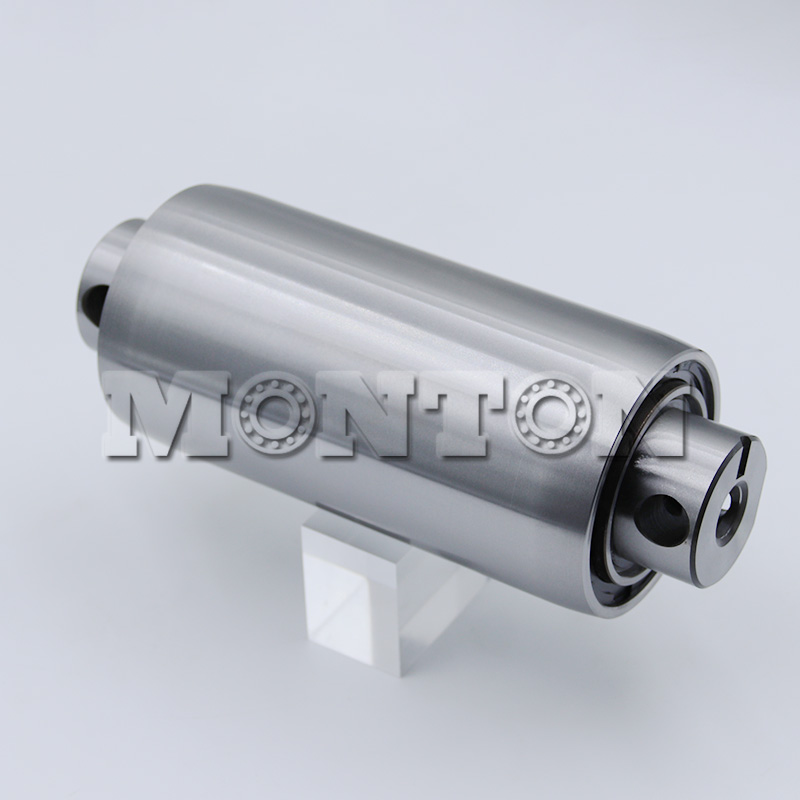

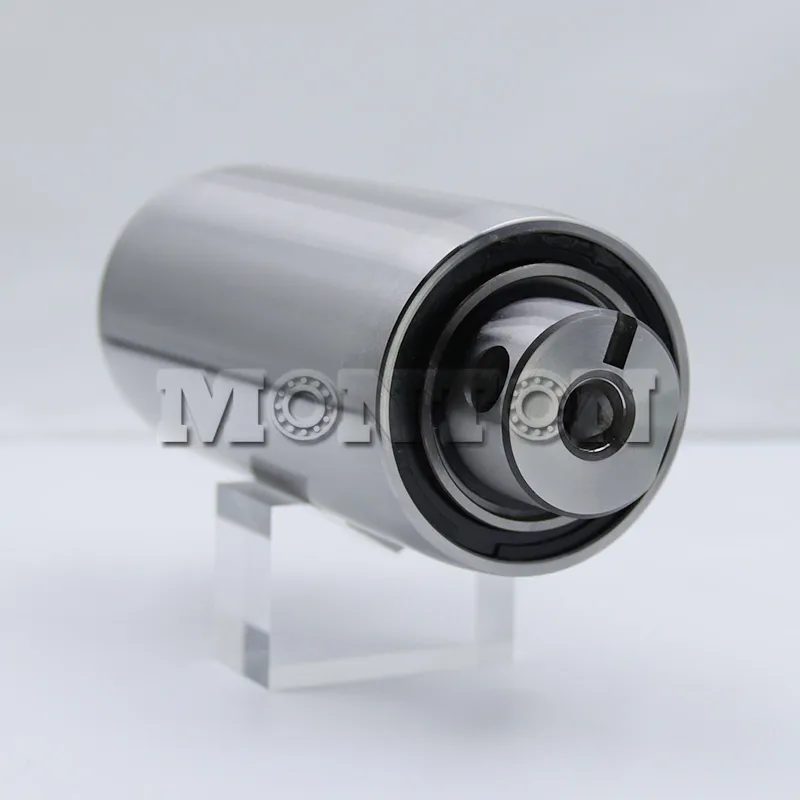

BUR74192B Back-up rollers for metal flattening machines

Straightening machine bearings are key components that ensure efficient and stable operation of straightening equipment, and are widely used in industries such as metallurgy, mechanical processing, and wire processing. Its core function is to support the straightening roller, ensuring smooth rotation of the roller shaft under high loads, strong impacts, and complex working conditions, while bearing the combined radial and axial forces.

Case Details

Name	Back-up rollers for metal flattening machines
Brand	MONTON
Model	BUR74192B
d	40mm
D	74mm
L	192mm
B	151.8mm
E	150mm
Rollers Rows	2 rows
Cw	155
Cow	205
Ring Material	Gcr15/100Cr6/100CrMo7
Weight	10KG
Design Structure	with pivot/without pivot
Precision	P4,P5 or as customer requested
Quality standard	ISO9001: 2015/SGS/TUV
Package	Wooden case
Original	Luoyang
Service	OEM
Delivery date	Accordingly to order qty
Application	metal flattening machines
Application	metal flattening machines
