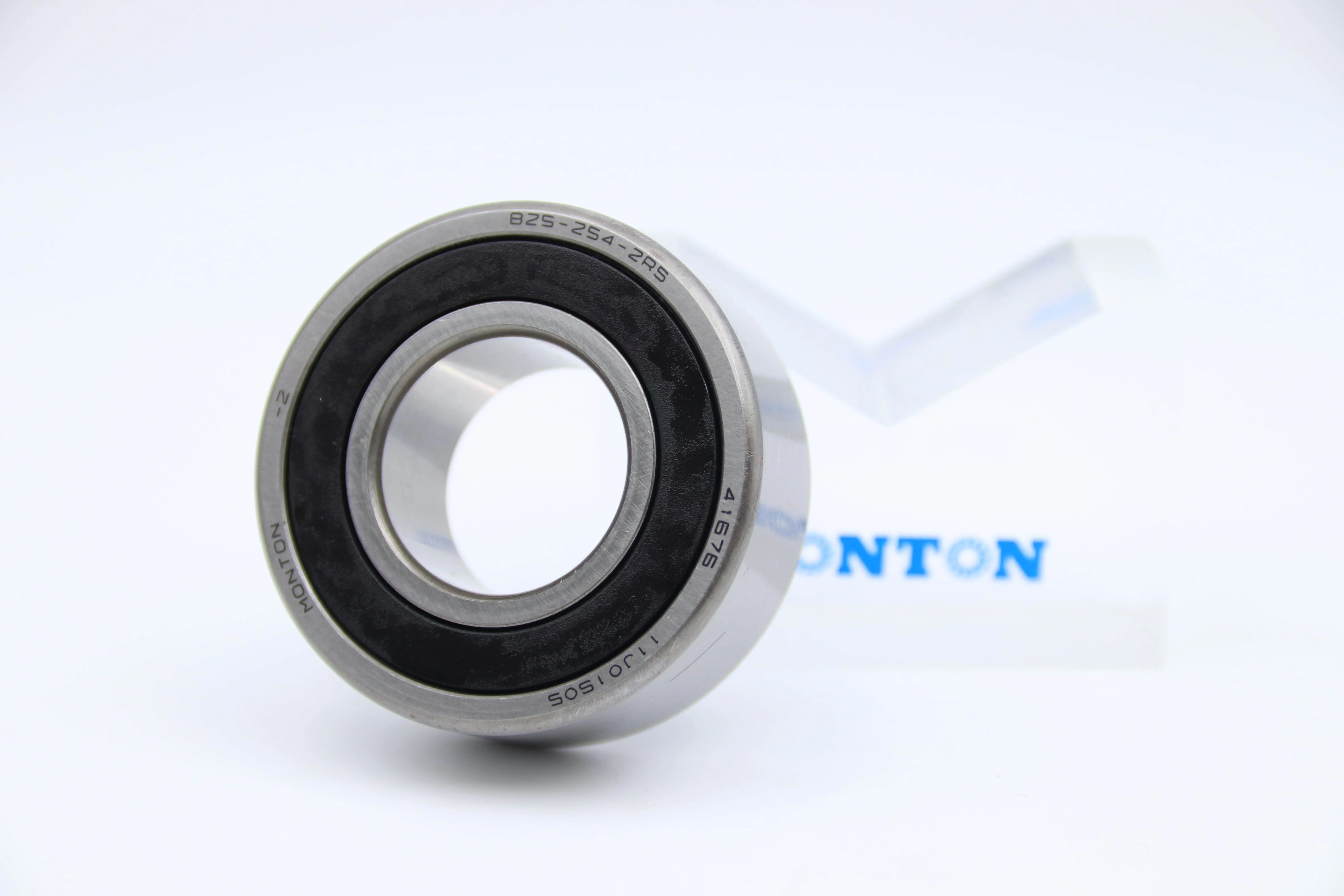

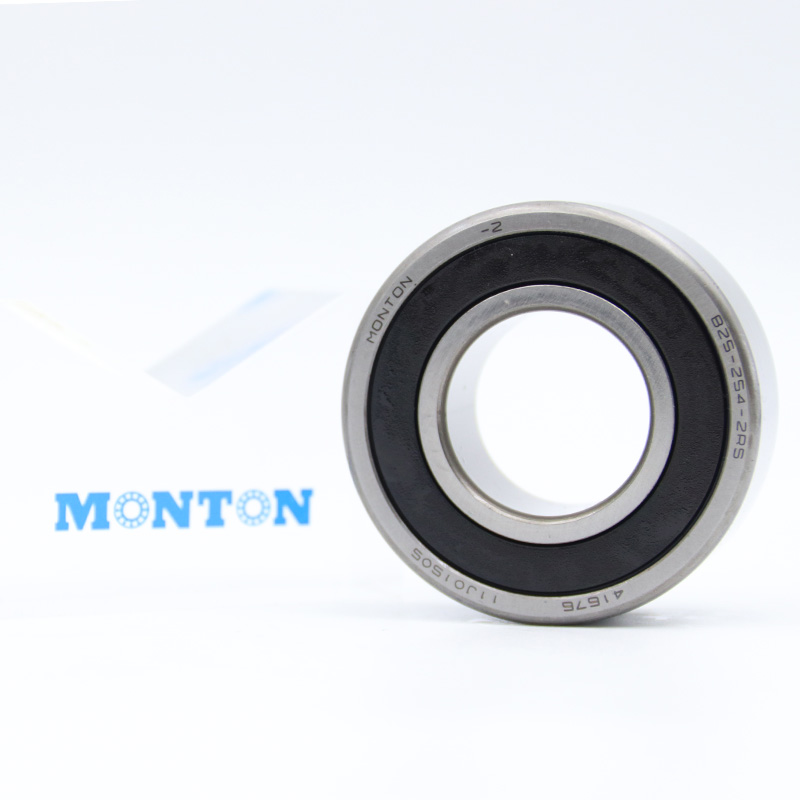

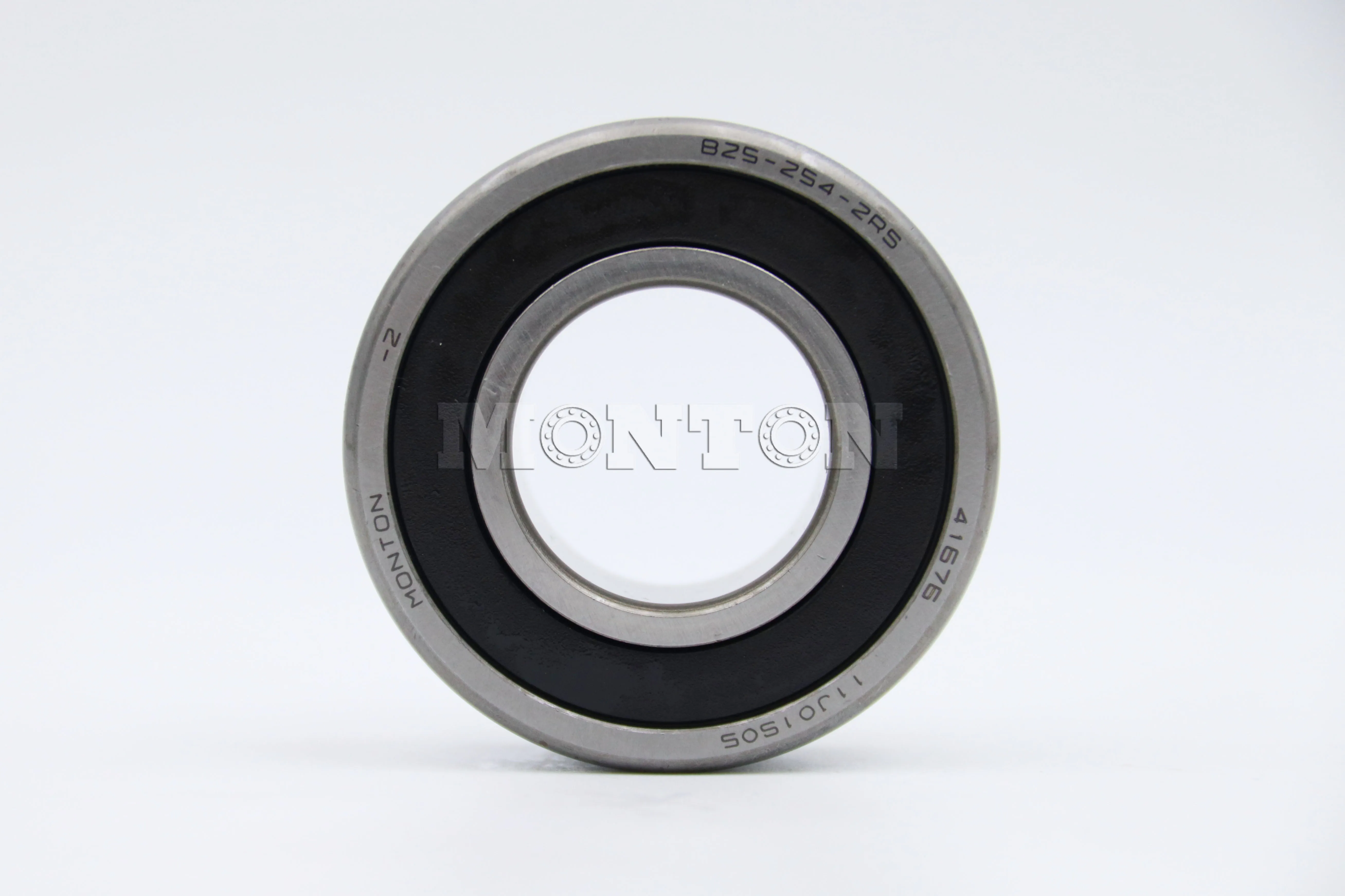

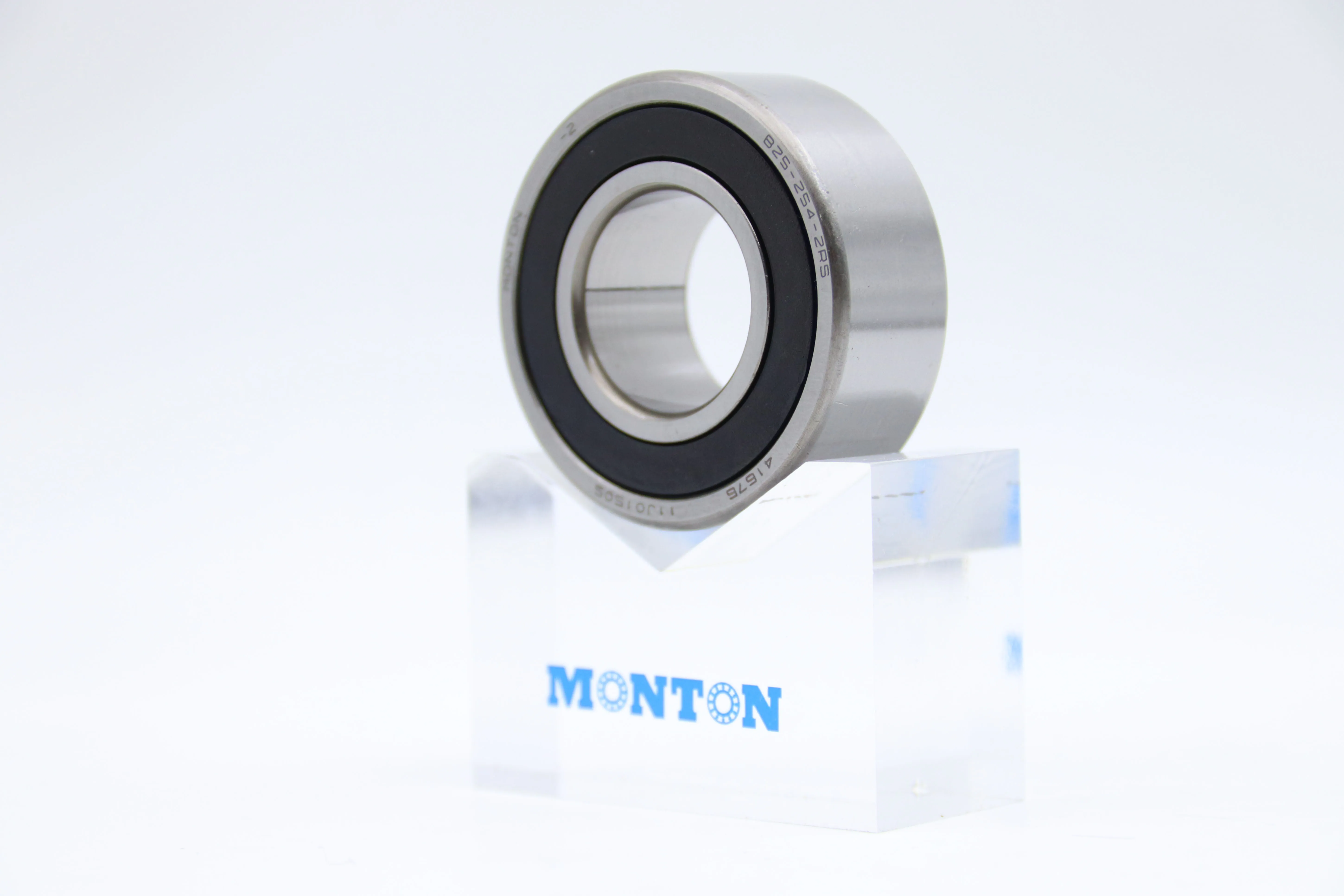

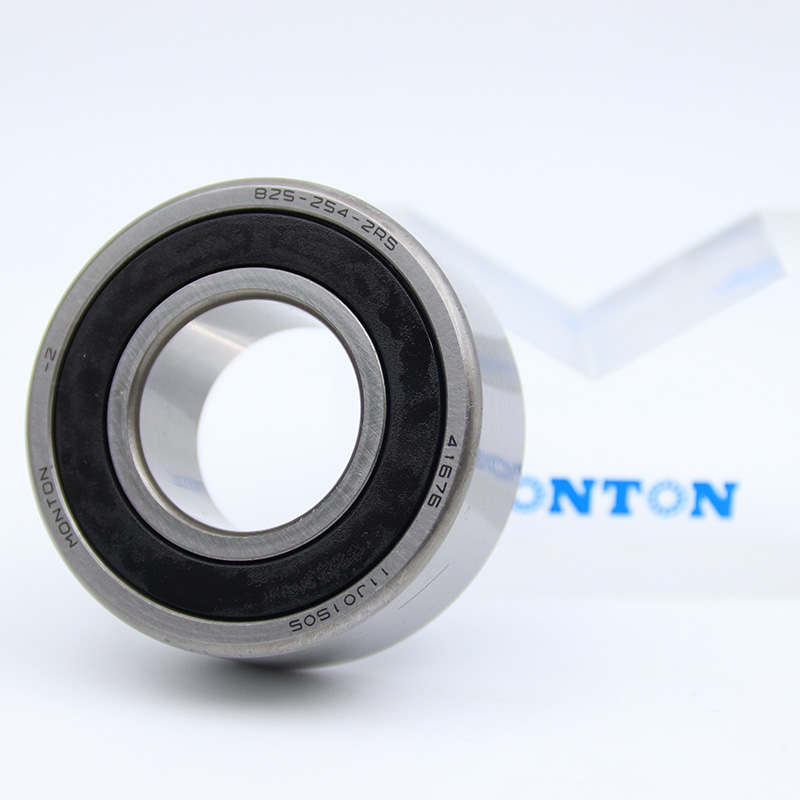

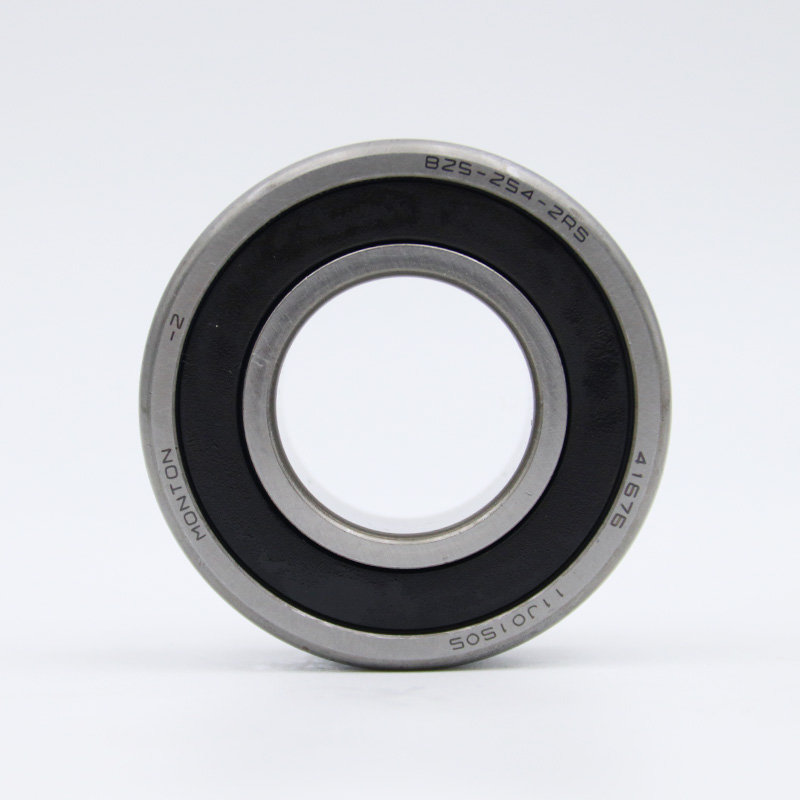

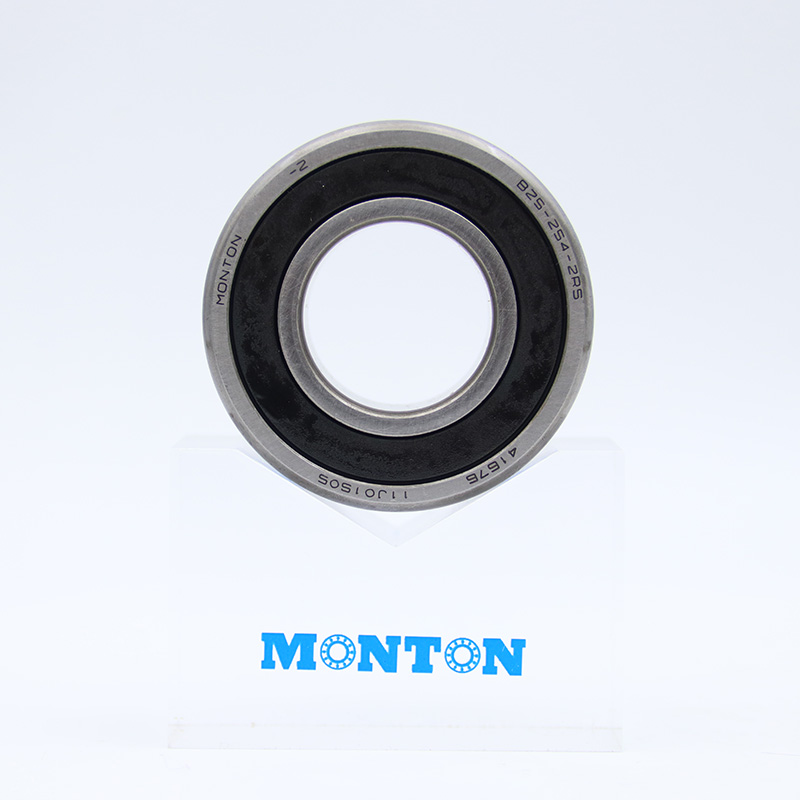

B25-254-2RS Servo motor bearing

B25-254-2RS is a key parts used for FANUC spindle motors and servo motors, characterized by the use of ceramic ball bearings to adapt to high-speed and high load working environments. Common models include B25-224, B25-254, 6205V, etc. The B25-224 bearing size is 25 × 62 × 16, suitable for Fanuc servo motors. The motor bearings produced by MONON use ceramic ball bearings, which have the characteristics of high temperature resistance, high speed (up to 24000 revolutions per minute), and long service life. Welcome to consult us.

Case Details

Name	Servo motor bearing
Brand	MONTON
Model	B25-254-2RS
Bore diameter	25mm
Outside diameter	52mm
B(width)	20.5mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Balls	Ceramic Ball
Basic dynamic load rating Cr	14KN
Basic static load rating Cor	7.87KN
Clearance	0.035-0.045
Sealed	Two seals
Row	Single row
Weight	0.4KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Automotive FANUC Servo motor Domestic Appliances Electric Motors Machine Tools Material Handling
