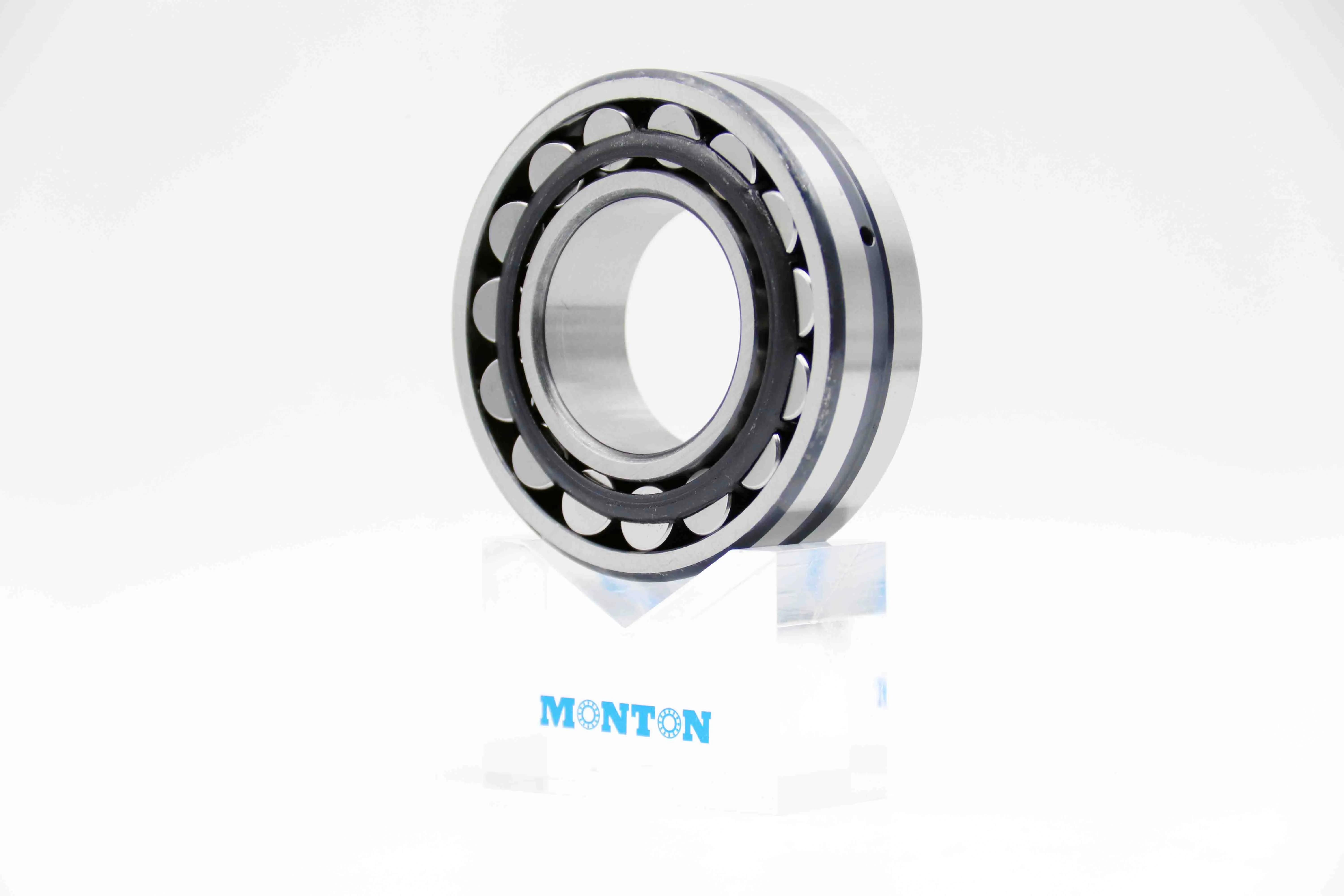

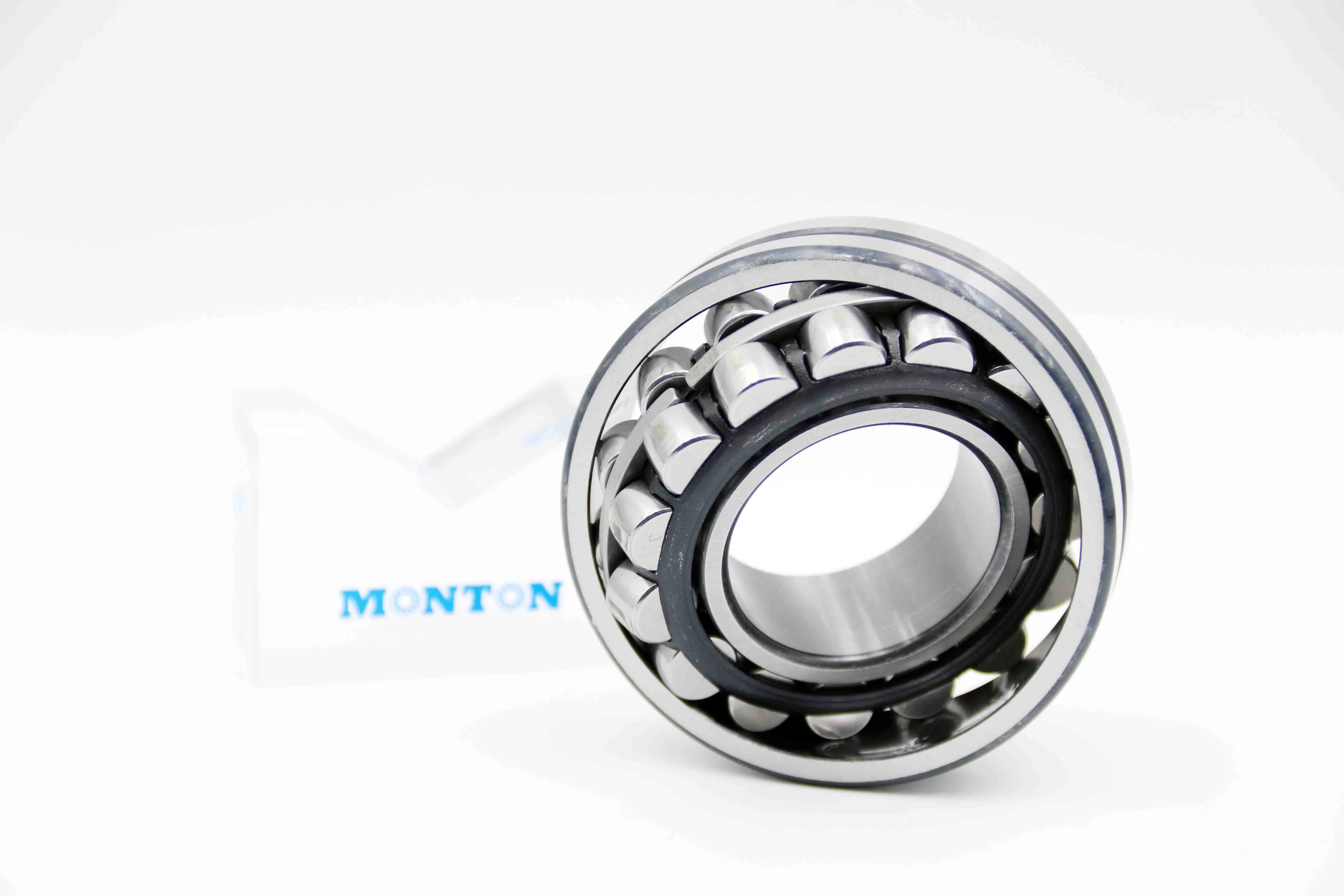

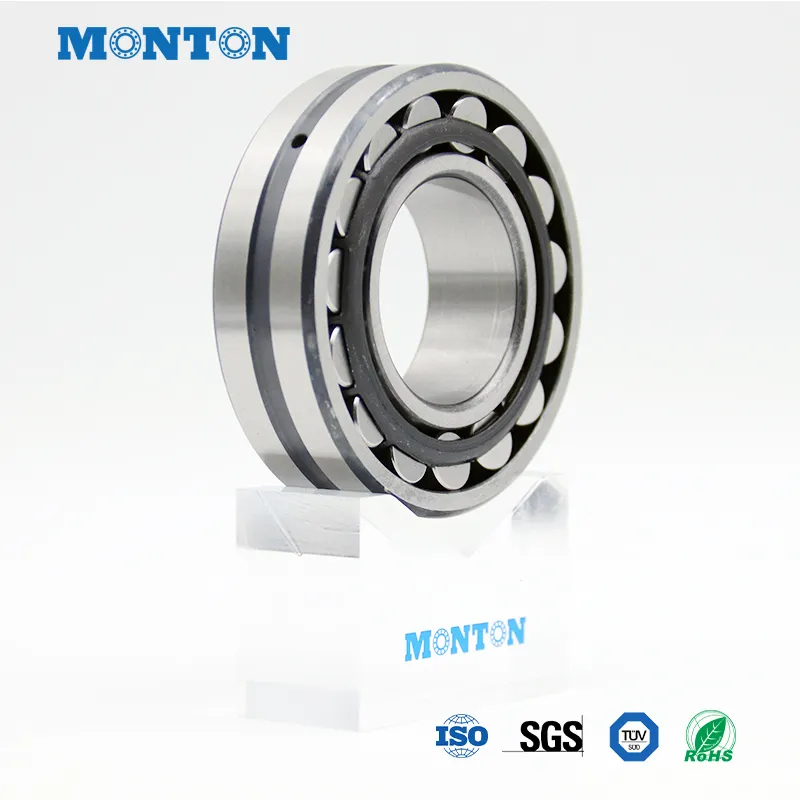

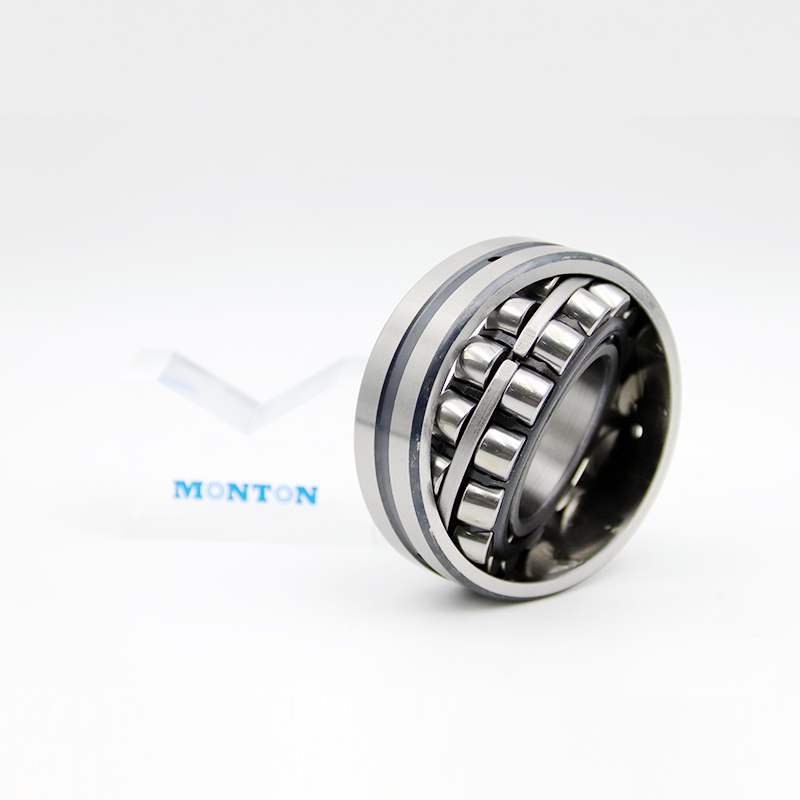

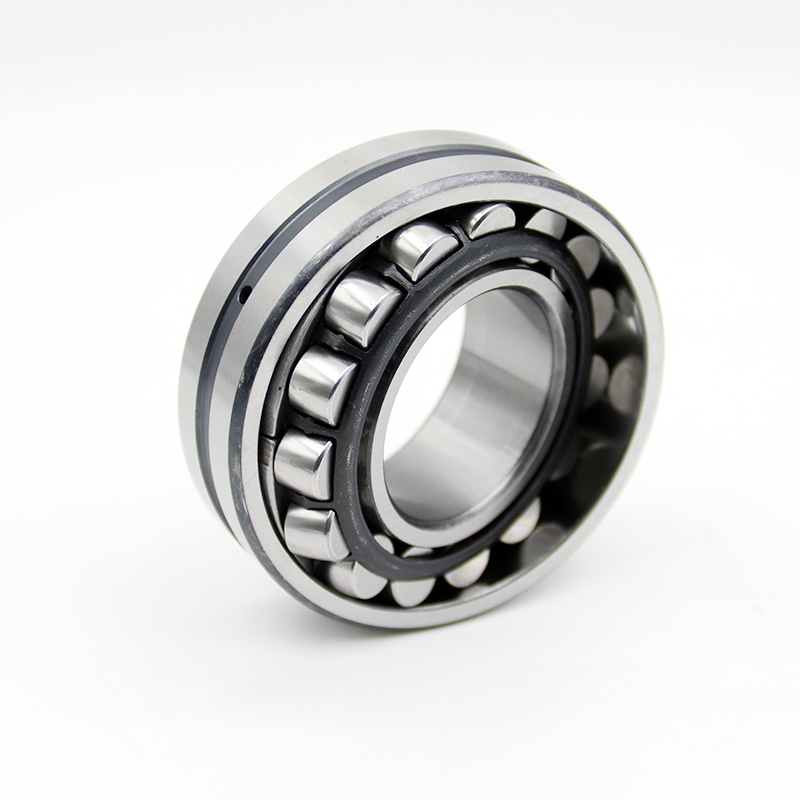

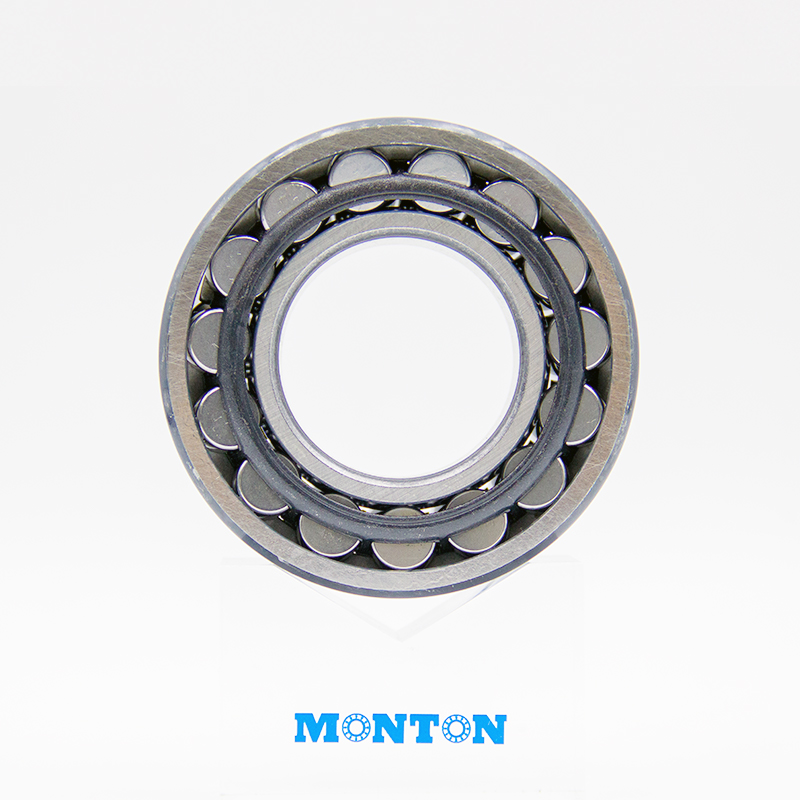

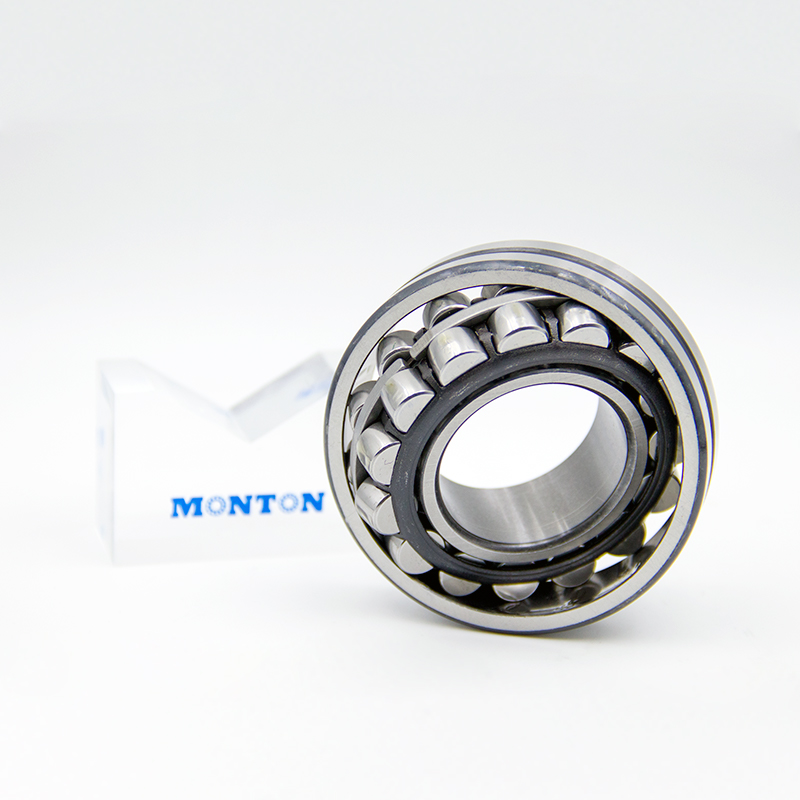

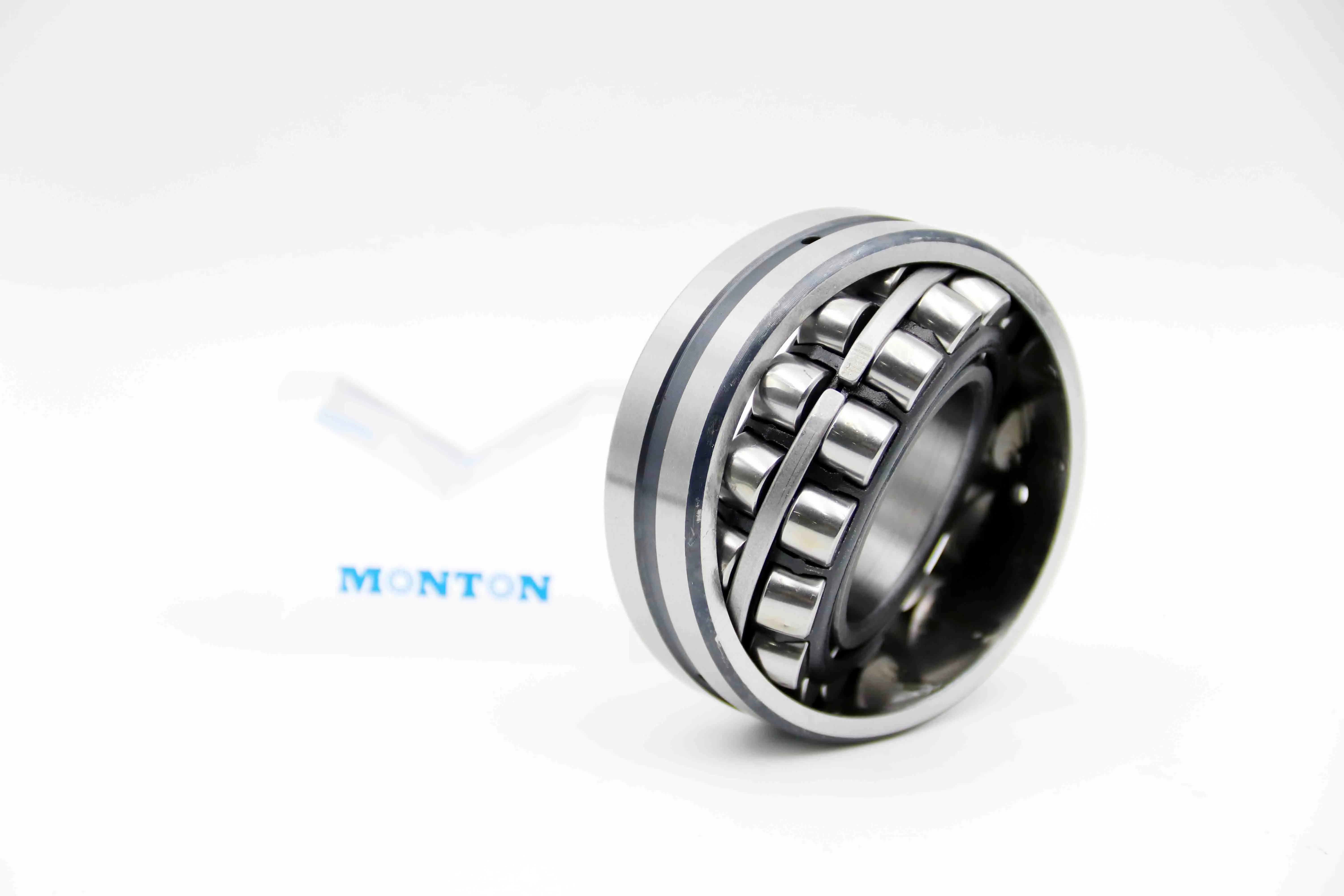

Spherical Roller Bearing 22208 E

22208 Spherical Roller Bearing is a high-performance bearing widely used in high load and shaft deflection conditions such as mining, metallurgy, and heavy machinery. It has automatic centering function, which can effectively compensate for installation errors or deformations of the shaft, and is suitable for equipment that can withstand heavy radial loads and certain axial loads. Different suffixes represent different designs, such as "K" for conical holes, "W33" for oil holes with oil grooves, and "C3" for increased clearance. When selecting, it is necessary to match the actual working conditions. E-type optimized design, with a higher maximum speed, and its reinforced structure and lubrication design are more impact resistant.

Case Details

Name	Spherical Roller Bearing
Seires	222 Series
Brand	MONTON
Model	22208 E
Sealing	BS2-2208-2RS/VT143
d	40mm
D	80mm
B	23mm
Ring Material	Gcr15
Pu	9.8kN
Load rating Cr	98.5kN
Load rating Cor	90kN
load limit, radial Cur	11 000 r/min
Weight	0.53KG
Precision	P5
Clearance	C0, C2, C3
Quality standard	ISO9001: 2015/SGS RoHS ect.
Package	single box
Original	Luoyang
Delivery date	Accordingly
Application	Mining and Metallurgical Industry Paper and Printing Machinery Railway transportation equipment Wind power generation equipment Construction and Engineering Machinery
